Exterior/inner trim board--Left lower fender of automobile body

Change

Hint:

When assembling, please work by the sequence which is opposite with disassembling sequence;

if necessary, it will have assembling instruction..

Changing procedure for right side is same as the left side.

Please refer to the subassembly figure of body left lower fender on page 388.

 389

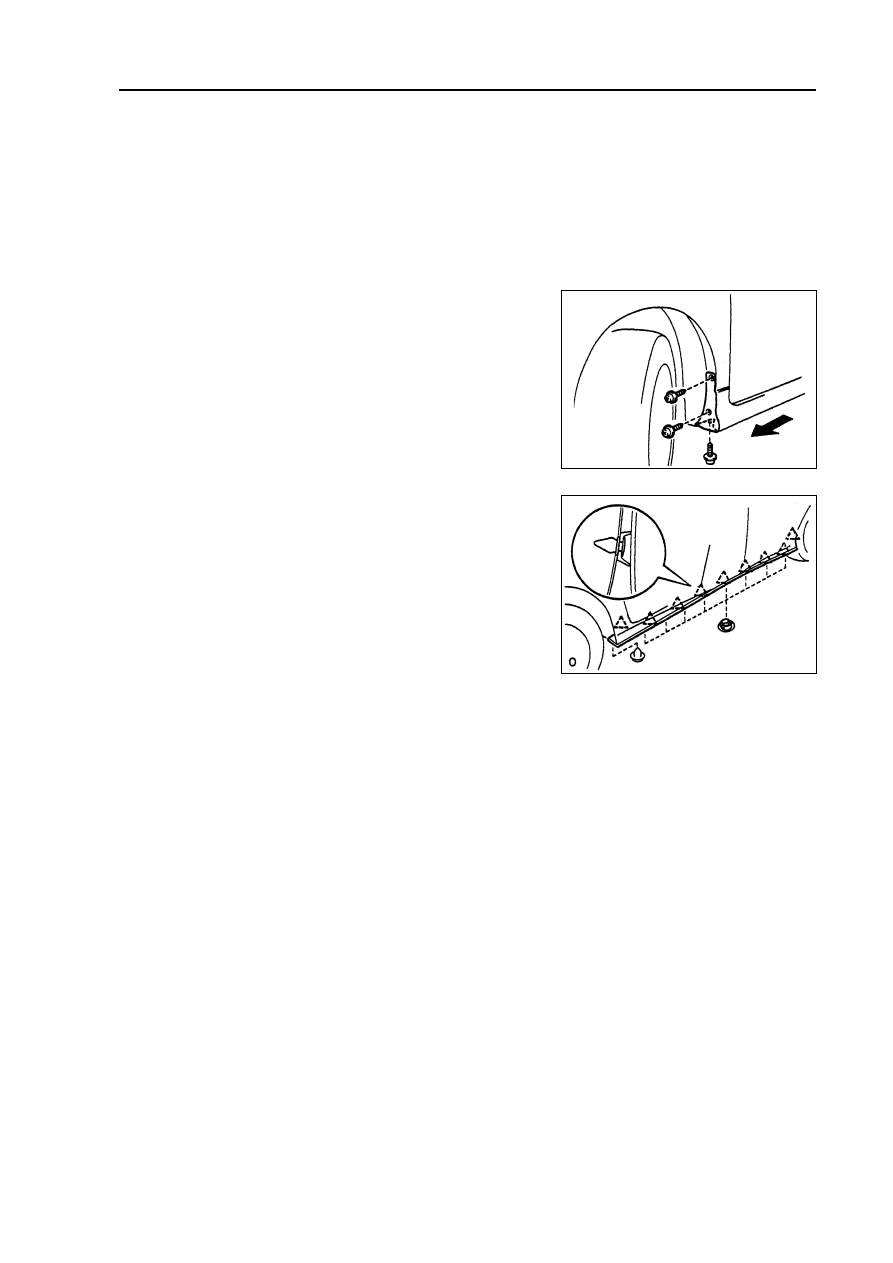

1. Disassemble mudguard of left front wheel [68000221]

(a) Disassemble three screws and mudguard of left front wheel.

2. Disassemble body left lower fender [68000049]

(a) Use disassembling tool for fixing clamp to disassemble eight

fixing clamps.

(b) Disassemble the screw.

(c) Use disassembling tool for trim tape to disassemble body

left lower fender.

Inner trim board of top

Change

Hint:

z

When assembling, please work by the sequence which is opposite with disassembling
sequence; if necessary, it will have assembling instruction.

z

Changing procedure for right side is same as the left side.

1. Disassemble trim board of right front door pedal [68010021]

Fixing
clamp

Exterior/inner trim board--Inner trim board of top

 390

(a) Use screw driver to disassemble trim board of right front

door pedal.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.

(b) Use same method to disassemble the trim board at the

other side.

2. Disassemble stop trim board of left front door

[68010020]

3. Disassemble stop trim board of right rear door

[68010024]

(a) Use screw driver to disassemble trim board of right rear door

pedal.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.

(b) Use same method to disassemble the trim board at the

other side.

4. Disassemble trim board of left rear door pedal

[68010022]

5. Disassemble lower inner trim board at the front of

right fender [68010016]

(a) Disassemble fixing clamp.
(b) Use screw driver to disassemble right trim board.

Hint: before using screw driver, its needled top should
be twisted by adhesive tape.

(C) Use same method to disassemble the trim board at the

other side.

6. Disassemble lower inner trim board at the front of

left fender [68010015]

7. Disassemble inner fender assembly of right front door [68010050]
8. Disassemble inner fender assembly of left front door  [68010049]
9. Disassemble inner trim board assembly of right rear

door [68010058]

10. Disassemble inner trim board assembly of left rear

door [68010057]

11.Disassemble lower inner trim board assemblyco

(a) Pull out lower inner trim board assembly of right stand pole

to disassemble it.

(b) Use same method to disassemble the trim board at the

other side.

12. Disassemble lower inner trim board assembly of

Exterior/inner trim board--Inner trim board of top

left pillar [68010018]

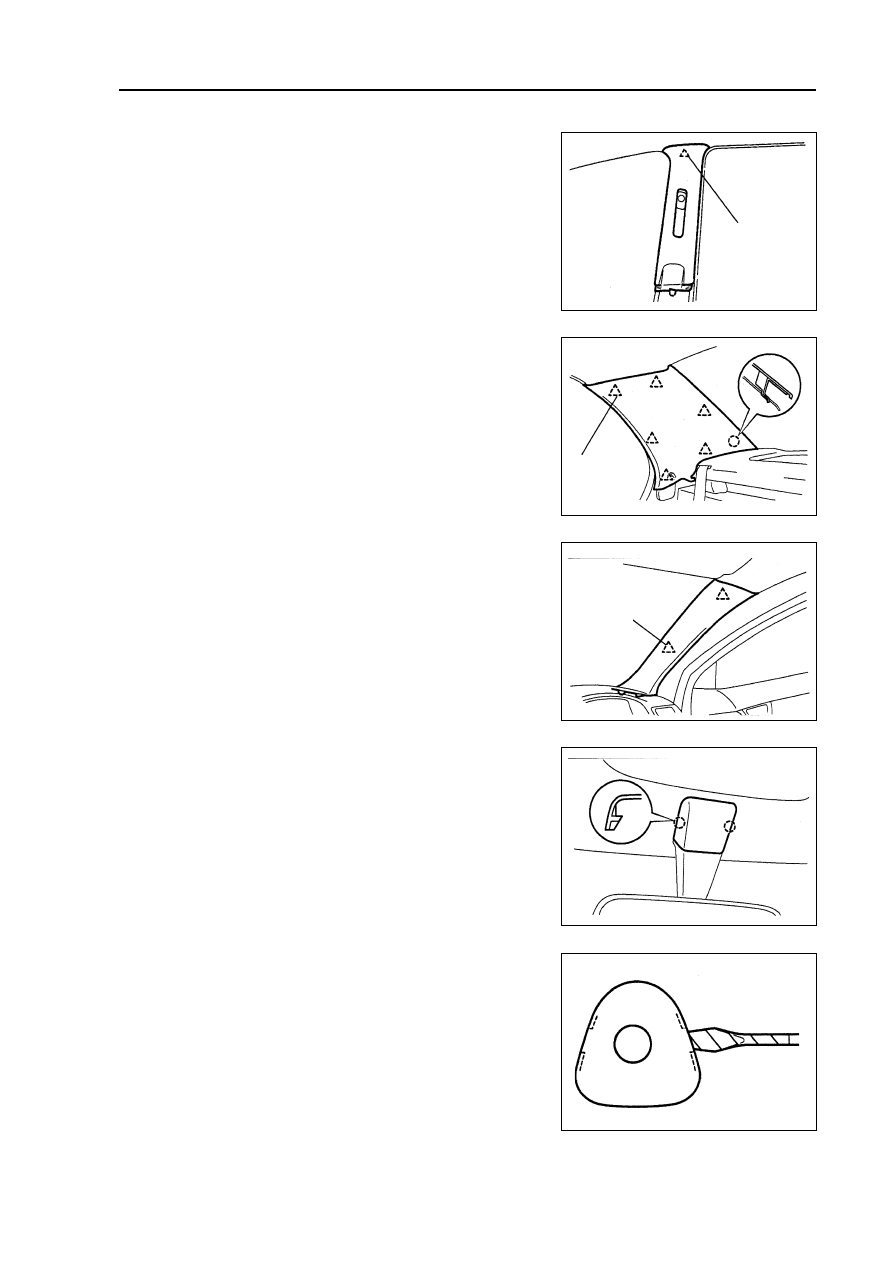

13. Disassemble upper inner trim board assembly of

right pillar [68010025]

(a) Disassemble the bolt and upper fixing bolt trim cover of front

safety belt.

(b) Use screw driver to disassemble upper inner trim board of

right stand pole.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.

(C) Use same method to disassemble the trim board at the

other side.

14. Disassemble upper inner trim board assembly of

left pillar [68010023]

15. Disassemble rear row chair cushion (referring to

page 352).

16. Disassemble rear row chair backrest (fixing type)

(referring to page 354).

17. Disassemble rear row chair right backrest assem-

bly (referring to page 352).

18. Disassemble rear row chair left backrest assembly

(referring to page 352).

19. Disassemble inner trim board of right rear pillar

assembly [68010027]

(a) Use screw driver to disassemble inner trim board of right

rear pillar assembly.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.

(b) Use same method to disassemble the trim board at the

other side.

20. Disassemble inner trim board of left rear pillar as-

sembly [68010026]

21. Disassemble inner trim board of right front pillar

assembly [68010017]

(a) Use screw driver to disassemble inner trim board of right

front pillar assembly.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.

(b) Use same method to disassemble the trim board at the

other side.

22. Disassemble inner trim board of left front pillar as-

sembly [68010014]

23. Disassemble inner rear view mirror assembly [67010013]

(a) Use screw driver to disassemble trim cover of inner rearview

mirror pedestal.
Hint: before using screw driver, its needled top should

be twisted by adhesive tape.

(b) Disassemble two screws and inner rearview mirror assembly.

Fixing
clamp

Fixing
clamp

Fixing
clamp

 391

Exterior/inner trim board--Inner trim board of top

Fixing
clamp

24. Disassemble right sun shade assembly [68010085]

(a) Liking that shown in figure, use screw driver to unclench the

trim cover of fixing pedestal, then pull down the trim cover.

Hint: before using screw driver, its needled top should

be twisted by adhesive tape.

(b) Liking that shown in figure, use screw driver to release fixing

claw and disassemble sun shade.

Hint: before using screw driver, its needled top should

be twisted by adhesive tape.

(c) Use same method to disassemble the trim board at the

other side.

25. Disassemble left sun shade assembly [68010084]

26. Disassemble indoor front top light assembly

[67010005]

Use screw driver to disassemble front top light cover, and dis-

assemble fixing screw with cross wrench, then disconnect the

joint.

Hint: before using screw driver, its needled top should be

twisted by adhesive tape.

27. Disassemble indoor rear top light assembly

[67010006]

(a) Disassemble two screws and indoor light, then disconnect

the joint.

28. Disassemble passenger hand rail [68010088]

(a) Use screw driver to disassemble trim cover of handrail.

Hint: before using screw driver, its needled top should

be twisted by adhesive tape.

(b) Disassemble two screws and passenger handrail.

 392
