Anti-stealing and door lock--Electronic anti-stealing system

Electronic anti-stealing system

Electronic anti-stealing system consists of anti-stealing controller, anti-stealing loop and transmitter. One

end of loop covers ignition locker core, the other end connects with anti-stealing controller, and the other end

of controller connects with engine ECU, at the same time, transmitter is assembled in key. Memory of

transmitter stores only mark (code) showing the legal identity of automobile owner, transmitter, anti-stealing

controller and electric injection ECU constitutes a multi-layer effective electronic anti-stealing system verified

by password.

If customer key loses, anti-stealing ECU is changed or engine ECU is changed, it is necessary to match

again in repairing station. When automobile leaves the factory, safety password is delivered directly to

owner for keeping with the type of secrecy. If it is necessary to make a new key, change anti-stealing

controller and make other operations, owner should bring the safety password with the automobile to repair

in repairing station. Repairing station should keep repairing (make new key, change anti-stealing controller

and so on) record for inquiring in future.

 361

Electric sunroof (optional)--Sunroof

 Bolt

 Screw cap

Electric sunroof (optional)

Sunroof

Overhaul

Hint: when assembling, please work by the sequence which is opposite with disassembling

sequence; but when it has items that need to pay special attention, it will add special specification.

1. Disassemble inner trim board of top (referring to page 390).

2. Disassemble the glass of sunroof.

(a) Use planetary wrench to disassemble planetary screw.

(b) Pull the glass upwards to disassemble it.

3. Disassemble waterproof adhesive tape of sunroof.

4. Disconnect connection of wiring harness.

5. Disassemble shell body of sunroof.

(a) Disassemble four drain hoses.

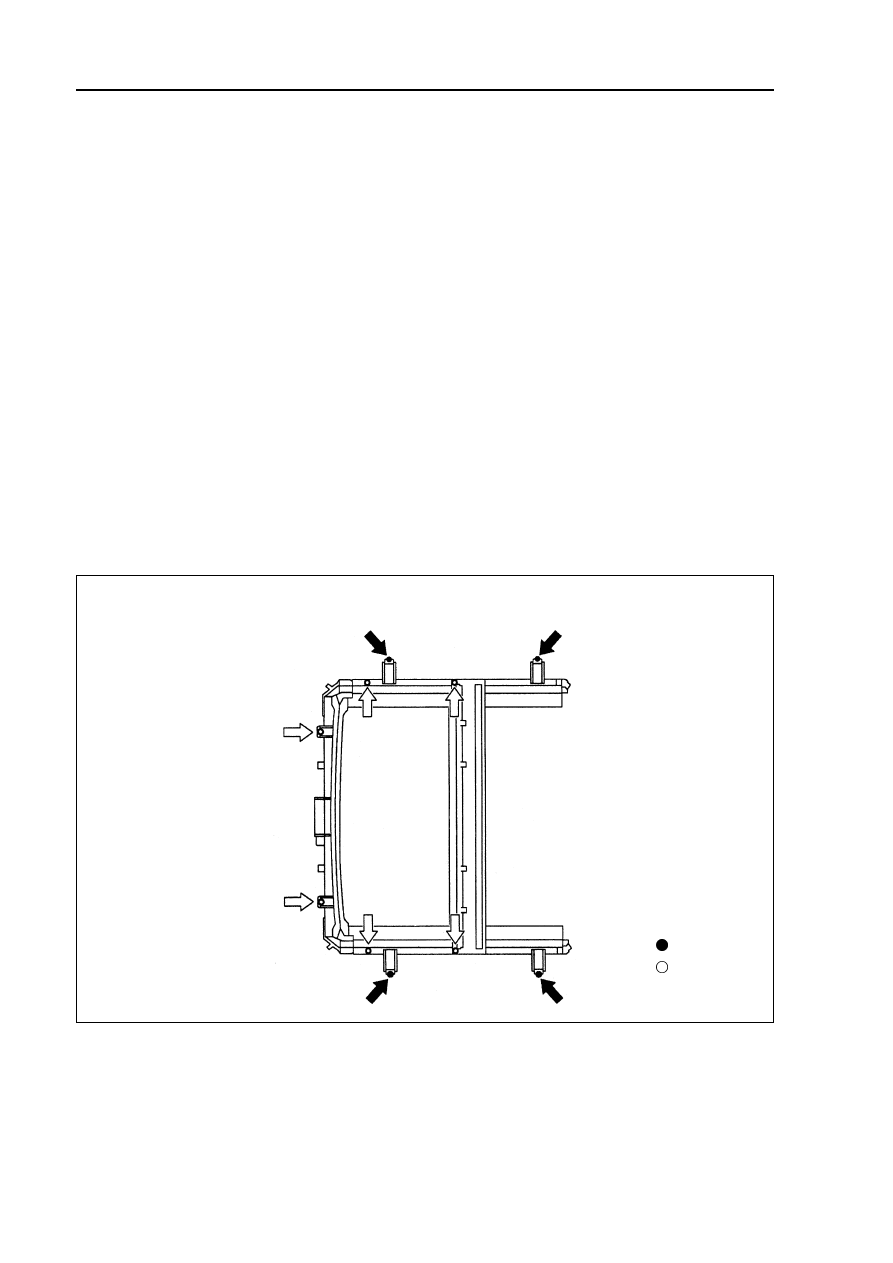

(b) Liking that shown in figure, disassemble four bolts and six screw caps, then disassemble shell body.

6. Disassemble trim sun shade of sunroof.

(a) Disassemble the screw and stopper.

(b) Disassemble trim sun shade of sunroof.

 362

Electric sunroof (optional)--Sunroof

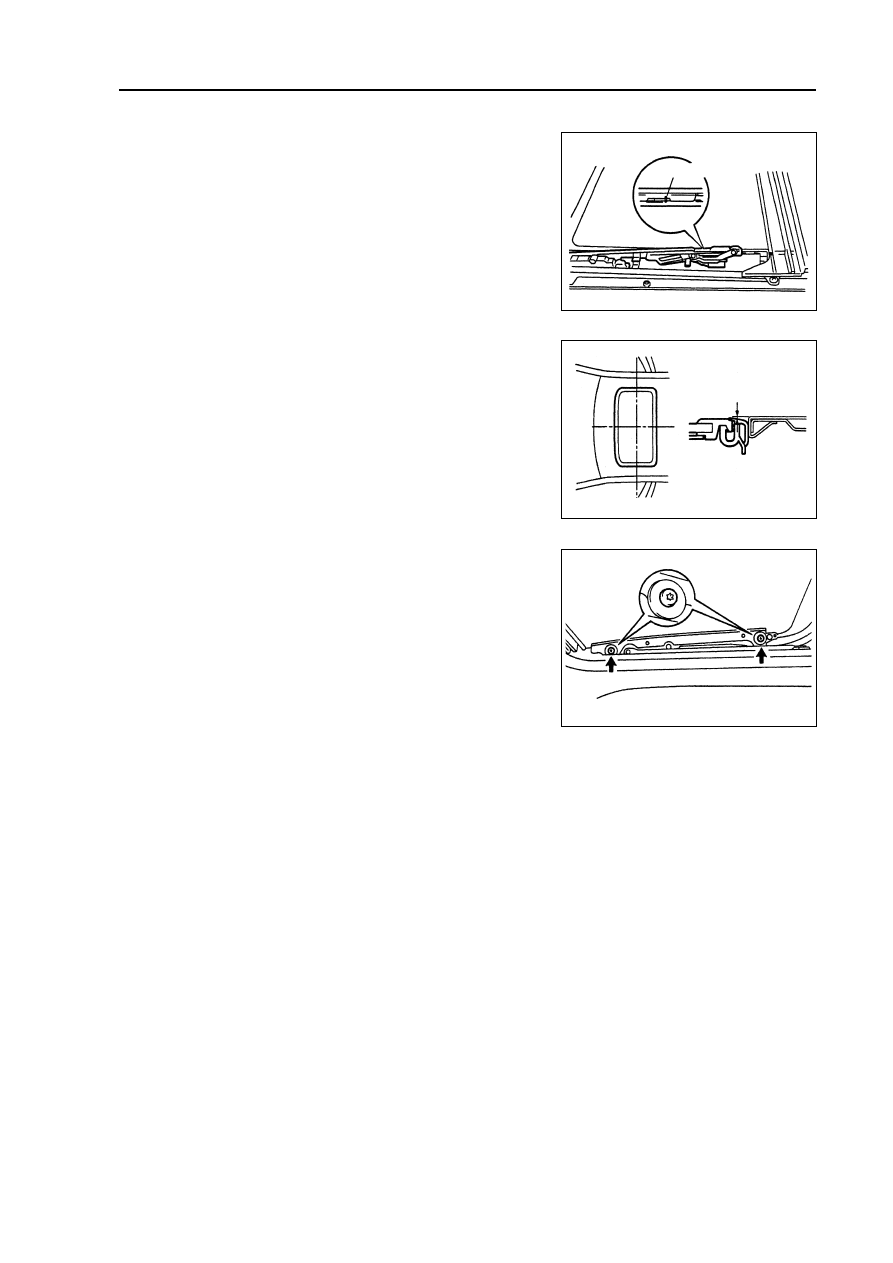

7. Use screw driver (twisted by adhesive tape) to align

the sunroof driving pull cable with right mark.

8. Assemble sunroof shell body assembly.

(a) Bolt.

Torque: 5.5 N

⋅⋅⋅⋅⋅m

(b) Screw cap.

Torque: 5.0 N

⋅⋅⋅⋅⋅m

9. Assemble the glass of sunroof.

(a) Check the phase difference between sunroof waterproof ad-

hesive tape and top gasket.

Front end and rear end: 0

±1.5mm

Rear corner: 0

±1.5mm

                     0-1.5mm

(b) Adjustment

Use T25 planetary wrench to loosen the screw to adjust

the sunroof on correct position, then lock the screw.

10. Inspection for water leakage.

(a) After the adjustment, check whether the sunroof leaks water.

(b) If sunroof leaks water, adjust it again.

Assembly mark

 363

Electric sunroof (optional)--Sunroof system

Inspection for sunroof function

1. Inspection for sliding opening function.

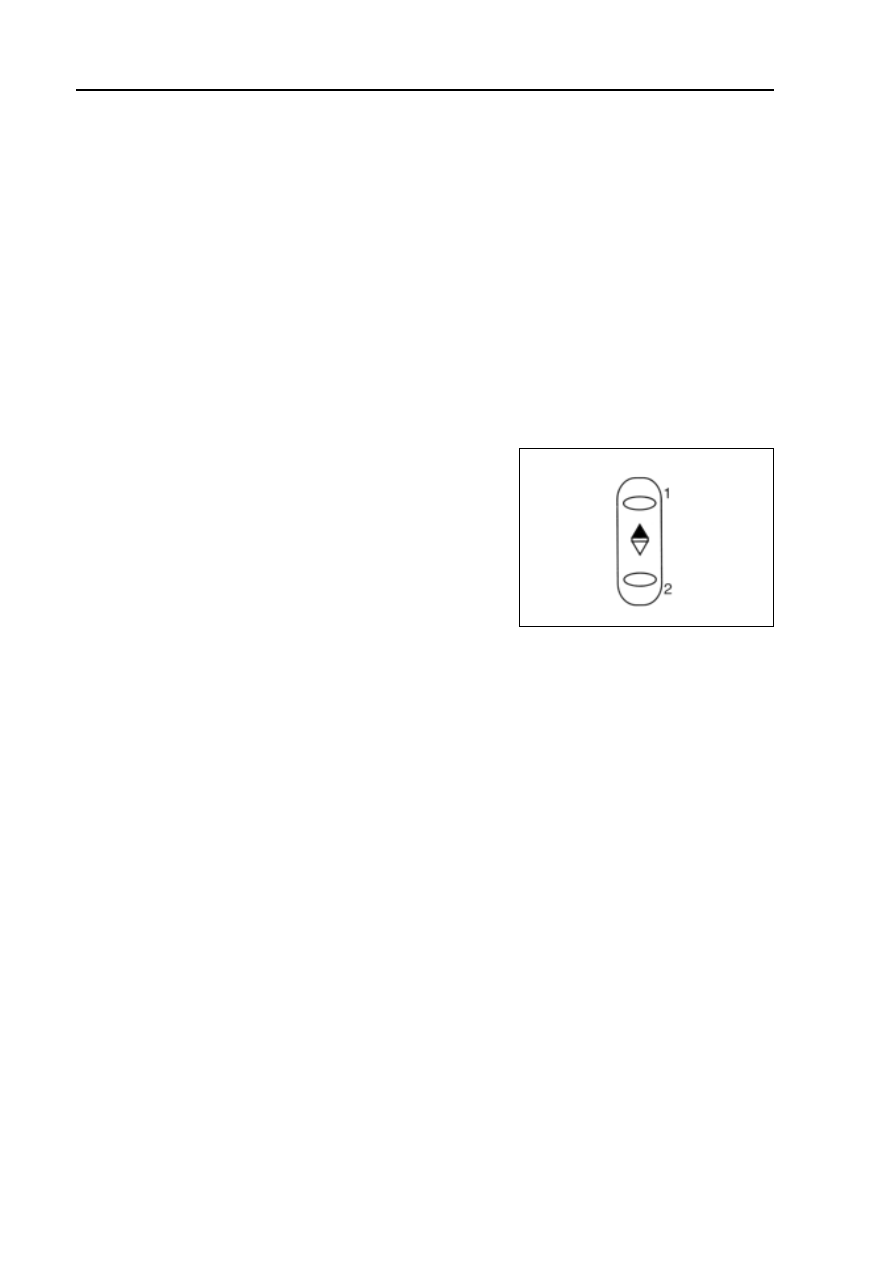

(1) Turns ignition switch to ON, when spot contacting sunroof

switch keystroke 2, the sunroof will start automatic sliding

opening work, and it does not stop until it is at complete

opening state. If spot contacting it in running process, or

pressing keystroke 1 or 2 for long time, sunroof glass will

stop running immediately.

(2) Turns ignition switch to ON, when pressing keystroke 2 for

Sunroof system

Specification for sunroof function

1. Operation category

Spot contact: press the keystroke one time, then release immediately (the time is less than 0.3 seconds).

Long press: press the key stroke for long time (the time is more than 0.3).

2. Specification for function.

Anti-clamping function: spot contact the keystroke to make the sunroof could face 10 Kg resistance in the

process of closing from any position, at this time, electric motor turns oppositely, and the sunroof returns

turn-up or opening state.

Automatic closing function: when the key is pulled out from ignition locker, at this time, the sunroof is not

at closing state, it will close automatically in three seconds.

long time, the sunroof will start automatic sliding opening work, and it does not stop until it is at

complete opening state. If releasing keystroke 2 in running process, the sunroof glass will stop  running

immediately.

2. Inspection for sliding closing function.

(1) Turns ignition switch to ON, if the sunroof is at opening state, when spot contacting sunroof switch

keystroke 1, the sunroof will automatically slide to closing state. If spot contacting it or pressing

keystroke 1 or 2 for long time in running process, sunroof glass will stop running immediately.

(2) Turns ignition switch to ON, if the sunroof is at opening state, when pressing sunroof switch keystroke

1 for long time, the sunroof will automatically slide to closing state. If releasing keystroke 1 in running

process, sunroof glass will stop running immediately.

3. Inspection for turn-up opening function

(1) Turns ignition switch to ON, if the sunroof is at closing state, when spot contacting sunroof switch

keystroke 1, the sunroof will automatically move to turn-up opening state. If spot contacting it again or

pressing keystroke 1 or 2 for long time in running process, sunroof glass will stop running immediately.

(2) Turns ignition switch to ON, if the sunroof is at closing state, when pressing sunroof switch keystroke

1 for long time, the sunroof will automatically slide to turn-up opening state. If releasing keystroke 1 in

running process, sunroof glass will stop running immediately.

4. Inspection for turn-up closing function

(1) Turns ignition switch to ON, if the sunroof is at turn-up opening state, when spot contacting sunroof

switch keystroke 2, the sunroof will automatically move to closing state. If spot contacting it again or

pressing keystroke 1 or 2 for long time in running process, sunroof glass will stop running immediately.

(2) Turns ignition switch to ON, if the sunroof is at turn-up opening state, when pressing sunroof switch

keystroke 2 for long time, the sunroof will automatically slide to closing state. If releasing keystroke 2

in running process, sunroof glass will stop running immediately.

 364

Front

Rear
