Panel/combination instrument--panel

32. Disassemble lower panel assembly [68010005]

(a) Disassemble the joint of indoor temperature sensor.

(b) Disassemble machine cover locking pull cable with handle assembly.

(c) Disassemble six D bolts.

(d) Disassemble six fixing clamps and panel lower board.

33. Disassemble left storage box of lower panel [68010007]

34. Assemble upper panel assembly [68010004]

Assemble upper panel assembly with D bolt and two A screws.

D bolt: 18 N

⋅m

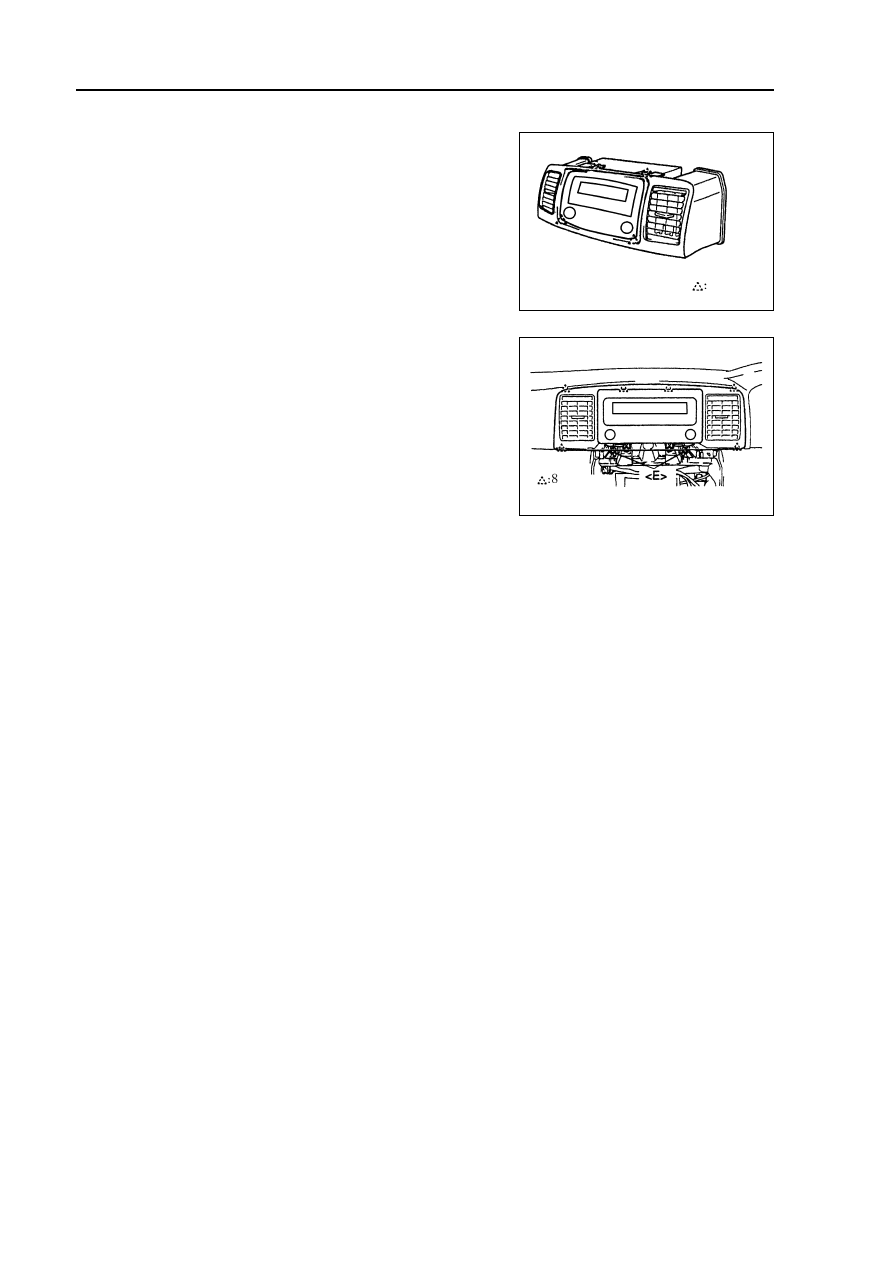

35. Assemble CD machine assembly [67000126]

(a) Assemble pedal central ventilation hole assembly on CD machine assembly.

<D>

<D>

<D>

<D>

<D>

<D>

 345

Panel/combination instrument--panel

(b) Assemble CD machine assembly and panel central ventila-

tion hole assembly.

36. Assemble helix cable assembly (referring to page

261)

37. Assemble steering wheel assembly [67010001]

(referring to page 194)

38. Check the central position of steering wheel.

39. Check the safety airbag assembly at the side of

driver  [67010011] (referring to page 249)

40. Assemble the safety airbag assembly at the side of

driver [67010011]

41. Check the warning light of SRS airbag

Fixing

clamp

4 Fixing
clamp

 346

Combination instrument assembly

Disassembly and assembly

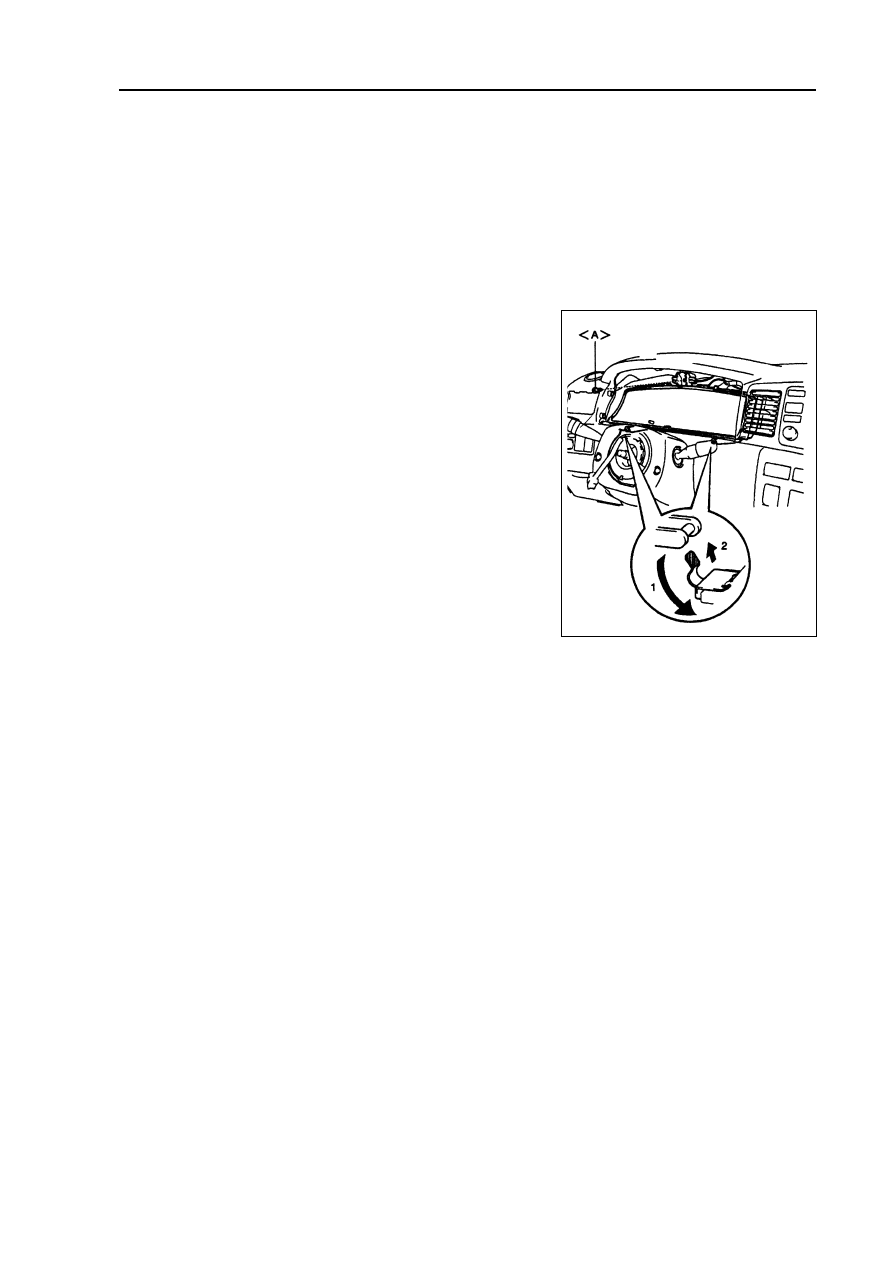

1. Disassemble Combination instrument cover [68000077]

(a) Disassemble fixing clamp.

(b) Use screw driver to unclench three fixing clamps and four fixing clasps, then disassemble combination

penal cover.

 347

Panel/combination instrument--Combination instrument assembly

2. Disassemble Combination instrument assembly

[68000081]

(a) Disassemble the screw.

(b) Liking that shown in figure, unclench two fixing clamps.

(c) Disassemble the joint, then disassemble Combination

instrument.

Chair--Front chair

Chair

Front chair

Subassembly

 348

 N.m:

Regulated torque

Head pillow assembly

Head pillow bracket

Chair backrest

gasket

Chair backrest

bracket

Exterior cover of

chair backrest

Exterior cover of

chair gasket

Inner trim cover of

front chair gasket

With waist support:
Adjusting lever of
waist support lever

Rear cover of chair

sliding rail

With waist support:
Waist support
adjustment assembly

Declining  adjust-

ment releasing

handle

Chair gasket bracket

auxiliary assembly

Front cover of chair

sliding rail

Chair vertical

adjusting button

Lower trim cover of

front chair gasket

Exterior trim cover

of front chair

gasket

Chair

gasket

Chair front and rear

adjusting handle

Inner safety belt

clamp of front chair

Clamp

Clamp
