Windshield/bodywork glass/wing mirror--Electric window control system

Right front door electric

window generator

Electric window

switch

Right front door electric

window lift

Electric window

switch

Right rear door electric

windows lift

Right rear door electric

window generator

Left rear door electric

window generator

Left rear door electric

window lift

Electric window

switch

Left front door electric

window generator

Electric window

main switch

Left front door electric

window lift

Windshield/window glass/wing mirror

Electric window control system

Position drawing (For reference only)

Inspect the car

1. Inspect electric window

(a) Inspect basic function (manual operation function)

(1) Turn the ignition switch to ON

(2) Inspect the window whether it descends when you press electric window switch. Pull the switch up

and inspect whether it ascends.

(3) Inspect the window whether it descends when you press electric window switch of every door. Pull

the switch up and inspect whether it ascends.

 317

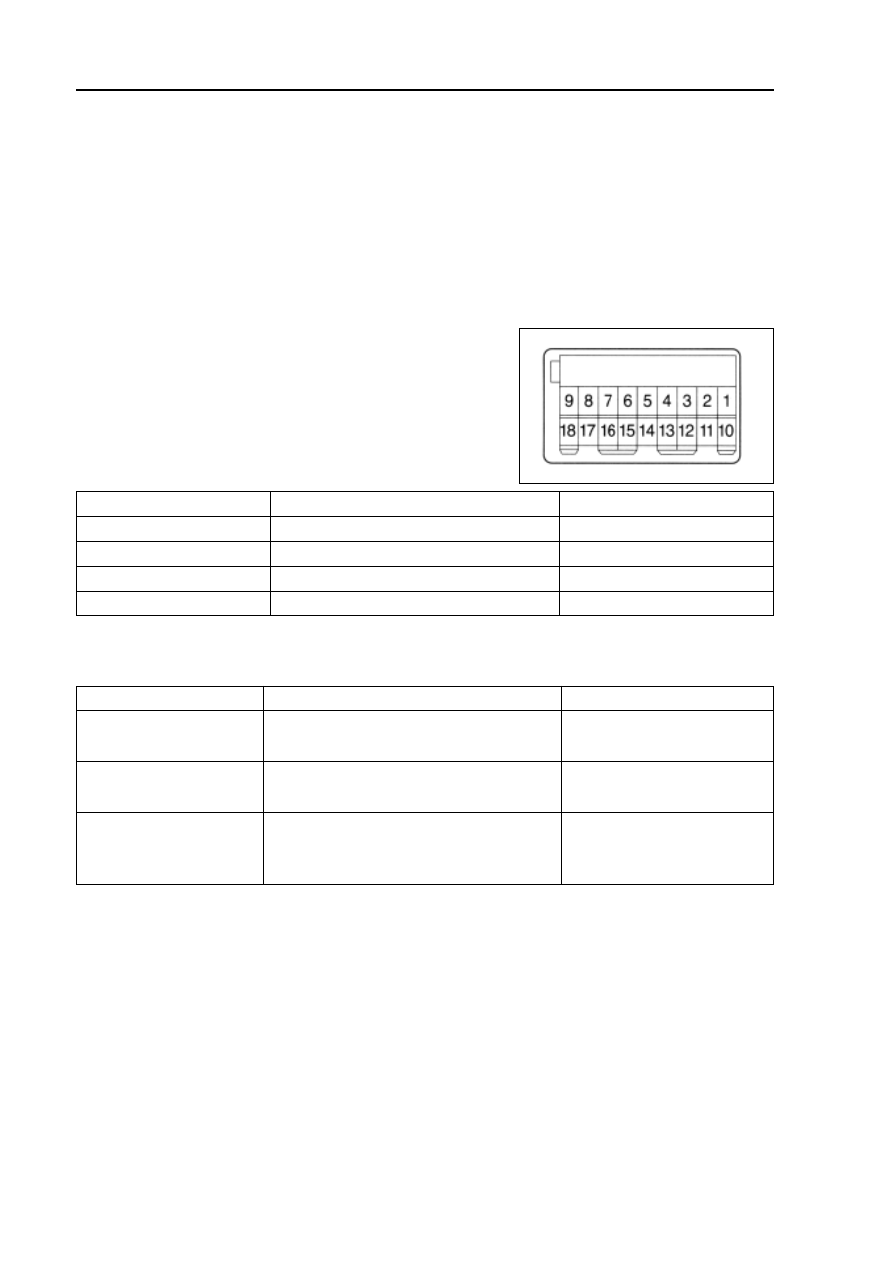

Windshield/bodywork glass/wing mirror--Electric window control system

Avometer terminals

conditions

regular situations

16-earth(input +B signal)

turn ignition switch from OFF to ON

0V

→ 10-14V

11-earth

always

conduction

12-earth

always

conduction

15-earth(input IG signal)

turn ignition switch from OFF to ON

0V

→10-14V

(4) Inspect other windows whether they can not actuate except window of driver seat room, when the

electric window switch locked.

2. Inspect automation function

(a) inspect basic function

(1) Turn the ignition switch to ON

(2) Inspect whether driver seat window automatic descends completely, when you press electric win-

dow main switch.

(3) Inspect whether driver seat window stop descending when driver seat window automatic descends

and press the main switch.

If the voltage and conduction do not accord with the regulations, the input side of electric window main

switch may have malfunction.

(b) Inspect the joint terminal voltage when connect the joint.

If the voltage does not accord with the regulations, electric window main switch may have malfunction.

(c) Inspect whether AUTO headlamp(LED) lights when connect the joint, turn the ignition switch from

OFF to ON.

 318

Avometer  terminals

conditions

regular situations

4-earth

turn the ignition switch to ON, turn Driver

seat

0V

→

over 9V

(output P/W.UP)

 Main switch from OFF to UP (manual operation)

9-earth

turn the ignition switch to ON, turn Driver

seat

0V

→

over 9V

(output P/W.DOWN)

Main switch from OFF to DOWN (manual operation)

9-earth

turn the ignition switch to ON, turn Off Driver

seat

window

→

 driver

seat

 Main switch to DOWN

0V

→

over9V

→

0V

(output P/W.DOWN)

(auto Operation)

→

 windows open completely.

3. Inspect electric window main switch assembly

(a) Inspect operations

(1) Disassemble the joint of driver seat electric window main

      switch and inspect the voltage and conduction among

      terminals.

Switch position

UP

OFF

DOWN

right front, avometer

terminal

4-15, 6-10

4-10, 6-10

6-15,4-10

right rear, avometer

terminal

9-15, 7-10

9-10, 7-10

7-15, 9-10

Left rear, avometer

terminal

3-15, 1-10

3-10, 1-10

1-15, 3-15

situations

Conduction

Conduction

Conduction

Switch position

UP

OFF

DOWN

right front, avometer

terminal

4-15

4-6

6-15

right rear, avometer

terminal

9-15

7-9

7-15

Left rear, avometer

terminal

3-15

1-3

1-15

situations

Conduction

Conduction

Conduction

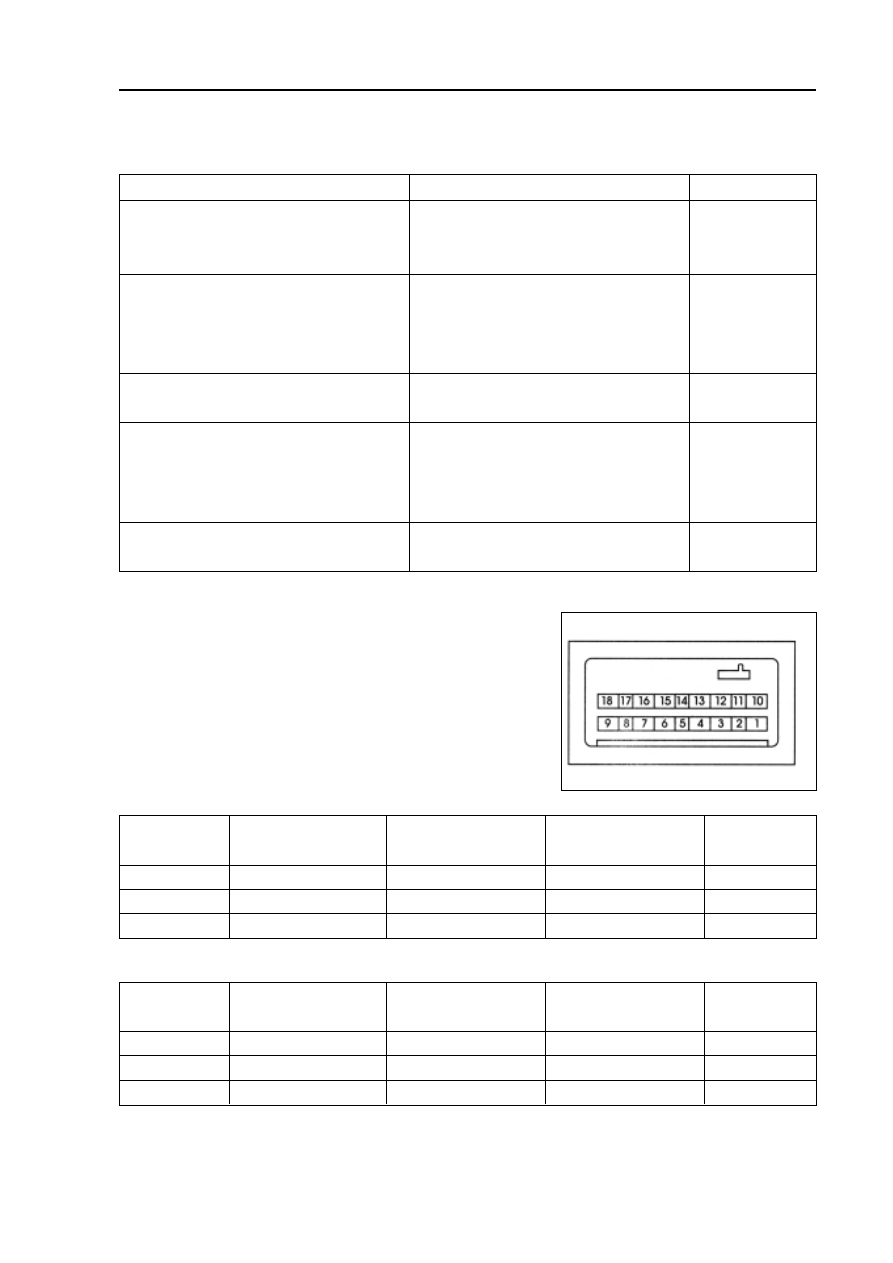

Windshield/bodywork glass/wing mirror--Electric window control system

Phenomena

Electric window does not Work(all)(electric

door lock does Not work)

Electric window does not work(all) (electric

door lock is normal)

Automation system does Not work

Only one window can not Move

Electric window system Does not work

impossible positions

1. POWER fuse(center power distribution box)

2. window shift main relay (center Distribution box)

3. wiring harness

1. ignition switch

2. left front door control Panel assembly

3. wiring harness

4. electric window generator

1. left front door control panel assembly

2. electric window generator (driver seat)

1. left front control panel assembly

2. electric window switch

3. electric window generator

4. wiring harness

1. left front door control panel assembly

2. wiring harness

wiring harness

-

-

-

-

319

-

320

319

320

319

320

320

-

319

-.

Inspect

1. Inspect left front door control panel assembly

[68000142]

Action switch, inspect the conduction among joint terminals.

Notes: Whether it works good or bad ,it can judged by

basic function. Becauce the conduction can not inspect

by ascending or descending driver’s electric window main

switch.

Electric window does not locked

Electric window locked

Malfunction phenomena table

If the conduction does not limit to regulations, replace electric window main switch.

 319

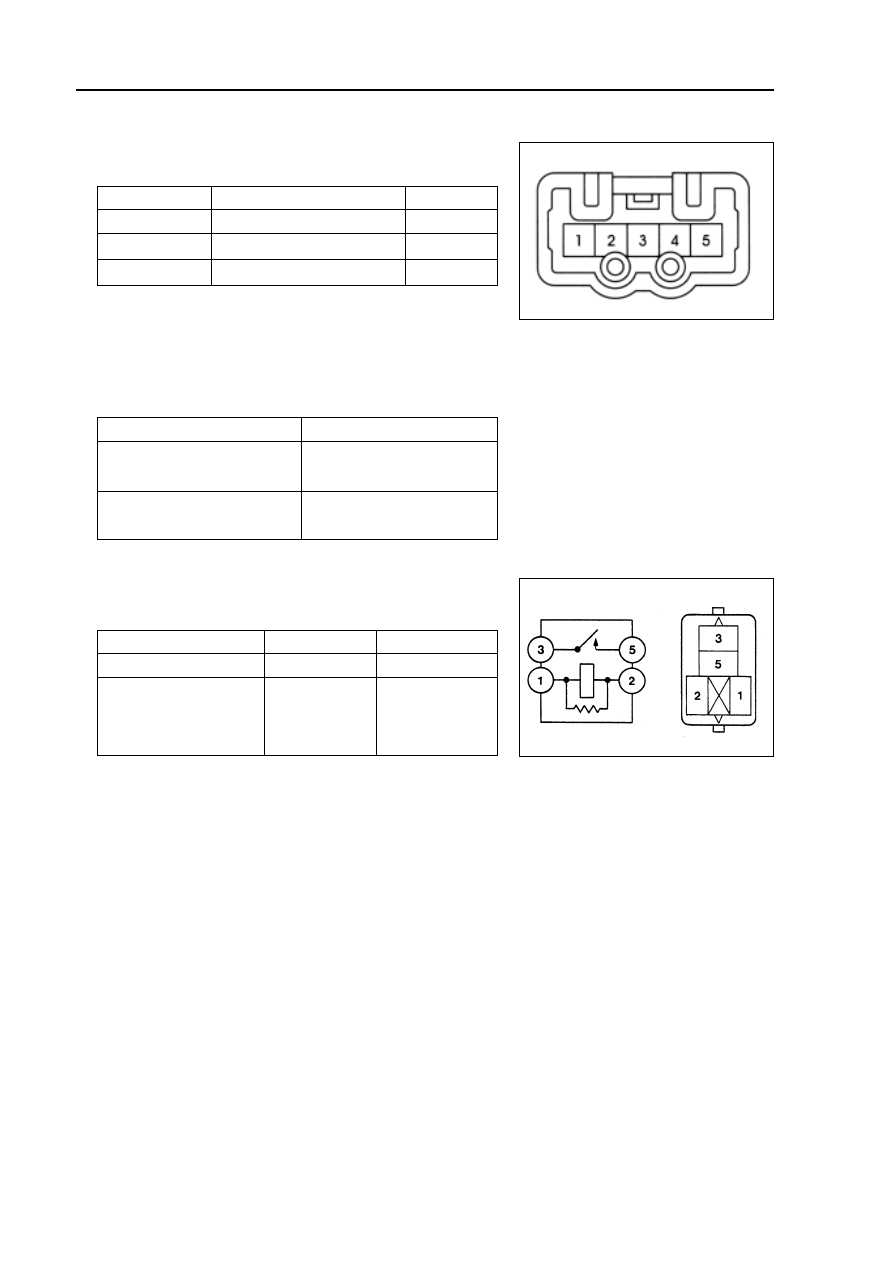

Windshield/bodywork glass/wing mirror--Electric window control system

Switch position

avometer terminals

situations

UP

4-5, 2-3

conduction

OFF

4-5, 1-3

conduction

DOWN

2-5, 1-3

conduction

Battery terminals

working direction

Battery anode lead-terminal 5

main driving axis working

Battery cathode lead-terminal 4

as clockwise

Battery anode lead-terminal 4

main driving axis working

Battery cathode lead-terminal 5

as anticlockwise

2. Inspect electric window switch assembly

Active switch, inspect the conduction among the joint terminals.

If the conduction does not limit to regulations, replace electric

window main switch.

3. Inspect left rear electric window motor assembly.

(a) Inspect the function of left rear electric window assembly.

(1) Inspect whether the motor works calmly.

4. Inspect electric window shift relay [67000061]

Check the conduction of relay (mark: P/W)

If the conduction does not limit to regulations, replace relay.

 320

Conditions

avometer

regular situations

Always

1-2

conduction

Supply battery voltage

To that between terminal 1

3-5

conduction

and terminal 2
