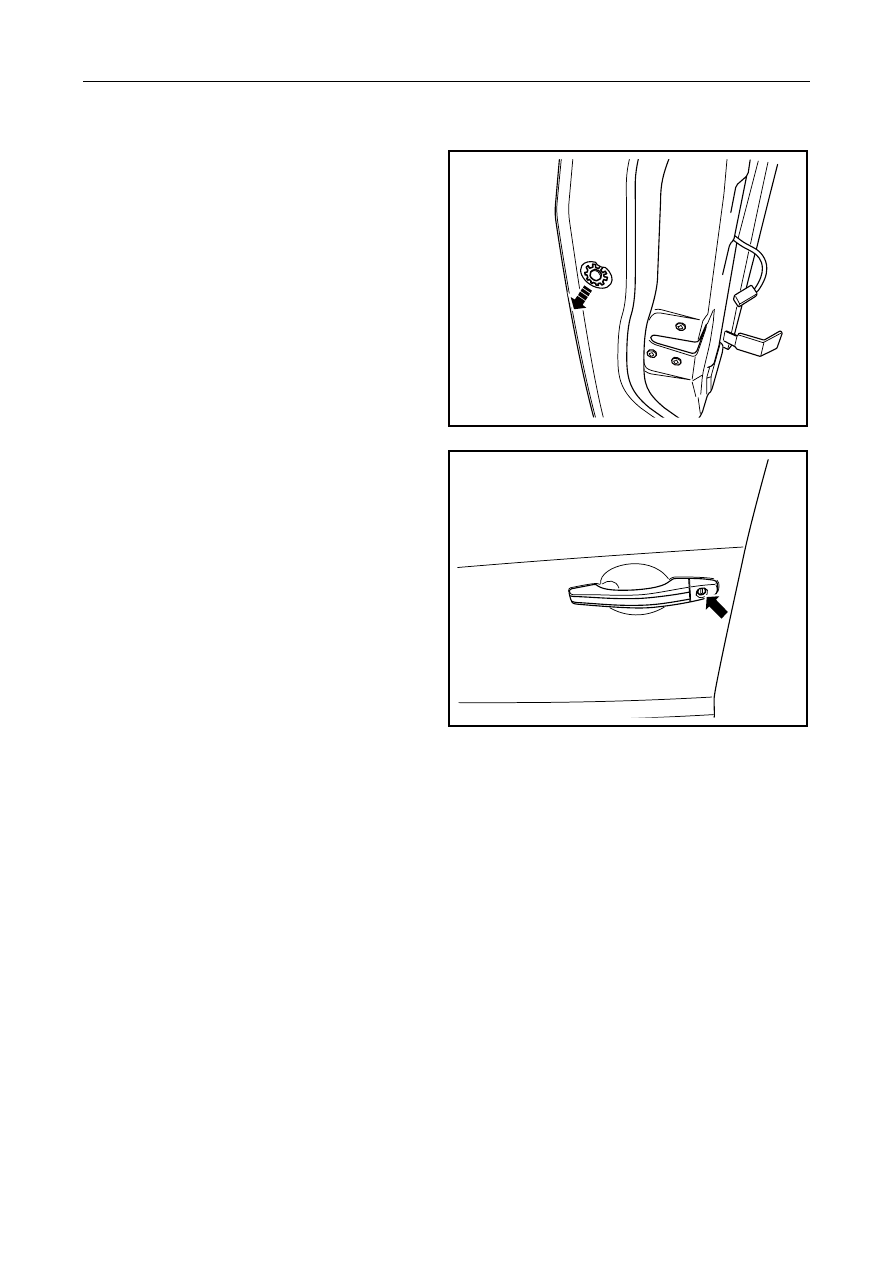

6.   Install the lock cylinder retaining bolt blocking

cap.



NL12-0099b

7.    Install the lock cylinder cover plate.

8.    Install the front door window guide groove.

9.  Install front door glass.

10.  Install the door interior trim panel.

11.  Connect the battery negative cable.



NL12-0102b



2675




12.6 Frame and body bottom

12.6.1 Specification

12.6.1.1 Fastener specifications

Torque Range

Fastener Name

Model

Metric (NM)

English system

(lb-ft)

Connecting bolt of longitudinal beams and

sub-frame

M12×1.25×25

79 - 95

58.5 - 70.3

Front mounting bolt of front sub-frame

M14×1. 5×133

133 - 157

98.4 - 116.2

Front mounting bolt flat washer combination

member of rear subframe

M14×1. 5×90

138 - 162

102 - 120

Rear mounting nut of rear sub frame

M14×1.5

180 - 220

133.2 - 162.8

12.6.2 Description and operation

12.6.2.1 Bottom of frame and body

The frame at the front and rear of vehicle is a subframe which is isolated from the body by rubber bushings. It
provides support to the powertrain, the lower control arms of front suspension and the power steering gear with tie
rod assembly. Any misalignment will lead to the wheels misalignment. The frame is bolted to the body by the
rubber bushings. The underbody must be properly positioned in order to ensure proper suspension and wheels
positioning. The individual underbody components contribute directly to the overall strength of unibody. Use
proper welding techniques during maintenance operations to the unibody. The part must be protected against
corrosion as long as the body repair operation is damaged or the original surface is damaged, refer to

12.12.2.4

Corrosion Prevention

 in description and operation of "Collision Maintenance".



12.6.3 Diagnostic information and steps

12.6.3.1 Diagnostic Information and Procedures

Inspect the underbody.

If the size of the body bottom does not accord with standard, a body correcting frame is used for correcting the
size of various parts of the body in accordance with the requirement, refer to

12.12.1 Specification

.

Inspect the Frame and the Body Positioning

Perform the installation procedure of frame. If the frame can not be correctly installed to the body, the frame and
body positioning is incorrect. Confirm the body positions exactly to replace the frame.



2676






12.6.4 Dismantle and install

12.6.4.1 Maintenance of frame

Inspect for the possible damage to the frame and indirectly judge the frame positioning by the following.

The frame can not be correctly installed to the body.

– The right geometric relationship among the steering arms.

– Correct wheel position

If the frame is damaged in any form, replace the frame. Do not attempt to repair the frame.

12.6.4.2 Front suspension cross beam assembly replacement

Dismantlement Procedure

1.  Dismantle front bumper. Refer to

12.4.3.1

Replacement of Front Bumper.

2.    For lifting of the vehicle, refer to

1.3 Lifting of

Vehicle.

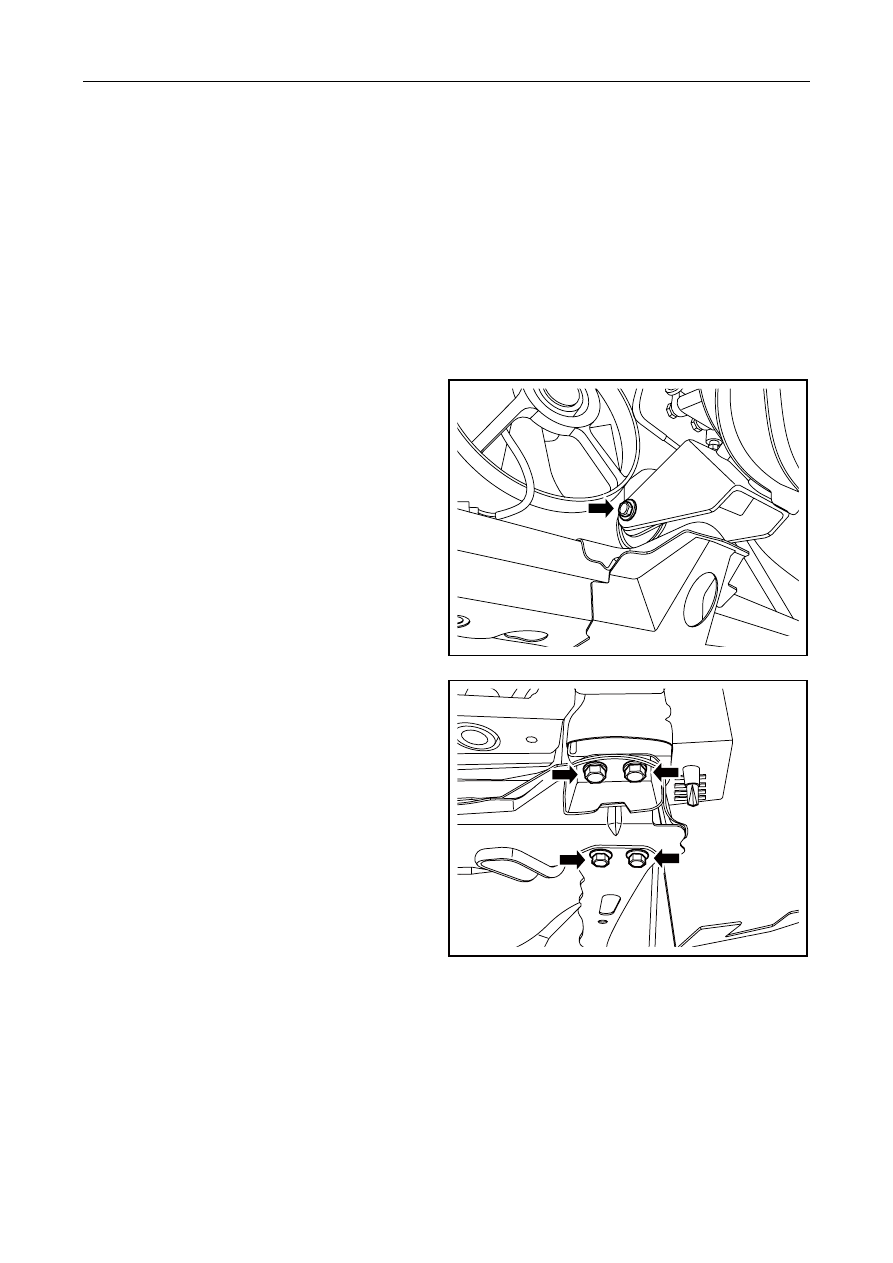

3.    Dismantle through bolt of engine front vibration

insulation pad.

NL12-0068b

4.   Dismantle fixing bolt on both sides of front

suspension horizontal beam assembly.

5.  Remove the front suspension cross member

assembly.

NL12-0069b

2677






Installation Procedure:

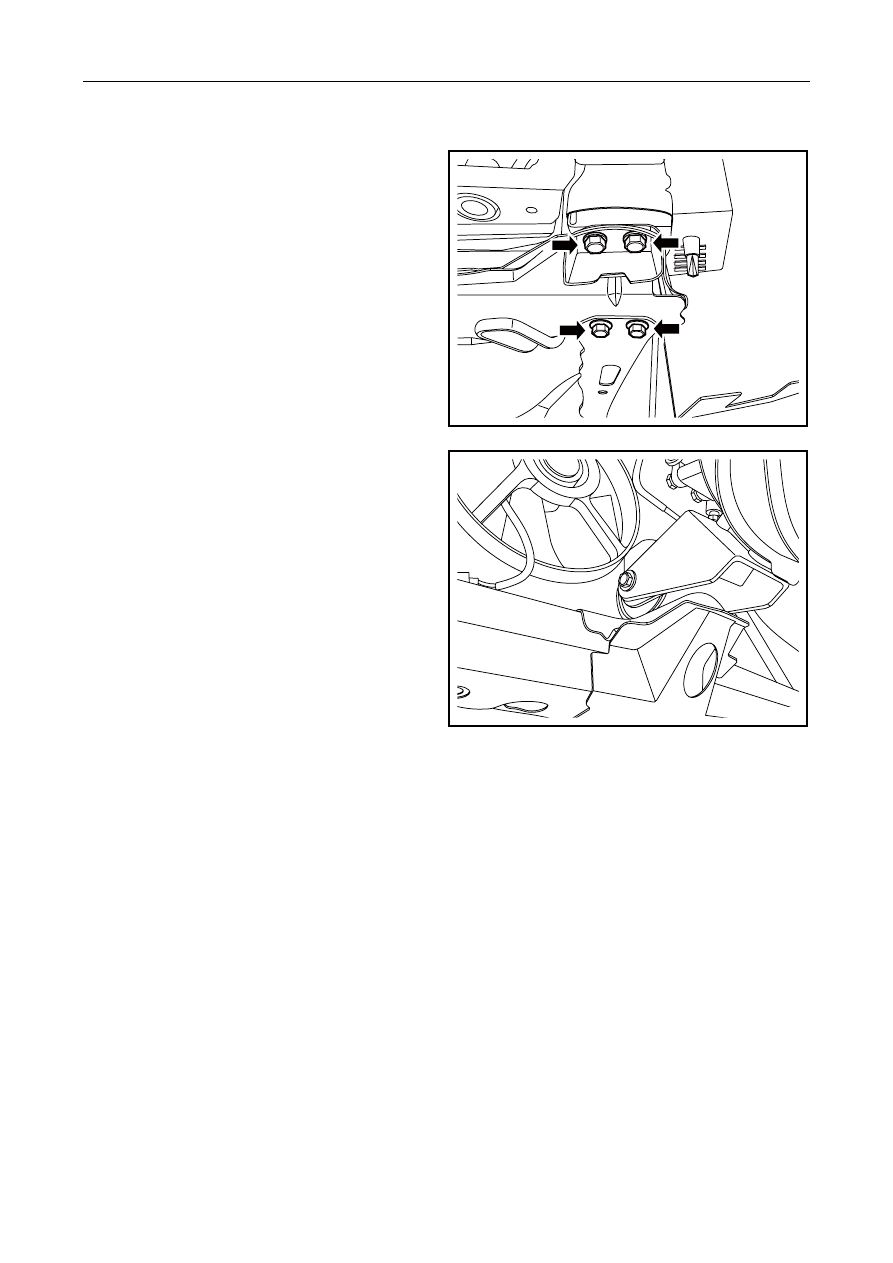

1.  Install front suspension horizontal assembly,

screw fixing bolts on two sides of front
suspension horizontal beam assembly, but do not
tighten too much.



NL12-0069b

2.    Install and tighten through bolt on front vibration

insulation pad

Torque: 52 Nm (Metric) 38.5 lb-ft (English system)

3.  Tighten fixing bolts on both sides of front

suspension horizontal beam assembly.

Torque: 65 Nm (Metric) 48.1 lb-ft (English system)

4.   Lower the vehicle.

NL12-0070b
