12.6.4.3 Front suspension longitudinal beam replacement

Dismantlement Procedure

1.    For lifting of the vehicle, refer to

1.3 Lifting of

Vehicle.

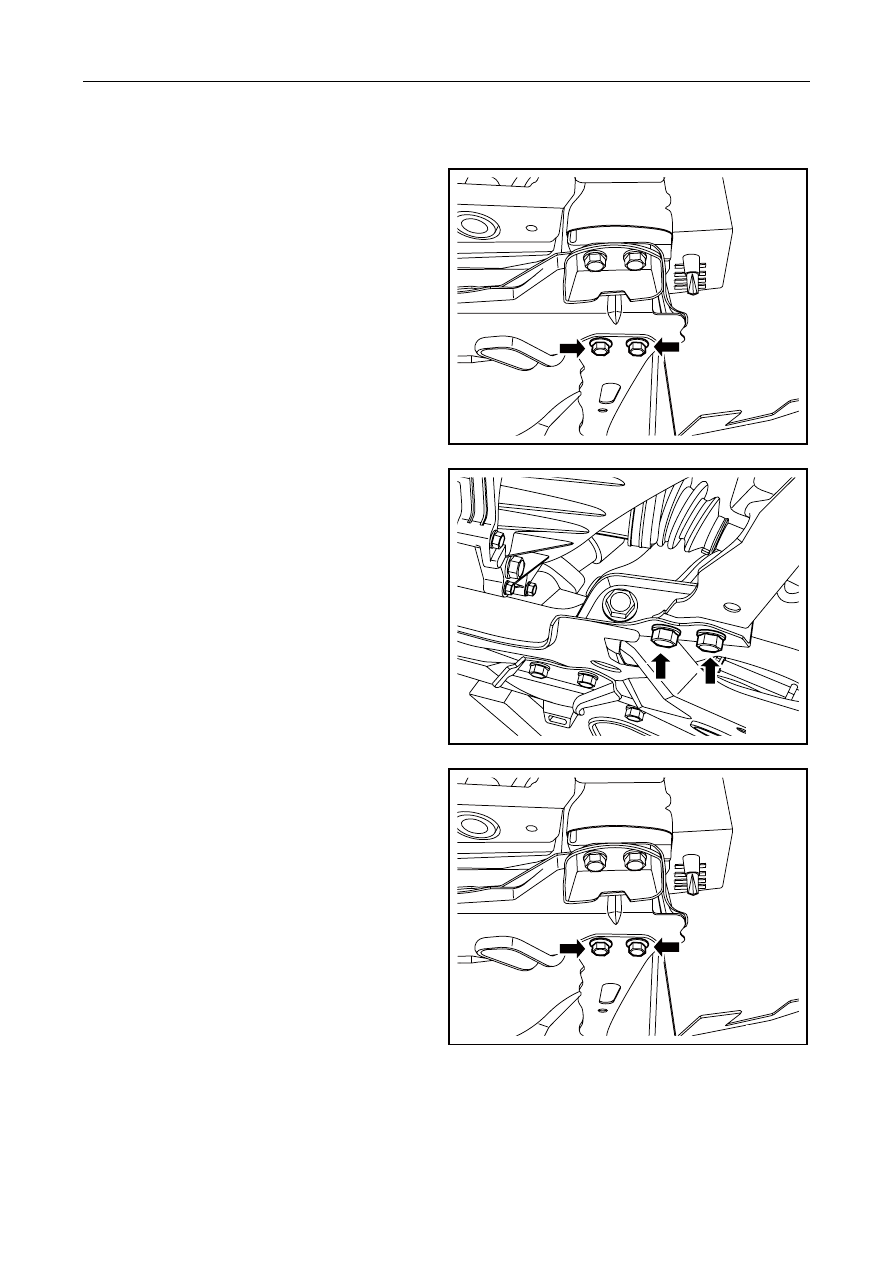

2.    Fixing bolt on the front of front vertical beam.



NL12-0071b

3.   Dismantle fixing bolt at the rear end of front

vertical beam.

4.    Remove the front longeron.



NL12-0072b

Installation Procedure:

1.    Install front suspension longitudinal beam.

2.    Install fixing bolt on the front of front suspension

vertical beam, but do not tighten too much.

NL12-0071b

2679






3.    Install fixing bolt on the rear end of vertical beam

of front suspension.

Torque : 85Nm(Metric)34lb-ft (English system)

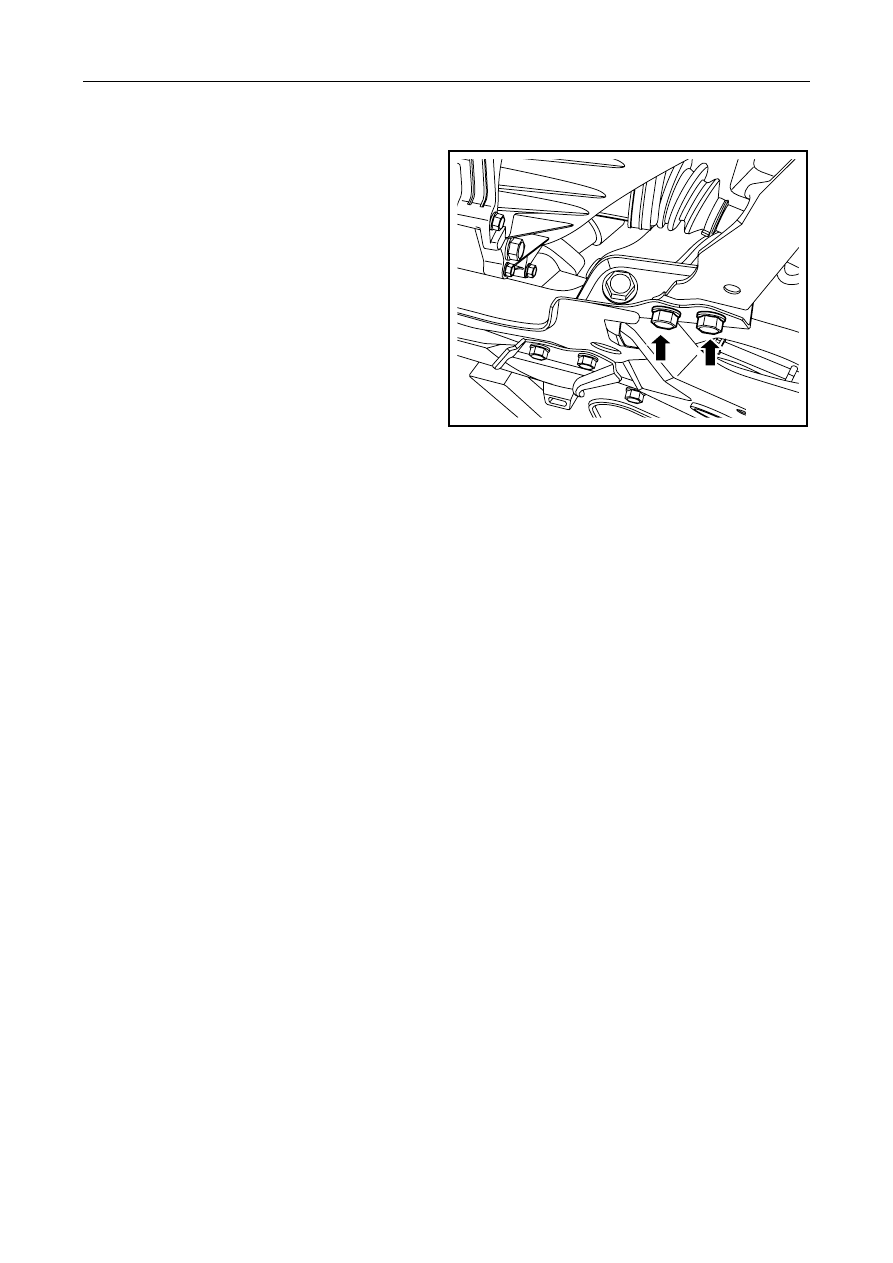

4.  Tighten the front fixing bolts for the front

suspension longeron.

Torque : 85Nm(Metric)34lb-ft (English system)

5. Lower

the

vehicle.



NL12-0072b



2680




12.6.4.4 Front subframe replacement

Dismantlement Procedure

1.    Align steering disc and lock it.

2.    For dismantling of left, right front wheel, refer to

4.4.5.1 Replacement of wheels

.

3.    For lifting of the vehicle, refer to

1.3 Lifting of

Vehicle.

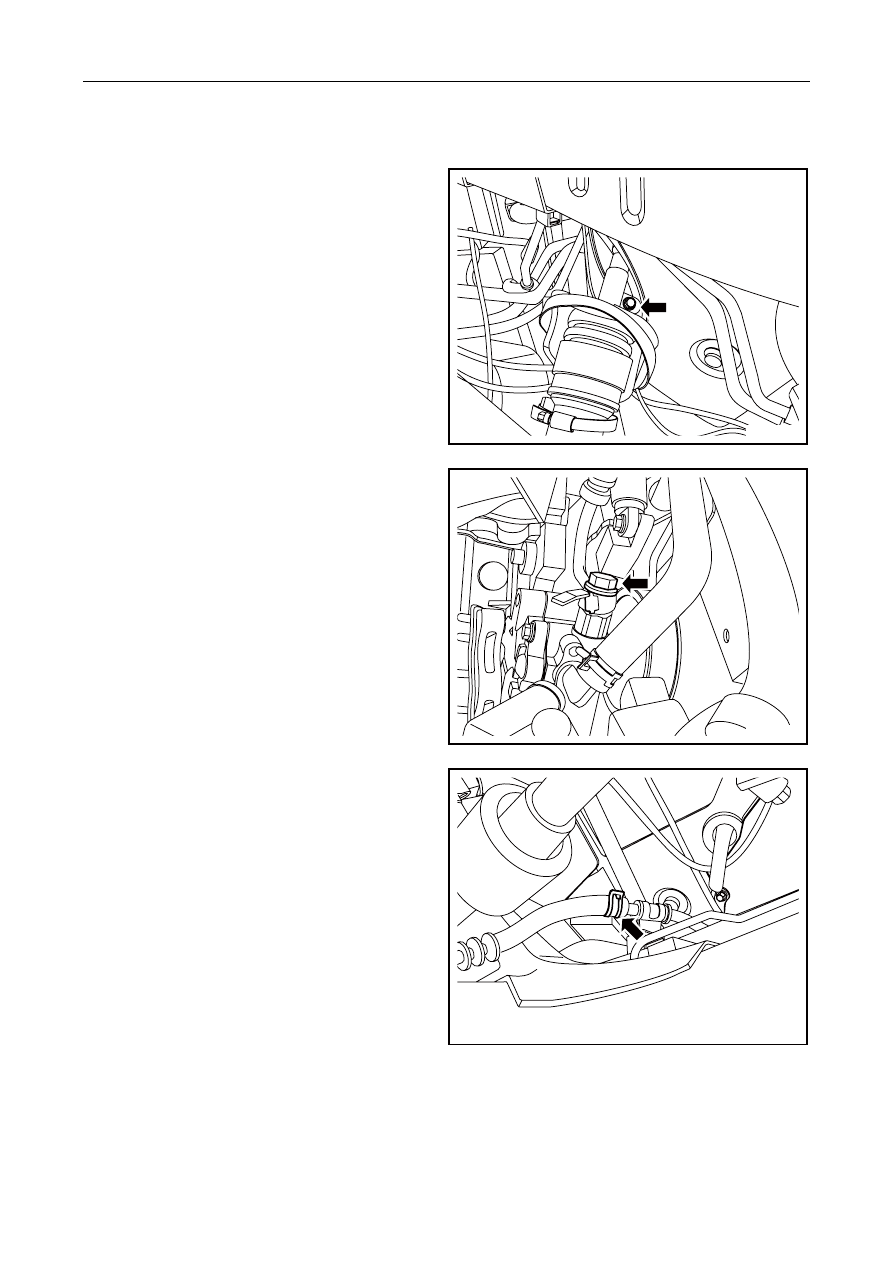

4.   Dismantle horizontal pin bolt between steering

gear and steering pipe column universal joint.



NL12-0073b

5.   Remove the connecting bolt between the power

steering pump and the high pressure oil pipe.



NL12-0074b

6.   Remove the steering gear oil return pipe fixing

clamp.



NL12-0075b

2681

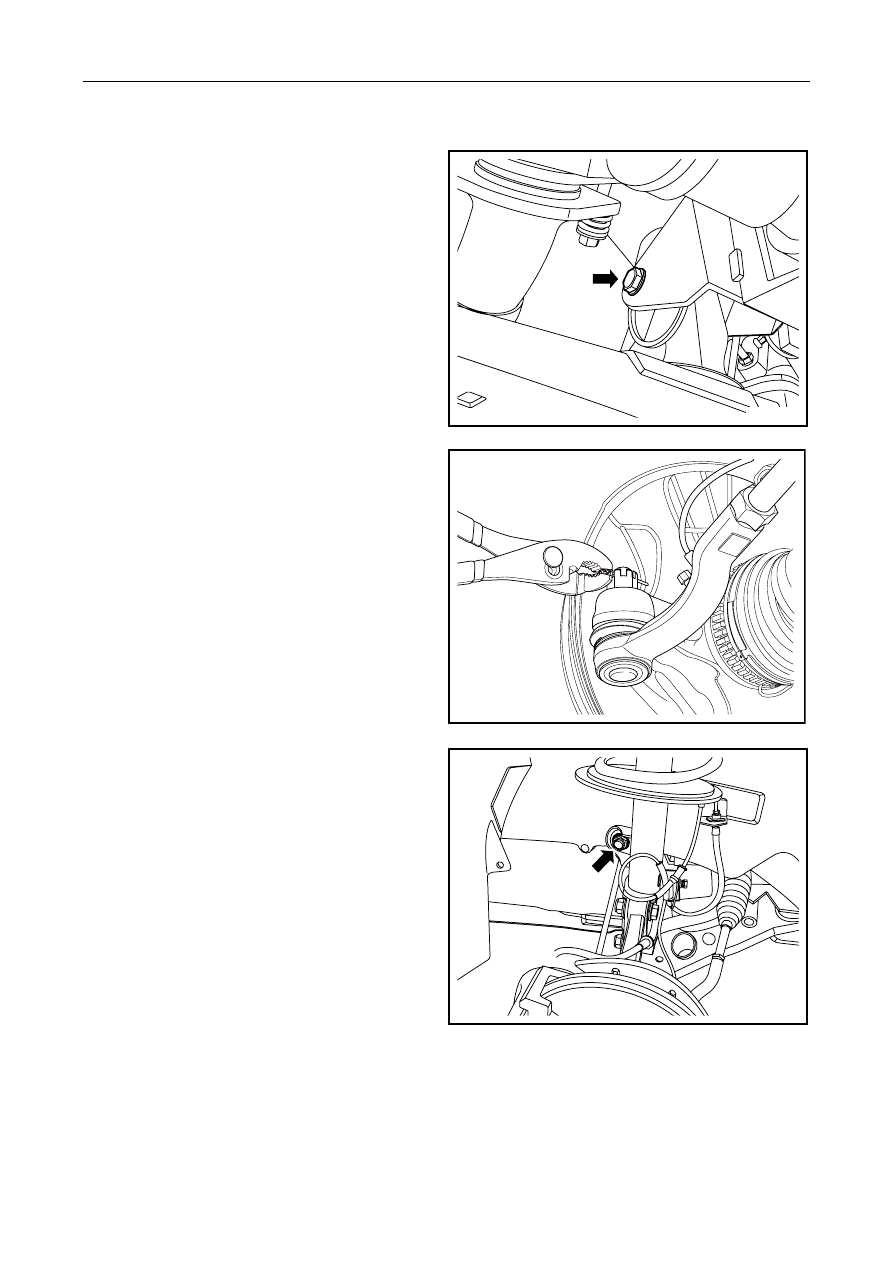

7.    Remove the through bolt between the engine rear

soundproof pad and front subframe.



NL12-0076b

8.    Extract the cotter pins of the fixing bolts for the

tie rods on both sides and remove the fixing bolts.



NL12-0077b

9.  Remove the connecting nut between the

connecting rod between the stabilizer bars on
both sides and front shock absorber.



NL12-0078b

2682
