12.5.2.2 Door limiter replacement

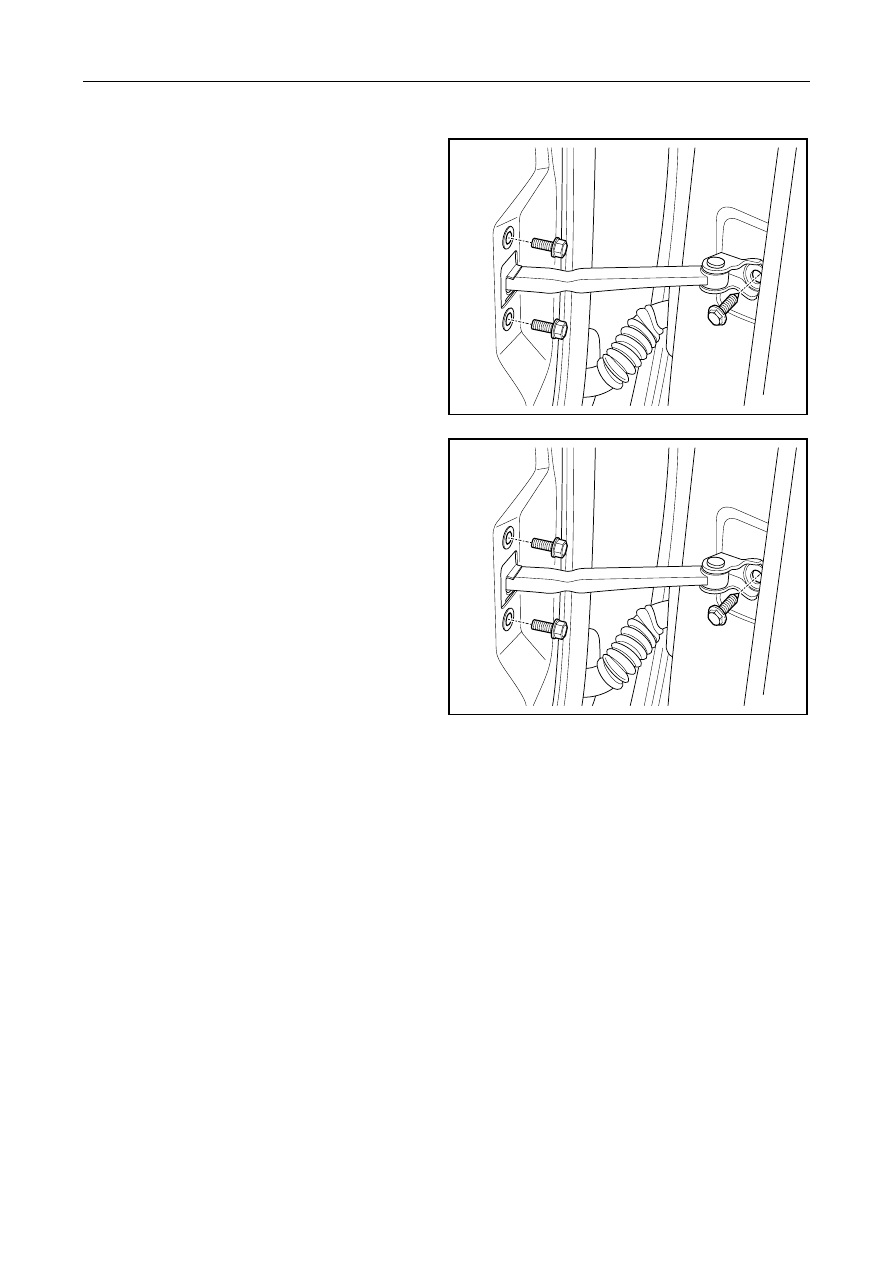

Dismantlement Procedure

1.   For dismantling of door inner trimming plate,

refer to 12.9.1.7 Replacement of left front door
inner trimming plate.

2.    Dismantle fixing bolt of door stopper.

3.    Take out limit stopper from vehicle door.



NL12-0091b

Installation Procedure:

1.   Install limiter.

2.    Tighten fixing bolt.

Torque: 24Nm (Metric) 17. 8lb-ft(English system)

3.  Install the door interior trim panel.



NL12-0091b



2667




12.5.2.3 Front door outer opening handle replacement

Dismantlement Procedure

Warning!

Warning: Refer to "Warning on Battery
Disconnection" in "Warnings and Precautions".

1.   Disconnect the battery negative cable. Refer to

2.11.8.1 Battery Cable Disconnection/Connection
Procedures.



2.  Dismantle the front door interior trim panel.

Refer to

12.9.1.7 Replacement of Front Door

Interior Trim Panel.



3.    Loosen door outer opening handle rod.

4.    For dismantling of front door lock catch, refer to

12.5.2.5 Replacement of front door lock catch.



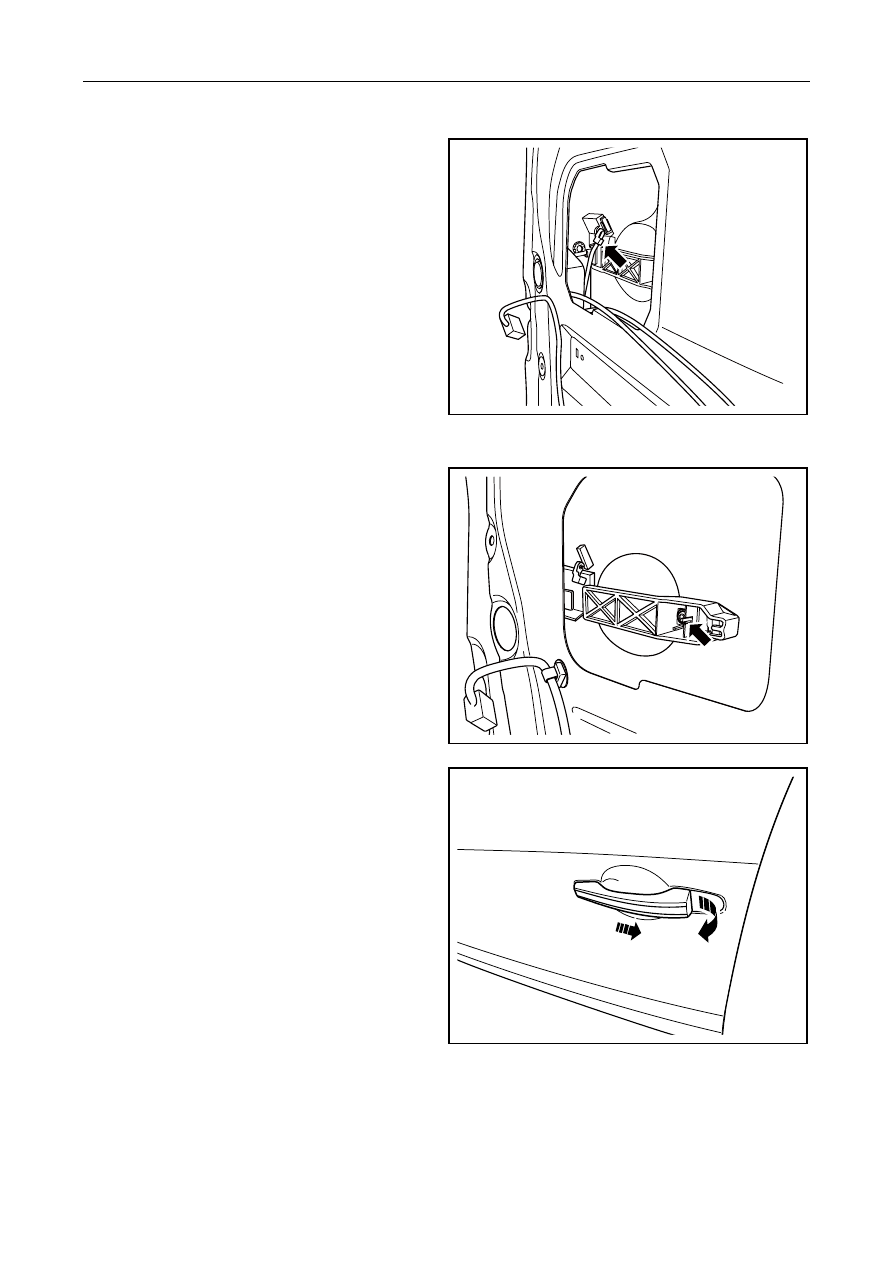

NL12-0092b

5.   Remove the fixing bolt for the external door

handle mounting lining seat to facilitate the
removal of the external door handle.



NL12-0093b

6.    Lift and extract the external door handle.

Notes:

Please don't loss the sealing gasket.

7.   Dismantle the external door handle mounting

lining seat.

NL12-0094b



2668




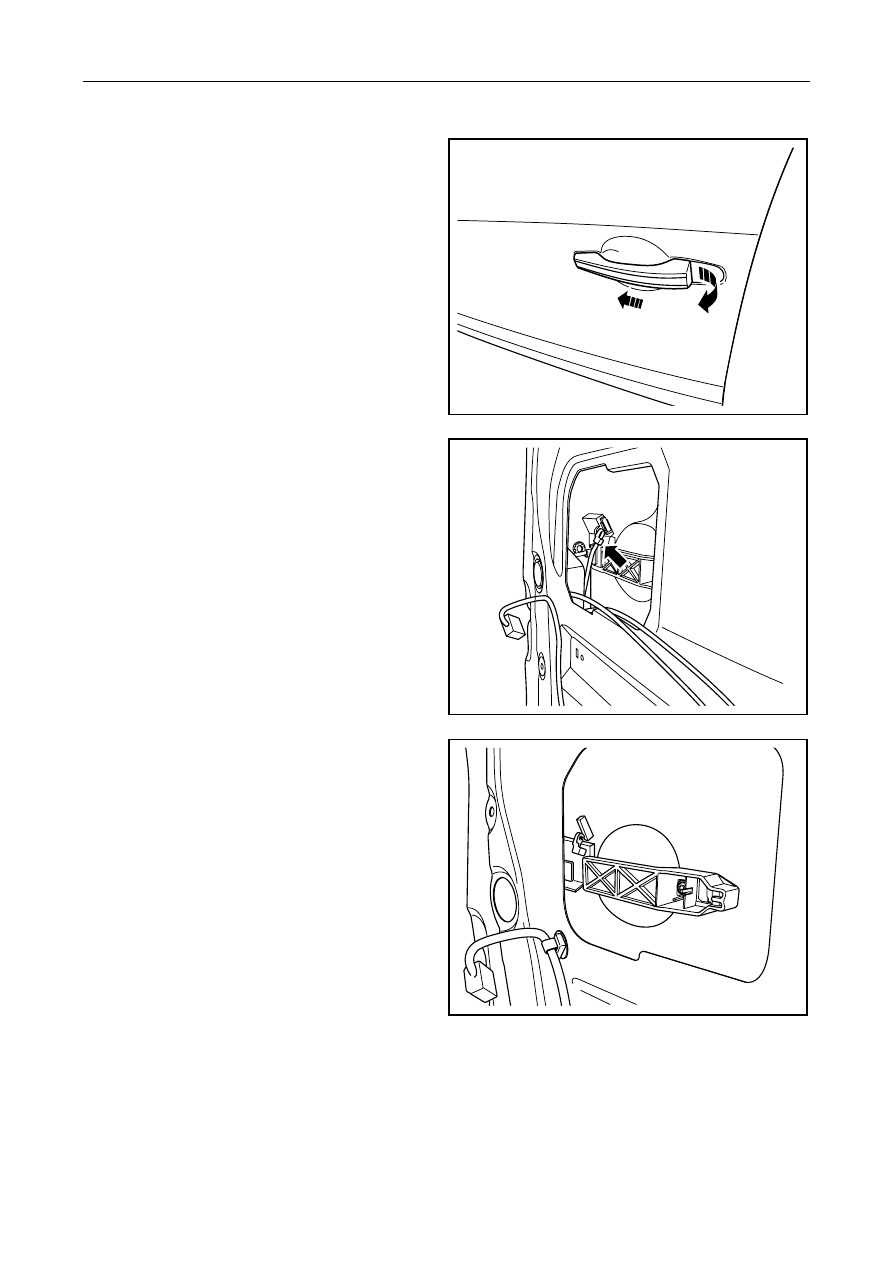

Installation Procedure:

1.  Install door outer opening handle mounting

bushing seat.

2.  Install the door outside release handle.

3.  Install the front door lock cylinder.



NL12-0095b

4.    Install door outer opening handle pull rod.



NL12-0092b

5.   Tighten the fixing bolt for the external door

handle mounting lining seat.

Torque :8Nm(Metric)6lb-ft (English system)

6.  Install the front door interior trim panel.

7.  Connect the battery negative cable.



NL12-0096b

2669






12.5.2.4 Inner open handle replacement of front door

Dismantlement Procedure

Warning!

Warning: Refer to "Warning on Battery
Disconnection" in "Warnings and Precautions".

1.   Disconnect the battery negative cable. Refer to

2.11.8.1 Battery Cable Disconnection/Connection
Procedures.

2.   For dismantling of door inner trimming plate,

refer to

12.9.1.7 Replacement of left front door

inner trimming plate.

3.    Loosen inner opening handle cable.

NL12-0097b

4.   Dismantle fixing screw of inner opening handle

of front door.



NL12-0098b

Installation Procedure:

1.  Install front door inner opening handle fixing

screw.

Torque :8Nm(Metric)6lb-ft (English system)



NL12-0098b



2670
