2.    Fix inner opening handle cable.

3.  Install the front door interior trim panel.

4.  Connect the battery negative cable.



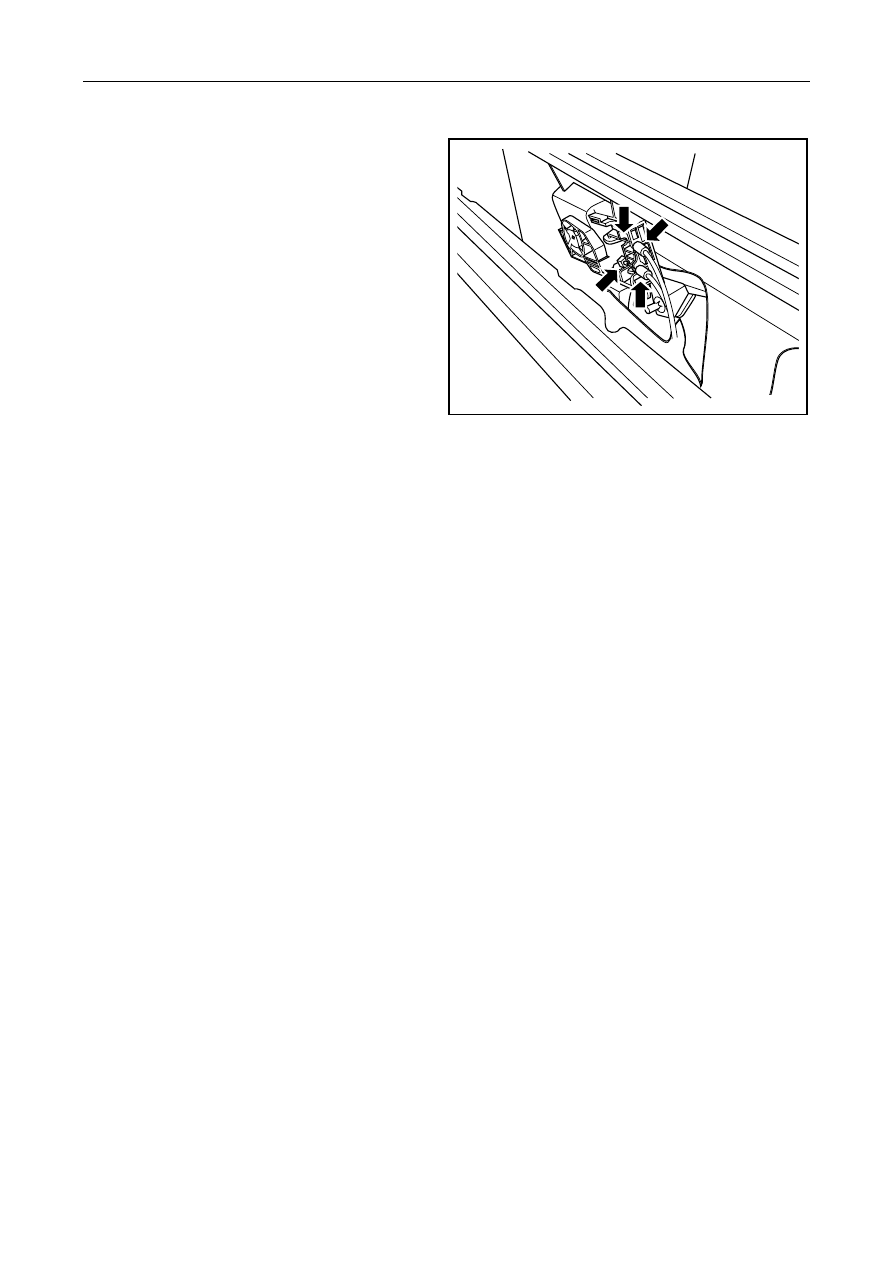

NL12-0097b

2671




12.5.2.5 Front door lock cylinder replacement

Dismantlement Procedure

Warning!

Warning: Refer to Warning on Battery Disconnection in Warnings and Precautions.

1.   Disconnect the battery negative cable. Refer to

2.11.8.1 Battery Cable Disconnection/Connection
Procedures.

2.   For dismantling of door inner trimming plate,

refer to

12.9.1.7 Replacement of left front door

inner trimming plate.



3.   For dismantling of front door glass, refer to

11.4.8.5 Replacement of left front glass lifter
motor.

4.    For dismantling of front door glass guide groove,

refer to

11.4.8.8 Replacement of front door glass

guide groove.

5.    Remove the lock cylinder fixing bolt closure.

NL12-0099b

6.    Remove the lock cylinder fixing bolt.



NL12-0100b

7.    Dismantle the external door handle push rod.



NL12-0092b

2672






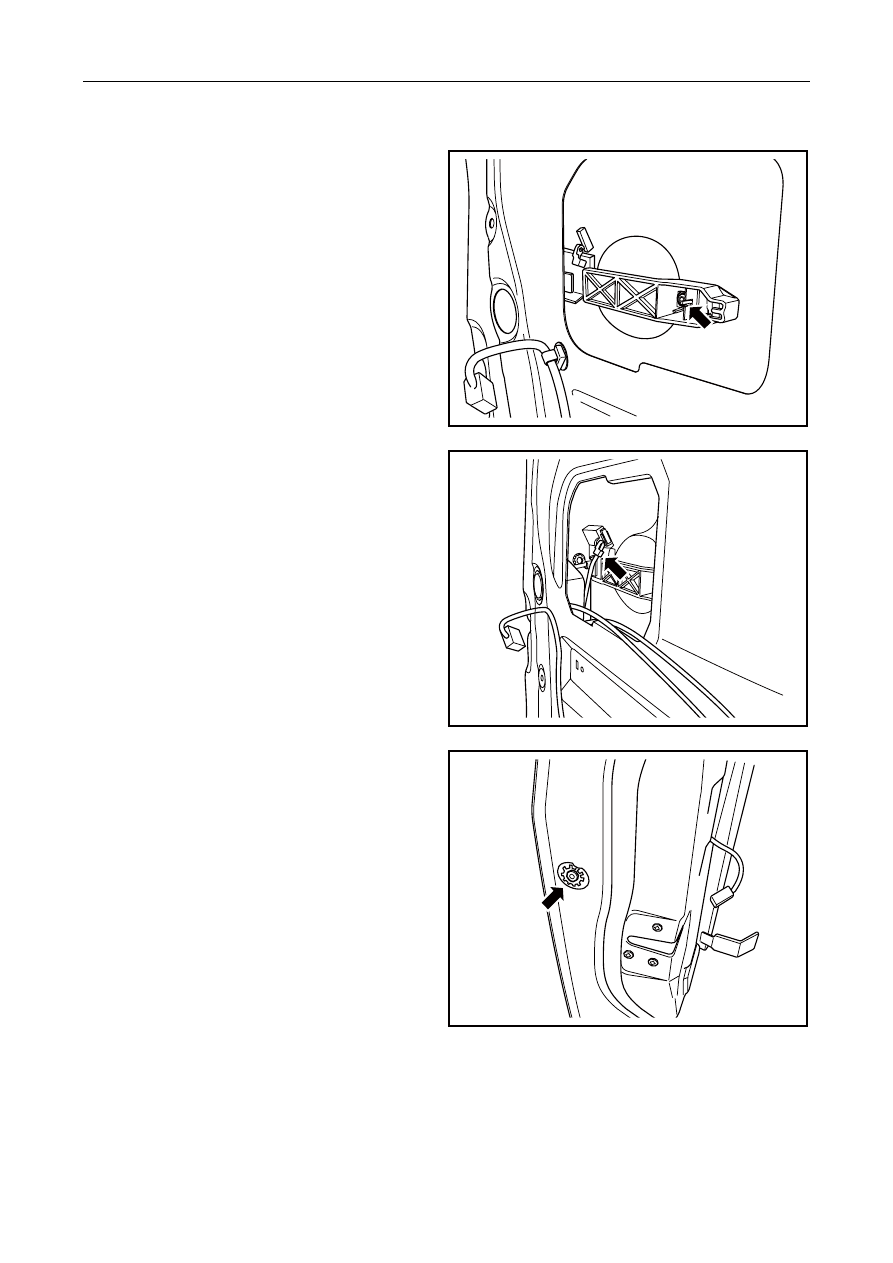

8.  Loosen the fixing bolt for the external door

handle mounting lining seat.



NL12-0093b

9.    Detach and push out the external door handle to

facilitate the dismantlement of the lock cylinder.

10.  Draw out lock core.



NL12-0101b

Installation Procedure:

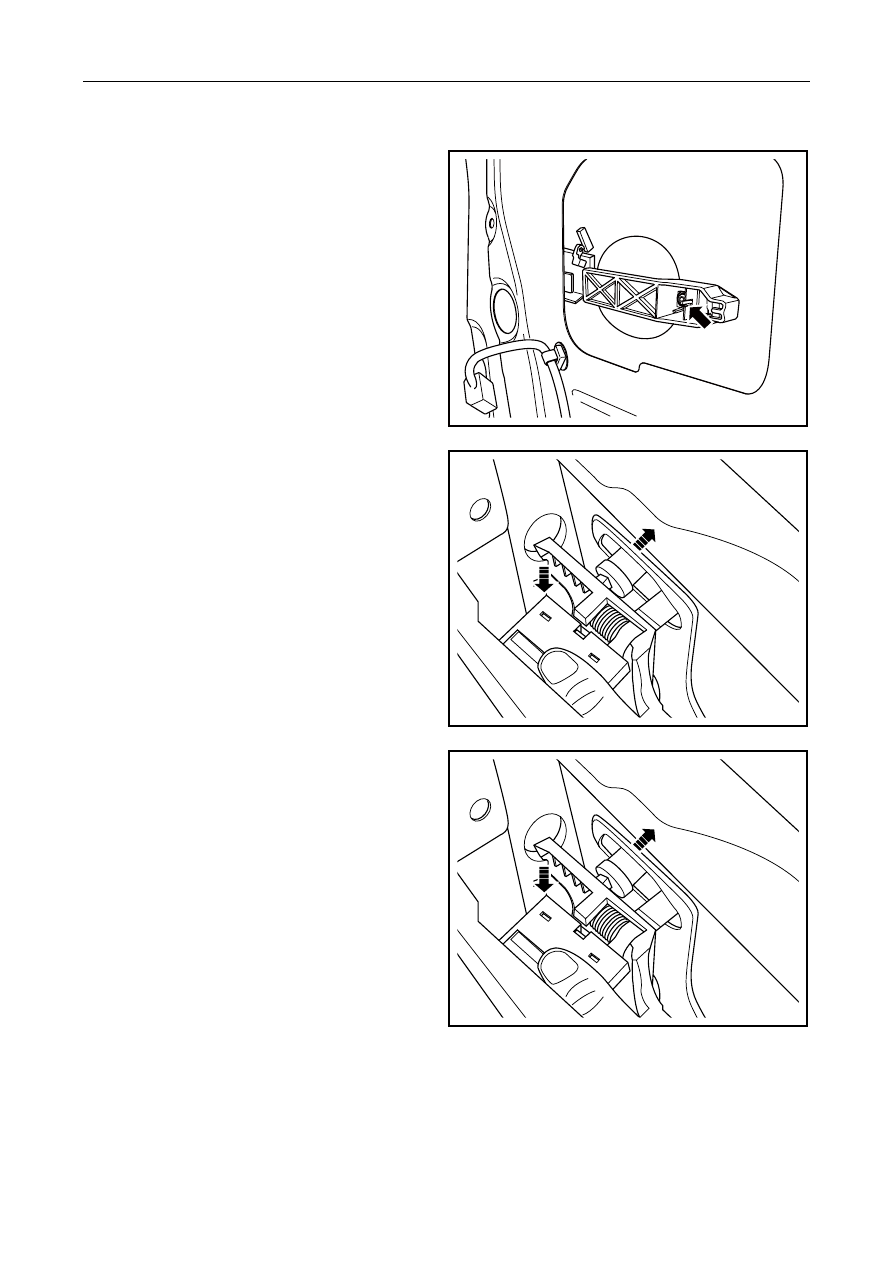

1.    Remove and push out door outer opening handle

to facilitate installation of lock core.

2.    Insert lock core into lock block.

NL12-0101b

2673






3.   Tighten fixing bolts of mounting lining seat of

door outer opening handle.

Torque: 8Nm(Metric) 6lb-ft(English system)



NL12-0093b

4.    Install door outer opening handle push rod.



NL12-0092b

5.    Install the lock cylinder fixing bolt.

Torque :36Nm(Metric) 26 . 6lb-ft(English system)



NL12-0100b

2674
