Tire and wheel- wheel and tire system

Tire and wheel

Wheel and tire system

Inspection

1. Check tire.

(a) Check tire is worn and inflation pressure is proper.

Cold tire inflation pressure:

*1 It is used under the condition of speed below 160 km/h.

(b) Check tire run-out with dial indicator.

Tire run-out:

2. Adjust tire position.

Hint: see adjusting position of tire shown in the dia-

gram whether there is spare tire or not.

3. Check wheel balance.

(a) Check and adjust with off-the-car balancing machine.

(b) Check and adjust with in-the-car balancing machine if

necessary.

Unbalanced mass after adjusting:

4. Check axial clearance of front wheel bearing

(see Page 123).

5. Check end surface run-out of front wheel shaft hub

(see Page 123).

6. Check axial clearance of rear wheel bearing

(see Page 129).

7. Check end surface run-out of rear wheel shaft hub

(see Page 129).

8. Check front suspension is loose.

9. Check steering linkage is loose.

10.

Check ball joint is loose.

Tire size

Front and rear kPa

Front

109

Tire and wheel- wheel and  tire system

11.

Check the function of absorber is normal.

Check there is oil leakage.

Check liner clamp is worn.

Shake the front and rear of vehicle.

110

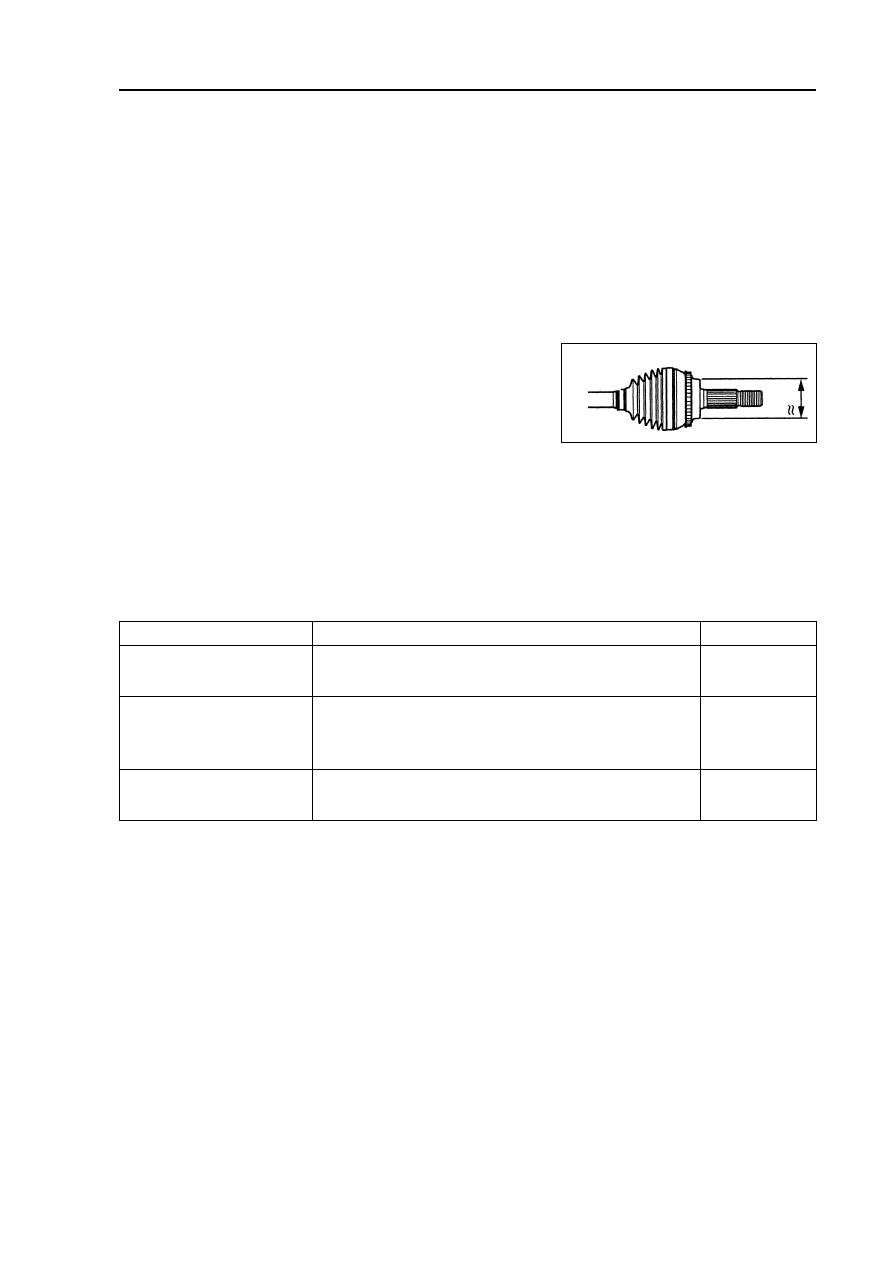

Drive shaft--Driveshaft

Drive shaft

Drive shaft

Notes

Note: if happening any malfunction, it is necessary to change the exterior joint assembly of trans-

mission shaft.

1. Check front drive shaft assembly.

Malfunction phenomenon table

Malfunction phenomenon

Possible malfunction part

Reference page

Offset

1. Steering connecting rod (loosened or abraded)

-

2. Bearing of shaft hub (abraded)

123

1. Ball joint (abraded)

123

Shake of front wheels

2. Bearing of shaft hub (abraded)

123

3. Steering connecting rod (loosened or abraded)

-

Abnormal noise

1. Inner joint (abraded)

113

2. Exterior joint (abraded)

113

Exterior joint assembly

58

111

Drive shaft--Drive shaft

Inspection on automobile

1. Check the bearing of front wheel hub

(a) Disassemble the front wheels.

(b) Disassemble front brake caliper assembly.

(c) Disassemble front brake.

(d) Check the axial clearance of bearing (referring to page 123)

(e) Check the terminal run-out of shaft hub (referring to page 123).

(f) Assemble front brake.

(g) Assemble front brake caliper assembly.

Torque: 106 ± 10 N·m

(H) Assemble front wheel.

Torque: 103 ± 10 N·m

2. Check the bearing of rear wheel hub.

(a) Disassemble rear wheels.

(b) Disassemble rear brake caliper assembly.

(c) Disassemble rear brake.

(d) Check the axial clearance of bearing (referring to page 129)

(e) Check the terminal run-out of shaft hub (referring to page 129).

(f) Assemble rear brake.

(g) Assemble rear brake caliper assembly.

Torque: 46 ± 5 N·m

(H) Assemble rear wheel.

Torque: 103 ±

     10 N·m
