11.4.8.15 Headlamp optical axis adjusting switch replacement

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

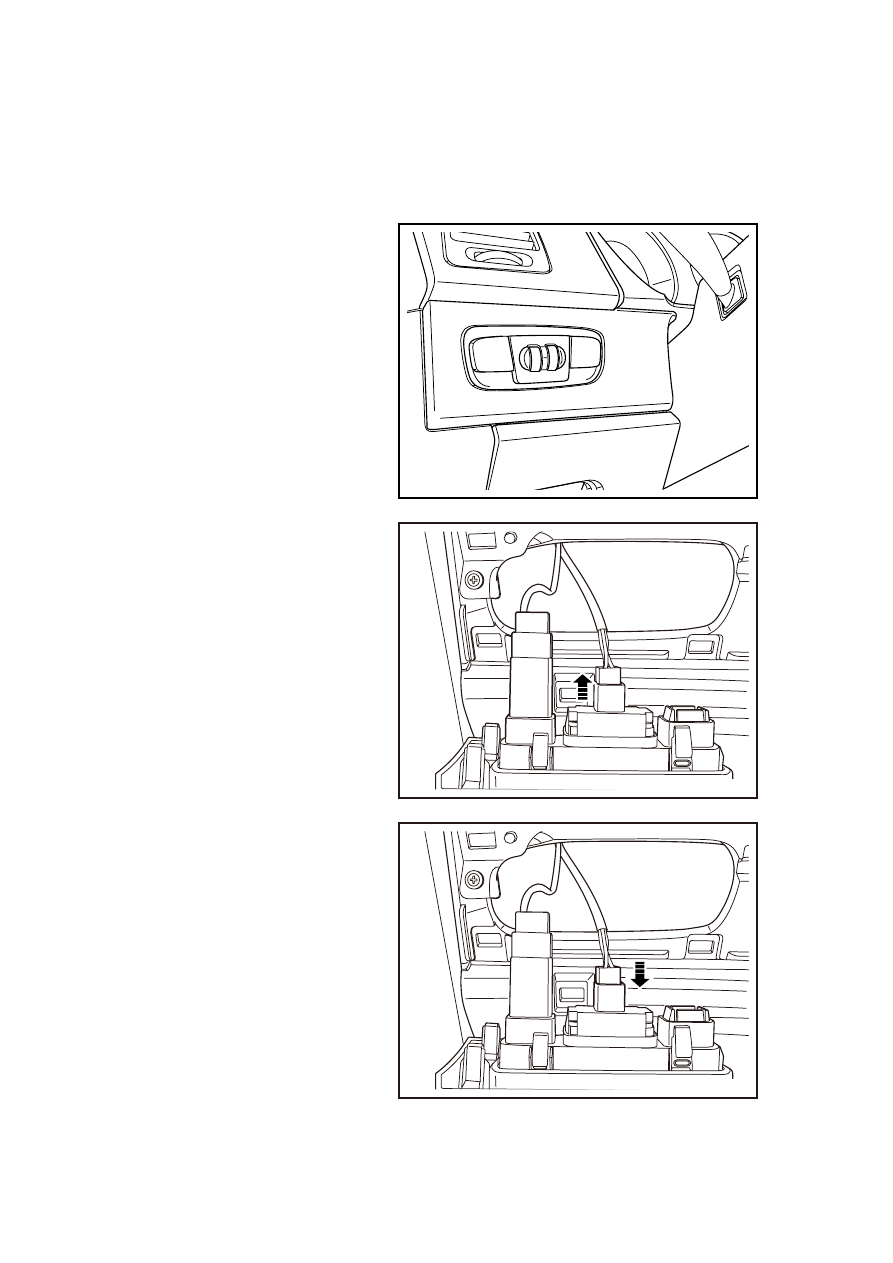

2.  Dismantle instrument panel

switch group assembly.

NL11-0193b

3.  Disconnect headlamp optical axis

adjusting switch harness
connector.

4.  Remove the headlight optic axis

regulator switch.

NL11-0289b

Installation procedure:

1.  Install headlamp light axle

adjusting switch.

2.  Connect headlamp light shaft

adjusting switch wire harness
connector.

NL11-0290b

2155

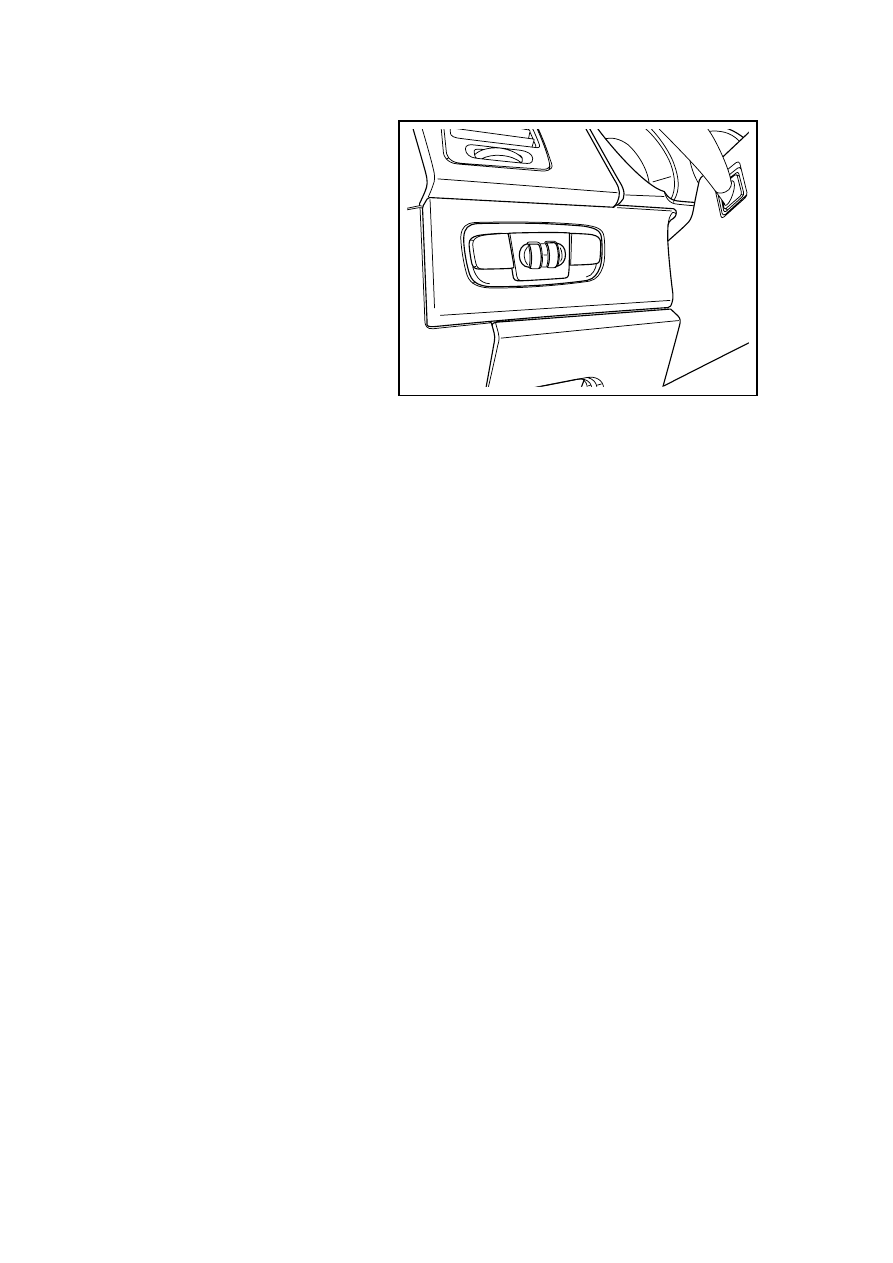

3.  Install instrument panel switch

group assembly into instrument
table.

4.  Connect the battery negative

cable.

NL11-0193b

2156



11.4.8.16 Ambient light and solar sensor replacement

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

2.  Dismantle headlamp environment

light sensor from instrument
panel.

3.  Disconnect ambient light and

solar sensor harness connector.

NL11-0291b

Installation procedure:

1.  Connect to ambient light and

solar sensor harness connector.

2.  Press sun sensor into instrument

table.

3.  Connect the battery negative

cable.

NL11-0291b



2157



11.3.8.17 Replacement of hazard warning lamp switch

Dismantlement procedure

Warning!

Warning: refer to "warning on battery
disconnection" in "warnings and
precautions".

1.  For disconnection of negative

cable of battery, refer to
"disconnection procedures of
battery".

2.  For dismantling of instrument

panel central switch assembly,
refer to "replacement of air
conditioner control panel".

3.  Dismantle danger warning lamp

switch.

NL11-0292b

Installation procedure:

1. Install

the

hazard warning lamp

switch to the instrument panel
center switch assembly.

2.  Install the instrument panel

center switch.

3.  Connect the battery negative

cable.

NL11-0293b

2158
