Torque: 5Nm (Metric system) 3.7lb-ft
(English system)

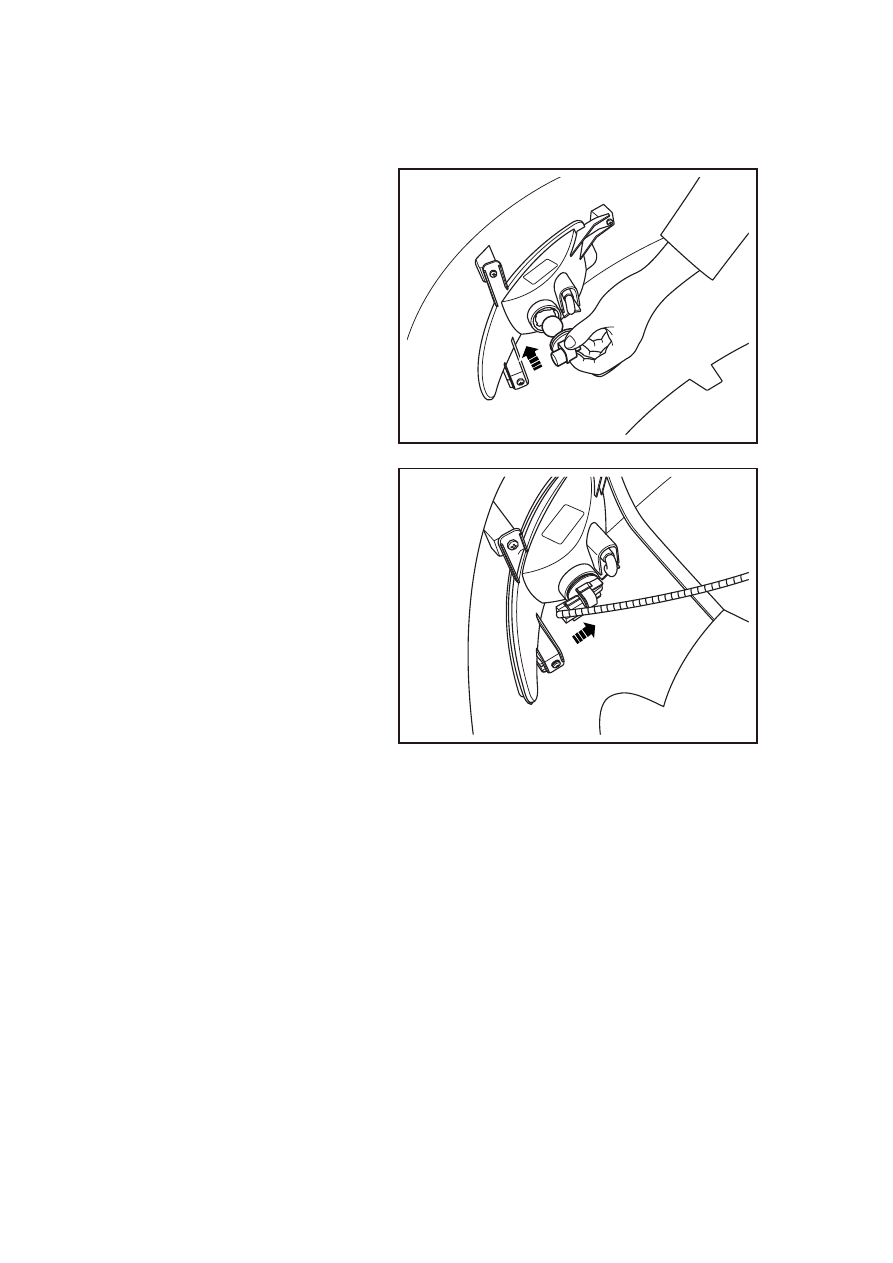

2.  Install the rear fog lamp

assembly.

NL11-0255b

3.  Conect wire harness connector of

electric device of combined lamp
assembly.

4.  Install the rear bumper.

5.  Connect the battery negative

cable.

NL11-0256b



2135



11.4.8.6 Replacement of high mounted brake lamp

Dismantlement procedure

Warning!

Warning: refer to warning on battery disconnection in warnings and precautions.

1.  For disconnection of negative

cable of battery, refer to 2.11.8.1
Disconnection procedures of
battery cable.

Connection procedures.

2.  For dismantling of upper

trimming plate of back door
frame, refer to 12.9.1.10
Replacement of back door
trimming plate.

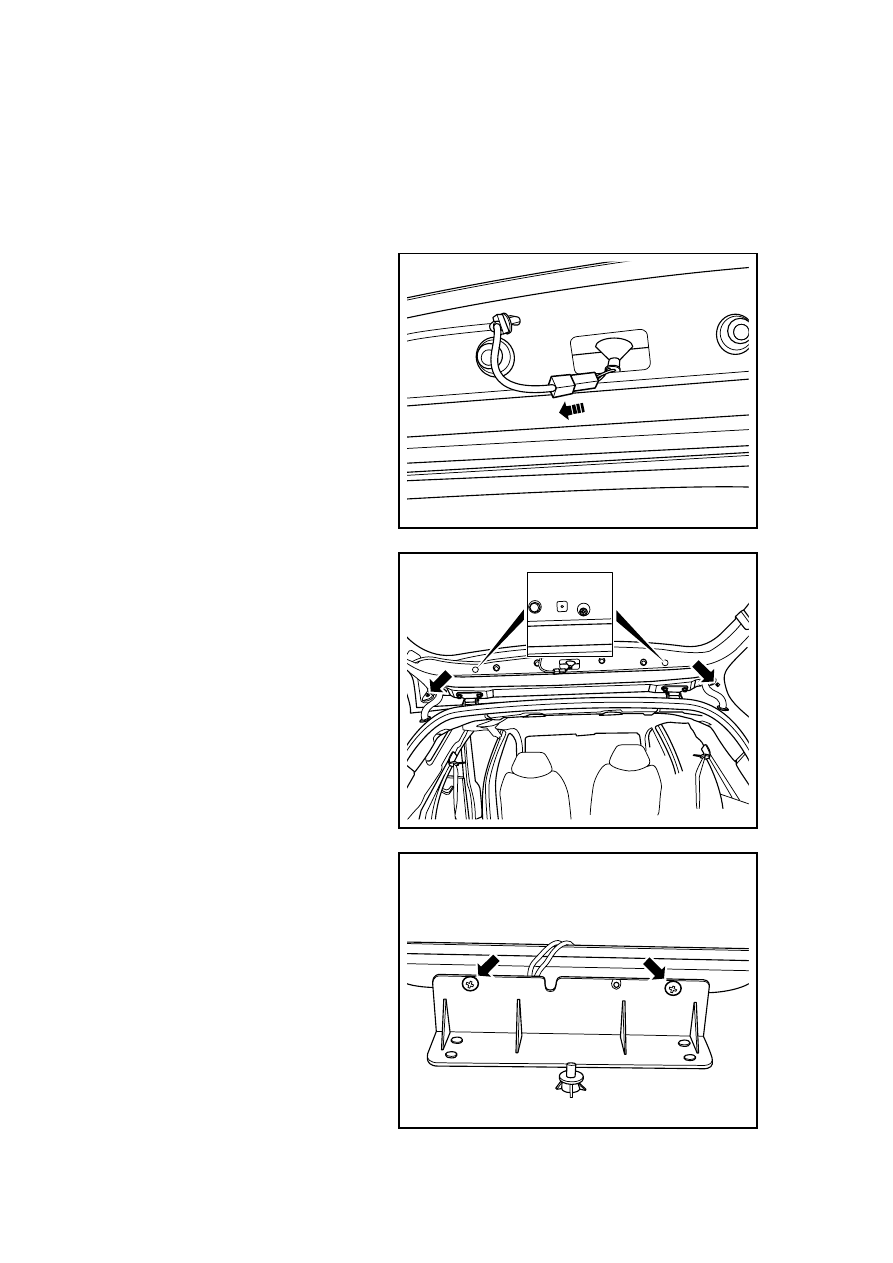

3.  Disconnect the high mounted

brake lamp harness connector.

NL11-0257b

4.  Dismantle fixing nut of spoiler.

NL11-0258b

5.  Remove the fixing bolt of the

high braking light.

NL11-0259b

2136

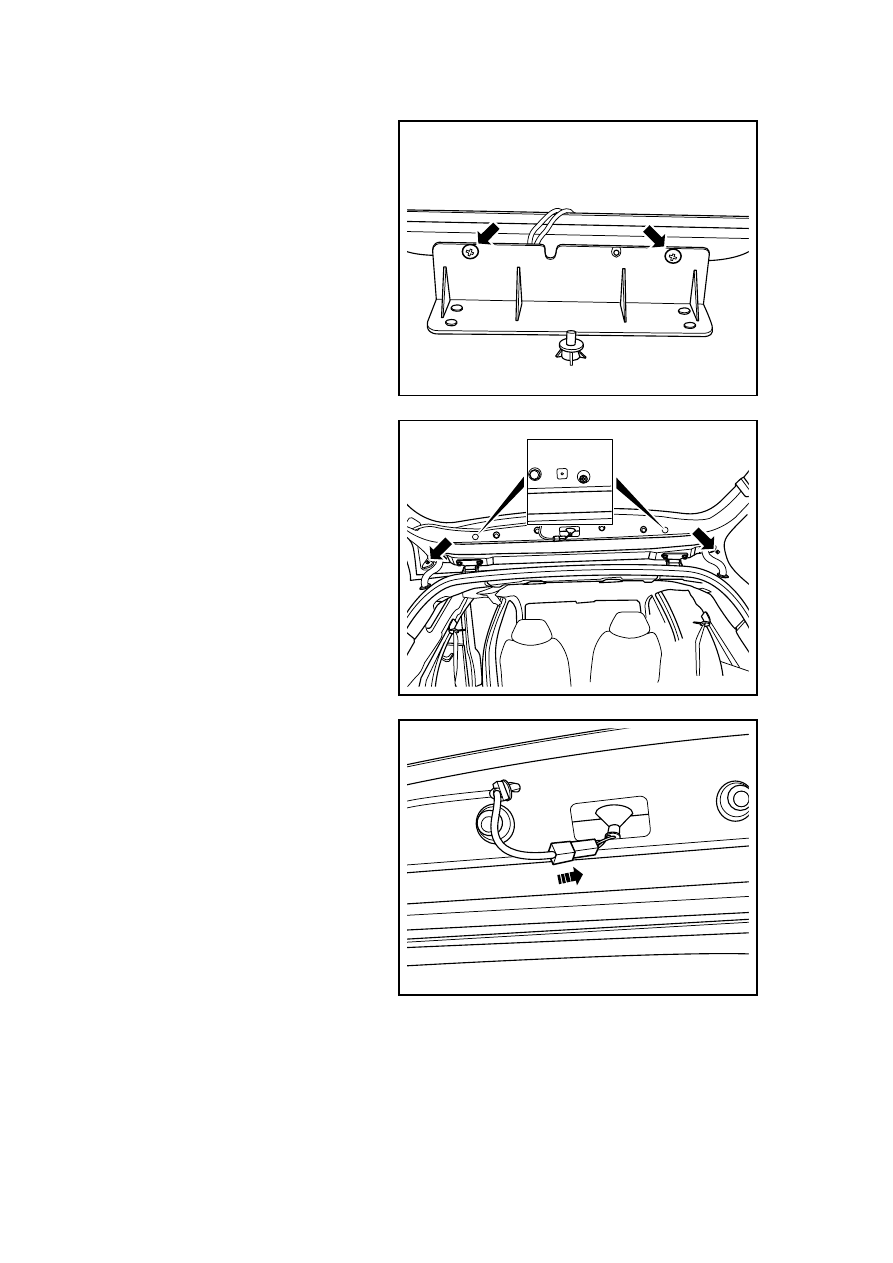

Installation procedure:

1.  Install the high mounted brake

lamp and tighten the fixing
screws.

Torque:5Nm(Metric) 4lb-ft(English
system)

NL11-0259b

2.  Install spoiler and tighten it with

fixing nut.

Torque:10Nm(Metric) 7.4lb-ft(English
system)

NL11-0258b

3.  Connect the high mounted brake

lamp harness connector.

4.  Install upper trimming plate of

rear back door frame.

5.  Connect the battery negative

cable.

NL11-0260b



2137



11.4.8.7 Replacement of headlamp

Dismantlement procedure

Notes:

A light height adjusting motor is internally arranged in a headlamp assembly.

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

2.  For dismantling of front bumper,

refer to 12.4.3.1 Replacement of
front bumper.

3. Front

bumper

replacement.

NL11-0261b

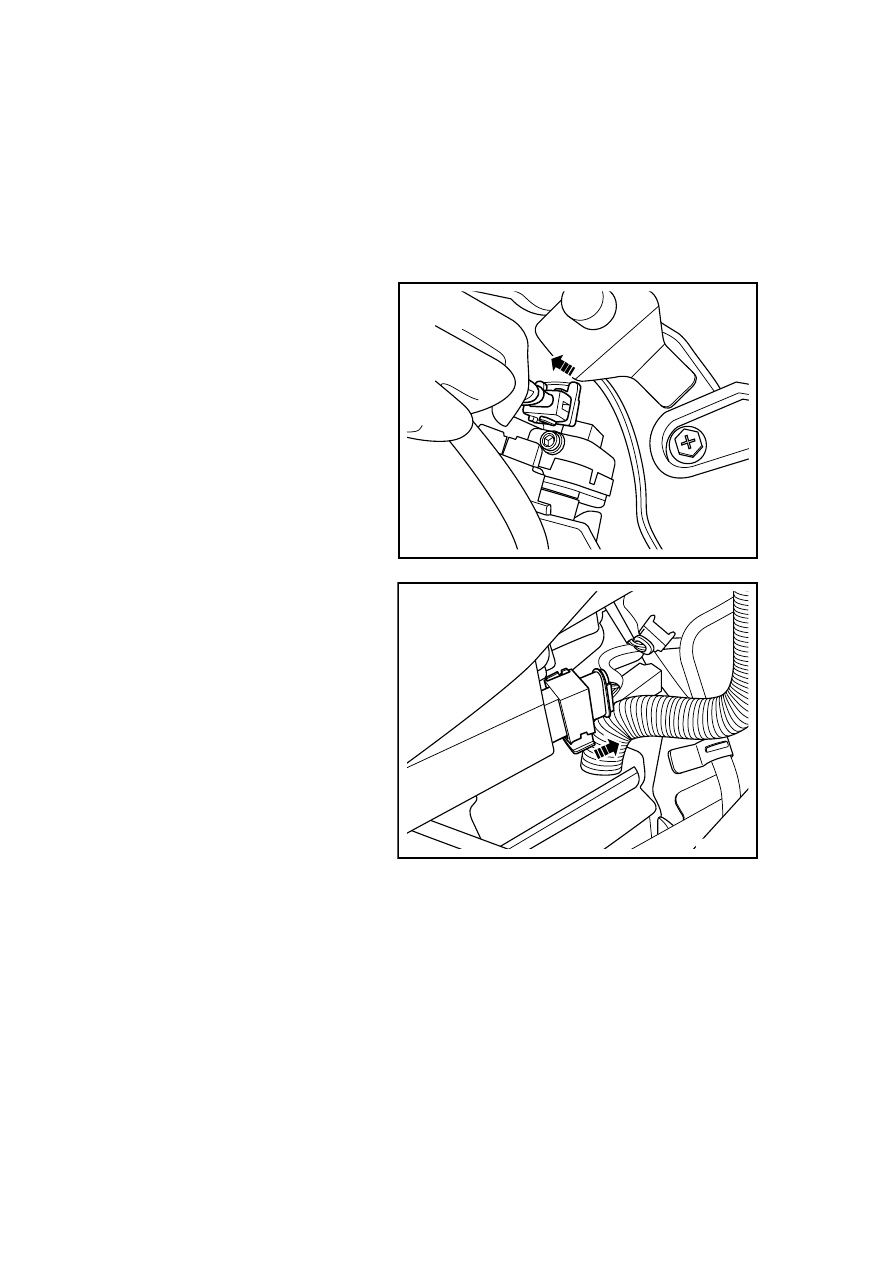

4.  Disconnect wire harness

connector under headlamp
assembly.

NL11-0262b

2138
