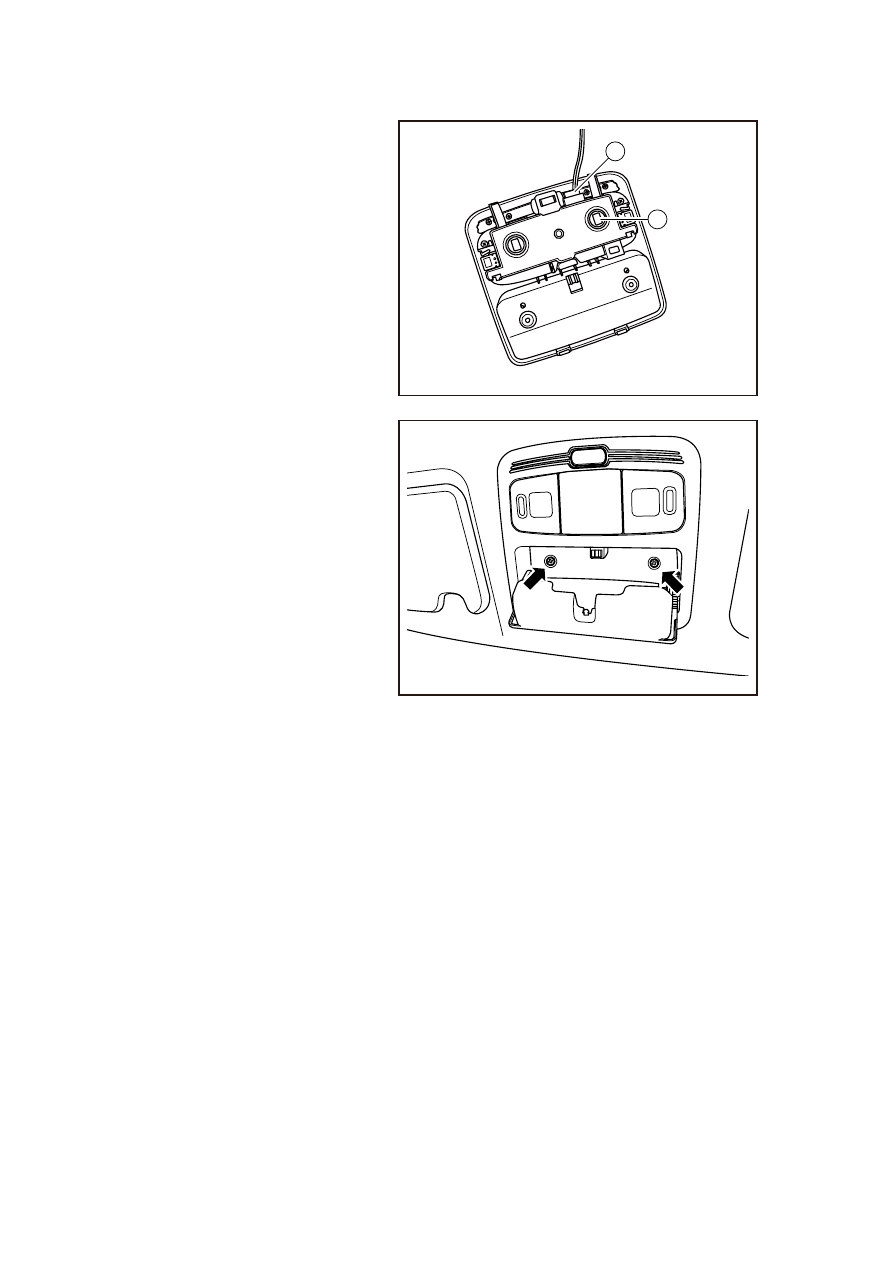

Installation procedure:

1. Install

bulb

1.

2.  Connect front read lamp wire

harness connector 2.

1

2

NL11-0240b

3.  Install the dome lamp and tighten

the fixing screws.

Notes:

"Cautions of fasteners" shown in
"warning and cautions".

Torque: 3Nm (Metric system) 2.2lb-ft
(English system)

4.  Connect the battery negative

cable.

NL11-0237b

2127

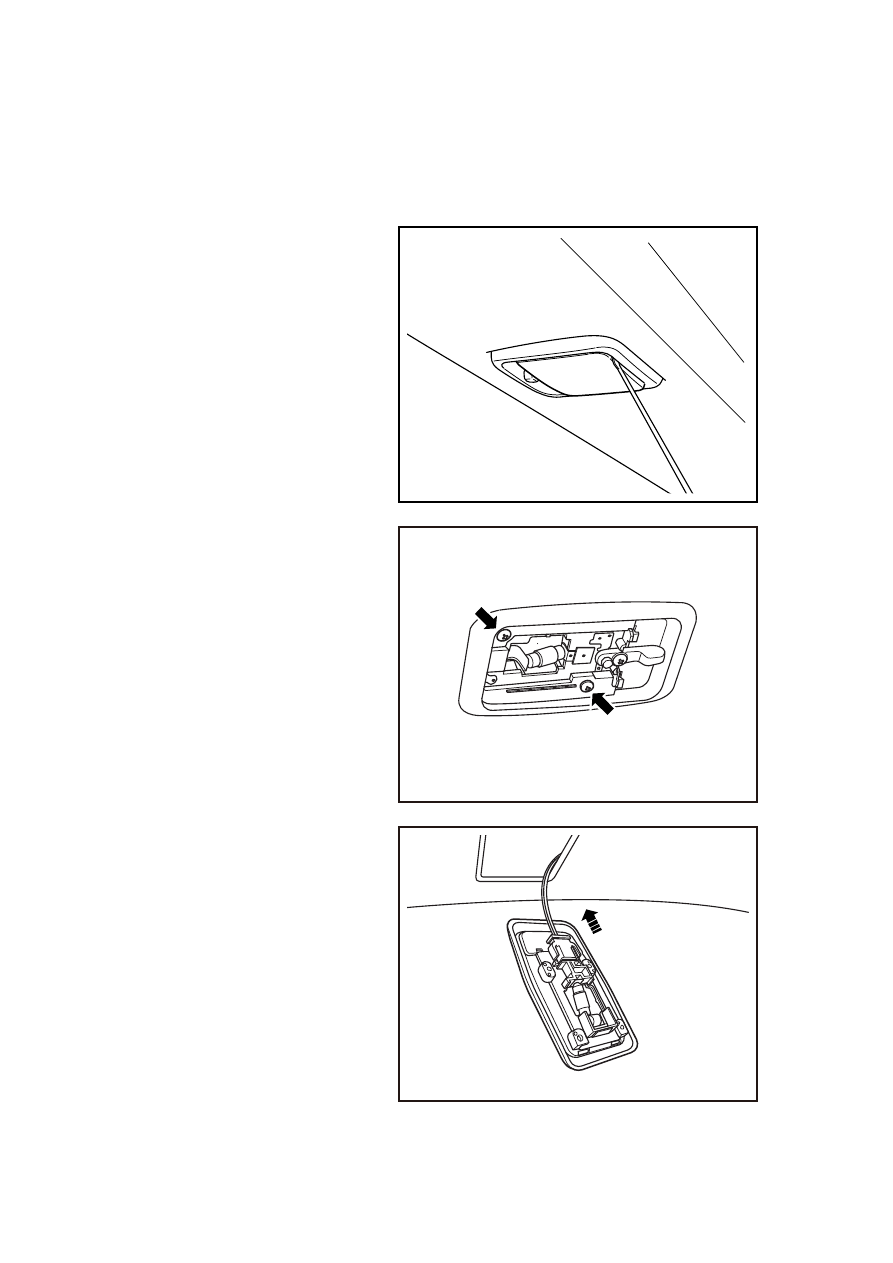

Replacement of rear ceiling lamp and reading lamp

Dismantlement procedure

Warning!

Warning: refer to “warning on battery
disconnection” in “warnings and
precautions”.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

2.  Insert special tool into rear dome

lamp shield rim groove, and
dismantle lamp shield

NL11-0241b

3.  Dismantle fixing screw of rear

read lamp.

NL11-0242b

4.  Disconnect rear dome lamp wire

harness connector.

5.  Remove the rear reading lamp.

NL11-0243b

2128

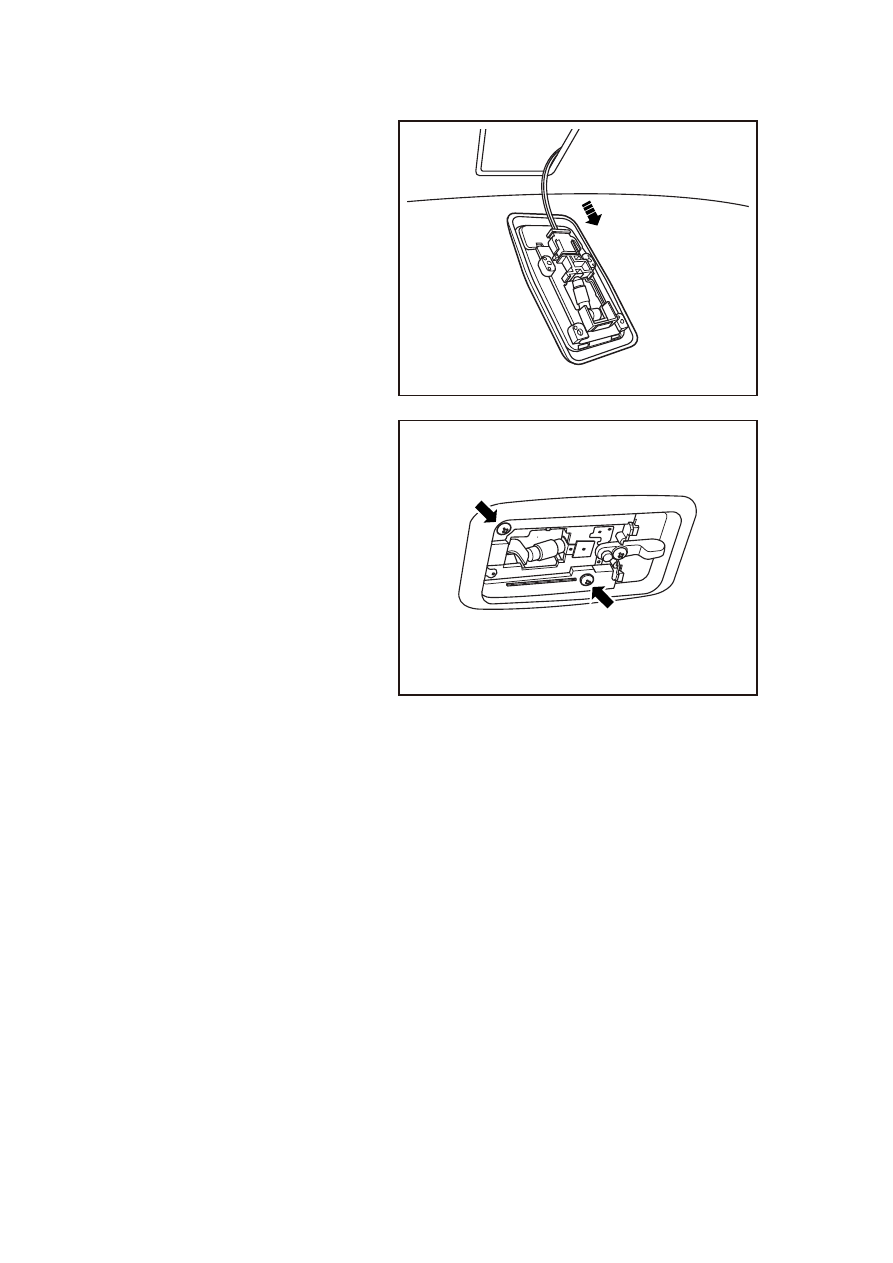

Installation procedure:

1.  Connect to rear ceiling lamp

harness connector.

NL11-0244b

2.  Install rear read lam and tighten

fixing screw.

Notes:

"Cautions of fasteners" shown in
"warning and cautions".

Torque: 2Nm (Metric system) 1.5lb-ft

(English system)

3.  Press indoor door control lamp

shield into the housing.

4.  Connect the battery negative

cable.

NL11-0242b

2129

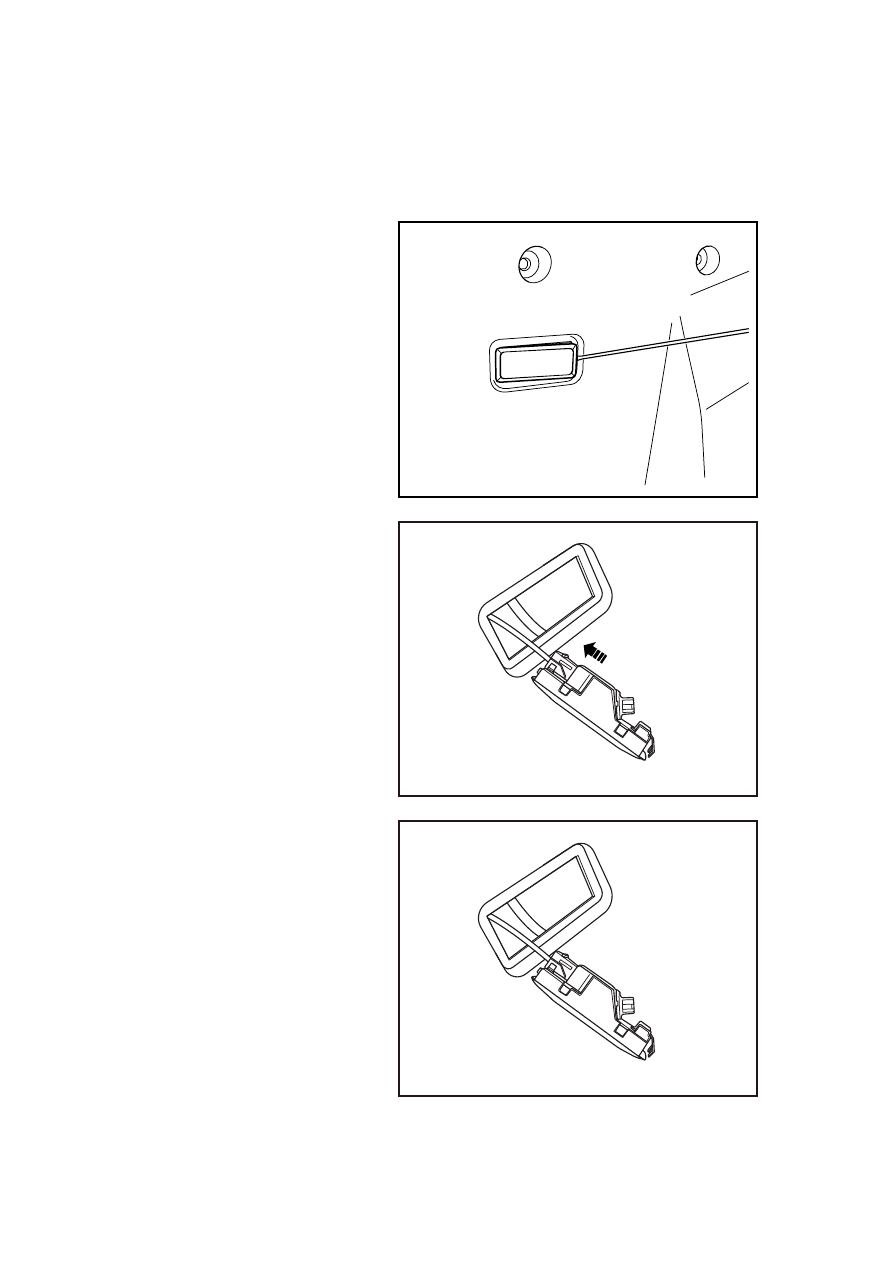

11.4.8.3 Trunk lamp replacement

Dismantlement procedure

Warning!

Warning: refer to “warning on battery
disconnection” in “warnings and
precautions”.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

2.  Use suitable tool to dismantle

boot lamp from inner trimming
plate.

NL11-0245b

3.  Disconnect trunk lamp harness

connector.

NL11-0246b

Installation procedure:

1.  Connect to trunk lamp harness

connector.

NL11-0247b
