4.3.7.4 Rear stabilizer rod replacement

Dismantle procedure

1.

For lifting vehicle, refer to 1.3 Lifting vehicle .

2.  For dismantling of rear stabilizer rod and

stabilizer connecting rod on both sides, refer to
4.3.7.5 Replacement of rear stabilizer rod and
stabilizer connecting rod.

3.

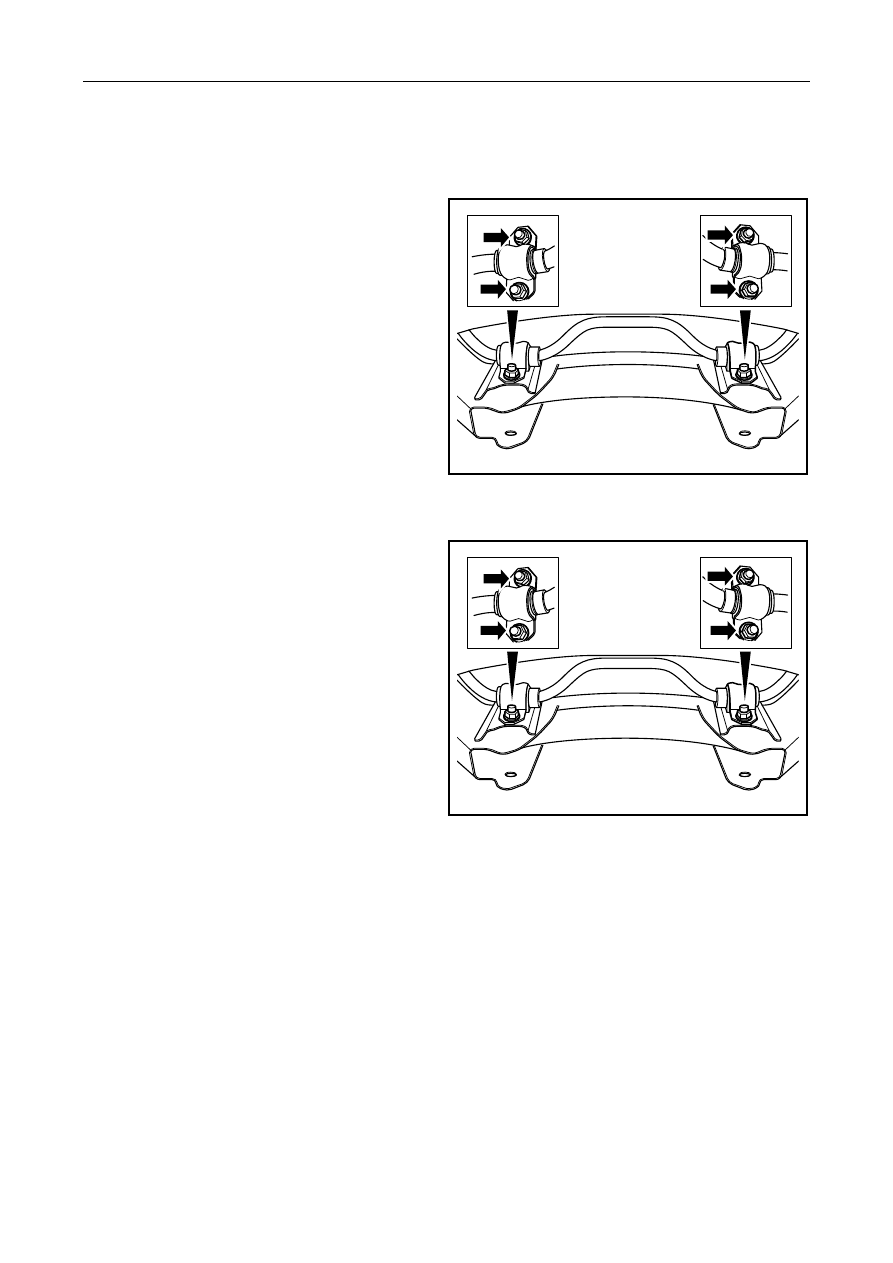

Dismantle fixing nut of rear stabilizer rod.



NL04-0043b

Installation procedure:

1.

Install rear stabilizer rod fixing nut.

Torque:60 Nm (Metric) 44.4 lb-ft (English system)

2. Lower

the

vehicle.



NL04-0043b



1463






4.3.7.5 Upper switch arm of rear suspension replacement

Dismantle procedure

1.

For lifting of the vehicle, see 1.3 lifting vehicle.

2.

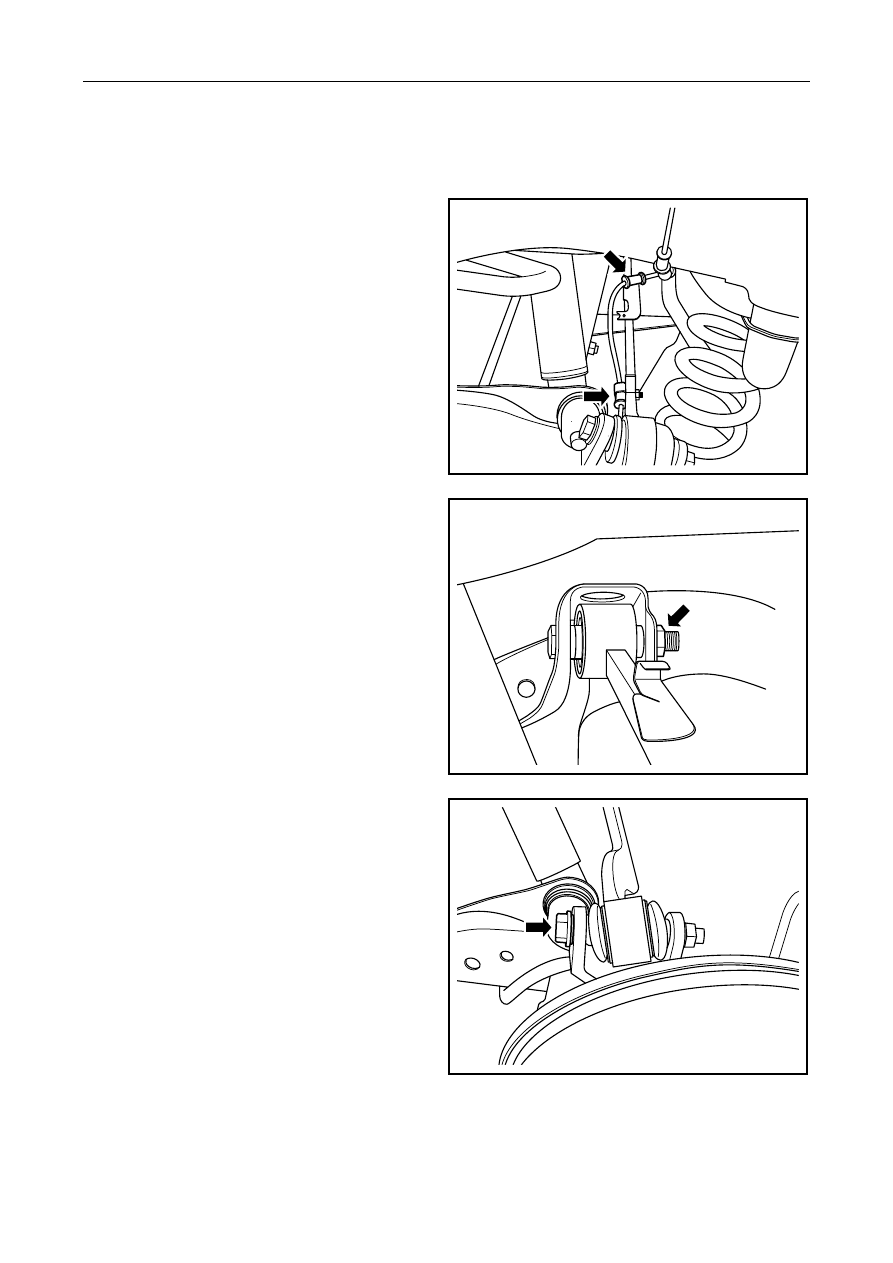

Separate rear wheel speed sensor connecting wire
from upper swing arm of rear suspension.



NL04-0044b

3. Dismantle connecting bolt between rear

suspension upper swing arm and rear auxiliary
frame.



NL04-0045b

4.

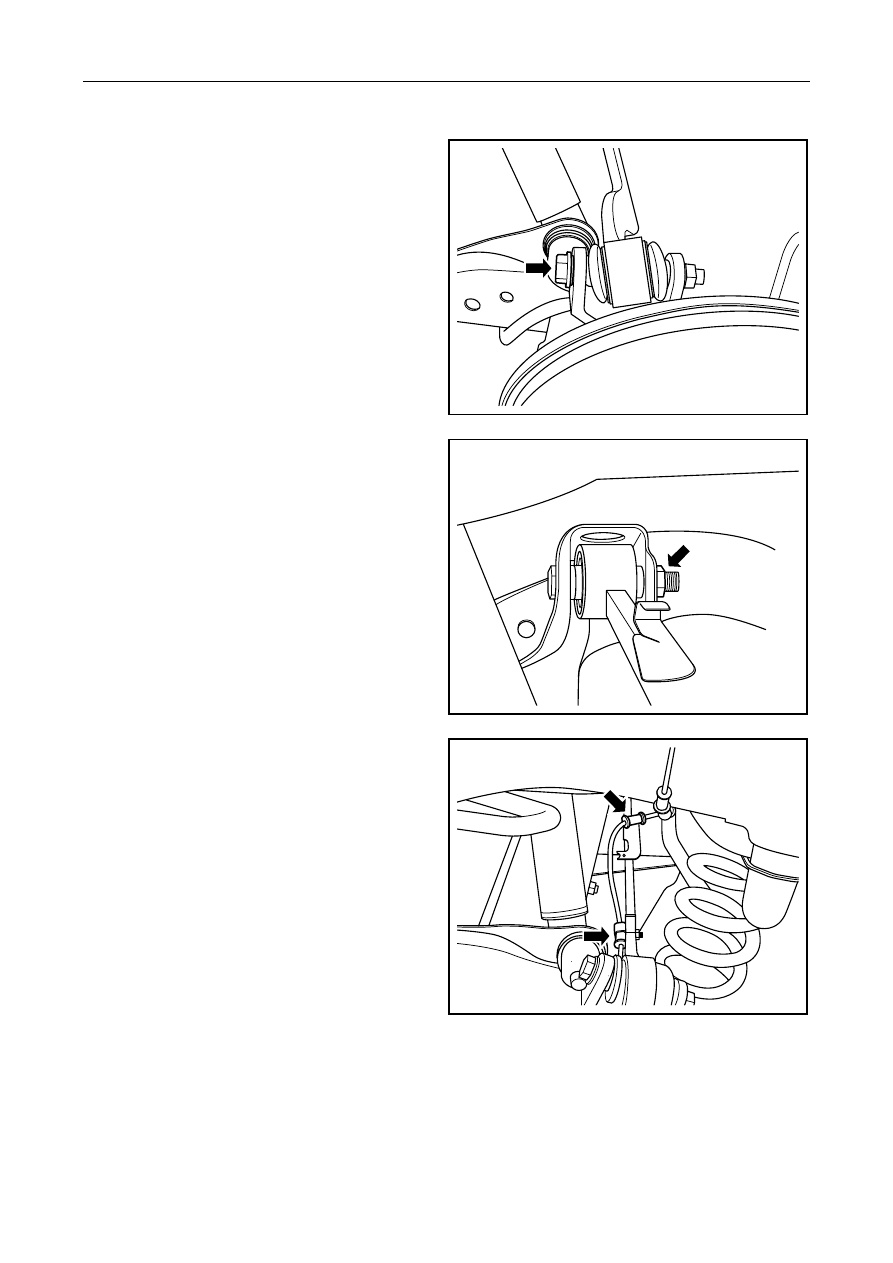

Dismantle through bolt between upper swing arm
of rear suspension and rear axle head support.

5.

Remove the rear suspension upper swing arm.



NL04-0046b



1464




Installation procedure:

1.

Install rear suspension upper swing arm.

2.

  Install and tighten the through bolt between the
rear suspension swing arm and rear axle spindle
head bearing seat.

Torque:90 Nm (Metric) 66.6 lb-ft (English system)



NL04-0046b

3.  Install and tighten connecting bolt between rear

suspension upper swing arm and rear auxiliary
frame.

Torque:90 Nm (Metric) 66.6 lb-ft (English system)



NL04-0045b

4.  Fix the rear wheel speed sensor harness on the

beam bracket.

5. Lower

the

vehicle.



NL04-0044b



1465






4.3.7.6 Rear tailing arm replacement

Dismantle procedure

1.

For dismantling of left, right rear wheel, refer to
4.4.5.1 Replacement of wheel.

2.

For lifting of the vehicle, see 1.3 Lifting vehicle .

3.

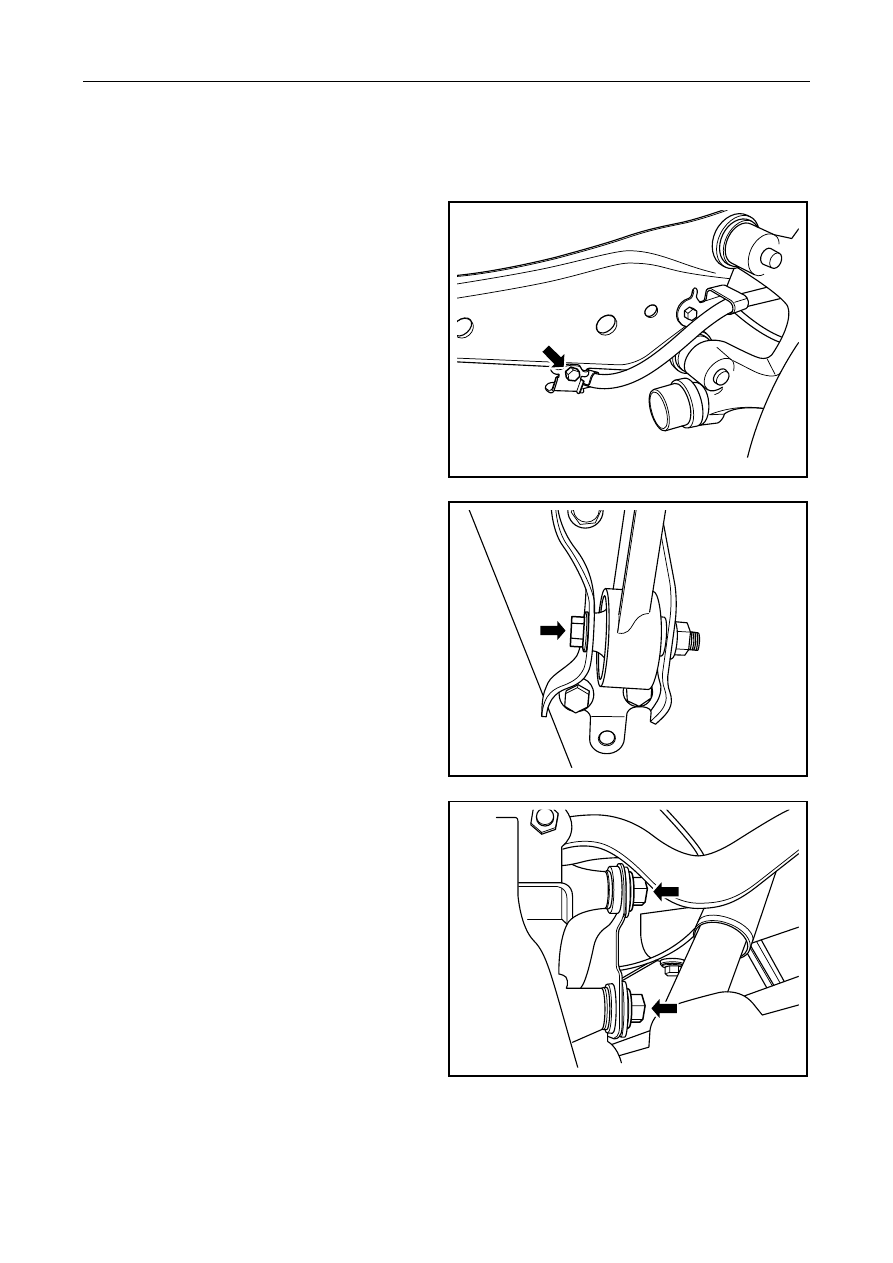

Dismantle 2 fixing bolts on parking brake cable.



NL04-0047b

4.  Dismantle through bolt of mounting bracket of

rear tailing arm and rear tailing arm assembly.



NL04-0048b

5.

Remove two fixing bolts for the rear tailing arm
and rear axle spindle head bearing seat.

6.

Remove the rear trailing arm.



NL04-0049b
