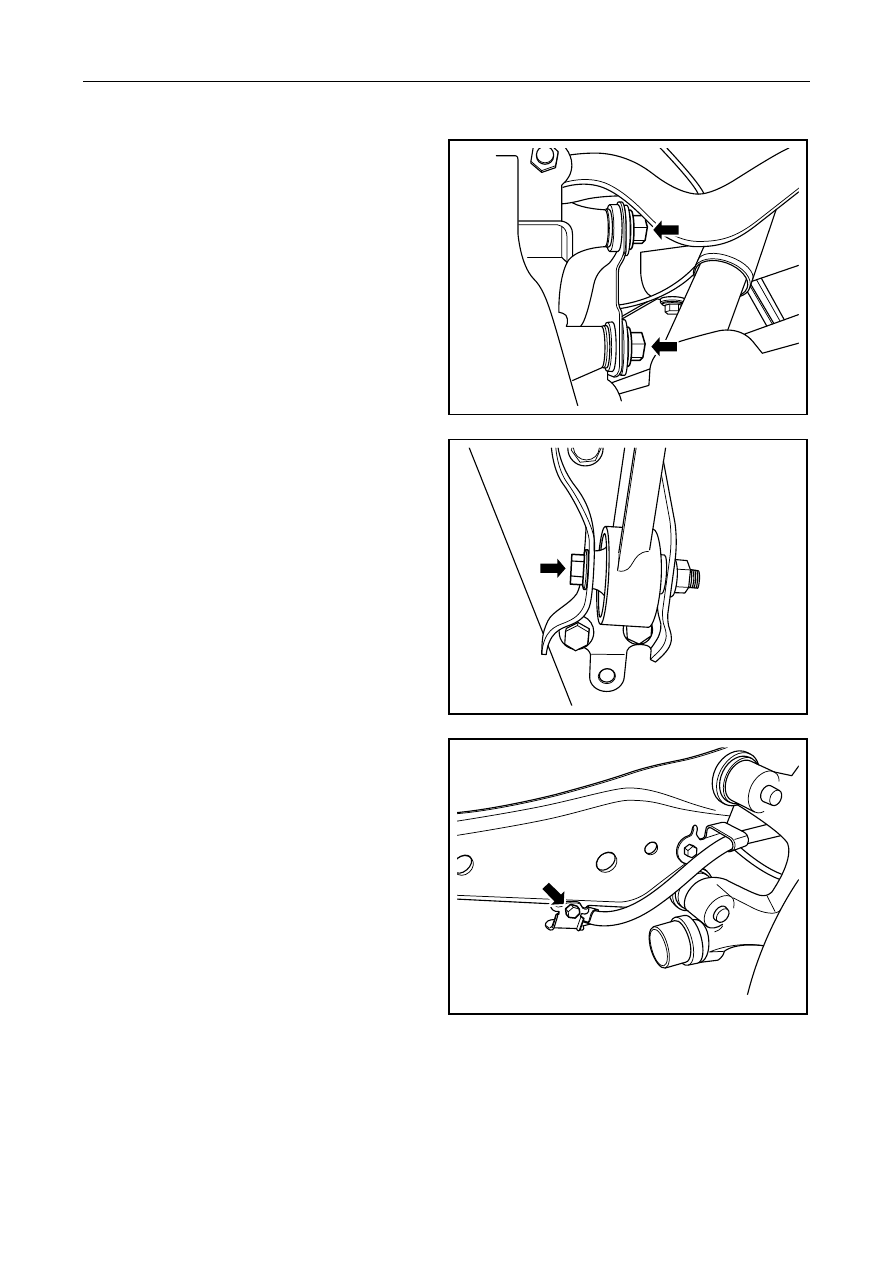

Installation procedure:

1.

Install rear tailing arm

2.

Install 2 fixing bolts on rear tailing arm and rear
axle head support.

Torque:200 Nm (Metric) 148 lb-ft (English system)



NL04-0049b

3.  Install through bolt between rear tailing arm

mounting bracket and rear tailing arm assembly.

Torque:150 Nm (Metric) 111 lb-ft (English system)



NL04-0048b

4.

Install 2 fixing bolts of parking brake cable.

Torque:10 Nm (Metric) 7.4 lb-ft (English system)

5.

Install the front-right rear tire.

6. Lower

the

vehicle.



NL04-0047b



1467

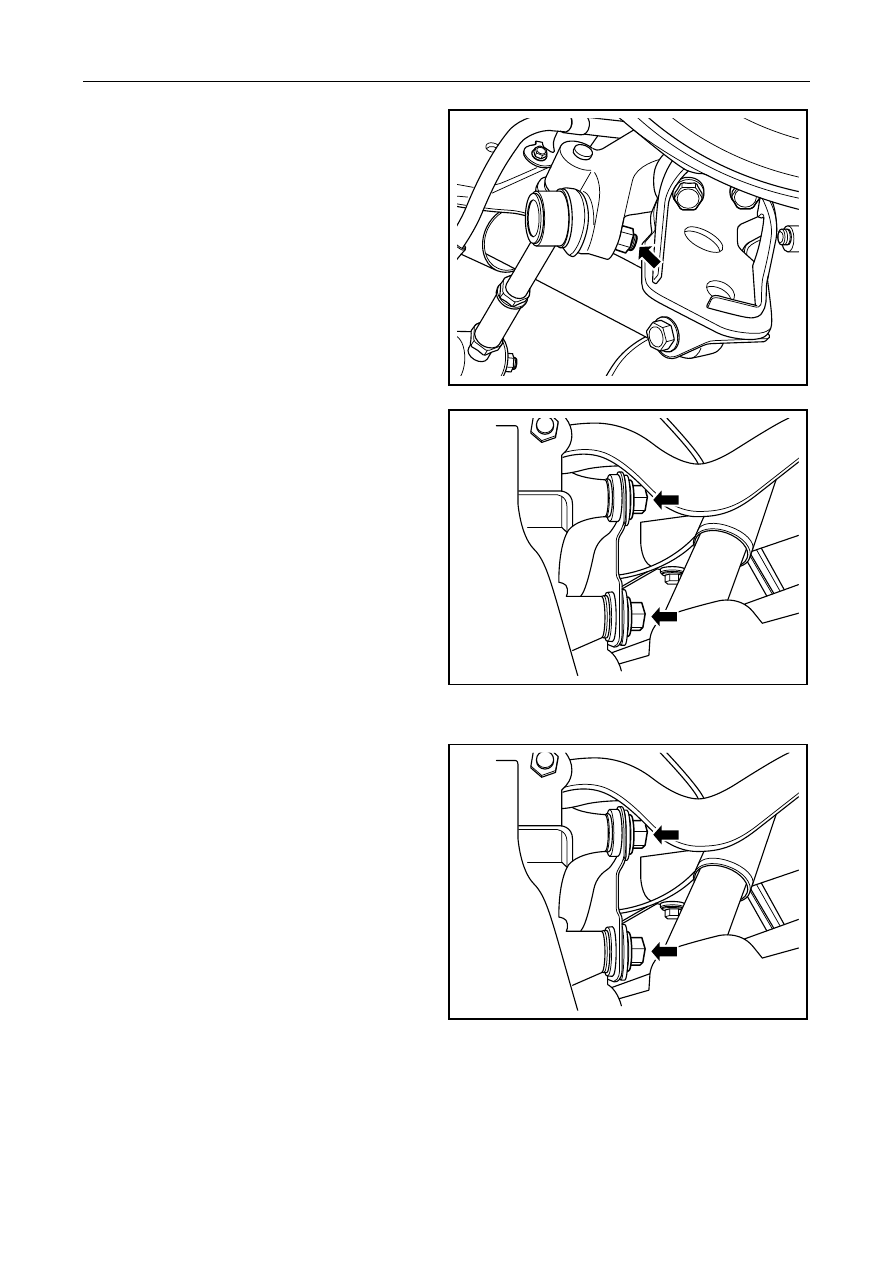

4.3.7.7 Rear axle ball head support replacement

Dismantle procedure

1.

For dismantling of left, right rear wheel, refer to
4.4.5.1 Replacement of wheel.

2.

For lifting vehicle, refer to 1.3 lifting vehicle.

3.  Remove the fixing bolt between the rear

suspension No.2 swing arm and the rear axle
spindle head bearing seat.



NL04-0039b

4.

Dismantle through bolt between upper swing arm
of rear suspension and rear axle head support.



NL04-0046b

5.

Remove the lower through bolt for the rear shock
absorber.



NL04-0035b

1468

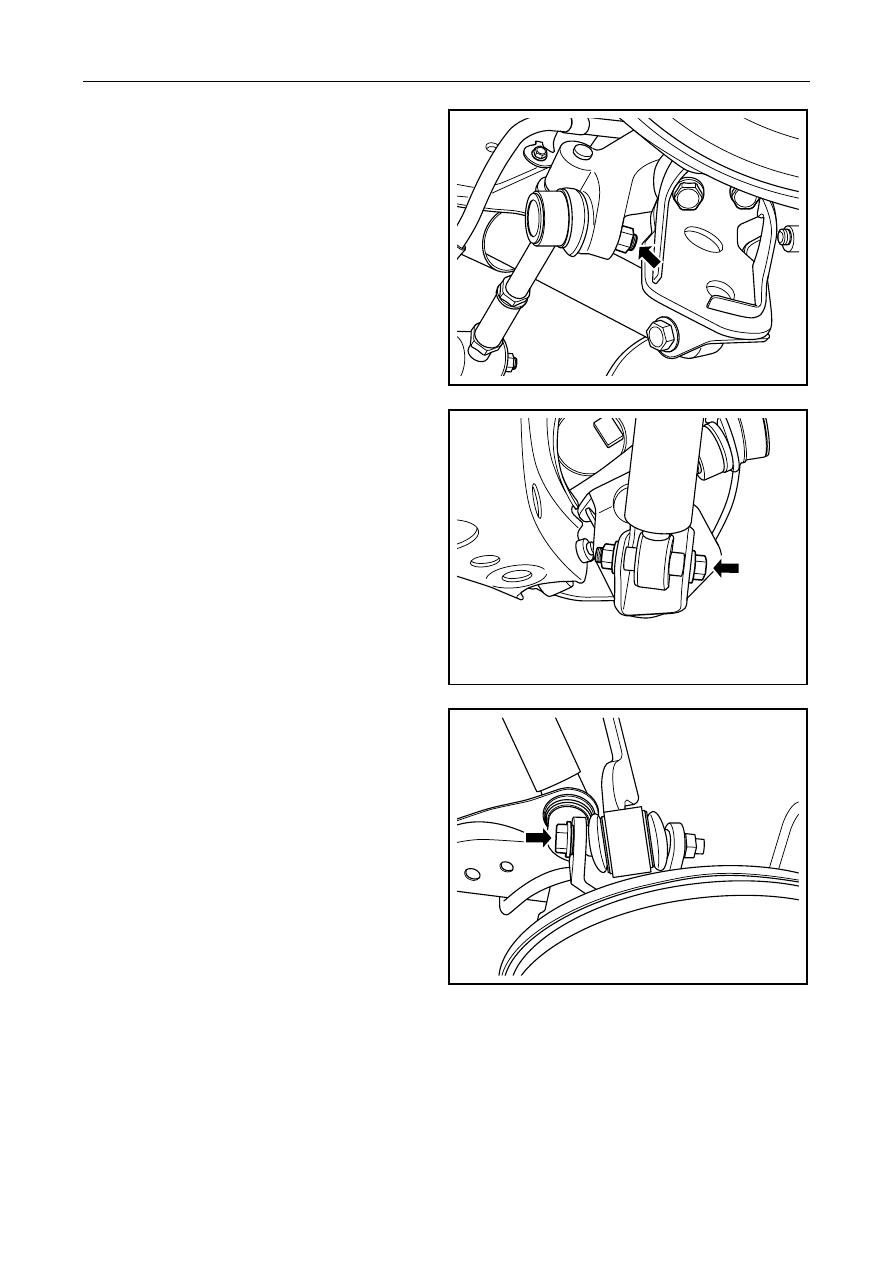

6.  Remove the fixing bolt between the rear

suspension No. 1 swing arm and the rear axle
spindle head bearing seat.

7.  For dismantlement of the rear brake disc, see

6.3.5.3 Replacement of Brake Discs - Rear.

8.  For dismantlement of the rear wheel speed

sensor, see 6.6.7.3 replacement of wheel speed
sensors (rear).



NL04-0041b

9.

Remove the fixing bolts for the rear trailing arm
and rear axle spindle head bearing.

10.  Take down rear axle spindle head



NL04-0049b

Installation procedure:

1.

Install rear axle head support.

2.  Install and tighten 2 fixing bolts on rear tailing

arm and rear axle head support.

Torque:200 Nm (Metric) 148 lb-ft (English system)

3.

Install rear wheel speed sensor.

4.

Install rear brake disc.

5.

Install the rear brake caliper.



NL04-0049b

1469

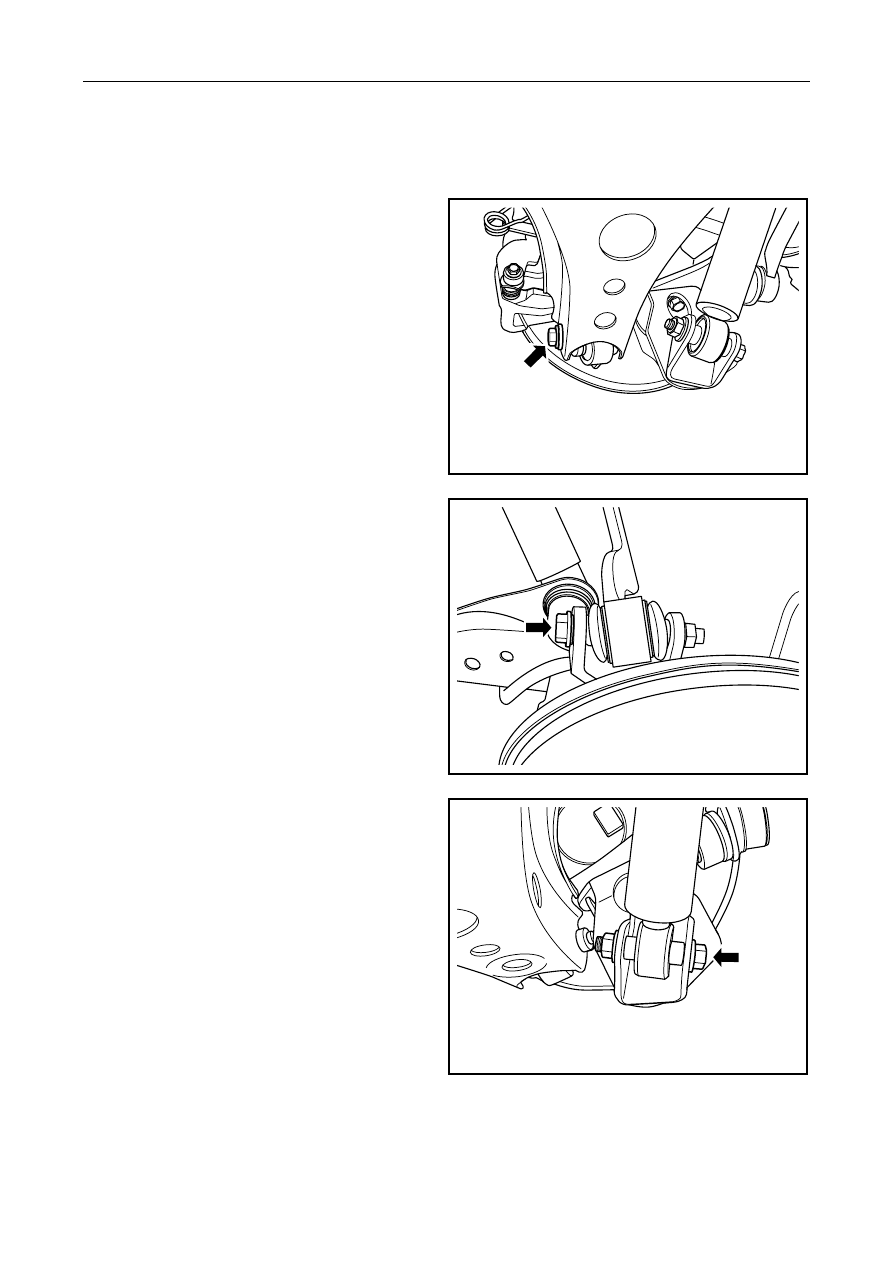

6.  Install and tighten the fixing bolt between the

rear suspension No.1 swing arm and the rear axle
spindle head bearing seat.

Torque:100 Nm (Metric) 74 lb-ft (English system)



NL04-0041b

7.

Install and tighten through bolt under rear shock
absorber.

Torque:80 Nm (Metric) 59.2 lb-ft (English system)



NL04-0035b

8.  Install and tighten the fixing bolt between the

rear suspension No.1 swing arm and the rear axle
spindle head bearing seat.

Torque:90 Nm (Metric) 66.6 lb-ft (English system)



NL04-0046b

1470
