4.3.7 Dismantle and installation

4.3.7.1 Rear shock absorber replacement

Dismantle procedure

1.  For dismantling of rear wheel, refer to 4.4.5.1

replacement of wheels.

2. Lifting



vehicle

3.

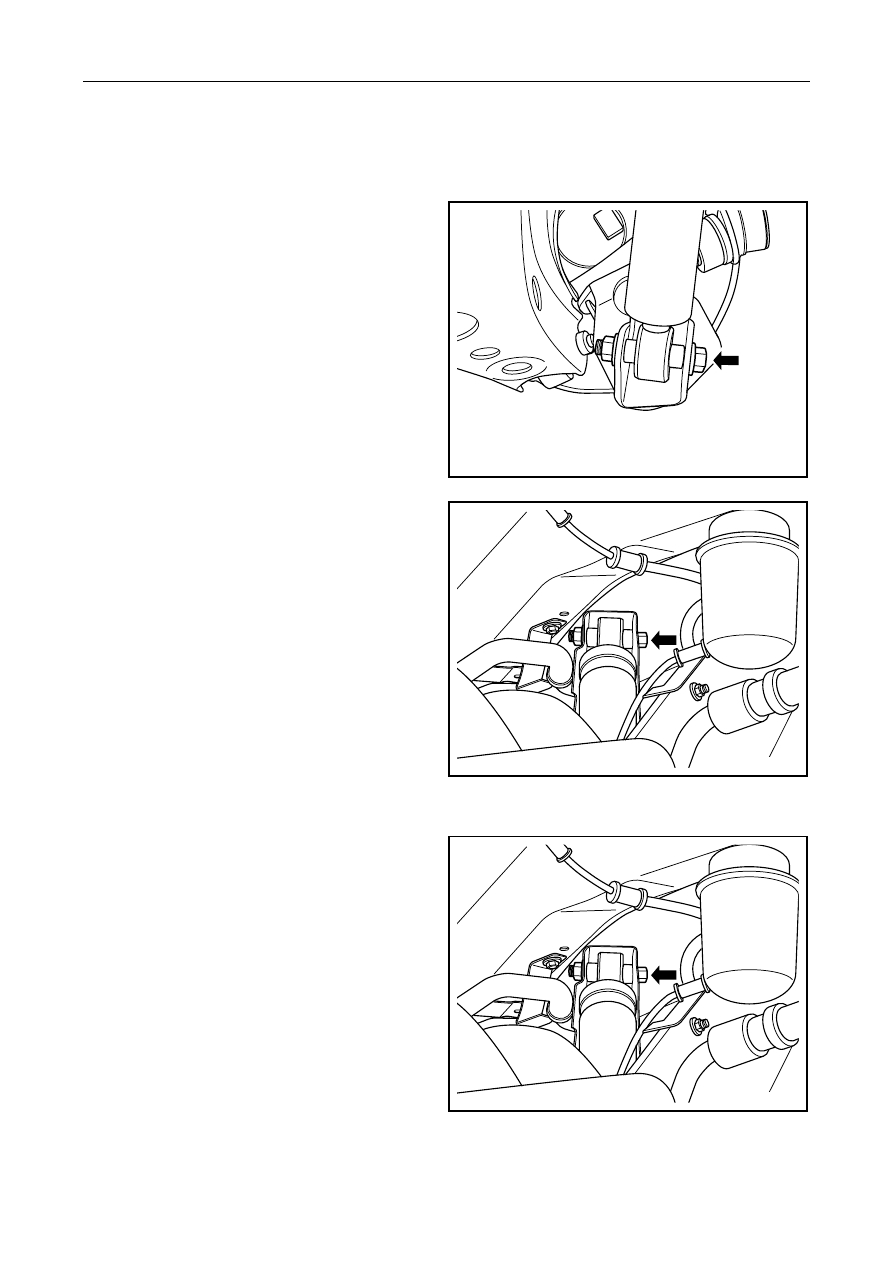

Remove the lower through bolt for the rear shock
absorber.



NL04-0035b

4.  Dismantle through bolt on the upper of rear

shock absorber, and remove rear shock absorber.



NL04-0036b

Installation procedure:

1.  Install rear shock absorber, and fixing upper

through bolt of rear shock absorber.

Torque:80 Nm (Metric) 59 lb-ft (English system)



NL04-0036b

1455




2.

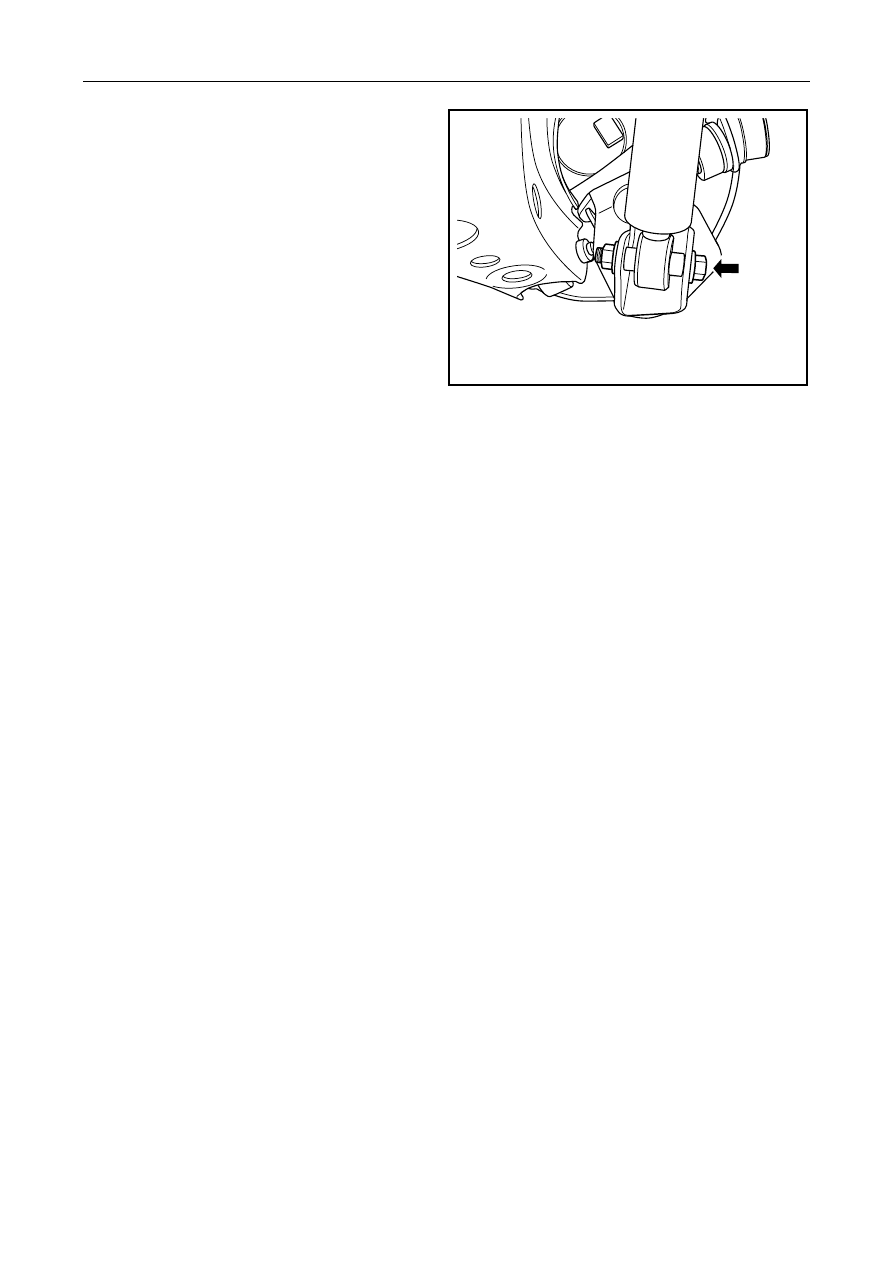

Install and tighten the lower through bolt for the
rear shock absorber.

Torque:80 Nm (Metric) 59 lb-ft (English system)

3.

Install the rear wheels.

4. Lower

the

vehicle.



NL04-0035b



1456






4.3.7.2 No.2 swing arm of rear suspension replacement

Dismantle procedure

1.

For dismantling of left, right rear wheel, refer to
4.4.5.1 replacement of wheel.

2.

For lifting vehicle, refer to 1.3 lifting vehicle .

3.

Use jack to support rear suspension swing arm.

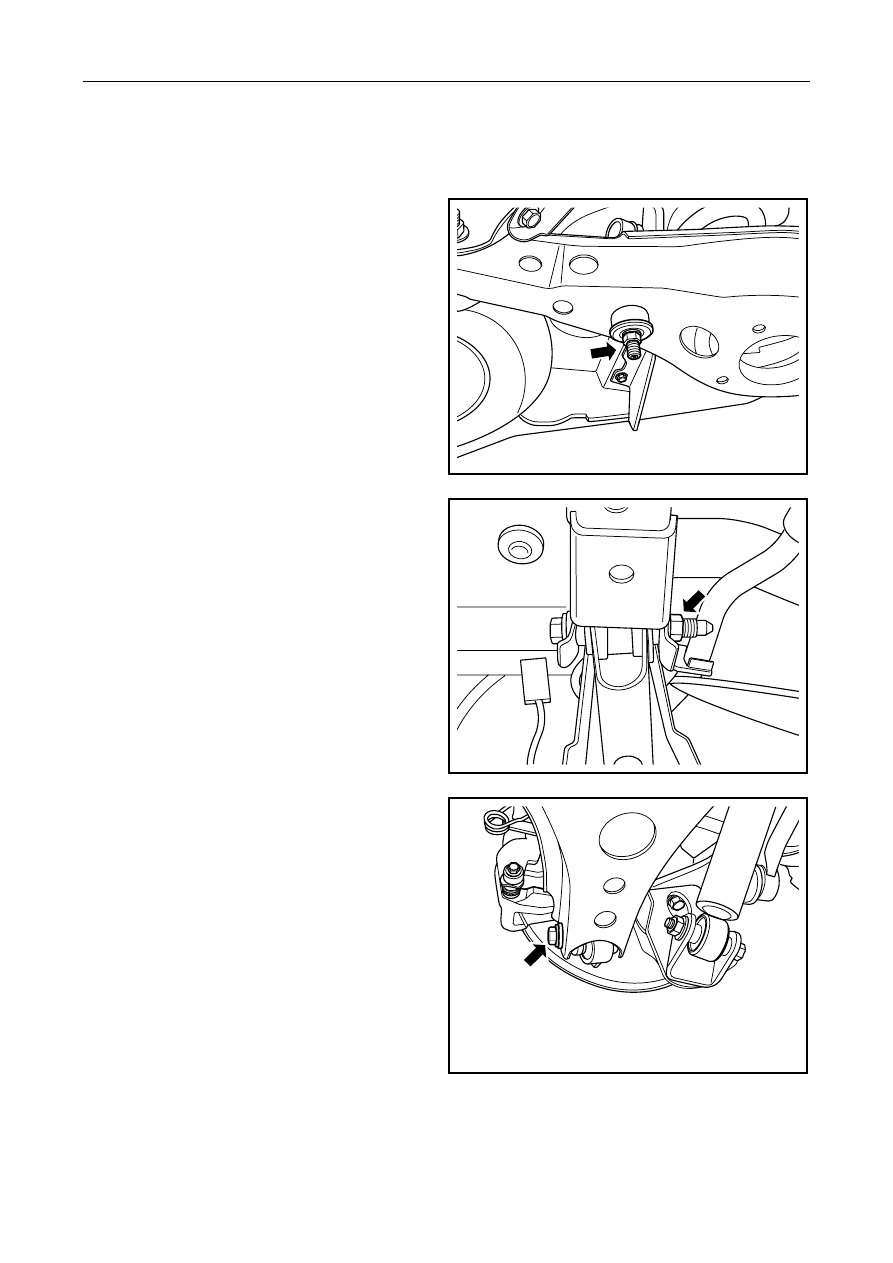

4.  Dismantle connecting nut between stabilizer rod

and stabilizer connecting rod and No.2 swing
arm.



NL04-0037b

5.

Remove the through bolt for connecting the rear
suspension No.2 swing arm and the rear
subframe.



NL04-0038b

6.  Remove the fixing bolt between the rear

suspension No.2 swing arm and the rear axle
spindle head bearing seat.

7.  Slowly lower the flat jack and dismantle No.2

swing arm and rear suspension coiling spring.



NL04-0039b



1457




Installation procedure:

1.  Lift the No.2 swing arm and coil spring of rear

suspension.

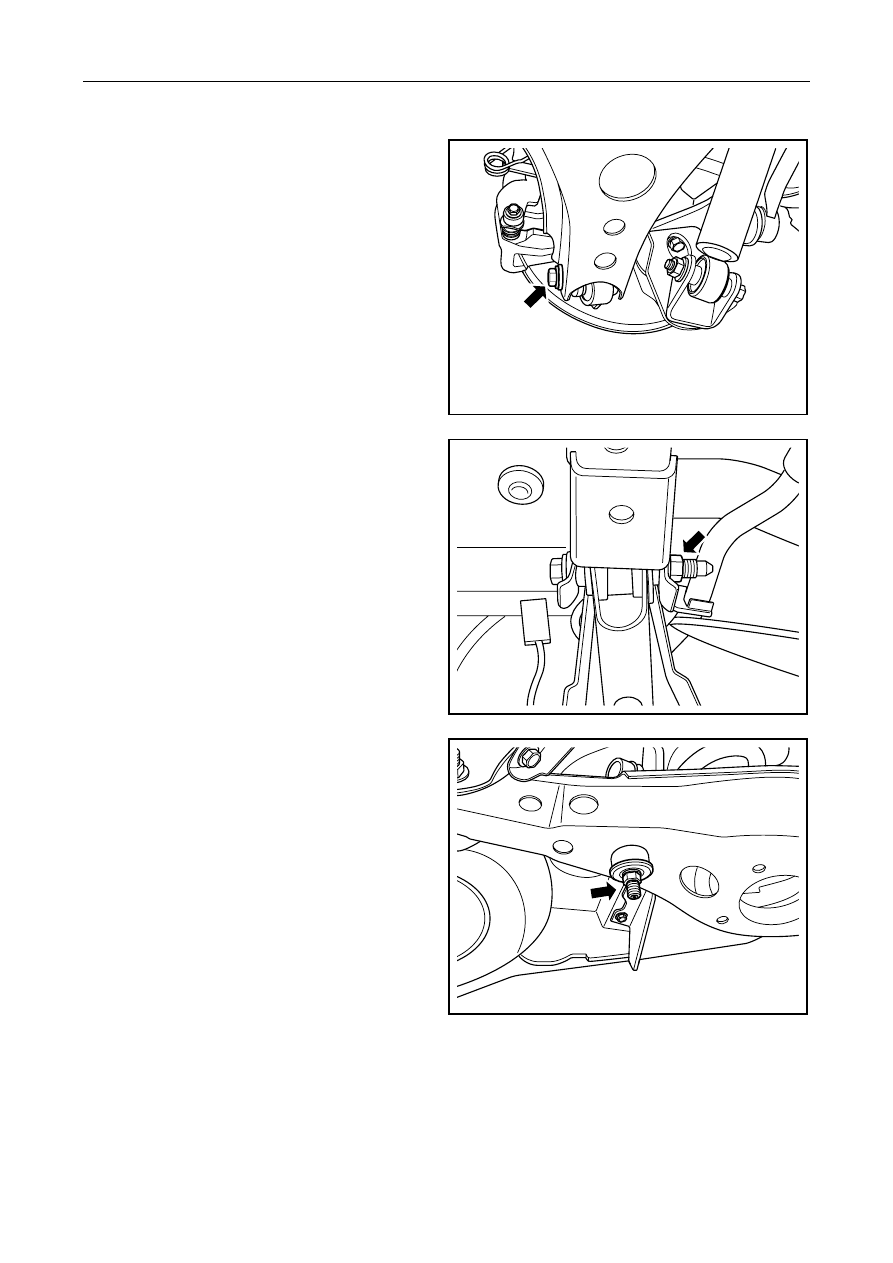

2.  Install the fixing bolt of rear suspension No.2

swing arm and rear axle head support.

Torque:90 Nm (Metric) 66.6 lb-ft (English system)



NL04-0039b

3.  Install the through bolt between rear suspension

No.2 swing arm and rear auxiliary frame.

Torque:90 Nm (Metric) 66.6 lb-ft (English system)



NL04-0038b

4.  Install the connecting nut between stabilizer rod

and stabilizer connecting rod and No.2 swing
arm.

Torque:30 Nm (Metric) 22.2 lb-ft (English system)

5.

Move out the jack.

6.

Install the left and right rear wheels.

7. Lower

the

vehicle.





NL04-0037b



1458
