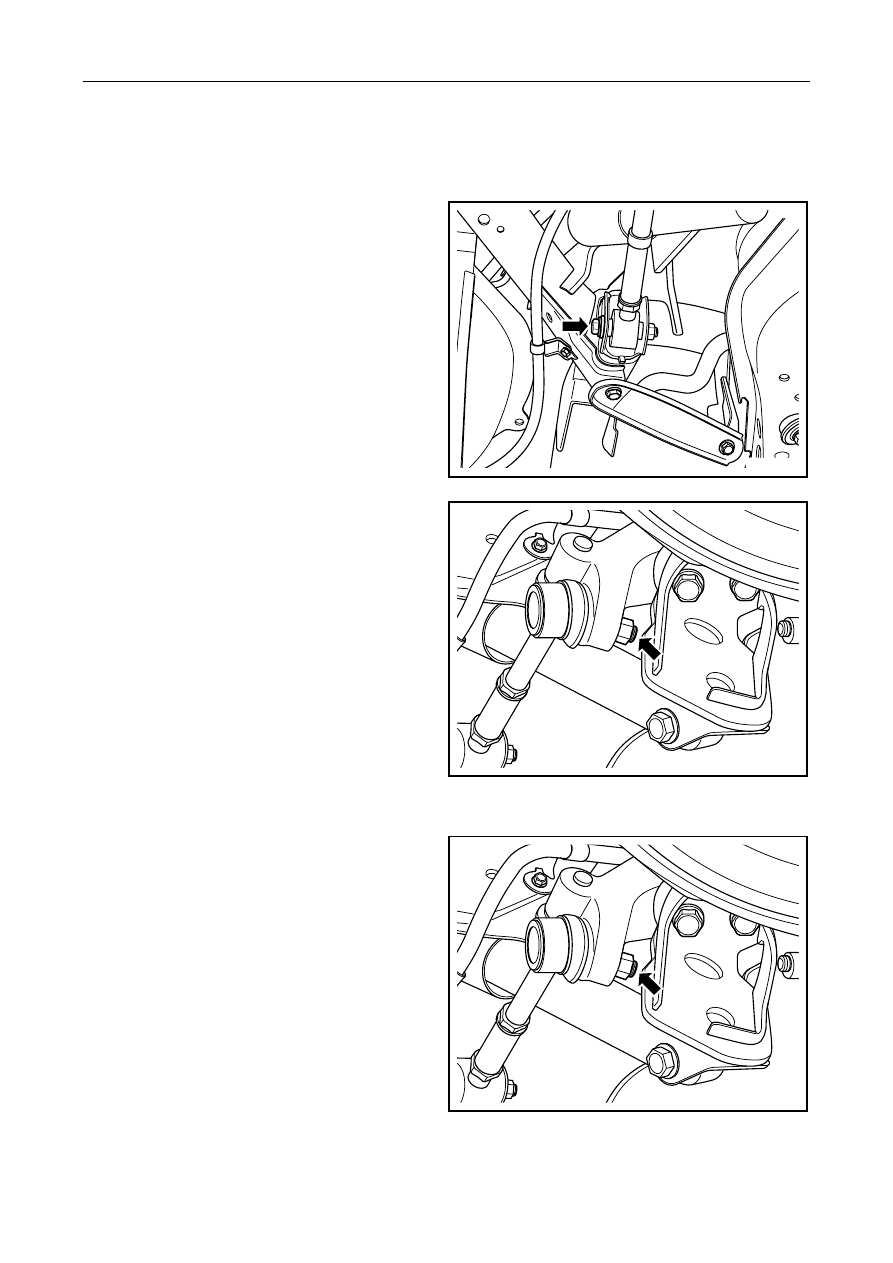

4.3.7.3 No.1 swing arm of rear suspension replacement

Dismantle procedure

1.

For lifting of the vehicle, see 1.3 lifting vehicle .

2.  Dismantle the through bolt of rear suspension

No.1 swing arm and rear auxiliary frame.



NL04-0040b

3.

Dismantle the fixing nut of rear suspension No.1
swing arm and rear axle head support.

4.

Remove #1 swing arm of the rear suspension.



NL04-0041b

Installation procedure:

1.

Install the rear suspension swing arm No.1.

2.  Install and tighten the fixing nut of rear

suspension No.1 swing arm and rear axle head
support.

Torque: 100 Nm (metric) 74 lb-ft (metric)



NL04-0041b

1459

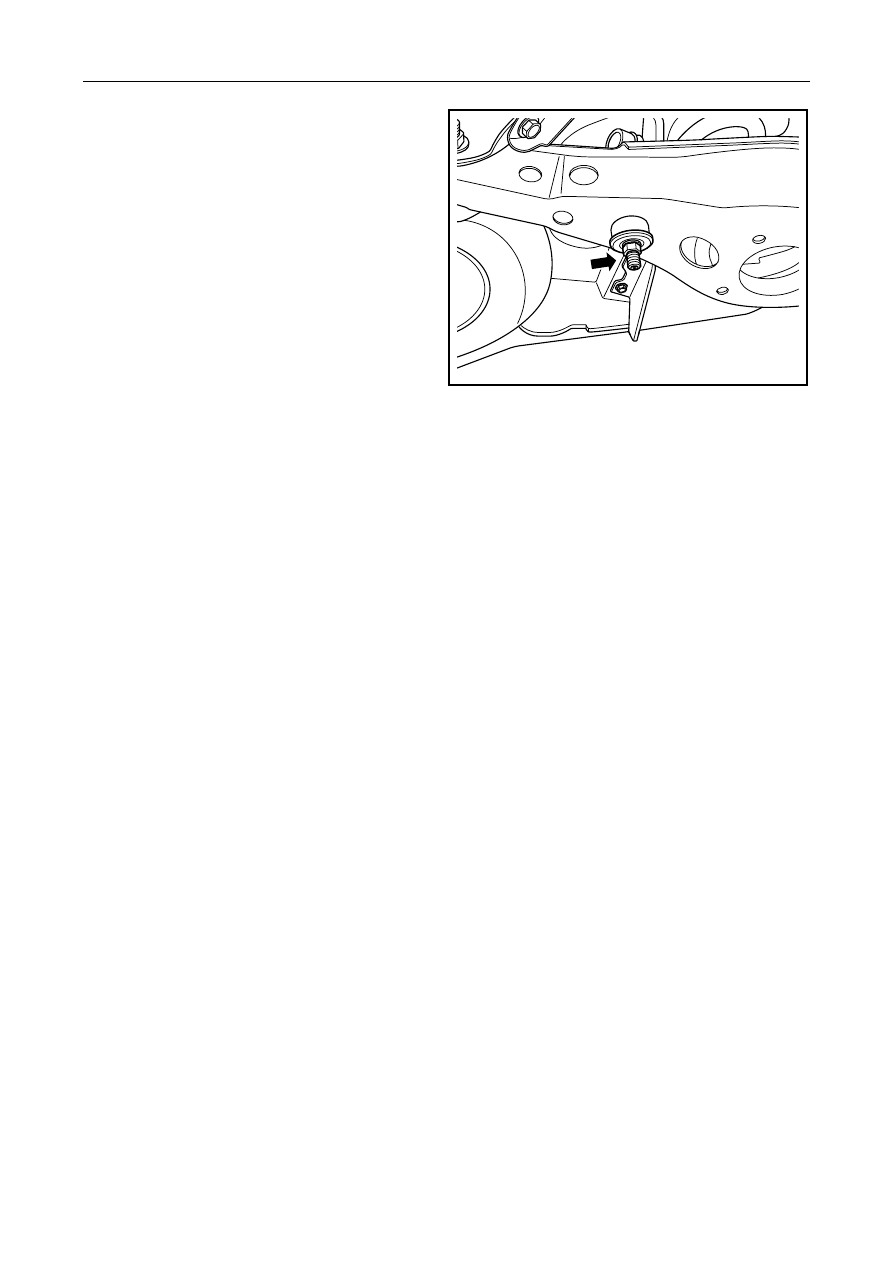

3.  Install and tighten through bolt between rear

suspension No.1 swing arm and rear auxiliary
frame.

Torque: 90 Nm (metric) 66.6 lb-ft (metric)

4. Lower

the

vehicle.



NL04-0040b











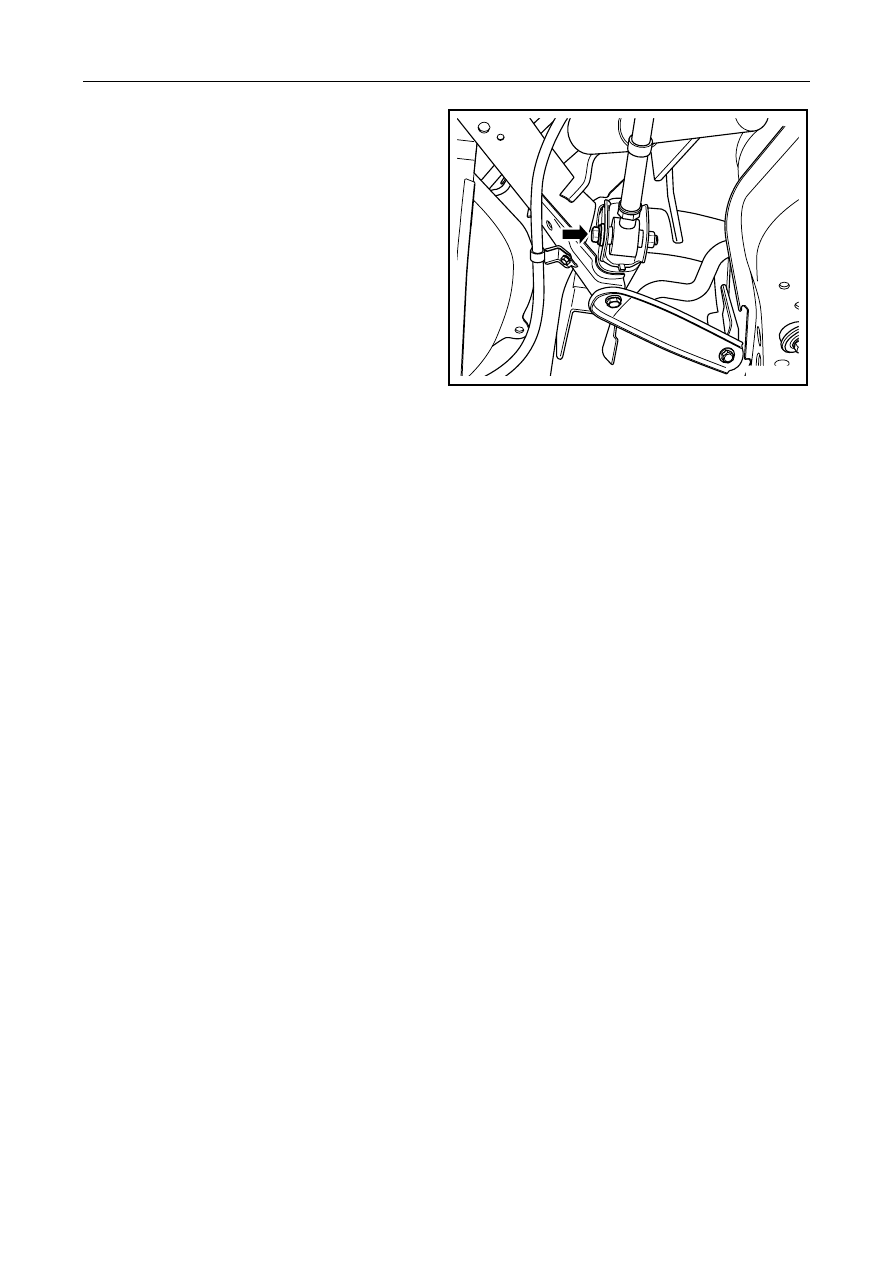

4.3.7.3 Rear suspension coil spring replacement

See 4.3.7.2 Replacement of rear suspension No.2 swing arm.



1460

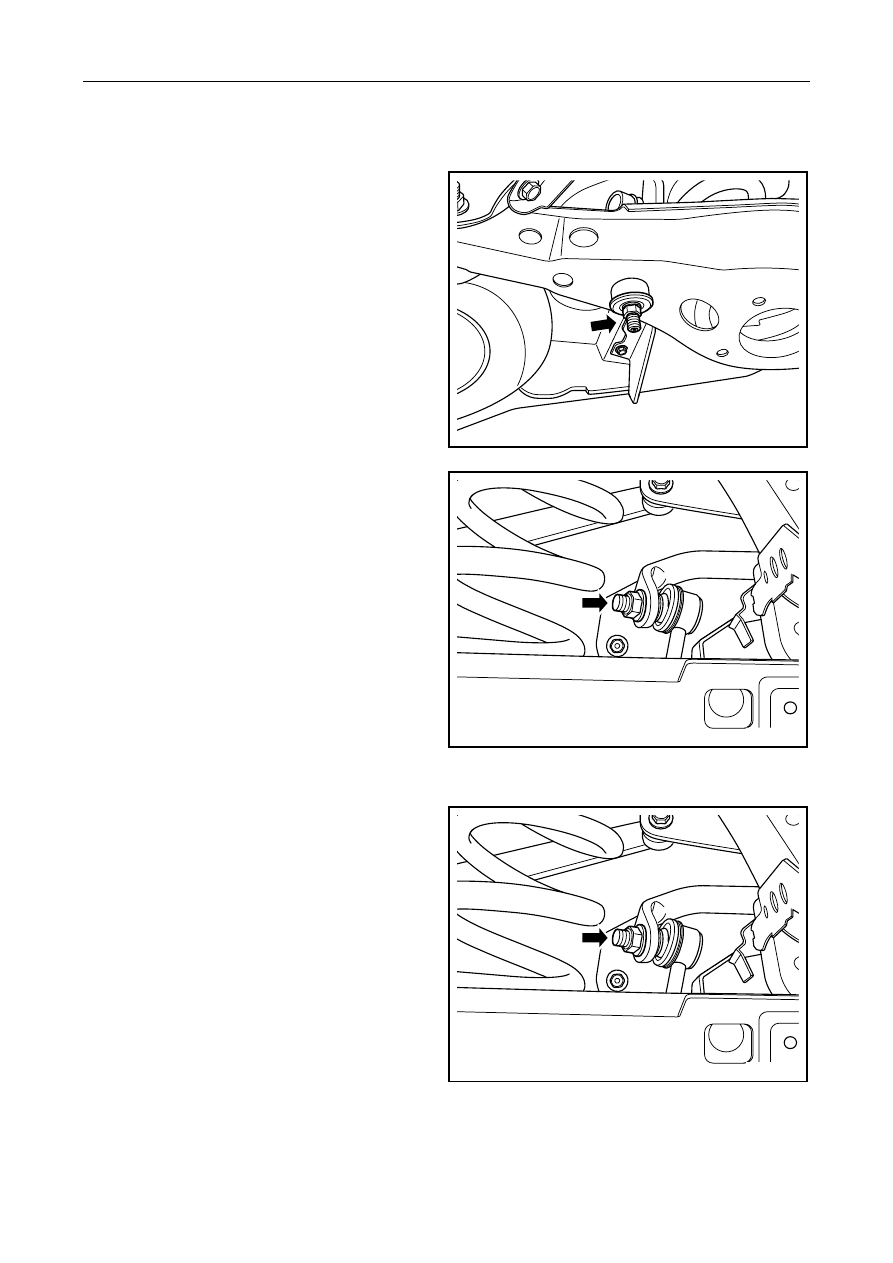

4.3.7.5 Rear stabilizer rod and stabilizer connecting rod replacement

Dismantle procedure

1.

For lifting of the vehicle, see 1.3 Lifting vehicle .

2.  Dismantle rear stabilizer rod and stabilizer

connecting rod and rear suspension No.2 swing
arm connecting nut.



NL04-0037b

3.

Dismantle connecting nut between rear stabilizer
rod and stabilizer connecting rod and rear
stabilizer rod.

4.

Remove the rear stabilizer bar connecting rod.



NL04-0042b

Installation procedure:

1.  Install and tighten rear stabilizer rod and

stabilizer connecting rod and rear stabilizer rod
connecting nut.

Torque:74 Nm (Metric) 54.8 lb-ft (English system)



NL04-0042b

1461




2.  Install and tighten connecting nut of rear

stabilizer rod and stabilizer connecting rod and
rear suspension No.2 swing arm.

Torque: 30 Nm (Metric) 22.2 lb-ft (English system)

3. Lower

the

vehicle.



NL04-0037b



1462
