2. Inspect the function of generator

(a) low speed:

Connect battery positive wire with joint terminal SWL, connect negative to terminal ES. Inspect whether

generator work at low speed.

If its function does not in conformity with regulations, replace wiper.

(b) high speed

Connect battery positive wire with joint terminal SWH, connect negative to terminal WS. Inspect

whether generator work at high speed.

If its function does not in conformity with regulations, replace wiper.

(c) Free stop position

(1) Connect battery positive wire with joint terminal SWL, connect negative to terminals ES to make

generator work at low speed. Disassemble terminal SWL

lead to make generator stop except stop position.

(2) Connect terminal SWL with terminal AS

(3) Connect battery positive wire with joint terminal SWL to

make generator work at low speed again. Inspect gen-

erator whether stop at the stop position.

If its function does not in conformity with regulations,

replace wiper.

Wiper and cleaner--Wiper and cleaner system

Free stop

position

 301

Wiper and cleaner--Right

combination

switch

Right combination switch

Change

1. Disassemble the lower trim board of the steering

gear

2. Disassemble right combination switch assembly

[67000079]

(a) Disassemble the joints.

(b) Press fixed jaw to separate meshing then disassemble right

combination switch assembly.

Notes: Do not overly press fixed jaw, or it may de

damaged.

 302

Fixing

claw

Wiper and cleaner--Wiper generator

Fixing clasp

Fixing

claw

Wiper generator

Change

1. Disassemble wiper arm cap.

2. Disassemble auxiliary wiper arm assembly

[68000059]

Disassemble screw cap and auxiliary wiper arm assembly.

3. Disassemble main wiper arm assembly [68000057]

Disassemble screw cap and main wiper arm assembly.

4. Disassemble generator cap to fire barrier seal.

Separate eight fixed buckles to disassemble the seal from gen-

erator cap to fire barrier.

5. Disassemble ventilation cover on passenger side.

Disassemble five fixed jaws so as to disassemble ventilation

cover on passenger side.

6. Disassemble ventilation cover on driver side.

Disassemble five fixed jaw so as to disassemble ventilation

cover on driver side.

7. Disassemble wiper connecting rod assembly

[68000053]

(a) Disassemble the joint.

(b) Disassemble the bolt.

(c) Slide wiper connecting rod assembly to passenger side to

separate meshing of rubber pin so as to disassemble wiper

connecting nod.

Fixing

claw

 303

Pin

Wiper and cleaner--Wiper generator

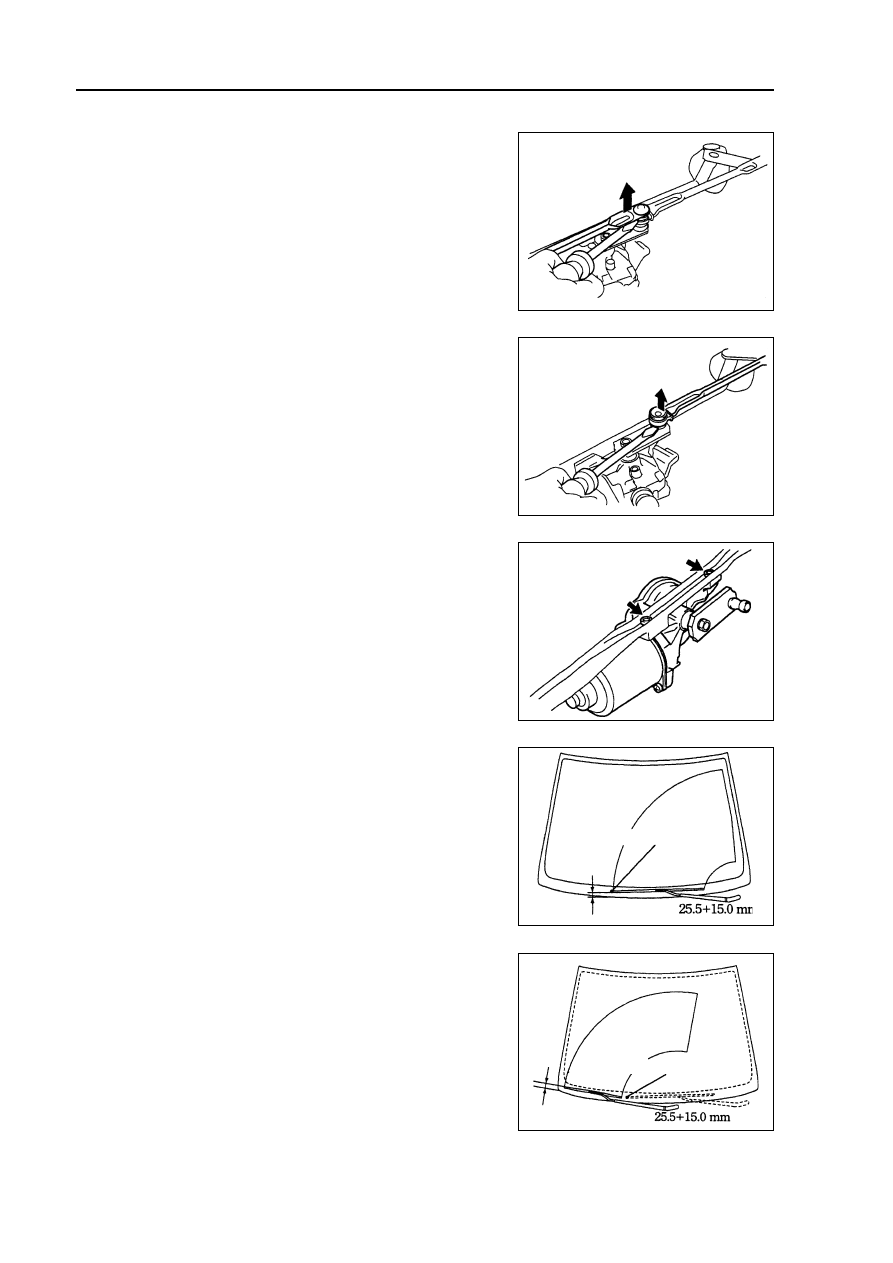

8. Disassemble wiper generator

(a) Separate two connecting rod caps of shaft pins.

(b) Separate two star- bolts so as to disassemble wiper

generator.

9. Assemble wiper generator

(a) Daub MP grease to connecting rod caps of wiper generator.

(b) Use two Star-bolts to assemble wiper generator to wiper

connecting rod.

Torque: 5.39 N.m

10. Assemble wiper connecting rod assembly

[68000053]

(a) Meshing wiper connecting rod rubber pin

(b) Use two bolts to assemble wiper connecting rod.

Torque:5.5 N.m

(c) Connect the joints.

11. Assemble assistant wiper arm assembly [68000059]

(a) Use steel brush to clean small tooth slot of wiper pivot.

(b) Use bolt cap to fix wiper arm on passenger side to make

wiper blade at the position as drawing.

Torque: 20.5 N.m

12. Assemble main wiper arm assembly [68000057]

(a) Use steel brush to clean small tooth slot of wiper pivot.

(b) Use bolt cap to fix wiper arm on driver side to make wiper

vane at the position as drawing.

Assembly starting and

stopping position

 304

Assembly starting and

stopping position
