Safety belt--Rear safety belt

Change

Hint:

When assembling, please work by the sequence that is reverse with disassembling sequence,
if necessary, assembling instruction could be got.
Changing procedure for left side and right side is same.
Refer to subassembly drawing of front safety belt on page 275.

1. Disassemble cushion assembly of rear row seat.

2. Disassemble Right backrest assembly of rear row seat [68010079]

3. Disassemble left backrest assembly of rear row seat [68010078]

4. Disassemble cushion assembly of rear row seat [68010074]

5. Disassemble backrest assembly of rear row seat [68010076]

6. Disassemble high mount brake light assembly [68010008]

7. Disassemble inner trim board assembly of right rear column [68010027]

8. Disassemble inner trim board assembly of left rear column [68010026]

9. Disassemble rear platform with sun blind assembly [68010032]

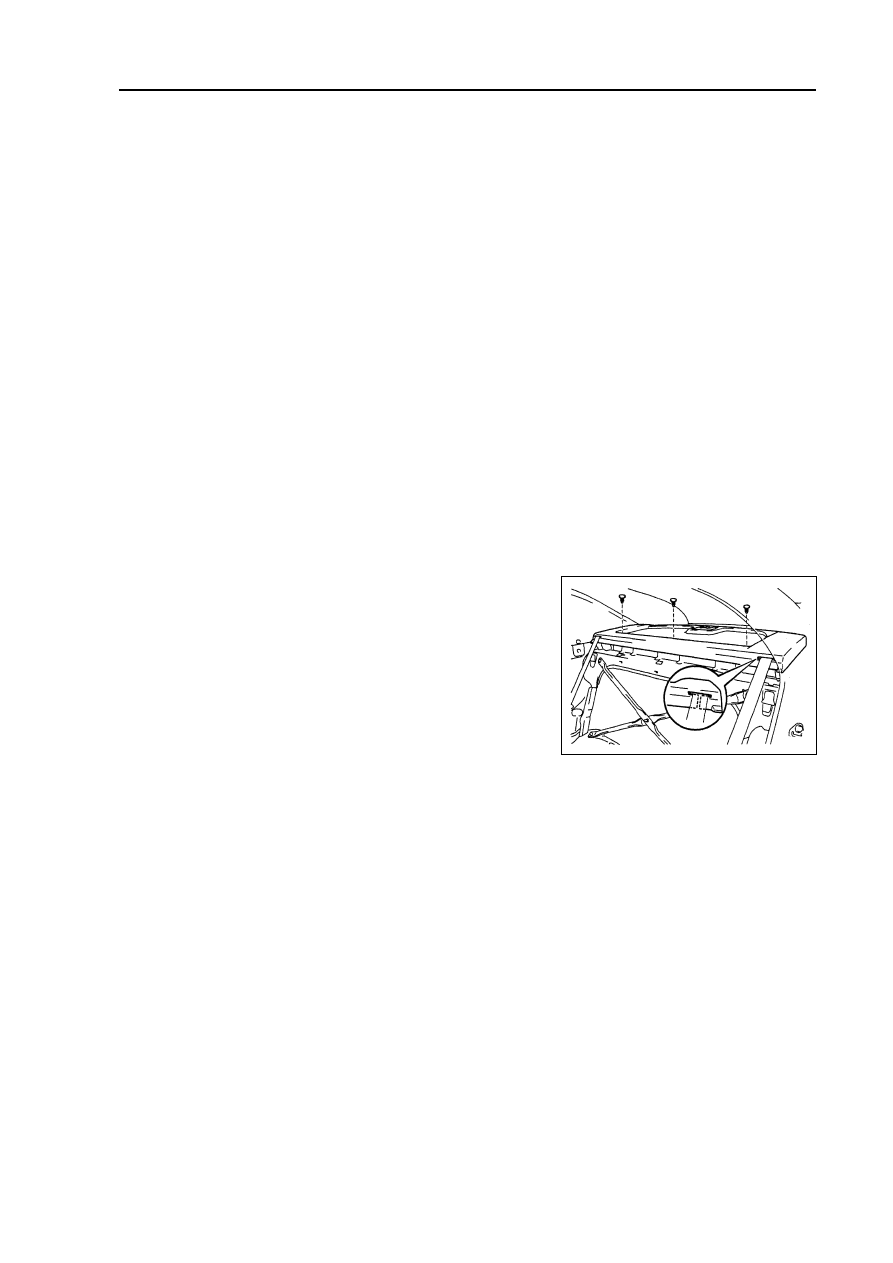

(a) Use special disassembling tool to disassemble three fixed clamps.
(b) Pull out safety belt from the clearance, then disassemble rear platform with sun blind assembly.

10. Disassemble rear safety belt crimper assembly [68010048]

(a) Disassemble the bolts and safety belt clamps.
(b) Disassemble the bolts and rear safety belt crimper assembly.

11. Disassemble middle waistband of rear row safety belt with locker assembly. [68010043]

(a) Disassemble the bolts and middle waistband of rear row safety belt with locker assembly.

 277

12. Assemble middle waistband of rear row safety belt

with locker assembly [68010043]

(a) Use the bolts to assemble middle waistband of rear row

safety belt with locker assembly.
Torque: 41 N

⋅m

Note: insure the clamp part does not press the protu-

berant part of floor.

13. Assemble rear safety belt crimper assembly.

(a) Check the inclining angle when ELR starts to lock.

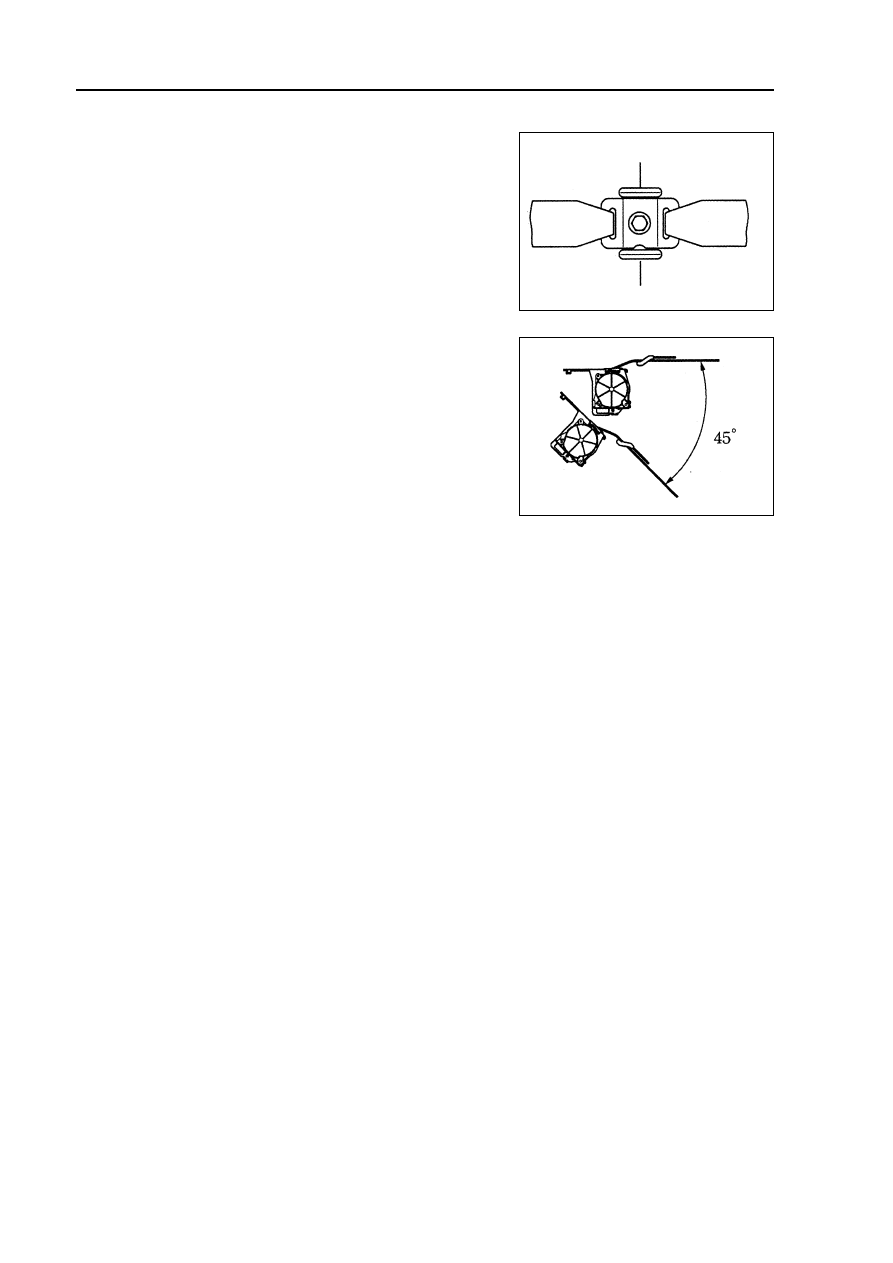

(1) Confirm whether safety belt could be pulled out if the

angle exceeds 45°.
Note: do not disassemble the crimper.

(b) Use the bolts to assemble rear safety belt crimper assembly.

Torque: 41 N

⋅m

(c) Use the bolts to assemble floor side clamp.

Torque: 41 N

⋅m

(d) Check the lock of ELR.

(1) After safety belt is assembled on automobile, check

whether the safety belt could be locked when safety belt
is pulled out quickly.

Safety belt--Rear safety belt

Protuberant

part

Protuberant

part

 278

Light--Light System

The phenomena table

1. front combination lights and tail light

Phenomena

Only  one front combination light

lights

Low beam headlights do not  light

(all)

distance lights do not light (all)

Distance light  do not light (one
side)

Flare does not light

Front combination lights are too
dark

Only one rear combination light
lights

Rear combination lights do not light

(front combination lights are normal)

Rear combination lights do not light
(front combination lights are abnormal)

Reference pages

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Light

Light System

Notes

1. Notes for changing the front combination bulb

(a) When the surface of halogen bulbs (the bulb of front assembled headlamp and front fog light) touches

oil, their working life will be shorten. When it lights, it becomes hot.

(b) Because of pressured gas in halogen bulbs (the bulb of front assembled headlamp and front fog

light), the bulb may explode and pieces of broken glass disperse around. So deal with it carefully.

(c) If the time after disassembling the bulb from lamp carrier is too long, the mirror may be polluted by

dirties or hydrosphere. You should prepare a new bulb,then replace it.

(d) Replace it with the lamp of same wattage.

(e) Assemble the changing bulb on the lamp carrier firmly, or it may bring mirror mirage or water intrusion.

(f) Do not touch the black of the top of glass, or it may shorten its working life.

Possible part

1.bulb

2.fuse

3.wiring harness

1.fuse

2.relay

3.left combination switch

4.wiring harness

1.fuse

2.relay

3.left combination switch

4.wiring harness

1.bulb

2.wiring harness

1.left combination switch

2.flare

3.wiring harness

1.bulb

2.wiring harness

1.bulb

2.wiring harness

1.bulb

2.wiring harness

3.left combination switch

4.wiring harness

1.fuse

2.relay

 279

Light--Light System

 280

2. Fog light System

3. Turning and emergency warning light system

Emergency warning light and turn

light does not light

Emergency warning light does
not light (turning light is normal)

Turn light does not light



(Emergency warning light is normal

Side turning light does not light

(warning light is normal)

One side of turning light



does not

light

One side of turning light



does not

light

Only one bulb does not light

1. (meter) fuse

2. (turn) fuse

3. ignition switch

4. flasher assembly

5. wiring harness

1. Emergency warning light switch
2. wiring harness

1. turn light switch
2. wiring harness

1. turn light switch

2. wiring harness

3. bulb

1. turn light switch

2. wiring harness

3. bulb

1. turn light switch
2. wiring harness

1. bulb
2. wiring harness

The light control switch switches on,

the front fog lights do not light (front

combination lights are normal)

Lamp switch turn to “HEAD”. front fog
lights  do not light (front combination light

do not light)

Only one front fog light do not light

Rear fog lights do not light (front

combination lights are normal)

(front fog lights are normal)

Rear fog lights do not light (front fog

lights do not light)

1.(front fog light)fuse

2.fog light relay

3.fog light switch

4.wiring harness

1.other parts

2.wiring harness

1.bulb

2.wiring harness

1.fuse

2.rear fog light switch

3.wiring harness

4.bulb

1.other parts

2.wiring harness

3.bulb

4.front fog light switch

5.rear fog light switch

phenomena

Possible part

Reference pages

phenomena

Possible parts

Reference pages
