Light--Light System

(a) Inspect the conduction of B pillar control switch assembly

(1) Inspect the conduction between terminal 1 and bodywork earth, when switch works.

Standard:

ON (when press the switch): conduction

OFF (when un-press the switch): not conduction

7. Inspect the C door pillar control switch assembly [67000076]

(a) Inspect the conduction of C pillar control switch assembly

(1) Inspect the conduction between terminal 1 and bodywork earth,when switch works.

Standard:

ON (when press the switch): conduction

OFF (when un-press the switch): not conduction

8. Trunk light switch assemble [67000073]

(a) Inspect the conduction of Trunk light switch

Standard:

ON (when press the switch): conduction

OFF (when un-press the switch): not conduction

9. Front fog light relay [67000071]

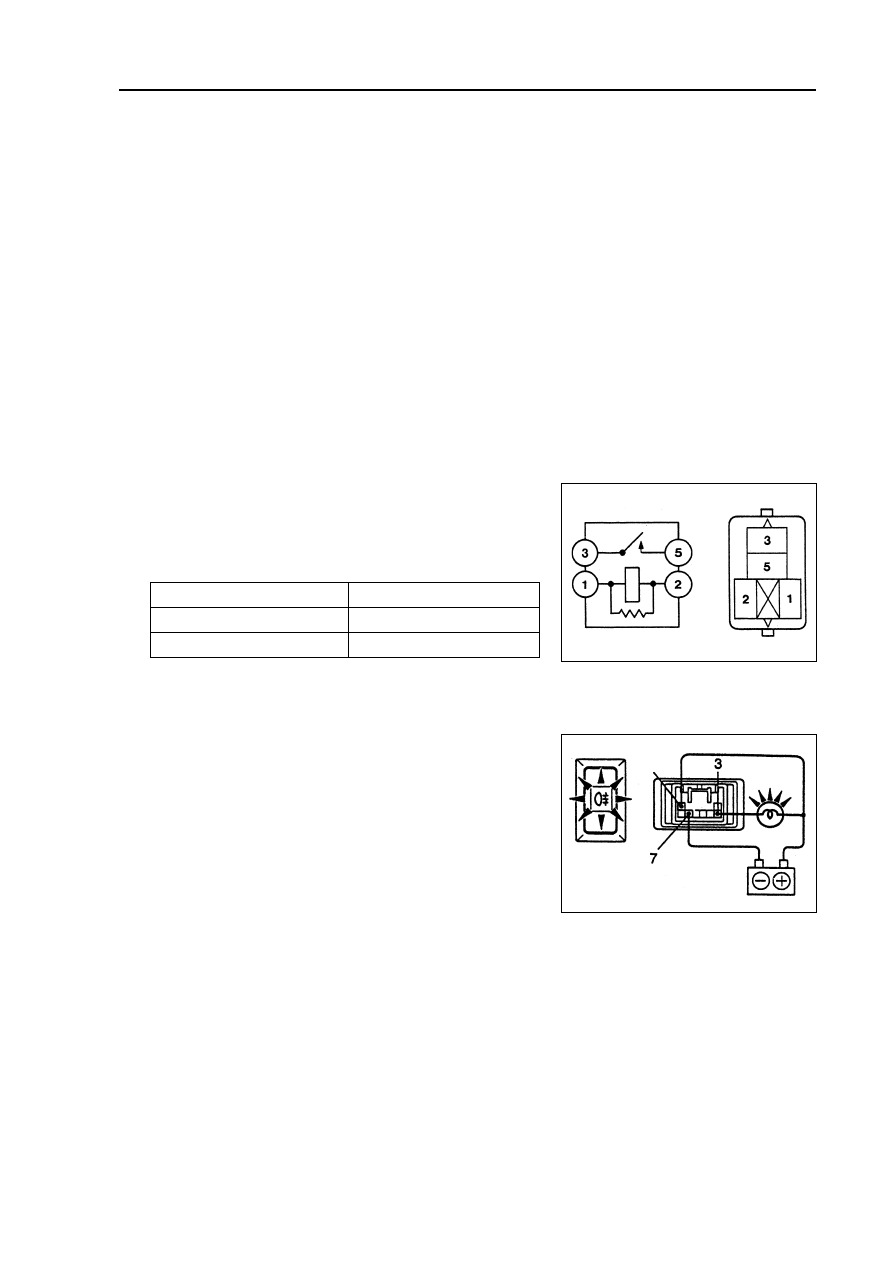

(a) Inspect the conduction of front fog light relay

(1) Inspect the conduction among terminals

Standards:

Avometer terminals

regular situations

1-2

conduction

3-5

not conduction

10. Inspect rear fog light switch of instrument block

left switch units [67010003].

(a) Inspect battery’s positive wire connects to terminal 1,nega-

tive connects to terminals 7.

(b) Connect a 3.4W test bulb from battery’s positive wire to

terminal 3.

(c) Inspect lighting switch, indicator light of assembled instru-

ments and test bulb should light. If it does not accord with

regularizations, replace the switch.

11. Inspect door light assembly [67000107]

Inspect the conduction among terminals.

If the conduction does not accord with regularizations, replace

the switch.

(2) Supply battery voltage(10-14V) to terminal1 and terminal2, then inspect the conduction between

terminal 3 and terminal 5.

Standard: conduction

1

 285

Light--Front fog light joint

Front combination light  (LH)

Subassembly

Left front combination

light  units

Front combination

light  bulb

Front combination

light bulb

Front combination light

bulb joint

Ultrasonic sensor joint

Radiator cover

assembly

Front fog light

joint

Light

seat cap

Bulb joint

Bulb

Bulb

Front fog light joint

Front  bumper

 286

Light--Front fog light joint

Change

Notes:

z

Assemble according to the opposite of disassemble. Instructions comes when necessary.

z

The replace procedure are the same on the left and right side.

z

Referring to the drawing of front combination light on page 286.

1. Disassemble Radiator cover assembly (reference to page 380)

2. Disassemble left  front tyre lining (reference to page 380)

3. Disassemble right  front tyre lining (reference to page 380)

4. Disassemble front  bumper (reference to page 380)

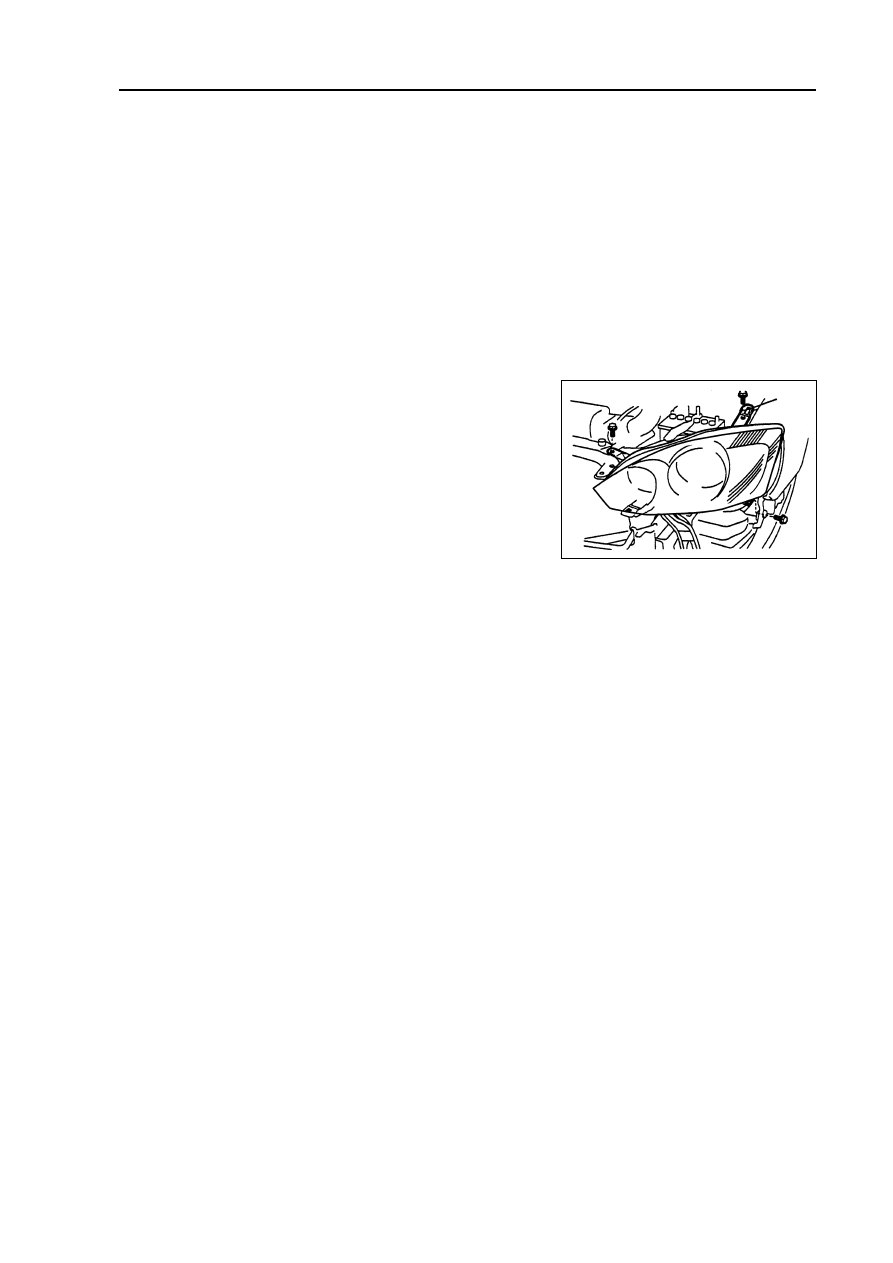

5. Disassemble left front combination light assembly [67000102]

(a) Disassemble three bolts

(b) Disassemble four joints

(c) Pull combination light ahead

(d) Disassemble two light seat cap and four bulbs.

Adjustments

1. Adjust front combination light focus only

(a) Parking car should accord to the following situations:

z

Front combination light around does not be distorted or damaged.

z

Park the car on flat road.

z

Tyre pressure limits to the regular number value

z

The driver is on driving seat and the car is ready to go(gasoline tank in full)

z

The car weaves fore-and-aft for many times.

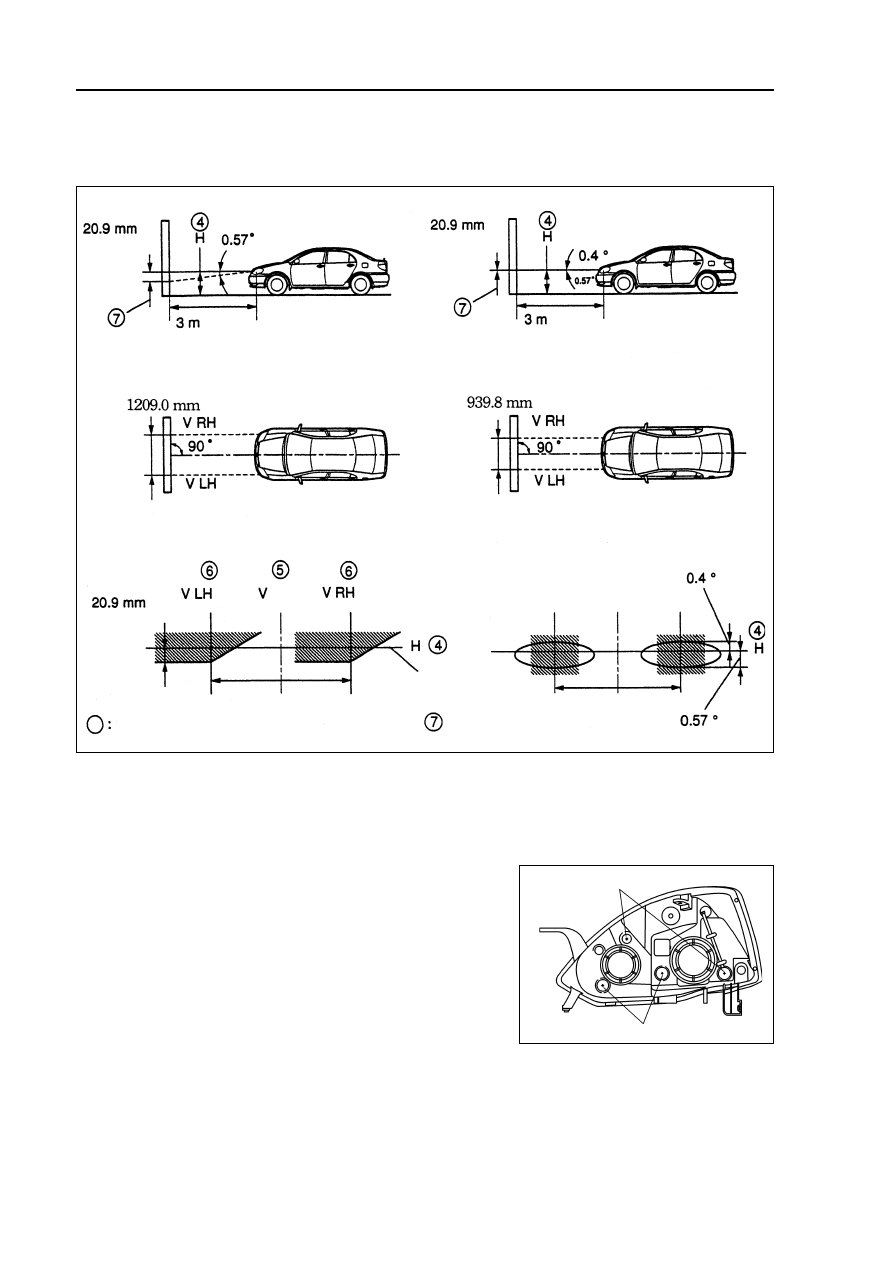

(b) Inspect front combination light focus

(1) Prepare for thicker white paper

(2) Arise the paper plumb at the distance of 300cm from headlight.

(3) Make sure centerline of the car makes 90 degree angle with paper’s surface as following drawing.

(4) Draw a level line (H line) on the paper which headlight can irradiate.

(5) Draw a plumb line (V line) on the paper to across centerline of the car.

(6) Draw two level lines (V RH and V LH) in the area where two side lights can irradiate.

(7) Draw a level line(connect the middle signal of two low beam headlight) to the area where headlight

can irradiates.

Clues on: H RH and H LH lines are 0.57 lower than level line(H line)of light.

(8) Start the engine.

(9) Turn the front assembled switch to ON.

Pin

 287

Light--Front fog light joint

Clues on:

z

Adjust the focus between lights of RH and LH as the drawing.

z

The value of low beam focal length is reference value for it is impossible to adjust at

level direction.

(c) Adjust vertical direction

Use the adjustable bolt A to make the headlight focus limits

to the regular.

(d) Adjust level direction

Use the adjustable bolt B to make the headlight focus limits

to the regular.

(10) Inspect front combination light whether it irradiates on the area as drawing.

(11) If not, adjust light on vertical line or level line.

Adjusting bolt “B”

Adjusting bolt “A”
