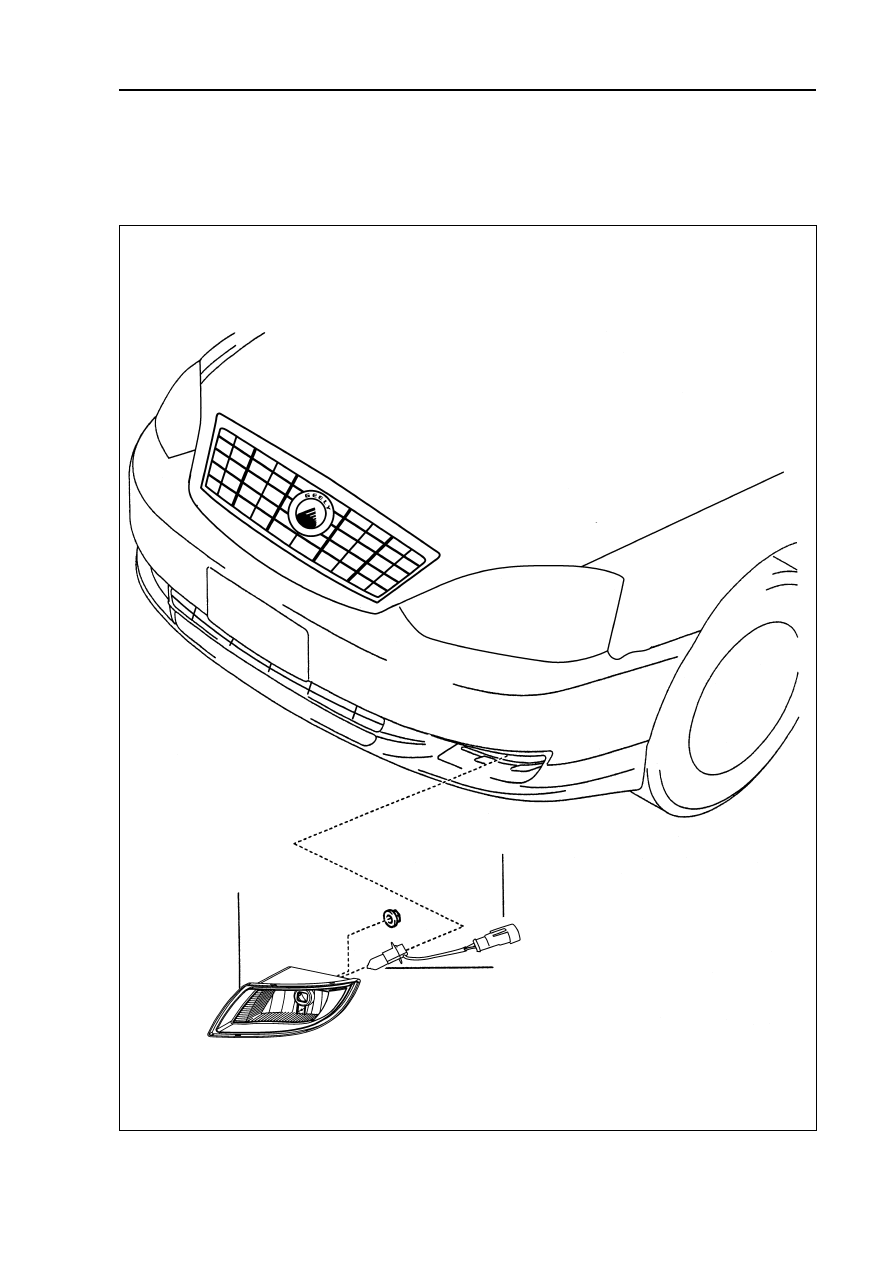

Light--Front fog light joint

Front fog light

Components

 289

Front fog light joint

Left front fog light unit

Bulb

Light--Front fog light joint

Change

Notes:

z

Assemble according to the opposite of disassemble.

Instructions comes when necessary.

z

The replace procedure are the same, left and right side.

z

Referring to the drawing of front combination light on

page 286

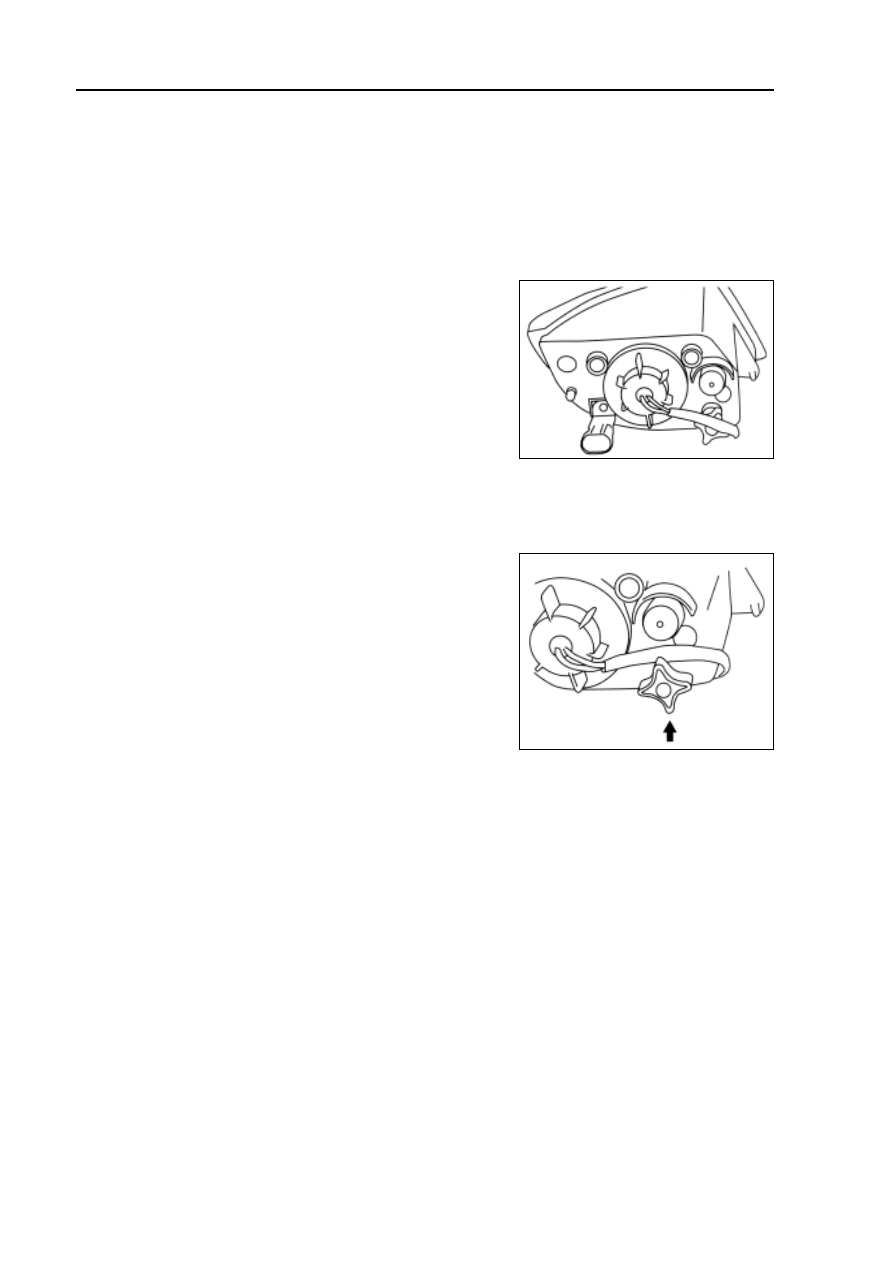

1. Replace front fog light bulb

(a) Disassemble front fog light seal cap

(b) Press front fog light bulb spring

(c) Disassemble the bulb

Adjustments

1. Adjust front fog light optic axis

(a) Tyre pressure limits to regular number values.

(b) Start the engine.

(c) Adjust fog light optic axis by turning the optic axis adjust-

able button on the vertical direction.

 290

Light--Side turning light

Side turning light

Components

Side turning light

 291

Light--Rear combination light

Rear combination light (LH)

Components

Left rear combination light

Bulb

 292
