High brake light assembly

Change

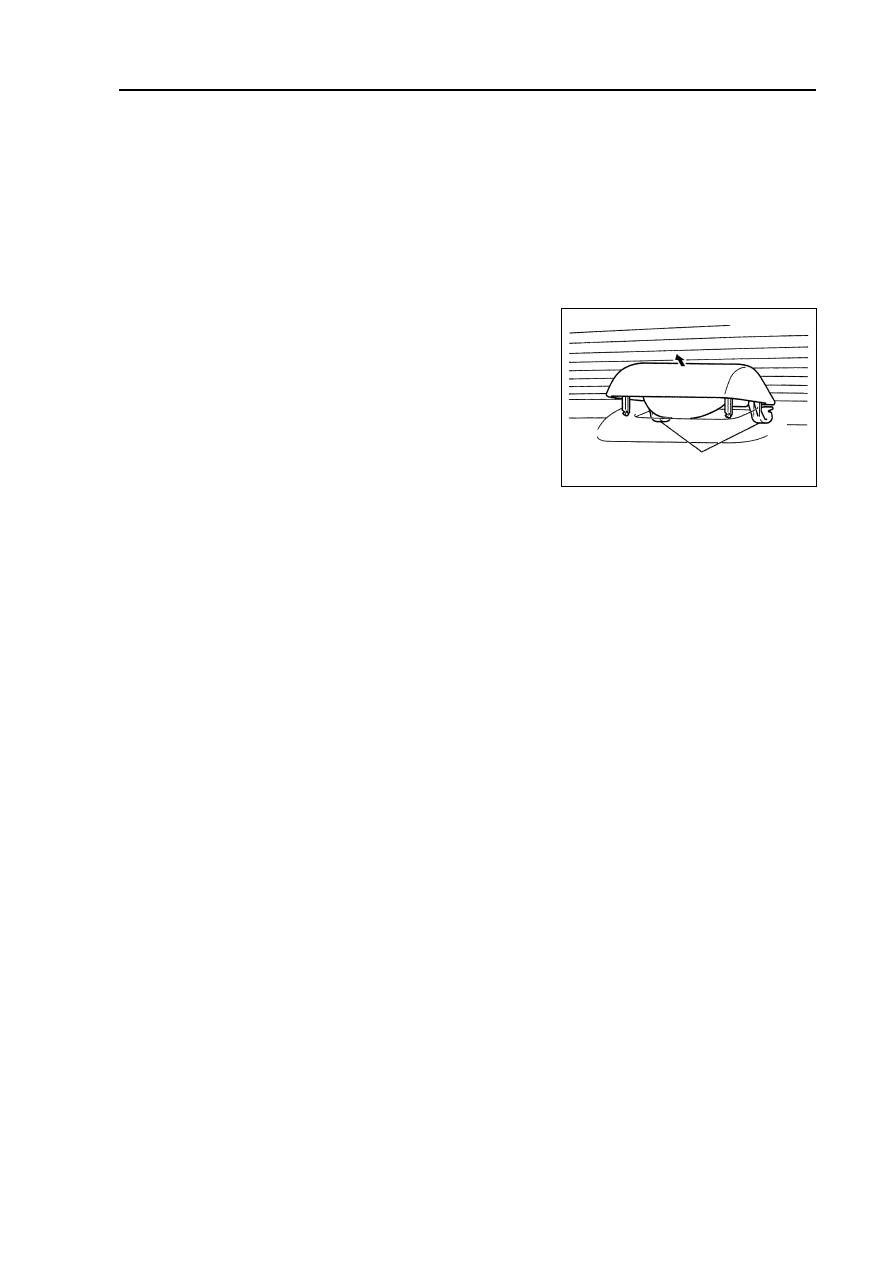

1. Disassemble high brake light assembly [67010008]

(a) Loosen two fixed jaw just as drawing.

(b) Loosen two fixed jaw and disassemble high brake light

assembly as the drawing, then take the joint apart.

Light--High brake light assembly

 297

Fixing claw

Light--Left

combination

switch

Left combination switch

Change

1. Disassemble decorative board under steering column [67000129]

2. Disassemble left combination switch assembly [67000078]

(a) Take the joint apart.

(b) Loosen fixed jaw and pull left combination switch assembly.

Fixing

claw

 298

Malfunction

Wiper and cleaner do not work.

Wiper does not work on LO, HI or MIST.

Wiper does not  work on INT

Washer generator does not work

When cleaner switch ON, wiper does not

work.

Wiper cleaner can not spout

z

Right assembled switch on HI, wiper

blade will touch the bodywork.

z

When right combination switches are  OFF, washer will

not return to original position or stop position is incorrect.

Component names

1. ignition switch

2. ignition relay

3. (wiper) fuse (central power distribution box)

4. right assembled switch

5. wiring harness

1. right assembled switch

2. wiper generator

3. wiring harness

1. right assembled switch

2. wiper generator

3. wiring harness

1. (washer) fuse (central power distribution box)

2. wiper switch

3. wiper generator

4. wiring harness

1. right assembled switch

2. washer generator

3. wiring harness

1. cleaner hose and nozzle

1. right assembled switch *1

2. wiring harness

Reference pages

-

-

-

302

302

303

302

303

-

-

-

-

302

303

-

-

302

-

Inspect the car

Inspect the function of cleaner generator

(1) Add some rinsing to wiper water tank, then disassemble

cleaner generator joint.

(2) Connect battery wire with cleaner generator joint terminal2,

negative wire with terminal1,then inspect whether cleaner

generator works.

Notes: Be quick(in 20 seconds) to do this test to pre-

vent cleaner generator coil from burning.

If its function does not in accord with regulations, replace

cleaner generator.

Wiper and cleaner--Wiper and cleaner system

Wiper and cleaner

Wiper and cleaner system

Malfunction phenomena table

The underside table can help you to eliminating malfunction in wiring. It sorts as possibilities of malfunction’s

reasons.

*1:inspect set position of wiper arm and wiper blade.

 299

Wiper and cleaner--Wiper and cleaner system

Inspect

1. Inspect the conduction of right combination

switch [67000079]

(a) Inspect the conduction of every terminal of joints.

Right combination  switch

Switch position

terminals connect with avometer

regular situations

OFF

-

Not conduction

ON

WIG-WS

conduction

Switch positions

terminals connect with avometer

regular situations

MIST

SWL-WIG

Conduction

OFF

AS-SWL

Conduction

INT

AS-SWL/SWL-WIG

Conduction

LO

SWL-WIG

Conduction

HI

SWH-WIG

Conduction

(c) Inspect the function of cleaner

(1) Turn right assembled switch to OFF.

(2) Connect battery positive wire with joint terminal WIG, connect negative to terminal EW.

(3) Connect voltmeter positive wire with joint terminal WS, connect negative to terminal EW.

(4) Switch on cleaner switch and inspect its going.

(b) Inspect intermittent function of wiper.

(1) Connect voltmeter positive wire with joint terminal SWL, connect negative to terminal EW.

(2) Connect battery positive wire with joint terminal WIG, connect negative to terminal EW.

(3) Turn right assembled switch to INT.

(4) Connect battery positive wire with terminal AS for 5 seconds.

(5) Connect battery negative with terminal AS for 5 seconds actuate intermittent relay and check the

voltage between terminal SWL and terminal EW .

Sprinkler switch
