Assemble two new fork shaft clip spring, and assemble inter-

locking pin in the position in figure.

Assemble two new fork shaft clip springs liking that shown in

figure.

Assemble first and second gear fork on fork shaft, and put

fork shaft in first and second gear cover, then assemble first

and second guide block, at the same time, tighten the bolts,

the torque is 16Nm.

Press elastic cylindrical pin in guide block liking that shown in

figure.

Transmission—Disassemble assembly

 185

Assemble lubricating oil pipe liking that shown in figure.

Press a new fork shaft clip spring in third and forth gear fork

shaft liking that in figure.

Assemble reverse gear block and fork shaft clip spring liking

that shown in figure.

Assemble third and forth gear fork shaft in clutch shell body,

and assemble third and forth shift fork in gear cover slot and

tighten them.

Bolt torque is 16N•m

Transmission—Disassemble assembly

 186

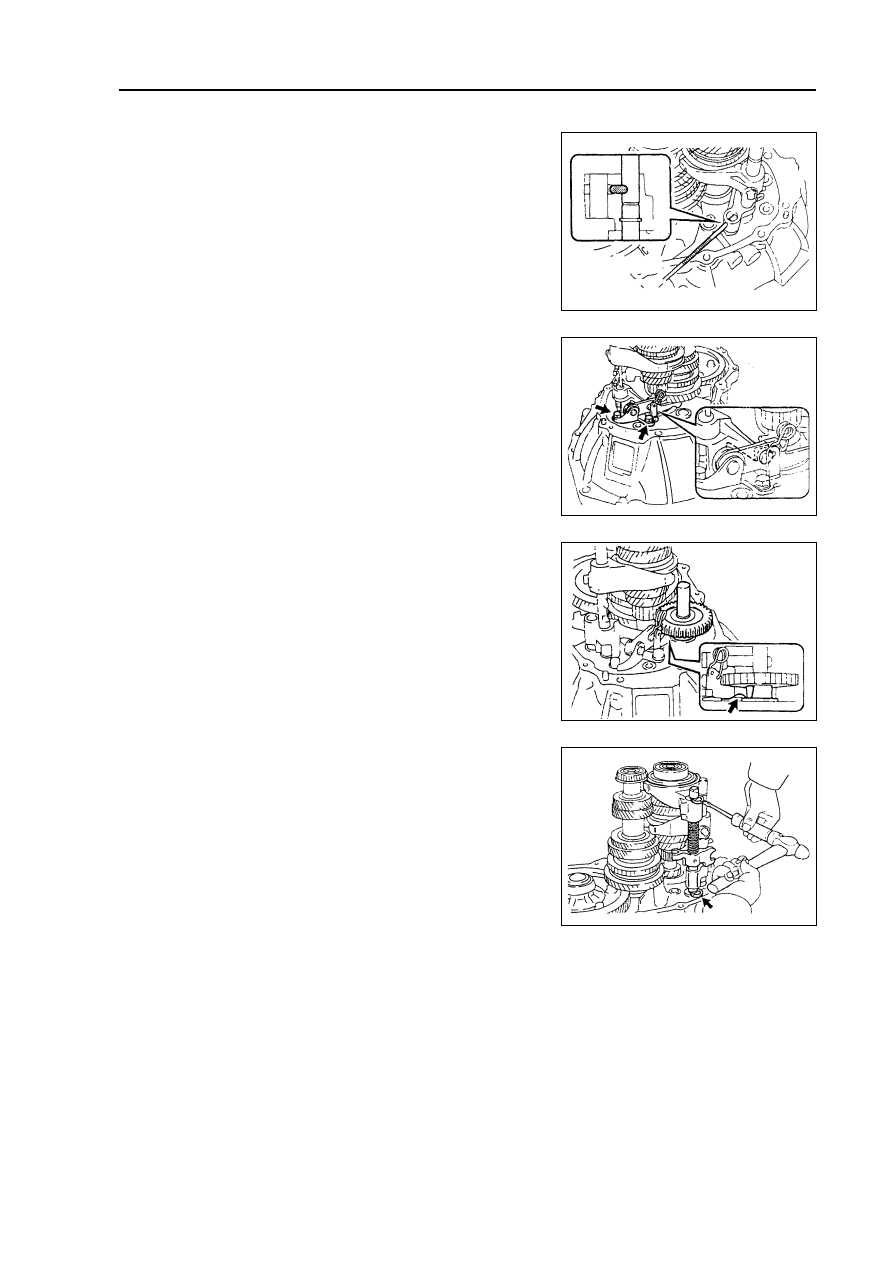

Assemble interlocking pin in reverse gear block liking that

shown in figure.

Assemble two connecting bolts on reverse gear swing arm

bracket liking that shown in figure, their torque is 17N•m, and

put the head of reverse gear block in corresponding hole of

reverse gear swing arm bracket.

Put the head of reverse gear swing arm in the slot between

those reverse gear shafts liking that shown in figure.

Assemble reverse gear fork, spring and fifth reverse gear guide

block on fifth reverse fork shaft, and put fifth reverse gear

pulling fork in fifth gear cover, then assemble them in clutch

shell.

Transmission—Disassemble assembly

 187

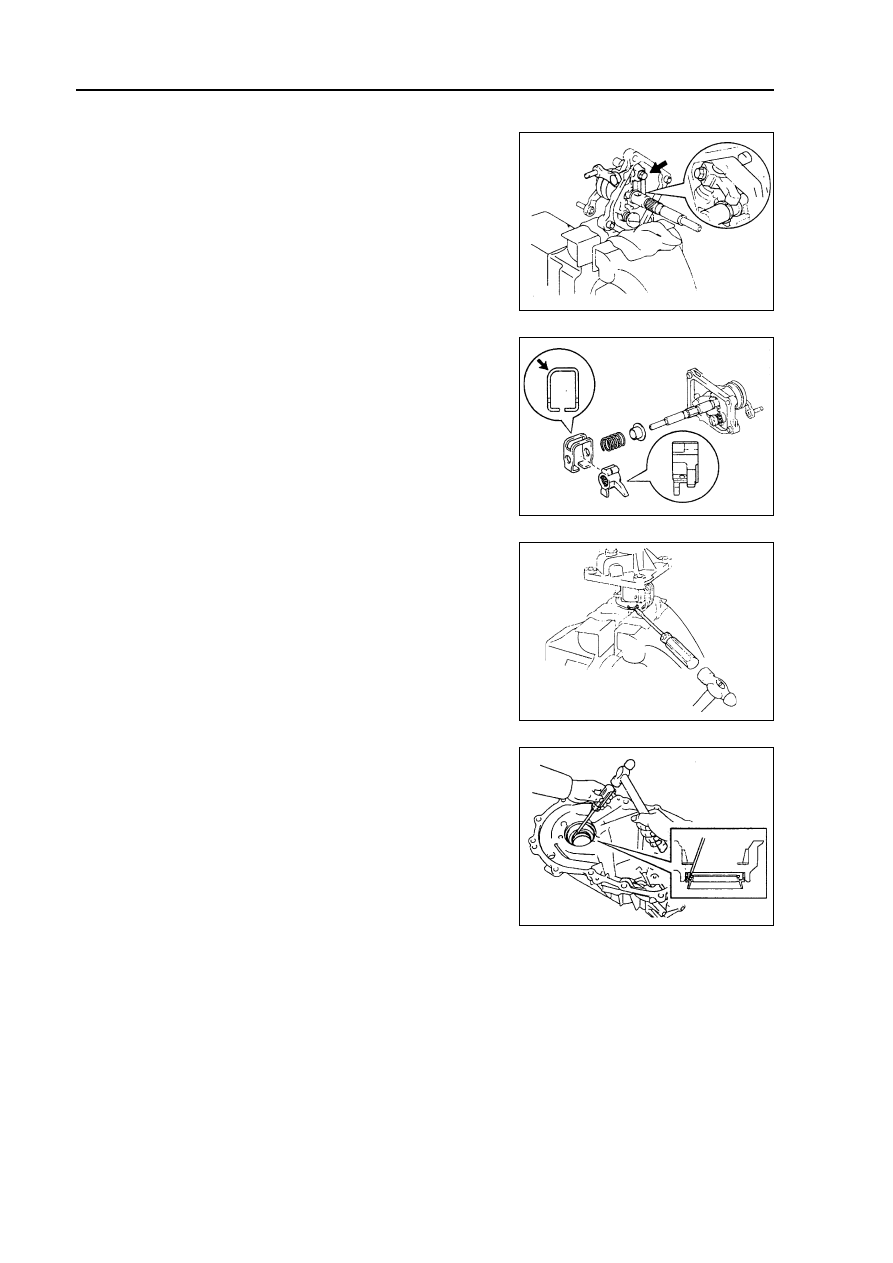

Spread seal fastening glue on the bolts, and connect trans-

position swing lever and transposition swing lever shaft with

transposition cover with bolts, bolt torque is 16N•m

Assemble A gasket, spring,  interlocking bracket and shift swing

lever on shift reverse shaft by the sequence in figure, then

press elastic cylindrical pin in the hole of shift swing lever, at

the same time, the distance from its end surface to hole should

be 0-0.5mm after pressing it in.

Press in a new clamp spring liking that shown in figure.

Take out oil with the method in figure, and assemble a new oil

seal in transmission shell body.

Transmission—Disassemble assembly

 188
