Assemble a new clip spring on input shaft.

Assemble roller bearing, and assemble third and forth

ssynchronizer assemble by the direction in figure, at this time,

assemble forth gear on input shaft.

Assemble fixting ball liking that shown in figure, and assemble

fifth gear stop gasket in input shaft by this ball.

Transmission—Disassemble assembly

 181

Assemble clip spring with same method.

Assemble roller bearing, fifth gear, fifth gear synchronous loop

with same method above.

Assemble synchronizer assembly with pressure machine by

the direction in figure.

Press radial ball bearing in with pressure machine.

Transmission—Disassemble assembly

 182

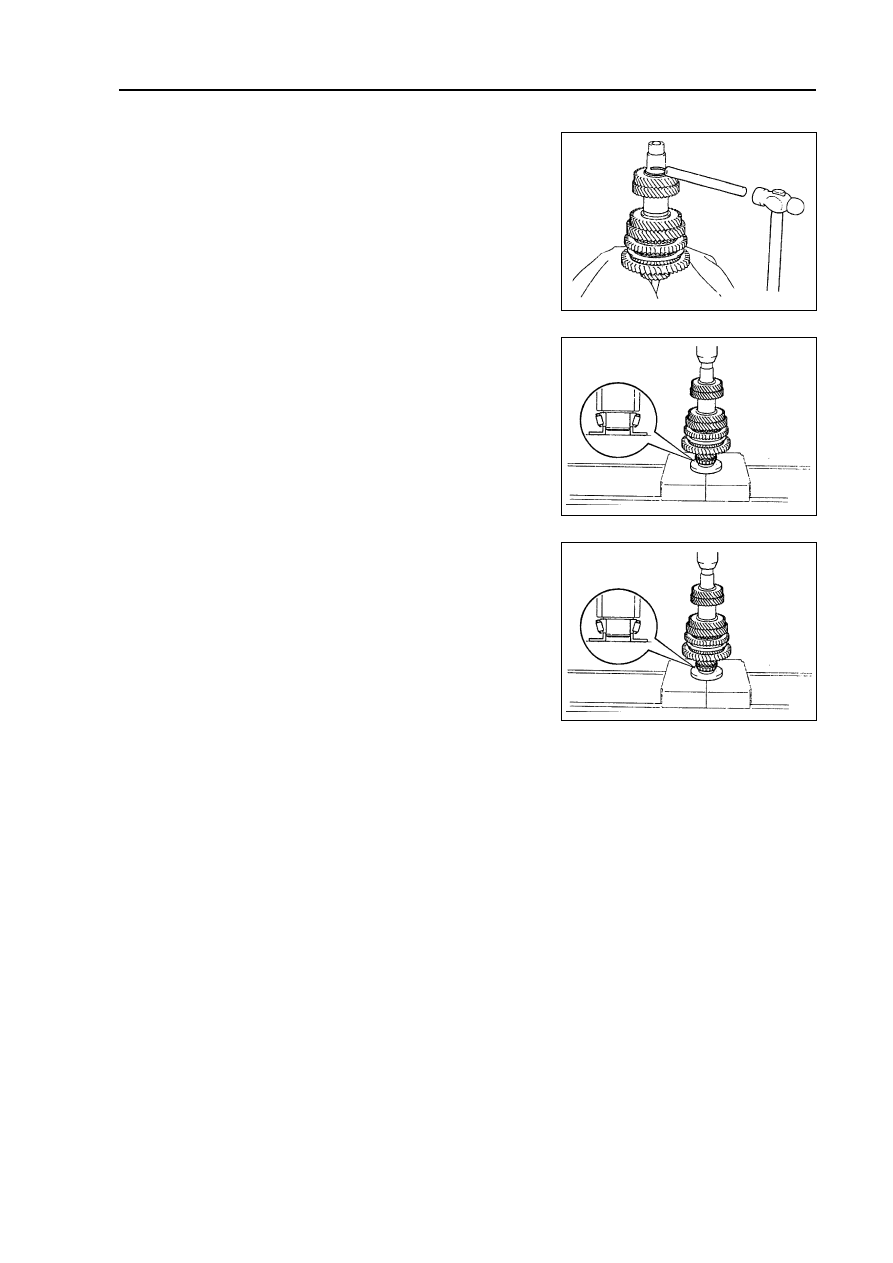

Press a new clip spring in input shaft by the direction in figure.

Press front tapered bearing in output shaft with method in

figure.

Note: make sure the bearing inner ring has been put into

position.

Press rear tapered bearing in output shaft with method above.

Note: make sure the bearing inner ring has been put into

position.

Transmission—Disassemble assembly

 183

Press shift cover oil seal in with the method in figure, and the

distance from oil seal end surface to oil seal hole end surface

is 2.0-2.5mm after pressing it in.

Press in the other oil seal liking that shown in figure, and the

distance from oil seal end surface to oil seal hole end surface

is 0-0.5mm after pressing it in.

Assemble the gasket on shift guide shaft, and assemble dust-

proof cover in shift guide shaft, then assemble them on shift

cover.

Press a new clip spring on shift reverse shaft liking that shown

in figure.
