Parking brake--Parking front bake pull cable assembly

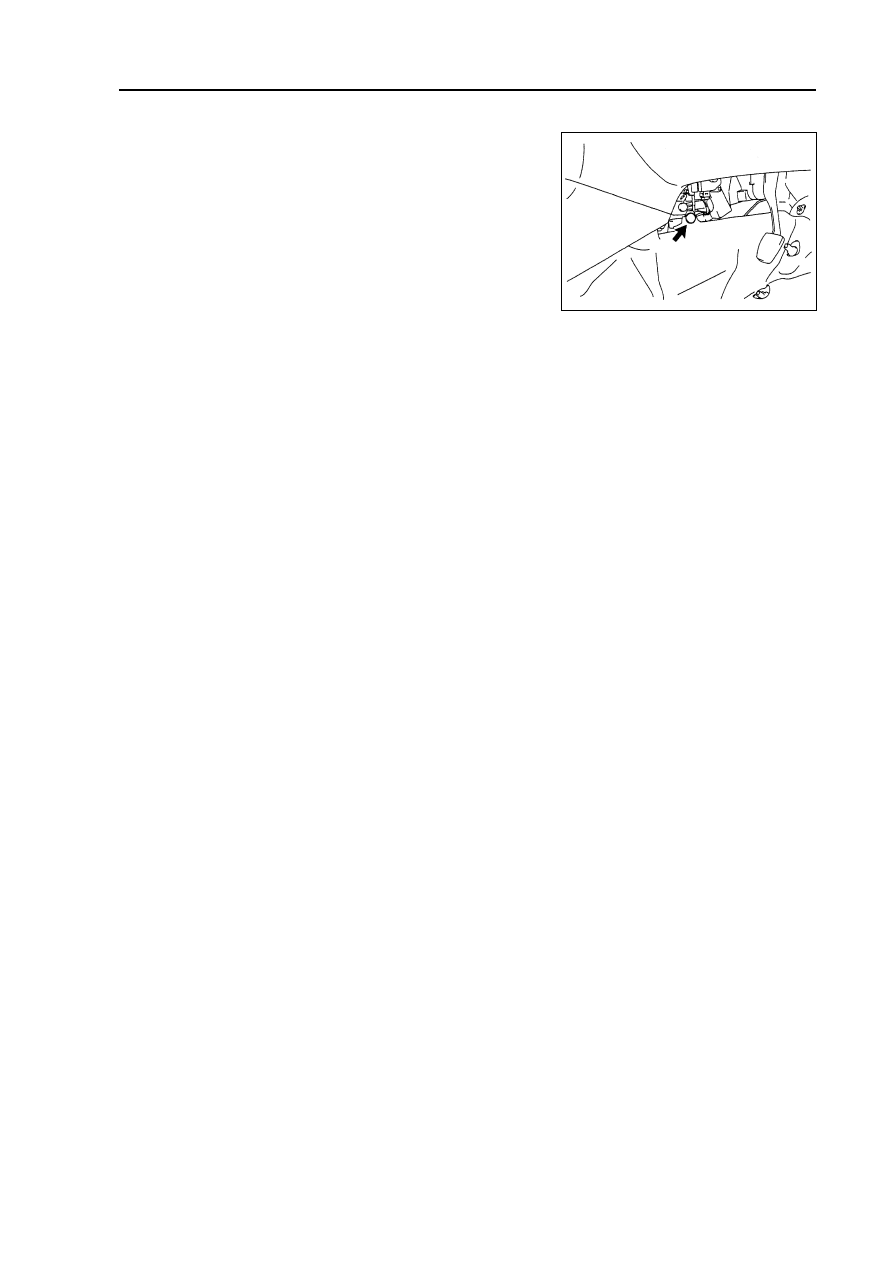

12. Assemble front bottom board bracket.

13. Assemble parking brake handle assembly.

14. Check the travel of parking brake handle (referring

to page 154).

15. Adjust the travel of parking brake handle (referring

to page 154).

 157

Parking rear brake pull cable assembly

Change

Hint: the changing procedure for left rear brake pull cable is same as parking right rear brake

pull cable.

1. Disassemble rear wheels.

2.  Disassemble rear brake disk brake branch pump bracket assembly(LH).

3. Disassemble brake disk.

4. Disassemble support lever of parking brake shoe (LH).

5. Disassemble adjustor of parking brake shoe.

6. Disassemble parking brake inner shoe assembly (LH).

7. Disassemble parking brake exterior shoe assembly (LH).

8. Disassemble parking brake shoe lever (LH).

9. Disassemble left rear brake pull cable assembly.

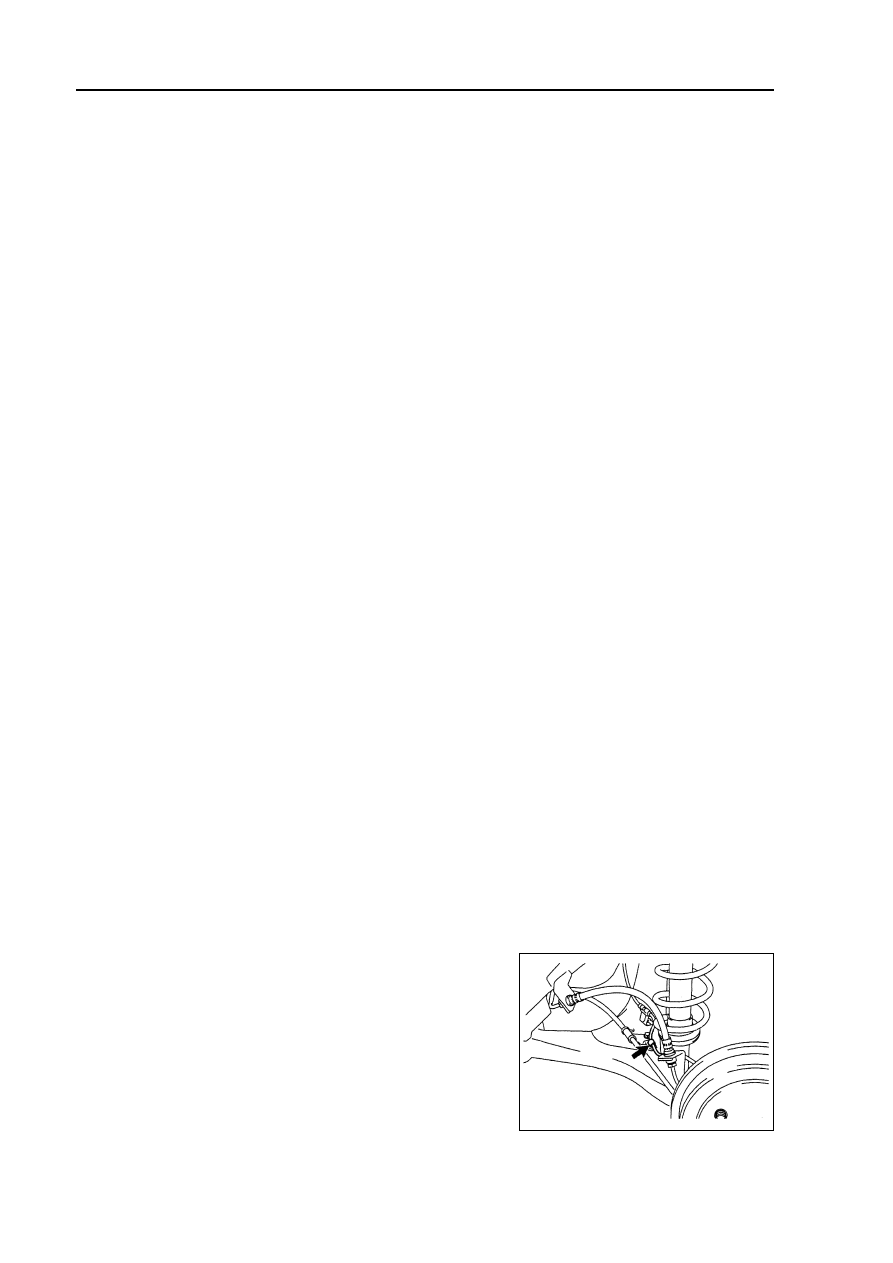

Disassemble the bolt and parking left rear brake pull cable assembly from brake back board.

10. Disassemble front bottom board bracket.

11. Disassemble front part exhaust pipe.

12. Disassemble heat insulation board.

13. Disassemble parking left rear brake pull cable assembly.

Parking brake--Parking rear brake pull cable assembly

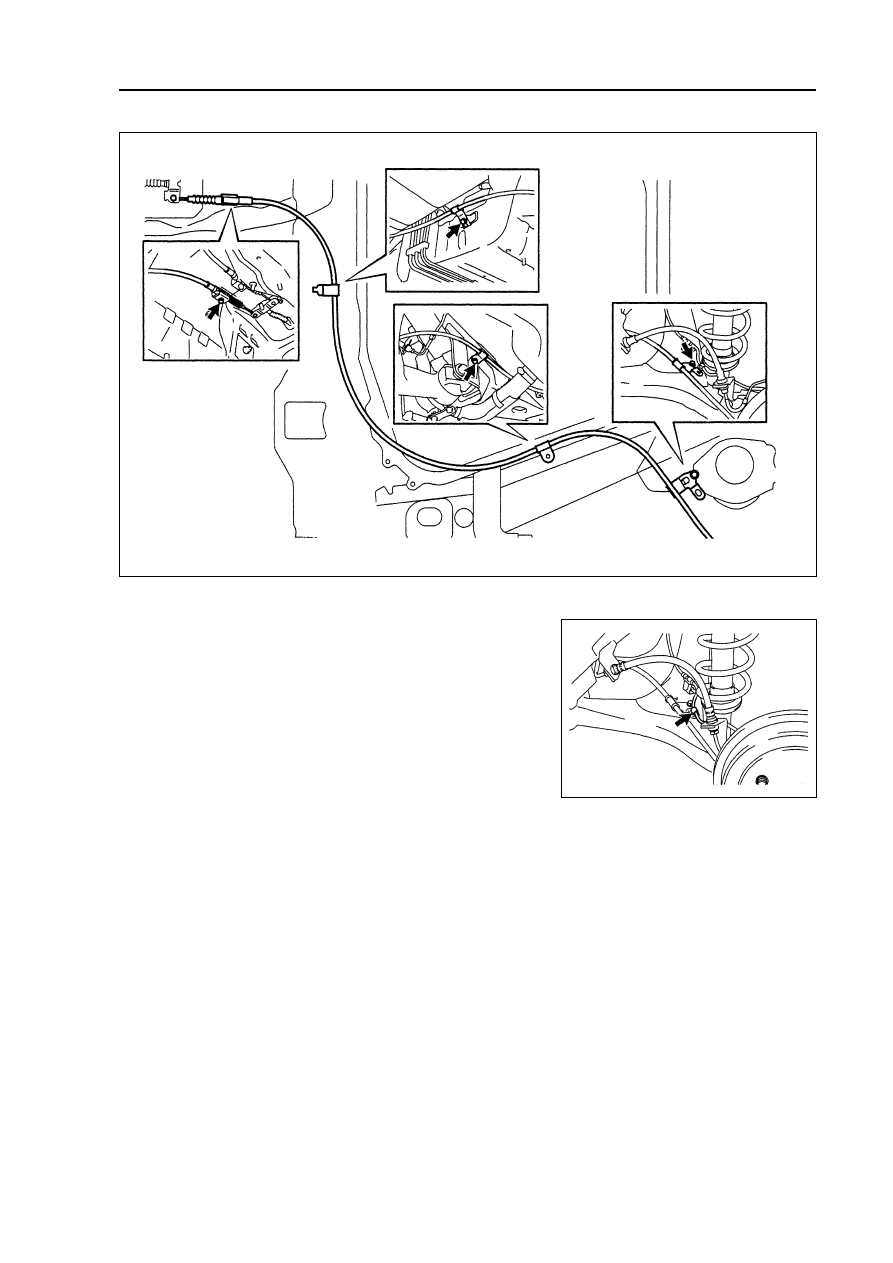

(a) Disassemble fixing clamp of rear wheel speed sensor wiring

harness.

(b) Disassemble four bolts and parking left rear brake pull cable

from automobile.

(c) Disassemble left rear brake pull cable from parking brake

balancer, then disassemble parking left rear brake pull cable.

14. Assemble parking left rear brake pull cable

assembly.

(a) Connect parking left rear brake pull cable on parking brake

pull cable balancer.

(b) Assemble parking left rear brake pull cable with four bolts.

Torque: 5.4 N

⋅⋅⋅⋅⋅m

(c) Connect resinous clamp of speed sensor wiring harness of

 158

Parking brake--Parking rear brake pull cable assembly

rear wheel to fixing clamp.

15. Assemble No.2 clapboard.

16. Assemble front part exhaust pipe assembly.

17. Assemble front bottom board bracket.

18. Connect parking left rear brake pull cable assembly.

Assemble parking left rear brake pull cable assembly to brake

back board with bolt.

Torque: 7.8 N

⋅⋅⋅⋅⋅m

19. Spread high temperature lubricating grease.

20. Assemble support lever of parking brake shoe (LH).

21. Assemble parking brake exterior shoe assembly

(LH).

22. Assemble parking brake inner shoe assembly (LH).

 159

Parking brake--Parking rear brake pull cable assembly

23. Assemble parking brake shoe adjustor.

24. Assemble drag lever of parking brake shoe (LH).

25. Check the assembly of parking brake.

26. Assemble rear brake.

27. Adjust the clearance of parking brake shoe.

28. Connect brake branch pump bracket assembly.

29. Assemble rear wheels.

Torque: 103

±±±±± 10 N⋅⋅⋅⋅⋅m

30. Check the travel of parking brake lever.

31. Adjust the travel of parking brake lever.

32. Check whether exhaust system leaks.

 160
