Firstly, loosen the connecting bolt of cover, and take out cover and stop disc spring of output shaft

bearing, secondly, put special wrench whose surface has four cylindrical column heaves in four holes

of support cover of rear shaft of output shaft and screw it out; lastly, loosen fastening bolt of shift cover,

take out shift cover assembly, and loosen connecting bolt of transmission to take out transmission

shell.

Transmission—Disassemble assembly

Transmission

Disassemble assembly

 165

Connecting bolt of cover

Cover

Fastening bolt of shift cover

Stop disc spring of output shaft bearing

Support cover of rear shaft of output shaft

Connecting bolt

Transmission—Disassemble assembly

Take out interlocking pin with magnetic stick

Take out clip spring of fork shaft, liking that shown in figure.

Clamp the upside of fork shaft which is protected by some

cloths and take it out, liking that shown in figure.

Take out reverse gear and reverse gear shaft

Disassemble two bolts and swing arm bracket of reverse gear,

liking that shown in figure.

 166

Transmission—Disassemble assembly

Disassemble interlocking pin with magnetic stick and take out

fork shaft and fork.

Disassemble bolt and fork shaft liking that shown in figure.

Disassemble clip spring liking that shown in figure.

Take out fork by disassembling clip spring.

 167

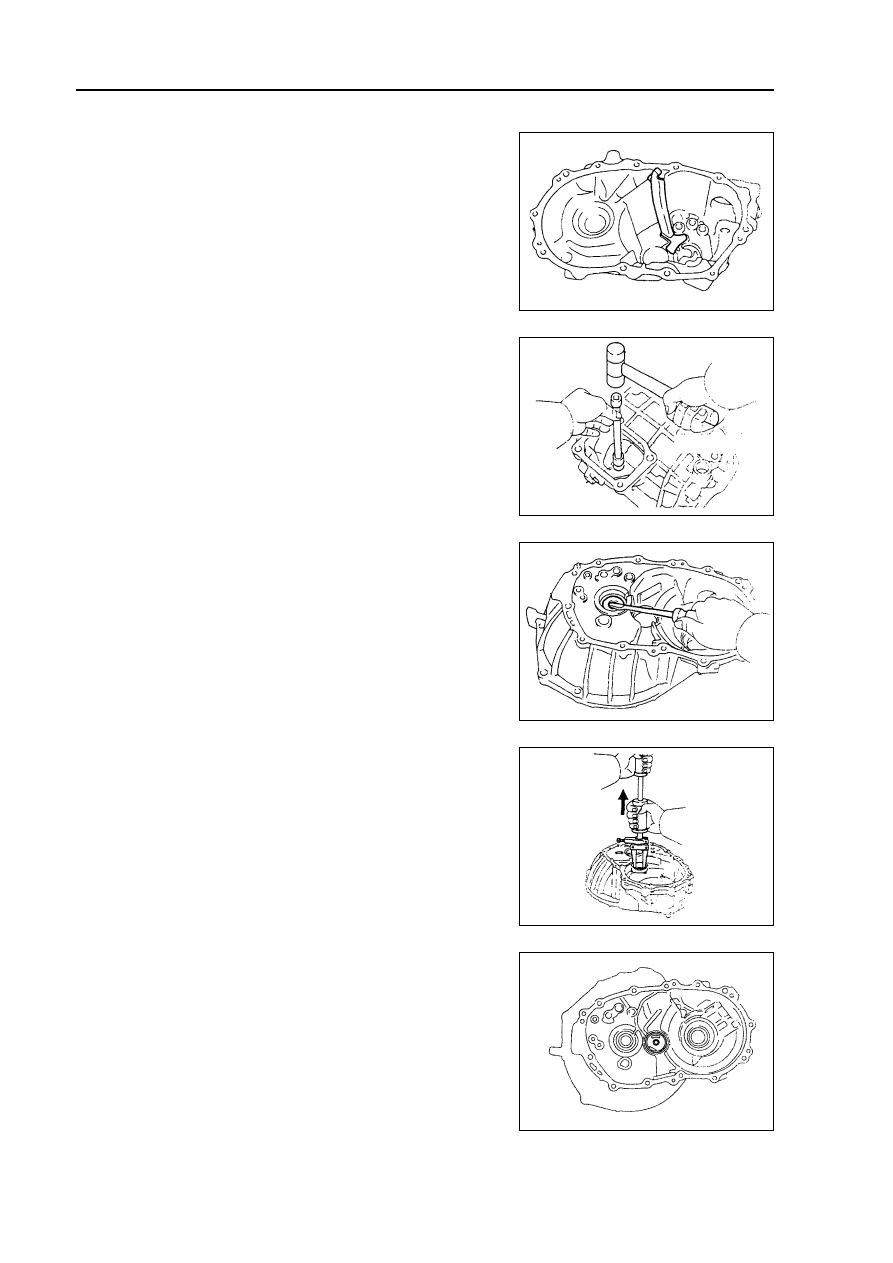

Disassemble lubricating oil pipe.

Take our bushing liking that shown in figure.

Take our oil seal.

Take our exterior ring of tapered shaft with special tool liking

that shown in figure.

Disassemble oil guide cover.

Transmission—Disassemble assembly

 168
