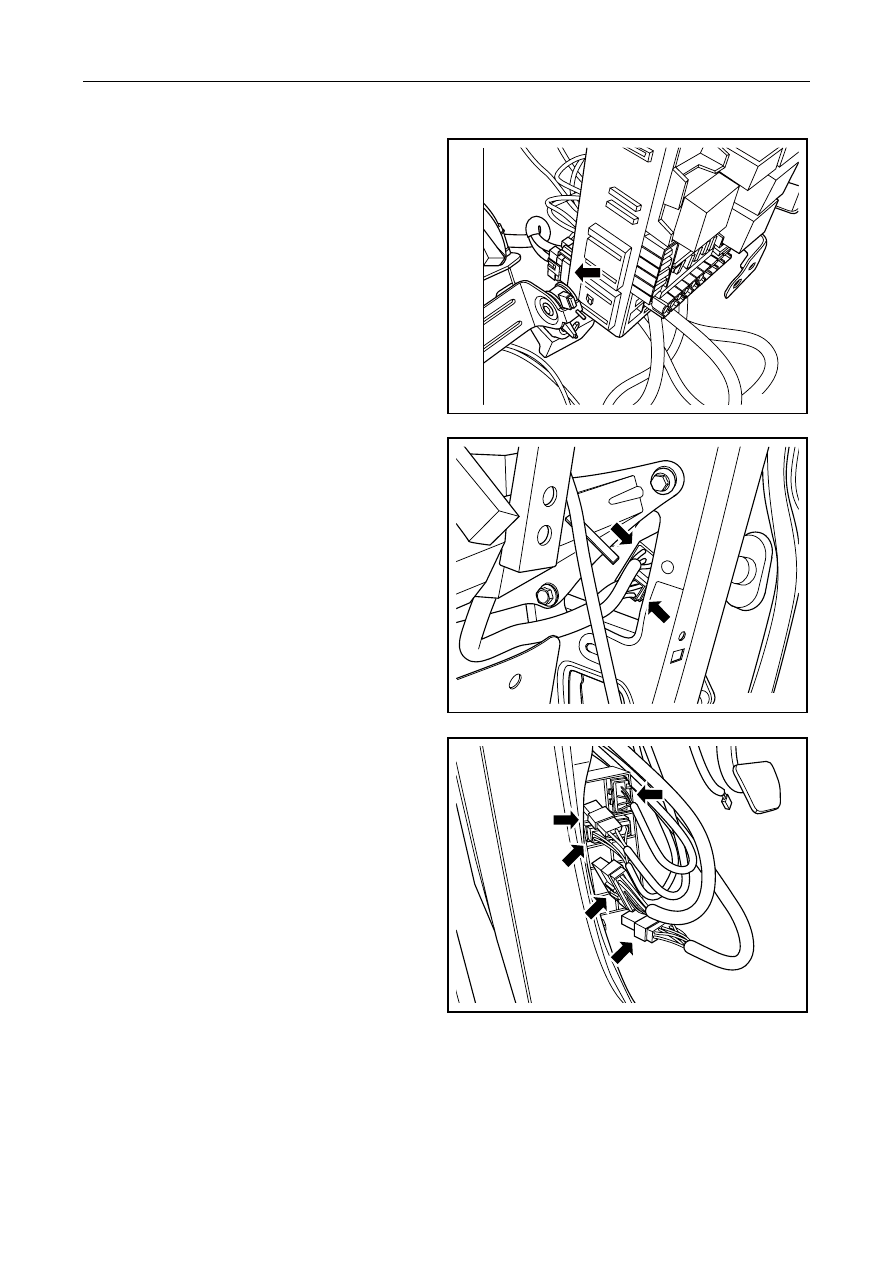

15.   Connect wire harness connector between engine

compartment wire harness and fuse box.



NL12-0257b

16.  Connect 2 connectors between instrument panel

wire harness and right front door wire harness.



NL12-0256b

17.  Connect 5 connectors between instrument panel

wire harness and engine wire harness and floor
wire harness.



NL12-0255b

2731

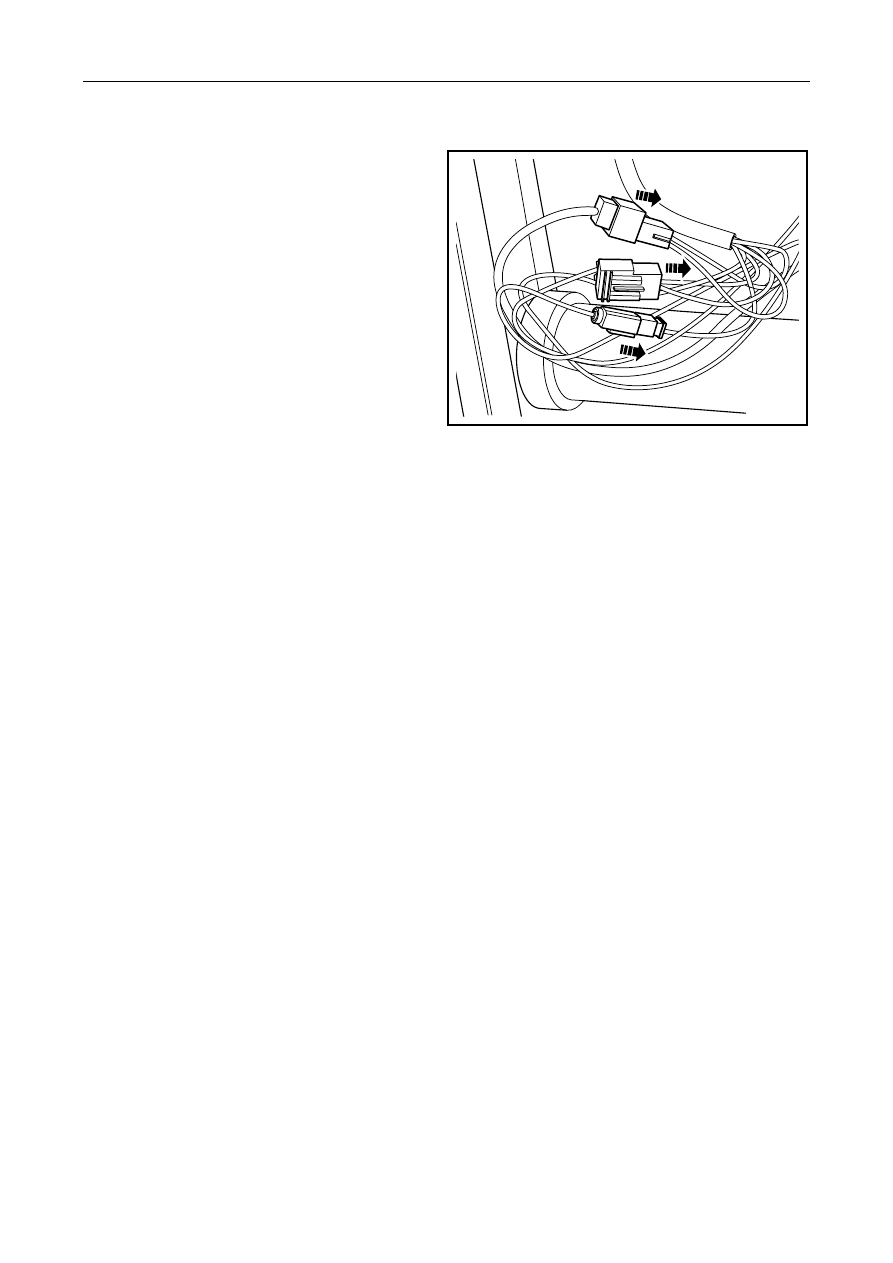

18.  Connect to 3 harness connectors of instrument

panel harness and ceiling harness.

19.   Install mechanical steering column assembly.

20.  Install the instrument panel.

21.  Connect the battery negative cable.



NL12-0273b





2732




12.9 Interior trim

12.9.1 Dismantle and install

12.9.1.1 Left /right front doorsill inner trim plate assembly replacement

Dismantlement Procedure

Notes:

Dismantle the front left/right threshold trim panel
assembly with body repair tool; otherwise the internal
threshold trim panel edge will be easily scratched.

1.   Remove previous section of front door frame

sealing strip.

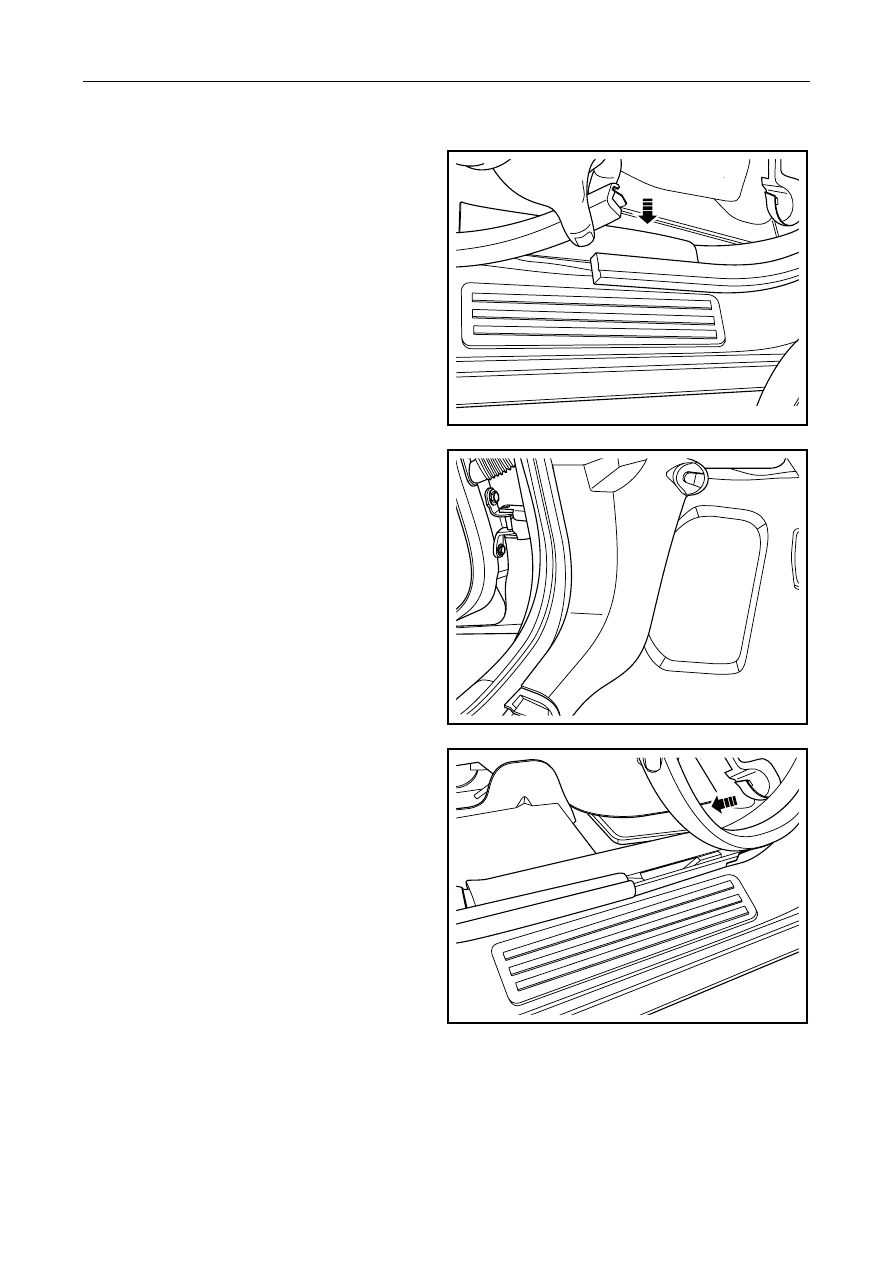

2.  Upward draw inner trimming plate of front

doorsill.



NL12-0138b

3.  Dismantle lower trimming plate assembly of

front vertical column.



NL12-0139b

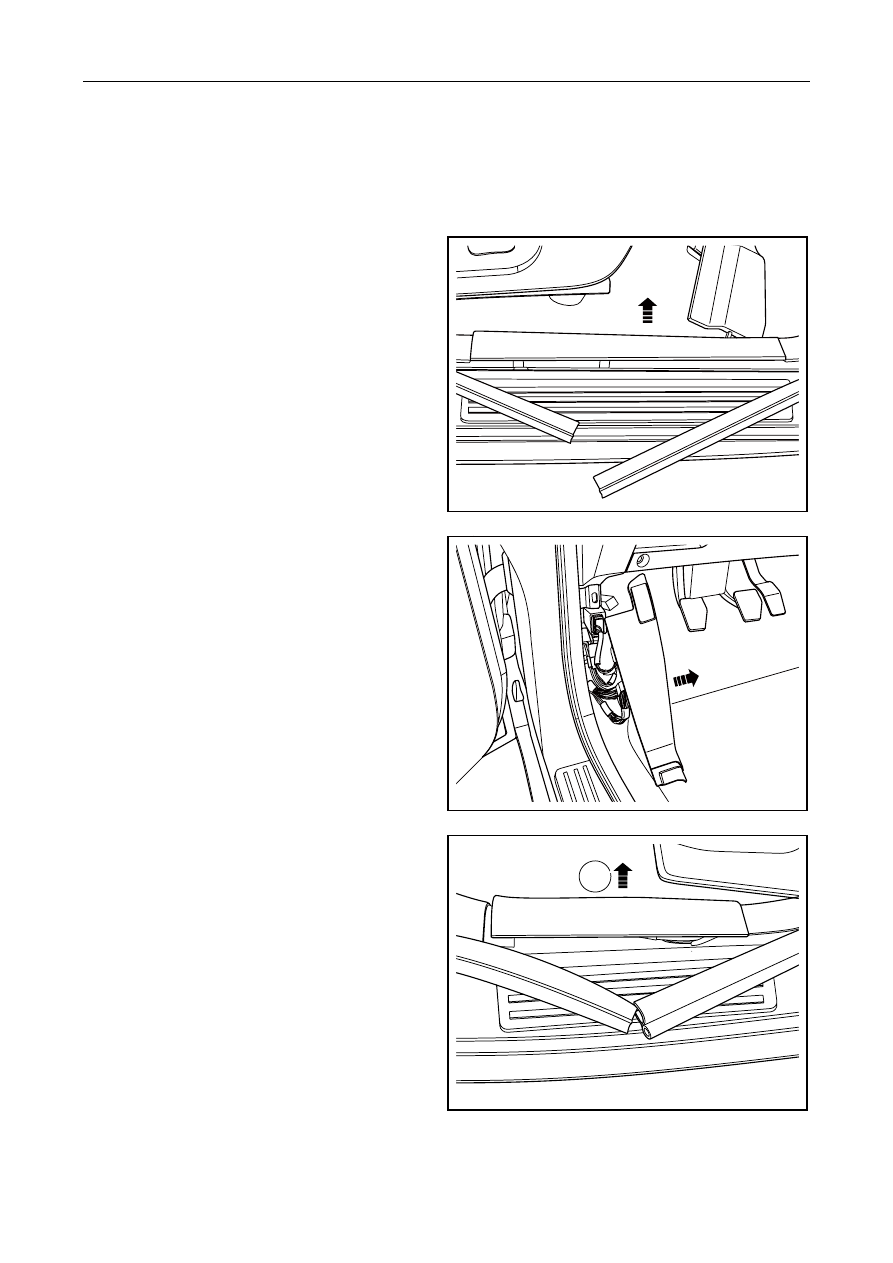

4.    Uncover a section of the rear door frame sealing

bar.

5.   Pull up the rear threshold internal trim panel

assembly and extract.



NL12-0140b

2733






Installation Procedure:

1.  Install rear doorsill inner trimming plate

assembly.

2.    Install rear door frame sealing strip.



NL12-0141b

3.   Install lower trimming plate assembly of front

column.



NL12-0142b

4.    Install inner trimming plate assembly of doorsill.

5.    Install the front door frame sealing strips.

Notes:

Same way of dismantle and install of left /right
doorsill inner trim plate





NL12-0143b
