10.   Install standby power supply.



NL12-0250b

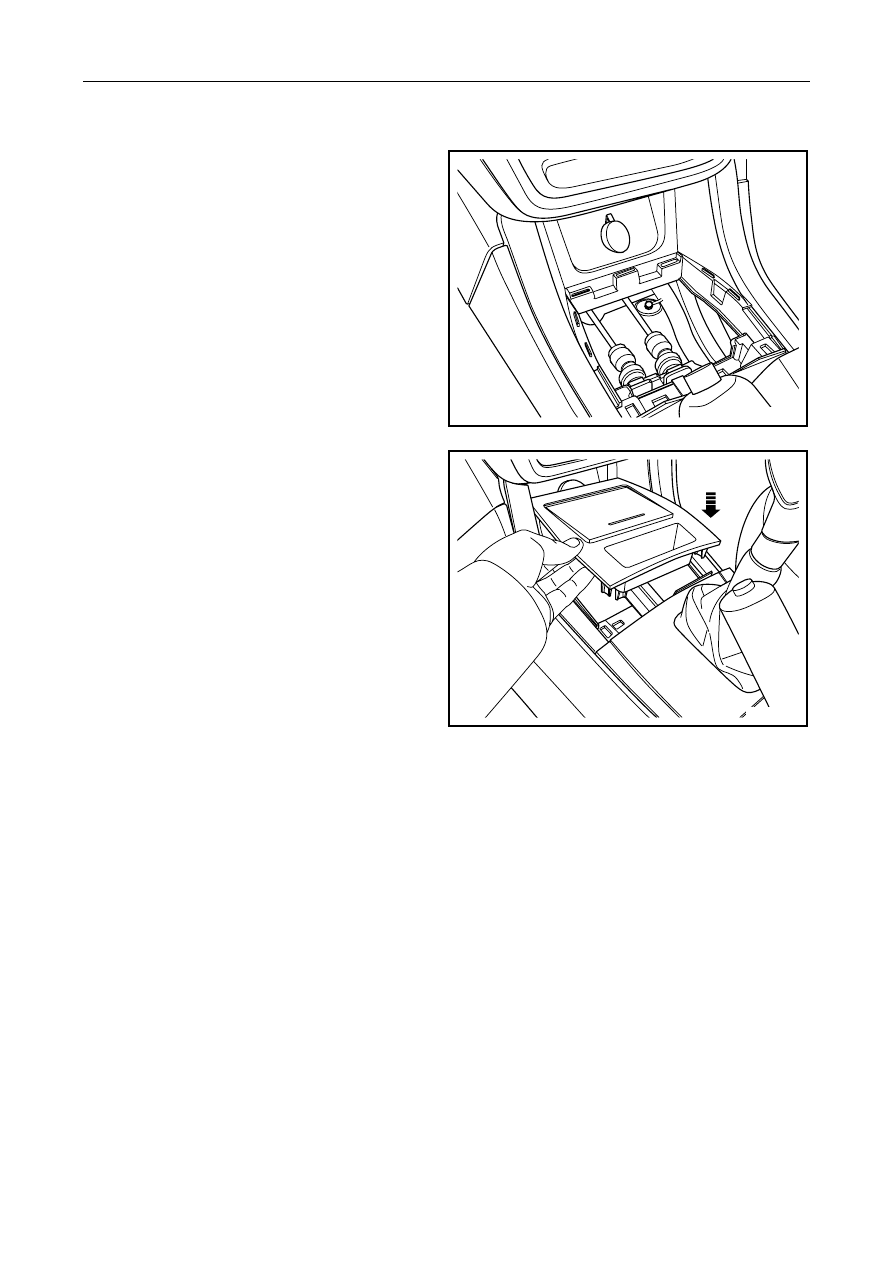

11.   Install front ashtray panel of auxiliary instrument

12.  Connect the battery negative cable.



NL12-0251b





2719




12.8.3.3 Grove box of instrument desk replacement

Dismantlement Procedure

1.    Turn on grove box of instrument desk.

2.    Draw out sundries box.



NL12-0252b

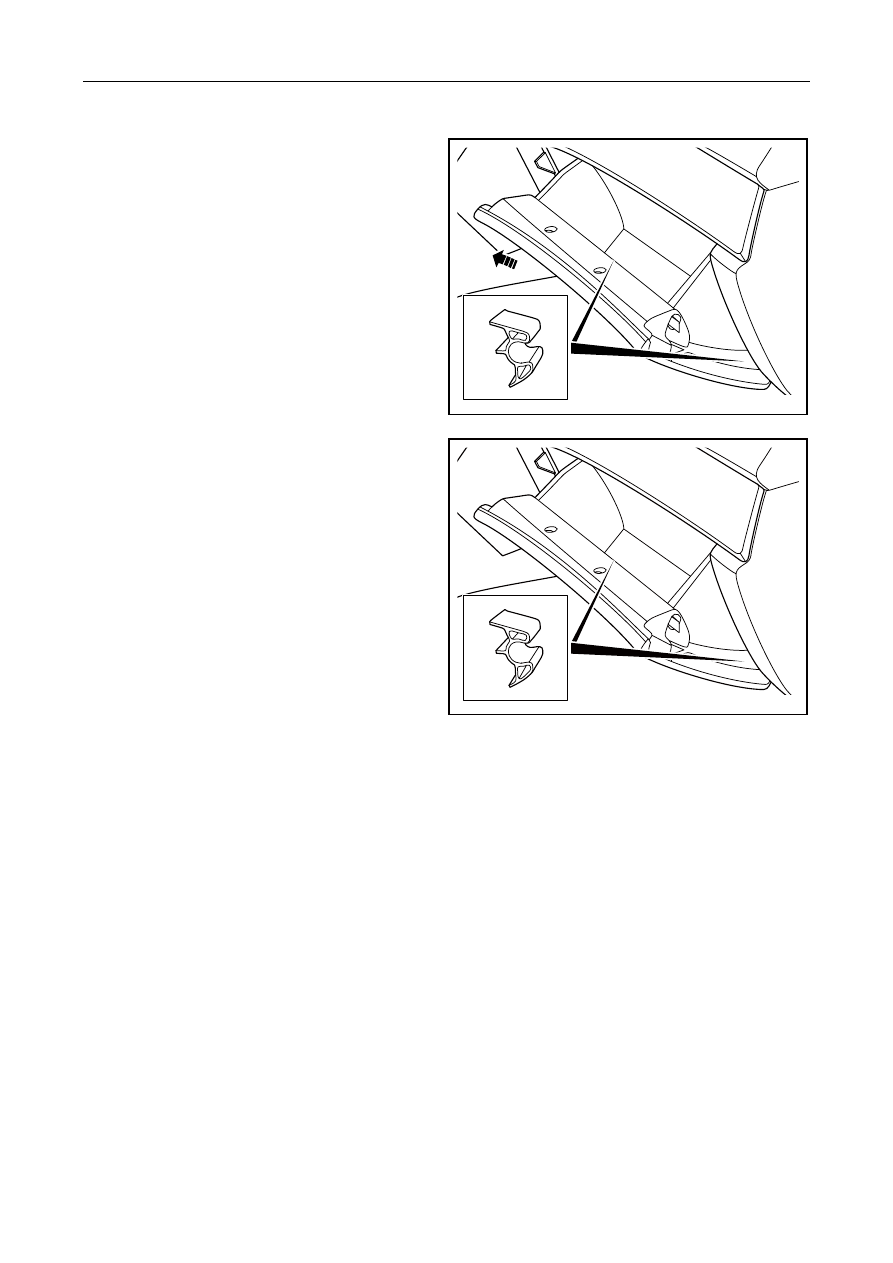

Installation Procedure:

1.    Align and insert 2 clips under sundries box into

sundries box.

2.    Close sundries box of instrument table.



NL12-0253b



2720




12.8.3.4 Cross beam of instrument panel replacement

Dismantlement Procedure

Warning!

Warning: Refer to "Warning on Battery Disconnection" in "Warnings and Precautions".

Notes:

Please dismantle the trim panel assembly with a
special-purpose body repair tool; otherwise this will
easily cause the trim panel to be damaged.

1.   Disconnect the battery negative cable. Refer to

2.11.8.1 Battery Cable Disconnection/Connection
Procedures.

2.  For dismantling of instrument table, refer to

12.8.3.1 Replacement of instrument table.

3.   For dismantling of mechanical steering column

assembly, refer to 11.3.8.12 Replacement of
mechanical steering pipe column assembly.

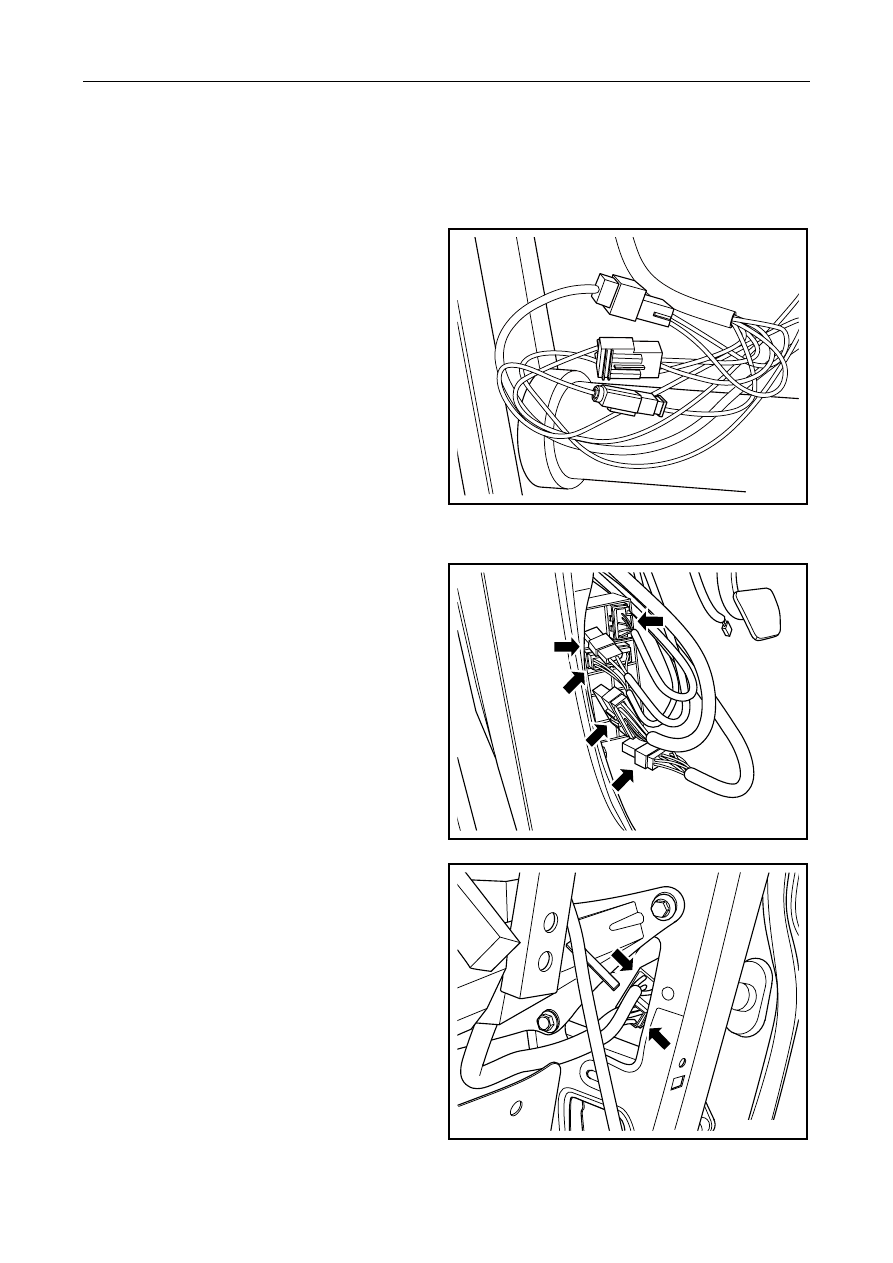

4.    Disconnect 3 connectors of instrument panel wire

harness and indoor lamp wire harness.

NL12-0254b

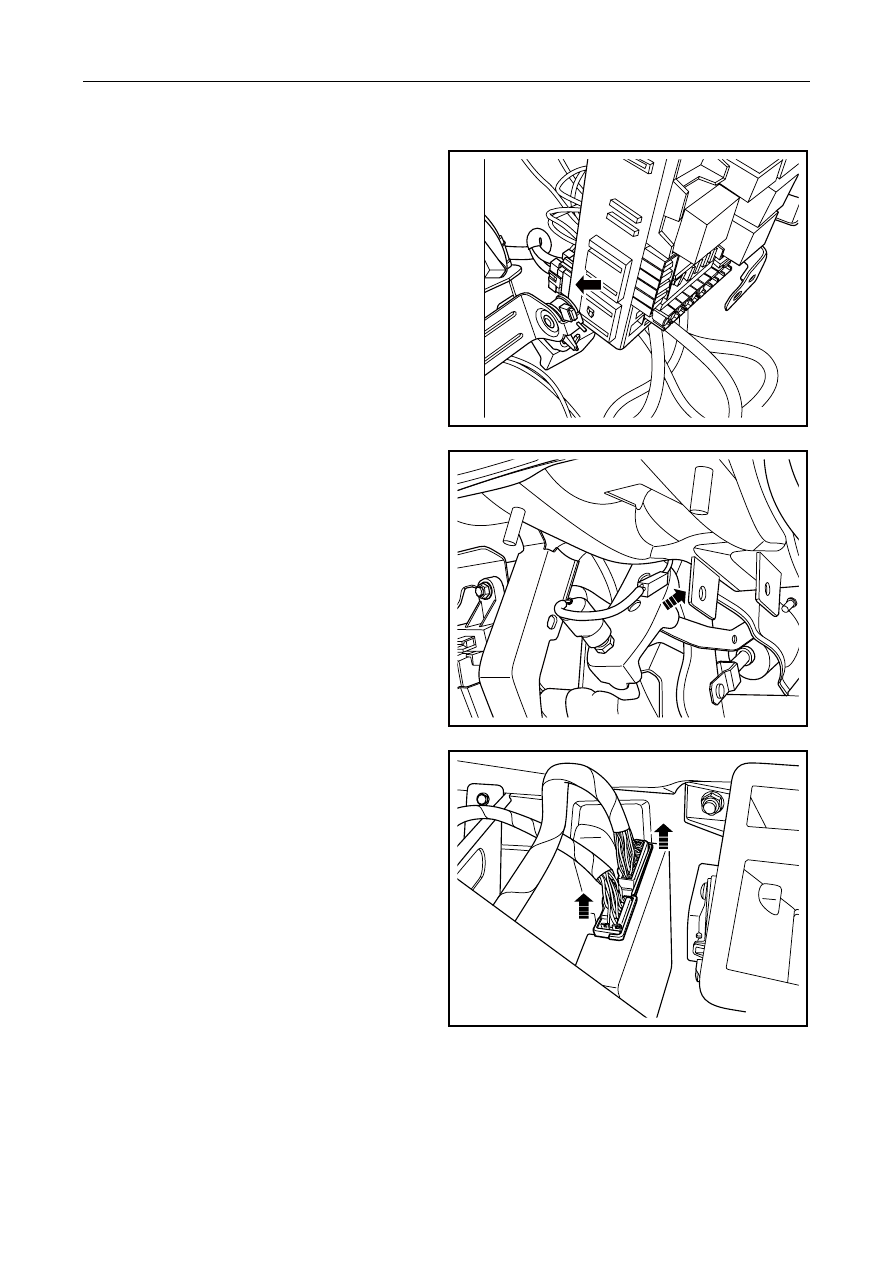

5.   Disconnect 5 connectors between the dashboard

harness and engine harness and floor harness.

NL12-0255b

6.    Disconnect the dashboard harness connector and

front right door harness connector.

NL12-0256b

2721






7.  Disconnect the engine compartment harness

connector and fuse box harness connector.



NL12-0257b

8.  Disconnect the brake lamp switch harness

connector.



NL12-0258b

9.    Disconnect the dashboard harness connector and

the upper BCM harness connector.



NL11-0191b
