11.6.8.8 Replacement of washer fluid reservoir

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  Completely rotate front wheel to

right direction to allow for
enough operation space.

2.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

NL11-0135b

3.  Dismantle the left front fender

liner. Refer to 12.10.1.9
replacement of front fender liner.

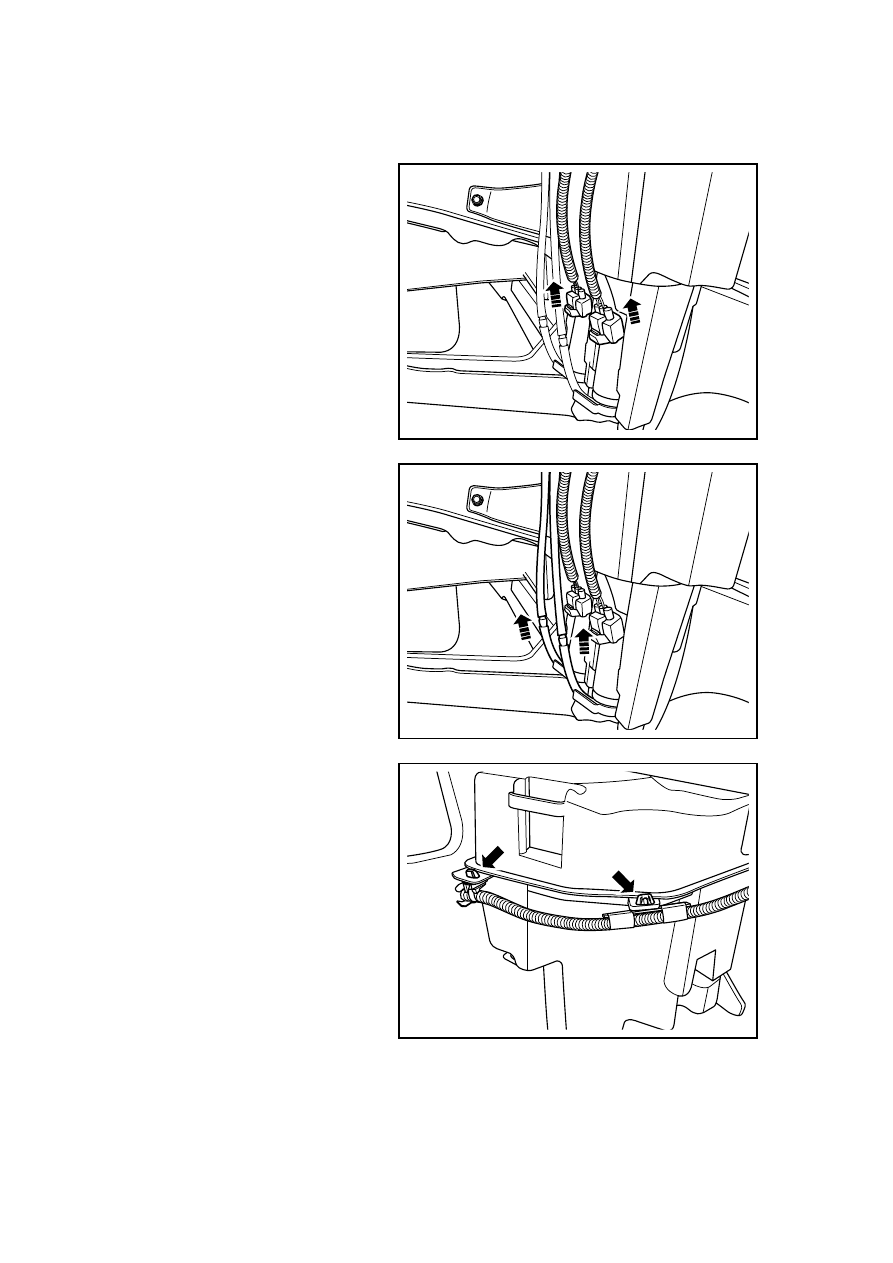

4.  Accumulator cable disconnection

procedures

5.  Disconnect the washing fluid

motor hose.

NL11-0138b

6.  Detach the harness fixing buckle

fixed on the washing fluid
reservoir.

NL11-0141b

2303

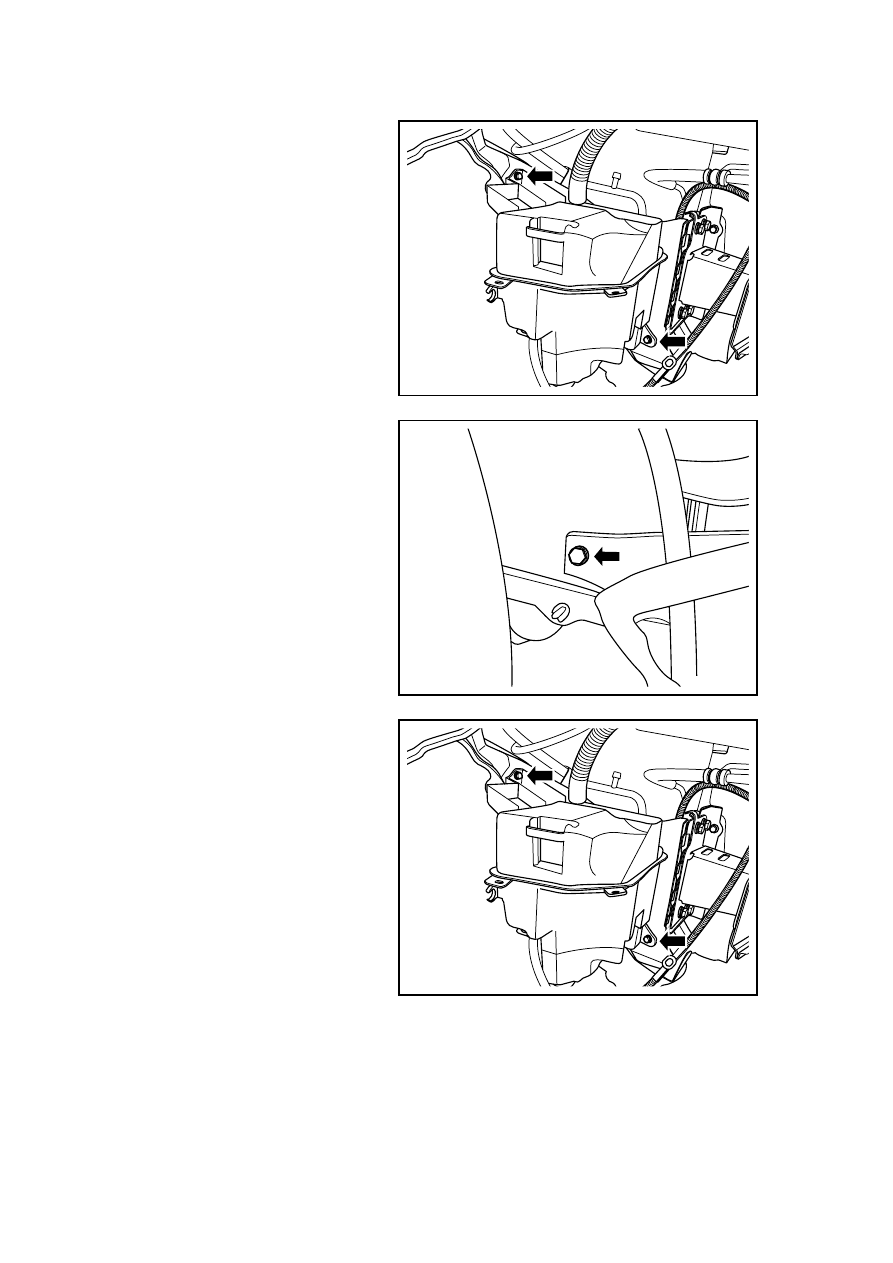

7.  Remove the front fixing bolt for

the washing fluid reservoir.

NL11-0142b

8.  Remove the fixing bolt on the

back side of the washing fluid
reservoir.

9. Dismantle the washer fluid

reservoir.

NL11-0143b

Installation procedure:

1.  Install the washer fluid reservoir.

2.  Install the lower fixing bolts of

the washer fluid reservoir but do
not tighten strictly.

NL11-0142b

2304

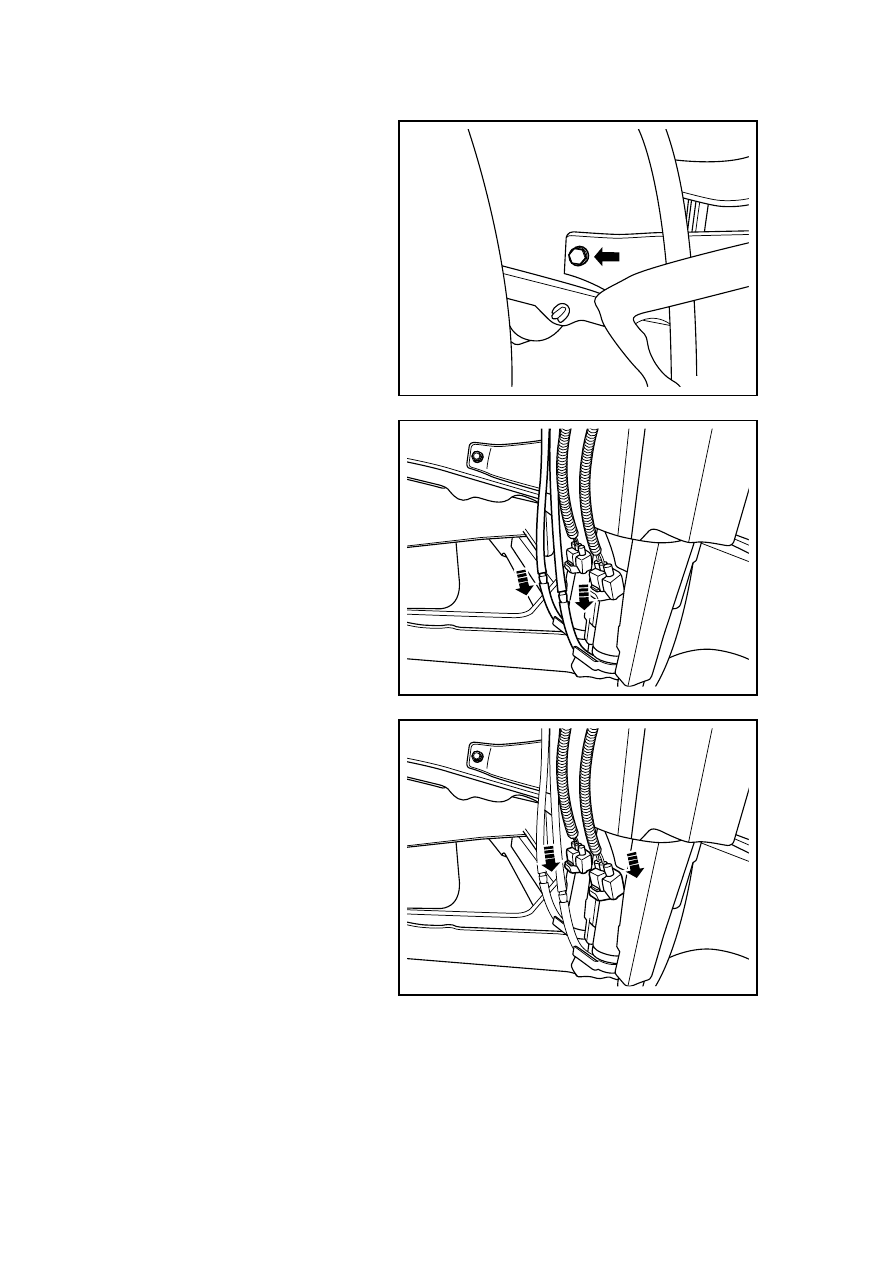

3.  Install fixing bolt on rear section

of washing liquid reservoir.

Torque: 9Nm (Metric) 6. 7lb-ft
(English system)

Notes:

See "important cautions for fastening
parts".

NL11-0143b

4.  Connect the washing fluid hose

to the washing fluid motor.

NL11-0140b

5.  Connect the harness connectors

of the front and rear washing
fluid motors.

NL11-0137b

2305

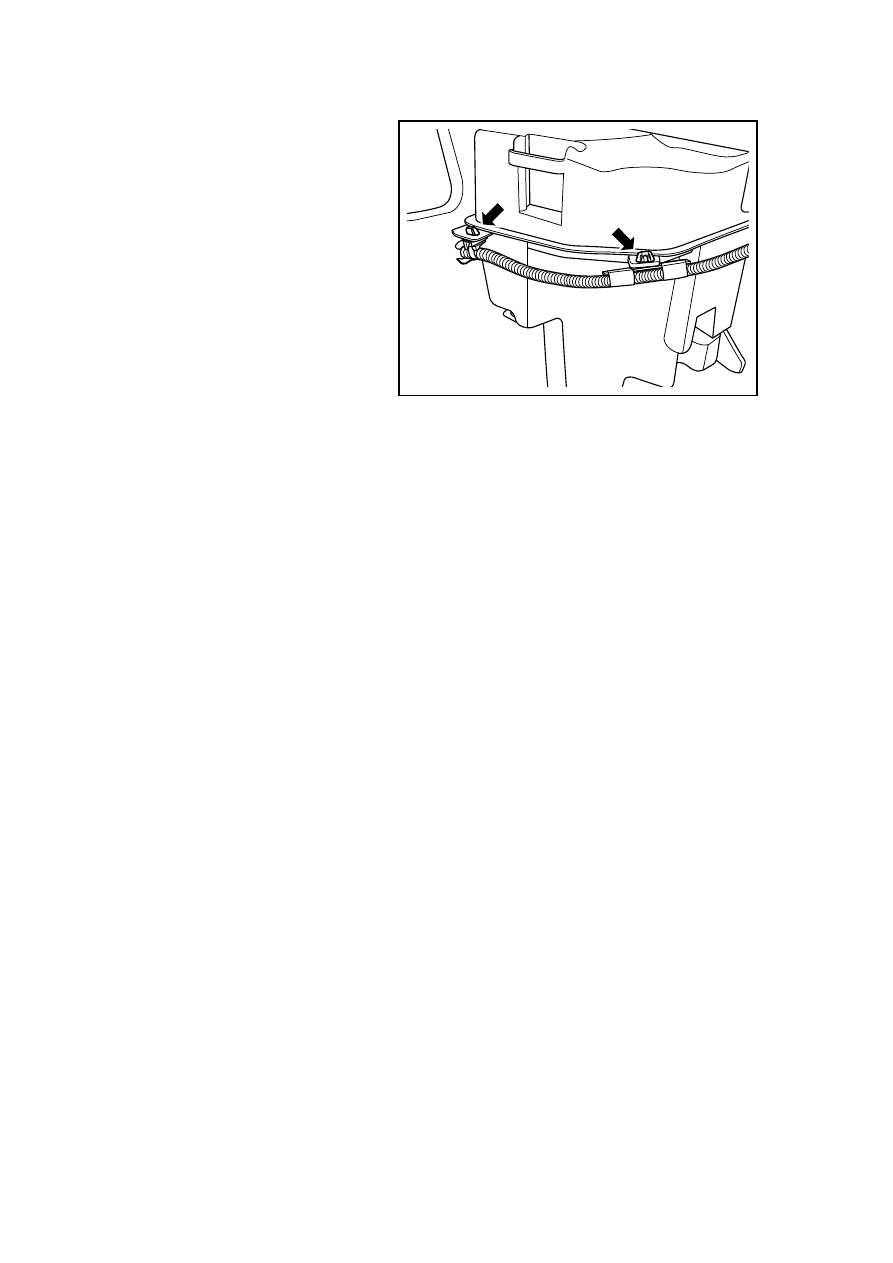

6.  Fix the harness on the washing

fluid reservoir.

7.  Install the front right fender

lining plate.

8.  Connect the battery negative

cable.

NL11-0141b



2306
