11.6.8.7 Front/rear washing motor and hose replacement

Replacement of washer motor

Dismantlement procedure

Warning!

Warning: refer to warning on battery

disconnection in warnings and
precautions.

1.  Completely rotate front wheel to

right direction to allow for
enough operation space.

2.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

3.  Dismantle the left front fender

liner. Refer to 12.10.1.9
Replacement of Front Fender
Liner.

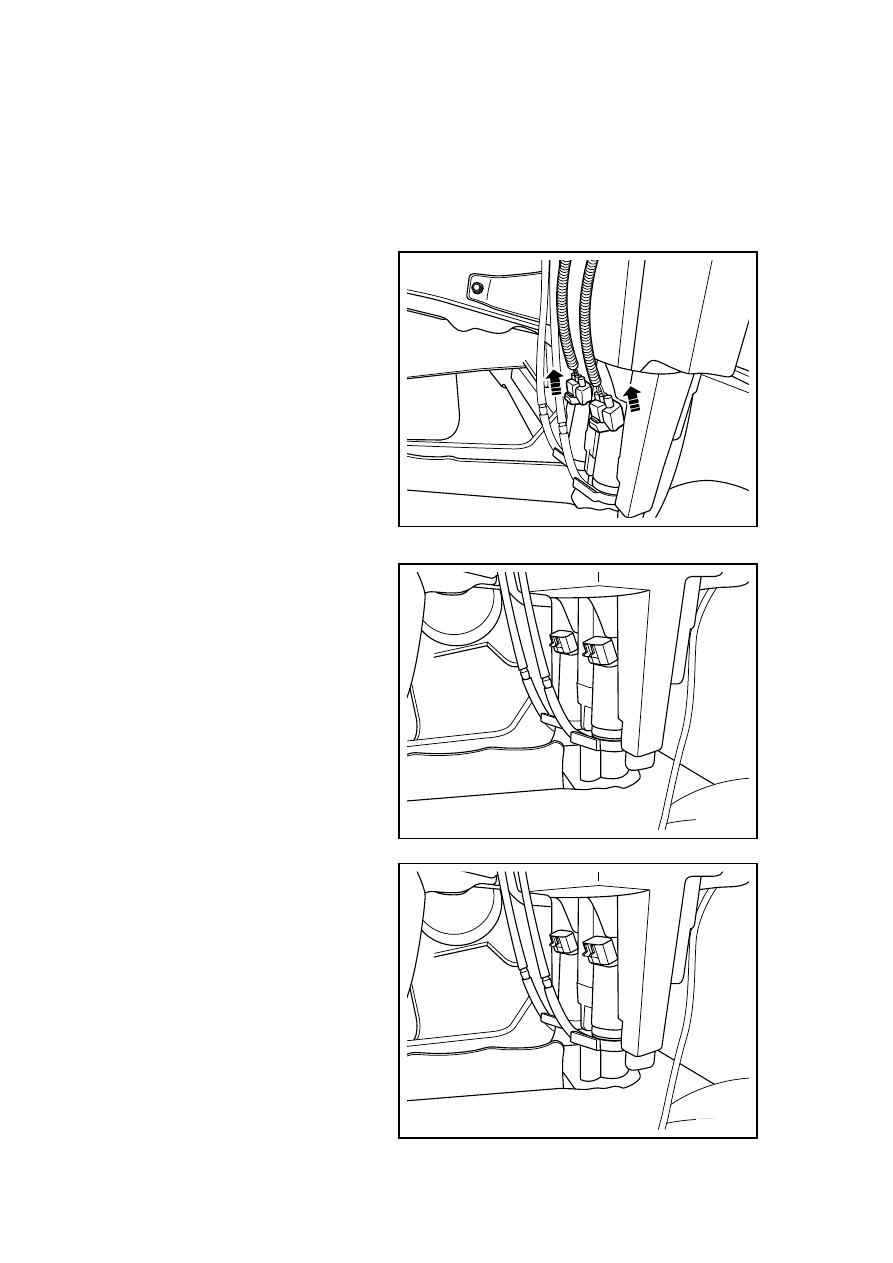

NL11-0135b

4.  Disconnect the front / rear washer

motor harness connector.

5.  Disconnect the washing fluid

hose from the front and rear
washer motors.

6. Extract the front and rear

washing fluid pumps.

NL11-0136b

Installation procedure:

1.  Install front, rear washer motor.

2.  Connect the washer liquid hose.

NL11-0136b

2299

3.  Connect washing agent pump

wire harness connector.

4. Install  right front wheel

splashboard.

5.  Connect the battery negative

cable.

6.  Turn the front wheels back to

straight.

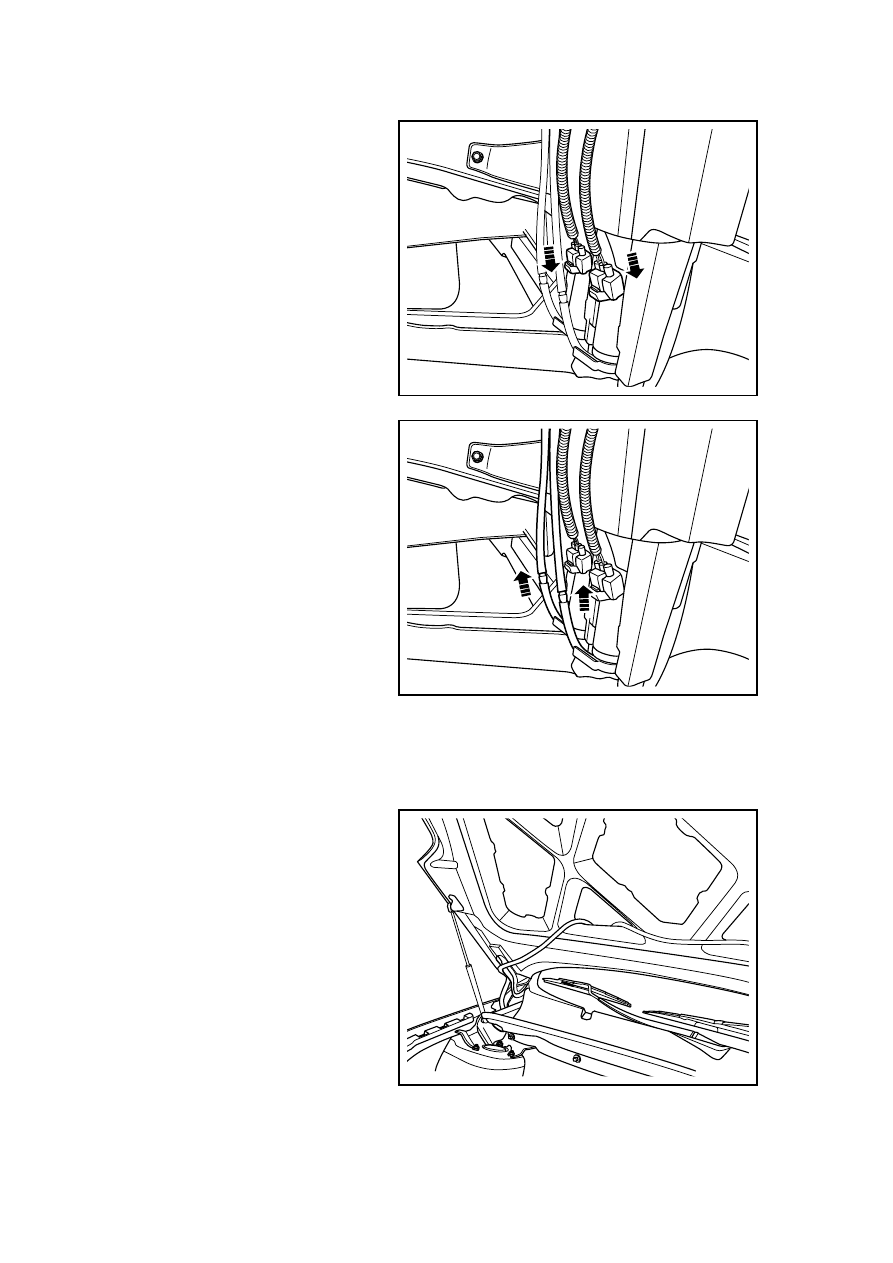

NL11-0137b

Replacement of hose

Dismantlement procedure

1.  Completely rotate front wheel to

right direction to allow for
enough operation space.

2.  For dismantling of engine cover

vibration insulation pad, refer to
12.10.1.2 Replacement of engine
cover vibration insulation pad.

3.

Disconnect connection of
washing fluid and nozzle, Refer
to 11.5.8.5 wiper nozzle
replacement.

4.  Dismantle the left front fender

liner. Refer to 12.10.1.9
Replacement of Front Fender
Liner.

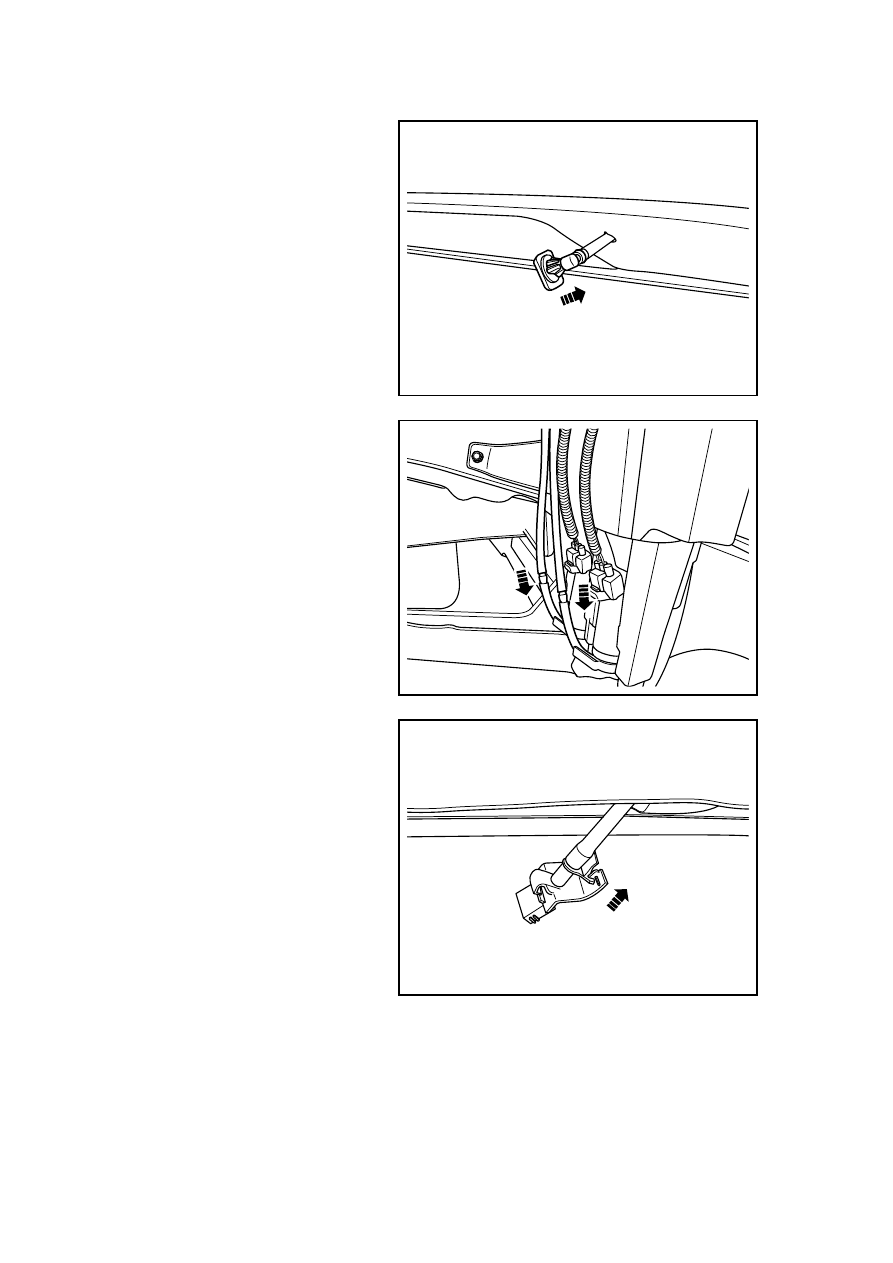

NL11-0138b

5.  Disconnect the washing fluid

hose from the front and rear
washer motors.

6.  Dismantle the front washing fluid

hose.

NL11-0139b

2300

7.  Detach the rear washing fluid

hose from the rear wiper nozzle.

NL11-0133b

Installation procedure:

1.  Install washing solution hose

onto front, rear washer motors.

NL11-0140b

2.  Pass through and install front

wiper washing reservoir hose.

3.  Connect washing agent hose to

wiper nozzle.

4. For installation of sound

insulation pad of engine cover,
refer to "Replacement of sound
insulation pad of engine cover".

NL11-0130b

2301

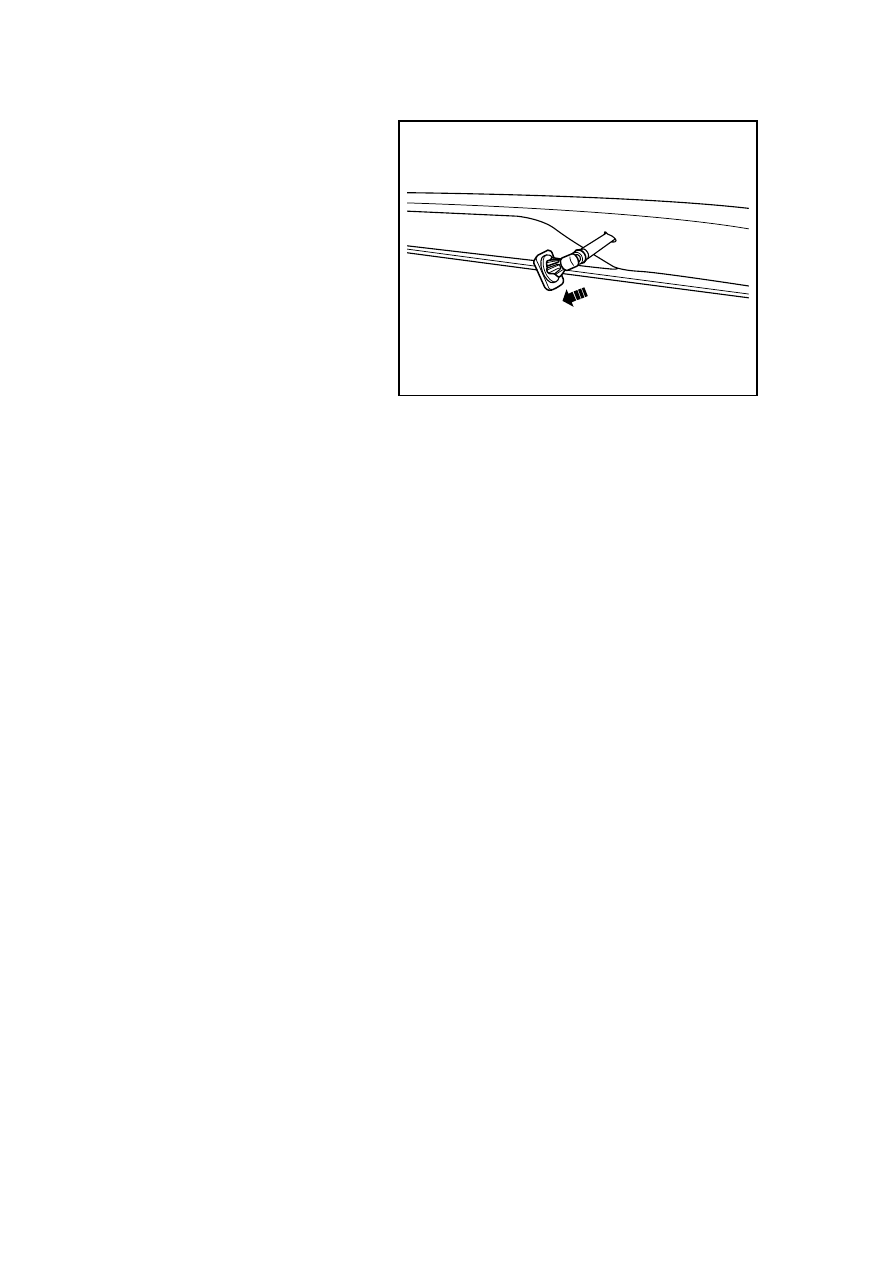

5.  Install the rear washing fluid hose

onto the rear wiper nozzle.

6.  Install the front fender liner.

NL11-0132b
