11.6.8.9 Replacement of wiper and washer switch

Dismantlement procedure

Warning!

Warning: refer to warning on battery disconnection in warnings and precautions.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

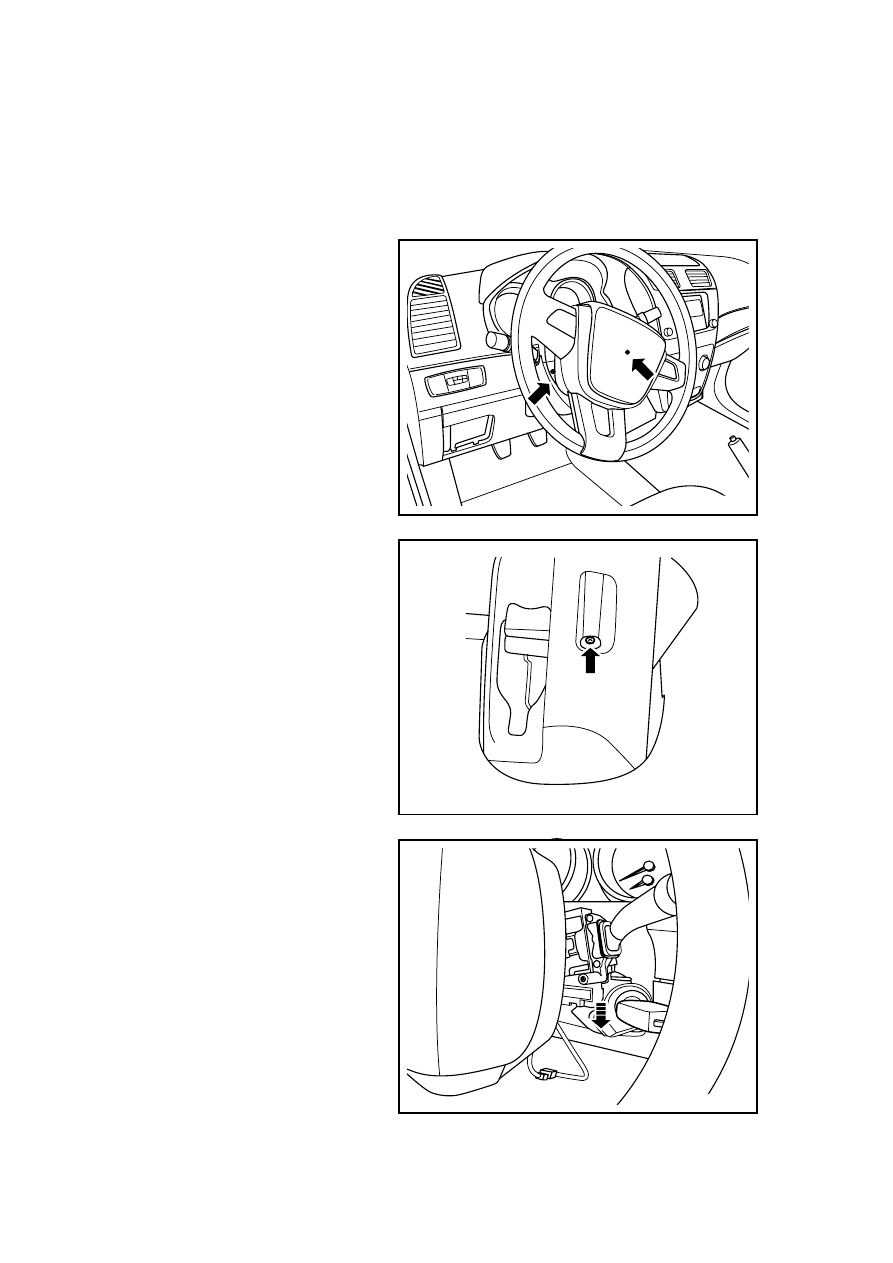

2.  Turn the steering wheel and

dismantle the upper and lower
steering column shield panel
retaining screws.

NL11-0144b

3.  Dismantle the lower steering

column shield screw.

4.  Remove the steering column

upper and lower shield panels.

NL11-0145b

5.  Disconnect the wiper switch

harness connector.

NL11-0146b

2307

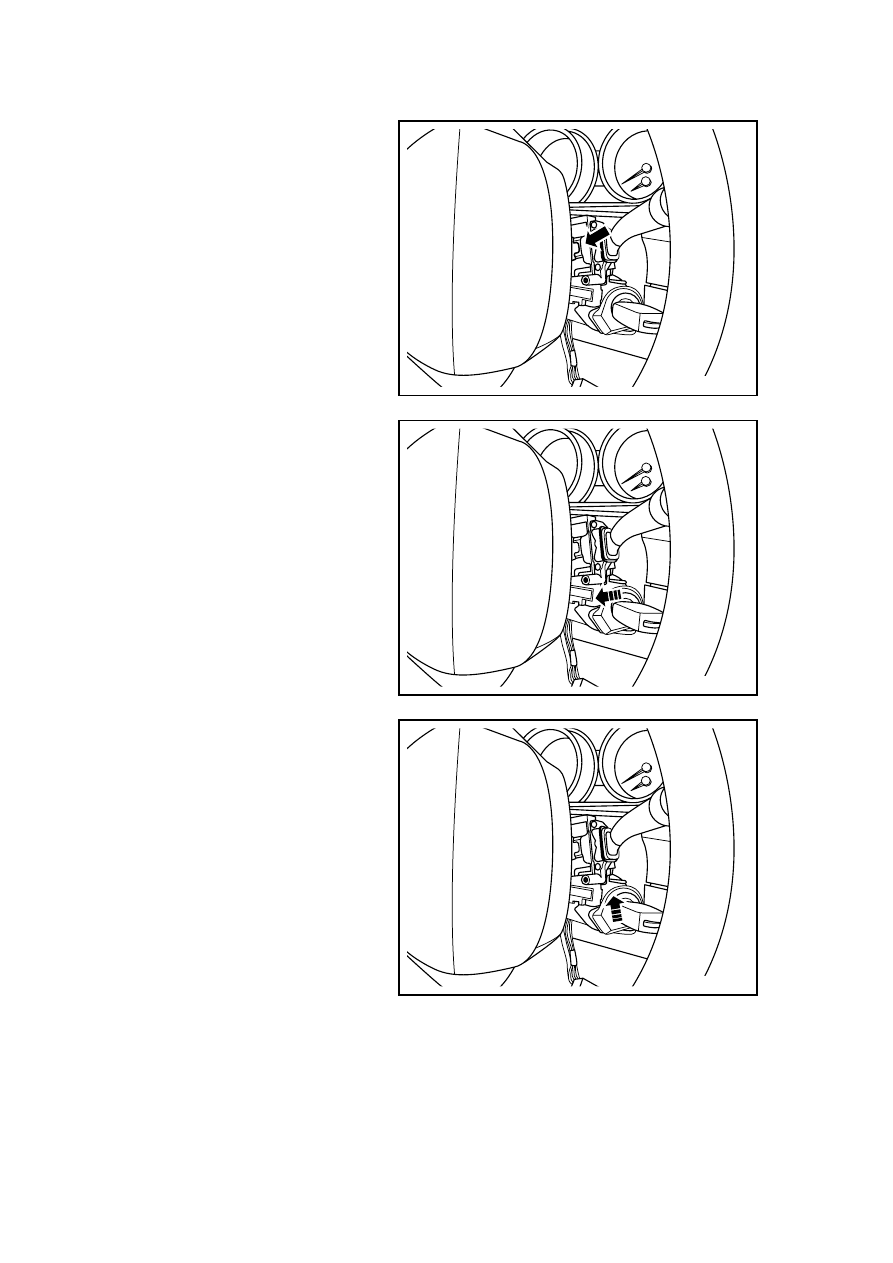

6.  Press the switch tongue at the top

to dismantle the wiper switch.

7.  Dismantle the wiper switch.

NL11-0147b

Installation procedure:

1.  Install the wiper switch into the

switch housing.

NL11-0148b

2.  Connect the wiper switch harness

connector.

NL11-0149b

2308

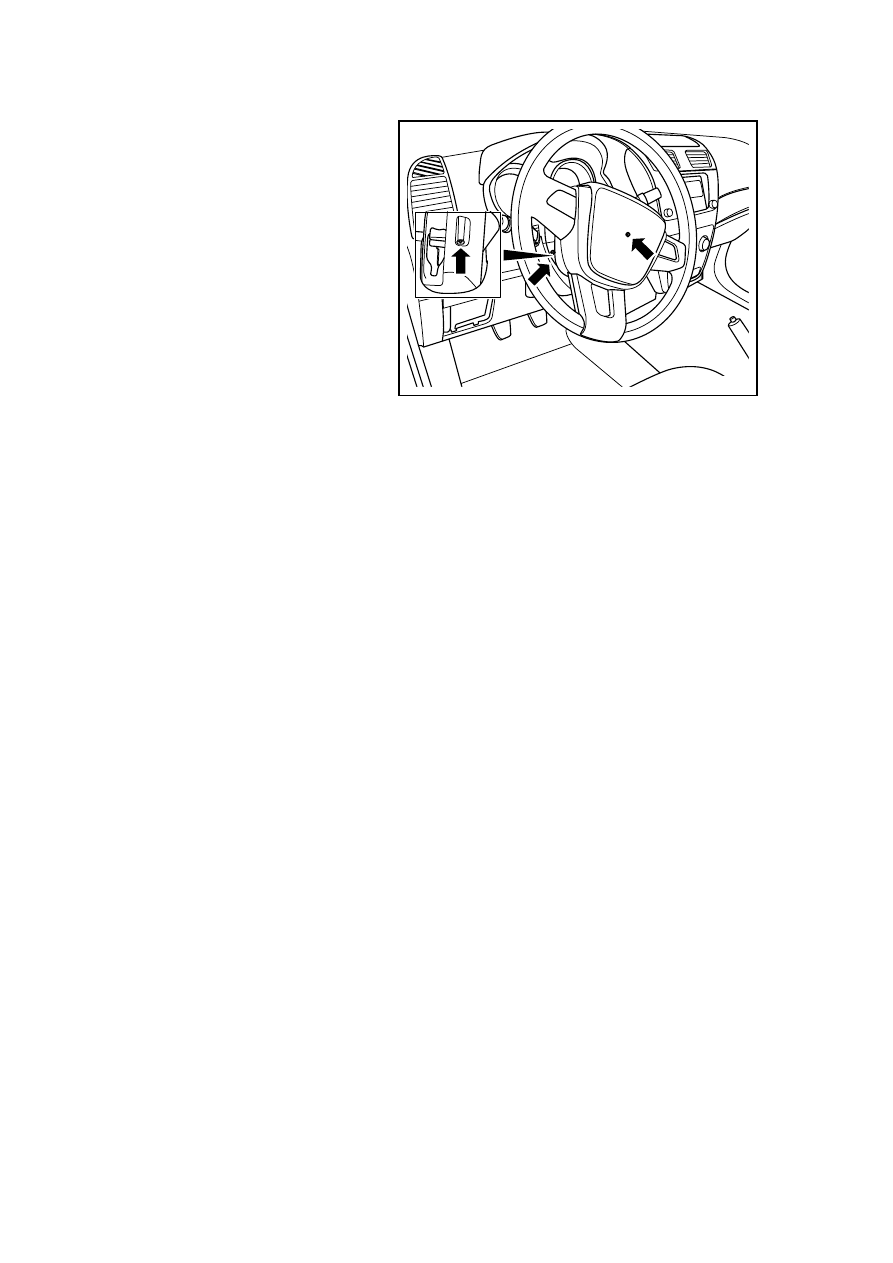

3.  Install screws of upper, lower

steering column cover plate.

Torque: 8.8Nm (Metric) 6.5
lb-ft(English system)

Notes:

Refer to "important cautions for
fastening parts".

4.  Connect the battery negative

cable.

NL11-0150b

2309

11.6.8.10 Replace wiper motor

Dismantlement procedure

Warning!

Warning: refer to warning on battery disconnection in warnings and precautions.

1. Disconnect the battery negative cable. Refer to 2.11.8.1 battery cable

disconnection/connection procedures.

2.  For dismantling of wiper piece,

refer to 11.5.8.1 replacement of
non-bone wiper piece.

3.  For dismantling of wiper arm,

refer to 11.5.8.2 replacement of
front wiper arm.

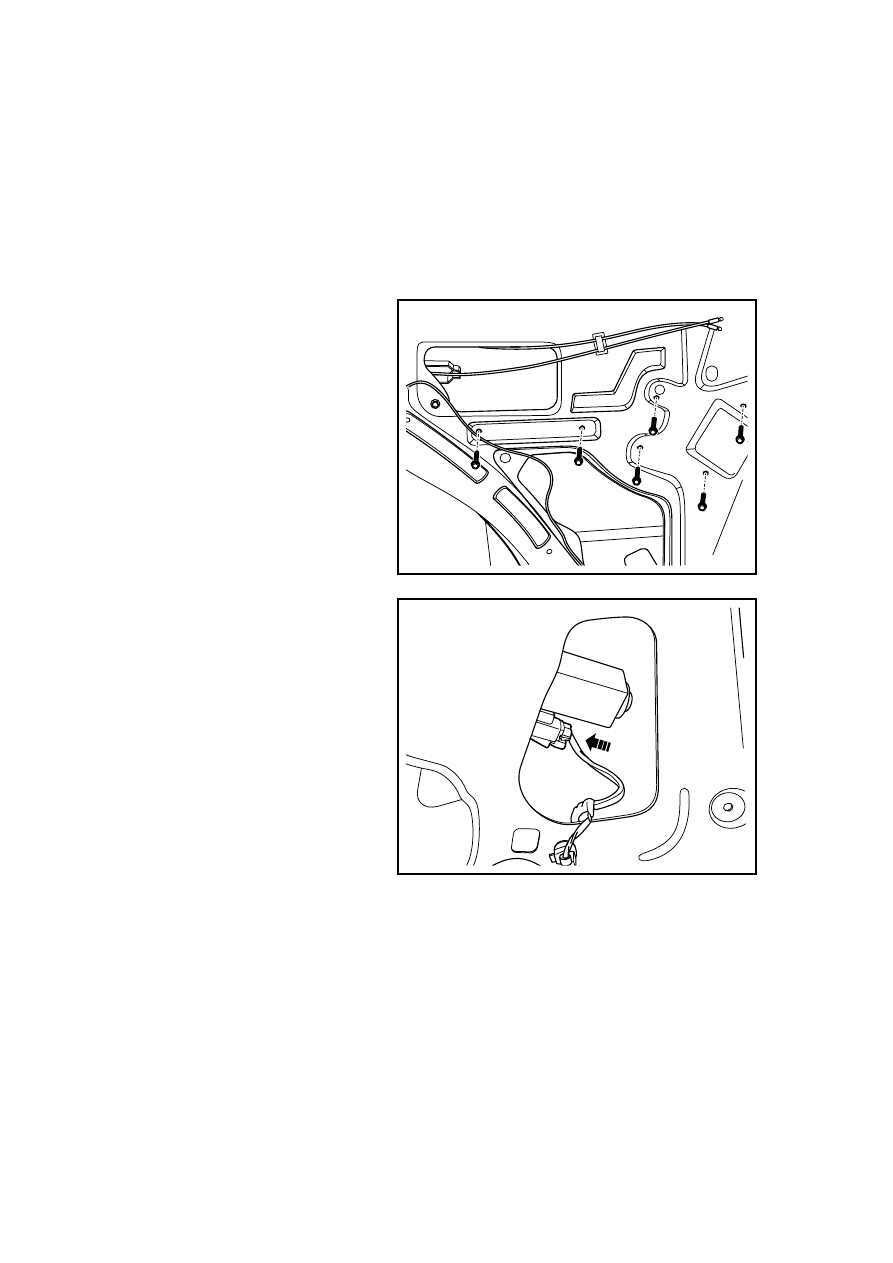

4.  Dismantle the ventilation cover

plate. Refer to 12.10.1.3
Replacement of ventilation cover
plate.

5.  Disconnect the wiper motor

harness connector.

NL11-0051b

6.  Dismantle the fixing bolts of

wiper connecting rod.

NL11-0052b
