11.5.8.6 Replacement of left front window regulator switch

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  For disconnection of negative

cable of battery, refer to 2.11.8.1
disconnection procedures of
battery cable.

Connection procedures.

NL11-0010b

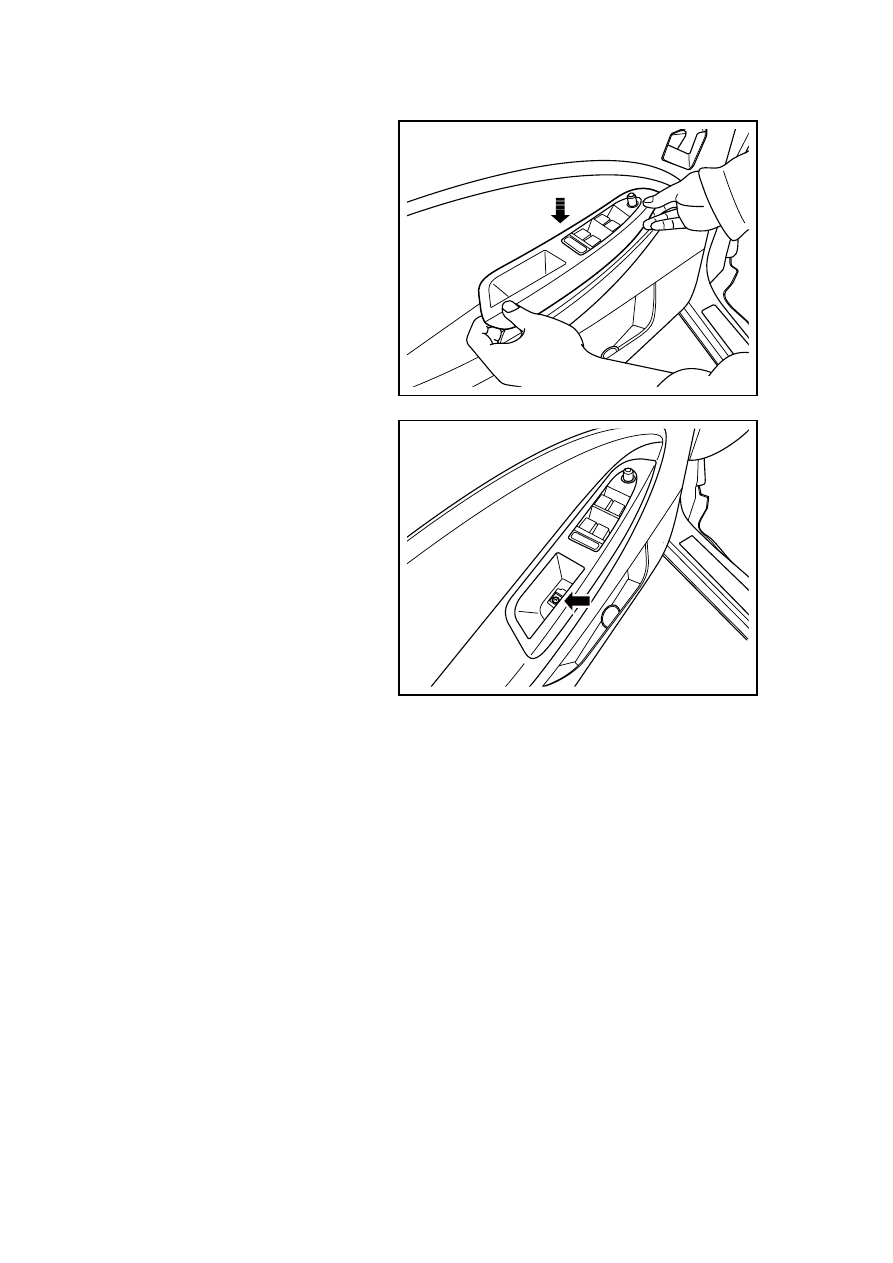

2.  Loosen fixing bolt of left front

glass lifter switch assembly.

3.  Dismantle left front glass lifter

switch assembly.

NL11-0011b

4.

Disconnect wire harness
connector between left front glass
lifter switch and rearview mirror
adjusting switch.

5.  Extract the front left door

window lifter switch assembly.

NL11-0012b

2211

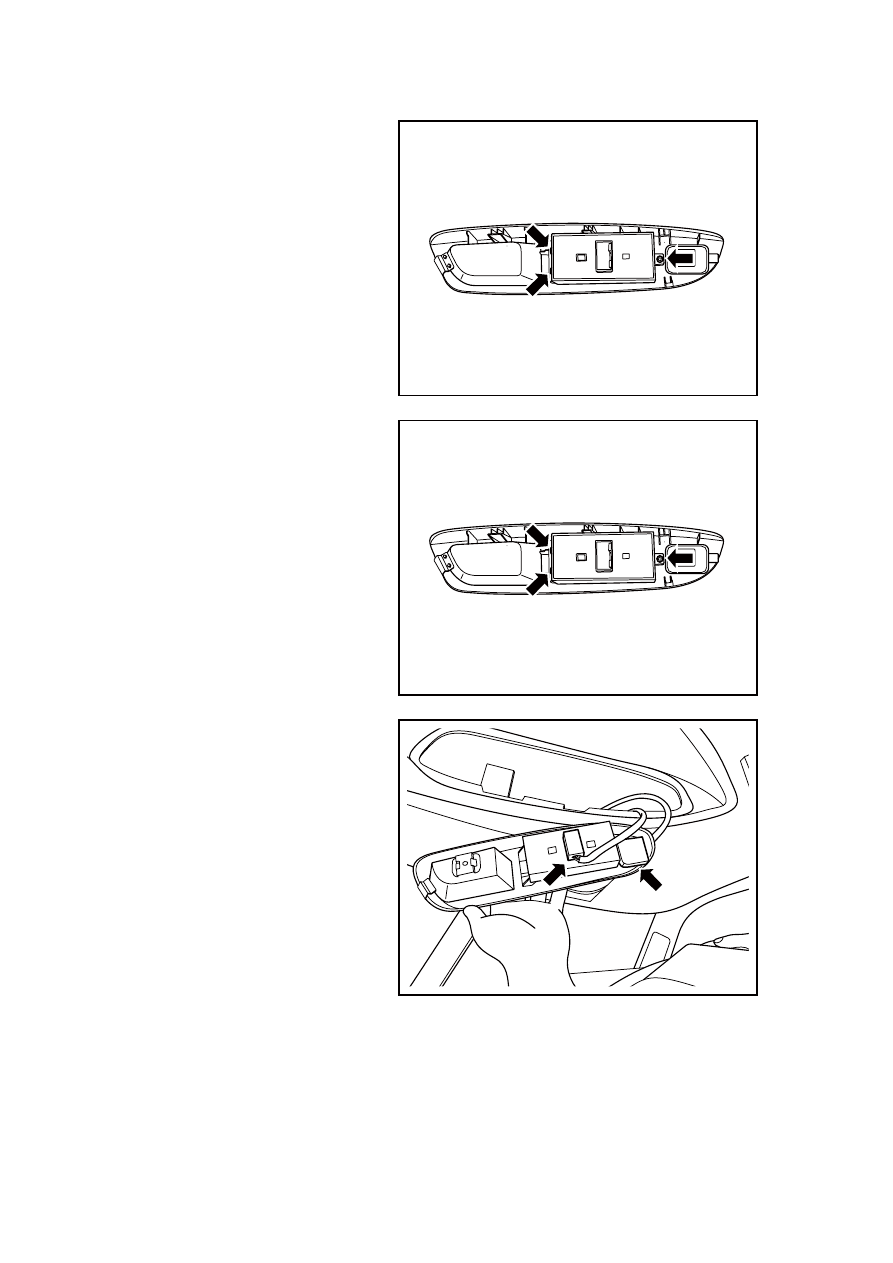

6.  Dismantle the fixing screws of

left front window regulator
switch.

7.  Extract the front left door

window lifter switch.

NL11-0017b

Installation procedure:

1.  Install left front glass lifting

switch.

2.  Install left front glass lifting

switch fixing screw.

Torque:5Nm(metric) 4lb-ft(english
system)

NL11-0017b

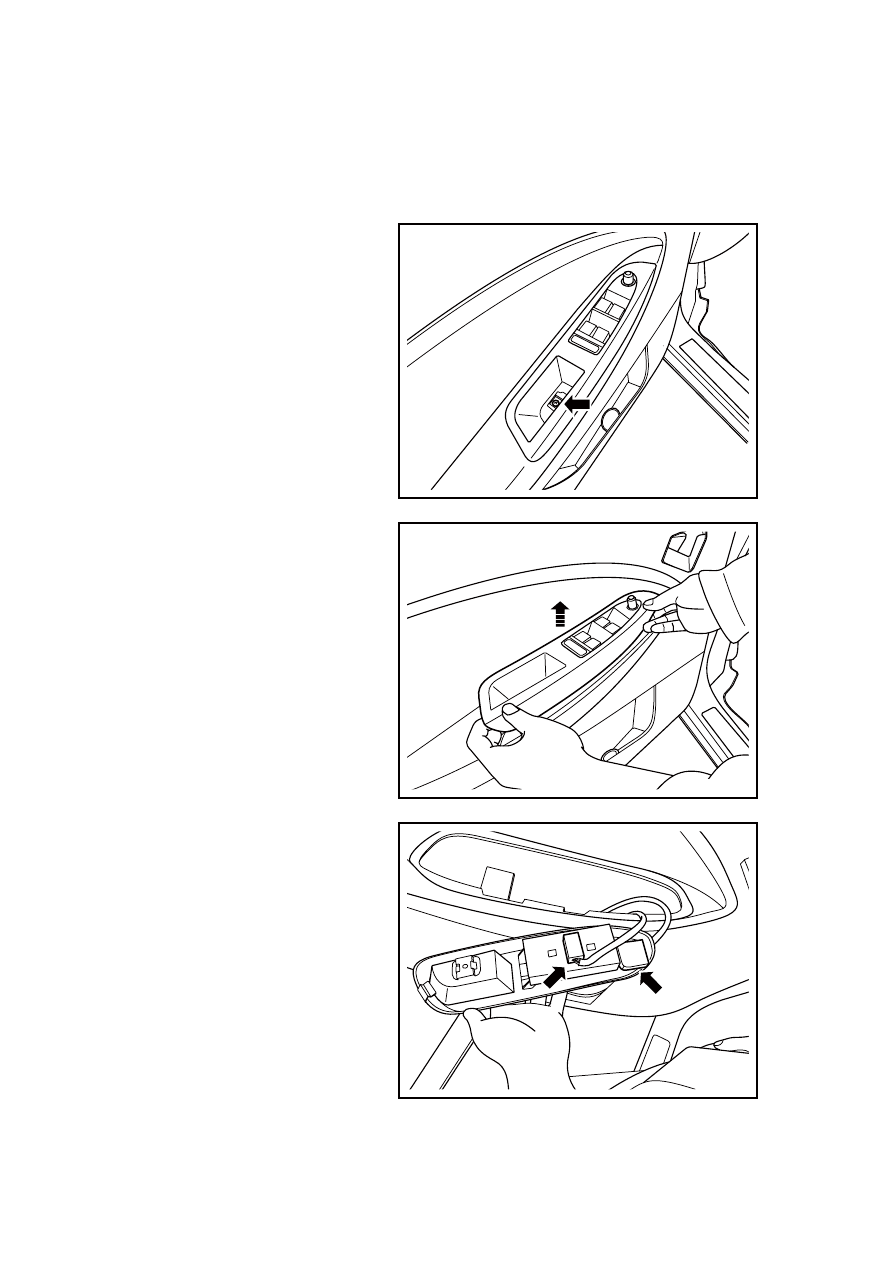

3.  Connect wire harness connector

between left front glass lifter
switch and rearview mirror
adjusting switch.

NL11-0012b

2212

4. Install

left

front glass lifter switch

assembly.

NL11-0016b

5.  Install the fixing bolt of the

front-left power window switch
assembly.

Torque: 5Nm (metric) 4 lb-ft (english
system)

6.  Connect the battery negative

cable.

NL11-0010b



2213

11.5.8.7 Replacement of front door window regulator

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  For disconnection of negative

cable of battery, refer to 2.11.8.1
Disconnection procedures of
battery cable.

Connection procedures.

2.  For dismantling of front door

treble speaker, refer to 11.2.7.1
Replacement of front door
speaker.

3.  For dismantling of front door

inner trimming plate, refer to
12.9.1.7 Replacement of left front
door inner trimming plate.

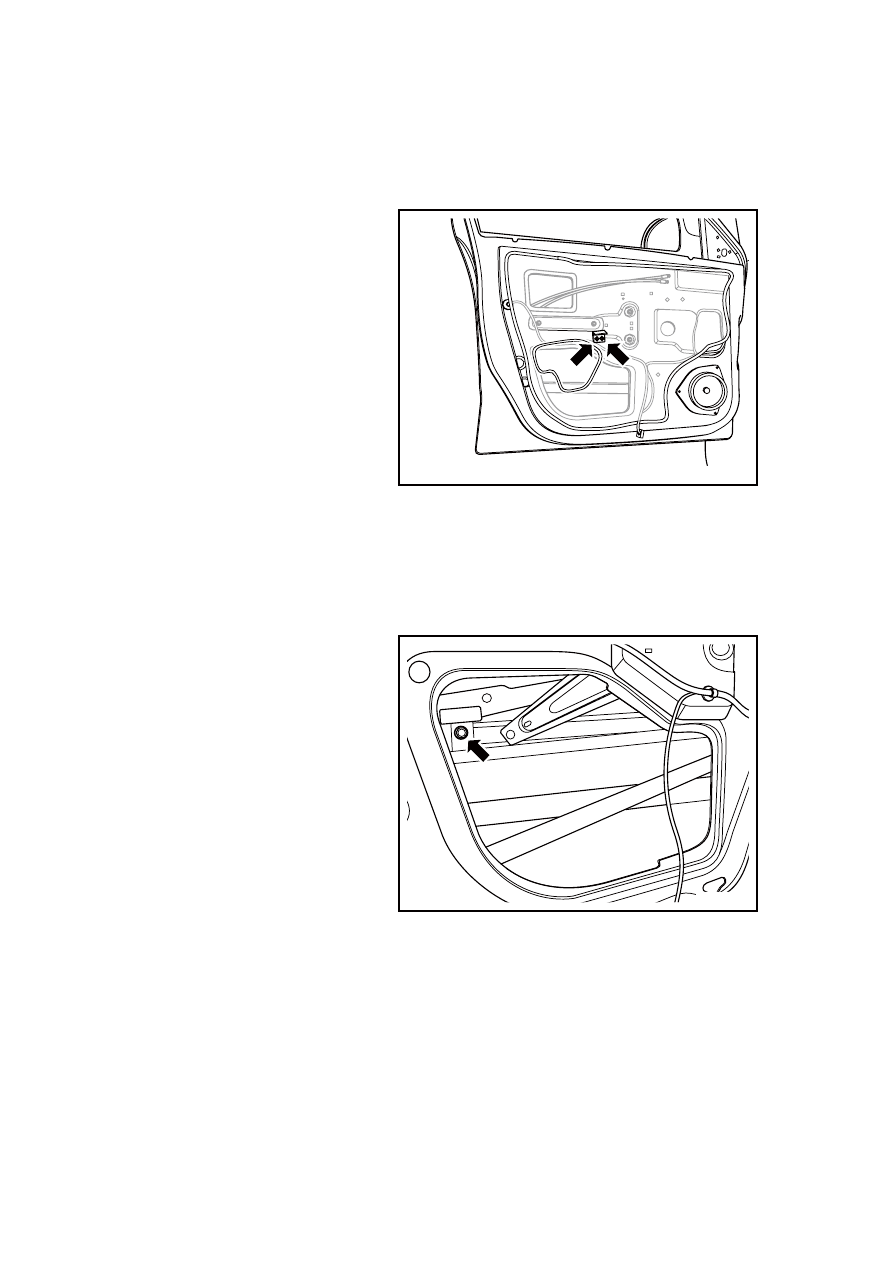

4.  Dismantle front door glass lifter

switch bracket, and remove water
retaining membrane.

NL11-0018b

5.  Remove the fixing bolt on one

side of the front door window.

NL11-0019b
