Test terminal

Test conditions

Specified value

DR08 (A)—DR08(B)

Upward

11-14V

DR08 (A)—DR08(B)

Downward

11-14V

DR18 (A)—DR18(B)

Upward

11-14V

DR18 (A)—DR18(B)

Downward

11-14V

Confirm whether the terminal voltage accords with the standard value.



9

Repair the open circuit fault of the upper and lower control signal circuits of the
fault-side electric rearview mirror.

(a)  Repair open-circuit fault between up and down control signal circuit of fault side electric

rearview mirror.

Confirm whether the electric rear view mirror is working normally?



10

Replace side power rearview mirror motor assembly with fault.

(a)  Replace power rearview mirror assembly with fault; refer to11.4.8.1 power rearview mirror

replacement.

Confirm whether the electric rearview mirror can be regulated left and right.



11

Inspect the left and right control signal circuit of the fault-side electric rearview mirror.



Yes

Go to step 12

No

Yes

The system is normal.

No

Yes

Go to step 10

No

2199

(a)  Operate electric rearview mirror

left and right adjusting button of
left front glass lifter switch

(b) Meanwhile, use multimeter to

measure voltage between
terminal C and B of electric
rearview mirror wire harness
connector DR08 (left) or DR18
(right side) on fault side.

NL11-4025b

A

B

C

D

E

F

G

H

I

DR08/DR18 车外后视镜线束连接器

B

C



Test terminal

Test conditions

Specified value

DR08 (A)—DR08(B)

Upward

11-14V

DR08 (A)—DR08(B)

Downward

11-14V

DR18 (A)—DR18(B)

Upward

11-14V

DR18 (A)—DR18(B)

Downward

11-14V

Confirm whether the terminal voltage accords with the standard value.



12

Repair the open circuit fault of the left and right control signal circuits of the fault-side
electric rearview mirror.

(a)  Repair open-circuit fault between left and right control signal circuit of fault side electric

rearview mirror.

Confirm whether the electric rear view mirror is working normally?



13

Replace side power rearview mirror motor assembly with fault.

(a)  Replace power rearview mirror motor assembly with fault, Refer to

Confirm the completion of repair.

Yes

Go to step 13

No

Yes

Go to step 13

No

DR08/DR18 outer rearview

mirrorharness connector

2200



14

The system is normal.

11.4.7.11 power rearview mirror can not heat

See 11.10.6.3 rear air window defroster does not work.

Next

2201



11.5.8 Dismantle and install

11.5.8.1 Replacement of electric rear view mirror

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

NL11-0004b

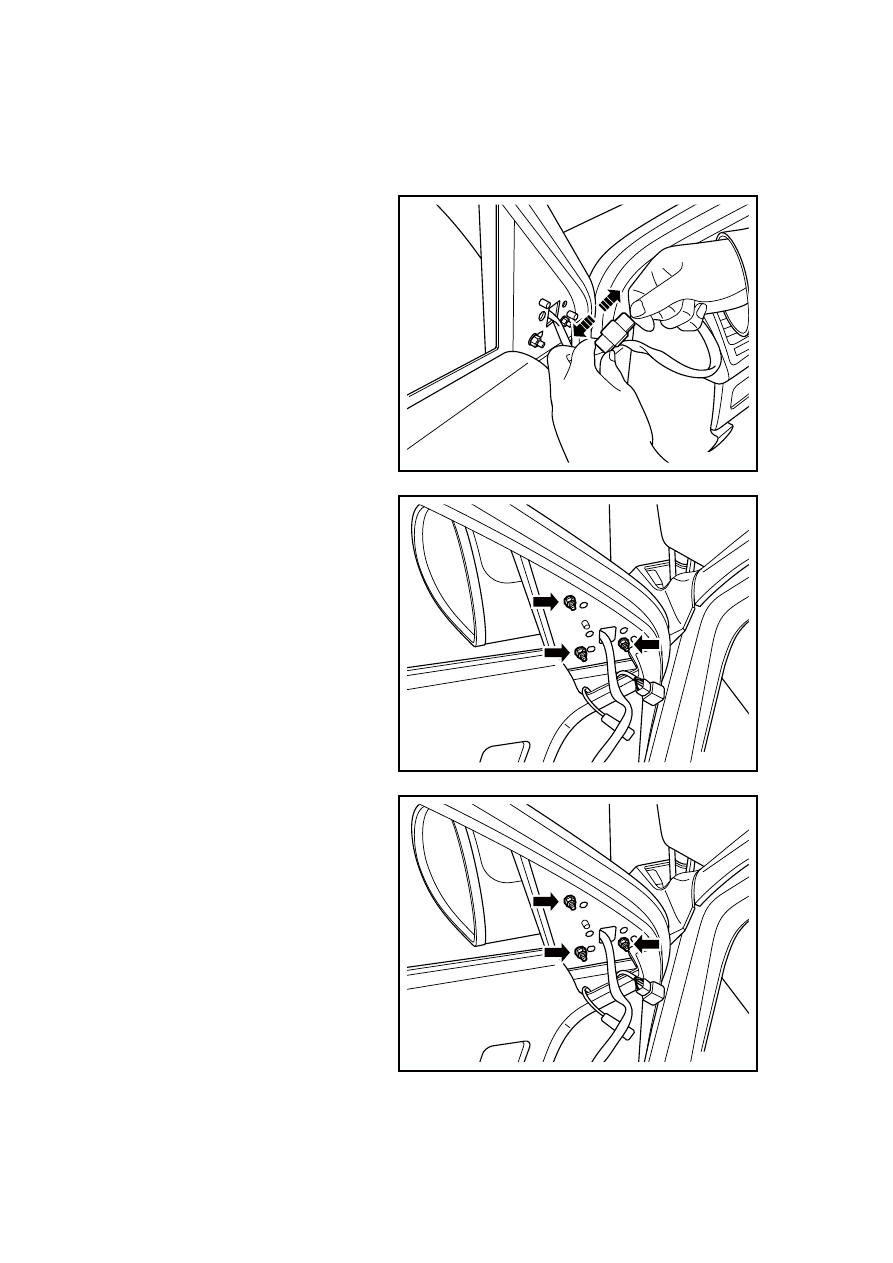

2.  For dismantling of front door

treble speaker, refer to 11.2.7.1
Replacement of front door
speaker.

3. Disconnect power rearview

mirror harness connector.

4.  Dismantle fixing nut of electric

rearview mirror.

NL11-0005b

Installation procedure:

1.  Install electric rearview mirror

fixing nut.

Torque:8 Nm(Metric) 5.8 lb-ft(English
system)

NL11-0005b

2202
