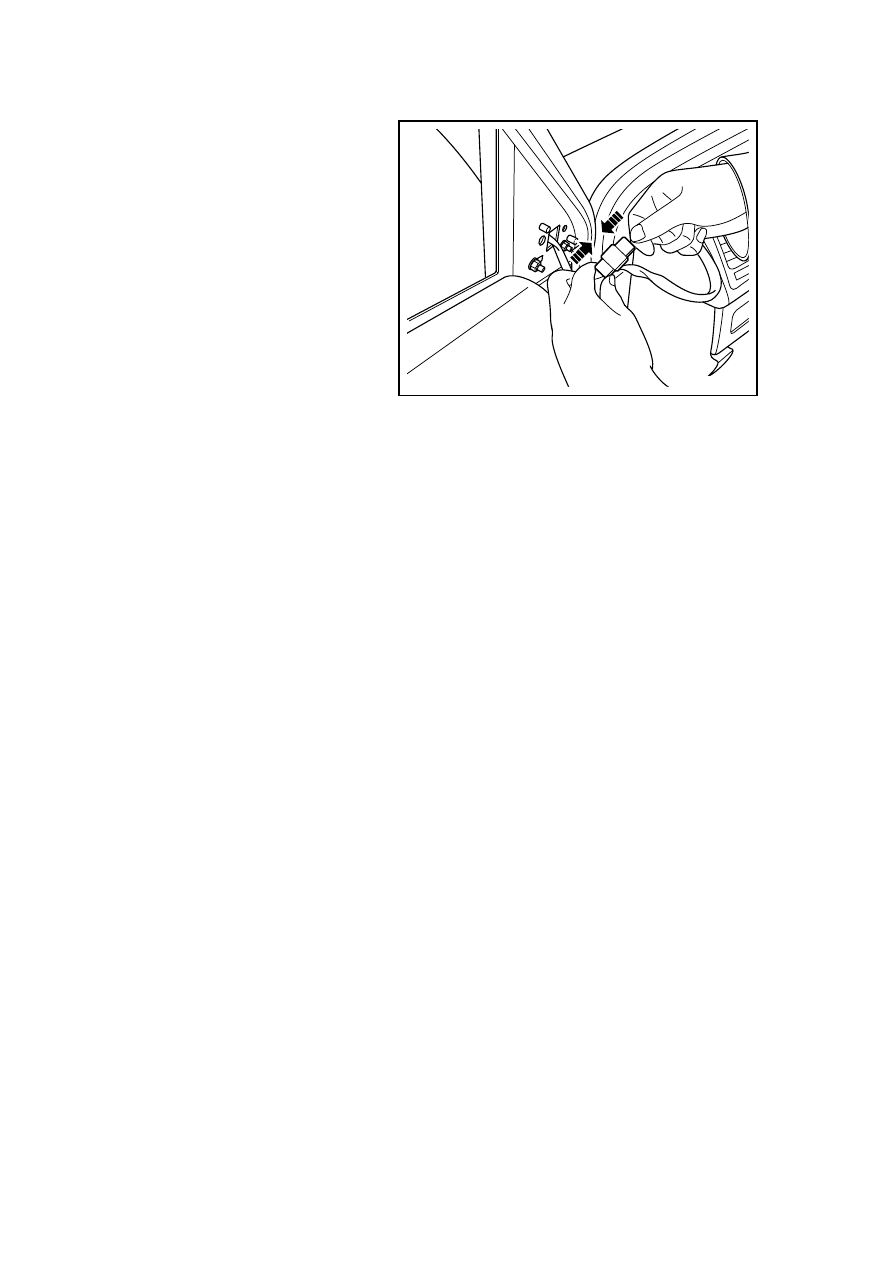

2.  Connect electric rearview mirror

wire harness connector.

3.  Install front door speaker.

4.  Connect the battery negative

cable.

NL11-0006b



2203

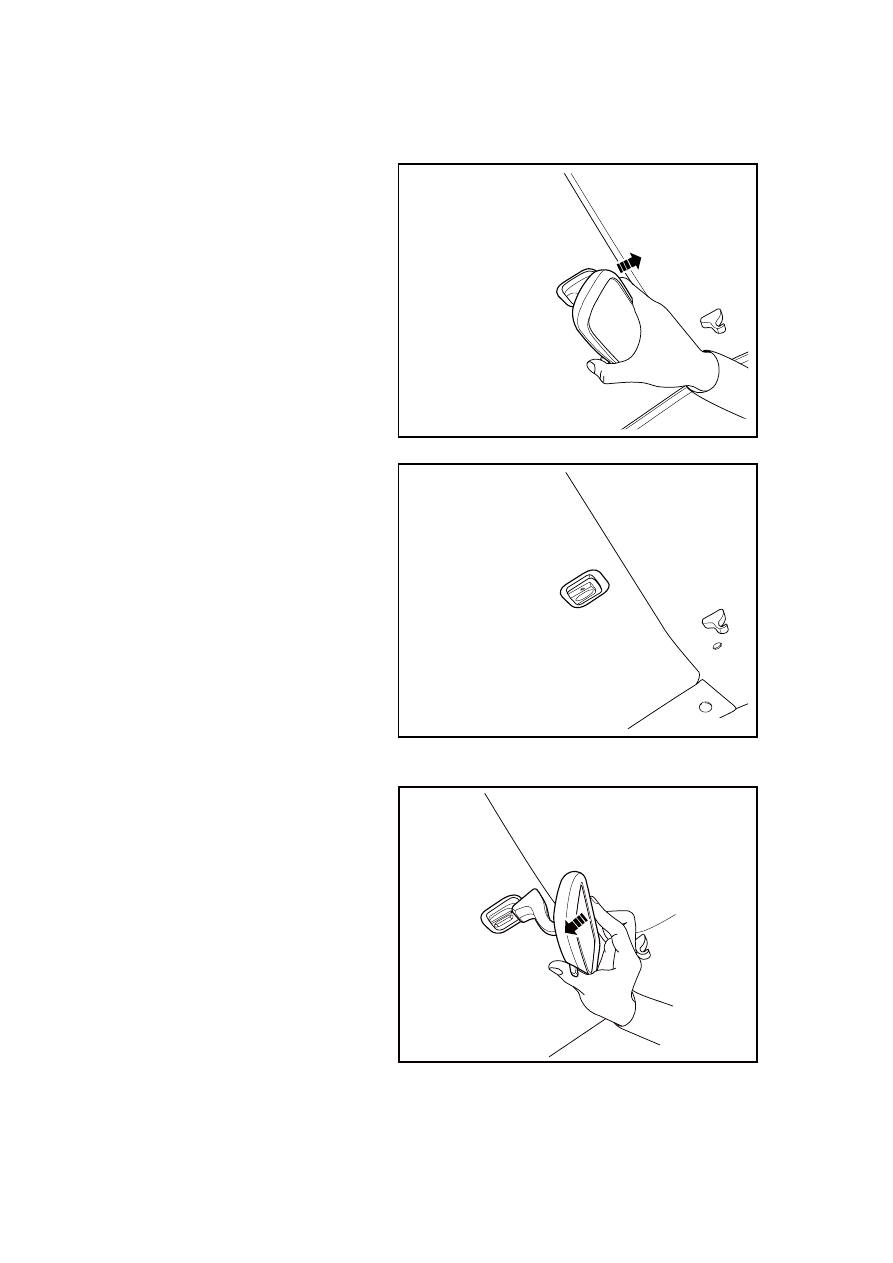

11.5.8.2 Replacement of Interior rear view mirro

Dismantlement procedure

1.  Remove the interior rear view

mirror from the mounting
bracket.

2.  Dismantle the interior rear view

mirror mounting bracket.

Notes:

Inside rearview mirror bracket is
bonded on the windshield through
special adhesive.

NL11-0001b

Installation procedure:

1.  Use dedicated cleaning agent to

clean the interior rear view mirror
bracket installation surface.

2.  Apply the adhesive according to

the adhesive requirements.

3.  Position the rear view mirror

bracket to the marked position,
and press the bracket onthe glass
for 1-2min with the constant
pressure.

4.  Use dedicated cleaning agent to

remove excess adhesive after 5
min.

NL11-0002b

5.  Install the interior rear view

mirror.

NL11-0003b



2204

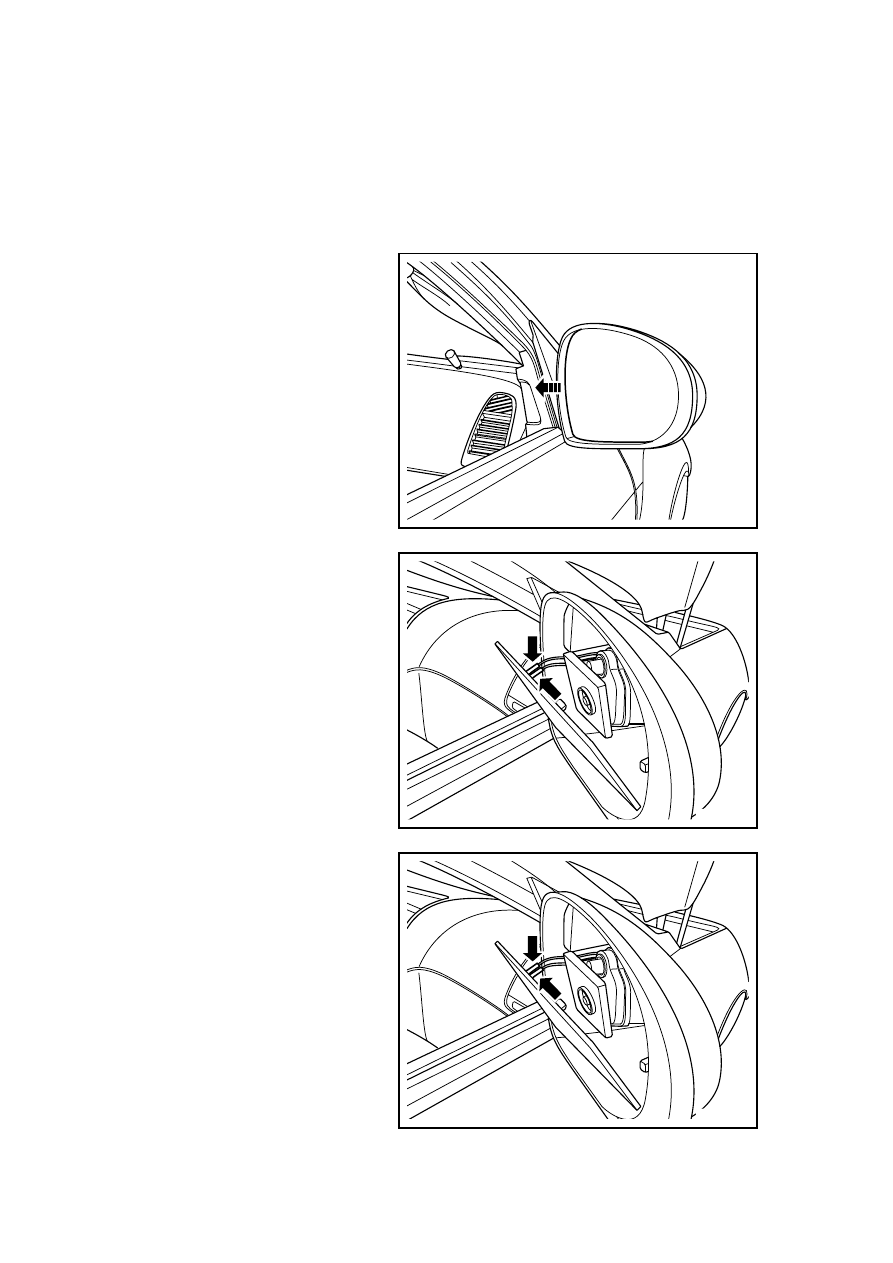

11.5.8.3 Replacement of electric rear view mirror glass

Dismantlement procedure

Warning!

Warning: refer to "warning on battery disconnection" in "warnings and precautions".

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

2. Dismantle  electric  rearview

mirror glass.

NL11-0007b

3. Disconnect power rearview

mirror glass harness connecting,
take out rearview mirror glass.

NL11-0008b

Dismantlement procedure

1.  Install rearview mirror glass, and

connect wire harness connector
of electric rearview mirror glass.

NL11-0008b

2205

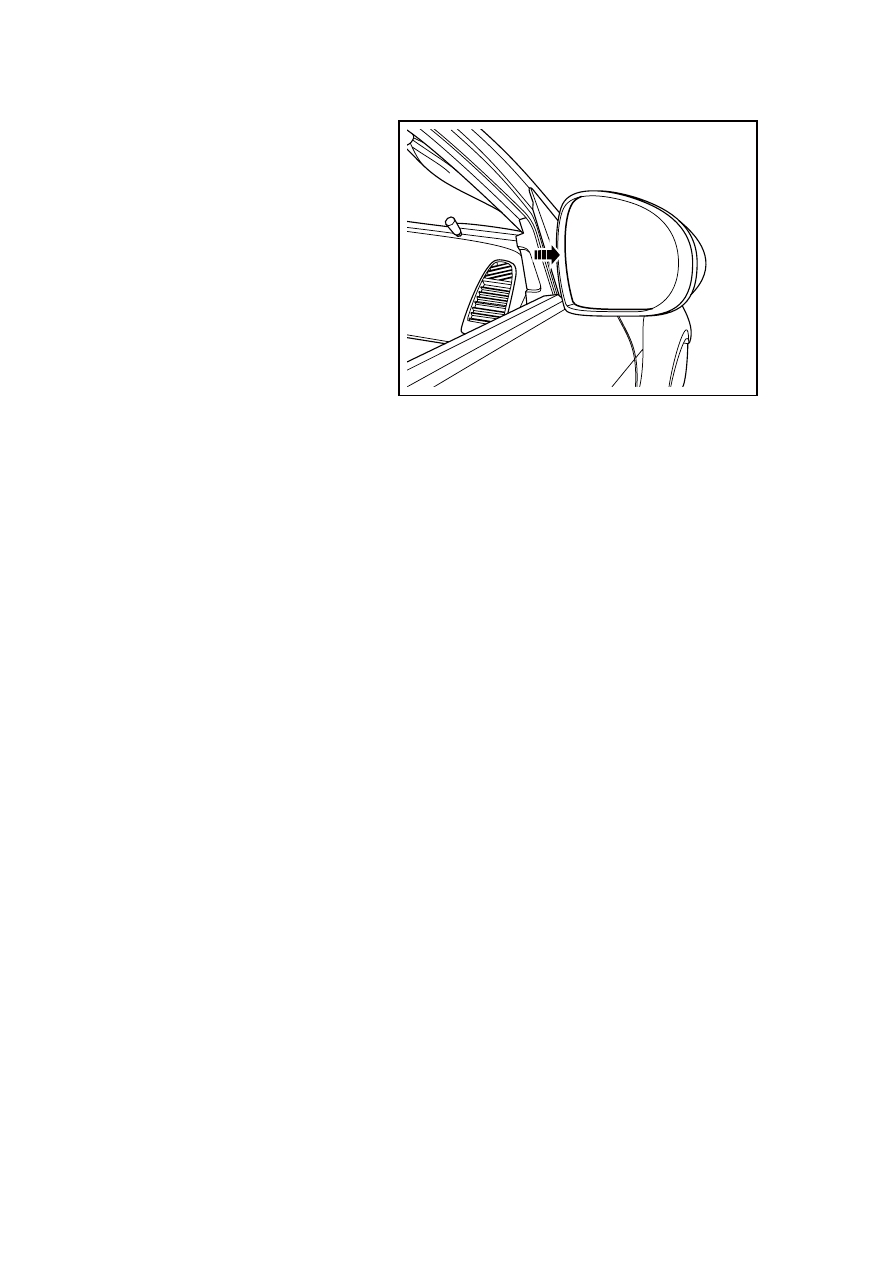

2.  Install electric rearview mirror

glass.

3.  Connect the battery negative

cable.

NL11-0009b
