11.5.8.4 Power rearview mirror adjusting switch replacement

Dismantlement procedure

Warning!

Warning: refer to "warning on battery disconnection" in "warnings and precautions".

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

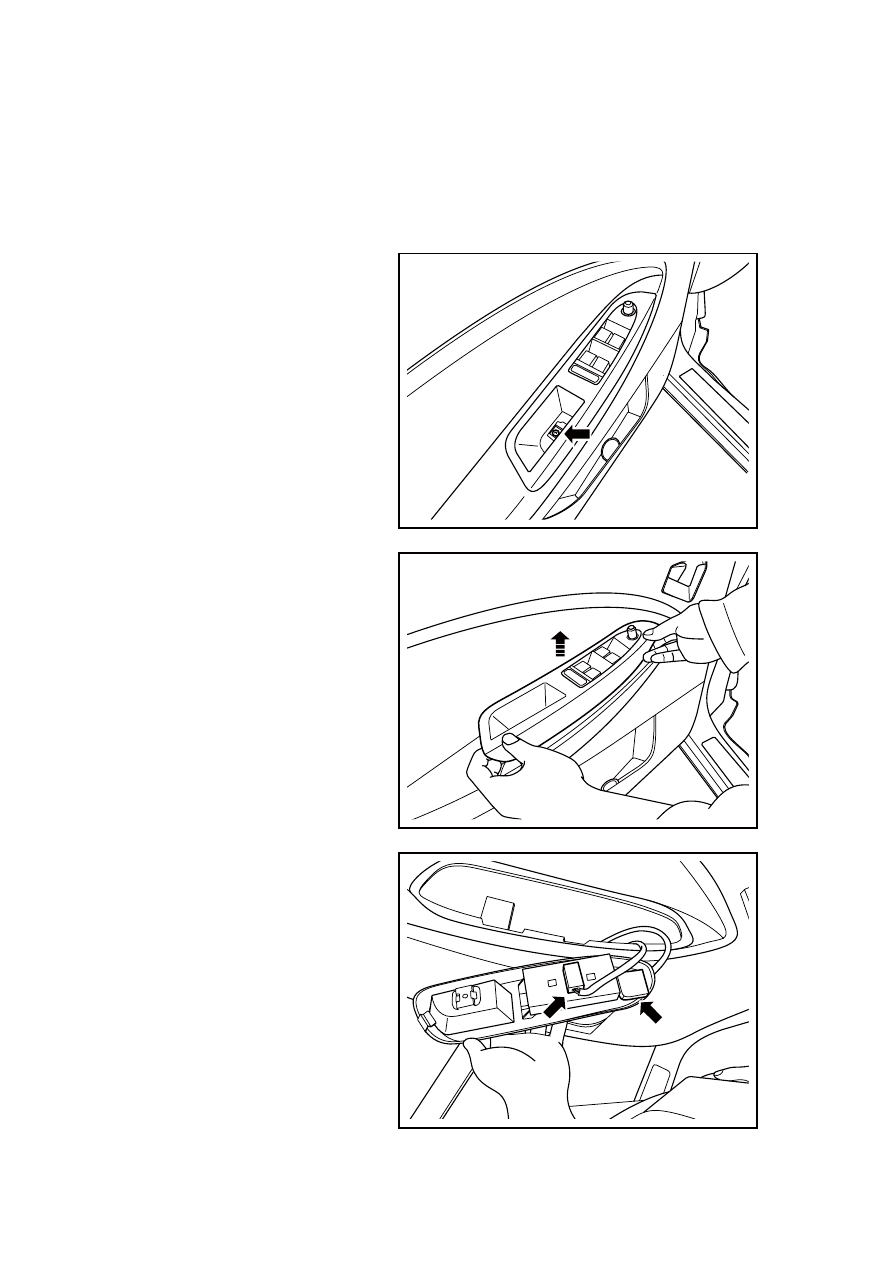

2.  Loosen fixing bolt of electric

rearview mirror switch.

NL11-0010b

3. Dismantle  electric  rearview

mirror switch assembly.

NL11-0011b

4.

Disconnect wire harness
connector between rearview
mirror adjusting switch and left
front glass lifter switch.

5. Extract the rearview mirror

adjustment switch assembly.

NL11-0012b

2207

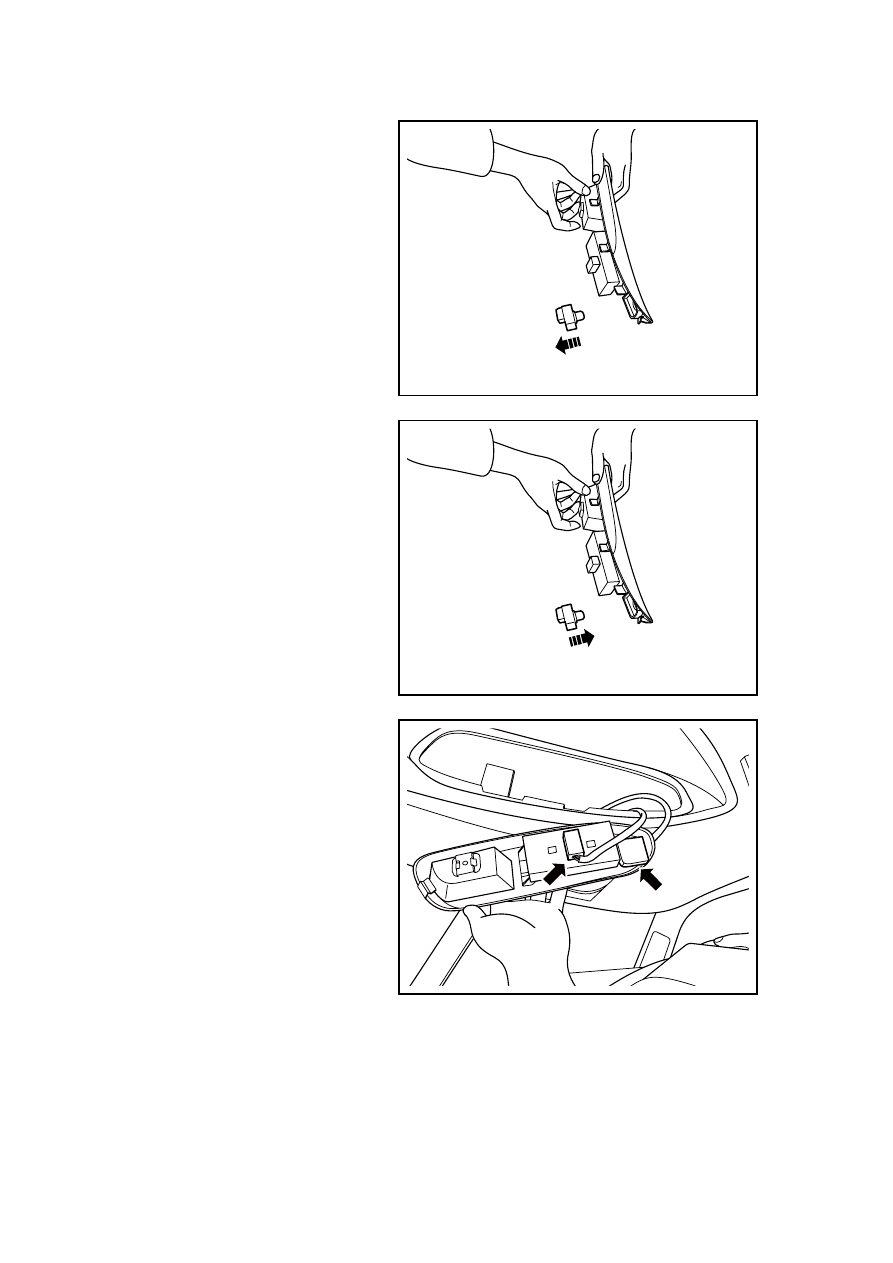

6.  Dismantle the rearview mirror

adjustment switch.

NL11-0013b

Installation procedure:

1. Install

rearview mirror adjusting

switch.

NL11-0014b

2.  Connect wire harness connector

between rearview mirror
adjusting switch and left front
glass lifter switch.

NL11-0012b

2208

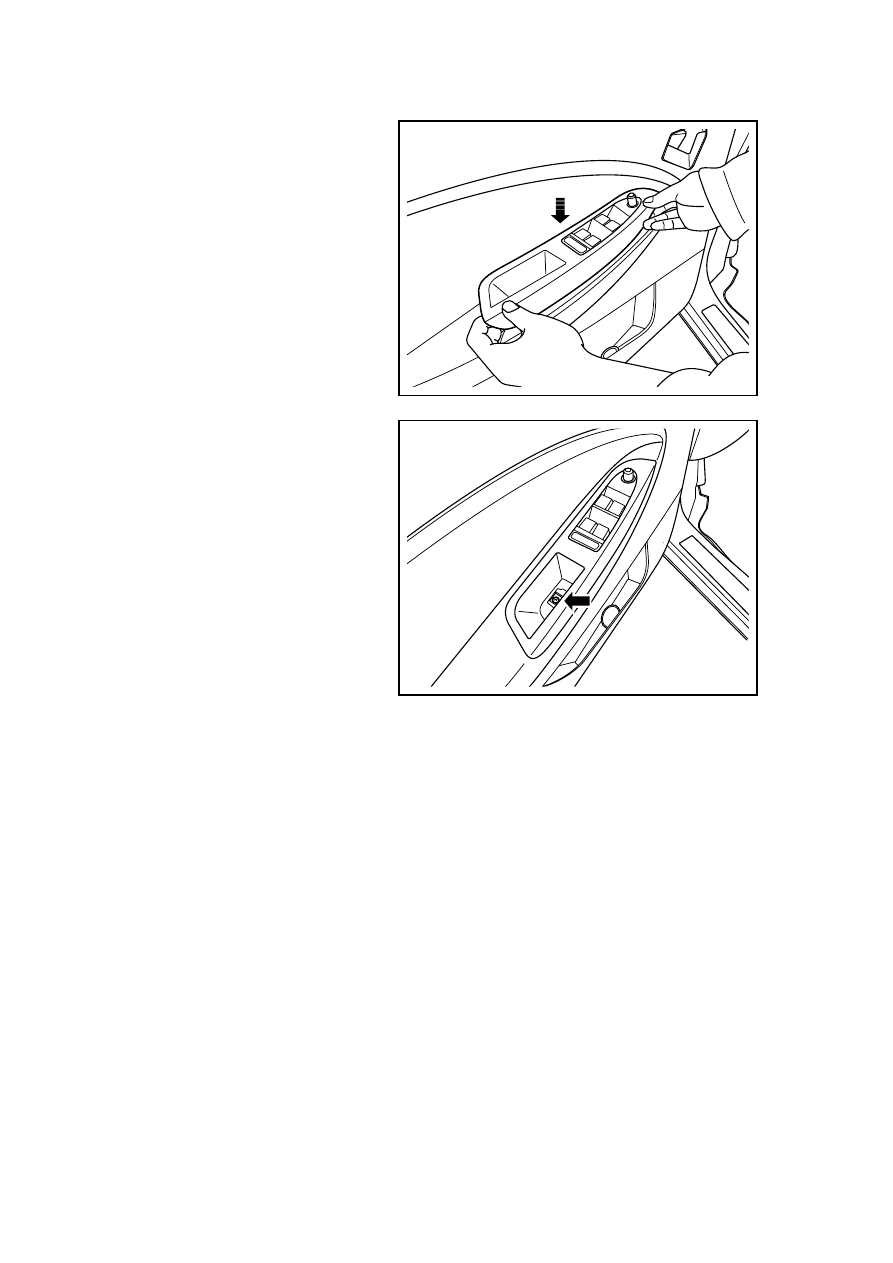

3. Install

rearview mirror adjusting

switch assembly.

NL11-0016b

4.  Install fixing bolt of rearview

mirror adjusting switch assembly.

Torque: 4 Nm (metric) 3 lb-ft (english
system)

5.  Connect the battery negative

cable.

NL11-0010b



2209



11.5.8.5 Left front glass lifter motor replacement

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  For disconnection of negative

cable of battery, refer to 2.11.8.1
Disconnection procedures of
battery cable.

Connection procedures.

2.  For dismantling of left front glass

lifter assembly, refer to 11.4.8.7
Replacement of front door glass
lifter.

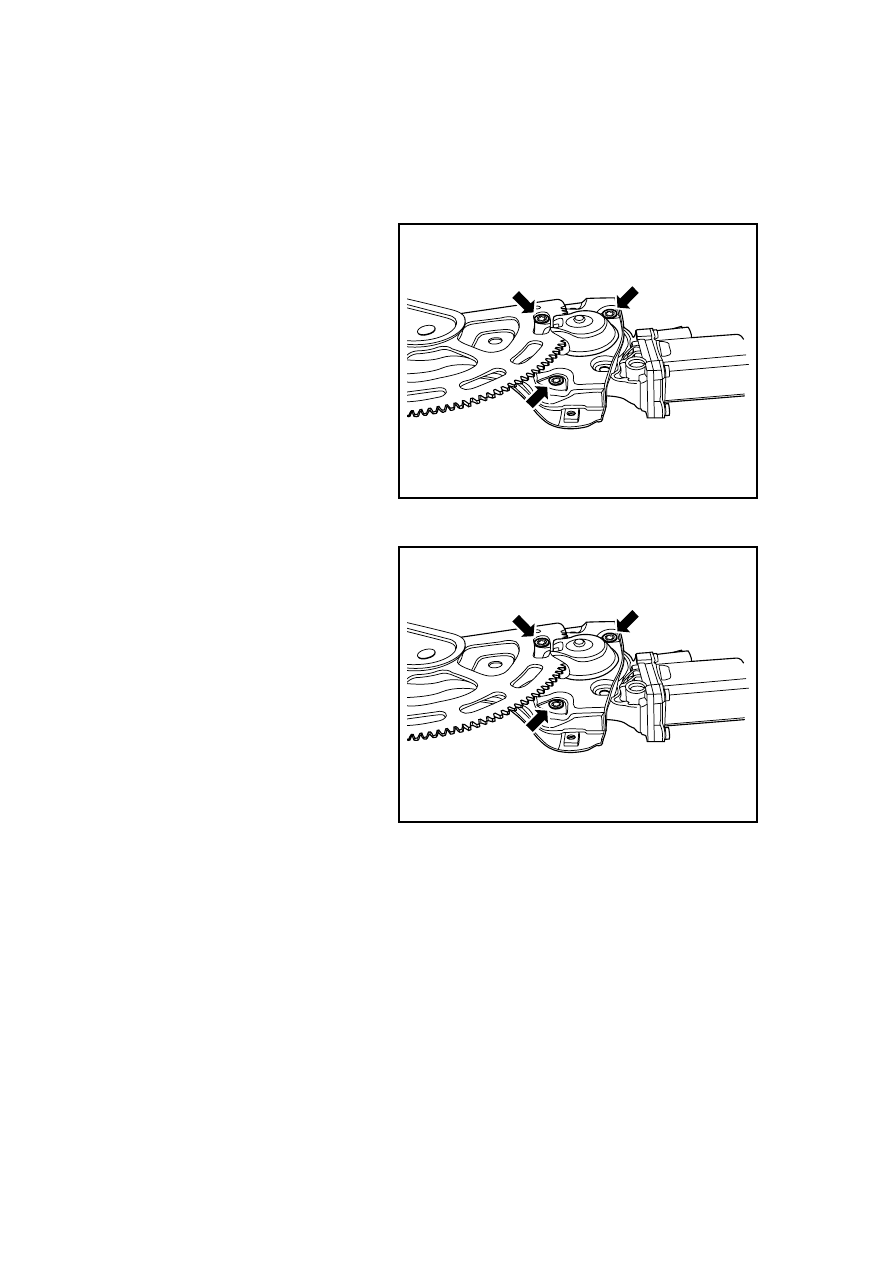

3.  Dismantle fixing screw of left

front glass lifter motor.

NL11-0028b

Installation procedure:

1.  Install fixing screw of left front

glass lifter motor.

Torque: 10 Nm (metric) 7.4 lb-ft
(english system)

2.  Install left front glass lifter

assembly.

3.  Connect the battery negative

cable.

NL11-0028b
