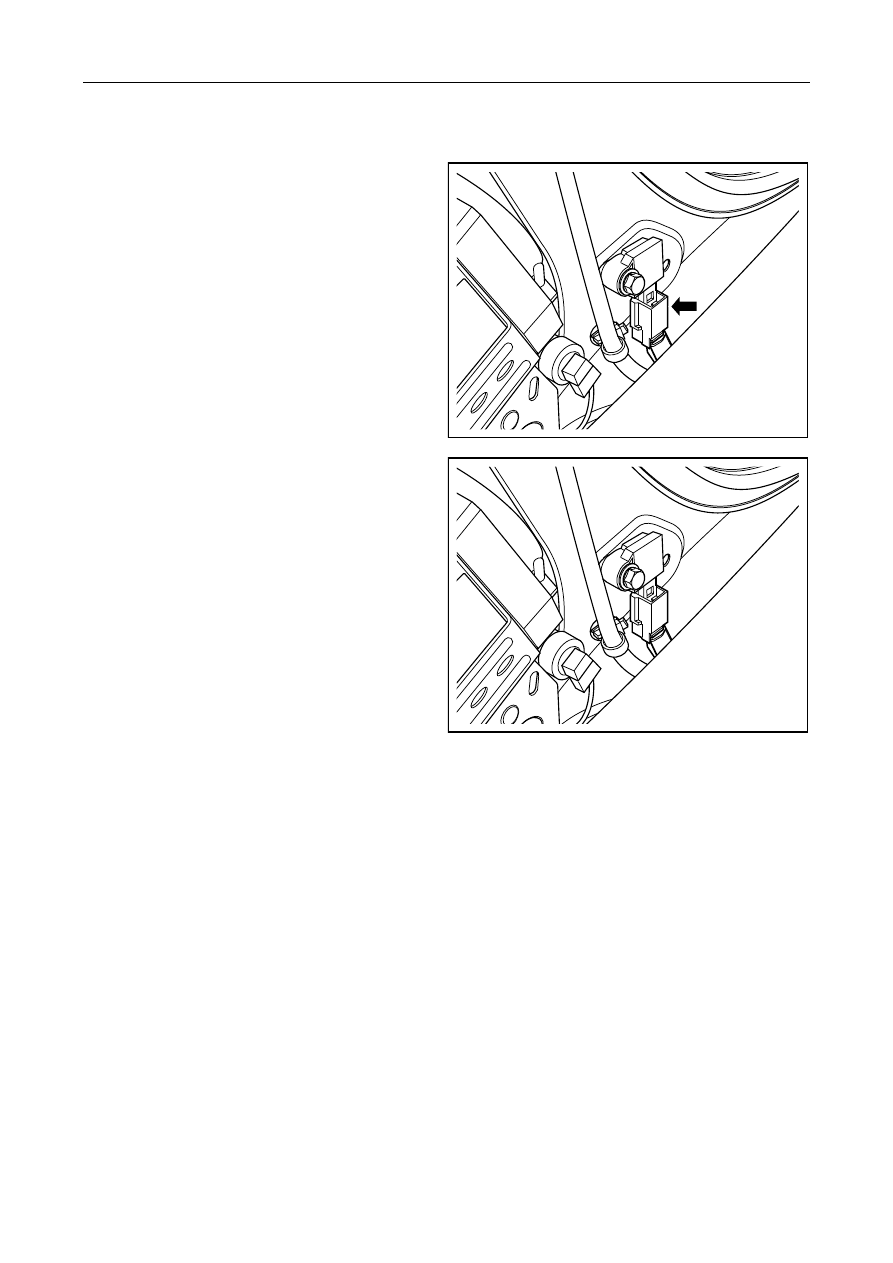

9.2.7.8 Side crash-sensor replacement (such as equipment)

Dismantlement Procedure

Warning: Refer to Warning on Battery
Disconnection in Warnings and Precautions.

1.   Disconnect negative cable of battery and wait for

90s. Refer to 2.11.8.1 Disconnection procedures
of battery cable.

2.   For dismantling of lower inner trimming plate of

middle column, refer to 12.9.1.3 Replacement of
trimming plate of middle column.

3.  Disconnect side crash-sensor harness connector.

4.   Dismantle fixing bolt of side impact sensor and

remove sensor.

NL09-0029b

Installation Procedure:

1.  Install side impact sensor and tighten fixing bolt.

：

Torque 8Nm (Metric) 5.9-lbf (English system).

2.

 Connect side impact sensor wire harness

connector.

3.    Install the lower trim panel for the center pillar.

4.  Connect the battery negative cable.

NL09-0030b

1851




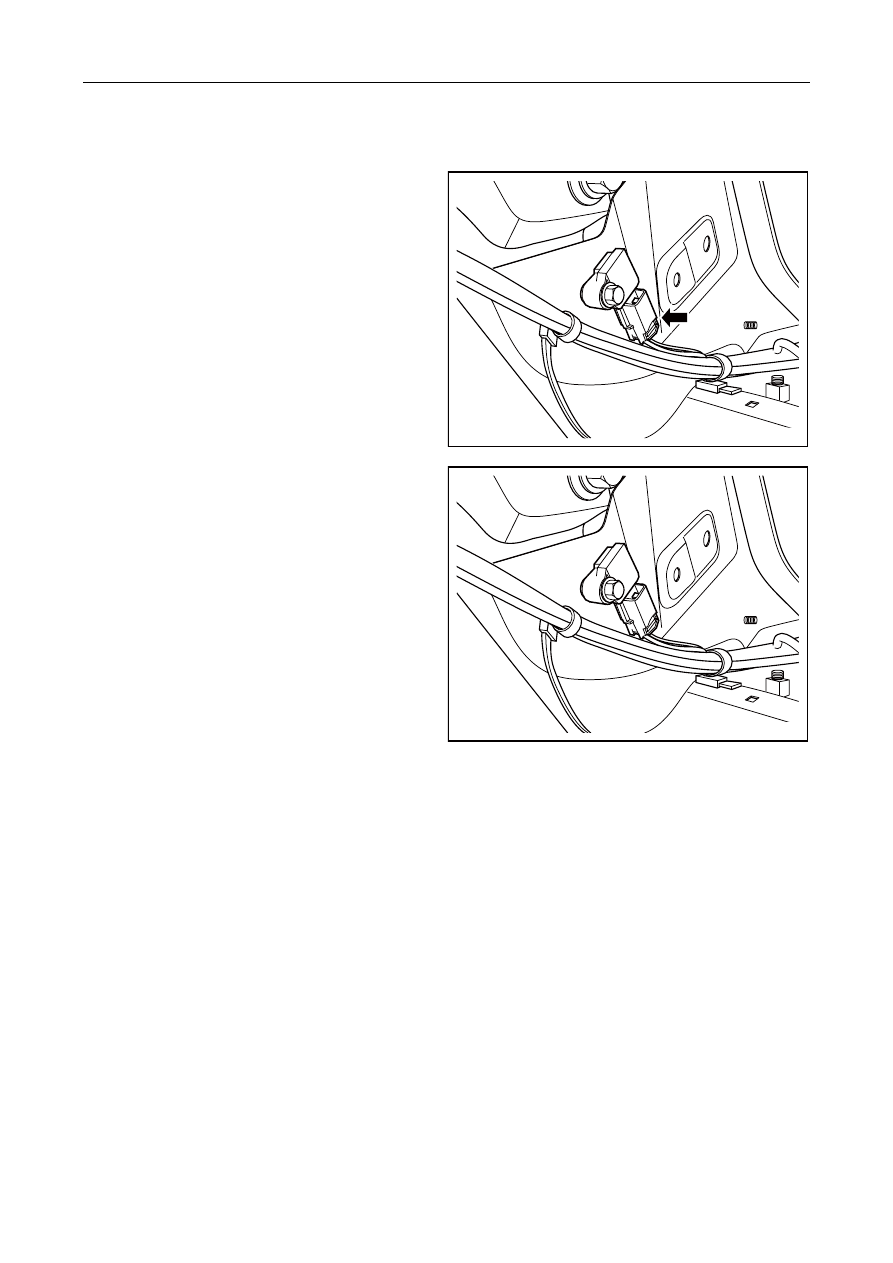

9.2.7.9 Rear side crash-sensor replacement (such as equipment)

Dismantlement Procedure:

Warning: Refer to Warning on Battery
Disconnection in Warnings and Precautions.

1.   Disconnect negative cable of battery and wait for

90s. Refer to 2.11.8.1 Disconnection procedures
of battery cable.

2.   For dismantling of rear column lower trimming

plate, refer to 12.9.1.5 Replacement of rear
column lower trimming plate.

3.  Disconnect rear side crash-sensor harness

connector.

4.   Dismantle fixing bolt of rear side impact sensor

and remove sensor.

NL09-0031b

Installation Procedure:

1.   Install rear side impact sensor and tighten fixing

bolt.

Torque:8 Nm (Metric) 5.9 lb-ft (English system)

2.   Connect rear side impact sensor wire harness

connector.

3.    Install the rear column lower trim panel.



NL09-0032b

1852

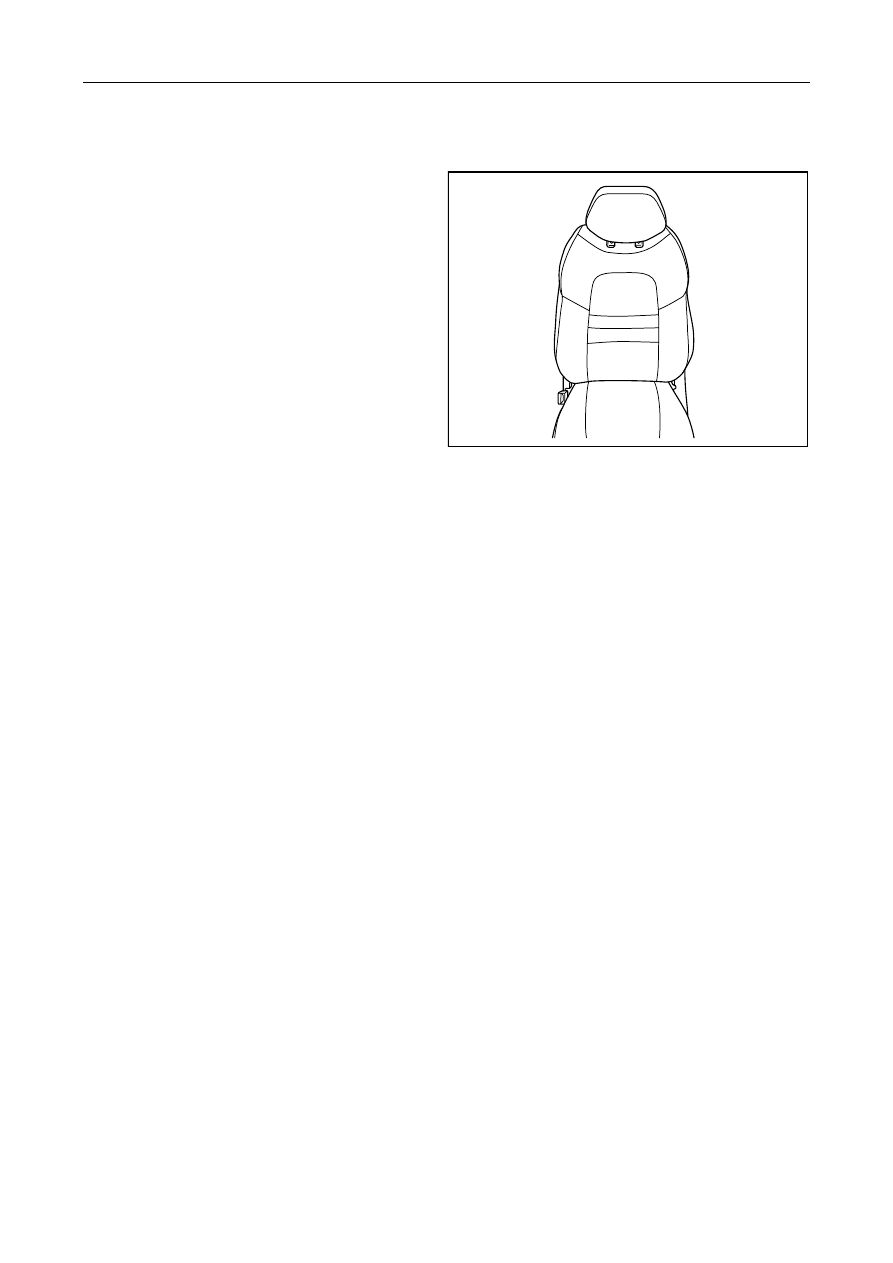

9.2.7.10 Passenger D detect sensor replacement

Dismantlement Procedure

For dismantlement and installation procedures, see
11.11.8.3 Replacement of Power Seat Regulator
Assembly.

Note: the cushion can be directly removed after
disassembling the power seat adjuster; and the
manned sensor is installed in the cushion.



NL09-0033b

9.2.7. Replacement of 11 Seat Side Airbag

Note: please replace the front row of seat back if the seat-side airbag is detonated.

1.  For dismantling procedures, refer to 11.11.8.3 Replacement of electric seat adjuster assembly.

1853




9.3 Preload type safety belt system

9.3.1 Specifications

9.3.1.1 Fastener specifications

Torque Range

Fastener Name

Model

Metric (N.m)

English system

(lb-ft)

Lower fixing bracket of front row of left
safety belt retractor (pre-tightening force-limit
mode)

Inch 7/16

40-50

30-37

Lower fixing bracket of front row of right
safety belt retractor (pre-tightening force-limit
mode)

Inch 7/16

40-50

30-37

Lower fixing bracket of front row of left
safety belt retractor (common mode)

Inch 7/16

40-50

30-37

Lower fixing bracket of front row of left
safety belt retractor (common mode)

Inch 7/16

40-50

30-37

Front row safety belt latch fixing point

Inch 7/16

40-50

30-37

Height adjuster fixing point of front row
safety belt height adjuster

M10×22 30-40

22-30

Fixed support of the second row of left safety
belt retractor

Inch 7/16

40-50

30-37

Fixed support of the second row of right
safety belt retractor

Inch 7/16

40-50

30-37

Fixed point of the second row of left safety
belt buckle

Inch 7/16

40-50

30-37

Fixed point of the second row of right safety
belt buckle

Inch 7/16

40-50

30-37

Fixed point of the second row of medium
safety belt retractor

Inch 7/16

40-50

30-37

Fixed point of the second row of left
medium safety belt buckle

Inch 7/16

40-50

30-37

Fixed point of the second row of right medium
safety belt buckle

Inch 7/16

40-50

30-37

Fixed point of the rear row of two-side safety
belt (two-point type)

Inch 7/16

40-50

30-37

Rear row left side safety belt latch fixing point

Inch 7/16

40-50

30-37

Fixed point of the rear row of right safety belt
buckle

Inch 7/16

40-50

30-37

1854
