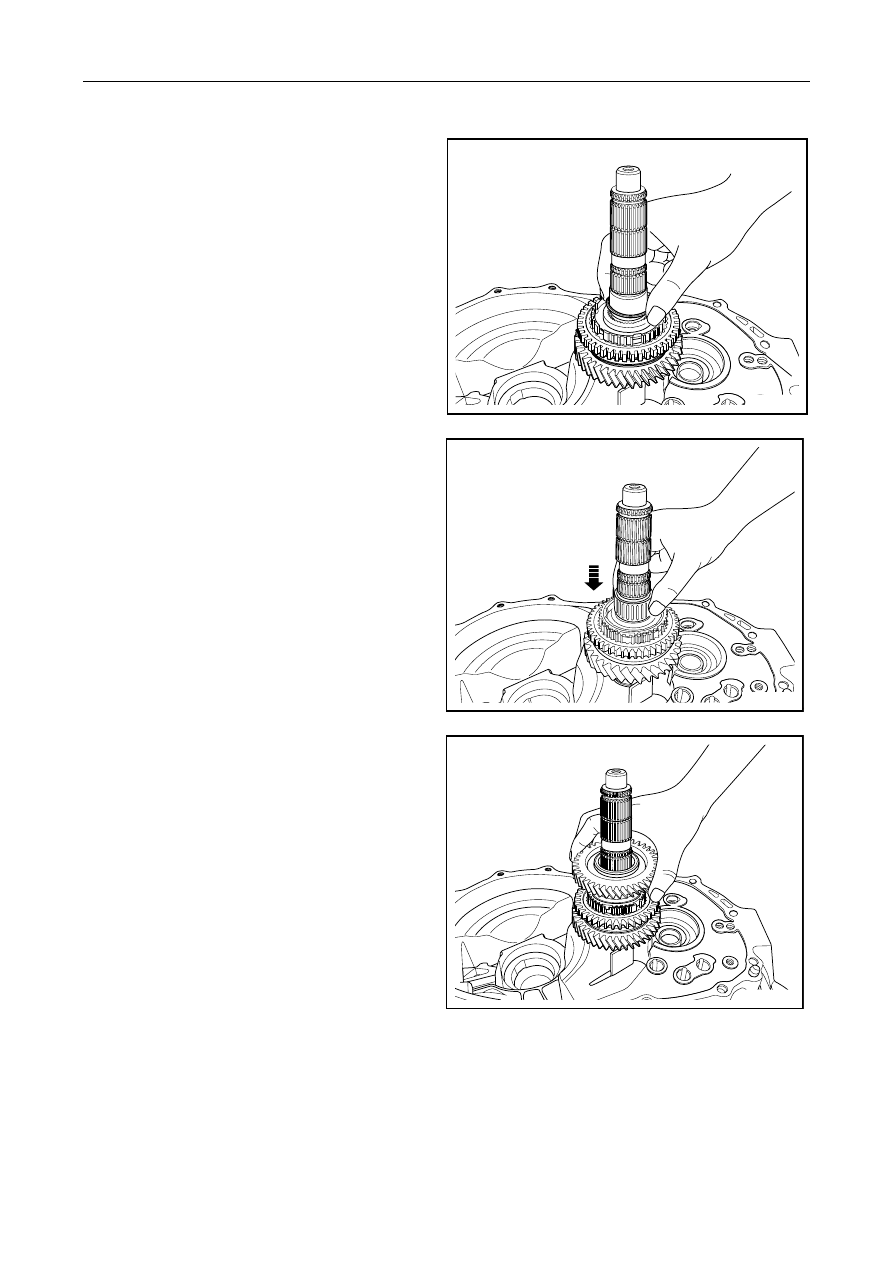

5.  Install 2nd speed gear needle bearing retaining

ring.



FE03-0129b

6.  Install 2nd speed gear needle bearing.



FE03-0130b

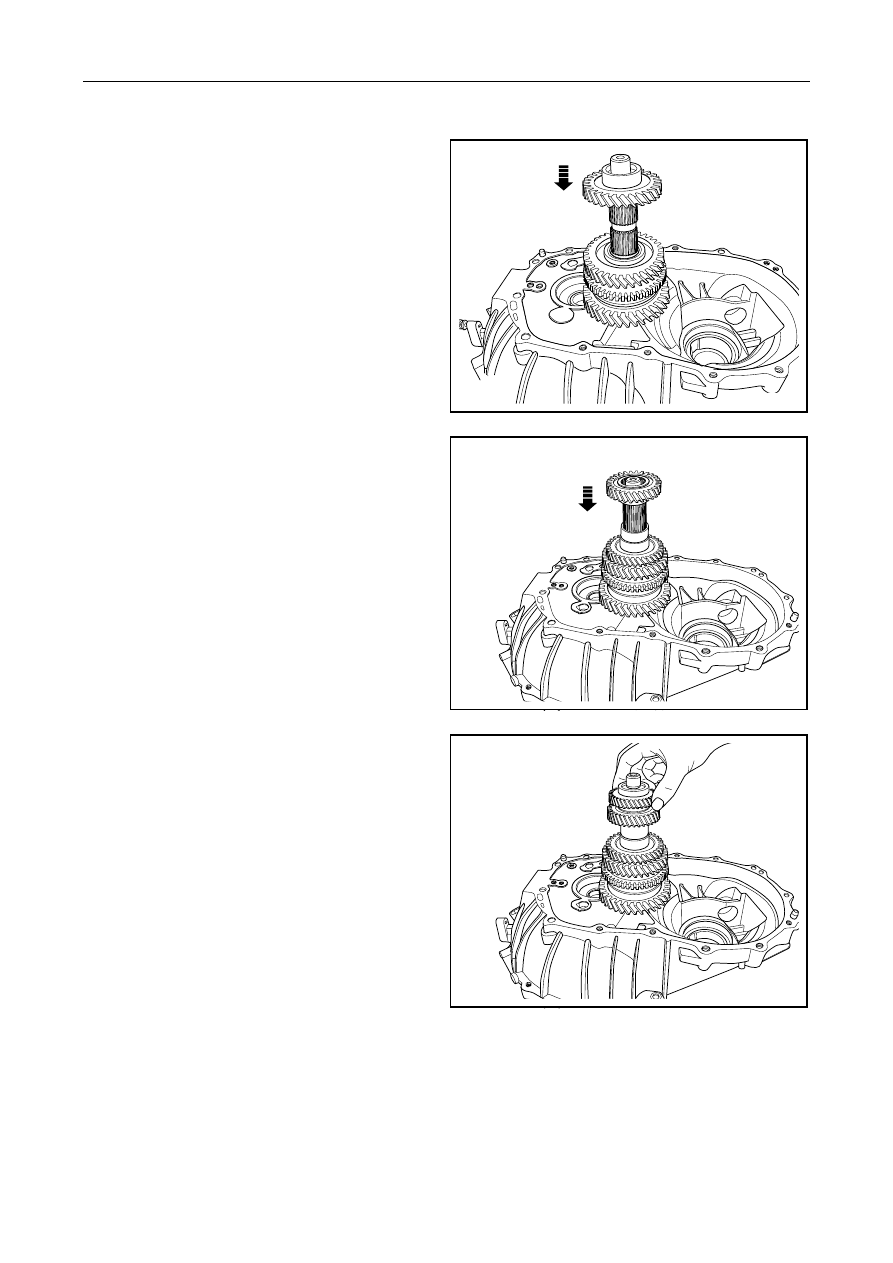

7.  Install the 2nd speed gear.



FE03-0131b



1235






8.  Install the 3rd speed gear.

Notes :3rd speed gear required press by pressure bed,
upward of boss face！



FE03-0132b

9.  Install bushing of 3rd speed gear and 4th speed

gear

10.  Install the 4th speed gear

Notes : 4th speed gear was pressed by pressure, One
face is downward with boss！



FE03-0134b

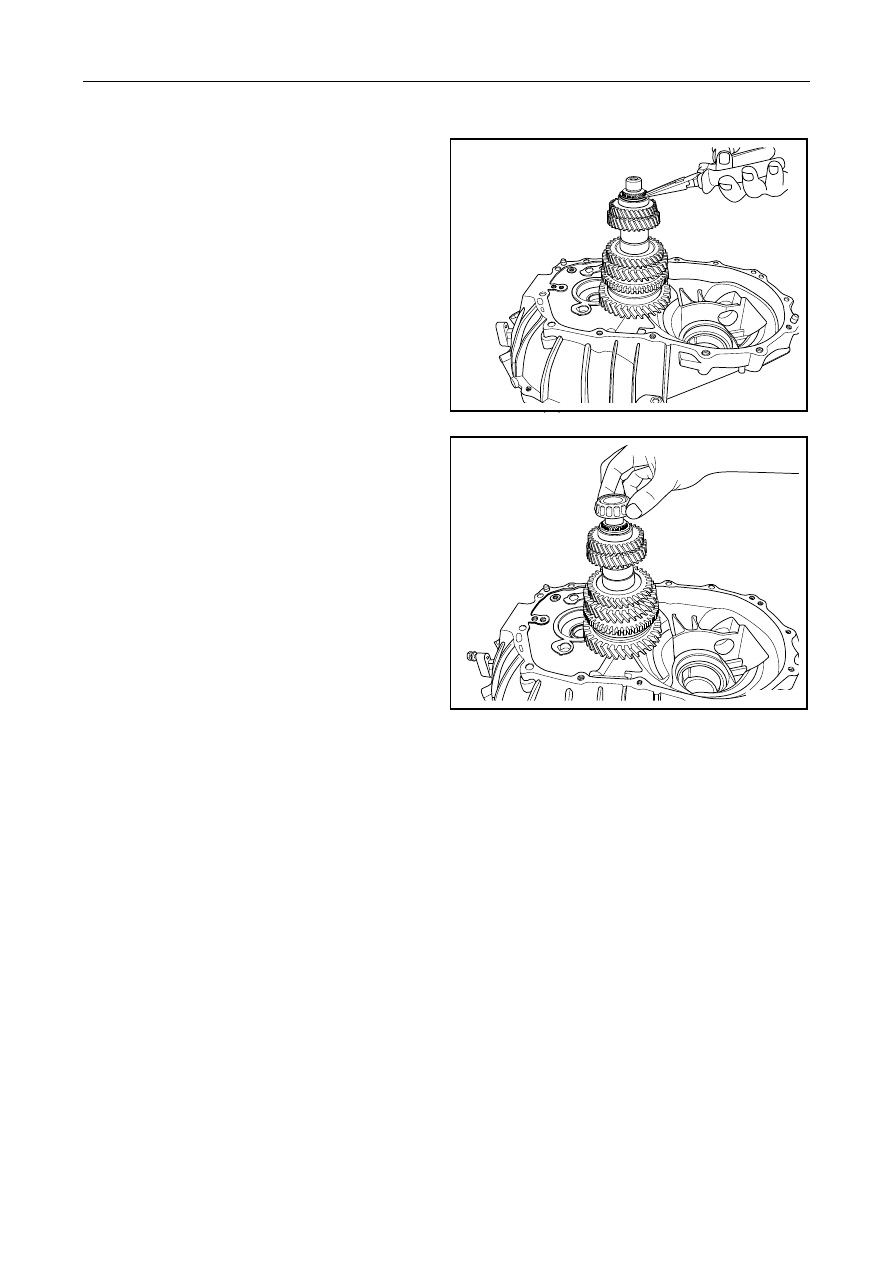

11.  Install the 5th speed gear.

Notes : 5th speed gear was pressure by pressure bed ,
one face is upward by boss



FE03-0135b



1236






12.  Install 5th speed gear snap spring.



FE03-0136b

13.  Install rear support bearing of main shaft.



FE03-0137b

14.  Install main shaft assembly.

15. Install fork shaft.Refer to“3.4.8.6 fork shaft

replacement”.

16.  Install shift control mechanism assembly, refer

to“3.4.8.4 shift control mechanism assembly
replacement”.

17. Install transmission assembly; refer to“3.4.8.3

transmission assembly replacement”.





1237




3.4.8.9 Shift control lever replacement

Dismantle procedure

Warning: refer to warning for battery
disconnection in the warning and precaution ,

1.  Disconnect the battery negative cable. Refer to

2.11.8.1 battery cable disconnection/connection
procedures.

2.  For dismantling of auxiliary instrument panel,

refer to 12.8.3.2 Replacement of auxiliary
instrument panel.

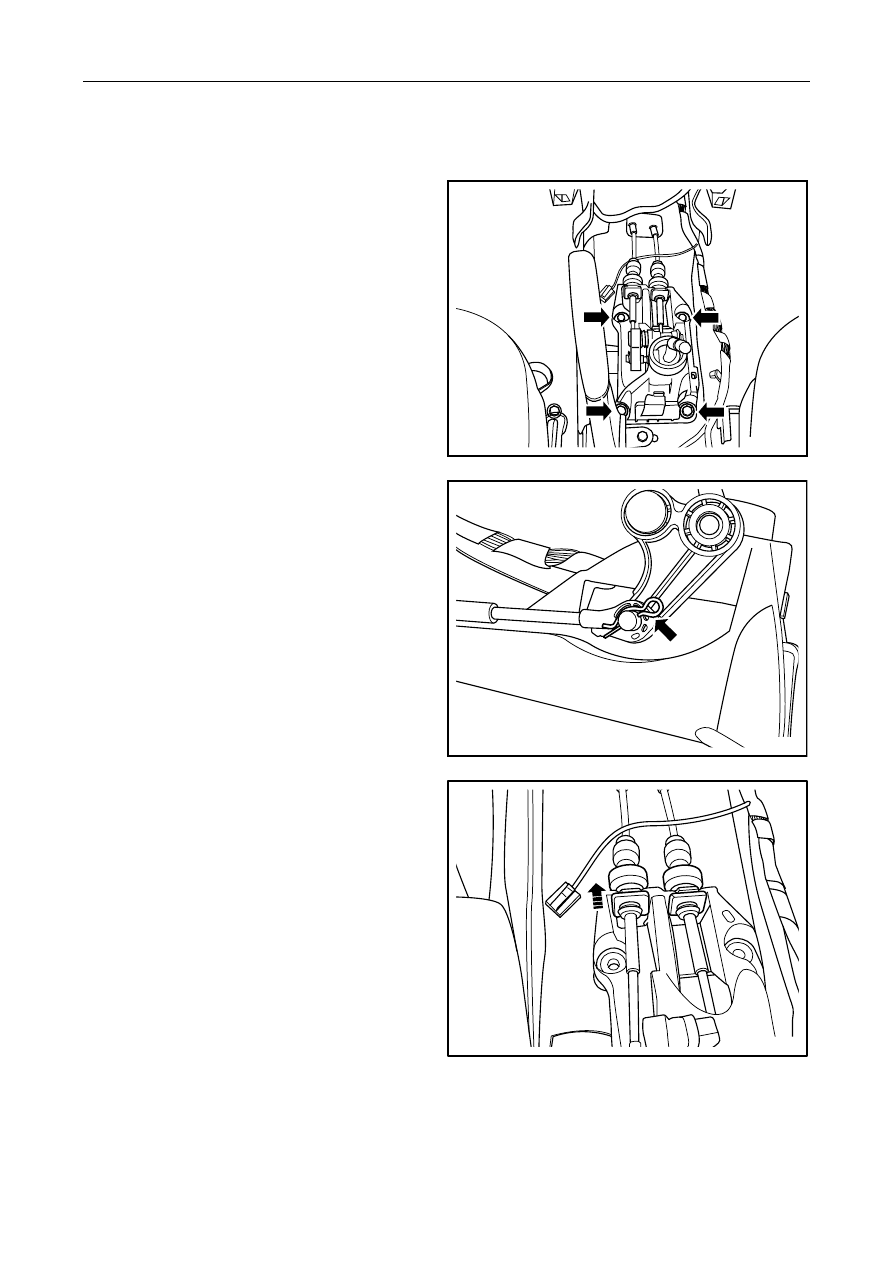

3.  Dismantle 4 shift control lever fixing bolts as

shown in the figure.



NL03-0149b

4.  Take out selecting rod of snap spring.



NL03-0150b

5.  Dismantle fixing sleeve of selecting gear cable

Notes: Selecting lever cable hardly poke up, and then
Dismantle the selecting lever cable, black fixing
bushing is as a whole was intalled on the cable.



NL03-0151b
