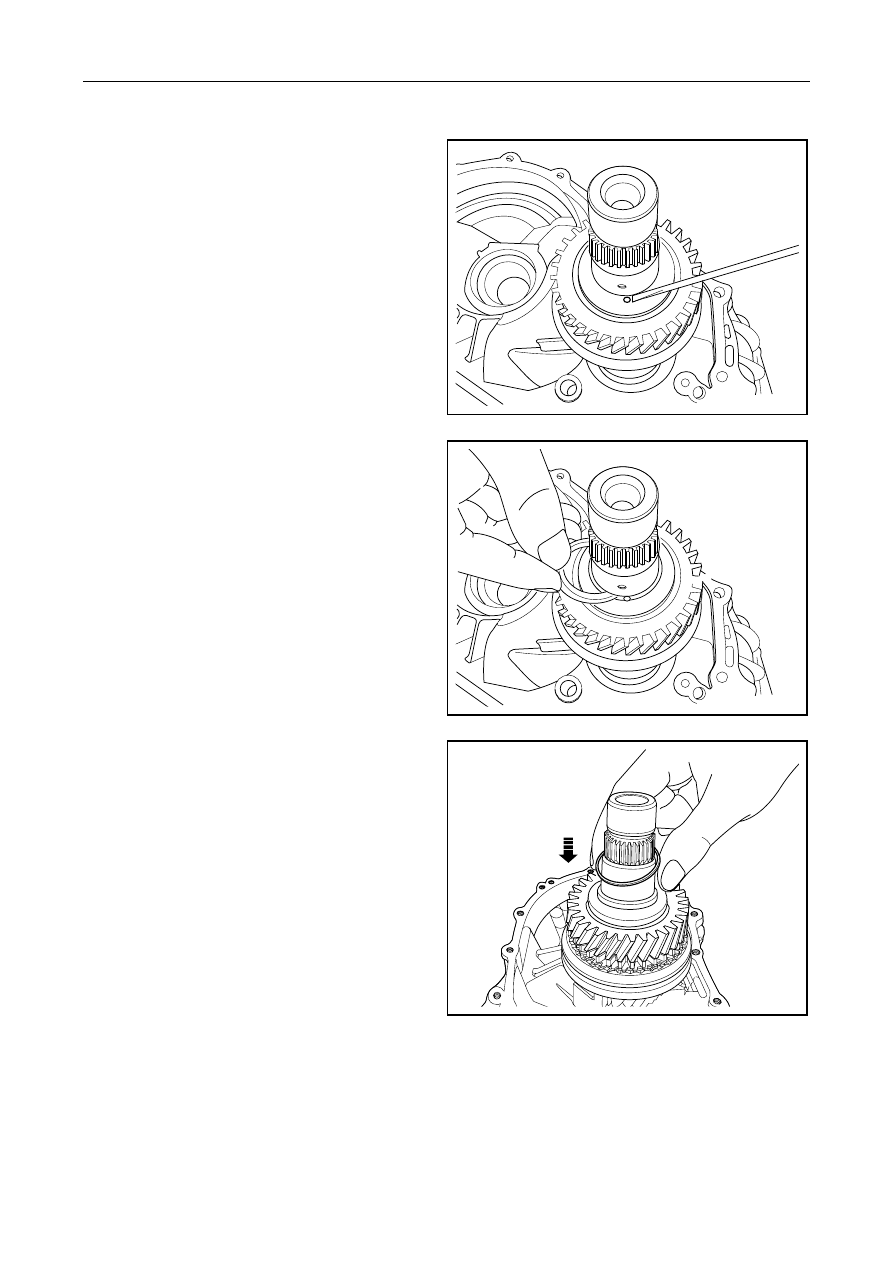

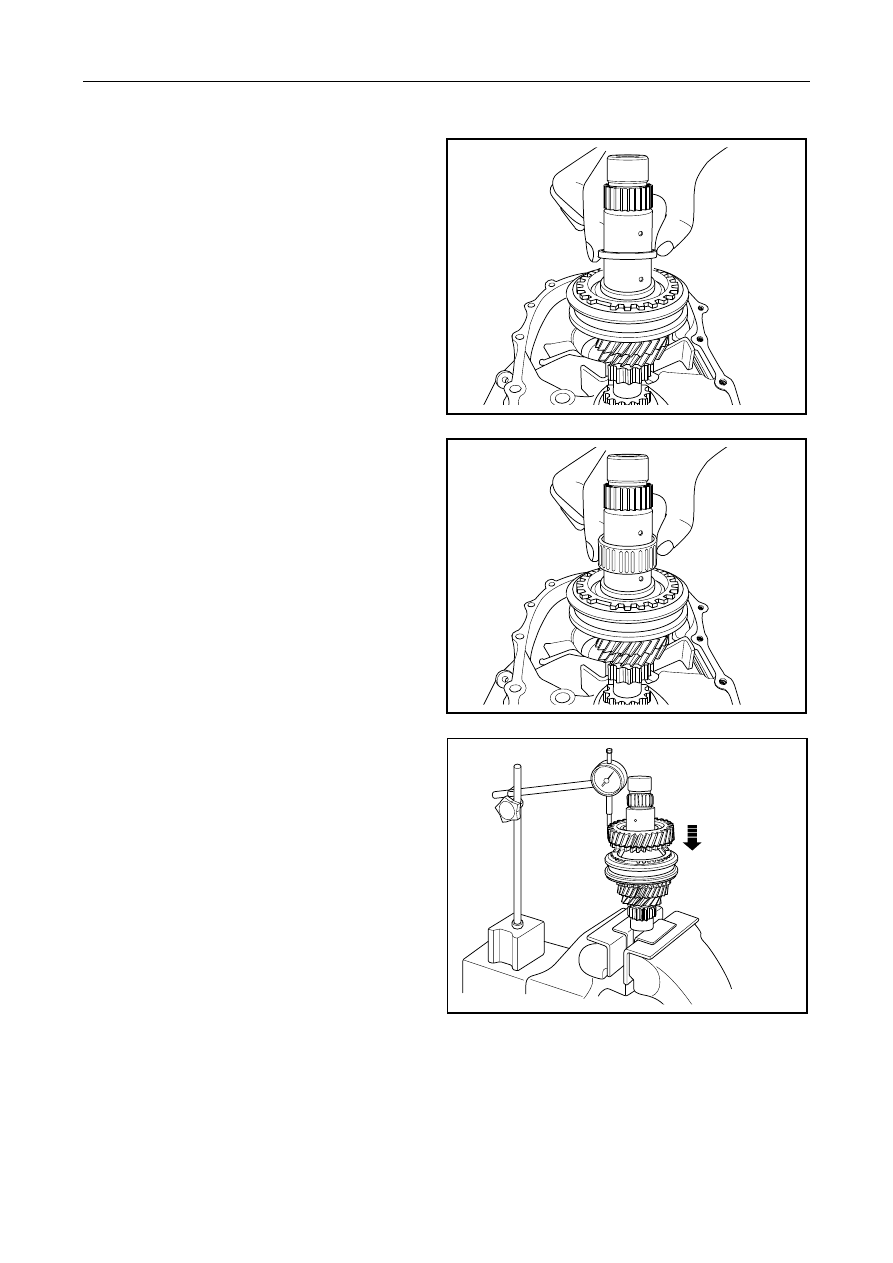

6.  Install 4th speed gear needle bearing washer.



FE03-0103b

7.  Install 4th speed gear needle bearing.



FE03-0104b

8.  Install the 4th speed gear.

Notes : Input shaft 4th speed gear axial clearance is
0,1～0,55mm(3,937～21,654 in×10

-3

)



FE03-0105b



1227






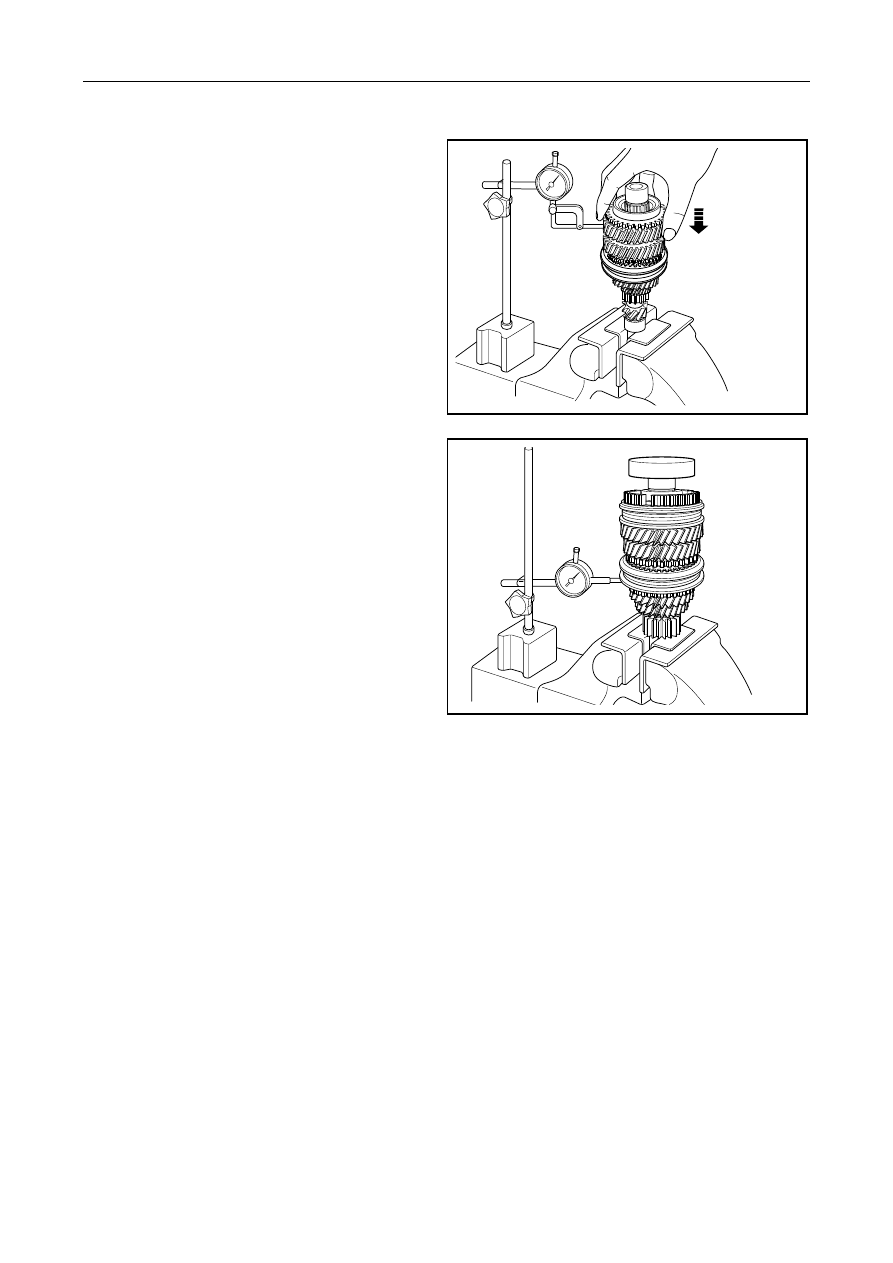

9.  Install 4th speed gear retaining ring.

Notes : limiting ball direction of retaining ring is
consist with retaining ring

！





FE03-0106b

10.  Install 4th speed gear snap ring.



FE03-0107b

11.  Install 5th speed gear needle bearing gasket.



FE03-0108b



1228






12.  Install 5th speed gear needle bearing.

13.  Install the 5th speed.

Notes : Axial clearance for input shaft 5th speed gear
is 0,1～0,50mm(3,937～19,685 in×10

-3

)

14.  Install 5th speed synchronizer

Notes: synchronizer has directional, One face of
boss face to rear-end of transmission.



FE03-0110b

15.  Install Input shaft rear support bearing .

Notes : The bearing has directional , one face of oil
seal face to rear-edn of transmission input shaft 4th
speed , 5th speed gear radial clearance

0,058mm( 2,146 in×

≦

≦

10

-3

)

16.  Install Input shaft assembly.



FE03-0112b

17. Install fork shaft.refer to“3.4.8.6 fork shaft
replacement ”

18.  Install shift control mechanism assembly; refer
to“3.4.8.4shift control mechanism assembly
replacement”.

19.

Install transmission assembly, refer

to“3.4.8.3transmission assembly replacement” .







1229




3.4.8.8 Disassembly and assembly of main shaft

Dismantle procedure

一档齿轮   二档齿轮

FE03-0113b

1.  Refer to 3.4.8.3 "Replacement of transmission

assembly" to dismantle the transmission
assembly.

2.  Dismantle shift control mechanism assembly,

refer to“3.4.8.4shift control mechanism assembly
replacement” .

3.  Dismantle fork shaft.Refer to“3.4.8.6fork shaft

replacement ”

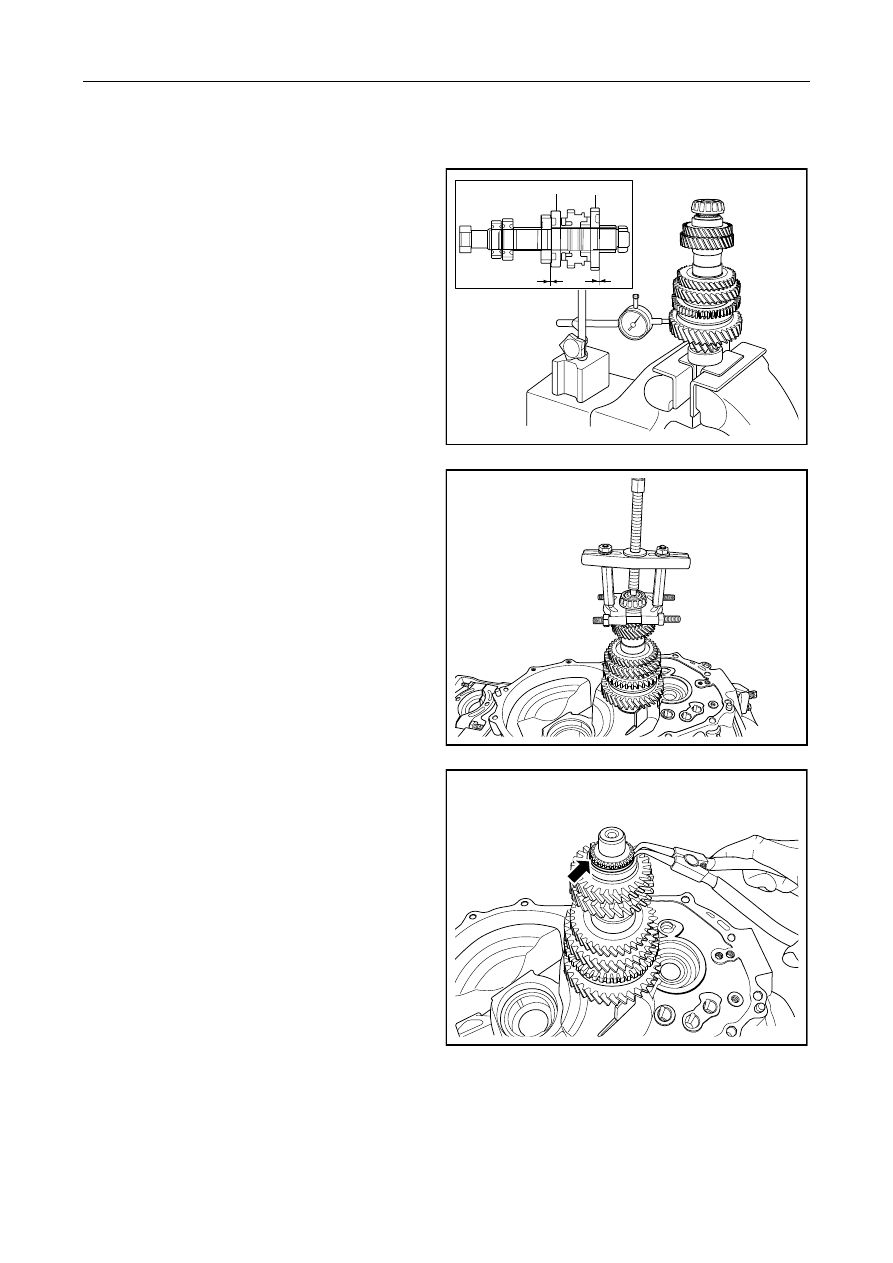

4. Dismantle main shaft assembly in the

transmission.

Notes : Gear axial clearance of main shaft 1st speed
and 2nd speed :

1 nd speed :0.1～0.35mm(3.937～13.780 in×10

-3

)

2 nd speed :0.1～0.35mm(3.937～13.780 in×10

-3

)

Gear radial runout of main shaft 1st speed and 2nd
speed :

0.056mm (2.205 in×

≦

≦

10

-3

)

5.  Pull out main shaft rear bearing shaft by special

tool bearing puller.



FE03-0114b

6.  Take out 5th speed gear snap spring by snap

spring pillar.



FE03-0115b



1230
