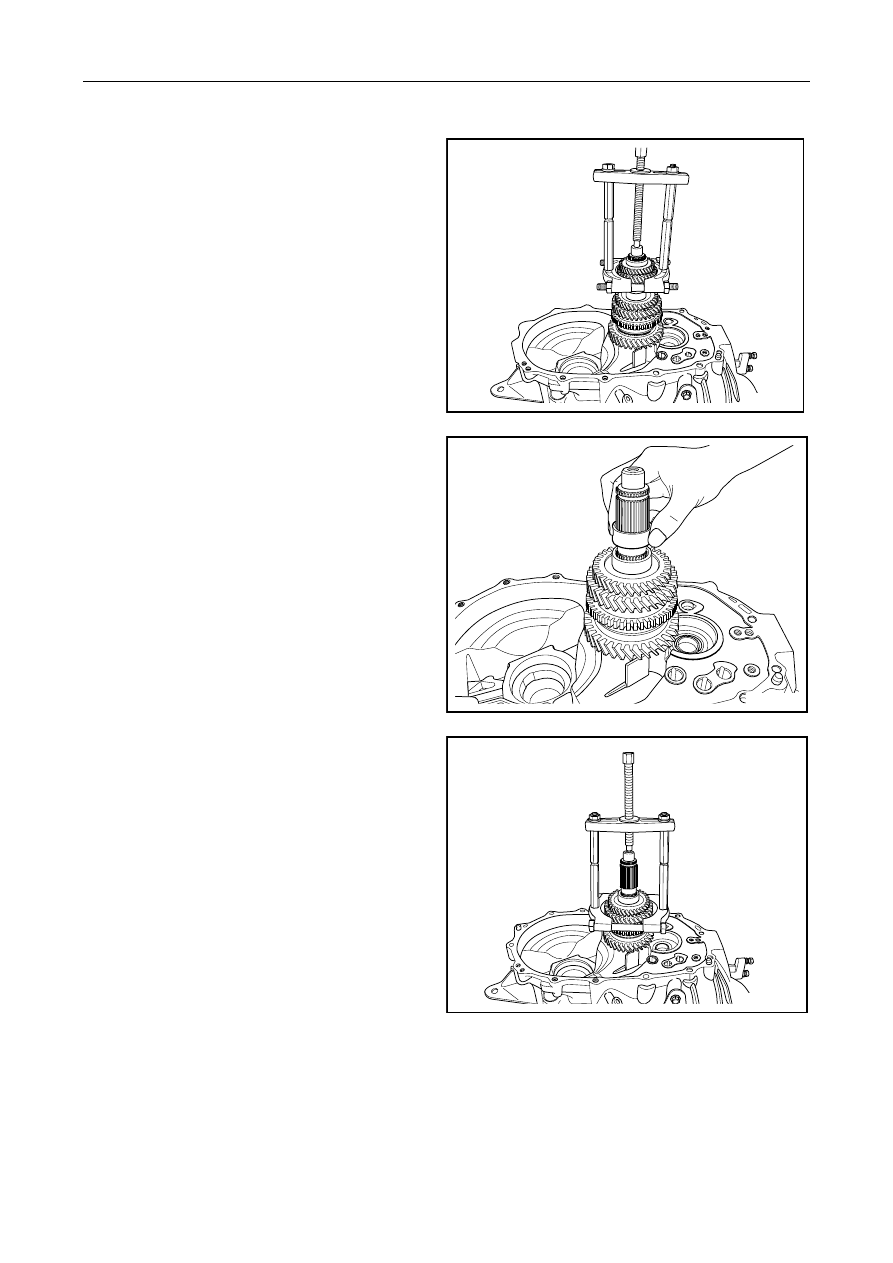

7.  Pull out 5th speed gear and4th speed gear by

special tool “bearing puller“.



FE03-0116b

8.  Take out 4th speed gear and 3rd speed gear

bushing.



FE03-0117b

9.  Pull out 3rd speed gear by special tool bearing

puller.

Notes :Gap is too small between 3rd speed gear and
2nd speed gear, May separately pull out 3rd speed
gear from a distance,



FE03-0118b



1231






10.  Take out 2nd speed gear, bearing and bearing

retaining ring.

Notes : the needle bearing has opens to directly take
out

！





FE03-0119b

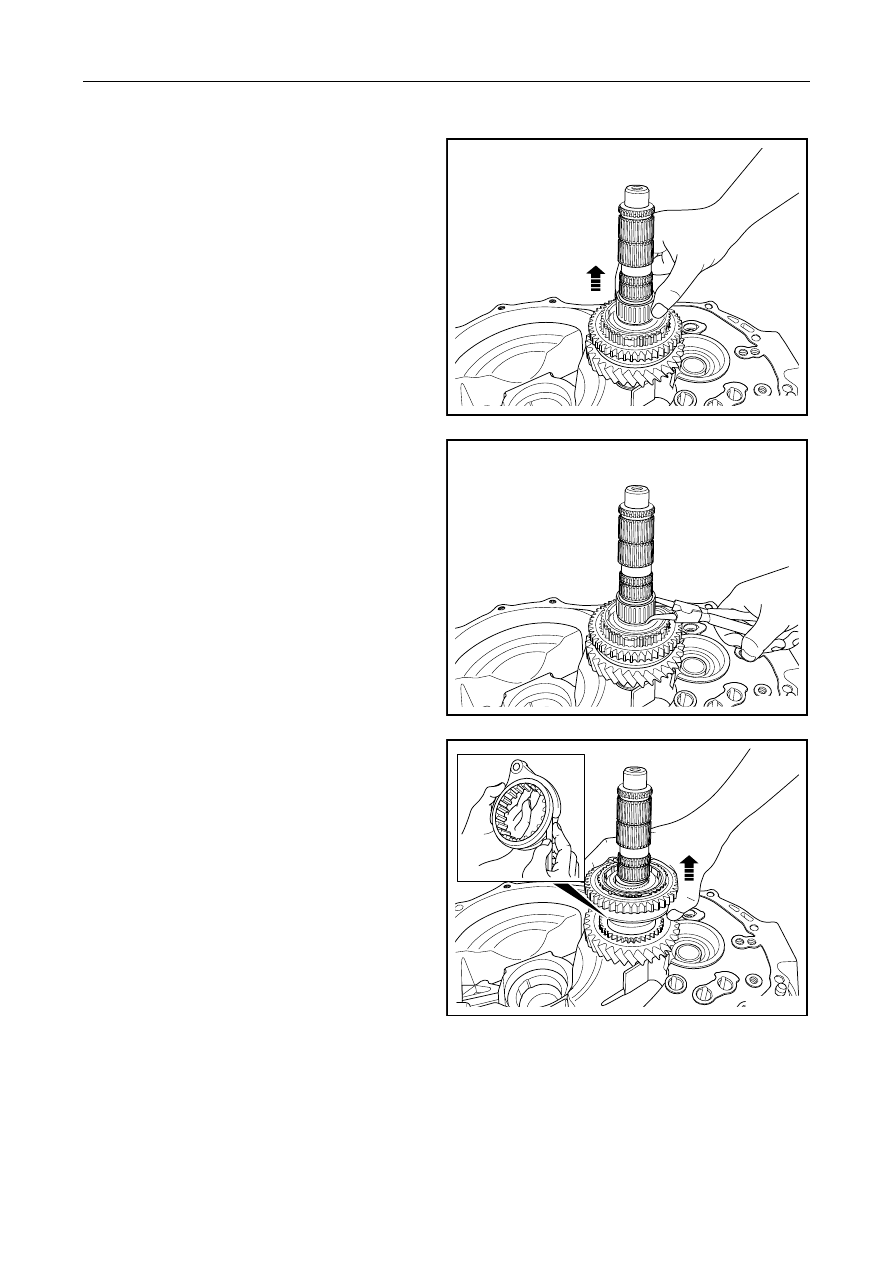

11.  Take out 1st/2nd speed synchronizer snap spring

by snap ring pliers



FE03-0120b

12.  Take out 1st/2nd speed synchronizer

Notes :distance between gear bushing and shift
fork 0,35mm( 13,

≦

≦

780 in×10

-3

)



FE03-0121b



1232






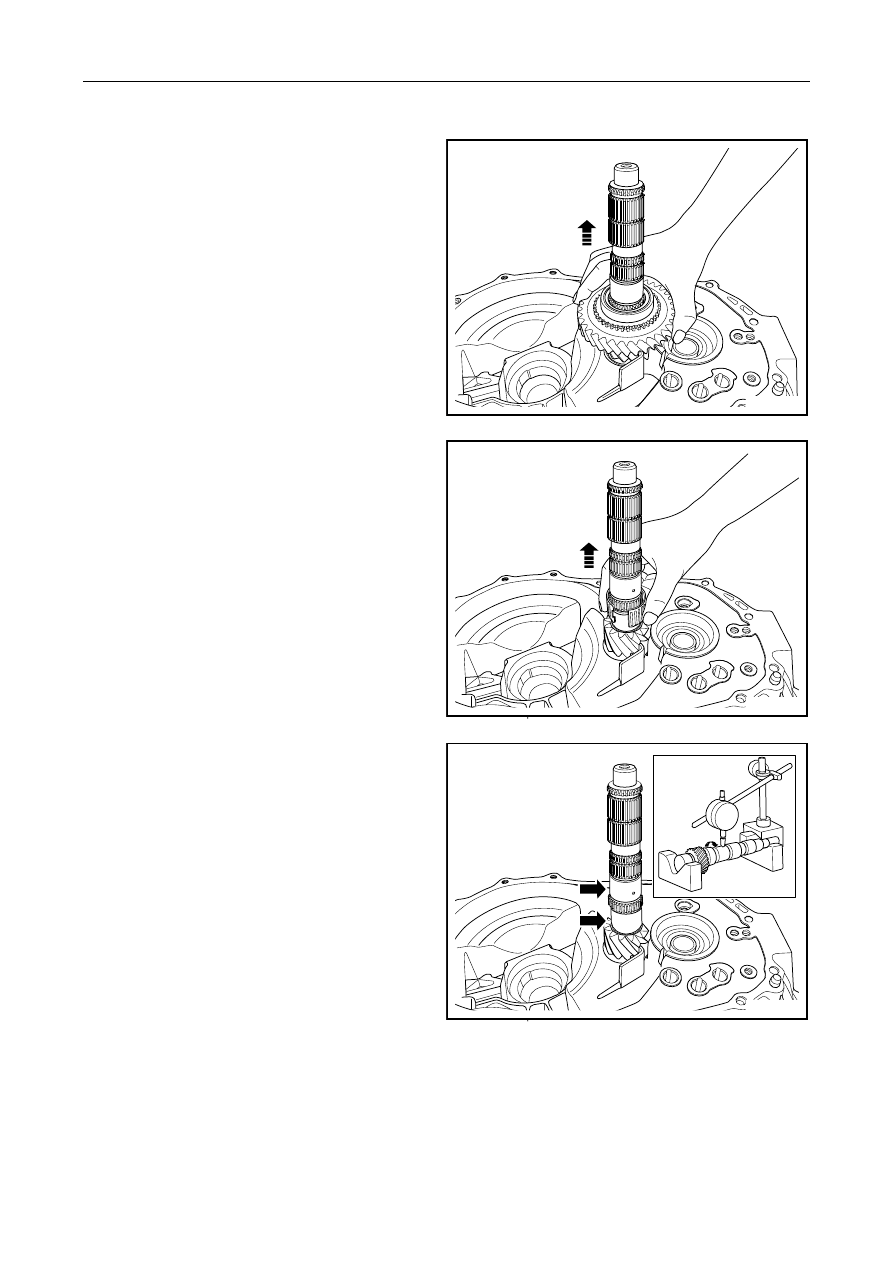

13.  Take out 1 speed gear



FE03-0122b

14.  Take out 1st speed gear needle bearing.

Notes: the needle bearing has opens to, can not
dismantle by big force, otherwire may cause this
bearing!



FE03-0123b

15. Completed final status after dismantle main

shaft.

Notes : Worn condition of main shaft:Min,diameter is
33,985mm(1337,989 in×10

-3

)main bearing radial

runout 0,03mm( 1,181 in×

≦

≦

10

-3

)



FE03-0124b



1233






Installation procedure::

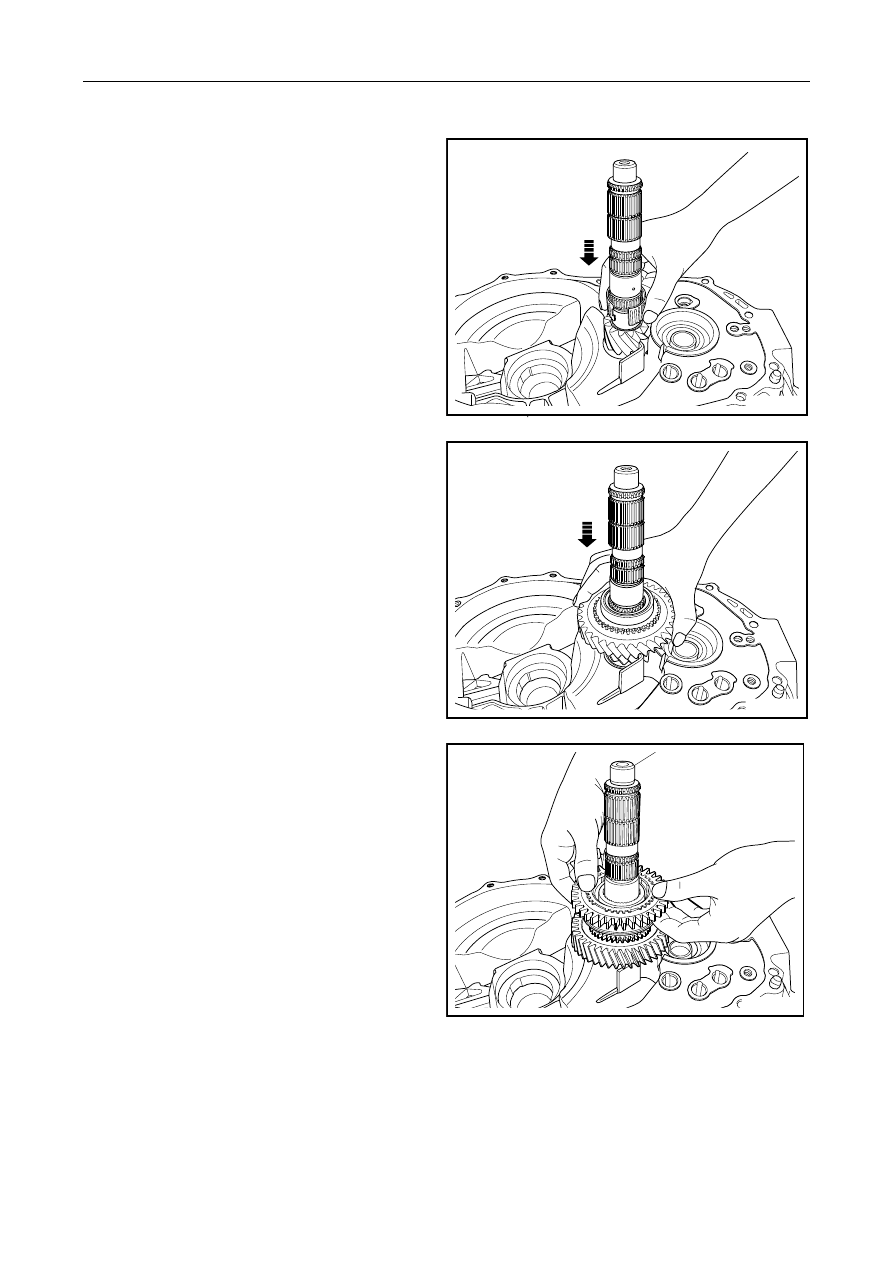

1.  Install 1st speed gear needle bearing.



FE03-0125b

2.  Install the 1st speed gear.



FE03-0126b

3. Install1st/2nd

speed

synchronizer.

Notes: gear surface face the rear-end of
transmission

4.  Install1st/2nd speed synchronizer snap spring .



FE03-0127b
