Volkswagen CC (2015 year). Instruction

Make sure that all windows are clean.
Store items and all luggage safely in the storage compartments, in

the luggage compartment and, where applicable, on the roof

⇒

Transporting.

Always make sure that nothing keeps the pedals from moving

freely.

Make sure that children are properly secured by a restraint system

appropriate for their size and weight

⇒ Child safety and child re-

straints.

Properly adjust front seats, all head restraints and mirrors to the

correct height

⇒ Adjusting the seating position.

Wear shoes that give your feet a good grip and that give you a feel

for the pedals.

Make sure that the floormat on the driver side is properly fastened

and cannot interfere with the pedals.

Assume a proper seating position before the vehicle starts to move

and keep this position while driving. Make sure that all passengers
do the same

⇒ Adjusting the seating position.

Properly fasten your safety belt before driving the vehicle and wear

your safety belt properly at all times while driving. Make sure that
all passengers do the same

⇒ Safety belts.

Only transport as many passengers as there are seats and safety

belts available.

Never drive if your driving ability has been impaired, for example,

by medication, alcohol, or illegal drugs.

Never let passengers or phone calls distract you while driving and

never take your attention off the road while using vehicle software
or adjusting vehicle equipment or accessories.

Always adapt your speed and driving style to visibility, weather,

road, and traffic conditions.

Always obey traffic laws and speed limits.
On long trips make frequent rest stops – at least once every

2 hours.

Secure animals in the vehicle with a system that corresponds to

their weight and size.

WARNING

Always observe traffic rules and posted speed limits and use
common sense. Your good judgment can mean the difference
between arriving safely at your destination and being seriously
injured in a crash or other kind of accident.

Regular service and maintenance of your vehicle is important

both for operational and driving safety and to help prolong your vehi-
cle's service life. Always follow the scheduled maintenance intervals
in the

⇒ Booklet Warranty and Maintenance, especially for changing

the brake fluid. Hard use, frequent stop-and-go driving, driving in very
dusty areas, trailer towing, and other factors may make it necessary
to have the vehicle serviced more frequently. Ask an authorized
Volkswagen dealer or an authorized Volkswagen Service Facility for
more information.

Driving in other countries

Please first read and note the introductory information and

heed the WARNINGS

Checklist
Some countries have special safety standards and emissions re-
quirements that your vehicle may not meet. Before taking your vehicle
to another country, Volkswagen therefore recommends that you ask
your authorized Volkswagen dealer or authorized Volkswagen Ser-
vice Facility about the following issues with regard to the country to
which you would like to travel:

Should the vehicle be technically prepared for the trip abroad, such

as masking or adjusting headlights?

Are maintenance, repair facilities, necessary tools and testing

equipment as well as spare parts readily available for your vehicle?

Are there authorized Volkswagen dealers and authorized

Volkswagen Service Facilities in the countries where you will be
driving?

For gasoline engines: Is unleaded fuel with the right octane rating

readily available?

Are engine oil (

⇒ Engine oil) and other operating fluids that meet

Volkswagen quality and performance requirements available where
you will be driving? For more information, please see
⇒ Booklet Warranty and Maintenance.

Does the factory-installed navigation system work in the countries

where you will be driving, and is navigation data available?

Are special or heavy-duty tires necessary for the kind of driving

expected?

NOTICE

Volkswagen is not responsible for mechanical damage that may
result from substandard fuel or service or the unavailability of
Genuine Volkswagen parts.

Driving through water on roads

Please first read and note the introductory information and

heed the WARNINGS

Note the following to help prevent vehicle damage when driving
through water, for example on flooded roads:

Check the depth of the water before driving through it. The water

must not be any higher than the bottom of the vehicle body

⇒ .

Do not drive faster than walking speed.
Never stop the vehicle, and do not drive in reverse or switch the

engine off when driving through water.

Oncoming vehicles may create waves that raise the water level and

make it too deep for your vehicle to drive through safely.

WARNING

After driving through water, mud, sludge, etc., the brakes react
slower and need longer stopping distances.

Always dry the brakes and clean off any ice coatings with a

few careful applications of the brake. Make sure not to endan-
ger other motorists or cyclists or disobey legal requirements.

Avoid abrupt or sudden braking maneuvers immediately after

driving through water.

NOTICE

Vehicle components such as the engine, transmission, sus-

pension or electrical system may be severely damaged by driv-
ing through water.

Never drive through salt water. Salt causes vehicle corrosion.

Thoroughly rinse with fresh water all vehicle parts that were ex-
posed to salt water.

Technical data

Introduction

In this section you’ll find information about:
Important vehicle labels
Engine data
Dimensions

Your vehicle's engine type is shown on the vehicle identification label.
The specifications in this Manual refer to the base model. The stated
values may vary, depending upon different equipment or models, as
well as with respect to special vehicles and vehicles exported to dif-
ferent countries.

More information:

Transporting
Tires and wheels
Saving fuel and helping the environment
Fuel
Engine oil
Engine coolant
Consumer information

WARNING

Disregarding or exceeding stated values for weights, loads, di-
mensions and maximum speed may result in accidents and se-
rious personal injuries.

Important vehicle labels

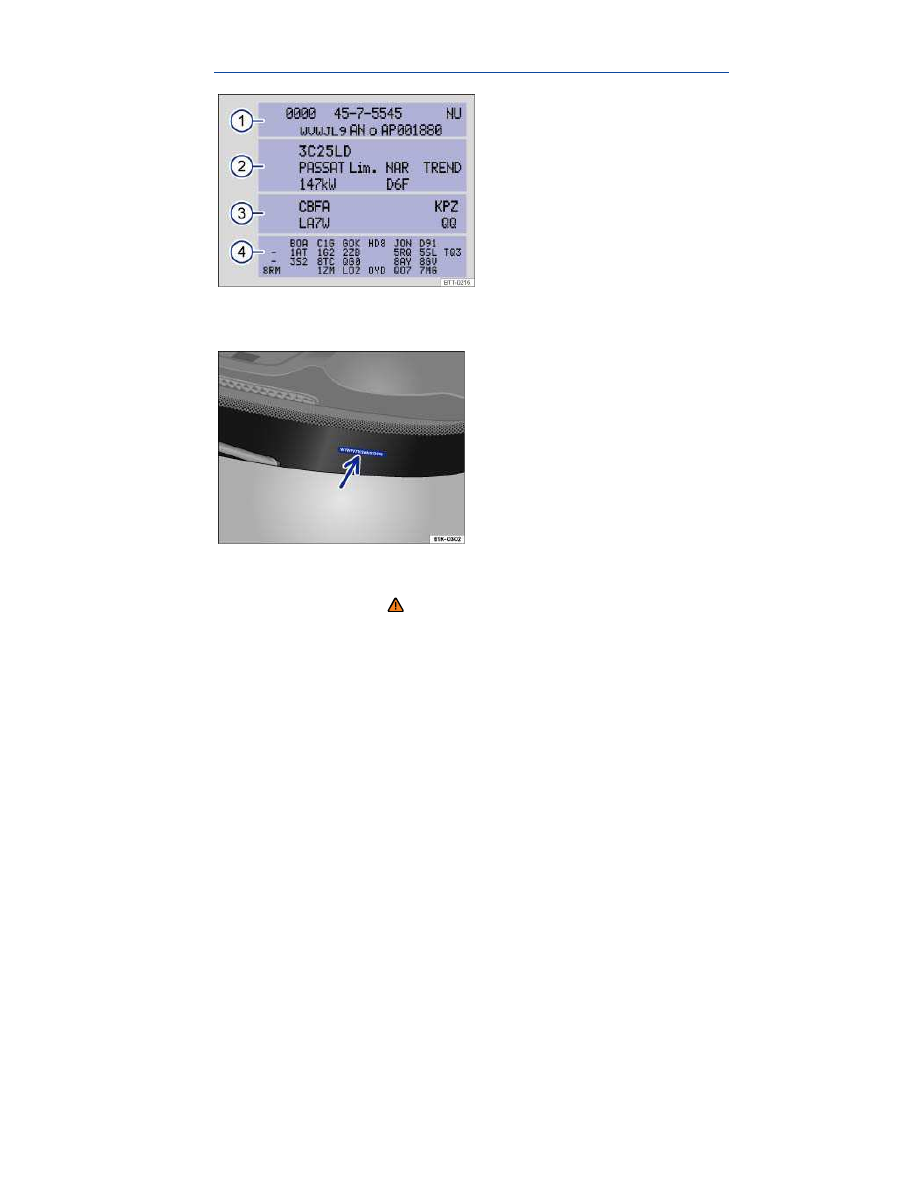

Fig. 18 Vehicle identification label: Shown in the example with engine
identification code CBFA 3.

Fig. 19 Vehicle identification number (VIN).

Please first read and note the introductory information and

heed the WARNINGS

Factory-installed safety certificates, stickers, and signs containing
important information regarding vehicle operation can be found in the
engine compartment and on certain vehicle components, such as
inside the fuel filler flap, on the passenger sun visor, in the driver door
jamb, or on the luggage compartment floor.

Do not remove, alter, or render unusable or illegible any safety cer-

tificates, stickers, and labels.

If vehicle components bearing safety certificates, stickers, or labels

are replaced, make certain that the firm doing the work attaches new

conforming certificates, stickers, or labels to the same part of the new
components.

Vehicle identification number (VIN)
The vehicle identification number is on a plate on top of the instru-
ment panel on the driver side, and is visible from the outside through
the windshield

⇒

fig. 19

(arrow). The view window is on the side at the

bottom of the windshield. The vehicle identification number is also
stamped into the top of the right drip channel in the engine compart-
ment. The drip channel is between the spring strut tower and the right
fender. Open the engine hood to read the vehicle identification num-
ber

⇒ Working in the engine compartment.

Vehicle identification label

The vehicle identification label

⇒

fig. 18

is affixed to the area of the

spare wheel well underneath the luggage compartment floor panel
and contains the following information:

(1)

Vehicle identification number (VIN)

(2)

Vehicle type, engine output, and transmission

(3)

Engine and transmission identification codes, paint number, and

interior type. In the example, the engine identification code is
“CBFA”

⇒

fig. 18

(4)

Optional equipment and part numbers

Safety Compliance Certification Label
A safety certificate affixed to the door jamb in the driver door confirms
that at time of production all necessary safety standards and require-
ments of the traffic safety agency of the respective country were met.
The month and year of production as well as the vehicle identification
number may be listed as well.

Radiator fan and high voltage warning sticker
A warning sticker about the radiator fan and the high voltage of the
electrical system is located in the engine compartment next to the
engine hood release. The vehicle ignition system complies with the
Canadian standard ICES-002.

Tire inflation pressure label

A tire inflation pressure label is on the driver door jamb

⇒ Tires and

wheels.

Fuel grade sticker

An information sticker listing the correct fuel grade for your vehicle

⇒

Refueling.

Engine data

Please first read and note the introductory information and

heed the WARNINGS

Gasoline engines

Maximum
power output

Injection

technology

Engine

code

Maximum

torque

No. of

cylinders

Displacement

200 hp at
5100 –
6000 rpm
147 kW at
5100 –
6000 rpm

TSI

CCTA

CBFA

2.0T

207 lb-ft at

1700 –

5000 rpm

280 Nm at

1700 –

5000 rpm

4 cylinders

121 CID

1984 ccm

280 hp at
6200 rpm
206 kW at
6200 rpm

FSI

CNNA

3.6L

265 lb-ft at

2750 rpm

360 Nm at

2750 rpm

6 cylinders

219 CID

3597 ccm

Dimensions

Please first read and note the introductory information and

heed the WARNINGS

Length

189 in – 193 in (4802 –

4902 mm)

Width

73 in (1855 mm)

Height (unloaded)

55.7 – 56.1 in (1417 –

1425 mm)

Wheelbase

106.6 in (2708 mm)

Minimum turning circle diameter
(wall to wall)

37.4 ft (11.4 m)

Track

, front

61.1 – 61.3 in (1552 –

1556 mm)

Track

, rear

61.3 – 61.5 in (1557 –

1562 mm)

Ground clearance (unloaded)

4.9 in (124 mm)

NOTICE

Please be careful when parking your vehicle in areas with

parking barriers or curbs. These vary in height and could dam-
age your bumper and related parts if the front of your vehicle
hits a barrier or curb that is too high while you are getting into or
out of a parking spot.

Always be careful when you enter a driveway or drive up or

down steep ramps or over curbs or other obstacles. Parts of the
vehicle close to the ground may be damaged (such as bumper
covers, spoilers, and parts of the engine, suspension, and ex-
haust systems).

Slight differences to these figures are possible, depending on wheel and tire size fitted and the level

selected.

Vehicle key set

Introduction

In this section you’ll find information about:
Remote control vehicle keys
Emergency key
Indicator light in the remote control vehicle key
Replacing the remote control vehicle key battery
Synchronizing the remote control vehicle key

More information:

Volkswagen Information System
Power locking and closing system
Starting and stopping the engine
Consumer information
Emergency closing and opening

DANGER

20 mm button cells and other lithium batteries will cause seri-
ous personal injury and even death within a short time if swal-
lowed.

Always keep remote control vehicle key fobs with batteries,

spare batteries, as well as dead button cell and larger 20 mm
batteries out of the reach of children.

Get medical attention immediately if you suspect that a bat-

tery has been swallowed.

WARNING

Improper use of vehicle keys can result in serious personal in-
jury.

Always take the key with you when you leave the vehicle. It

can be used to start the engine and operate vehicle systems
such as the power windows, leading to serious personal injury.
Children or other unauthorized persons could also lock the
doors and the luggage compartment.

Never leave children, disabled persons, or anyone who can-

not help themselves in the vehicle. The doors can be locked
with the remote control vehicle key. This could leave people
trapped in the vehicle in an emergency. Depending on the time
of year, people trapped in the vehicle can be exposed to very
high or very low temperatures.

A closed vehicle can become very hot or very cold, depend-

ing on the season. Particularly in the summer, heat buildup in
the passenger and luggage compartment of a parked vehicle
can result in temperatures in the vehicle that are much higher
than the outside temperatures. Temperatures can quickly reach
levels that can cause unconsciousness and death, particularly
to small children.

Never remove the key from the ignition switch while the vehi-

cle is moving or rolling to a stop. The steering wheel will lock
and you will not be able to steer or control the vehicle.

Remote control vehicle keys

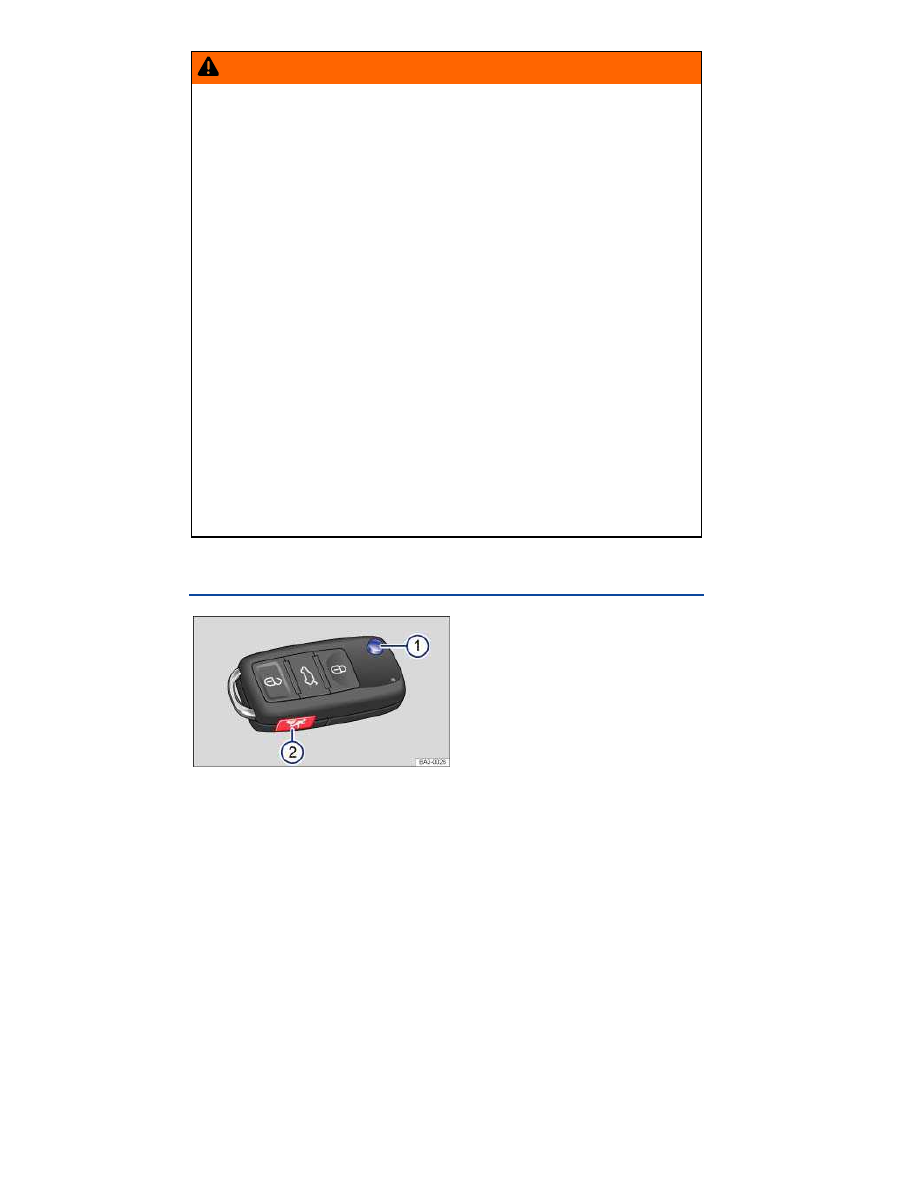

Fig. 20 Remote control vehicle key with panic button.

Please first read and note the introductory information and

heed the WARNINGS

Remote control vehicle key
The remote control vehicle key can unlock and lock the vehicle from a
distance

⇒ Power locking and closing system.

The remote transmitter and battery are inside the remote control ve-
hicle key. The receiver is inside the passenger compartment. The
operating range of the remote control vehicle key for a fresh battery is
several yards (meters) around the vehicle.
If the remote control vehicle key will not lock or unlock your vehicle,
you probably need to replace the battery in the remote control vehicle
key

⇒ Replacing the remote control vehicle key battery. If this is not

the problem, the key should be resynchronized by an authorized
Volkswagen dealer, an authorized Volkswagen Service Facility, or
another qualified workshop. See also

⇒Synchronizing the remote

control vehicle key.

Folding the key bit in or out

Pressing button

⇒

fig. 20

(1)

releases the key bit and folds it out.

To fold the key bit in press button

(1)

while pressing the key bit back

until it clicks.

Panic button
Press the panic button

(2)

only in emergencies! After pushing the

panic button, the horn will sound and the turn signals will flash. Press
the panic button again to switch off the panic feature.

Replacement vehicle keys
The vehicle identification number is required to get a replacement key
or an additional remote control vehicle key.
Depending on the model, up to 8 vehicle keys, each of which must be
properly cut, coded, programmed, and synchronized, can be used
with your vehicle.
Each new vehicle key contains a microchip and must be coded with
the data from the vehicle's electronic immobilizer. A vehicle key will
not work if it does not contain a microchip or contains a chip that is
not coded, even if the key bit was cut correctly.

You can obtain additional or duplicate remote control vehicle keys
from authorized Volkswagen dealers, authorized Volkswagen Service
Facilities, and from certain independent repair facilities and lock-
smiths which are qualified to make remote control vehicle keys.
Each vehicle key must be programmed by an authorized Volkswagen
dealer or an authorized Volkswagen Service Facility in order for it to
work with your vehicle.
To find the nearest qualified independent repair facility, locksmith, or
Volkswagen dealer which can cut and code replacement vehicle
keys, call the VW Customer Care Hotline at 1-800-822-8987 or visit
http://www.vw.com and search for “replacement keys.”
Canadian customers can contact an authorized Volkswagen dealer or
Volkswagen Service Facility or call the Volkswagen Canada Custom-
er CARE Center at 1-800-822-8987.

NOTICE

The remote control vehicle keys contain electrical components.
Protect them from damage, moisture and rough handling.

Do not press the buttons on the remote control vehicle key unless

you actually want to use the function in question. Since terrain and
conditions vary, pressing a button on the remote control vehicle key
when it is not necessary may unlock the vehicle or set off the panic
alarm, even if you think you are out of range.

Remote control vehicle key functions can be temporarily disrupt-

ed by interference from transmitters near the vehicle that use the
same frequency range (such as radio equipment or mobile phones).

Things between the remote control vehicle key and vehicle, bad

weather, as well as a weak battery can reduce the operating range.

If the remote control vehicle key buttons

⇒

fig. 20

or the power

locking buttons

⇒ Unlocking or locking the vehicle from the inside are

pushed repeatedly in quick succession, the power locking system is
switched off for a brief period to help keep it from being overloaded.
The vehicle is then unlocked for about 30 seconds. Unless a door or

the luggage compartment lid is opened in this span of time, the vehi-
cle is automatically locked afterwards.

Emergency key

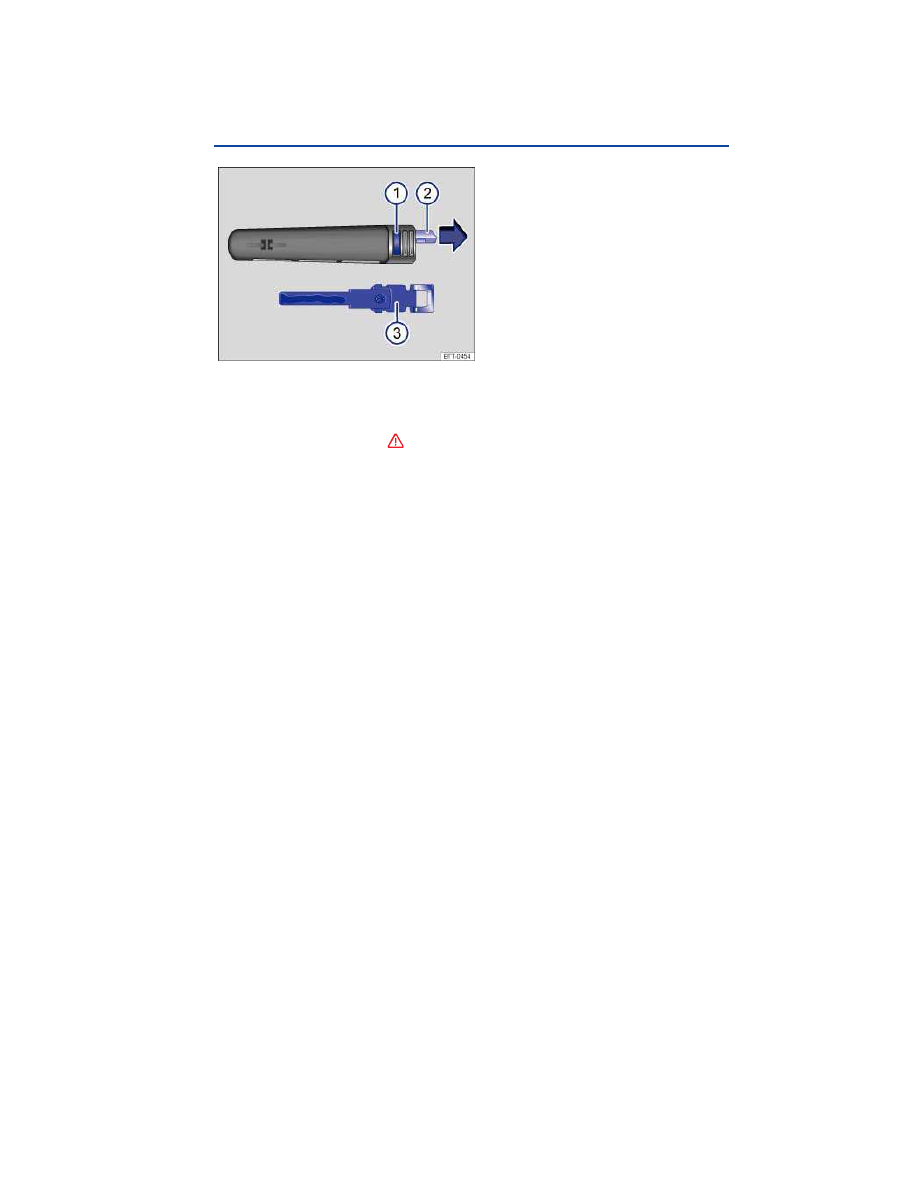

Fig. 21 Remote control vehicle key (side view): Press the button 1
and remove emergency key 3 by the eyelet 2.

Please first read and note the introductory information and

heed the WARNINGS

Inside the remote control vehicle key, there is an emergency key
⇒

fig. 21

(3)

for manually unlocking and locking the vehicle.

In the vehicle key

⇒

fig. 21

(1)

Emergency key release button.

(2)

Emergency key in the remote control vehicle key, with eyelet for

fastening to a key chain.

(3)

Emergency key removed.

Releasing and removing the emergency key
Press and hold button

(1)

Pull out the emergency key by the eyelet

(2)

in the direction of the

arrow.

Using the emergency key
The emergency key can be used for the following:

Locking and unlocking the glove compartment on the passenger

side

⇒ Storage areas.

Locking and unlocking the luggage compartment pass-through

⇒

Seat functions.

Locking and unlocking the luggage compartment lid using the key

switch in the driver door

⇒ Driver door overview

Manually locking and unlocking the vehicle

⇒Emergency closing

and opening.

Reinserting the emergency key
Insert the emergency key

(3)

into the opening in the remote control

vehicle key.
Slide the emergency key in the direction opposite to the arrow until it
locks into place.

Indicator light in the remote control vehicle key

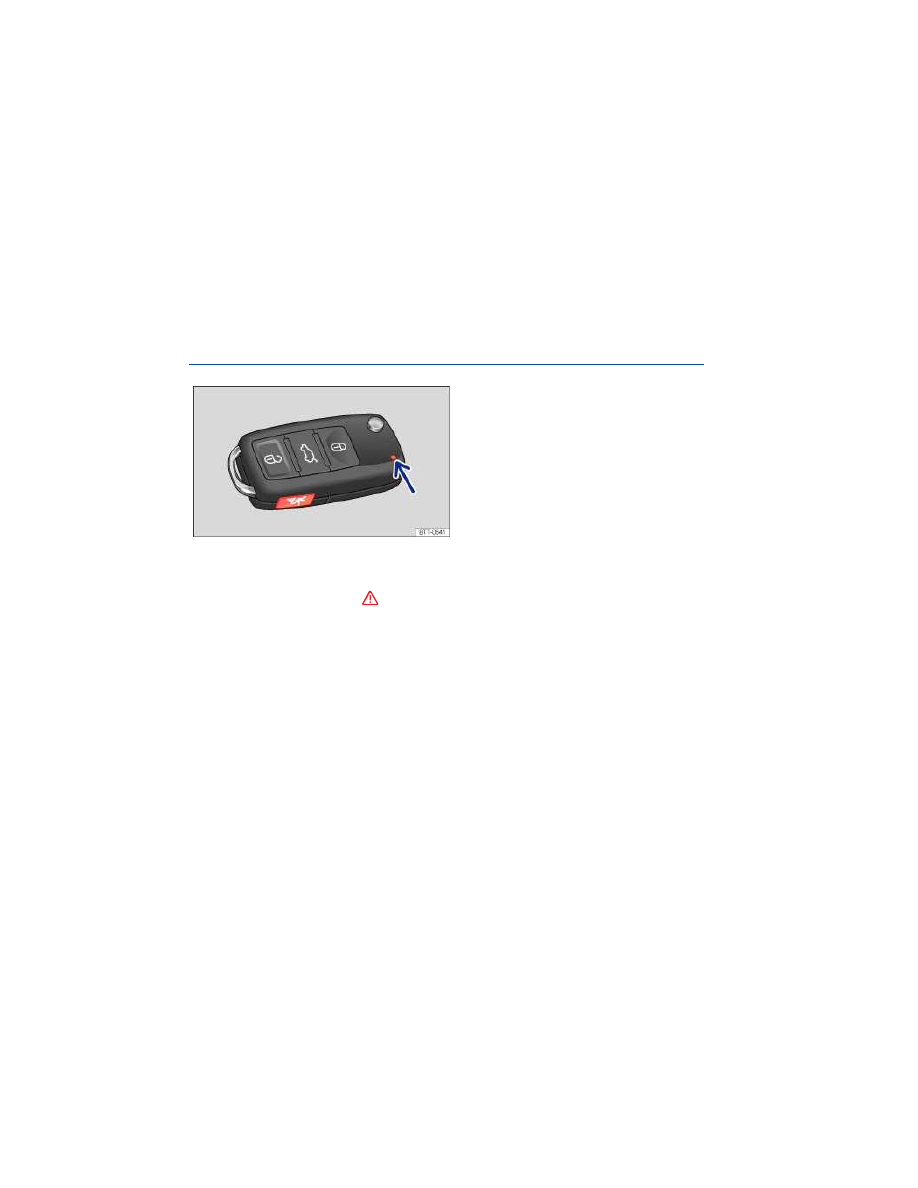

Fig. 22 Indicator light in the remote control vehicle key.

Please first read and note the introductory information and

heed the WARNINGS

If a button in the remote control vehicle key is pressed briefly, the
indicator light

⇒

fig. 22

(arrow) will flash once briefly. If you push and

hold a button, it flashes repeatedly.
If the indicator light in the remote control vehicle key does not come
on when the button is pressed, the battery inside the key must be
replaced

⇒ Replacing the remote control vehicle key battery.

A Declaration of Compliance with United States FCC and Industry
Canada regulations is found in the Consumer information section of
this Manual

⇒Consumer information.

Replacing the remote control vehicle key battery

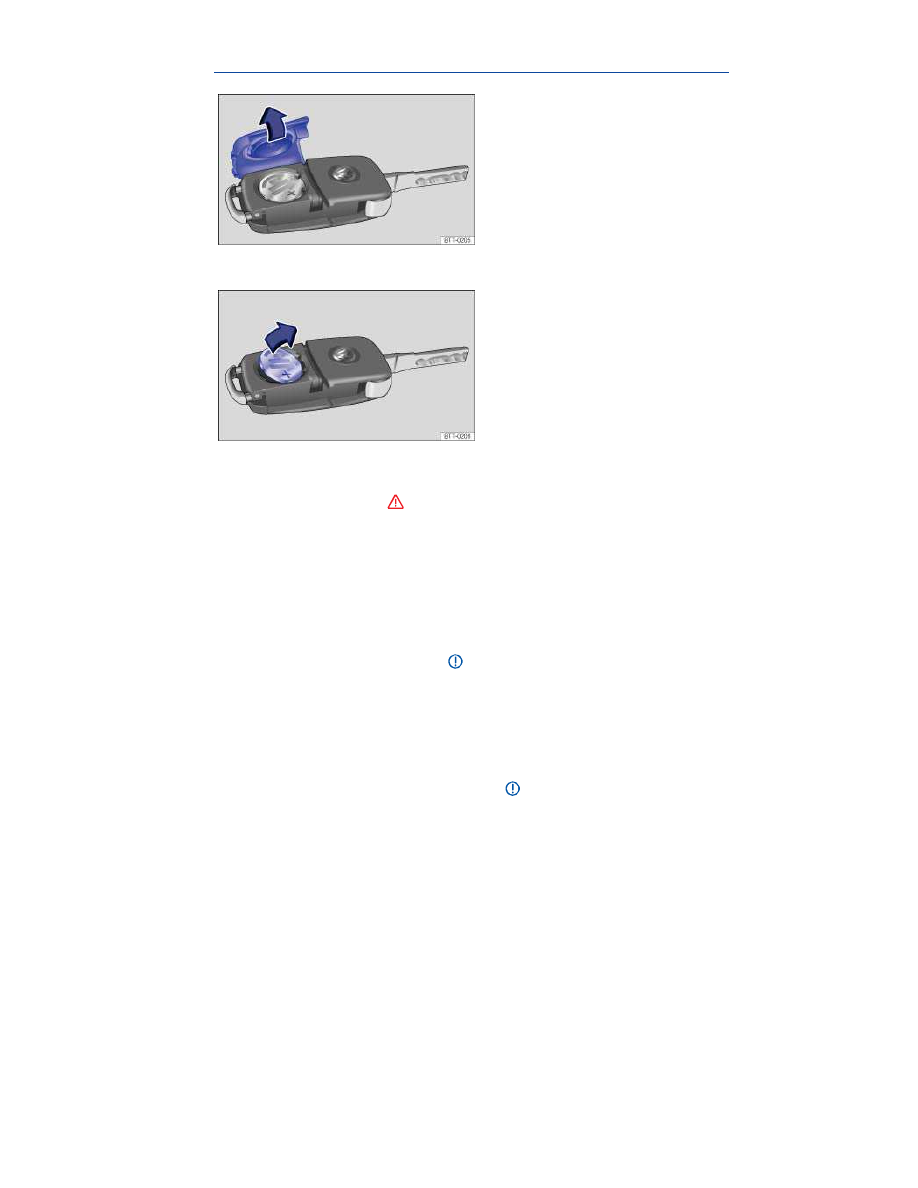

Fig. 23 Remote control vehicle key: Open battery compartment cover.

Fig. 24 Remote control vehicle key: Remove old battery.

Please first read and note the introductory information and

heed the WARNINGS

Volkswagen recommends having the battery in the remote control
vehicle key changed by an authorized Volkswagen dealer or an au-
thorized Volkswagen Service Facility.
The battery is on the back of the remote control vehicle key under a
cover

⇒

fig. 23

When changing the battery, pay attention to the correct polarity and
use the same type of battery

⇒ .

Replacing the battery

Unfold the key bit on the remote control vehicle key

⇒ Remote con-

trol vehicle keys.

Remove the cover on the back of the remote control vehicle key

⇒

fig. 23

in the direction of the arrow

⇒ .

Volkswagen CC (2015 year). Instruction - part 4
