Volkswagen CC (2015 year). Instruction

Compass

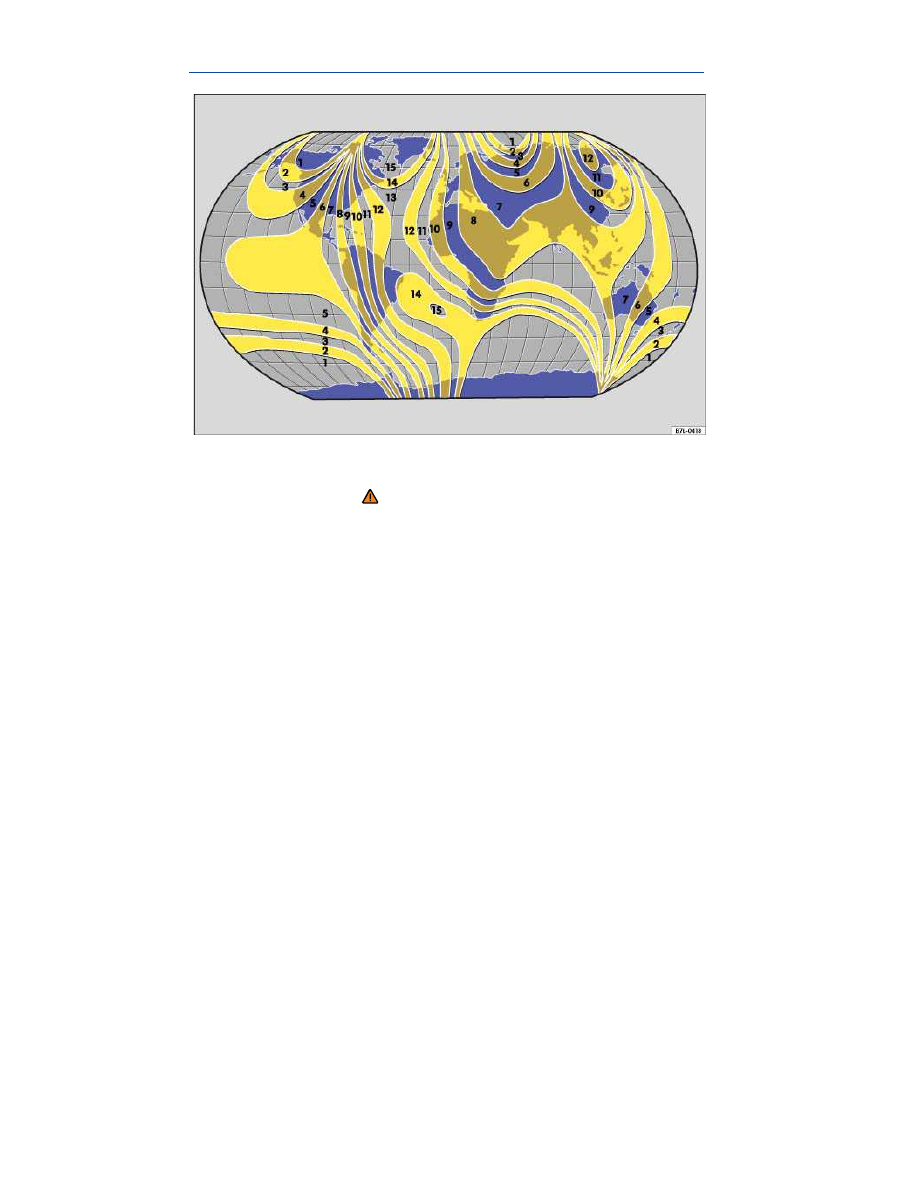

Fig. 12 Compass zones.

Please first read and note the introductory information and

heed the WARNINGS

The compass does not need to be calibrated in vehicles with a facto-
ry-installed navigation system. There is no Compass menu item in
this case.
On vehicles without a factory-installed navigation system, the com-
pass is calibrated automatically. If electrical or metallic accessories
are added to the vehicle, the compass must be recalibrated.

Adjusting the compass zone

Switch on the ignition.
Select the Settings menu followed by the Compass and Zone

menu items.

Select the compass zone according to the current location

⇒

fig. 12

Adjust and confirm compass zone (1-15) by using the arrow but-

tons.

Calibrating the compass
In order to calibrate the compass, you need a valid compass zone for
the location and enough room to drive in a circle.

Switch on the ignition.
Select the Settings menu followed by the Compass and Calibrate

menu items.

Confirm the Please drive a full circle to calibrate message by

pressing the button on the multi-function steering wheel, and then
drive in a complete circle at about 6 mph (10 km/h).
During calibration, CAL is shown in the instrument cluster display.
The calibration is complete when the compass direction is displayed.

Service reminder display

Please first read and note the introductory information and

heed the WARNINGS

The service appointment reminder is shown in the instrument cluster
display.
For information on maintenance intervals, please see the
⇒ Booklet Warranty and Maintenance.
For vehicles with time- or distance driven-dependent service, only
fixed service intervals are displayed.

Service reminder
If service is due in the near future, a service reminder is displayed
when the ignition is switched on.
The messages Oil change and Inspection are shown in the instru-
ment cluster display with the number of miles (km) and days remain-
ing until service is due.

Service event
When Service is due, the message Oil change now! or Inspection
now! is shown in the instrument cluster display.

Viewing service message
The current service message can be accessed when the ignition is
switched on, the engine is switched off, and the vehicle is stopped:

Select the Settings menu.
In the Service submenu, select the Info menu item.
OR: If the Vehicle status main menu is active, use the arrow but-

tons to navigate to the service reminder display.
A minus sign in front of the number of miles (kilometers) or days
means that service is overdue.

Resetting the oil change service reminder
If the service was not performed by an authorized Volkswagen dealer
or an authorized Volkswagen Service Facility, the oil change service
reminder can be reset as follows:

Switch off the ignition.

Press and hold the .

button in the instru-

ment cluster.

Switch on the ignition.

Release the .

button.

A confirmation message appears in the dis-

play. Confirm request with the

in the

windshield wiper lever or the button on the
multi-function steering wheel.

Resetting the inspection service reminder
If the service was not performed by an authorized Volkswagen dealer
or an authorized Volkswagen Service Facility, the inspection service
reminder can be reset as follows:

Switch off the ignition.

Switch on the emergency flashers.

Press and hold the .

button in the instru-

ment cluster.

Switch on the ignition.

Release the .

button.

A confirmation message appears in the dis-

play. Confirm request with the

in the

windshield wiper lever or the button on the
multi-function steering wheel.

Switch off the emergency flashers.

Do not reset the service reminder between service intervals; oth-

erwise incorrect information will be displayed.

The service reminder disappears after a few seconds or after

the

button on the windshield wiper lever or the button on

the multi-function steering wheel has been pushed.

Volkswagen Information System

Introduction

In this section you’ll find information about:
Using the instrument cluster menus
Driver assistance systems button
Menu structure – overview
Menu structure – overview
Main menu
MFI menu (Multi-Function Indicator)
Settings menu
Settings menu
Convenience submenu
Convenience submenu
Lights & Vision submenu
Personal convenience settings

When the ignition is switched on, you can display different types of
information in the instrument cluster and control certain vehicle fea-
tures.
The control buttons are on the right side of the multi-function steering
wheel.
The number of menus in the instrument cluster display depends on
the electronics and equipment on the vehicle.
An authorized Volkswagen dealer or an authorized Volkswagen Ser-
vice Facility may be able to add or modify functions depending on
your vehicle's equipment.
Some menu items can only be accessed when the vehicle is not mov-
ing.
As long as a priority 1 warning message is displayed, no menus can
be accessed. In order to display menus, acknowledge the warning by
pressing the button on the multi-function steering wheel

⇒

fig. 13

More information:

Outside mirrors
Driver assistance systems

Radio or Navigation system

⇒ Booklet Radio or

⇒ Booklet Navigation system

Mobile phone package

⇒ Booklet Mobile Phone Package

WARNING

Driving on today's roads demands the full attention of the driv-
er at all times. Driver distraction causes accidents, collisions
and serious personal injury!

Never access menus when the vehicle is moving.

Emergency starting and starting the engine with a very weak ve-

hicle battery or after the vehicle battery has been replaced may
change or delete system settings (including time, date, personal con-
venience settings, and programming). Check the settings and correct
as necessary once the vehicle battery has built up a sufficient charge.

Using the instrument cluster menus

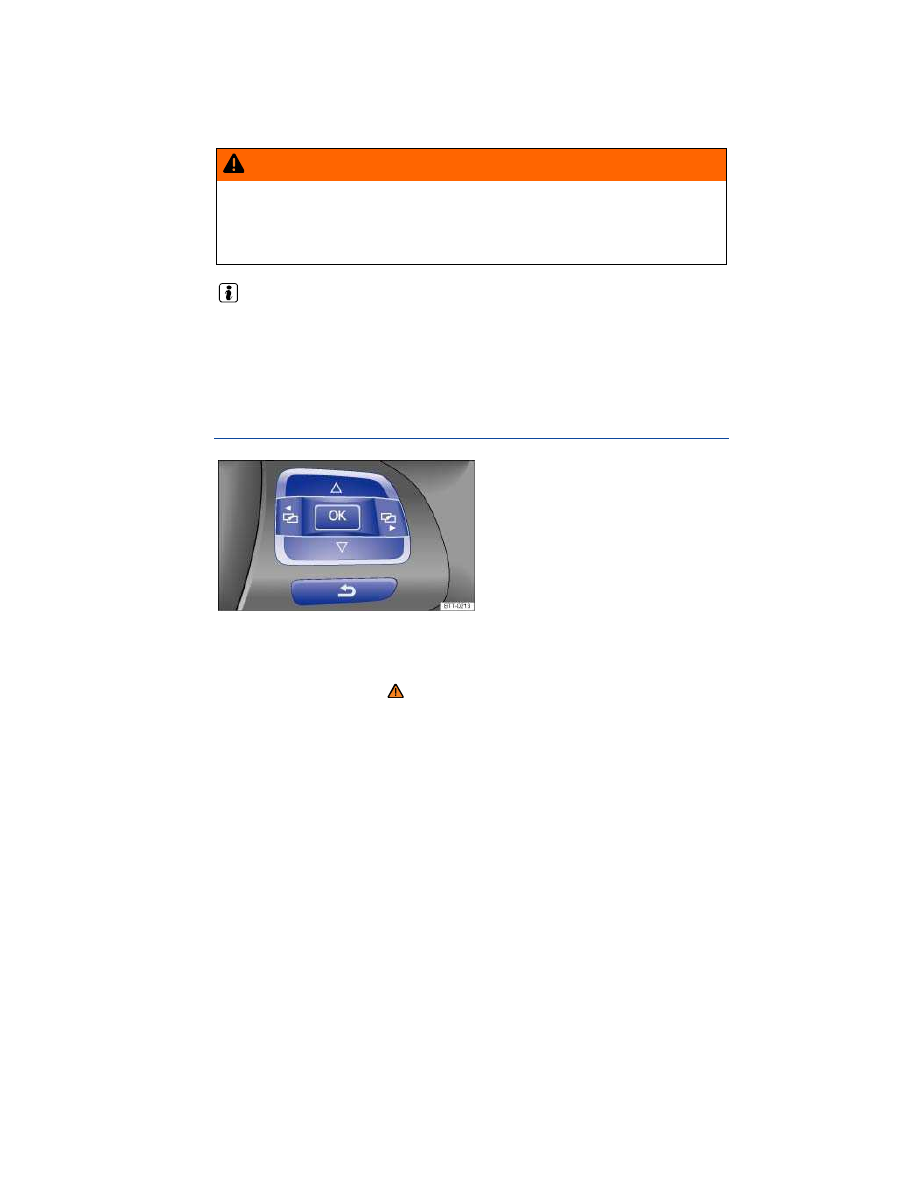

Fig. 13 Right side of the multi-function steering wheel: Controls for
menus in the instrument cluster.

Please first read and note the introductory information and

heed the WARNINGS

The instrument cluster menus are controlled with buttons on the right
side of the steering wheel

⇒

fig. 13

Accessing the instrument cluster menus

Switch on the ignition. You will see the vehicle icon or a message

in the instrument cluster display.

Push the button (

⇒

fig. 13

) on the right side of the multi-function

steering wheel until a main menu appears in the instrument cluster
display. For a list of main menus, see

⇒ Main menu.

Push buttons # or ∃ to move to another main menu, and push the

arrow up and down buttons and to navigate inside the current
main menu. For example, in the Settings main menu, press the ar-
row down button to navigate to the MFI data submenu.

Displaying a submenu

Press the button

⇒

fig. 13

to display submenu items. For in-

stance, after scrolling to MFI data in the Settings main menu, press
the button to display items available under the MFI data submenu.

Selecting a setting

Some menus are used to select settings for certain features. Push

the button (

⇒

fig. 13

) to select a setting.

Use the arrow up and down buttons and on the multi-function

steering wheel to navigate through the available options.

The selected menu item is located between the 2 horizontal lines.

There may also be a triangle ( ) on the right.

Push the button to select the setting.

Returning to the main menu

Via menu: Use the arrow down button to select Back and then

press the button

⇒

fig. 13

For operation with multi-function steering wheel: Press

Driver assistance systems button

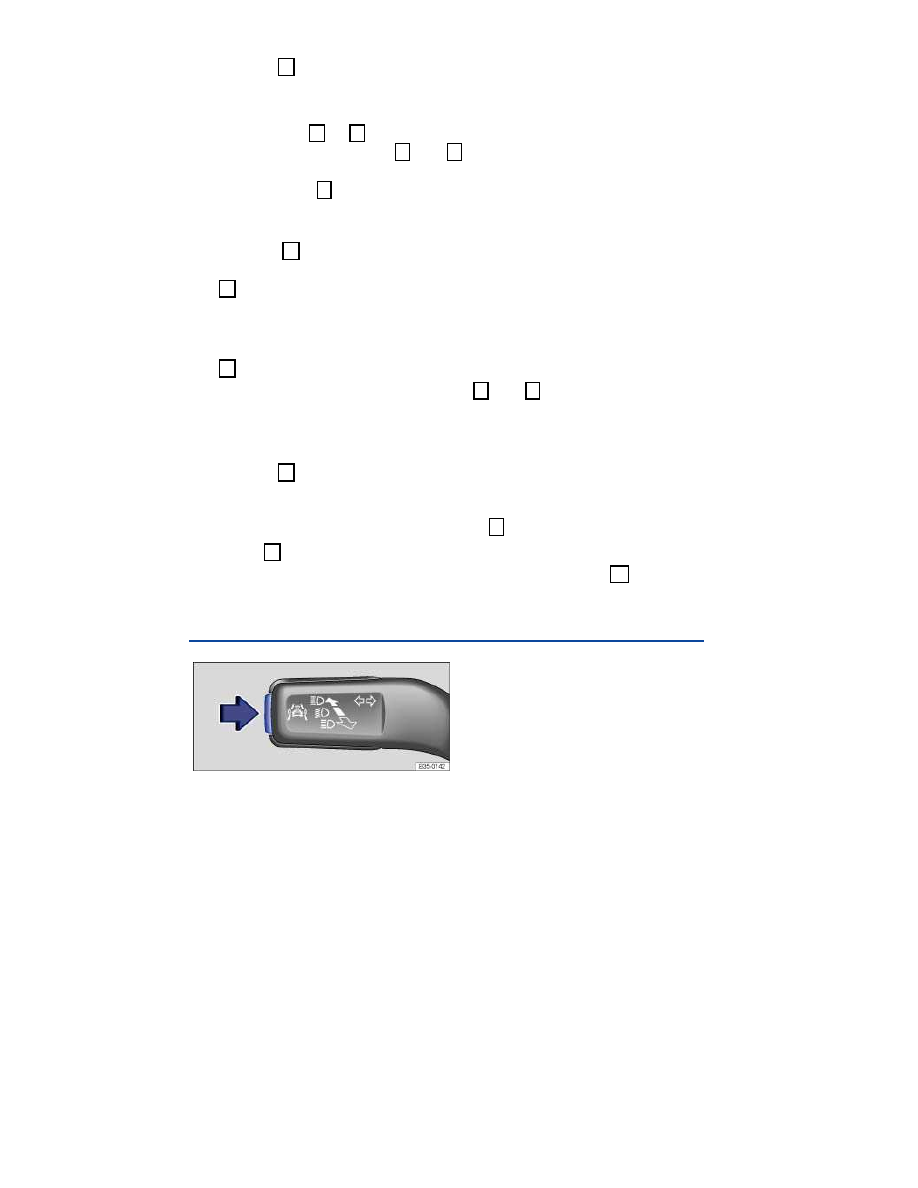

Fig. 14 In the turn signal and high beam lever: Driver assistance sys-
tems button.

Please first read and note the introductory information and

heed the WARNINGS

You can switch the driver assistance systems on or off in the Assis-
tants menu using the button in the turn signal and high beam lever.

Switching individual driver assistance systems on or off

Press the button

⇒

fig. 14

(arrow) briefly to open the Assistants

menu.

Select the driver assistance system (for example, AFS). A “check

mark” indicates if the selected driver assistance system is switched
on.

Confirm the selection with .

Switching all driver assistance systems on or off

Press and hold the button

⇒

fig. 14

(arrow) longer than one se-

cond to switch the driver assistance systems selected in the Assis-
tants menu on or off at the same time.

If no driver assistance system was activated in the Assistants

menu, all systems are switched on.

Menu structure – overview

Please first read and note the introductory information and

heed the WARNINGS

The instrument cluster display is divided into 3 parts. The time (digital
clock) is displayed in the top part. The bottom part contains the
odometer and the trip odometer (“trip”). You can select the following
displays for the middle part:
Multi-Function Indicator (MFI)
▪  Travel time
▪  Consumption --.- mpg (current fuel consumption)
▪  Av. consumption --.- mpg (average fuel consumption)
▪  Range
▪  Route
▪  Average speed
▪  --- mph (digital speed display)
▪  Oil temperature (3.6 liter engine only)

▪ Speed warning --- mph

Audio

⇒ Booklet Radio or ⇒ Booklet Navigation system

Navigation

⇒ Booklet Navigation system

Phone

⇒ Booklet Mobile Phone Package

Assistants
▪  AFS
Vehicle status
Settings
▪  Language
▪  MFI data

–  Travel time
–  Curr. consum. (current fuel consumption)
–  Av. consum. (average fuel consumption)
–  Route
–  Av. speed (average speed)
–  Digit. speed (digital speed display)
–  Oil temperature (3.6 liter engine only)
–  Speed warn. (speed warning)
–  Back

▪ Convenience

–  ATA confirm
–  Easy Open (on/off)
–  Central locking

Auto lock
Auto unlock
Unlock doors
Back

– Window op. (window operation)

Off
All
Driver
Back

– Mirror down (on/off)

– Mirror adjust

Individually
Both mirrors
Back

– Factory setting
– Back

▪ Lights & Vision

–  Coming Home
–  Leaving Home
–  Footwell light
–  Conv. turn sig. (convenience turn signal)
–  Factory setting
–  Back

▪ Time

–  Hours
–  Minutes
–  24 hr. mode
–  Daylight save
–  Back

▪ Snow tires (winter tires)

–  On
–  + 5 mph
–  - 5 mph
–  Back

▪ Compass (vehicles without navigation system)

–  Zone
–  Calibrate
–  Back

▪ Units

–  Temperature
–  Consump./dist.
–  Air pressure
–  Back

▪ Service

– Info
– Back

▪ Factory setting

Main menu

Please first read and note the introductory information and

heed the WARNINGS

Menu

Function

See

MFI

Multi-Function Indicator (MFI)
information.

Audio

Station indicator in radio mode.
Track display in CD mode.
Track display in media mode.

⇒ Booklet Radio or

⇒ Booklet Navigation

system

Navigation Information displays on the navi-

gation system (if applicable):
When destination guidance is
active, turn arrows and proximity
bars are shown. The illustration
is similar to the symbol display in
the navigation system.
If destination guidance is inac-
tive, driving direction (compass
function) and the current street
name are displayed.

⇒ Booklet Navigation

system

Phone

Information and settings of the
mobile phone package.

⇒ Booklet Mobile

Phone Package

Assistants Turn the Adaptive Front Lighting

System (AFS) on and off (if ap-
plicable).

Menu

Function

See

Vehicle
status

Current warning and information
messages.
This menu item is only displayed
when warning or information
messages are available. The
number of available messages is
shown in the display. Example:
1/1 or 2/2.

Settings

Includes the Convenience and
Lights & Vision submenus, as
well as many settings such as
time, speed warning for winter
tires, language, and units.

MFI menu (Multi-Function Indicator)

Please first read and note the introductory information and

heed the WARNINGS

The MFI display has 2 automatic memories: 1 – single trip memory
and 2 – total trip memory. The number of the trip memory is shown
at the upper right of the display.
The trip memories are in addition to the trip odometer, which is dis-
played in the bottom part of the instrument cluster and controlled us-
ing the

button on the right of the instrument panel

⇒

fig. 9

(4)

To display the distance driven on trips 1 and 2, select the Route item
in the MFI menu. Press the button

⇒

fig. 13

to toggle between

Route 1 and Route 2 (trip 1 and trip 2). Push and hold the button
to manually reset a trip memory to zero.

Single trip
memory

The memory accumulates and stores infor-
mation about distance driven and fuel used from
the time the ignition was switched on until the
time it was switched off.
If the ignition stays off for 2 hours or more,
stored information is automatically deleted. If the
trip is continued within 2 hours after the ignition
was switched off, the new values are added.

Total trip
memory

The memory displays and stores the accumulat-
ed driving and fuel consumption data of any
number of single trips up to a total driving time
of 99 hours and 59 minutes, and up to a total
distance of 9,999 miles (9,999 km). If one of the
maximum values is exceeded, then the memory
is automatically cleared and starts again from 0.

Possible MFI menu displays
The following displays can be accessed in the MFI menu if enabled
under Settings > MFI data. Displays that are not enabled will not
appear.

Display

Function

Travel time

Driving time in hours (h) and minutes (min) cor-
responding to trip memories 1 and 2 (toggle).

Consumption
--.- mpg

Current fuel consumption in miles per gallon
(l/100 km) while driving.
When units are set to miles, dashes appear in-
stead of a number when the engine is running
and the vehicle is standing still.
When units are set to kilometers, the display
shows liters consumed per hour when the en-
gine is running and the vehicle is standing still.

Consumption
--.- l/100 km

Av. consumption
--.- mpg

Average fuel consumption in miles per gallon
(l/100 km) on trips per trip memories 1 and 2

Display

Function

Av. consumption
--.- l/100 km

(toggle) is displayed once the vehicle has been
driven about 330 feet (100 m). Until then, dash-
es appear instead of a number. The value dis-
played is updated every 5 seconds.

Range -- mi

Estimated distance in miles (km) that the vehicle
can go with the fuel left in the tank the way you
are currently driving. Takes account of the cur-
rent fuel consumption, among other things.

Range -- km

Route -- mi

Distance driven in miles (km) per trip memories
1 and 2 (toggle).

Route -- km

Average speed
-- mph

Average speed on trips per trip memories 1 and
2 (toggle). Displayed once the vehicle has been
driven about 300 feet (100 m). Until then, dash-
es may appear instead of a number. The value
displayed is updated every 5 seconds.

Average speed
-- km/h

-- mph

Digital display of the current vehicle speed.

-- km/h

Oil temperature Current engine oil temperature (digital display;

3.6 liter engine only).

Speed warning
--- mph

When the set speed (from 20–155 mph or 30–
250 km/h) is exceeded, an acoustic warning
sounds and a visual message may also appear
in the instrument cluster display.

Speed warning
--- km/h

Switching between the displays

Use the arrow up and down buttons ( and ) on the multi-

function steering wheel.

Storing speed for the speed warning

Navigate to MFI > Speed warning (Speed warning -- mph or

Speed warning -- km/h) display.

Press the button to save the current speed and to activate the

warning.

If the speed is not right, press buttons or on the multi-function

steering wheel to set a different speed within about 5 seconds. Then
press the button a second time or just wait a few seconds. The
speed is saved and the warning is activated.

To deactivate, toggle to --- mph or --- km/h and press the but-

ton. The set speed is deleted.

Manually erasing trip memory 1 or 2

Navigate to MFI > Route.
Select the memory to be erased.
Press the button for about 2 seconds.

Enabling and disabling displays
Use the Settings menu, submenu MFI data to enable displays you
want to be available under the MFI menu in the instrument cluster
display. The units in which data is displayed can also be changed

⇒

Settings menu

Settings menu

Please first read and note the introductory information and

heed the WARNINGS

Settings
menu

Function

Language

Set the language for messages in the display and
navigation system.

MFI data

Select the features you want to have displayed in the
MFI menu in the instrument cluster display

Convenience Convenience function settings

Settings
menu

Function

Lights &
Vision

Vehicle lighting settings

Time

Set hours and minutes for the instrument cluster
clock, the Radio & Navigation System clock, and the
analog clock. The digital clocks can be set to show
the time in 12 or 24 hour format, and can also be set
to daylight savings time.

Snow tires

Set up a visual and acoustic speed warning. Use the
feature only when winter tires are installed that have
a speed rating less than top vehicle speed.

Compass

Calibrate the compass on vehicles without a factory-
installed navigation system. To calibrate, follow the
instructions in the instrument cluster display

Units

Set the units in which temperature, fuel consumption,
and distances should be displayed (for example,
whether to show distance driven in miles or kilome-
ters).

Service

View the service reminder display

Factory
setting

Reset the functions in the Settings menu back to the
factory settings.

Lights & Vision submenu

Please first read and note the introductory information and

heed the WARNINGS

Lights &
Vision menu

Function

Volkswagen CC (2015 year). Instruction - part 2
