Volkswagen CC (2015 year). Instruction - part 1







Side view

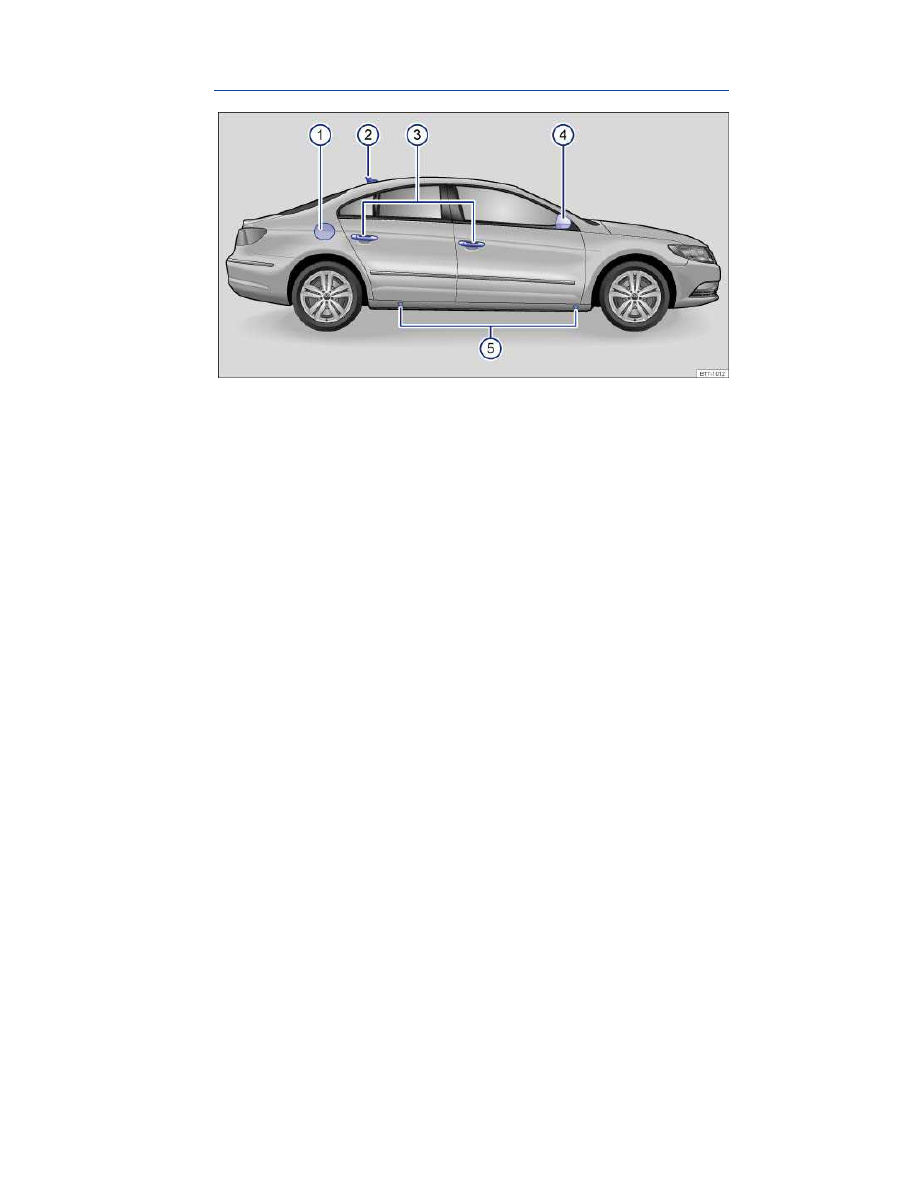

Fig. 1 Vehicle side overview.

Key to

⇒ 

fig. 1

(1)

  Fuel filler flap

(2)

  Roof antenna

(3)

  Outside door handles

(4)

  Outside mirror:

–  Additional turn signal light
–  Background lighting

(5)

  Lift points for the jack



Front view

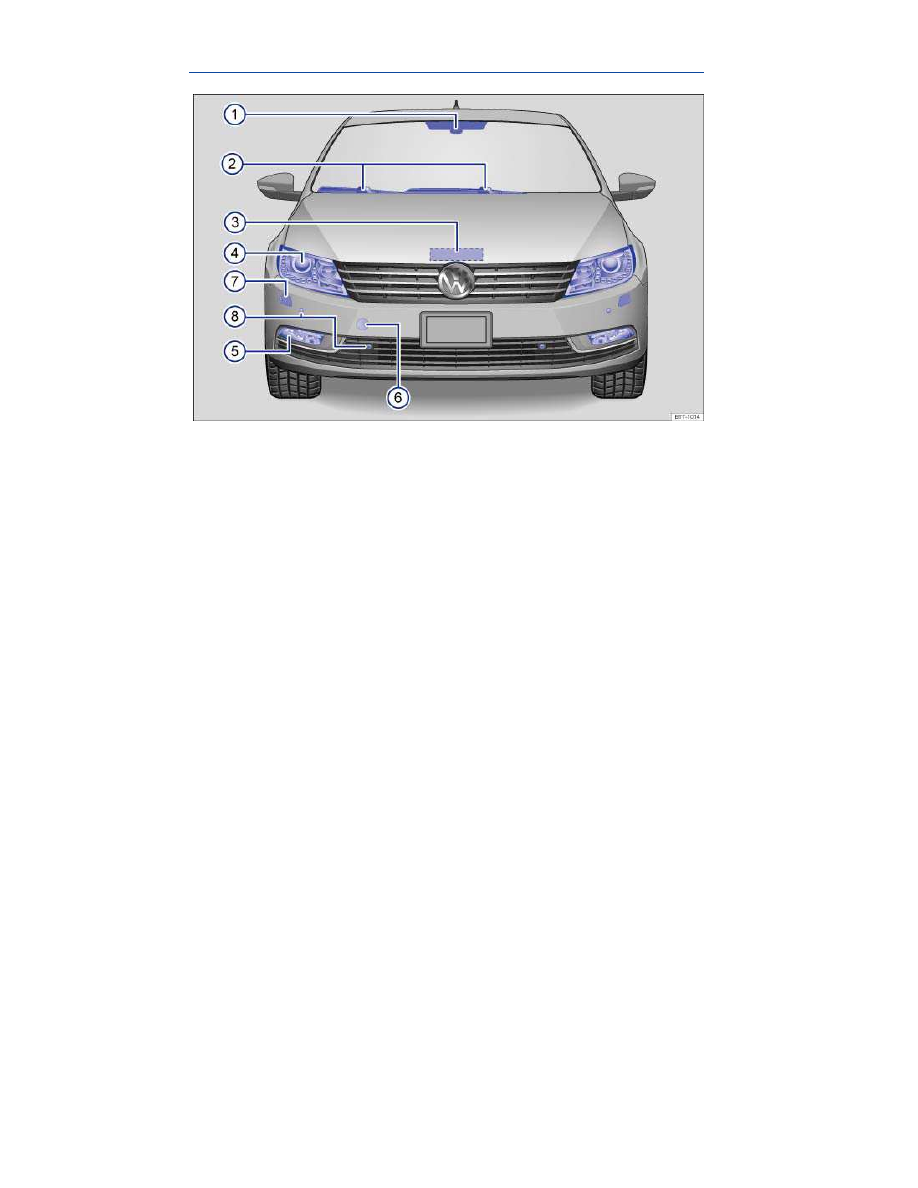

Fig. 2 Vehicle front overview.

Key to

⇒ 

fig. 2

(1)

  Inside mirror with sensor on the mirror base for:

–  Rain sensor
–  Low-light sensor

(2)

  Windshield wipers

(3)

  Engine hood release

(4)

  Headlights (on both left and right)

(5)

  Fog lights/static cornering lights (on both left and right)

(6)

  Threaded hole for the front towing eye (behind cover)

(7)

  Headlight washers (on both left and right)

(8)

  Park Distance Control (PDC) sensors (on both left and right, if

equipped)



Rear view

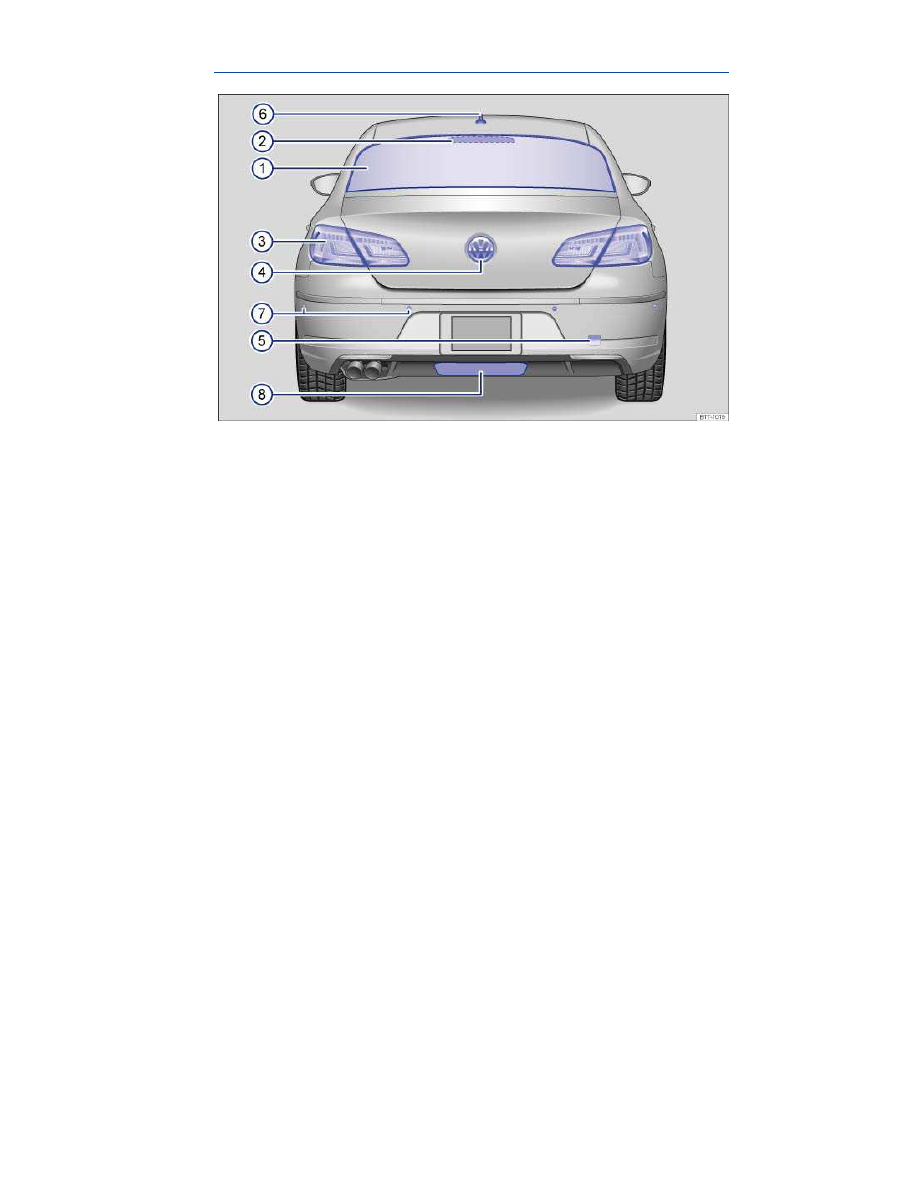

Fig. 3 Vehicle rear overview.

Key to

⇒ 

fig. 3

(1)

  Rear window:

–  Rear window defroster
–  Rear window antenna

(2)

  High-mounted brake light

(3)

  Taillights (on both left and right)

(4)

  Volkswagen emblem. Area for:

–  Luggage compartment release
–  Rear Assist camera (if equipped)

(5)

  Threaded hole for the rear towing eye (behind cover)

(6)

  Roof antenna

(7)

  Park Distance Control (PDC) sensors (on both left and right, if

equipped)

(8)

  Area for attaching a trailer hitch



Driver door overview

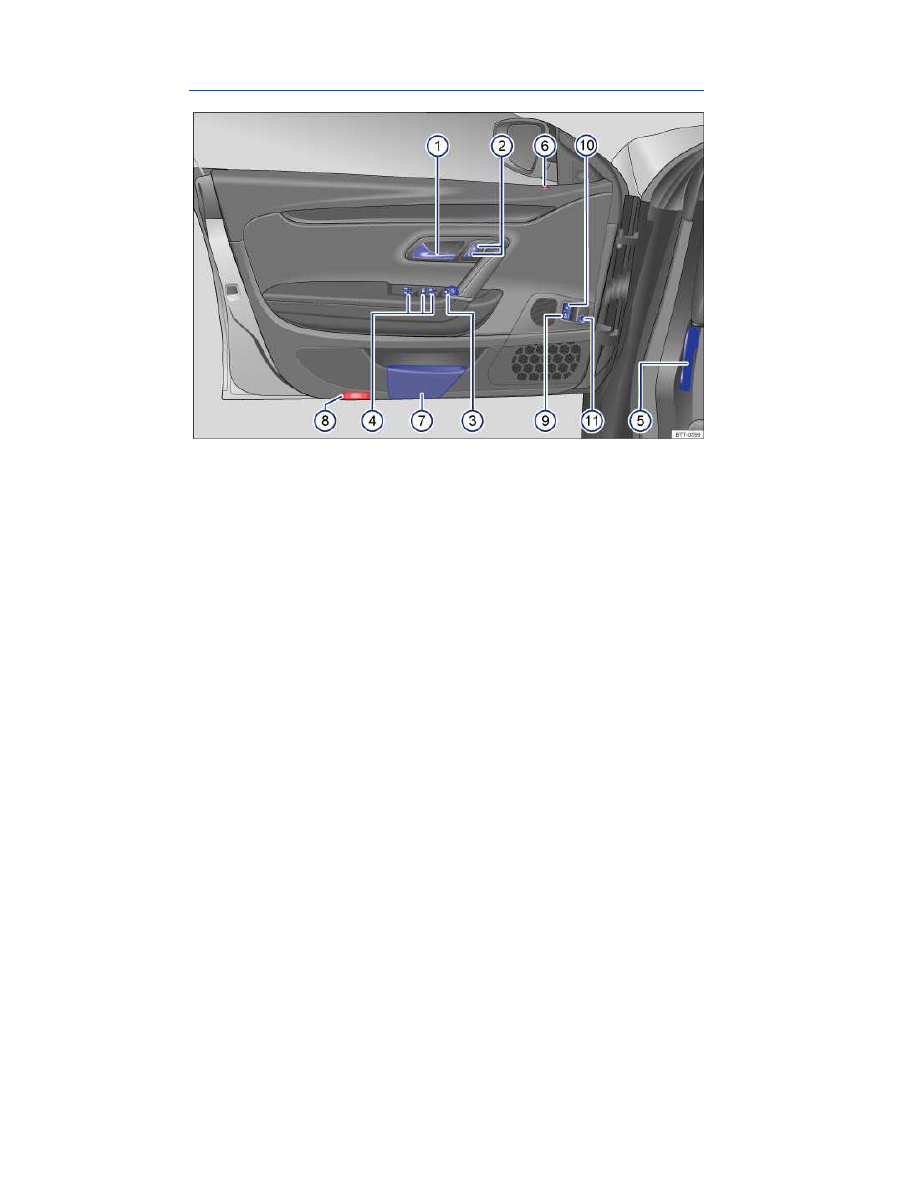

Fig. 4 Overview of controls in the driver door.

Key to

fig. 4

(1)

  Door handle

(2)

  Power locking switch for locking and unlocking the vehicle

(3)

  Knob for adjusting the outside mirrors:

–  Adjusting outside mirrors
–  Outside mirror heating
–  Electrically folding outside mirrors

(4)

  Switches for operating the power windows:

–  Power windows
–  Safety switch for rear power windows



(5)

  Lever for releasing the engine hood

(6)

  Indicator light for the power locking system

(7)

  Storage compartment

(8)

  Light or reflector

(9)

  Luggage compartment release switch



(10)

 Fuel filler flap release switch

(11)

 Key switch for locking the luggage compartment lid



Driver side overview

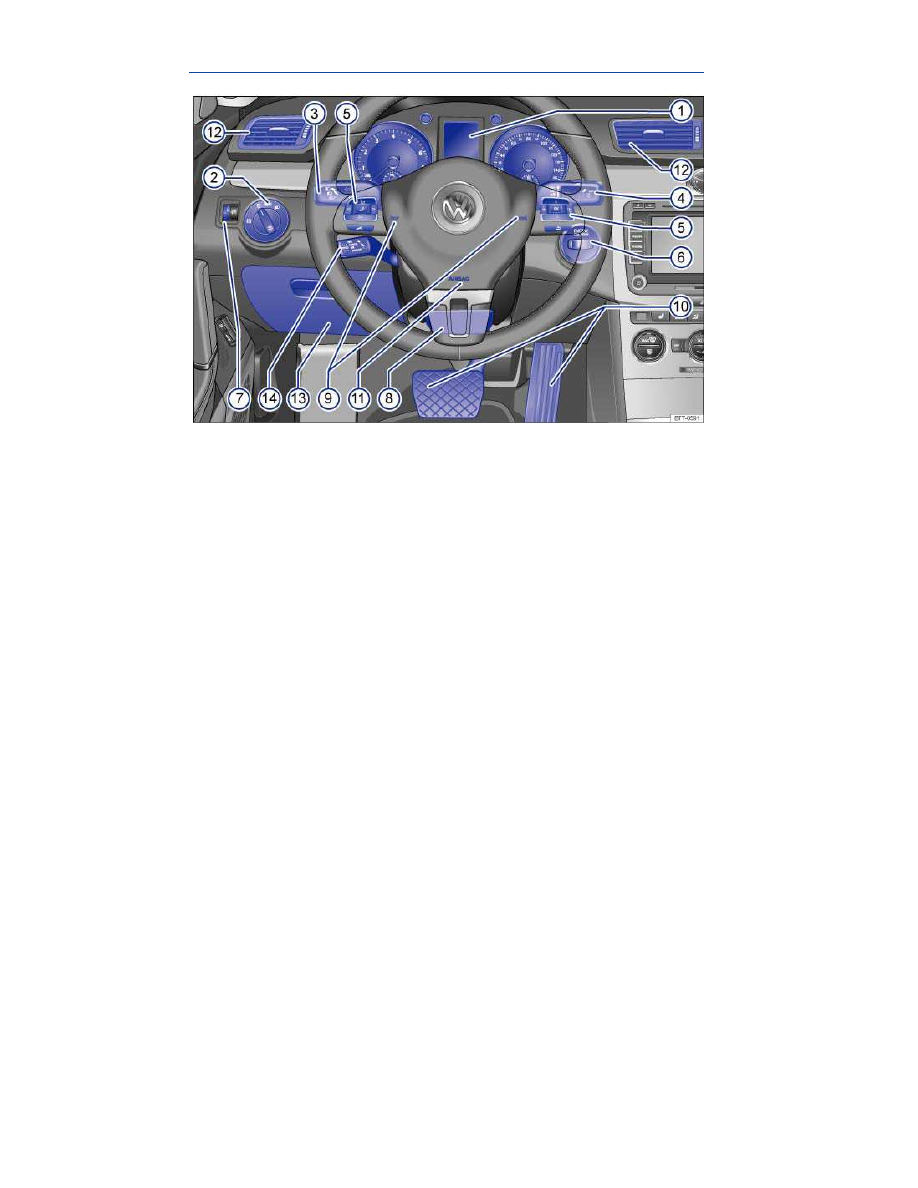

Fig. 5 Driver side overview.

Key to

⇒ 

fig. 5

(1)

  Instrument cluster:

–  Instruments
–  Display
–  Warning and indicator lights

(2)

  Headlight switch  :

–  Off position - -
–  Automatic headlight control -

–  Low beams
–  Fog lights

(3)

  Lever for:

–  High beams
–  Headlight flasher
–  Turn signals
–  Driver assistance systems button (if equipped)

(4)

  Windshield wiper and washer lever:

–  Windshield wiper

 –

–



–  Intermittent operation for windshield wipers



–  “One-tap wiping”  x
–  Windshield wiper
–  Automatic wipe/wash for windshield

(5)

  Multi-function steering wheel controls:

–  Volume setting for radio, navigation system notifications, or

telephone calls   –

–  Mute switching for radio or activation of voice control
–  Display Phone main menu or accept telephone calls
–  Audio, Navigation   -
–  Control buttons for the Volkswagen Information System # –

   –   – ∃,  ,

(6)

  Ignition switch (vehicles without Keyless Access)

(7)

  Dimmer control for the instrument and switch illumination

(8)

  Lever for adjustable steering wheel

(9)

  Horn (only works when the ignition is switched on)

(10)

 Pedals

(11)

 Driver front airbag

(12)

 Air vents



(13)

 Storage compartment

(14)

 Lever for:

–  Cruise Control System (CCS)    –

 –   –

 / –



 +/





Upper center console

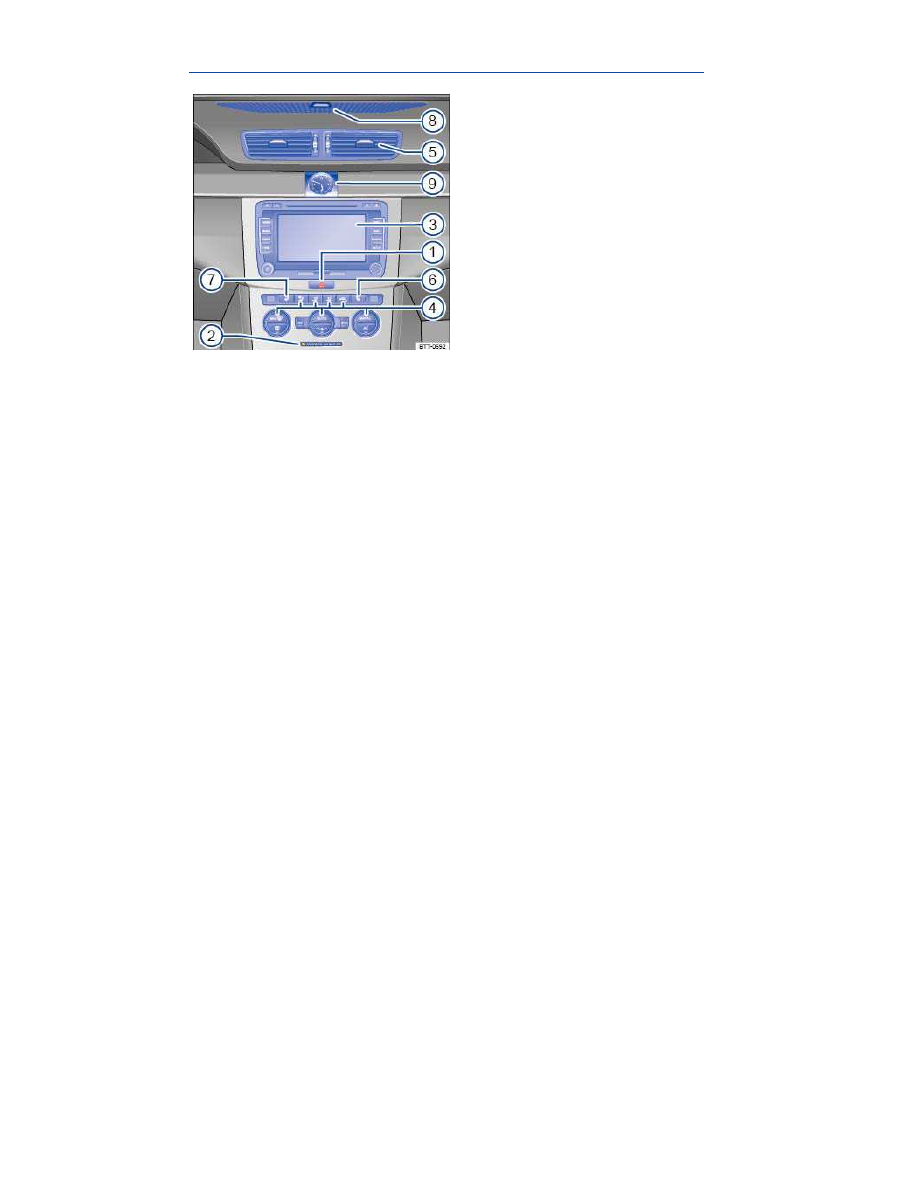

Fig. 6 Overview of the upper center console.

Key to

⇒ 

fig. 6

(1)

  Switch for emergency flashers

(2)

  PASSENGER AIR BAG   light (front airbag for front seat pas-

senger)

(3)

  Radio or Radio & Navigation system (factory-installed)

⇒ Booklet Radio or ⇒ Booklet Navigation system

(4)

  Climatronic controls

(5)

  Air vents



(6)

  Passenger seat heating button

(7)

  Driver seat heating button

(8)

  Air vent for indirect ventilation

(9)

  Analog clock



Lower center console

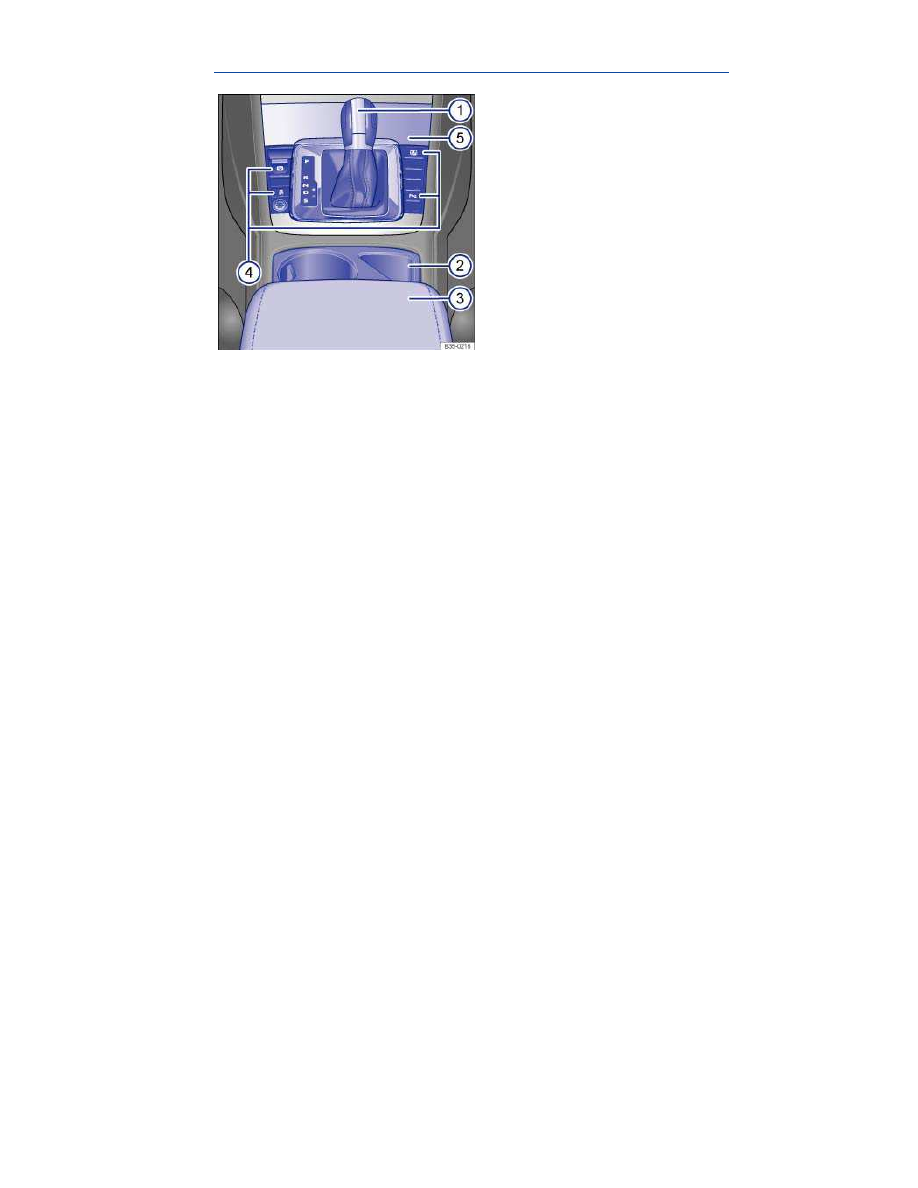

Fig. 7 Overview of the lower center console.

Key to

⇒ 

fig. 7

(1)

  Lever for:

–  Manual transmission
–  Automatic transmission

(2)

  Storage compartment with cup holders in the center console

(3)

  Storage compartment in the center armrest

(4)

  Buttons for:

–  Starter button (vehicles with Keyless Access locking and start-

ing system)

–  Electronic parking brake
–  Anti-slip regulation (ASR)
–  Rear window sunshade
–  Park Distance Control (ParkPilot)

(5)

  Storage compartment:

–  with 12 Volt socket

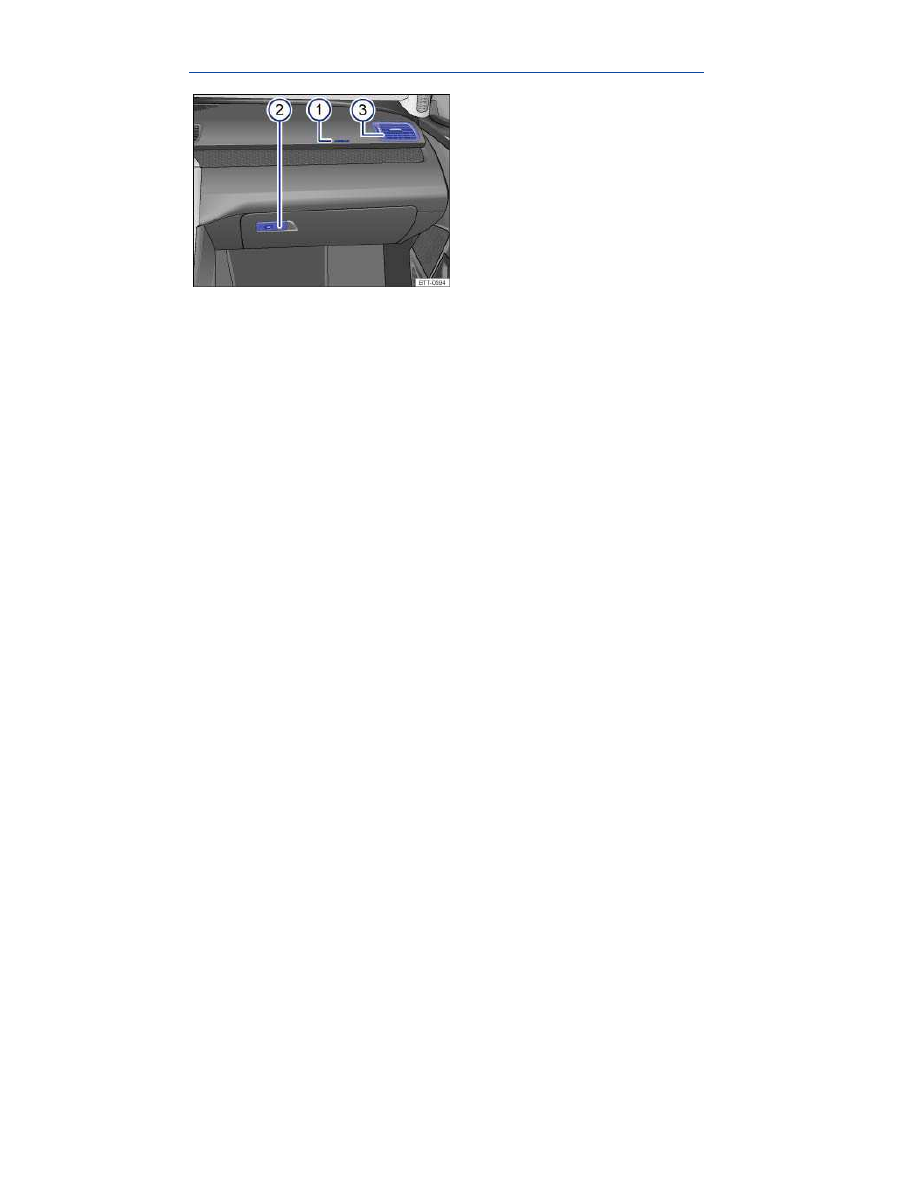

Front passenger side overview



Fig. 8 Overview of the front passenger side.

Key to

⇒ 

fig. 8

(1)

  Passenger front airbag location in the instrument panel (approx-

imate)

(2)

  Opening handle for the lockable glove compartment

(3)

  Air vent









Symbols on the roof console and sun visor



Symbol

Meaning









Interior and reading lights



Power sunroof

•

 •

3-button module.for vehicles with Car-Net

TM



1 2 3

HomeLink

®

 Universal Transmitter











Instrument cluster

 Introduction

In this section you’ll find information about:
Instrument overview
Displays
Displays
Compass
Service reminder display


More information:

 Warning and indicator lights
 Volkswagen Information System
 Shifting

 Service reminder information

⇒ Booklet Warranty and Maintenance

  WARNING

Driving on today's roads demands the full attention of the driv-
er at all times. Driver distraction causes accidents, collisions
and serious personal injury!

 Never use the buttons in the instrument cluster while driving.

Instrument overview



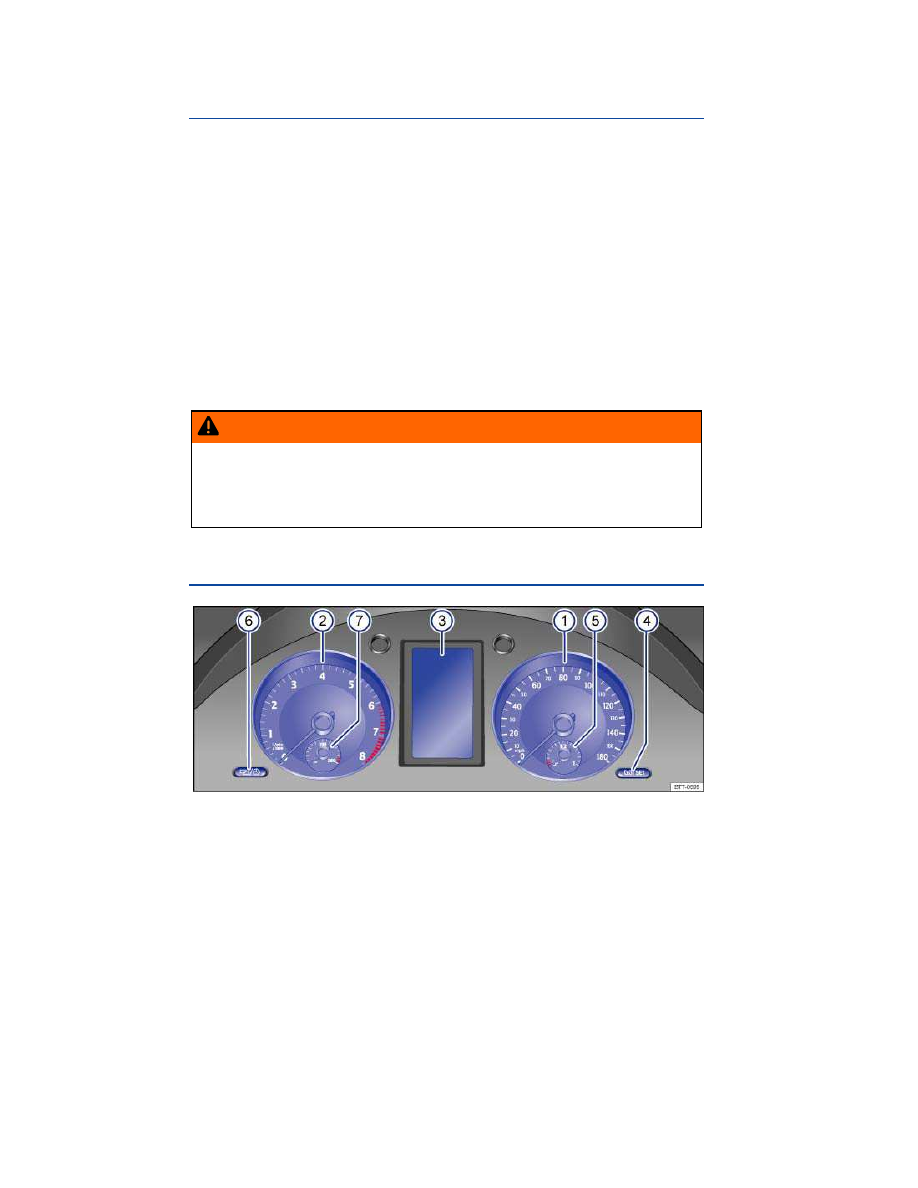

Fig. 9 Instrument cluster in the instrument panel.



 Please first read and note the introductory information and

heed the WARNINGS



Instrument explanations

⇒ 

fig. 9

(1)

  Speedometer

(2)

  Tachometer (thousands of revolutions per minute when the en-

gine is running).



The red zone at the end of the scale indicates maximum permis-
sible engine rpm (revolutions per minute) for all gears after the
break-in period. Before reaching the red zone, select the next
higher gear or selector level position D, or ease your foot off the
accelerator

⇒  .

(3)

  Displays

⇒  Displays

(4)

  Reset button for the trip odometer display (trip).

–  Push the

 button for about 1 second to reset to zero.

(5)

  Fuel gauge

⇒  Refueling

(6)

  Button for setting the instrument cluster clock, the Radio or

Radio & Navigation system clock, and the analog clock

1

–  With the ignition on, push the

 button to highlight the

hour or the minutes in the clock display.

–  To advance the clock, push the

 button

(4)

. Press and

hold the button to fast forward.

–  Push the

 button again to finish setting the clock. The

analog clock may take a few seconds to show the updated
time.

(7)

  Engine coolant temperature display

⇒ Engine coolant

  NOTICE

 To help prevent engine damage, always avoid high engine

speeds, full throttle acceleration, and heavy engine loads when
the engine is cold.


 To help prevent engine damage, the tachometer needle should

only enter the red zone (warning zone) briefly.



1

  On appropriately equipped vehicles, the clocks can also be set via the Settings menu in the instrument

cluster display

⇒ page 32, Settings menu, ⇒ page Error! Bookmark not defined.Settings menu



  Upshifting early into the next higher gear saves fuel and reduces

engine noise.

Displays

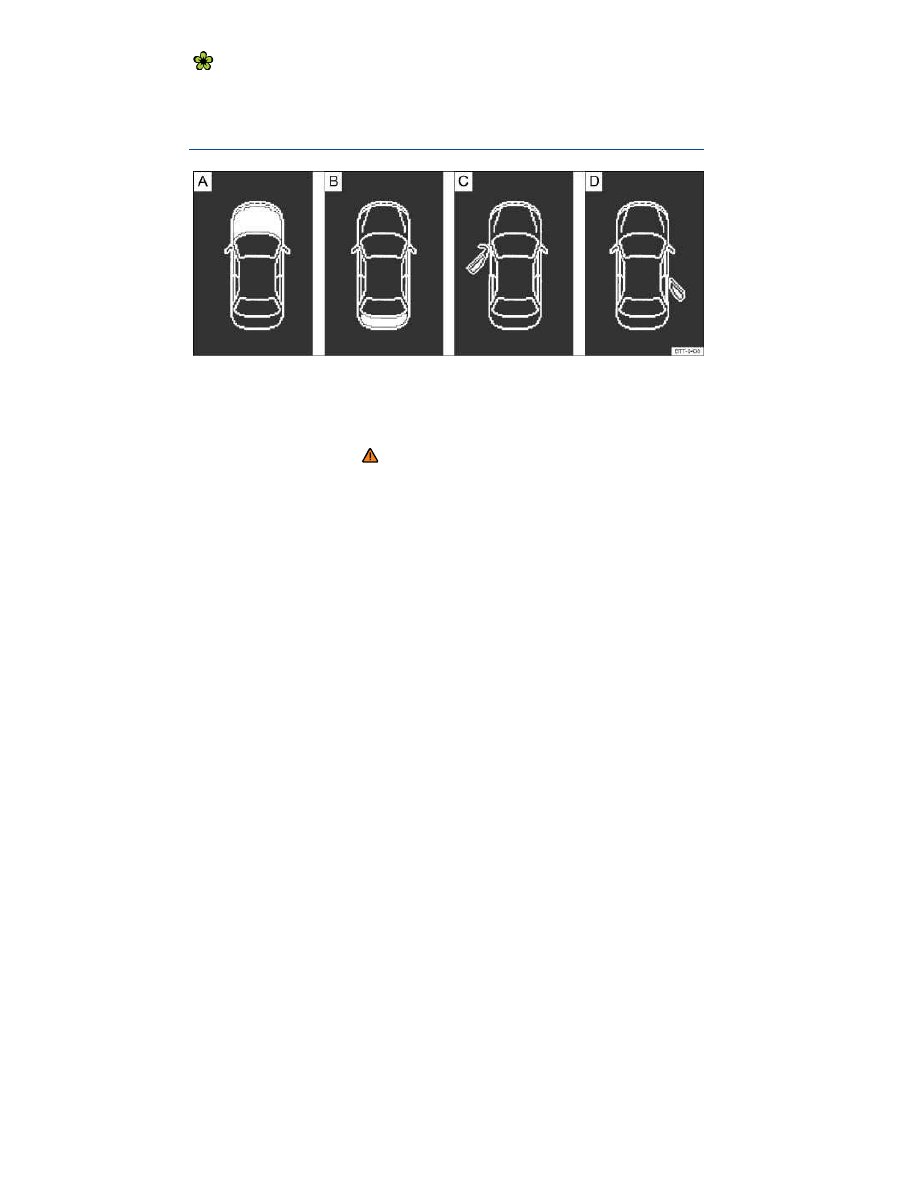

Fig. 10 In the instrument cluster display: A: Open engine hood, B:
Open luggage compartment lid, C: Open front driver side door, D:
Open rear passenger side door.

 Please first read and note the introductory information and

heed the WARNINGS



Depending on the vehicle model, different information may be shown
in the instrument cluster display

⇒ 

fig. 9



(3)

 Warning and information texts
 Odometer displays
 Time
 Outside temperature
 Compass display

 Open door, engine hood, or luggage compartment lid

⇒ 

fig. 10



 Selector lever position

⇒  Shifting

 Gear recommendation

⇒  Shifting

 Multi-Function Indicator (MFI) and menus for different settings

⇒ 

Volkswagen Information System

 Service reminder display



Warning and information texts
The status of various vehicle functions and components is monitored
when the ignition is switched on and while driving. Malfunctions are
indicated by red and yellow warning symbols with text messages in
the instrument cluster display (

⇒ Warning and indicator lights). In

some cases, they may also be signaled acoustically. The display can
vary depending on the instrument cluster model.



Type of
notification

Symbol

color

Explanation

Priority 1
warning
message

Red   Symbol flashing or lit – sometimes with

acoustic warnings.

 Stop!

⇒  !

Check malfunction and take corrective action.
Contact an authorized Volkswagen dealer or
an authorized Volkswagen Service Facility for
assistance if necessary.
Menus cannot be accessed when a priority 1
warning message is displayed. The warning
message will turn off automatically after a few
seconds. You can confirm and turn off some
warning messages using the   button.

Priority 2
warning
message

Yellow  Symbol flashing or continuously lit – some-

times with acoustic warnings.
Malfunctions or low operating fluid levels may
cause vehicle damage and vehicle break-
down

⇒  .

Check malfunction as soon as possible. Con-
tact an authorized Volkswagen dealer or an
authorized Volkswagen Service Facility for
assistance if necessary.

Information
text

–

Information about various vehicle situations.



Odometer displays
The odometer indicates the total distance driven by the vehicle.



The trip odometer (trip) shows the distance driven since the last time
the trip odometer was reset. The last digit indicates 1/10 mile
(100 meters).

Outside temperature display
At outside temperatures below about +39 °F (+4 °C), a “snowflake
symbol” (icy road warning) appears in the display. The symbol flashes
at first, then stays on until the outside temperature rises above +43 °F
(+6 °C)

⇒  .

When the vehicle is not moving or when you are driving at very low
speeds, the temperature displayed may be slightly higher than the
actual outside temperature.
The measurement range is from -40 °F (-40 °C) to +122 °F (+50 °C).

Compass display (if applicable)
On vehicles equipped with compass display, the current compass
direction is indicated in the instrument cluster display when the igni-
tion and navigation system are switched on

⇒  Compass

Selector lever positions
The selector lever position is shown both on the side of the selector
lever and in the instrument cluster display. The respective gear may
also be shown in the instrument cluster display in Drive D and Sport
Drive S, as well as in Tiptronic

®

 mode.

Gear recommendation (manual transmission)
When the vehicle is moving, a fuel economy gear recommendation
may appear in the instrument cluster display

⇒  Shifting



  WARNING

Failure to heed warning lights and instrument cluster text mes-
sages can cause the vehicle to break down in traffic and result
in a collision and serious personal injury.

 Never ignore warning lights or text WARNINGS.
 Always stop the vehicle as soon as it is safe to do so.
 Park the vehicle at a safe distance from moving traffic and

where no part of the hot catalytic converter and exhaust system
can come into contact with flammable materials under the vehi-
cle, such as dry grass, brush, spilled fuel, etc.

 A broken down vehicle presents a high accident risk for itself

and others. Switch on emergency flashers and set up a warning
triangle to warn oncoming traffic.



  WARNING

Roads and bridges may be dangerously icy even if the outside
air temperature is above freezing.

 If you use the outside temperature display to tell you about

frost conditions, remember that roads can even ice over at
temperatures above +39 °F (+4 °C). Always remember: even if
the “snowflake symbol” (icy road warning) is not displayed,
there could still be black ice on the road.

 Never rely exclusively on the outside temperature display.



  NOTICE

Failure to heed warning lights or text WARNINGS can result in
vehicle damage.


  The instrument cluster displays and their arrangement may vary

depending on the vehicle model and engine. For displays without
warning and information messages, malfunctions are only signaled
with indicator lights.

  If there are multiple warning messages, the symbols are dis-

played for several seconds in order of importance. The symbols are
displayed until the cause has been corrected.















Content   ..    1  2   ..
