In case of soiling of the ATF via shavings or during a major
transmission overhaul, torque converter must be drained
as follows:

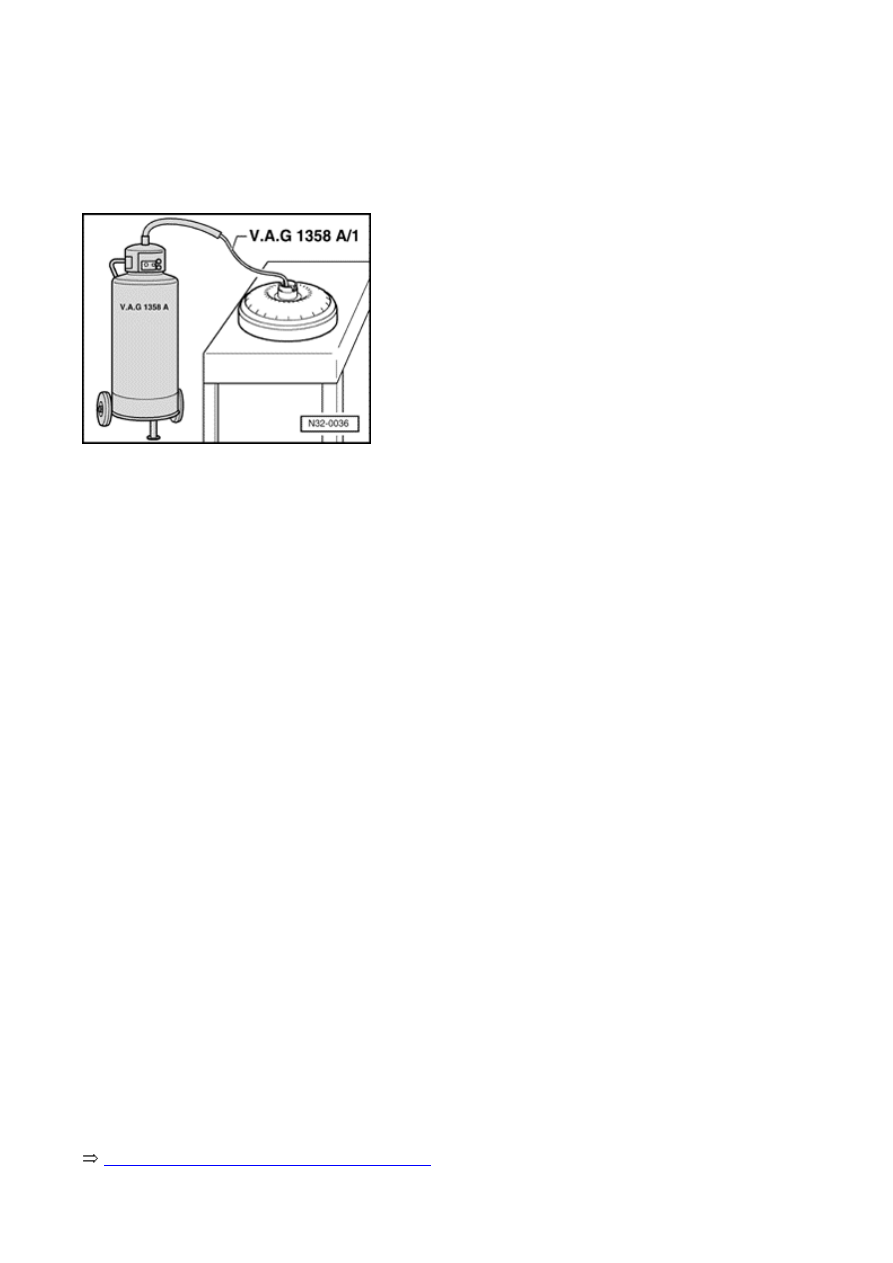

-  Extract ATF from torque converter using oil extractor
V.A.G 1358 A   and oil extractor probe V.A.G 1358 A   .

Torque converter, installing



-  Press torque converter hub through oil seal as far as first
stop.

-  Lightly press torque converter inwards and turn until slots
on torque converter hub engage in drive lugs on ATF pump
gear and torque converter slides in a noticeable distance.

Caution!

If the torque converter is not properly installed, the
drive lugs on the torque converter and the ATF pump
will be severely damaged when the transmission is
attached to the engine.

-  After "feeling" the converter slide in as far as top, pull it
back about 5 mm.

This brings the sealing lip back into its "correct location" if it
was disturbed during installation.

Before tightening the connecting bolts of the
engine/transmission, check that the torque converter
can be turned behind the drive plate, and keep
checking when tightening the bolts.

If the torque converter cannot be turned, it should be
assumed that it is not properly installed. The drive
plate surface and the ATF pump will be damaged.

-  After installing transmission, check ATF level and top off



37-4, ATF level, checking and topping off

 .

Page 3 / 3

Torque converter

WWW.ALL-TRANS.BY

37 - 1





"Tester" , connecting

Volkswagen offers various testers, for example:

„

Vehicle Diagnosis, Testing and Information System
VAS 5051



„

Vehicle Diagnosis, Testing and Information System
VAS 5051B



„

Tester VAS 5051/11A



„

Vehicle Diagnosis and Service Syst. VAS 5052



„

Diagnosis System VAS 5053



The operation of this "tester" is described in the respective
operating instructions.

The following description is based on the Vehicle
Diagnosis, Testing and Information System VAS 5051



37-1, Vehicle Diagnosis, Testing, and Information System
VAS 5051 , connecting

 .

Vehicle Diagnosis, Testing, and Information System VAS
5051  , connecting

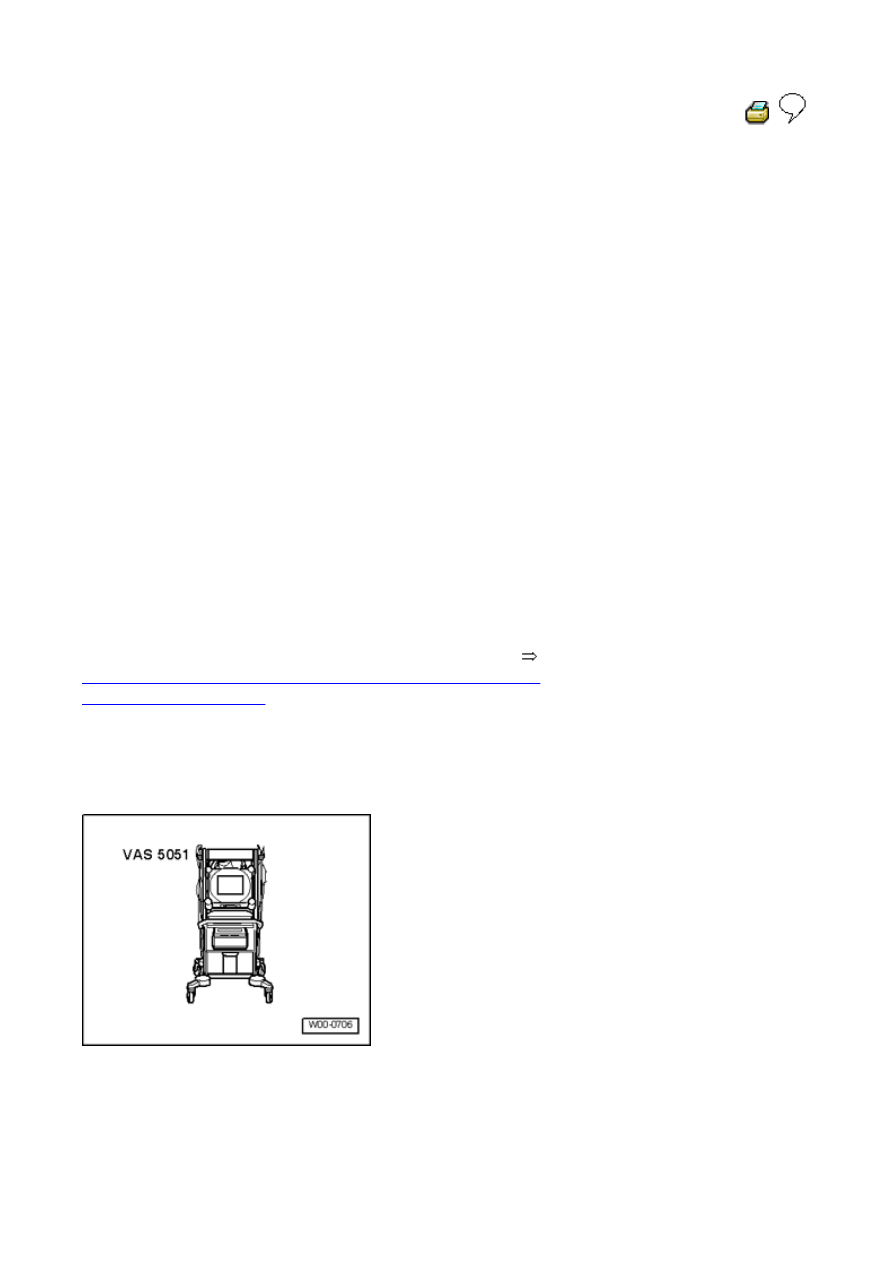

Special tools, testers and auxiliary items required

„

Vehicle Diagnosis, Testing and Information System
VAS 5051



Warning!

Page 1 / 3

Tester , connecting

WWW.ALL-TRANS.BY





„

During a test drive you must always secure
testing and measuring equipment on the back
seat.



„

These devices may only be operated by a
passenger during a test drive.

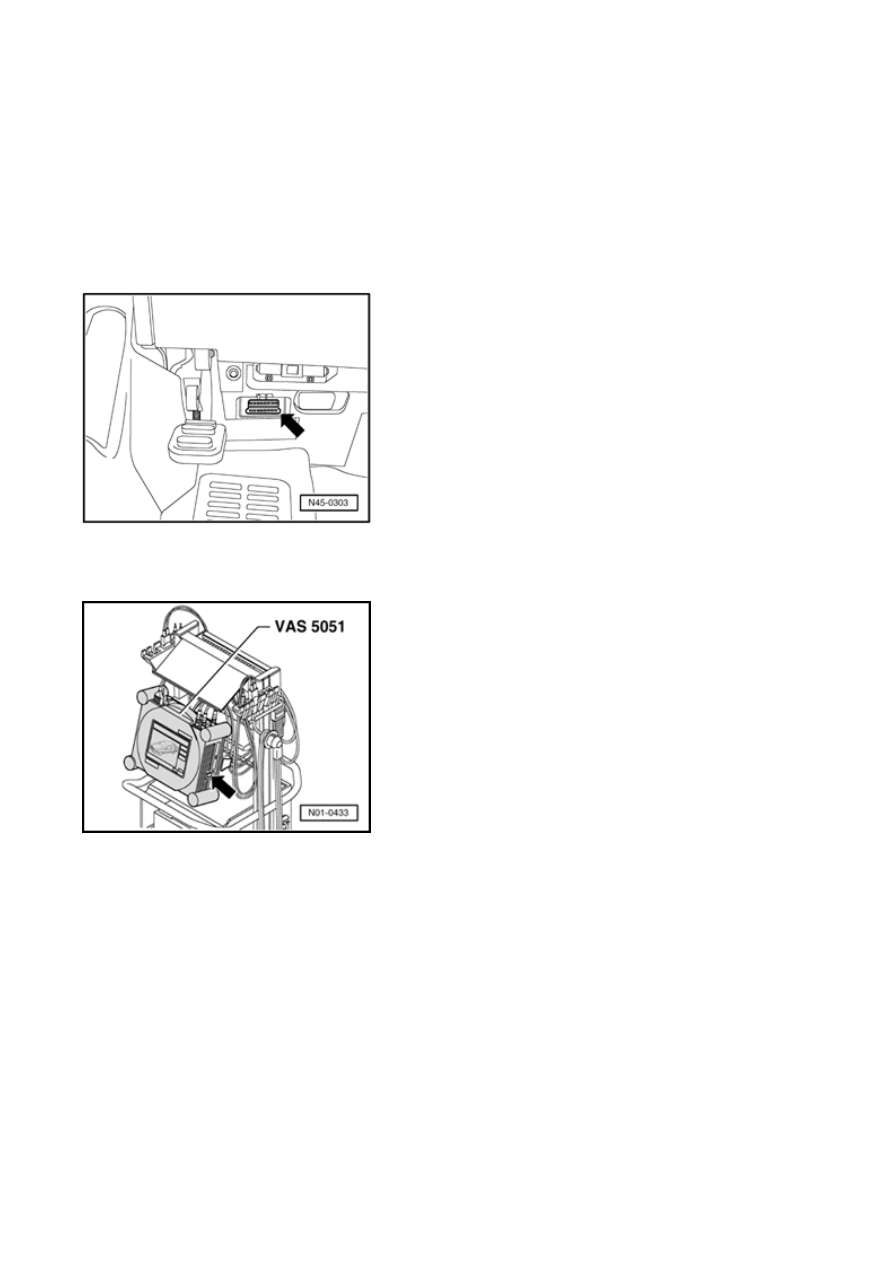

-  Plug connector of diagnostic cable VAS 5051/1   or VAS
5051/3   into vehicle Data Link Connector (DLC).

-  Turn on tester - arrow  - .

"Tester" is ready for operation when you can select
between fields/buttons   Guided Functions    and   Guided
Fault Finding    at "right" of display.

Depending on equipment and tester version, additional
functions may be "displayed" , for example:

„

  ElsaWin



„

  Measuring Technique



„

  On Board Diagnostic (OBD)



Page 2 / 3

Tester , connecting

WWW.ALL-TRANS.BY

"Tester" is not ready for operation.

-  Switch on ignition.

-  Touch a field/button on display to start desired function.
