Volkswagen 01M Transmission. Manual - part 71





You have probably received a electrical shock at one time,
when touching a metal item. The reason for this is the
electrostatic charge that is built up in the human body. This
charge can lead to malfunctions when contacting the
electrical components of the transmission and the gear
selector.

-  Touch a grounded object, e.g. a water pipe or a lifting
platform, before working on the electrical components! Do
not make direct contact with connector contacts.

Guided fault finding, On Board Diagnostic (OBD) and
measuring technology

Before performing service work on the transmission, the
cause of damage must be determined as exactly as
possible via "Guided Fault Finding" .

  Guided Fault Finding    is performed using Vehicle
Diagnosis, Testing and Information System VAS 5051   .

Page 7 / 7

General repair notes, suggestions and criticism

WWW.ALL-TRANS.BY

00 - 2





Transmission identification

The Touareg is equipped with a 6-speed
Automatic Transmission 09D all-wheel
drive. Allocation



00-3, Code letters,

assembly application

 .

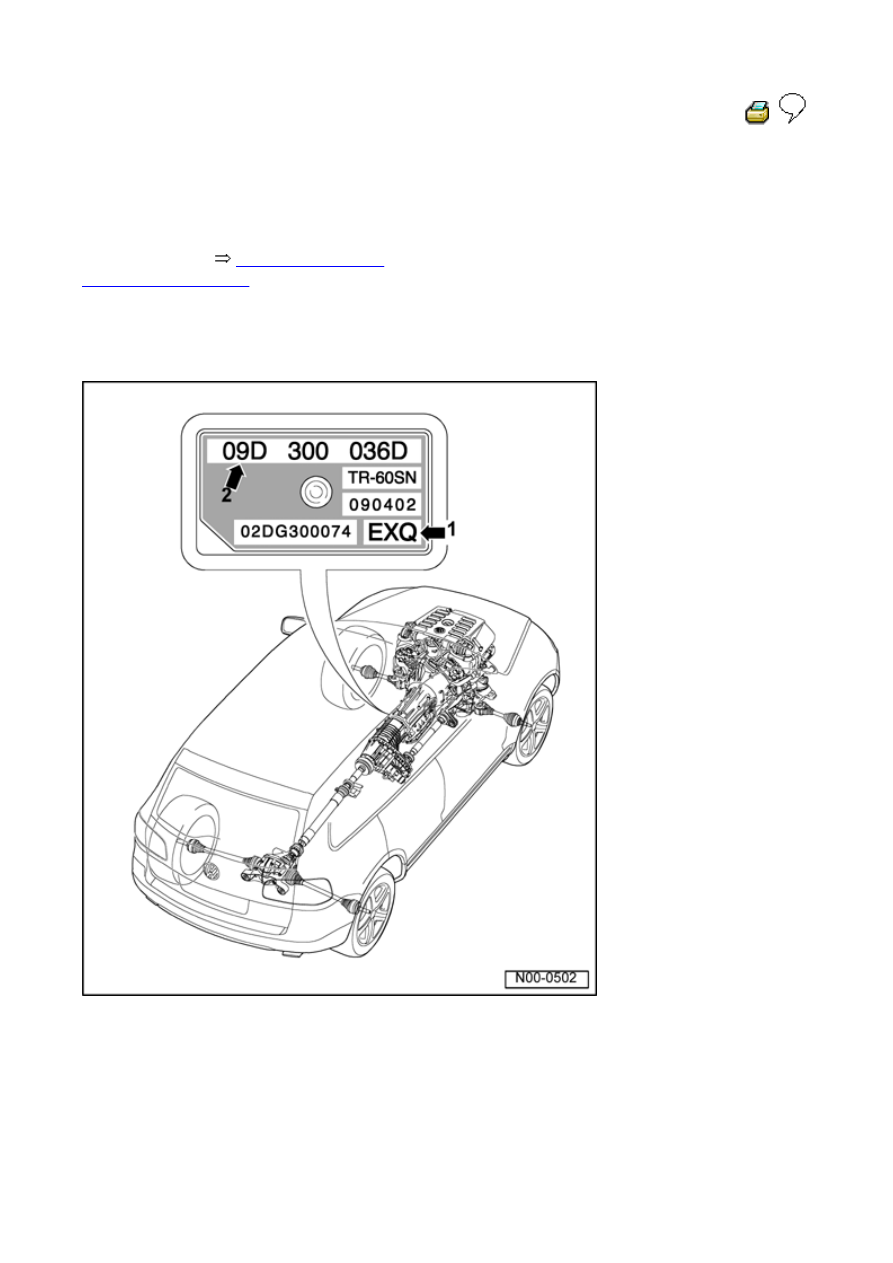

The transmission code letters are shown
on the type plate on the lower left of the
transmission.

Example:

„

Code letters

„

Automatic transmission 09D

The transmission code letters
are also shown on the vehicle

Page 1 / 2

Transmission identification

WWW.ALL-TRANS.BY



data plates.

Page 2 / 2

Transmission identification

WWW.ALL-TRANS.BY

Code letters, assembly application

If replacement parts are required for a repair, always refer to transmission code letters of the

automatic transmission.

Automatic transmission



6-speed 09D All Wheel Drive

Transmission

Code letters

"EXL"

"EXQ"

Installed

from

to

05.02

05.03

07.02

05.03

Application

Model

in

Touareg 2003

Engine



3.2 L - 162 kW

V6

5.0 L - 230 kW

V10 TDI

If replacement parts are required for a repair, always refer to transmission code letters of the

automatic transmission.

Automatic transmission



6-speed 09D All Wheel Drive

Transmission

Code letters

EXP

GLK

HAP

Installed

from

to

07.02

08.03

07.02

02.04

01.04

Application

Model

in

Touareg 2003

Engine



3.2 L -177 kW

V6

If replacement parts are required for a repair, always refer to transmission code letters of the

automatic transmission.

Automatic transmission



6-speed 09D All Wheel Drive

Transmission

Code letters

"FCS"

Installed

from

to

07.02

05.03

Application

Model

in

Touareg 2003

Engine



4.2 L - 228 kW

V8

If replacement parts are required for a repair, always refer to transmission code letters of the

automatic transmission.

Automatic transmission



6-speed 09D All Wheel Drive

Transmission

Code letters

"GLD"

"HAQ" HAO does not exist, HAQ is

always meant

"HZX"

installed

from



to

07.02

08.03

11.04

10.05

Model

in

Touareg 2003

Page 1 / 2

Code letters, assembly application
