Application

Engine



5.0 L - 230 kW

V10 TDI

If replacement parts are required for a repair, always refer to transmission code letters of the

automatic transmission.

Automatic transmission



6-speed 09D All Wheel Drive

Transmission

Code letters

GLH

GLJ

GTK

installed

from

to

07.02

07.02

01.03

Application

Model

in

Touareg 2003

Engine



4.2 L - 228 kW

V8

3.2 L - 162 kW

V6

5.0 L - 230 kW

V10 TDI

If replacement parts are required for a repair, always refer to transmission code letters of the

automatic transmission.

Automatic transmission



6-speed 09D All Wheel Drive

Transmission

Code letters

HAM

"HAU"

installed

from

to

01.04

01.04

Application

Model

in

Touareg 2003

Engine



3.2 L - 162 kW

V6

3.2 L - 177 kW

V6

4.2 L - 228 kW

V8

If replacement parts are required for a repair, always refer to transmission code letters of the

automatic transmission.

Automatic transmission



6-speed 09D All Wheel Drive

Transmission

Code letters

"HPH" HZV

JBR

installed

from

to

11.05

11.05

11.05

Application

Model

in

Touareg 2003

Engine



4.2L - 257 kW

V8 - FSI

4.2 L - 228 kW

V8

3.2 L - 177 kW

VR6

Page 2 / 2

Code letters, assembly application

WWW.ALL-TRANS.BY

00 - 4





Capacities

Further information about Volkswagen oils can be found in:

 Fluid Capacity Chart

Capacities

Automatic transmission 09D

Initial filling at manufacturer

approx. 9 L

(filled for life)

Lubricant

ATF

Replacement part number:

 Electronic parts catalog "ETKA"

Page 1 / 1

Capacities

WWW.ALL-TRANS.BY

32 - 1







Torque converter

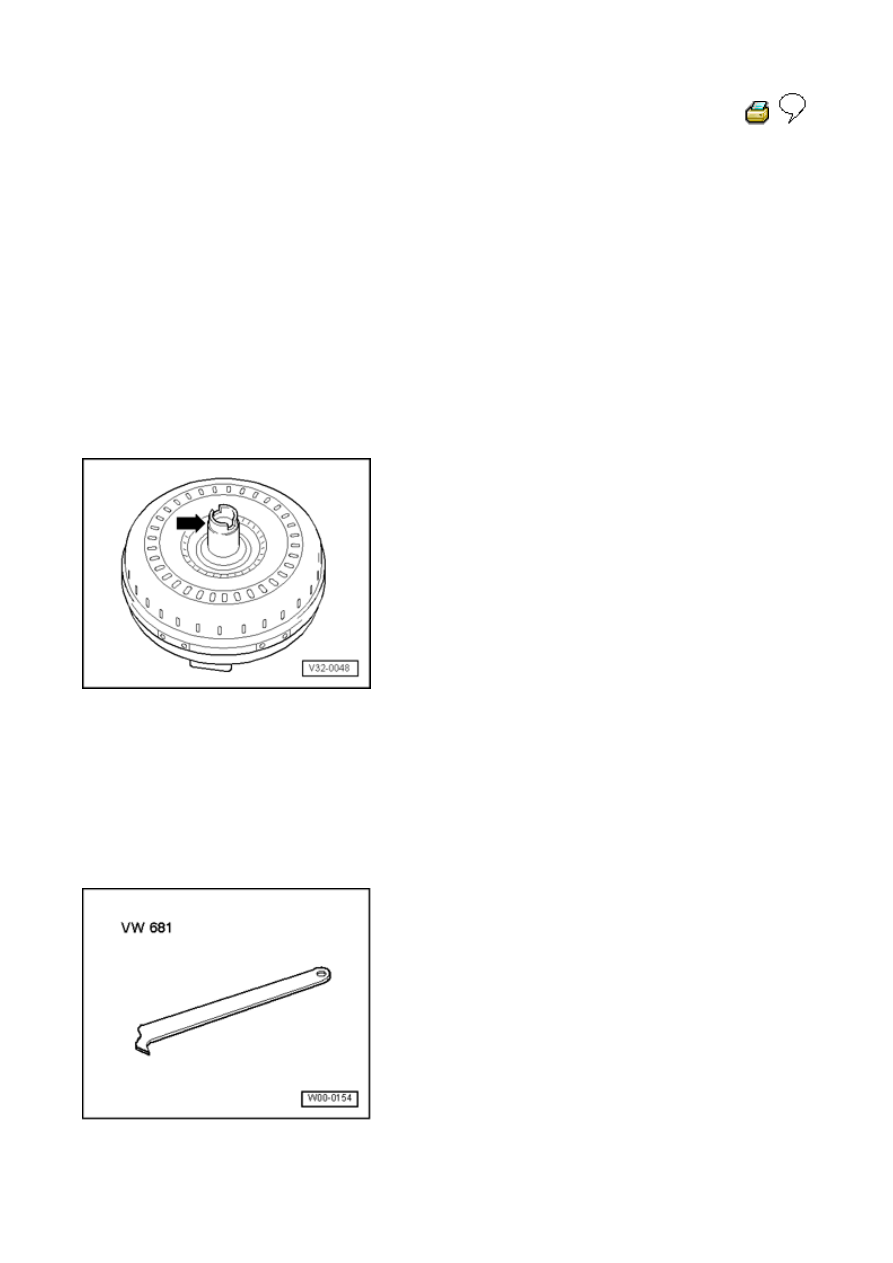

Torque converter, checking



-  Check converter hub for wear grooves - arrow - .

Torque converter is welded and must be replaced if
damaged.

Torque converter gaskets, removing and installing

Special tools, testers and auxiliary items required

„

Extractor lever VW 681



Page 1 / 3

Torque converter

WWW.ALL-TRANS.BY





„

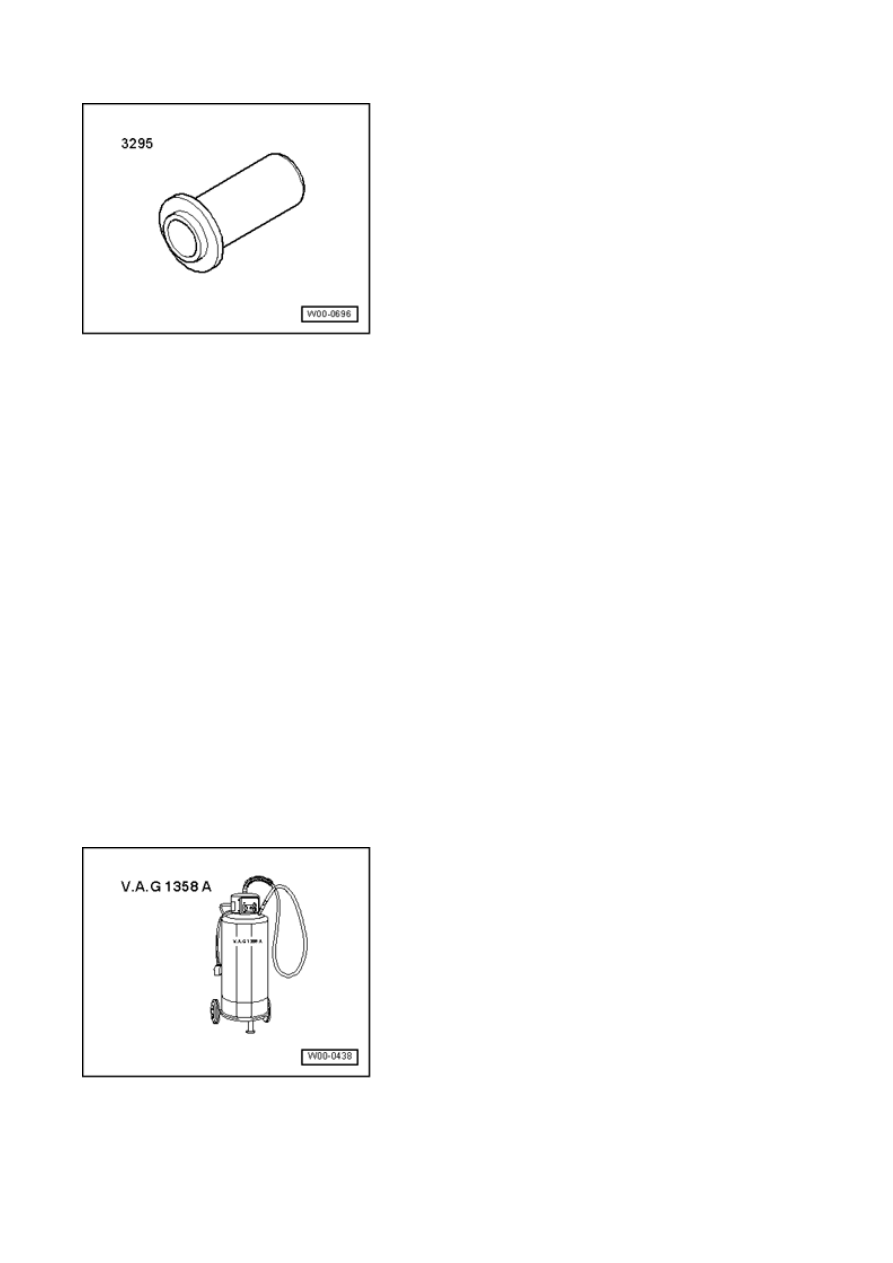

Thrust piece 3295



Removing



-  Insert extractor lever VW 681   directly behind the sealing
lip of sealing ring, so that the contact ring which is behind it
is not damaged.

Installing



- Coat outer circumference and sealing lips of sealing ring
with ATF.

Installation position:

The open side of sealing ring faces transmission.

-  Using thrust piece 3295   , drive in sealing ring for torque
converter up to thrust piece stop.

Torque converter, draining



Special tools, testers and auxiliary items required

„

Oil extraction device V.A.G 1358 A



„

Oil extraction sensor V.A.G 1358 A/1

Page 2 / 3

Torque converter

WWW.ALL-TRANS.BY
