37 - 2

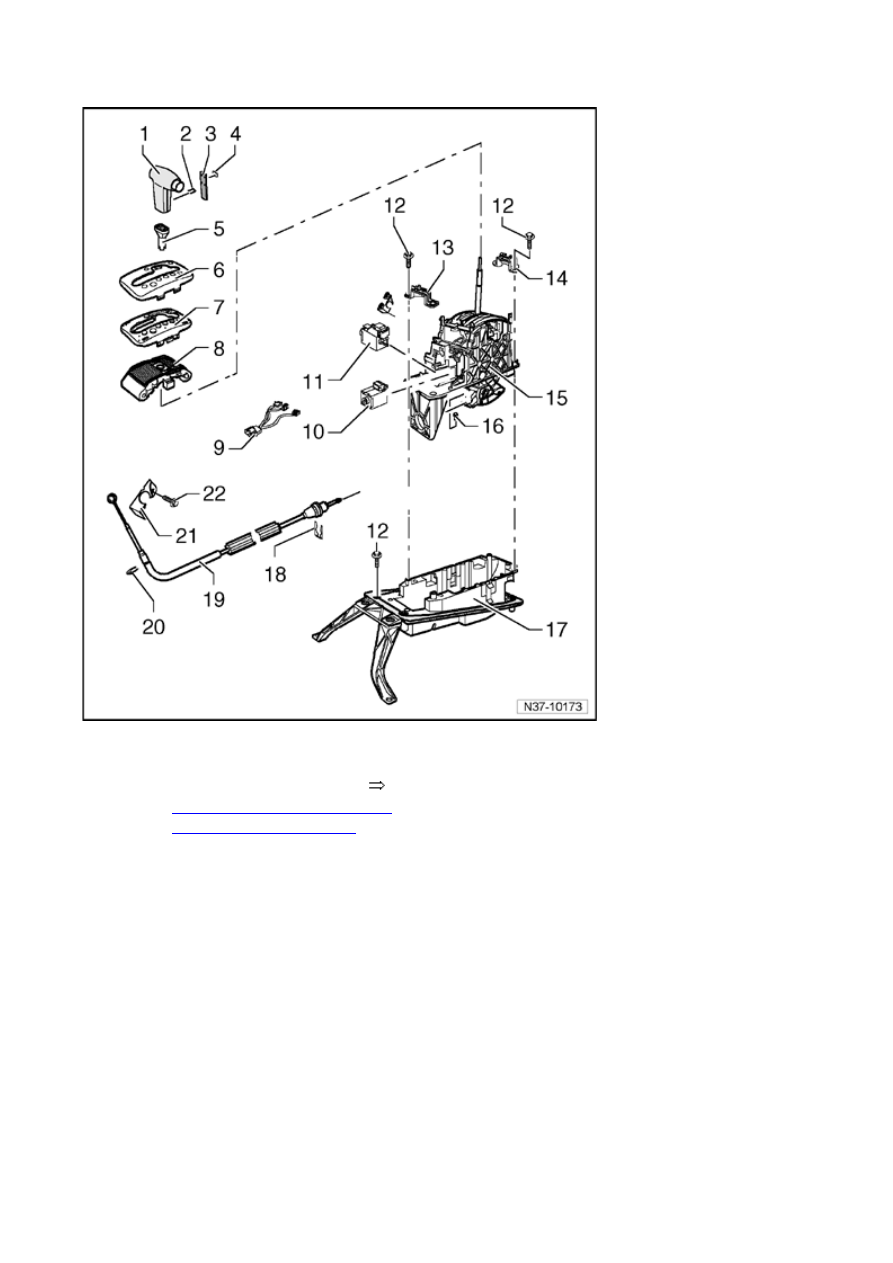

Selector mechanism, servicing
Warning!
Shift selector lever into position "P" and engage foot
operated parking brake before working with the engine
running.
Selector mechanism, checking
In selector lever positions "R" , "D" and "S" , the starter
motor will not operate.
For speeds exceeding 5 km/h and shifting into selector
lever position "N" , the shift lock solenoid must not engage
to lock selector lever. Selector lever can be shifted into
driving gear.
For speeds below 5 km/h (almost standstill) and shifting
into selector lever position "N" , the shift lock solenoid must
only engage after approx. 1 second. Selector lever can
only be shifted out of position "N" with the brake pedal
operated.
Selector lever in position "P" and ignition switched on
Brake pedal not depressed:
Selector lever is locked and cannot be switched out of
position "P" with press button depressed Solenoid for
selector lever lock blocks selector lever.
Brake pedal depressed:
Solenoid for selector lever lock releases selector lever. It is
possible to shift into a driving gear. Switch selector lever
slowly through from "P" to "S" ; while doing this check
whether selector lever position in instrument cluster
matches selector lever position.
Selector lever in position "N" and ignition switched on
Brake pedal not depressed:
Selector lever is locked and cannot be switched out of
position "N" with press button depressed Solenoid for
selector lever lock blocks selector lever.
Brake pedal depressed:
Page 1 / 26
Selector mechanism, servicing
