7-2. Steps to take in an emergency

Whe

trouble

ises

When replacing tires on a vehi-

cle with wheel lock nuts, use the

following procedures to remove

and install the wheel lock nuts.

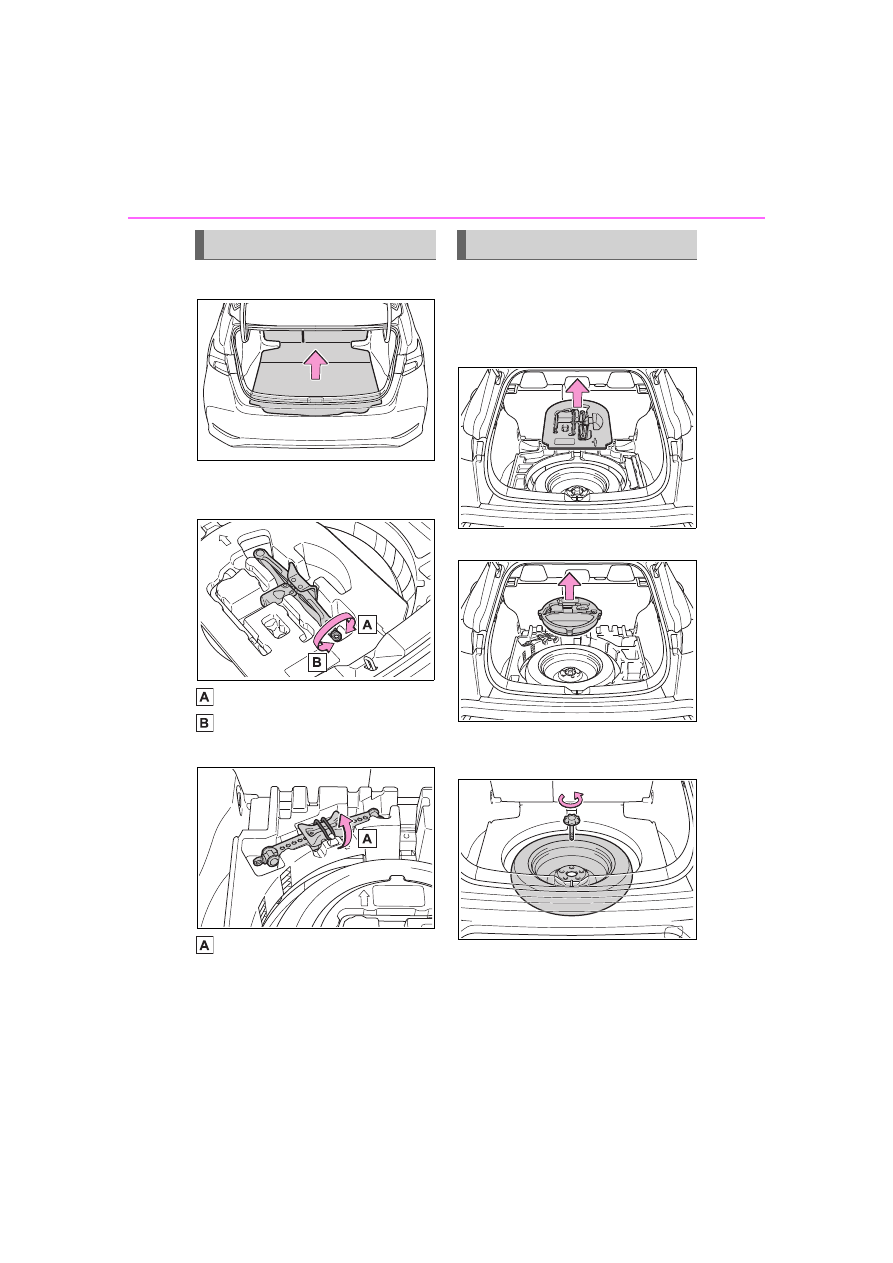

The wheel lock key is stored in

the tray inside the luggage com-

partment. Always return the

wheel lock key to its original

position after use, so that it does

not get lost. (



P.415)

■

Removal

For ease of removal, the wheel

lock nut should always be the

first one loosened.

Place the wheel lock key on

top of the wheel lock nut,

turning until the wheel lock

key and wheel lock nut pat-

terns engage.

Place the wheel nut wrench

on the wheel lock key, and

while applying pressure on

the wheel lock key, loosen

the wheel lock nut.

■

Installation

For ease of installation, the

wheel lock nut should always be

the last one tightened.

By hand, install a wheel lock

nut on the wheel to be

installed.

Place the wheel lock key on

top of the wheel lock nut,

turning until the wheel lock

key and wheel lock nut pat-

terns engage.

Place the wheel nut wrench

on the wheel lock key, and

while applying pressure on

the wheel lock key, tighten

the wheel lock nut to the rec-

ommended torque.

WARNING

●

Do not raise the vehicle while

someone is inside.

●

When raising the vehicle, do not

put an object on or under the

jack.

●

Do not raise the vehicle to a

height greater than that required

to replace the tire.

●

Use a jack stand if it is neces-

sary to get under the vehicle.

●

When lowering the vehicle,

make sure that there is no-one

near the vehicle. If there are

people nearby, warn them

vocally before lowering.

Wheel lock nut (if

equipped)

NOTICE

■

When using a wheel lock key

(if equipped)

Do not use an impact wrench.

Using an impact wrench may

cause permanent damage to

wheel lock nut and wheel lock

key. If in doubt about wheel lock

application, contact your Toyota

dealer.

419

7-2. Steps to take in an emergency

Whe

trouble

ises

Chock the tires.

Vehicles with a steel wheel:

Remove the wheel ornament

using the wrench.

Insert the wrench into the notch

on the wheel cap.

To protect the wheel ornament,

place a rag between the wrench

and the wheel ornament.

Slightly loosen the wheel

nuts (one turn).

Vehicles with wheel locks: Use the

wheel lock key to loosen the wheel

lock.

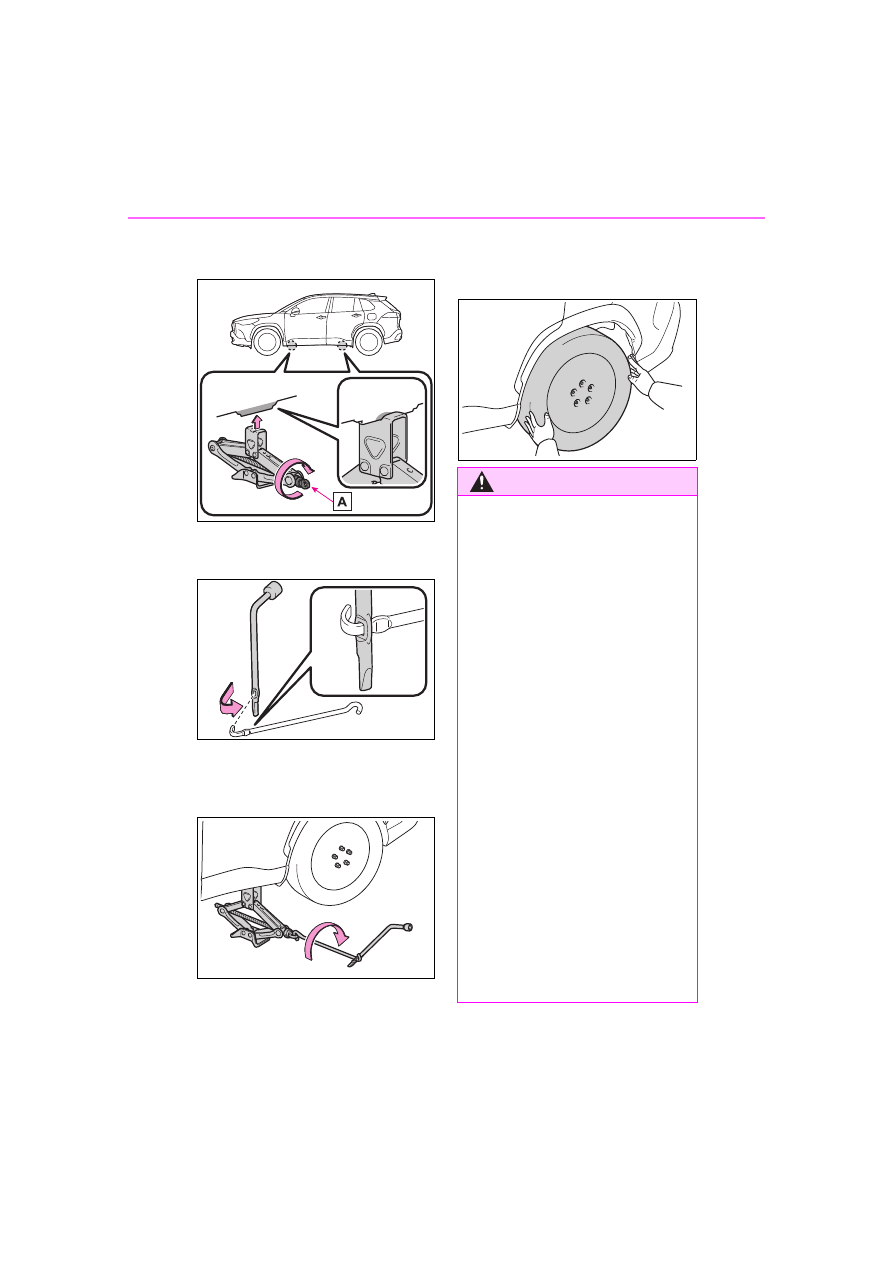

Turn the tire jack portion

by hand until the center of the

recessed portion of the jack

WARNING

■

When storing the spare tire

Be careful not to catch fingers or

other body parts between the

spare tire and the body of the

vehicle.

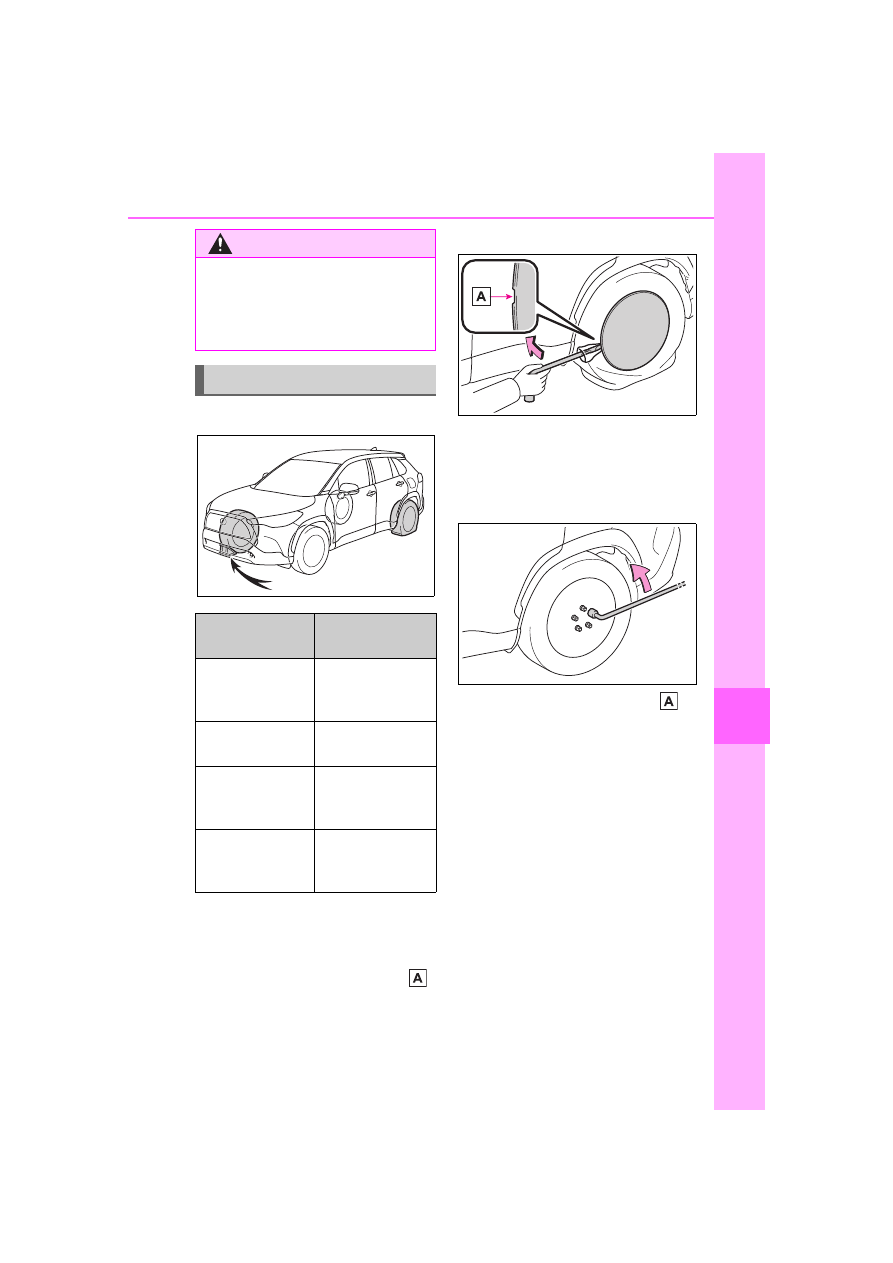

Replacing a flat tire

Flat tire

Wheel chock

positions

Front left-hand

side

Behind the rear

right-hand side

tire

Front right-hand

side

Behind the rear

left-hand side tire

Rear left-hand

side

In front of the

front right-hand

side tire

Rear right-hand

side

In front of the

front left-hand

side tire

420

7-2. Steps to take in an emergency

is in contact with the center of

the jack point.

Assemble the jack handle

extension.

Raise the vehicle until the tire

is slightly raised off the

ground.

Remove all the wheel nuts

and the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or

the area around the brakes

immediately after the vehicle

has been driven. After the vehi-

cle has been driven the disc

wheels and the area around the

brakes will be extremely hot.

Touching these areas with

hands, feet or other body parts

while changing a tire, etc. may

result in burns.

●

Failure to follow these precau-

tions could cause the wheel

nuts to loosen and the tire to fall

off, resulting in death or serious

injury.

• Never use oil or grease on the

wheel bolts or wheel nuts.

Oil and grease may cause the

wheel nuts to be excessively

tightened, leading to bolt or disc

wheel damage. Remove any oil

or grease that has adhered

when installing the wheel nuts.

• After replacing a tire, check the

tightening torque as soon as

possible.

Wheel nut torque: 76 ft•lbf (103

N•m, 10.5 kgf•m)

421

7-2. Steps to take in an emergency

Whe

trouble

ises

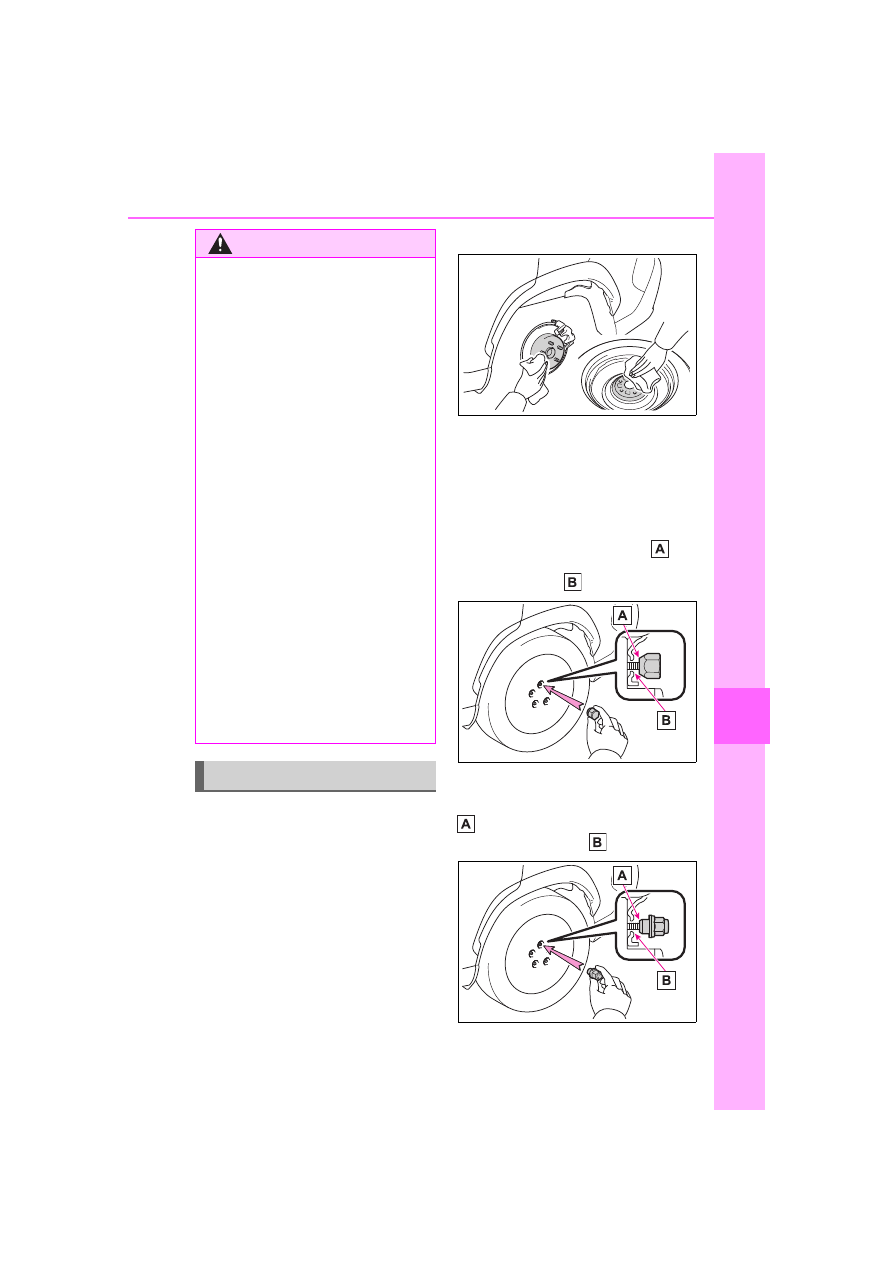

Remove any dirt or foreign

matter from the wheel con-

tact surface.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

Install the tire and loosely

tighten each wheel nut by

hand by approximately the

same amount.

When replacing a steel wheel with

a steel wheel, tighten the wheel

nuts until the tapered portion

comes into loose contact with the

disc wheel seat .

When replacing an aluminum wheel

with a steel wheel, tighten the

wheel nuts until the tapered portion

comes into loose contact with

the disc wheel seat .

WARNING

• Do not attach a heavily dam-

aged wheel ornament, as it may

fly off the wheel while the vehi-

cle is moving.

• When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

• If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

• When installing the wheel nuts,

be sure to install them with the

tapered ends facing inward.

■

Replacing a flat tire for vehi-

cles with power back door (if

equipped)

In cases such as when replacing

tires, make sure to canceling the

power back door system

(



P.118). Failure to do so may

cause the back door to operate

unintentionally if the power back

door switch is accidentally

touched, resulting in hands and

fingers being caught and injured.

Installing the spare tire

422

7-2. Steps to take in an emergency

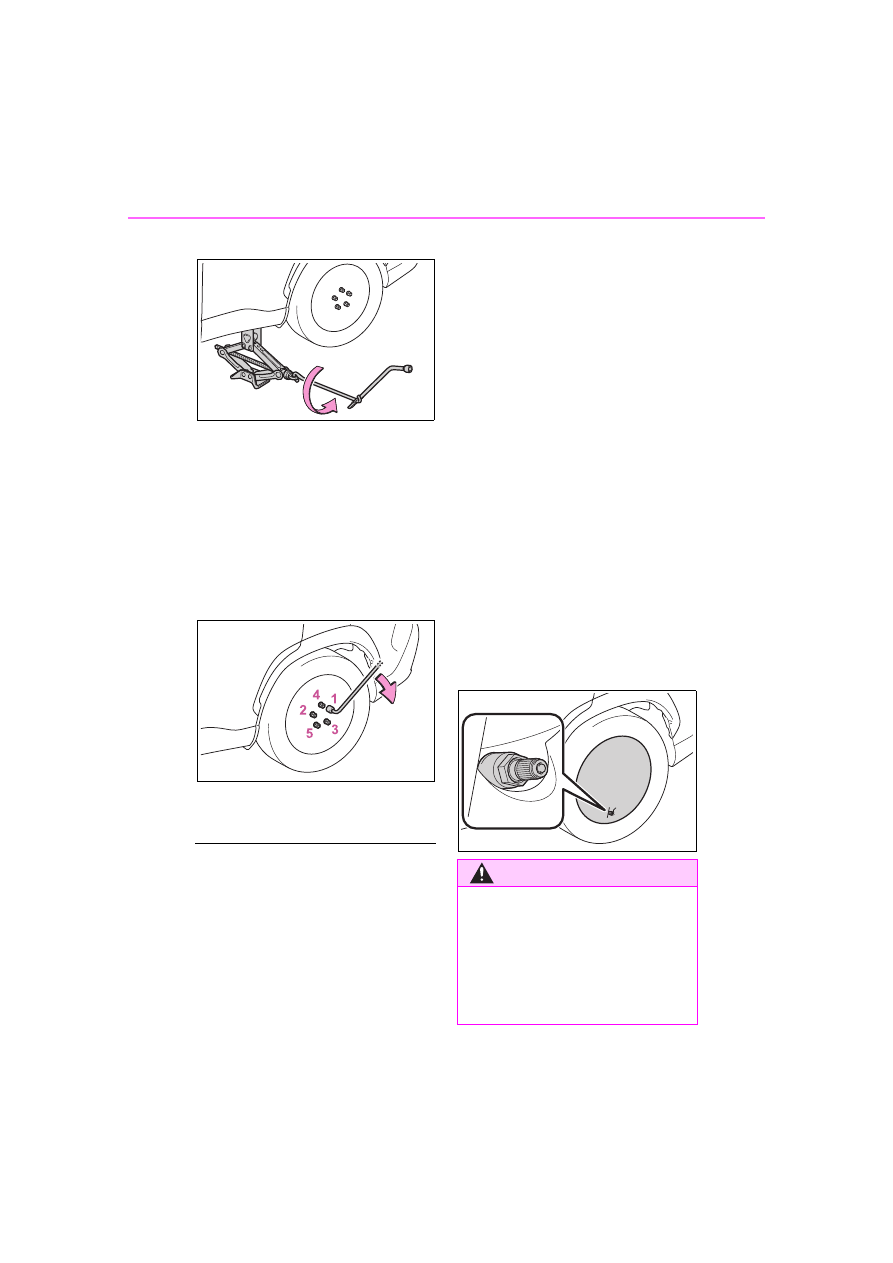

Lower the vehicle.

Securely tighten the wheel

nuts two or three times in the

order shown in the illustration

using a wheel nut wrench.

Vehicles with wheel locks: Tighten

the wheel lock using the wheel lock

key after tightening the other wheel

nuts.
Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

Stow the flat tire, tire jack and

all tools.

■

The compact spare tire

●

The compact spare tire is identi-

fied by the label “TEMPORARY

USE ONLY” on the tire sidewall.

Use the compact spare tire tempo-

rarily, and only in an emergency.

●

Make sure to check the tire infla-

tion pressure of the compact

spare tire. (



P.443)

■

When the compact spare tire is

equipped

The vehicle becomes lower when

driving with the compact spare tire

compared to when driving with stan-

dard tires.

■

After completing the tire

change

The tire pressure warning system

must be reset. (



P.365)

■

When using the compact spare

tire

As the compact spare tire is not

equipped with a tire pressure warn-

ing valve and transmitter, low infla-

tion pressure of the spare tire will

not be indicated by the tire pressure

warning system. Also, if you replace

the compact spare tire after the tire

pressure warning light comes on,

the light remains on.

■

When reinstalling the wheel

ornament (steel wheels except

compact spare tire)

Align the cutout of the wheel orna-

ment with the valve stem as shown

in the illustration.

WARNING

■

When using the compact

spare tire

●

Remember that the compact

spare tire provided is specifi-

cally designed for use with your

vehicle. Do not use your com-

pact spare tire on another vehi-

cle.

423

7-2. Steps to take in an emergency

Whe

trouble

ises

WARNING

●

Do not use more than one com-

pact spare tires simultaneously.

●

Replace the compact spare tire

with a standard tire as soon as

possible.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

■

When the compact spare tire

is attached

The vehicle speed may not be

correctly detected, and the follow-

ing systems may not operate cor-

rectly:
• ABS & Brake assist
• VSC
• TRAC
• Automatic High Beam
• AFS (Adaptive Front-lighting

System) (if equipped)

• Dynamic radar cruise control

with full-speed range

• EPS
• PCS (Pre-Collision System)
• LTA (Lane Tracing Assist)
• Tire pressure warning system
• Intuitive parking assist (if

equipped)

• PKSB (Parking Support Brake)

(if equipped)

• BSM (Blind Spot Monitor) (if

equipped)

• RCTA (Rear Cross Traffic Alert)

function (if equipped)

• SEA (Safe Exit Assist) (if

equipped)

• Rear view monitor system
Also, not only can the following

system not be utilized fully, but it

may even negatively affect the

drive-train components:
• AWD system (AWD models)

■

Speed limit when using the

compact spare tire

Do not drive at speeds in excess

of 50 mph (80 km/h) when a com-

pact spare tire is installed on the

vehicle.
The compact spare tire is not

designed for driving at high

speeds. Failure to observe this

precaution may lead to an acci-

dent causing death or serious

injury.

■

After using the tools and jack

Before driving, make sure all the

tools and jack are securely in

place in their storage location to

reduce the possibility of personal

injury during a collision or sudden

braking.

NOTICE

■

Be careful when driving over

bumps with the compact

spare tire installed on the

vehicle.

The vehicle becomes lower when

driving with the compact spare tire

compared to when driving with

standard tires. Be careful when

driving over uneven road sur-

faces.

■

Driving with tire chains and

the compact spare tire

Do not fit tire chains to the com-

pact spare tire. Tire chains may

damage the vehicle body and

adversely affect driving perfor-

mance.

424

7-2. Steps to take in an emergency

One of the following may be the

cause of the problem:



There may not be sufficient

fuel in the vehicle’s tank.

Refuel the vehicle.



The engine may be flooded.

Try to restart the engine again

following correct starting pro-

cedures. (



P.164, 165)



There may be a malfunction

in the engine immobilizer sys-

tem. (



P.70)

One of the following may be the

cause of the problem:



The battery may be dis-

charged. (



P.428)

NOTICE

■

When replacing the tires

When removing or fitting the

wheels, tires or the tire pressure

warning valve and transmitter,

contact your Toyota dealer as the

tire pressure warning valve and

transmitter may be damaged if not

handled correctly.

■

To avoid damage to the tire

pressure warning valves and

transmitters

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer or other qualified service

shop as soon as possible. Make

sure to replace the tire pressure

warning valve and transmitter

when replacing the tire.

If the engine will not

start

If the engine will not start

even though correct starting

procedures are being fol-

lowed (



P.164, 165), con-

sider each of the following

points:

The engine will not start

even though the starter

motor operates normally.

The starter motor turns

over slowly, the interior

lights and headlights are

dim, or the horn does not

sound or sounds at a low

volume.

425

7-2. Steps to take in an emergency

Whe

n tr

ouble

ises



The battery terminal connec-
tions may be loose or cor-
roded. (



P.357)

The engine starting system may
be malfunctioning due to an
electrical problem such as elec-
tronic key battery depletion or a
blown fuse. However, an interim
measure is available to start the
engine. (



P.425)

One of the following may be the
cause of the problem:



The battery may be dis-
charged. (



P.428)



One or both of the battery ter-
minals may be disconnected.
(



P.357)

Contact your Toyota dealer if the
problem cannot be repaired, or if
repair procedures are unknown.

When the engine does not start,
the following steps can be used

as an interim measure to start
the engine if the engine switch is
functioning normally.
Do not use this starting proce-
dure except in case of emer-
gency.

Set the parking brake.
(



P.174)

Check that the shift lever is in
P.

Turn the engine switch to

ACC

Press and hold the engine
switch for about 15 seconds
while depressing the brake
pedal firmly.

Even if the engine can be started
using the above steps, the system
may be malfunctioning. Have the
vehicle inspected by your Toyota
dealer.

: ACC mode can be enabled/dis-

abled on the customize menu.
(



P.459)

The starter motor does
not turn over (vehicles
with a smart key system)

The starter motor does
not turn over, the interior
lights and headlights do
not turn on, or the horn
does not sound.

Emergency start function
(vehicles with a smart key
system)

426

7-2. Steps to take in an emergency

■

When the electronic key does

not work properly

●

Make sure that the smart key sys-

tem has not been deactivated in

the customization setting. If it is

off, turn the function on. (Custom-

izable features:



P.459)

●

Check if battery-saving mode is

set. If it is set, cancel the function.

(



P.121)

●

The electronic key function may

be suspended. (



P.100)

If you lose your keys

New genuine keys can be

made by your Toyota dealer

using the other key (vehi-

cles without a smart key

system) or mechanical key

(vehicles with a smart key

system) and the key number

stamped on your key num-

ber plate.
Keep the plate in a safe

place such as your wallet,

not in the vehicle.

NOTICE

■

When an electronic key is lost

(vehicles with a smart key

system)

If the electronic key remains lost,

the risk of vehicle theft increases

significantly. Visit your Toyota

dealer immediately with all

remaining electronic keys that

were provided with your vehicle.

If the electronic key

does not operate prop-

erly (vehicles with a

smart key system)

If communication between

the electronic key and vehi-

cle is interrupted (



P.121)

or the electronic key cannot

be used because the battery

is depleted, the smart key

system and wireless remote

control cannot be used. In

such cases, the doors can

be opened and the engine

can be started by following

the procedure below.

NOTICE

■

In case of a smart key system

malfunction or other

key-related problems

Take your vehicle with all the elec-

tronic keys provided with your

vehicle to your Toyota dealer.

427

7-2. Steps to take in an emergency

Whe

trouble

ises

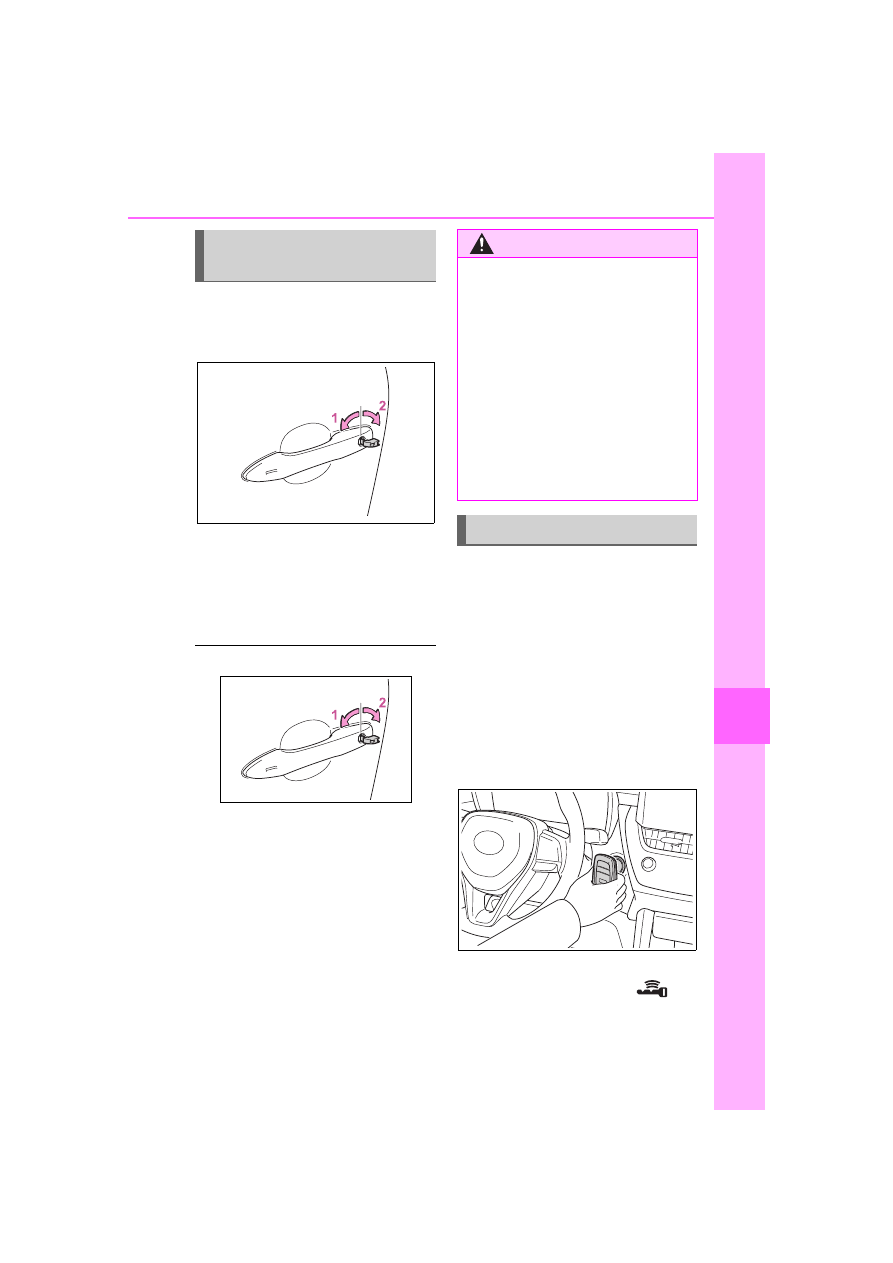

Use the mechanical key

(



P.103) in order to perform the

following operations:

Locks all the doors

Unlocks all the doors

Turning the key unlocks the driver’s

door. Turning the key again unlocks

the other doors.

■

Key linked functions

Closes the windows and moon
roof

(turn and hold)

Opens the windows and moon
roof

(turn and hold)

:If equipped

:This setting must be customized

at your Toyota dealer.

Ensure that the shift lever is

in P and depress the brake

pedal.

Touch the electronic key to

the engine switch.

When the electronic key is

detected, a buzzer sounds and the

engine switch will turn to ON.
When the smart key system is

deactivated in customization set-

ting, the engine switch will turn to

ACC.

Firmly depress the brake
pedal and check that

shown on the multi-informa-

tion display.

Locking and unlocking

the doors

WARNING

■

When using the mechanical

key and operating the power

windows or moon roof (if

equipped)

Operate the power window or

moon roof after checking to make

sure that there is no possibility of

any passenger having any of their

body parts caught in the window

or moon roof.

Also, do not allow children to

operate the mechanical key. It is

possible for children and other

passengers to get caught in the

power window or moon roof.

Starting the engine

428

7-2. Steps to take in an emergency

Press the engine switch
shortly and firmly.

In the event that the engine still
cannot be started, contact your
Toyota dealer.

■

Stopping the engine

Shift the shift lever to P and press
the engine switch as you normally
do when stopping the engine.

■

Electronic key battery

As the above procedure is a tempo-
rary measure, it is recommended
that the electronic key battery be
replaced immediately when the bat-
tery is depleted. (



P.377)

■

Alarm (if equipped)

If a door is unlocked using the
mechanical key when the alarm sys-
tem is set, the alarm may be trig-
gered. (



P.71)

■

Changing engine switch modes

Release the brake pedal and press
the engine switch in step

above.

The engine does not start and
modes will be changed each time
the switch is pressed. (



P.168)

If the vehicle battery

is discharged

The following procedures
may be used to start the
engine if the vehicle’s bat-
tery is discharged.
You can also call your Toy-
ota dealer or a qualified
repair shop.

429

7-2. Steps to take in an emergency

Whe

n tr

ouble

ises

If you have a set of jumper (or
booster) cables and a second
vehicle with a 12-volt battery,
you can jump start your vehicle
by following the steps below.

Vehicles with an alarm
(



P.71): Confirm that the

electronic key is being car-
ried.

When connecting the jumper (or

booster) cables, depending on the
situation, the alarm may activate
and doors locked. (

Open the hood. (

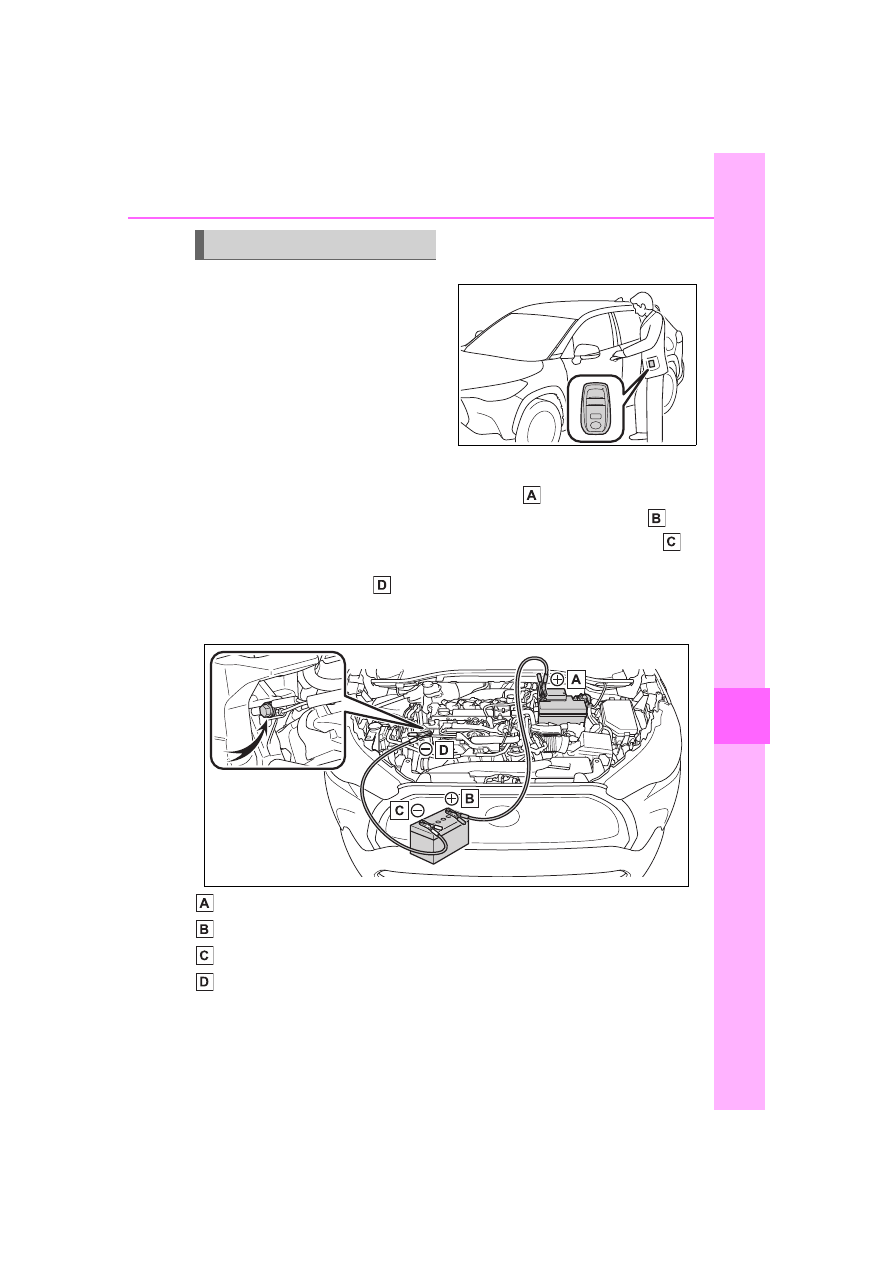

Connect a positive jumper cable clamp to

on your vehicle and

connect the clamp on the other end of the positive cable to

the second vehicle. Then, connect a negative cable clamp to

on the second vehicle and connect the clamp at the other end of

the negative cable to

Use jumper cables that can reach the specified terminals and connecting
point.

Positive (+) battery terminal (your vehicle)

Positive (+) battery terminal (second vehicle)

Negative (-) battery terminal (second vehicle)

Metallic point shown in the illustration

Start the engine of the sec-
ond vehicle. Increase the

engine speed slightly and
maintain at that level for

Restarting the engine

430

7-2. Steps to take in an emergency

approximately 5 minutes to
recharge the battery of your
vehicle.

Vehicles with a smart key
system: Open and close any
of the doors of your vehicle
with the engine switch OFF.

Maintain the engine speed of
the second vehicle and start
the engine of your vehicle by
turning the engine switch to
ON.

Once the vehicle’s engine
has started, remove the
jumper cables in the exact
reverse order from which
they were connected.

Once the engine starts, have the
vehicle inspected at your Toyota
dealer as soon as possible.

■

Starting the engine when the
battery is discharged

The engine cannot be started by
push-starting.

■

To prevent battery discharge

●

Turn off the headlights and the
audio system while the engine is
off.

●

Turn off any unnecessary electri-
cal components when the vehicle
is running at a low speed for an
extended period, such as in heavy
traffic.

■

When the battery is removed or
discharged

●

Information stored in the ECU is
cleared. When the battery is
depleted, have the vehicle
inspected at your Toyota dealer.

●

Some systems may require initial-
ization. (



P.470)

■

When removing the battery ter-
minals

When the battery terminals are
removed, the information stored in
the ECU is cleared. Before remov-
ing the battery terminals, contact
your Toyota dealer.

■

Charging the battery

The electricity stored in the battery
will discharge gradually even when
the vehicle is not in use, due to nat-
ural discharge and the draining
effects of certain electrical appli-
ances. If the vehicle is left for a long
time, the battery may discharge,
and the engine may be unable to
start. (The battery recharges auto-
matically during driving.)

■

When recharging or replacing
the battery (vehicles with a
smart key system)

●

In some cases, it may not be pos-
sible to unlock the doors using the
smart key system when the bat-
tery is discharged. Use the wire-
less remote control or the
mechanical key to lock or unlock
the doors.

●

The engine may not start on the
first attempt after the battery has
recharged but will start normally
after the second attempt. This is
not a malfunction.

●

The engine switch mode is memo-
rized by the vehicle. When the
battery is reconnected, the system
will return to the mode it was in
before the battery was dis-
charged. Before disconnecting the
battery, turn the engine switch off.
If you are unsure what mode the
engine switch was in before the
battery discharged, be especially
careful when reconnecting the
battery.

●

Vehicles with power back door:
The power back door must be ini-
tialized. (



P.116)

■

When replacing the battery

●

Use a battery that conforms to

431

7-2. Steps to take in an emergency

Whe

trouble

ises

European regulations.

●

Use a genuine battery specifically

designed for use with the Stop &

Start system or a battery with

equivalent specifications to a gen-

uine battery. If an unsupported

battery is used, Stop & Start sys-

tem functions may be restricted to

protect the battery.

Also, battery performance may

decrease and the engine may not

be able to restart. Contact your

Toyota dealer for details.

●

Use a battery that the case size is

same as the previous one (LN3),

20 hour rate capacity (20HR) is

equivalent (65Ah) or greater, and

performance rating (CCA) is

equivalent (603A) or greater.

• If the sizes differ, the battery can-

not be properly secured.

• If the 20 hour rate capacity is low,

even if the time period where the

vehicle is not used is a short time,

the battery may discharge and the

engine may not be able to start.

●

For details, consult your Toyota

dealer.

WARNING

■

When removing the battery

terminals

Always remove the negative (-)

terminal first. If the positive (+) ter-

minal contacts any metal in the

surrounding area when the posi-

tive (+) terminal is removed, a

spark may occur, leading to a fire

in addition to electrical shocks

and death or serious injury.

■

Avoiding battery fires or

explosions

Observe the following precautions

to prevent accidentally igniting the

flammable gas that may be emit-

ted from the battery:

●

Make sure each jumper cable is

connected to the correct termi-

nal and that it is not unintention-

ally in contact with any other

than the intended terminal.

●

Do not allow the other end of

the jumper cable connected to

the “+” terminal to come into

contact with any other parts or

metal surfaces in the area, such

as brackets or unpainted metal.

●

Do not allow the + and - clamps

of the jumper cables to come

into contact with each other.

●

Do not smoke, use matches,

cigarette lighters or allow open

flame near the battery.

■

Battery precautions

The battery contains poisonous

and corrosive acidic electrolyte,

while related parts contain lead

and lead compounds. Observe

the following precautions when

handling the battery:

●

When working with the battery,

always wear safety glasses and

take care not to allow any bat-

tery fluids (acid) to come into

contact with skin, clothing or the

vehicle body.

●

Do not lean over the battery.

●

In the event that battery fluid

comes into contact with the skin

or eyes, immediately wash the

affected area with water and

seek medical attention. Place a

wet sponge or cloth over the

affected area until medical

attention can be received.

●

Always wash your hands after

handling the battery support,

terminals, and other bat-

tery-related parts.

●

Do not allow children near the

battery.

432

7-2. Steps to take in an emergency

Stop the vehicle in a safe

place and turn off the air con-

ditioning system, and then

stop the engine.

If you see steam: Carefully lift

the hood after the steam sub-

sides.

If you do not see steam:

Carefully lift the hood.

NOTICE

■

When handling jumper cables

When connecting the jumper

cables, ensure that they do not

become entangled in the cooling

fan or engine drive belt.

■

When connecting jumper

cables

Make sure to connect jumper

cables to the specified terminals

and connecting point. Failure to

do so may adversely affect the

electronic devices or damage to

them.

If your vehicle over-

heats

The following may indicate

that your vehicle is over-

heating.



The engine coolant tem-

perature gauge (



P.78, 81)

is in the red zone or a loss

of engine power is experi-

enced. (For example, the

vehicle speed does not

increase.)



“Engine Coolant Temp High

Stop in a Safe Place See

Owner’s Manual” is shown

on the multi-information dis-

play.



A loss of engine power is

experienced. (For example,

the vehicle speed does not

increase.)



Steam comes out from

under the hood.

Correction procedures

433

7-2. Steps to take in an emergency

Whe

trouble

ises

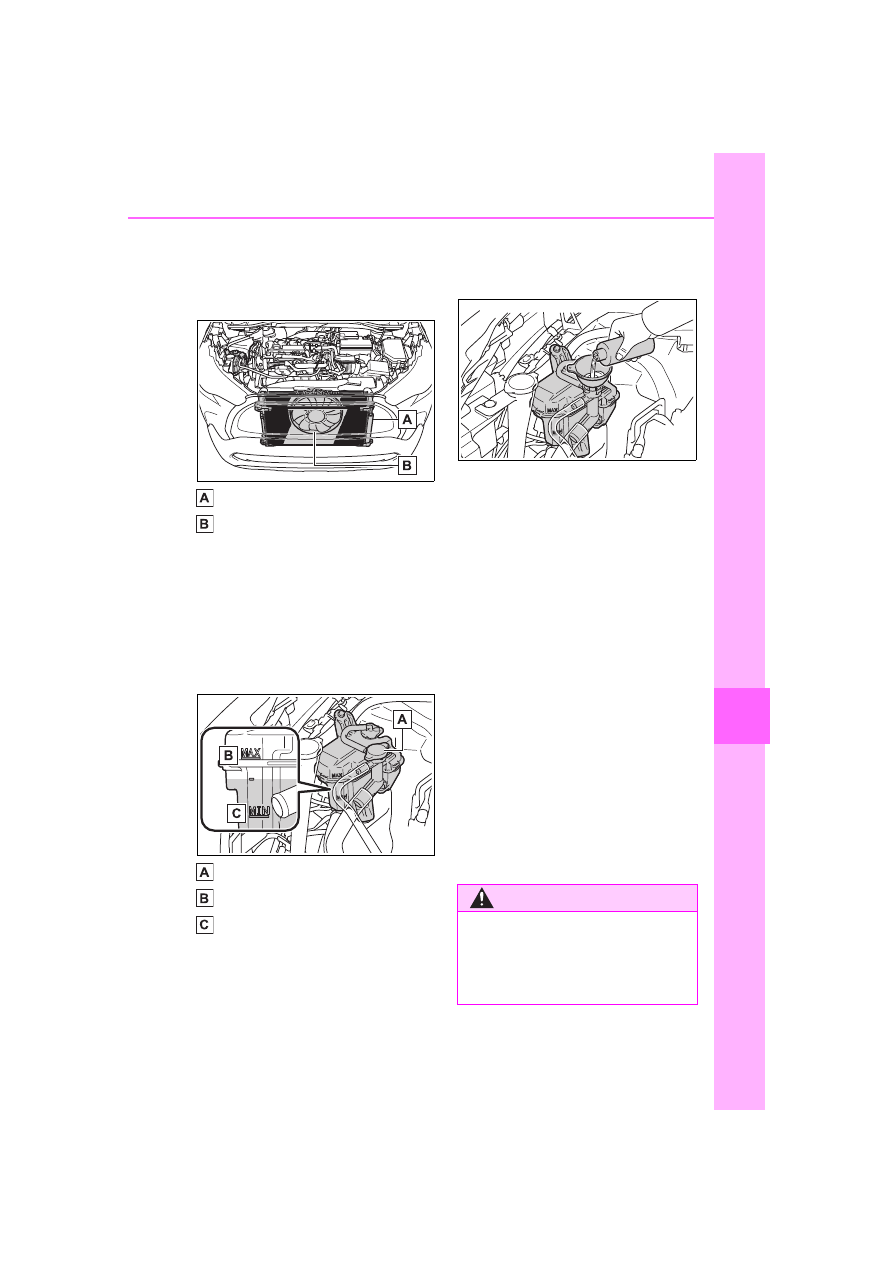

After the engine has cooled

down sufficiently, inspect the

hoses and radiator core (radi-

ator) for any leaks.

Radiator
Cooling fan

If a large amount of coolant leaks,

immediately contact your Toyota

dealer.

The coolant level is satisfac-

tory if it is between the “MAX”

and “MIN” lines on the reser-

voir.

Reservoir cap
“MAX” line
“MIN” line

Add engine coolant if neces-

sary.

Water can be used in an emer-

gency if engine coolant is unavail-

able.

If water was added in an emer-

gency, have the vehicle inspected

at your Toyota dealer as soon as

possible.

Start the engine and turn the

air conditioning system on to

check that the radiator cool-

ing fan operates and to check

for coolant leaks from the

radiator or hoses.

The fan operates when the air con-

ditioning system is turned on imme-

diately after a cold start. Confirm

that the fan is operating by check-

ing the fan sound and air flow. If it is

difficult to check these, turn the air

conditioning system on and off

repeatedly. (The fan may not oper-

ate in freezing temperatures.)

If the fan is not operating:

Stop the engine immediately

and contact your Toyota

dealer.

If the fan is operating: Have

the vehicle inspected at the

nearest Toyota dealer.

WARNING

■

When inspecting under the

hood of your vehicle

Observe the following precau-

tions. Failure to do so may result

in serious injury such as burns.

434

7-2. Steps to take in an emergency

Stop the engine. Set the

parking brake and shift the

shift lever to P.

Do not press the shift release but-

ton after shifting the shift position to

Remove the mud, snow or

sand from around the front

wheels.

Place wood, stones or some

other material under the front

wheels to help provide trac-

tion.

Restart the engine.

Shift the shift lever to D or R

and release the parking

brake. Then, while exercising

caution, depress the acceler-

ator pedal.

■

When it is difficult to free the

vehicle

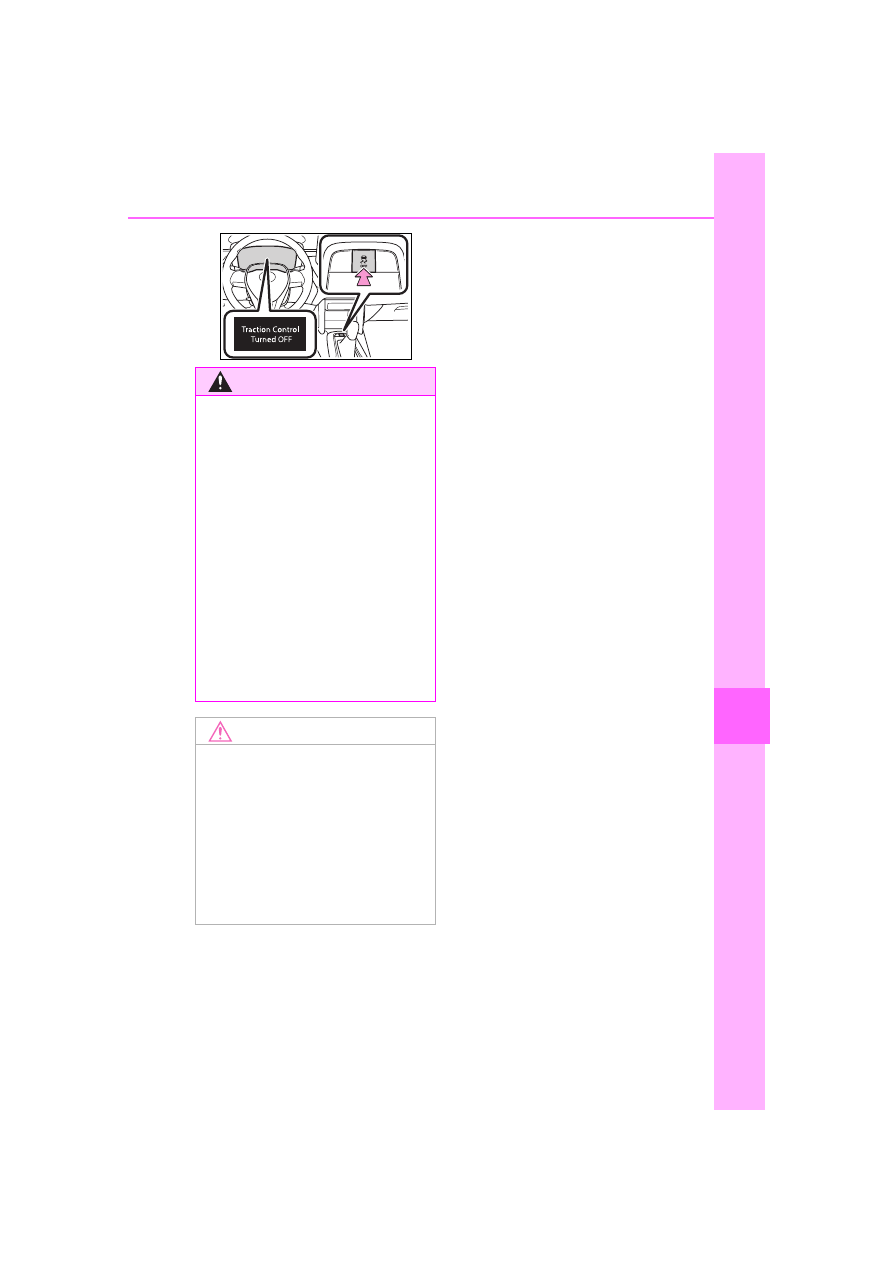

Press the

switch to turn off

TRAC.

WARNING

●

If steam is seen coming from

under the hood, do not open the

hood until the steam has sub-

sided. The engine compart-

ment may be very hot.

●

Keep hands and clothing (espe-

cially a tie, a scarf or a muffler)

away from the fan and belts.

Failure to do so may cause the

hands or clothing to be caught,

resulting in serious injury.

●

Do not loosen the coolant reser-

voir cap while the engine and

radiator are hot.

High temperature steam or

coolant could spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the

engine has cooled down suffi-

ciently. Adding cool coolant to a

hot engine too quickly can cause

damage to the engine.

■

To prevent damage to the

cooling system

Observe the following precau-

tions:

●

Avoid contaminating the coolant

with foreign matter (such as

sand or dust etc.).

●

Do not use any coolant additive.

If the vehicle becomes

stuck

Carry out the following pro-

cedures if the tires spin or

the vehicle becomes stuck

in mud, dirt or snow:

Recovering procedure

435

7-2. Steps to take in an emergency

Whe

trouble

ises

WARNING

■

When attempting to free a

stuck vehicle

If you choose to push the vehicle

back and forth to free it, make

sure the surrounding area is clear

to avoid striking other vehicles,

objects or people. The vehicle

may also lunge forward or lunge

back suddenly as it becomes free.

Use extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift

lever with the accelerator pedal

depressed.

This may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident

resulting in death or serious injury.

NOTICE

■

To avoid damaging the trans-

mission and other compo-

nents

●

Avoid spinning the front wheels

and depressing the accelerator

pedal more than necessary.

●

If the vehicle remains stuck

even after these procedures are

performed, the vehicle may

require towing to be freed.

438

8-1. Specifications

8-1.Specifications

: Unladen vehicles

: Vehicles with 215/65R17 tires

: Vehicles with 225/55R18 tires

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

175.6 in. (4460 mm)

Overall width

71.9 in. (1825 mm)

Overall height

64.8 in. (1645 mm)

Wheelbase

103.9 in. (2640 mm)

Tread

Front



2WD models

61.6 in. (1565 mm)

61.2 in. (1555 mm)



AWD models

61.7 in. (1566 mm)

61.3 in. (1556 mm)

Rear



2WD models

62.2 in. (1580 mm)

61.8 in. (1569 mm)



AWD models

61.6 in. (1564 mm)

61.2 in. (1554 mm)

Vehicle capacity weight
(Occupants + luggage)

940 lb. (425 kg)

Trailer Weight Rating
(Trailer weight + cargo weight)

1500 lb. (680 kg)

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

439

8-1. Specifications

Vehicle

specificatio

■

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.

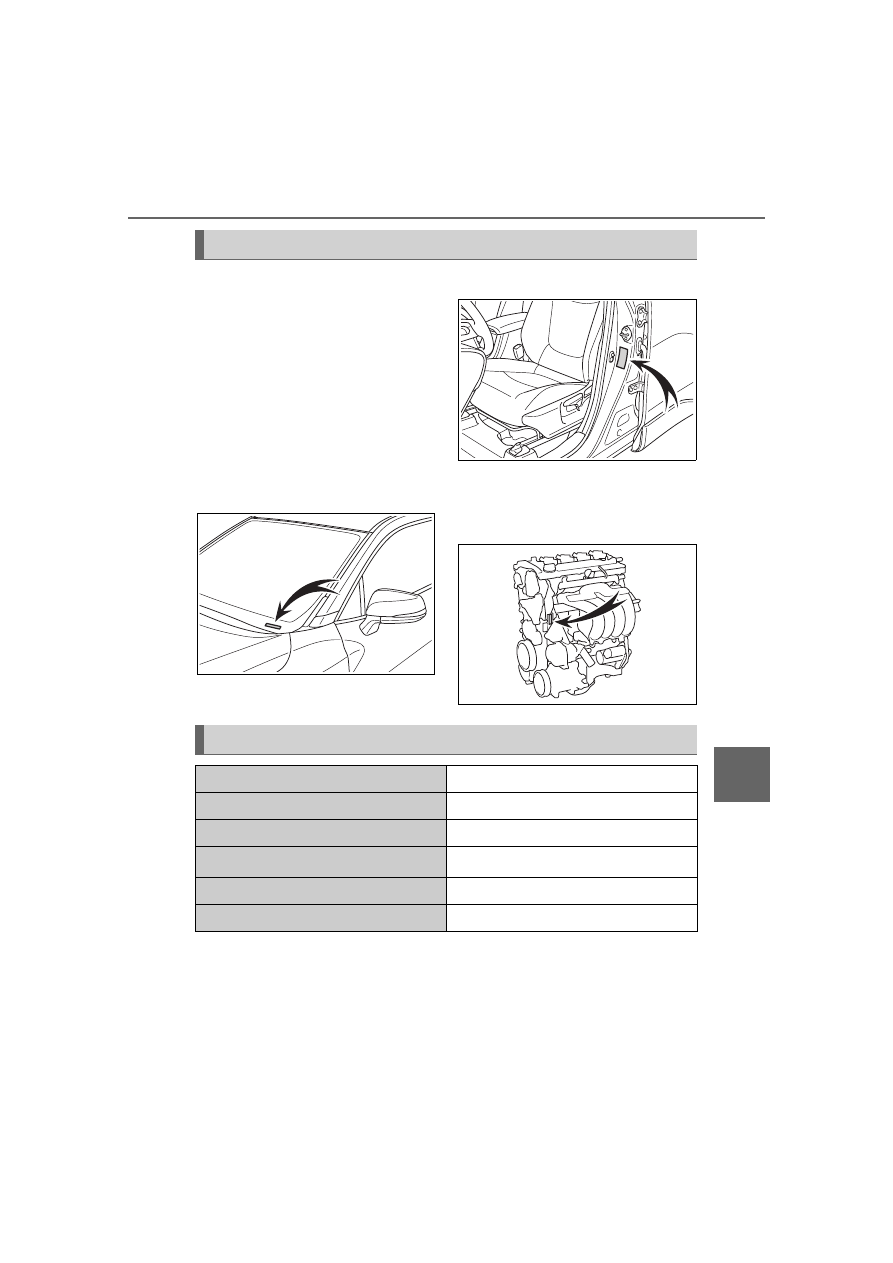

This number is stamped on the
top left of the instrument panel.

This number is also on the Certi-

fication Label.

■

Engine number

The engine number is stamped
on the engine block as shown.

Vehicle identification

Engine

Model

2.0 L 4-cylinder (M20A-FKS)

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.17



3.84 in. (80.5



97.6 mm)

Displacement

121.3 cu. in. (1987 cm

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

440

8-1. Specifications

■

Oil capacity (Drain and refill

[Reference

])

: The engine oil capacity is a refer-

ence quantity to be used when
changing the engine oil. When
actually adding the engine oil,
make sure that the oil level is
between the low level mark and
refill upper limit mark (



P.354).

Warm up and turn off the engine,
wait about 5 minutes, and check
the oil level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.

Oil grade: JASO GLV-1

Recommended viscosity: SAE

0W-8

Outside temperature

SAE 0W-8 is the best choice for
good fuel economy and good
starting in cold weather.

If SAE 0W-8 is not available,
SAE 0W-16 oil may be used.
However, it must be replaced
with SAE 0W-8 at the next oil
change.

Oil viscosity (0W-8 is explained
here as an example):
• The 0W in 0W-8 indicates the

characteristic of the oil which
allows cold startability. Oils
with a lower value before the
W allow for easier starting of
the engine in cold weather.

• The 8 in 0W-8 indicates the

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

87 (Research Octane Number 91) or
higher

Fuel tank capacity
(Reference)



2WD models

12.4 gal. (47.0 L, 10.3 Imp. gal.)



AWD models

13.2 gal. (50.0 L, 11.0 Imp. gal.)

Lubrication system

With filter

4.4 qt. (4.2 L, 3.7 Imp.
qt.)

Without

filter

4.1 qt. (3.9 L, 3.4 Imp.
qt.)

441

8-1. Specifications

Vehicle

specificatio

viscosity characteristic of the

oil when the oil is at high tem-

perature. An oil with a higher

viscosity (one with a higher

value) may be better suited if

the vehicle is operated at high

speeds, or under extreme

load conditions.

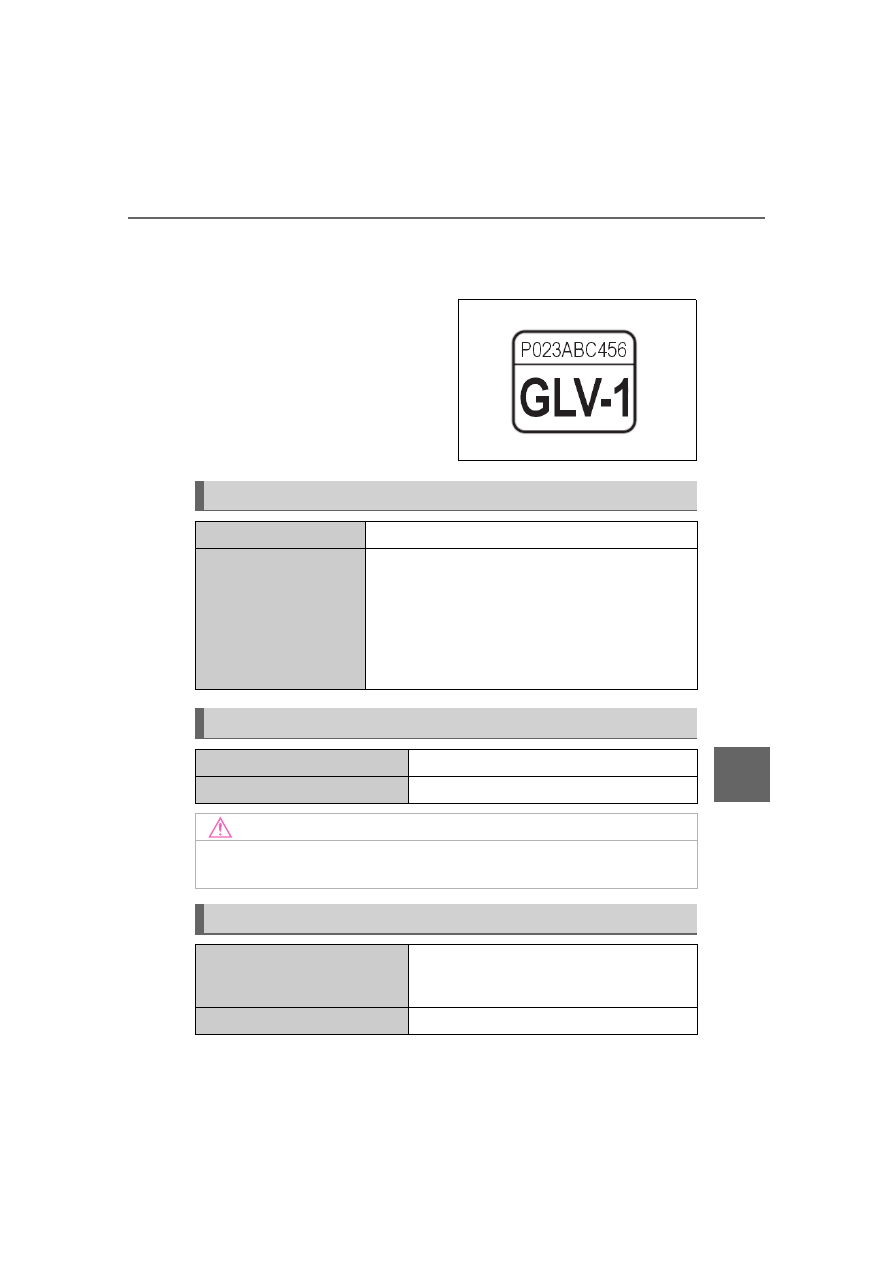

How to read oil container label:
The Japanese Automotive Stan-

dards Organization (JASO)

GLV-1 mark is added to some oil

containers to help you select the

oil you should use.

Cooling system

Capacity (Reference)

6.7 qt. (6.3 L, 5.5 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based

non-silicate, non-amine, non-nitrite, and

non-borate coolant with long-life hybrid organic

acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make

DENSO FC20HR-Q8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (battery)

Open voltage at 68°F (20°C):

12.3 V or higher

(Turn the engine switch off and turn on the

high beam headlights for 30 seconds.)

Charging rate

5 A max.

442

8-1. Specifications

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

Continuously variable transmission

Fluid capacity

8.7 qt. (8.2 L, 7.2 Imp. qt.)

Fluid type

Toyota Genuine CVT Fluid FE

NOTICE

■

Continuously variable transmission fluid type

Using continuously variable transmission fluid other than the above type

may cause abnormal noise or vibration, or damage the continuously vari-

able transmission of your vehicle.

Transfer (AWD models)

Oil capacity

0.47 qt. (0.45 L, 0.39 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LT

75W-85 GL-5 or equivalent

NOTICE

■

Transfer oil type precaution

Using transfer oil other than the specified oil may cause abnormal noise

or vibration, or damage the transfer of your vehicle.

Rear differential (AWD models)

Oil capacity

0.52 qt. (0.50 L, 0.43 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LT 75W-85

GL-5 or equivalent

NOTICE

■

Differential gear oil type precaution

Using differential gear oil other than the specified oil may cause abnormal

noise or vibration, or damage the differential gear of your vehicle.

443

8-1. Specifications

Vehicle

specificatio

: Minimum pedal clearance when depressed with a force of 67.4 lbf (300

N, 30.6 kgf) while the engine is running.

: Make sure to confirm that the brake system warning light (yellow) does

not illuminate. (If the brake system warning light illuminates, refer to
P.399.)



Type A

Brakes

Pedal clearance

4.9 in. (124 mm) Min.

Pedal free play

0.04



0.24 in. (1



6 mm)

Brake pad wear limit



Front

0.06 in. (1.5 mm)



Rear

0.08 in. (2.0 mm)

Parking brake indicator

When pulling the parking brake switch for
1 to 2 seconds: comes on

When pushing the parking brake switch for
1 to 2 seconds: turns off

Fluid type

FMVSS No.116 DOT 3 or SAE J1703

FMVSS No.116 DOT 4 or SAE J1704

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

215/65R17 99H, T155/80D17 101M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

33 psi (230 kPa, 2.3 kgf/cm

or bar)



Rear

29 psi (200 kPa, 2.0 kgf/cm

or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

or bar)

444

8-1. Specifications



Type B



Type C



Type D

Wheel size



6 1/2J, 17



4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/55R18 98V, T155/80D17 101M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

33 psi (230 kPa, 2.3 kgf/cm

or bar)



Rear

30 psi (210 kPa, 2.1 kgf/cm

or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size



7J, 17



4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

215/65R17 99H, T155/80D17 101M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

33 psi (230 kPa, 2.3 kgf/cm

or bar)



Rear

33 psi (230 kPa, 2.3 kgf/cm

or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size



6 1/2J, 17



4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/55R18 98V, T155/80D17 101M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

33 psi (230 kPa, 2.3 kgf/cm

or bar)



Rear

33 psi (230 kPa, 2.3 kgf/cm

or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

or bar)

445

8-1. Specifications

Vehicle

specificatio

A: Wedge base bulbs (clear)

B: Wedge base bulbs (amber)

Wheel size



7J, 17



4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Light bulbs

Light bulbs

Bulb No.

Type

Exterior

Front side marker lights (bulb
type)

—

Front turn signal (bulb type)

—

Parking lights (bulb type)

—

Tail lights/rear side marker lights
(bulb type)

—

Back-up lights

—

License plate lights

—

Interior

Luggage compartment light

—

446

8-1. Specifications

■

Gasoline quality

In very few cases, driveability prob-
lems may be caused by the brand of
gasoline you are using. If driveability
problems persist, try changing the
brand of gasoline. If this does not
correct the problem, consult your
Toyota dealer.

■

Recommendation of the use of
gasoline containing detergent
additives

●

Toyota recommends the use of
gasoline that contains detergent
additives to avoid the build-up of
engine deposits.

●

All gasoline sold in the U.S.A. con-
tains minimum detergent additives
to clean and/or keep clean intake
systems, per EPA’s lowest addi-
tives concentration program.

●

Toyota strongly recommends the
use of Top Tier Detergent Gaso-
line. For more information on Top
Tier Detergent Gasoline and a list
of marketers, please go to the offi-
cial website www.toptiergas.com.

■

Recommendation of the use of
low emissions gasoline

Gasolines containing oxygenates
such as ethers and ethanol, as well
as reformulated gasolines, are avail-
able in some cities. These fuels are
typically acceptable for use, provid-
ing they meet other fuel require-
ments.

Toyota recommends these fuels,
since the formulations allow for
reduced vehicle emissions.

■

Non-recommendation of the
use of blended gasoline

●

Use only gasoline containing up to
15% ethanol.
DO NOT use any flex-fuel or gas-
oline that could contain more than
15% ethanol, including from any

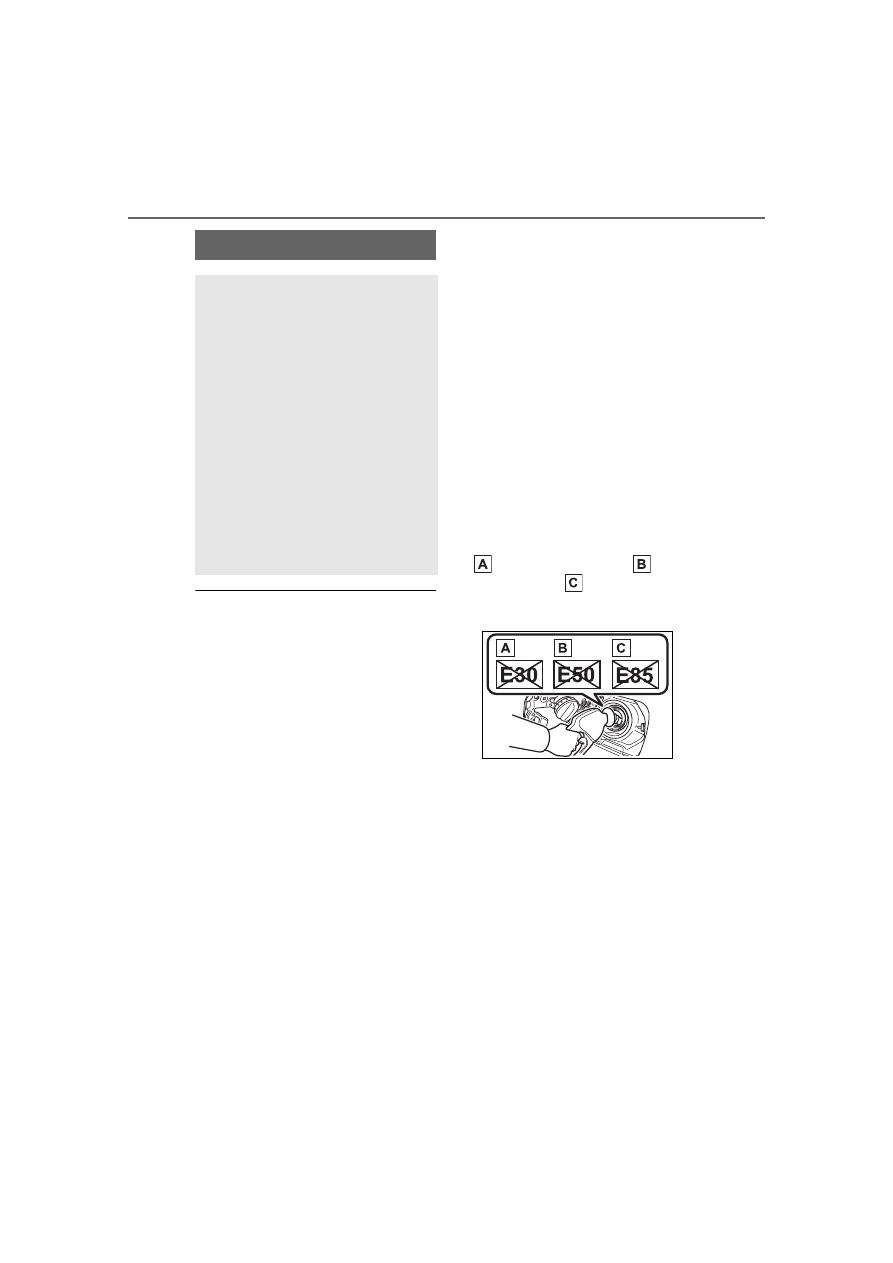

pump labeled E30 (30% ethanol
[

]), E50 (50% ethanol [

]), E85

(85% ethanol [

]) (which are only

some examples of fuel containing
more than 15% ethanol).

●

If you use gasohol in your vehicle,
be sure that it has an octane rat-
ing no lower than 87.

●

Toyota does not recommend the
use of gasoline containing metha-
nol.

■

Non-recommendation of the
use of gasoline containing MMT

Some gasoline contains an octane
enhancing additive called MMT
(Methylcyclopentadienyl Manga-
nese Tricarbonyl).

Toyota does not recommend the use
of gasoline that contains MMT. If
fuel containing MMT is used, your
emission control system may be

Fuel information

You must only use unleaded
gasoline.
Select octane rating of 87
(Research Octane Number
91) or higher. Use of
unleaded gasoline with an
octane rating lower than 87
may result in engine knock-
ing. Persistent knocking
can lead to engine damage.

At minimum, the gasoline you
use should meet the specifica-
tions of ASTM D4814 in the
U.S.A.

447

8-1. Specifications

Vehicle

specificatio

adversely affected.
The malfunction indicator lamp on

the instrument cluster may come on.

If this happens, contact your Toyota

dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light

knocking for a short time while

accelerating or driving uphill. This

is normal and there is no need for

concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If

improper fuels are used, the

engine will be damaged.

●

Do not use leaded gasoline.

Leaded gasoline can cause

damage to your vehicle’s

three-way catalytic converters

causing the emission control

system to malfunction.

●

Do not use gasohol other than

the type previously stated.

Other gasohol may cause fuel

system damage or vehicle per-

formance problems.

●

Using unleaded gasoline with

an octane number or rating

lower than the level previously

stated will cause persistent

heavy knocking.

At worst, this will lead to engine

damage.

■

Fuel-related poor driveability

If poor driveability (poor hot start-

ing, vaporization, engine knock-

ing, etc.) is encountered after

using a different type of fuel, dis-

continue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It

can damage your vehicle’s paint.

448

8-1. Specifications



Full-size tire

Tire size (



P.450)

DOT and Tire Identification Number (TIN) (



P.450)

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Location of treadwear indicators (



P.360)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a
bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.

Load limit at maximum cold tire inflation pressure (



P.360)

Maximum cold tire inflation pressure (



P.443)

This means the pressure to which a tire may be inflated.

Summer tires or all season tires (



P.361)

Tire information

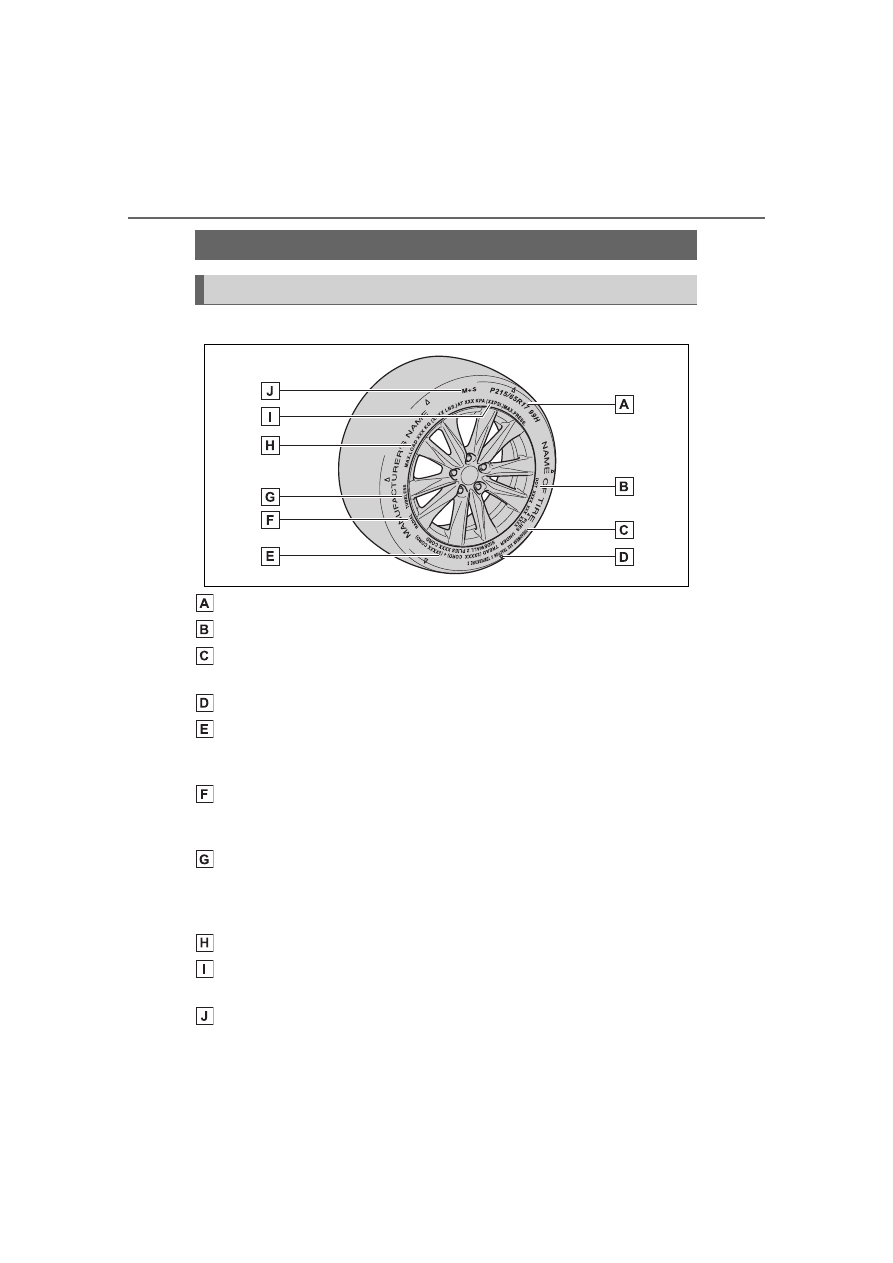

Typical tire symbols

Toyota Corolla Cross (2024 year). Manual in english - page 14
