7-2. Steps to take in an emergency

Whe

ouble

rises

●

RSA (Road Sign Assist) (if

equipped)

●

PDA (Proactive Driving Assist)

Follow the following correction
methods.
• Using the windshield wipers,

remove the dirt or foreign matter
from the windshield.

• Using the air conditioning system,

defog the windshield.

• Close the hood, remove any stick-

ers, etc. to clear the obstruction in
front of the front camera.

■

If “System Stopped Front Cam-
era Out of Temperature Range
Wait until Normal Tempera-
ture” is displayed

Indicates one of the following sys-
tems is disabled.

●

PCS (Pre-Collision System)

●

LDA (Lane Departure Alert)

●

LTA (Lane Tracing Assist)

●

LCA (Lane Change Assist) (if

equipped)

●

AHB (Automatic High Beam)

●

Dynamic radar cruise control

●

RSA (Road Sign Assist) (if

equipped)

●

PDA (Proactive Driving Assist)

Follow the following correction
methods.
• If the front camera is hot, such as

after the vehicle is parked in the
sun, use the air conditioning sys-
tem to decrease the temperature
around the front camera

• If a sunshade was used when the

vehicle was parked, depending on
its type, the sunlight reflected from
the surface of the sunshade may
cause the temperature of the front
camera to become excessively
high

• If the front camera is cold, such

after the vehicle is parked in an

extremely cold environment, use
the air conditioning system to
increase the temperature around
the front camera

■

If “System Stopped Front Radar
Sensor Blocked Clean Radar
Sensor” is displayed

Indicates one of the following sys-
tems is disabled.

●

PCS (Pre-Collision System)

●

LDA (Lane Departure Alert)

●

LTA (Lane Tracing Assist)

●

LCA (Lane Change Assist) (if

equipped)

●

AHB (Automatic High Beam)

●

Dynamic radar cruise control

●

PDA (Proactive Driving Assist)

Follow the following correction
methods.
• Check if there is any foreign mat-

ter attached to the radar sensor or
radar sensor cover and clean
them if necessary (



P.217)

• This message may be displayed

when driving in an open area with
few nearby vehicles or structures,
such as a desert, grasslands, sub-
urbs, etc.
The message may be cleared by
driving the vehicle in an area with
structures, vehicles, etc. nearby.

■

If “System Stopped Front Radar
Sensor Out of Temperature
Range Wait until Normal Tem-
perature” is displayed

Indicates one of the following sys-
tems is disabled.

●

PCS (Pre-Collision System)

●

LDA (Lane Departure Alert)

●

LTA (Lane Tracing Assist)

●

LCA (Lane Change Assist) (if

equipped)

●

AHB (Automatic High Beam)

●

Dynamic radar cruise control

482

7-2. Steps to take in an emergency

●

PDA (Proactive Driving Assist)

The temperature of the radar sensor
is outside of the operating range.
Wait for the temperature to become
appropriate.

■

If “System Stopped Front Radar
In Self Calibration See Owner’s
Manual” is displayed

Indicates one of the following sys-
tems is disabled.

●

PCS (Pre-Collision System)

●

LDA (Lane Departure Alert)

●

LTA (Lane Tracing Assist)

●

LCA (Lane Change Assist) (if

equipped)

●

AHB (Automatic High Beam)

●

Dynamic radar cruise control

●

PDA (Proactive Driving Assist)

Follow the following correction
methods.
• Check if there is any foreign mat-

ter attached to the radar sensor or
radar sensor cover and clean
them if necessary (



P.217)

• The radar sensor may be mis-

aligned and will be adjusted auto-
matically while driving. Continue
driving for a while.

■

If “Unavailable Activation Con-
dition not Satisfied See Owner’s
Manual” is displayed

The

LCA function cannot be

used as the operating conditions
have not been met.

Operate the turn signal lever again
after all of the operating conditions
are met.

■

If “Cruise Control Unavailable
See Owner’s Manual” is dis-
played

Indicates one of the following sys-
tems is disabled.

●

Dynamic radar cruise control

●

Cruise control

A message is displayed when the
driving assist switch is pushed
repeatedly.

Press the driving assist switch
quickly and firmly.

■

If “Engine Oil Level Low Add or
Replace” is displayed

The engine oil level may be low.
Check the level of the engine oil,
and add engine oil if necessary.
(



P.417) This message may be

displayed if the vehicle is stopped
on a slope. Move the vehicle to a
level surface and check if the mes-
sage disappears.

■

If “Maintenance Required
Soon” is shown

Indicates that all maintenance
according to the driven distance on
the maintenance schedule

should

be performed soon.

Comes on approximately 4500
miles (7200 km) after the message
has been reset.

If necessary, perform maintenance.
Please reset the message after the
maintenance is performed.
(



P.406)

: Refer to the separate “Scheduled

Maintenance Guide” or “Owner’
Manual Supplement” for the main-
tenance interval applicable to your
vehicle.

■

If “Maintenance Required Visit
Your Dealer” is shown

Indicates that all maintenance is
required to correspond to the driven
distance on the maintenance sched-
ule

Comes on approximately 5000
miles (8000 km) after the message
has been reset. (The indicator will
not work properly unless the mes-
sage has been reset.)

Perform the necessary mainte-

483

7-2. Steps to take in an emergency

tro

le a

ris

nance. Please reset the message

after the maintenance is performed.

(



P.406)

: Refer to the separate “Scheduled

Maintenance Guide” or “Owner’

Manual Supplement” for the main-

tenance interval applicable to your

vehicle.

■

If “Engine Maintenance

Required Visit Your Dealer” is

shown

The engine or an engine component

is malfunctioning. Have the vehicle

inspected by your Toyota dealer

immediately.

■

If “Oil Maintenance Required

Soon” is displayed

Indicates that the engine oil should

be scheduled to be changed.
Check the engine oil and change it if

necessary.
After changing the engine oil, make

sure to reset the message.

(



P.417)

■

If “Oil Maintenance Required” is

displayed

Indicates that the engine oil should

be changed.
Check and change the engine oil,

and oil filter by your Toyota dealer.

After changing the engine oil, make

sure to reset the message.

(



P.417)

■

If “Accelerator and Brake Ped-

als Pressed Simultaneously” is

shown

The accelerator and brake pedals

are being depressed simultane-

ously. (



P.168)

Release the accelerator pedal and

depress the brake pedal.

■

Warning buzzer



P.472

WARNING

■

If a warning light comes on or

a warning buzzer sounds

when a warning message is

shown on the multi-informa-

tion display



P.473

NOTICE

■

If “Maintenance Required For

Traction Battery At Your

Dealer” is shown

The hybrid battery (traction bat-

tery) is scheduled to be inspected

or replaced. Have the vehicle

inspected by your Toyota dealer

immediately.

●

Continuing to drive the vehicle

without having the hybrid bat-

tery (traction battery) inspected

will cause the hybrid system not

to start.

●

If the hybrid system does not

start, contact your Toyota

dealer immediately.

484

7-2. Steps to take in an emergency



Stop the vehicle in a safe

place on a hard, flat surface.



Set the parking brake.



Shift the shift lever to P.



Stop the hybrid system.



Turn on the emergency flash-

ers. (



P.454)



For vehicles with power back

door: Turn off the power back

door system. (



P.130)



Check the degree of the tire

damage.

A tire should only be repaired

with the emergency tire punc-

ture repair kit if the damage is

caused by a nail or screw pass-

ing through the tire tread.

• Do not remove the nail or

screw from the tire. Removing

the object may widen the

opening and prevent emer-

gency repair with the repair

kit.

• To avoid sealant leakage,

move the vehicle until the

area of the puncture, if

known, is positioned at the

top of the tire.

If you have a flat tire

(vehicles without

spare tire)

Your vehicle is not

equipped with a spare tire,

but instead is equipped with

an emergency tire puncture

repair kit.

A puncture caused by a nail

or screw passing through

the tire tread can be

repaired temporarily using

the emergency tire puncture

repair kit. (The kit contains a

bottle of sealant. The seal-

ant can be used only once

to temporarily repair one

tire without removing the

nail or screw from the tire.)

Depending on the damage

condition of the flat tire, it

may not be able to repaired

with the emergency tire

puncture repair kit.

(



P.485)

After temporarily repairing

the tire with the kit, have the

tire repaired or replaced by

your Toyota dealer.

WARNING

■

If you have a flat tire

Do not continue driving with a flat

tire.
Driving even a short distance with

a flat tire can damage the tire and

the wheel beyond repair, which

could result in an accident.

Driving with a flat tire may cause a

circumferential groove on the side

wall.
In such a case, the tire may

explode when using a repair kit.

Before repairing the vehi-

cle

485

7-2. Steps to take in an emergency

Whe

ouble

rises

■

A flat tire that cannot be
repaired with the emergency
tire puncture repair kit

In the following cases, the tire can-
not be repaired with the emergency
tire puncture repair kit. Contact your
Toyota dealer.

●

When the tire is damaged due to
driving without sufficient air pres-
sure

●

When the tire lost air pressure due
to a crack or damage in the tire
sidewall

●

When the tire is visibly separated
from the wheel

●

When the cut or damage to the
tread is 0.16 in. (4 mm) long or
more

●

When the wheel is damaged

●

When two or more tires have been
punctured

●

When there is more than one hole
or cut in the damaged tire

●

When the sealant has expired



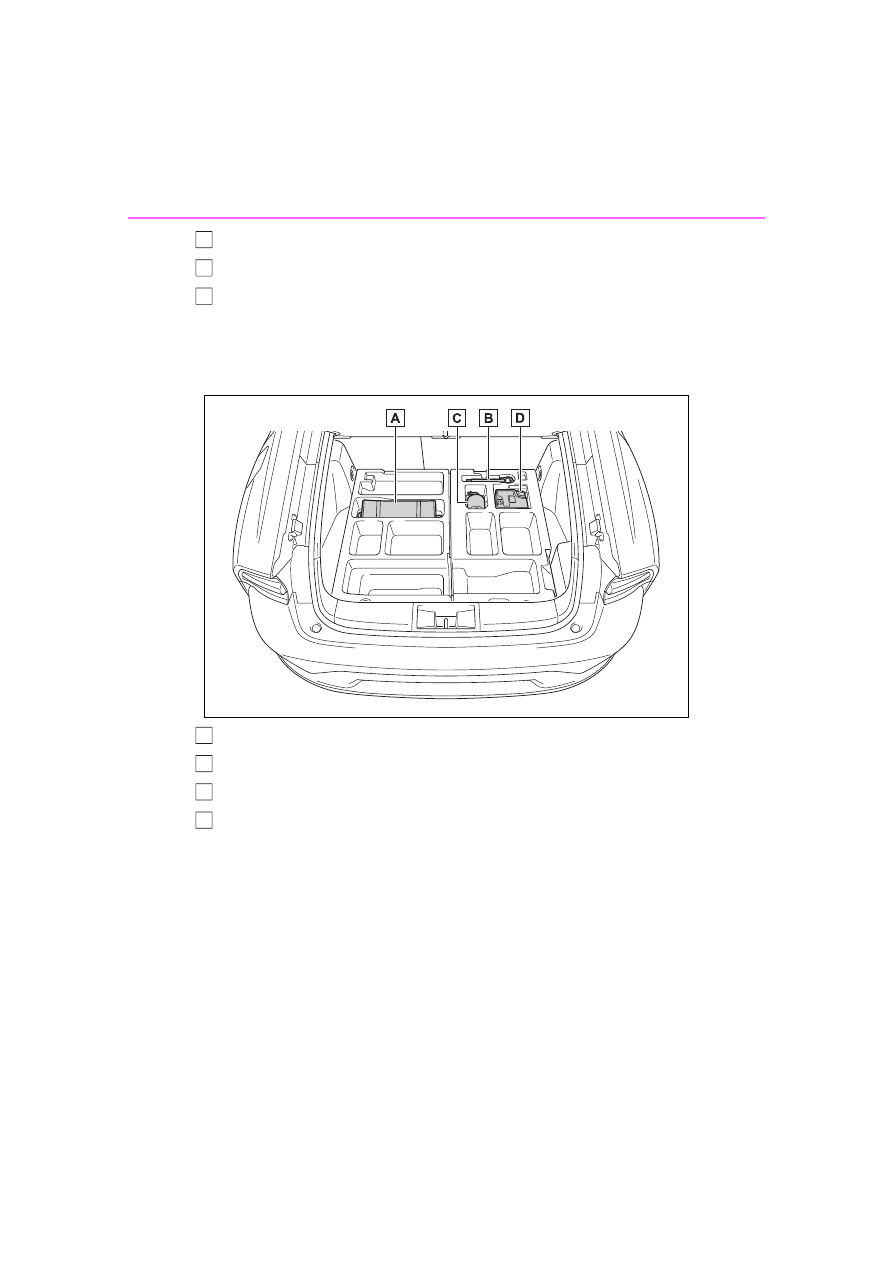

Deck under tray (type A)

Towing eyelet

Wheel nut wrench (if equipped)

Emergency tire puncture repair kit (compressor)

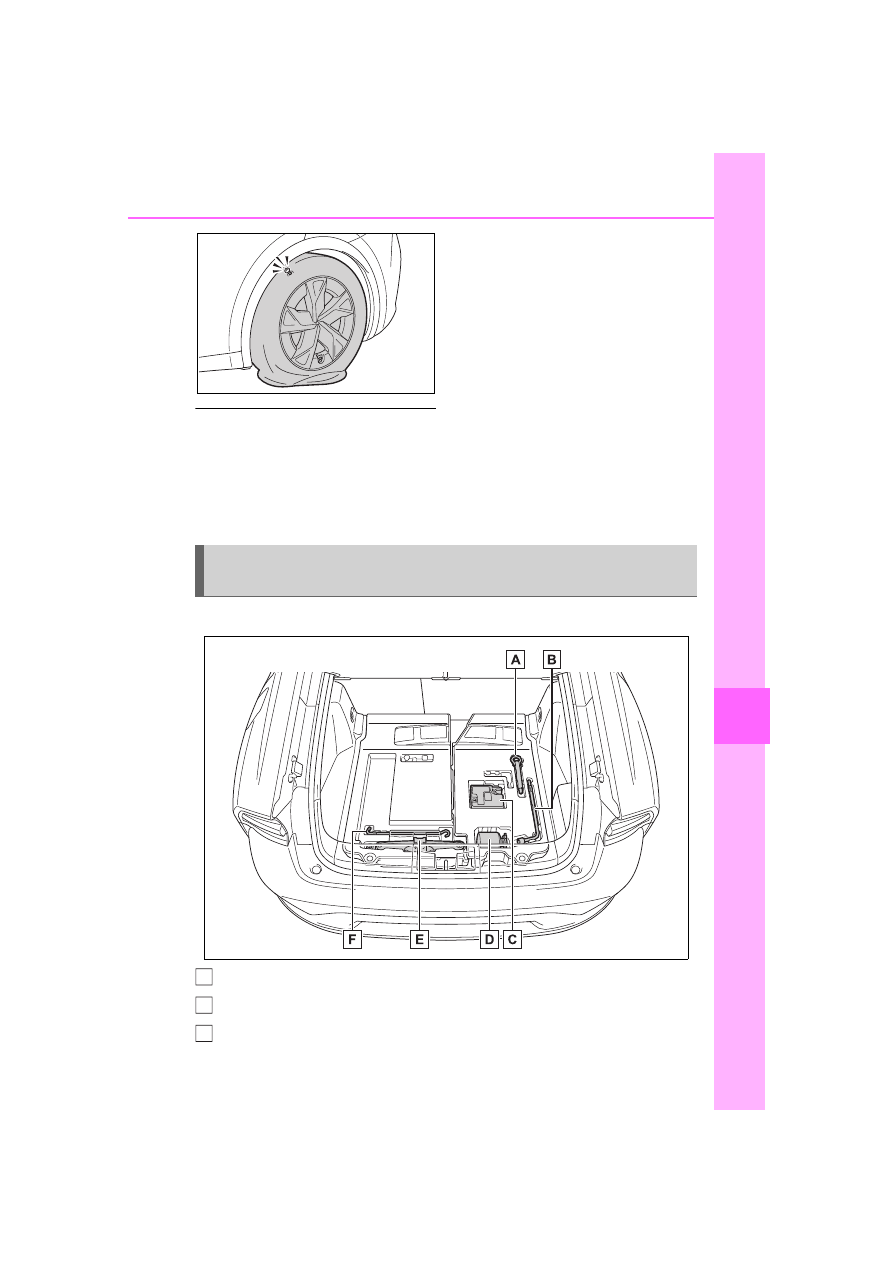

Location of the emergency tire puncture repair kit, jack
and tools

486

7-2. Steps to take in an emergency

Emergency tire puncture repair kit (bottle)

Jack (if equipped)

*1, 2

Jack handle (if equipped)

: They can be purchased at your Toyota dealer.

: Use of the jack (



P.496)



Deck under tray (type B)

Tool bag

Towing eyelet

Emergency tire puncture repair kit (bottle)

Emergency tire puncture repair kit (compressor)

: The tool bag contains Jack, Jack handle and Wheel nut wrench. They

can be purchased at your Toyota dealer.

487

7-2. Steps to take in an emergency

Whe

ouble

rises

■

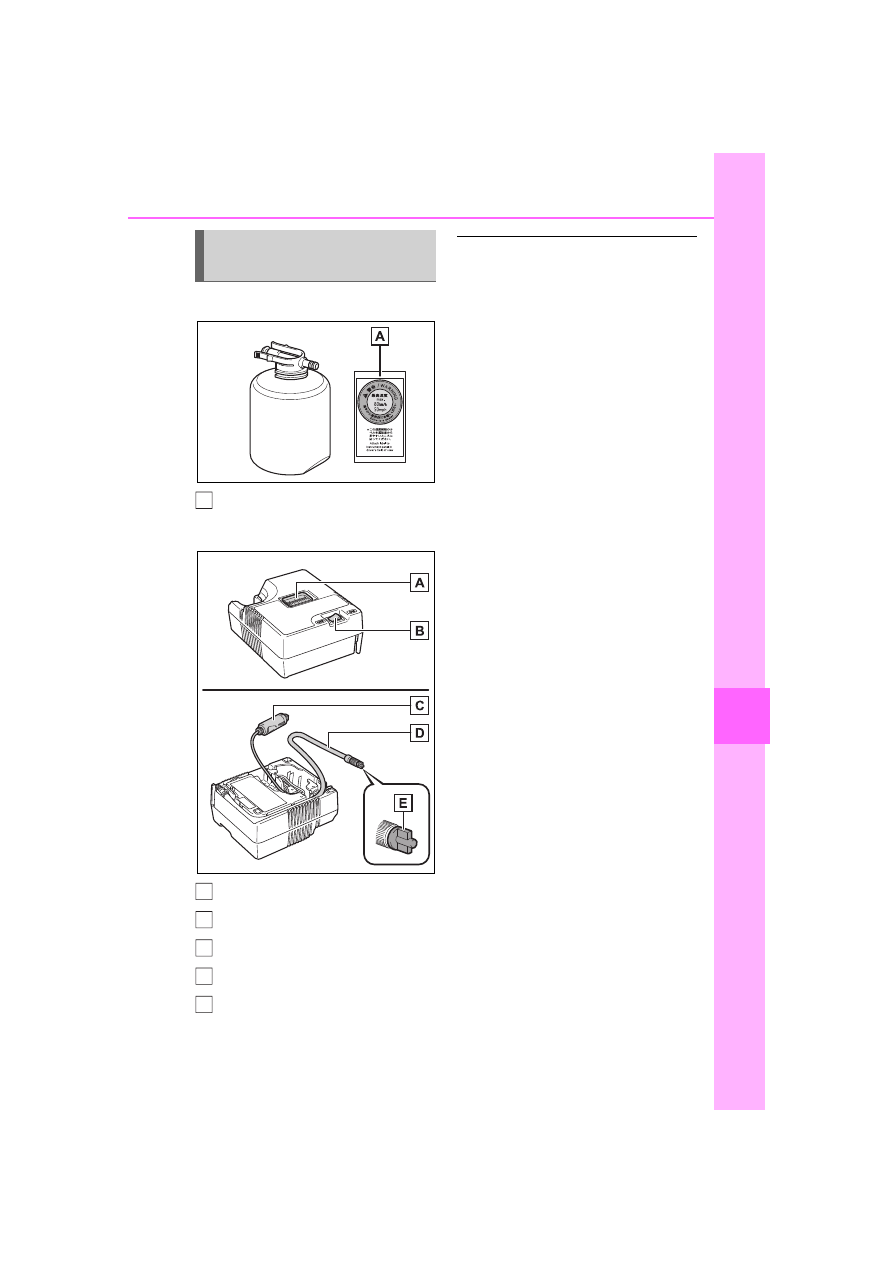

Bottle

Sticker

■

Compressor

Air pressure gauge

Compressor switch

Power plug

Hose

Air release cap

■

Note for checking the emer-
gency tire puncture repair kit

Check the sealant expiry date occa-
sionally. The expiry date is shown
on the bottle. Do not use sealant
whose expiry date has already
passed. Otherwise, repairs con-
ducted using the emergency tire
puncture repair kit may not be per-
formed properly.

■

Emergency tire puncture repair
kit

●

The emergency tire puncture
repair kit is for filling the car tire
with air.

●

The sealant has a limited life
span. The expiry date is marked
on the bottle. The sealant should
be replaced before the expiry
date. Contact your Toyota dealer.

●

The sealant stored in the emer-
gency tire puncture repair kit can
be used only once to temporarily
repair a single tire. If the sealant in
the bottle and other parts of the kit
have been used and need to be
replaced, contact your Toyota
dealer.

●

The compressor can be used
repeatedly.

●

The sealant can be used when the
outside temperature is from -40°F
(-40°C) to 140°F (60°C).

●

The kit is exclusively designed for
size and type of tires originally
installed on your vehicle. Do not
use it for tires that a different size
than the original ones, or for any
other purposes.

●

If the sealant gets on your clothes,
it may stain.

●

If the sealant adheres to a wheel
or the surface of the vehicle body,
the stain may not be removable if
it is not cleaned at once. Immedi-
ately wipe away the sealant with a
wet cloth.

●

During operation of the repair kit,
a loud operation noise is pro-

Emergency tire puncture
repair kit components

488

7-2. Steps to take in an emergency

duced. This does not indicate a

malfunction.

●

Do not use to check or to adjust

the tire pressure.

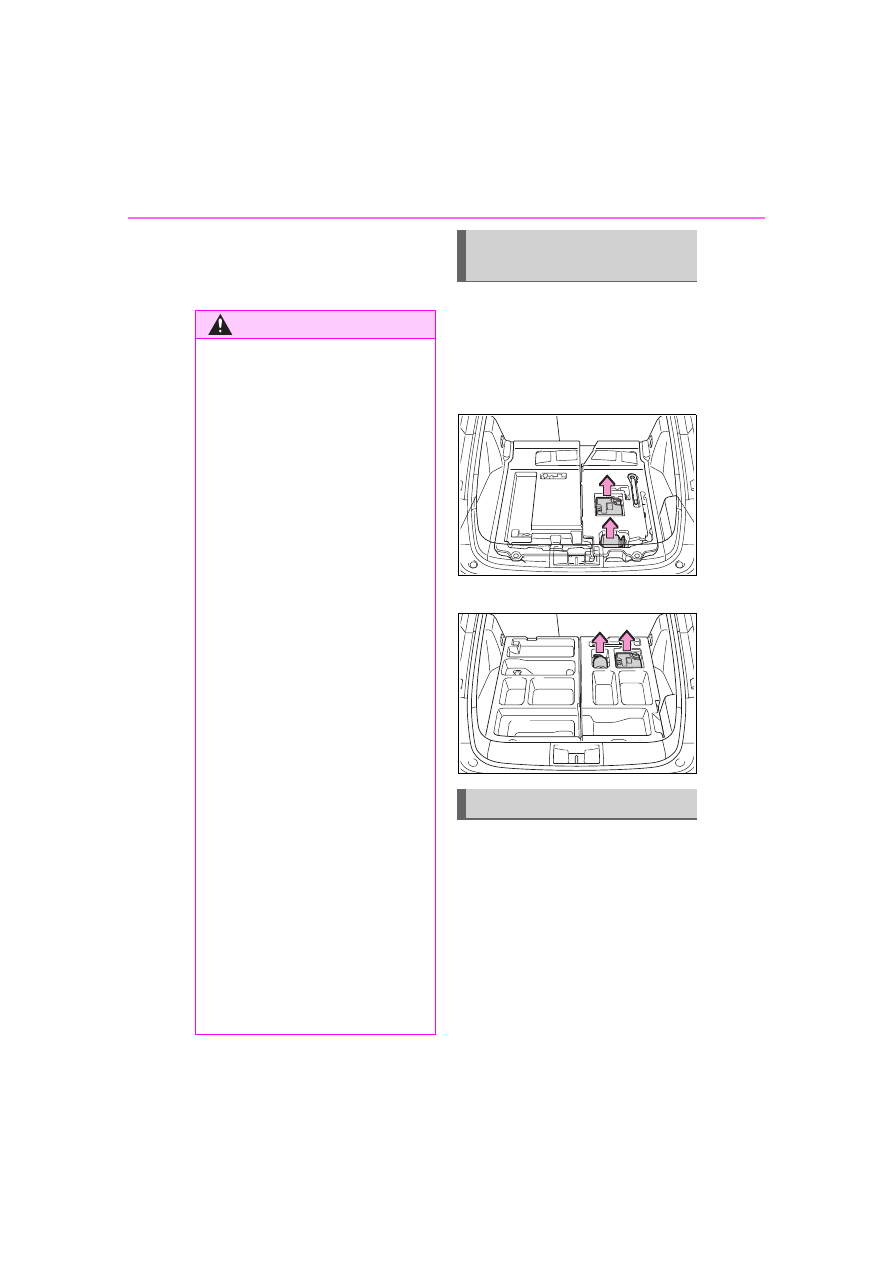

Open the deck board.

(



P.375).

Take out the emergency tire

puncture repair kit.



Deck under tray (type A)



Deck under tray (type B)

Take out the repair kit from

the plastic bag.

Attach the sticker enclosed with the

bottle on the specified locations.

(See step

WARNING

■

Do not drive the vehicle with

a flat tire

Do not continue driving with a flat

tire. Driving even a short distance

with a flat tire can damage the tire

and the wheel beyond repair.
Driving with a flat tire may cause a

circumferential groove on the side

wall. In such a case, the tire may

explode when using a repair kit.

■

Caution while driving

●

Store the repair kit in the lug-

gage compartment.

Injuries may result in the event

of an accident or sudden brak-

ing.

●

The repair kit is exclusively only

for your vehicle.

Do not use repair kit on other

vehicles, which could lead to an

accident causing death or seri-

ous injury.

●

Do not use repair kit for tires

that are different size than the

original ones, or for any other

purpose. If the tires have not

been completely repaired, it

could lead to an accident caus-

ing death or serious injury.

■

Precautions for use of the

sealant

●

Ingesting the sealant is hazard-

ous to your health. If you ingest

sealant, consume as much

water as possible, and then

immediately consult a doctor.

●

If sealant gets in eyes or

adheres to skin, immediately

wash it off with water. If discom-

fort persists, consult a doctor.

Taking out the emergency

tire puncture repair kit

Emergency repair method

489

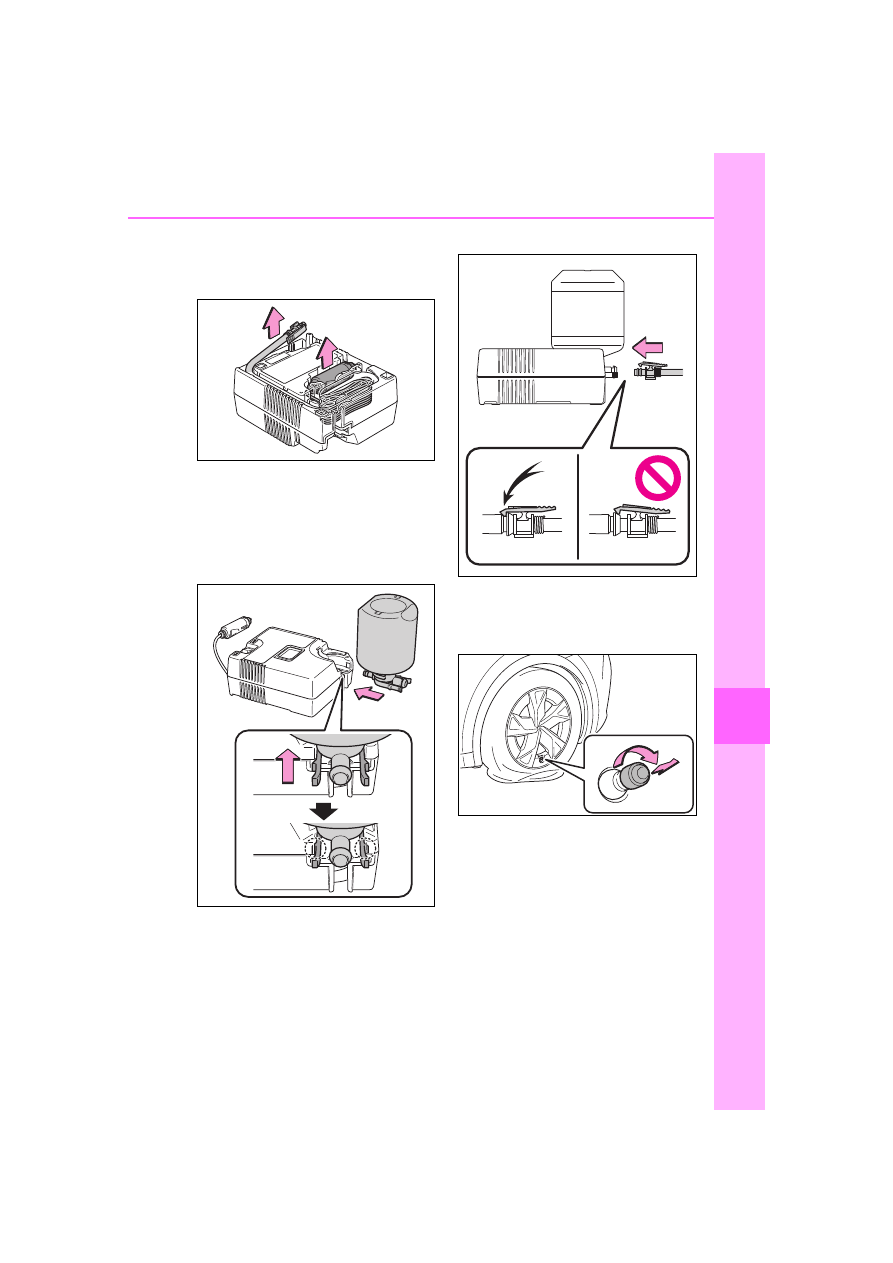

7-2. Steps to take in an emergency

Whe

ouble

rises

Pull out the hose and power
plug from the bottom side of
the compressor.

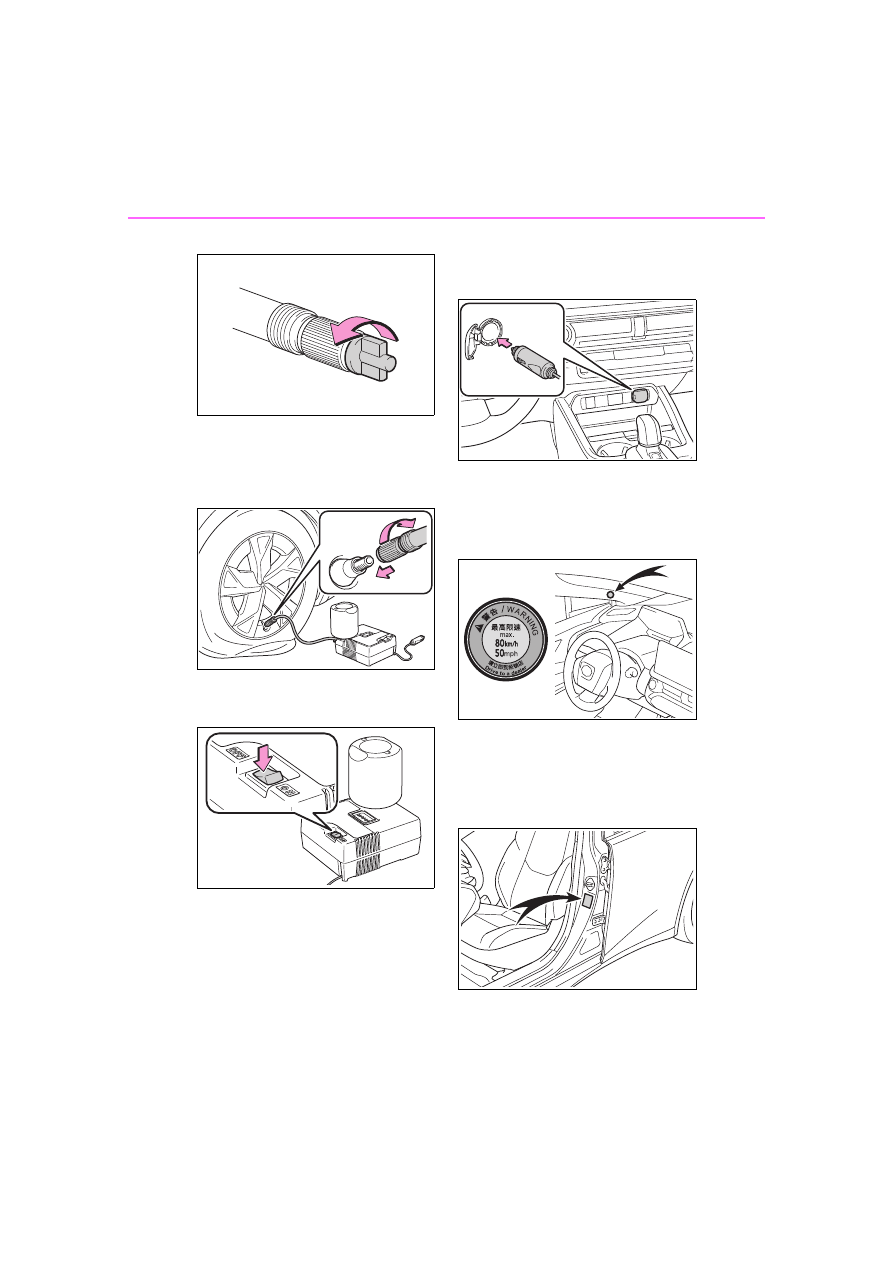

Connect the bottle to the
compressor.

Make sure to press the bottle until
its claws are securely engaged to
the compressor and no longer visi-
ble.

Connect the hose to the bot-
tle.

Make sure to insert the hose until
its claw is securely engaged to the

bottle.

Remove the valve cap from
the valve of the punctured
tire.

Extend the hose. Remove
the air release cap from the
hose.

You will use the air release cap
again.

490

7-2. Steps to take in an emergency

Therefore keep it in a safe place.

Connect the hose to the
valve.

Screw the end of the hose clock-
wise as far as possible.

Make sure that the compres-
sor switch is off.

Connect the power plug to
the power outlet socket.
(



P.378)

Attach the sticker provided

with the tire puncture repair
kit to a position easily seen
from the driver’s seat.

Check the specified tire infla-

tion pressure.

Tire inflation pressure is specified
on the label on the driver’s side pil-
lar as shown. (



P.437)

Start the hybrid system.

(



P.180)

491

7-2. Steps to take in an emergency

Whe

ouble

rises

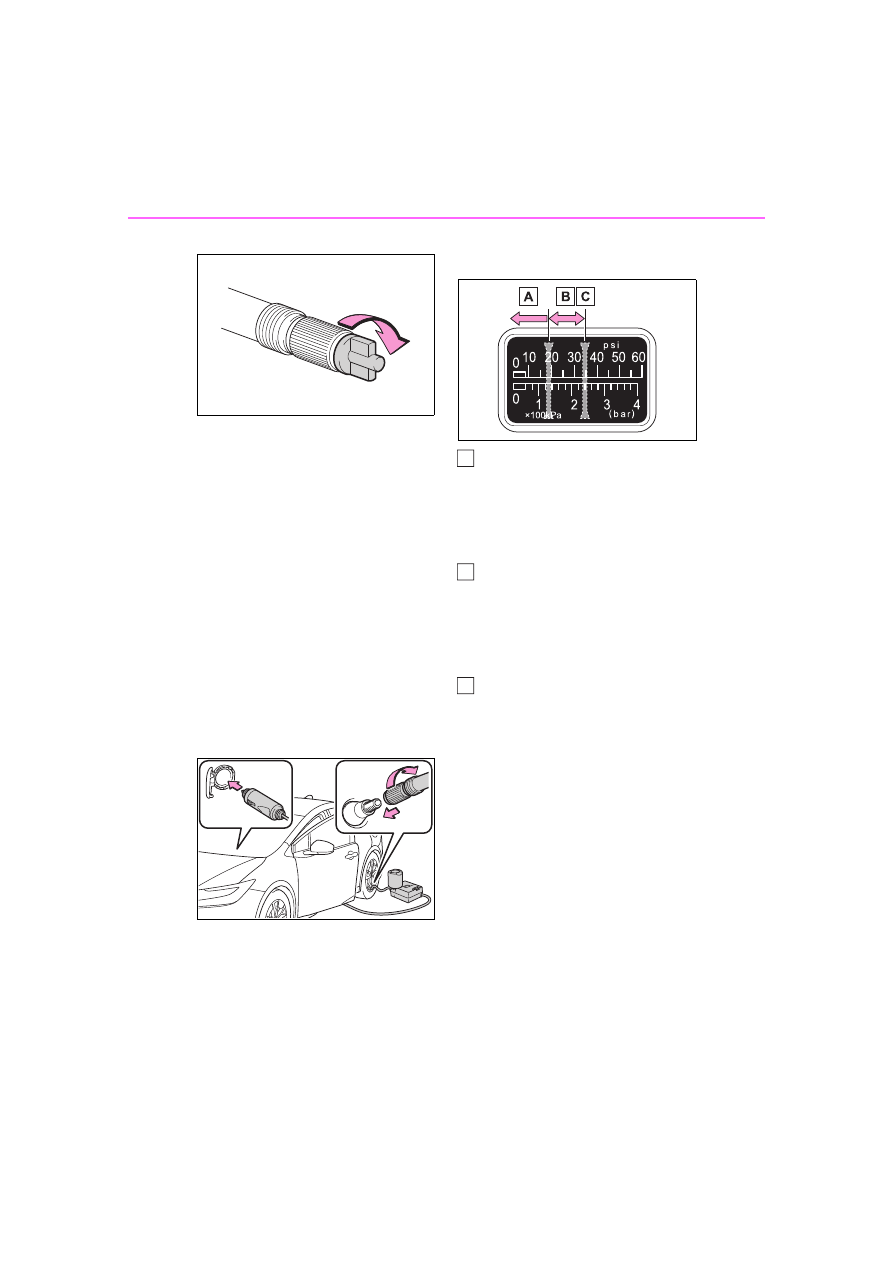

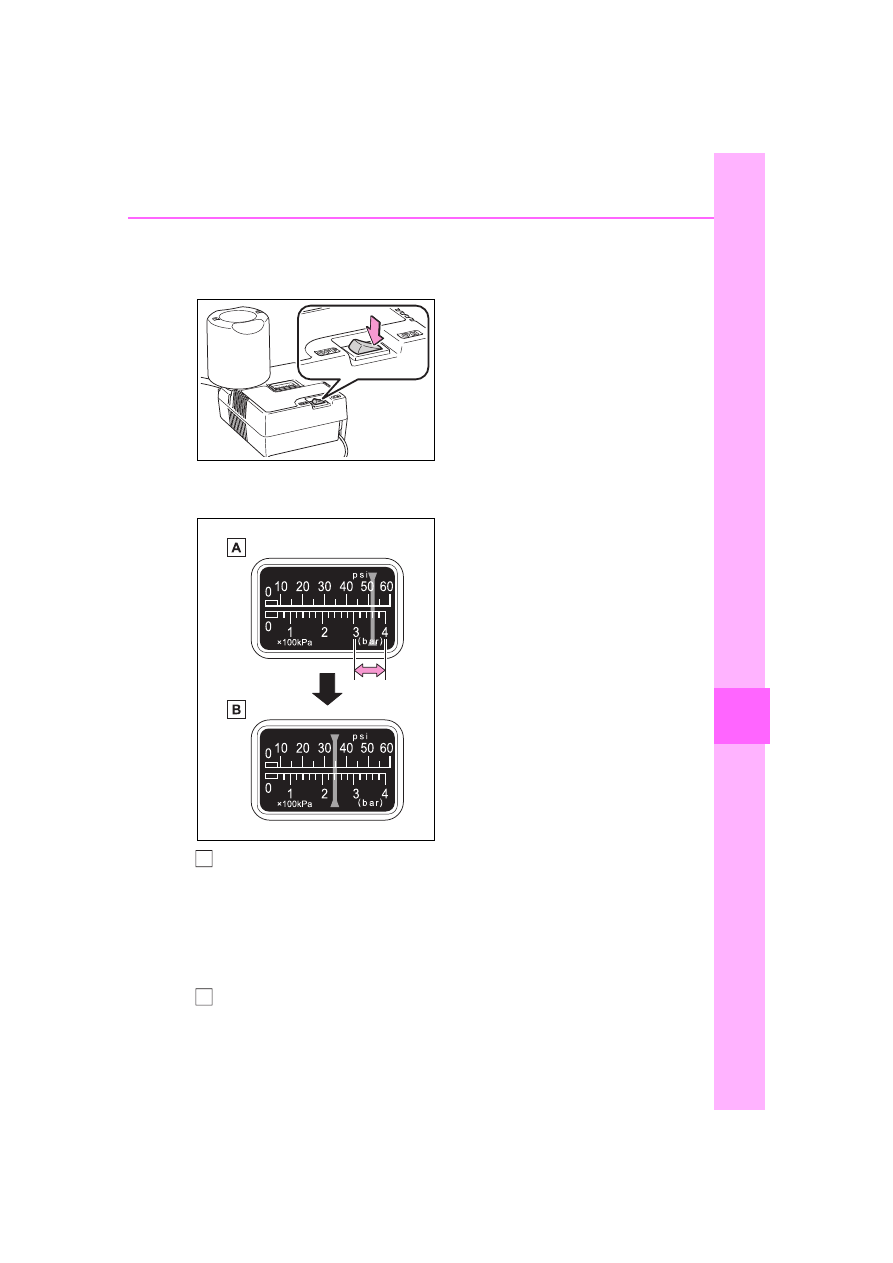

To inject the sealant and

inflate the tire, turn the com-
pressor switch on.

Inflate the tire until the speci-

fied air pressure is reached.

The sealant will be injected
and the pressure will spike to
between 44 psi (300 kPa, 3.0

kgf/cm

or bar) and 58 psi

(400 kPa, 4.0 kgf/cm

or bar),

then gradually decrease.

The air pressure gauge will
be displayed the actual tire

inflation pressure about 1 to
5 minutes after the switch is
turned on.

Turn the compressor switch off and
then check the tire inflation pres-
sure. Being careful not to over
inflate, check and repeat the infla-
tion procedure until the specified
tire inflation pressure is reached.

The tire can be inflated for about 5
to 20 minutes (depending on the
outside temperature). If the tire
inflation pressure is still lower than
the specified point after inflation for
25 minutes, the tire is too damaged
to be repaired. Turn the compres-
sor switch off and contact your
Toyota dealer.

If the tire inflation pressure exceeds
the specified air pressure, let out
some air to adjust the tire inflation
pressure. (



P.493, 526)

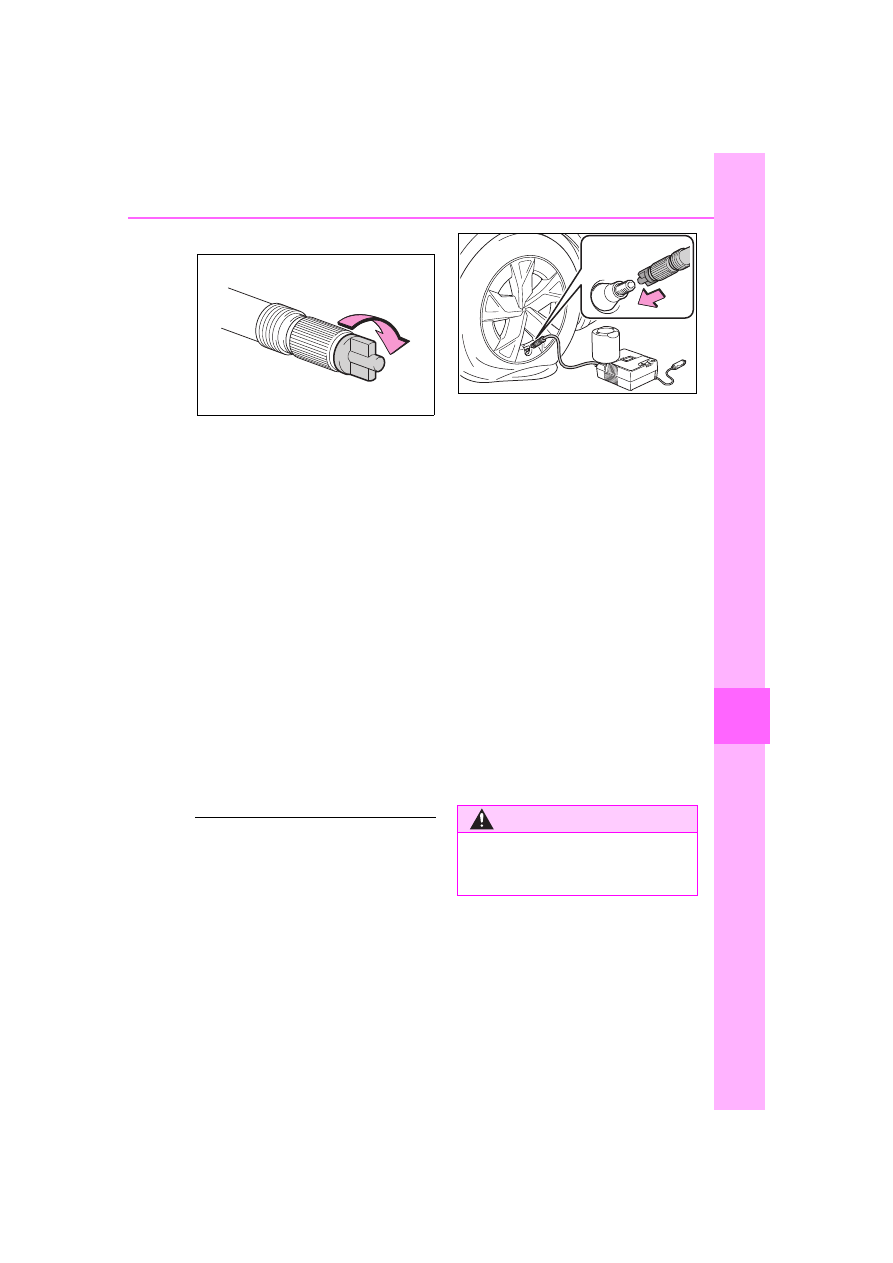

With the compressor switch

off, disconnect the hose from
the valve on the tire and then
pull out the power plug from
the power outlet socket.

Some sealant may leak when the
hose is removed.

Install the valve cap onto the

valve of the emergency
repaired tire.

Attach the air release cap to

the end of the hose.

If the air release cap is not
attached, the sealant may leak and

492

7-2. Steps to take in an emergency

the vehicle may get dirty.

Temporarily store the bottle

in the luggage compartment
while it is connected to the
compressor.

To spread the liquid sealant

evenly within the tire, imme-
diately drive safely for about
3 miles (5 km) below 50 mph
(80 km/h).

After driving, stop your vehi-

cle in a safe place on a hard,
flat surface and reconnect
the repair kit.

Remove the air release cap from
the hose before reconnecting the
hose.

Turn the compressor switch

on and wait for several sec-

onds, then turn it off. Check
the tire inflation pressure.

If the tire inflation pressure is
under 19 psi (130 kPa, 1.3

kgf/cm

or bar): The puncture

cannot be repaired. Contact
your Toyota dealer.

If the tire inflation pressure is

19 psi (130 kPa, 1.3 kgf/cm

or bar) or higher, but less
than the specified air pres-
sure: Proceed to step

If the tire inflation pressure is
the specified air pressure
(



P.526): Proceed to step

Turn the compressor switch

on to inflate the tire until the
specified air pressure is
reached. Drive for about 3
miles (5 km) and then per-
form step

Attach the air release cap to

the end of the hose.

If the air release cap is not
attached, the sealant may leak and

493

7-2. Steps to take in an emergency

tro

le a

ris

the vehicle may get dirty.

Store the bottle in the lug-

gage compartment while it is

connected to the compres-

sor.

Taking precautions to avoid

sudden braking, sudden

acceleration and sharp turns,

drive carefully at under 50

mph (80 km/h) to the nearest

Toyota dealer that is less

than 62 miles (100 km) away

for tire repair or replacement.

For repair and replacement of a tire

or disposal of the tire puncture

repair kit, contact your Toyota

dealer.
When having the tire repaired or

replaced, make sure to tell your

Toyota dealer that the sealant is

injected.

■

If the tire is inflated to more

than the specified air pressure

Disconnect the hose from the

valve.

Install the air release cap to the

end of the hose and push the

protrusion on the air release cap

into the tire valve to let some air

out.

Disconnect the hose from the

valve, remove the air release cap

from the hose and then recon-

nect the hose.

Turn the compressor switch on

and wait for several seconds,

and then turn it off. Check that

the air pressure indicator shows

the specified air pressure.

If the air pressure is under the des-

ignated pressure, turn the compres-

sor switch on again and repeat the

inflation procedure until the speci-

fied air pressure is reached.

■

After a tire is repaired with the

emergency tire puncture repair

kit

●

The tire pressure warning valve

and transmitter should be

replaced.

●

Even if the tire inflation pressure is

at the recommended level, the tire

pressure warning light may come

on/flash.

WARNING

■

When fixing the flat tire

●

Stop your vehicle in a safe and

flat area.

494

7-2. Steps to take in an emergency

WARNING

●

Do not touch the wheels or the

area around the brakes immedi-

ately after the vehicle has been

driven.

After the vehicle has been

driven, the wheels and the area

around the brakes may be

extremely hot. Touching these

areas with hands, feet or other

body parts may result in burns.

●

Connect the valve and hose

securely with the tire installed

on the vehicle. If the hose is not

properly connected to the valve,

air leakage may occur as seal-

ant may be sprayed out.

●

If the hose comes off the valve

while inflating the tire, there is a

risk that the hose will move

abruptly due to air pressure.

●

After inflation of the tire has

completed, the sealant may

splatter when the hose is dis-

connected or some air is let out

of the tire.

●

Follow the operation procedure

to repair the tire. If the proce-

dures not followed, the sealant

may spray out.

●

Keep back from the tire while it

is being repaired, as there is a

chance of it bursting while the

repair operation is being per-

formed. If you notice any cracks

or deformation of the tire, turn

off the compressor switch and

stop the repair operation imme-

diately.

●

The repair kit may overheat if

operated for a long period of

time. Do not operate the repair

kit continuously for more than

40 minutes.

●

Parts of the repair kit become

hot during operation. Be careful

handling the repair kit during

and after operation. Do not

touch the metal part connecting

the bottle and the compressor. It

will be extremely hot.

●

Do not attach the vehicle speed

warning sticker to an area other

than the one indicated. If the

sticker is attached to an area

where an SRS airbag is located,

such as the pad of the steering

wheel, it may prevent the SRS

airbag from operating properly.

■

Driving to spread the liquid

sealant evenly

Observe the following precautions

to reduce the risk of accidents.
Failing to do so may result in a

loss of vehicle control and cause

death or serious injury.

●

Drive the vehicle carefully at a

low speed. Be especially careful

when turning and cornering.

●

If the vehicle does not drive

straight or you feel a pull

through the steering wheel, stop

the vehicle and check the fol-

lowing.

• Tire condition. The tire may

have separated from the wheel.

• Tire inflation pressure. If the tire

inflation pressure is 19 psi (130

kPa, 1.3 kgf/cm

or bar) or less,

the tire may be severely dam-

aged.

495

7-2. Steps to take in an emergency

tro

le a

ris

NOTICE

■

When performing an emer-

gency repair

●

A tire should only be repaired

with the emergency tire punc-

ture repair kit if the damage is

caused by a sharp object such

as nail or screw passing through

the tire tread.

Do not remove the sharp object

from the tire. Removing the

object may widen the opening

and disenable emergency repair

with the repair kit.

●

The repair kit is not waterproof.

Make sure that the repair kit is

not exposed to water, such as

when it is being used in the rain.

●

Do not put the repair kit directly

onto dusty ground such as sand

at the side of the road. If the

repair kit vacuums up dust etc.,

a malfunction may occur.

●

Make sure to stand the kit with

the bottle vertical. The kit can-

not work properly if it is laid on

its side.

■

Precautions for the emer-

gency tire puncture repair kit

●

The repair kit power source

should be 12 V DC suitable for

vehicle use. Do not connect the

repair kit to any other source.

●

If fuel splatters on the repair kit,

the repair kit may deteriorate.

Take care not to allow fuel to

contact it.

●

Place the repair kit in a storage

to prevent it from being exposed

to dirt or water.

●

Store the repair kit in the lug-

gage compartment out of reach

of children.

●

Do not disassemble or modify

the repair kit. Do not subject

parts such as the air pressure

indicator to impacts. This may

cause a malfunction.

■

To avoid damage to the tire

pressure warning valves and

transmitters

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer or other qualified service

shop as soon as possible. After

use of liquid sealant, make sure to

replace the tire pressure warning

valve and transmitter when repair-

ing or replacing the tire. (



P.427)

496

7-2. Steps to take in an emergency



Stop the vehicle in a safe place on a hard, flat surface.



Set the parking brake.



Shift the shift position to P.



Stop the hybrid system.



Turn on the emergency flashers. (



P.454)



Turn off the power back door system. (



P.130)

If you have a flat tire (vehicles with spare tire)

Your vehicle is equipped with a spare tire. The flat tire can be

replaced with the spare tire.

For details about tires:



P.425

WARNING

■

If you have a flat tire

Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the

wheel beyond repair, which could result in an accident.

Before jacking up the vehicle

497

7-2. Steps to take in an emergency

tro

le a

ris

Wheel nut wrench
Towing eyelet
Jack
Jack handle
Spare tire

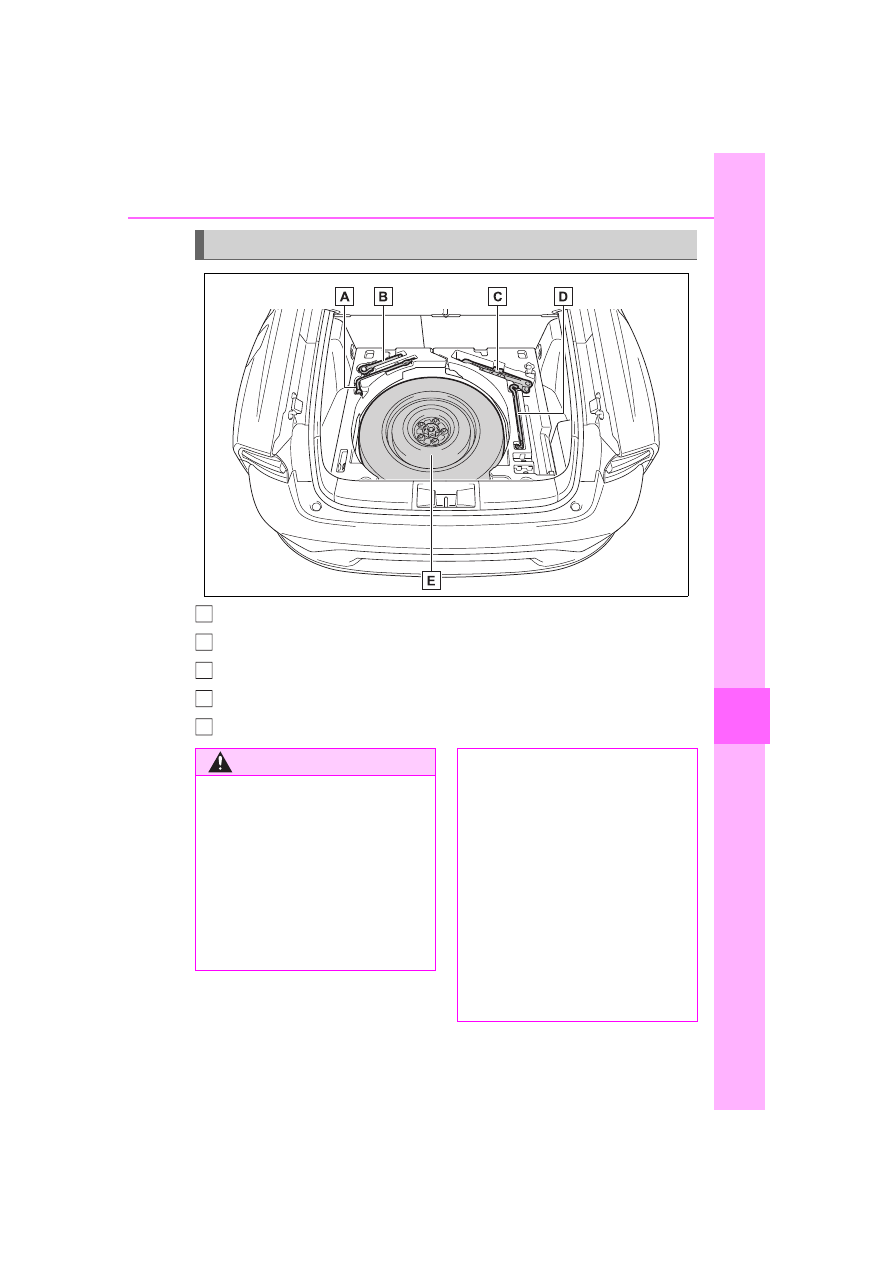

Location of the spare tire, jack and tools

WARNING

■

Using the tire jack

Observe the following precau-

tions.
Improper use of the tire jack may

cause the vehicle to suddenly fall

off the jack, leading to death or

serious injury.

●

Do not use the tire jack for any

purpose other than replacing

tires or installing and removing

tire chains.

●

Only use the tire jack that

comes with this vehicle for

replacing a flat tire.

Do not use it on other vehicles,

and do not use other tire jacks

for replacing tires on this vehi-

cle.

●

Put the jack properly in its jack

point.

●

Do not put any part of your body

under the vehicle while it is sup-

ported by the jack.

●

Do not start the hybrid system

or drive the vehicle while the

vehicle is supported by the jack.

498

7-2. Steps to take in an emergency

Open the deck board

(



P.375).

Take out the jack.

For tightening
For loosening

Loosen the center fastener

that secures the spare tire.

Chock the tires.

WARNING

●

Do not raise the vehicle while

someone is inside.

●

When raising the vehicle, do not

put an object on or under the

jack.

●

Do not raise the vehicle to a

height greater than that required

to replace the tire.

●

Use a jack stand if it is neces-

sary to get under the vehicle.

●

Stop the vehicle on firm, flat and

level ground, firmly set the park-

ing brake and shift the shift

position to P. Block the wheel

diagonally opposite to the one

being changed if necessary.

●

When lowering the vehicle,

make sure that there is no-one

near the vehicle. If there are

people nearby, warn them

vocally before lowering.

Taking out the jack

Taking out the spare tire

WARNING

■

When storing the spare tire

Be careful not to catch fingers or

other body parts between the

spare tire and the body of the

vehicle.

Replacing a flat tire

Flat tire

Wheel chock positions

Front left-

hand side

Behind the rear right-

hand side tire

Front right-

hand side

Behind the rear left-

hand side tire

499

7-2. Steps to take in an emergency

Whe

ouble

rises

For vehicles with the wheel
ornament: Remove the wheel
ornament using the wrench.

To prevent damage, cover the tip of
the wrench with a rag.

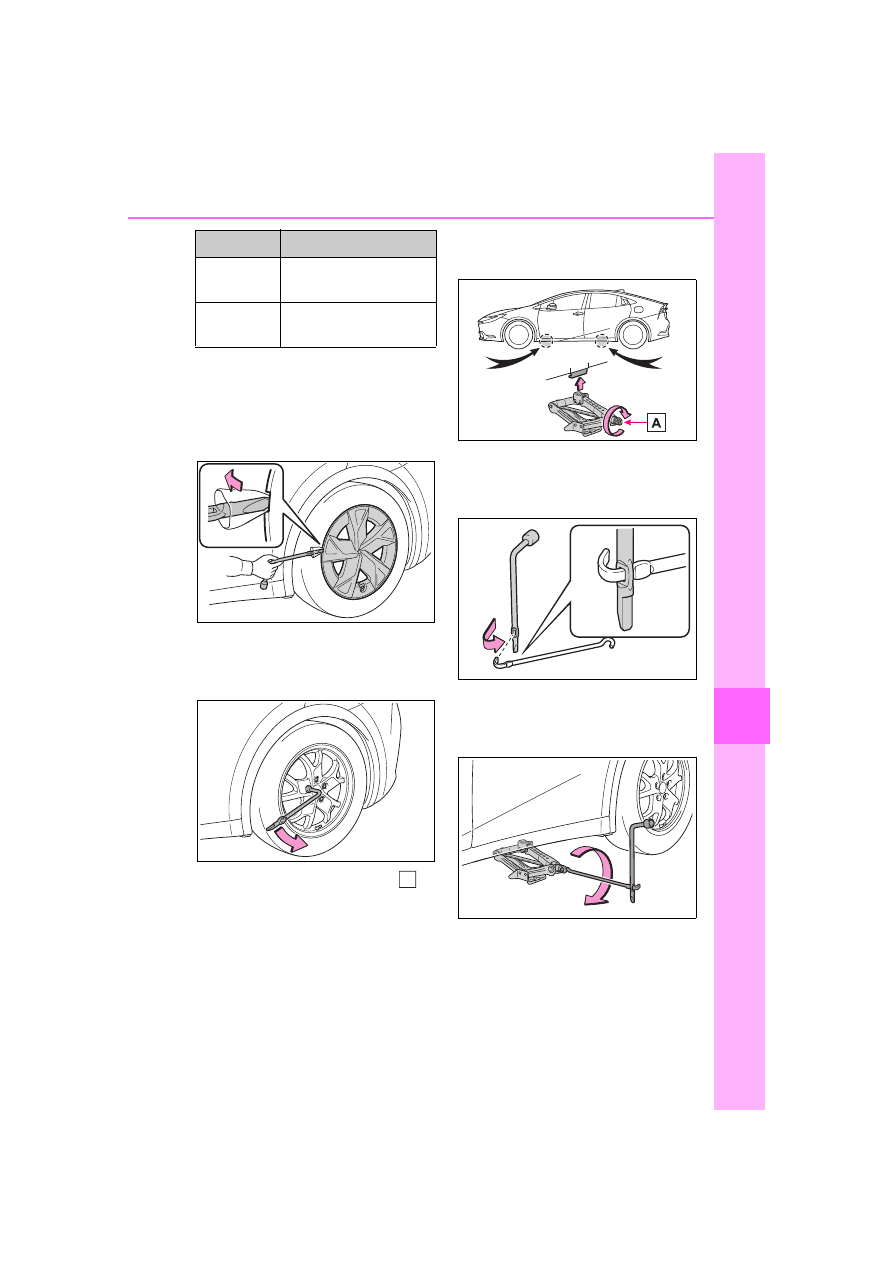

Using a wheel nut wrench,
slightly loosen the wheel nuts
(approximately one turn).

Turn the tire jack portion

by hand until the notch of the

jack is in contact with the jack
point.

Assemble the jack handle
and the wheel nut wrench as
shown in the illustration.

Raise the vehicle until the tire
is slightly raised off the
ground.

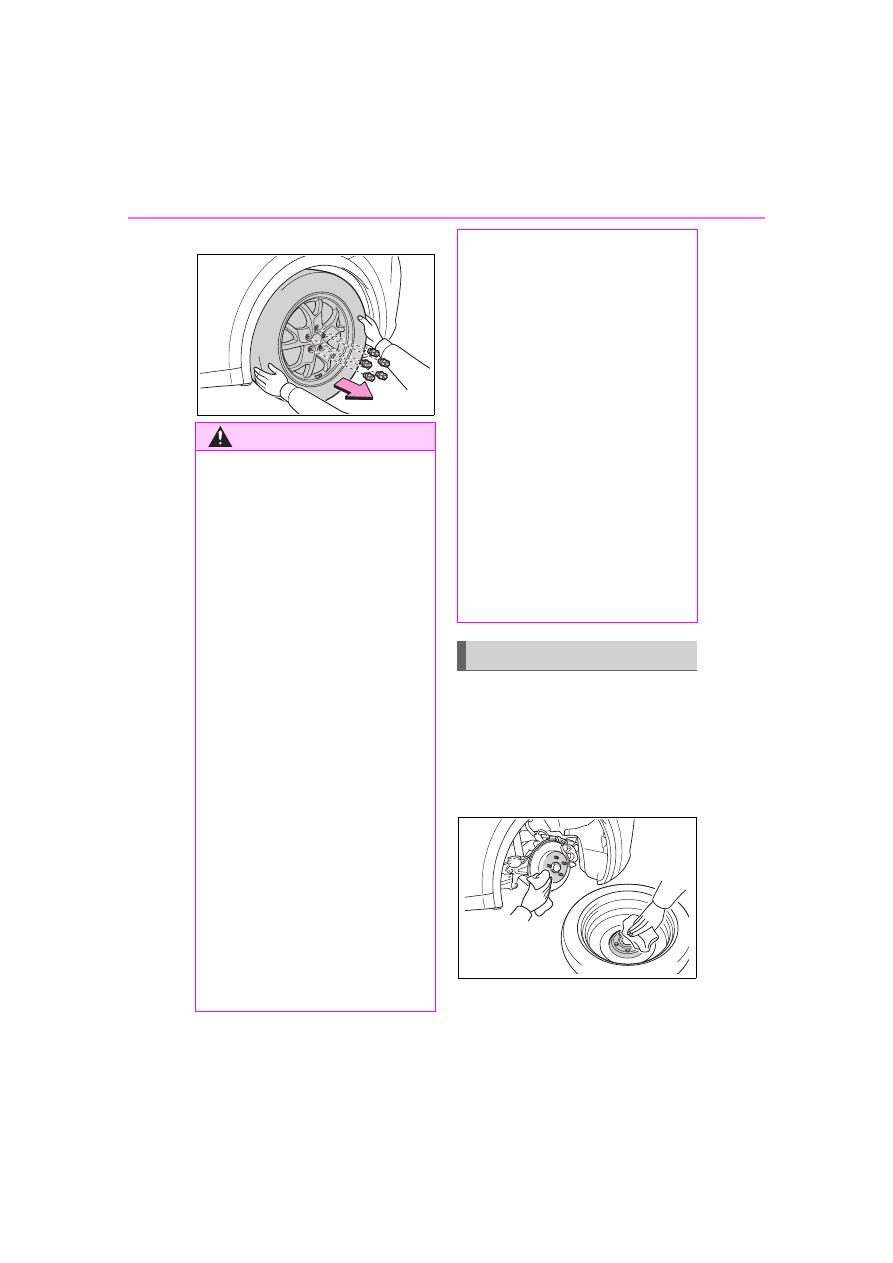

Remove all the wheel nuts
and the tire.

When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid

Rear left-
hand side

In front of the front
right-hand side tire

Rear right-
hand side

In front of the front
left-hand side tire

Flat tire

Wheel chock positions

500

7-2. Steps to take in an emergency

scratching the wheel surface.

Remove any dirt or foreign

matter from the wheel con-

tact surface.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

Install the spare tire and

loosely tighten each wheel

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or

the area around the brakes

immediately after the vehicle

has been driven.

After the vehicle has been

driven the disc wheels and the

area around the brakes will be

extremely hot. Touching these

areas with hands, feet or other

body parts while changing a tire,

etc. may result in burns.

• Never use oil or grease on the

wheel bolts or wheel nuts. Oil

and grease may cause the

wheel nuts to be excessively

tightened, leading to bolt or disc

wheel damage. Remove any oil

or grease that has adhered

when installing the wheel nuts.

●

Failure to follow these precau-

tions could cause the wheel

nuts to loosen and the tire to fall

off, resulting in death or serious

injury.

• After replacing a tire, check the

tightening torque as soon as

possible. Wheel nut torque: 76

ft•lbf (103 N•m, 10.5 kgf•m)

• Do not attach a heavily dam-

aged wheel ornament, as it may

fly off the wheel while the vehi-

cle is moving.

• When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

• If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

• When installing the wheel nuts,

be sure to install them with the

tapered ends facing inward.

●

For vehicles with power back

door: In cases such as when

replacing tires, make sure to

turn off the power back door

system (



P.96). Failure to do

so may cause the back door to

operate unintentionally if the

power back door switch is acci-

dentally touched, resulting in

hands and fingers being caught

and injured.

Installing the spare tire

501

7-2. Steps to take in an emergency

Whe

ouble

rises

nut by hand by approximately
the same amount.

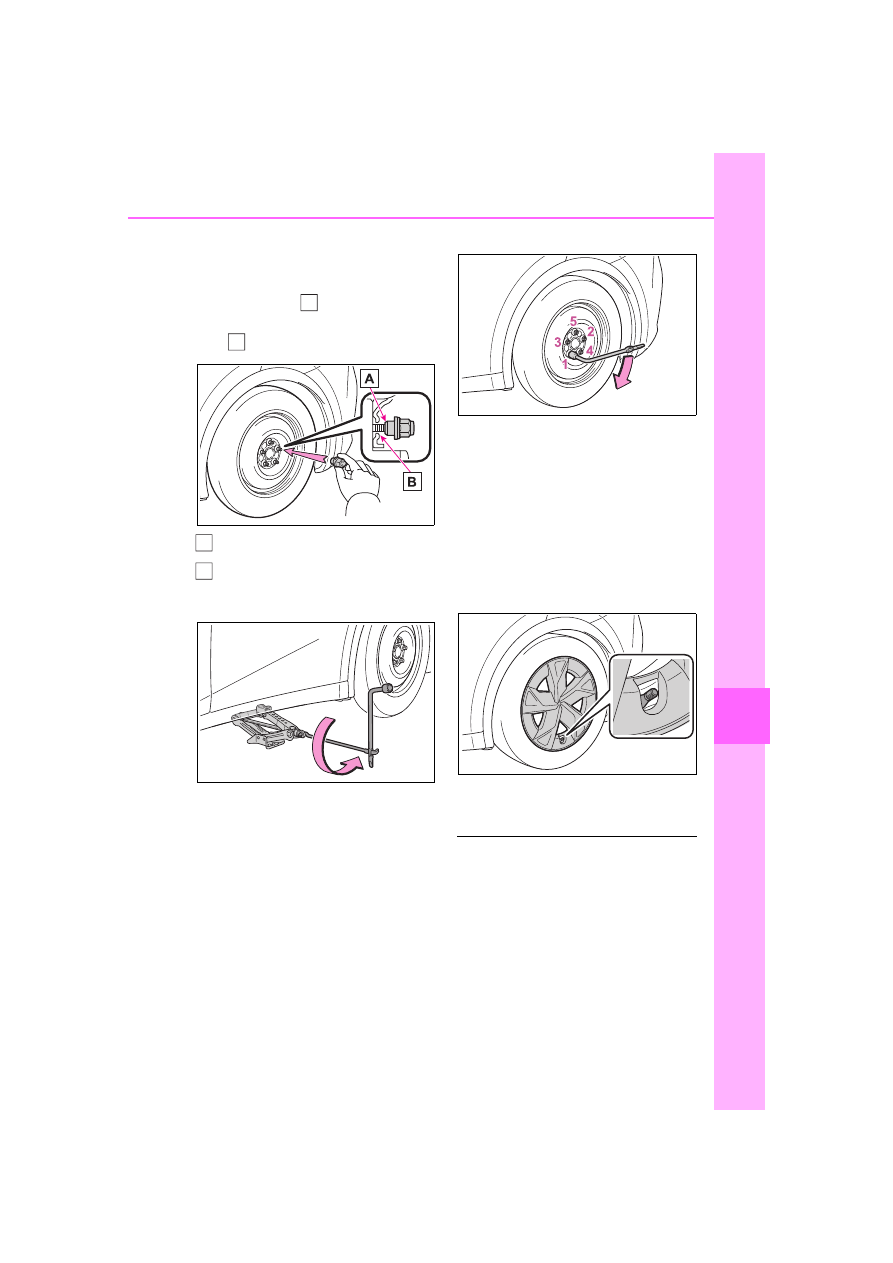

Tighten the wheel nuts until the

tapered portion

comes into

loose contact with the disc wheel

seat .

Tapered portion

Disc wheel seat

Lower the vehicle.

Securely tighten the wheel
nuts two or three times in the
order shown in the illustration
using a wheel nut wrench.

Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

For vehicles with the wheel
ornament: When reinstalling
an original wheel, reinstall

the wheel ornament.

Align the cutout of the wheel orna-
ment with the valve stem as shown.

: The wheel ornament cannot be

installed on the compact spare
tire.

Stow the flat tire, tire jack and
all tools.

■

The compact spare tire

●

The compact spare tire is identi-
fied by the label “TEMPORARY
USE ONLY” on the tire sidewall.
Use the compact spare tire tem-
porarily, and only in an emer-
gency.

●

Make sure to check the tire infla-
tion pressure of the compact
spare tire. (



P.526)

502

7-2. Steps to take in an emergency

■

When using the compact spare

tire

As the compact spare tire is not

equipped with a tire pressure warn-

ing valve and transmitter, low infla-

tion pressure of the spare tire will

not be indicated by the tire pressure

warning system. Also, if you replace

the compact spare tire after the tire

pressure warning light comes on,

the light remains on.

■

When the compact spare tire is

attached

The vehicle height may become

lower when driving with the compact

spare tire compared to when driving

with standard tires.

■

If you have a flat front tire on a

road covered with snow or ice

Install the compact spare tire on one

of the rear wheels of the vehicle.

Perform the following steps and fit

tire chains to the front tires:

Replace a rear tire with the com-

pact spare tire.

Replace the flat front tire with the

tire removed from the rear of the

vehicle.

Fit tire chains to the front tires.

■

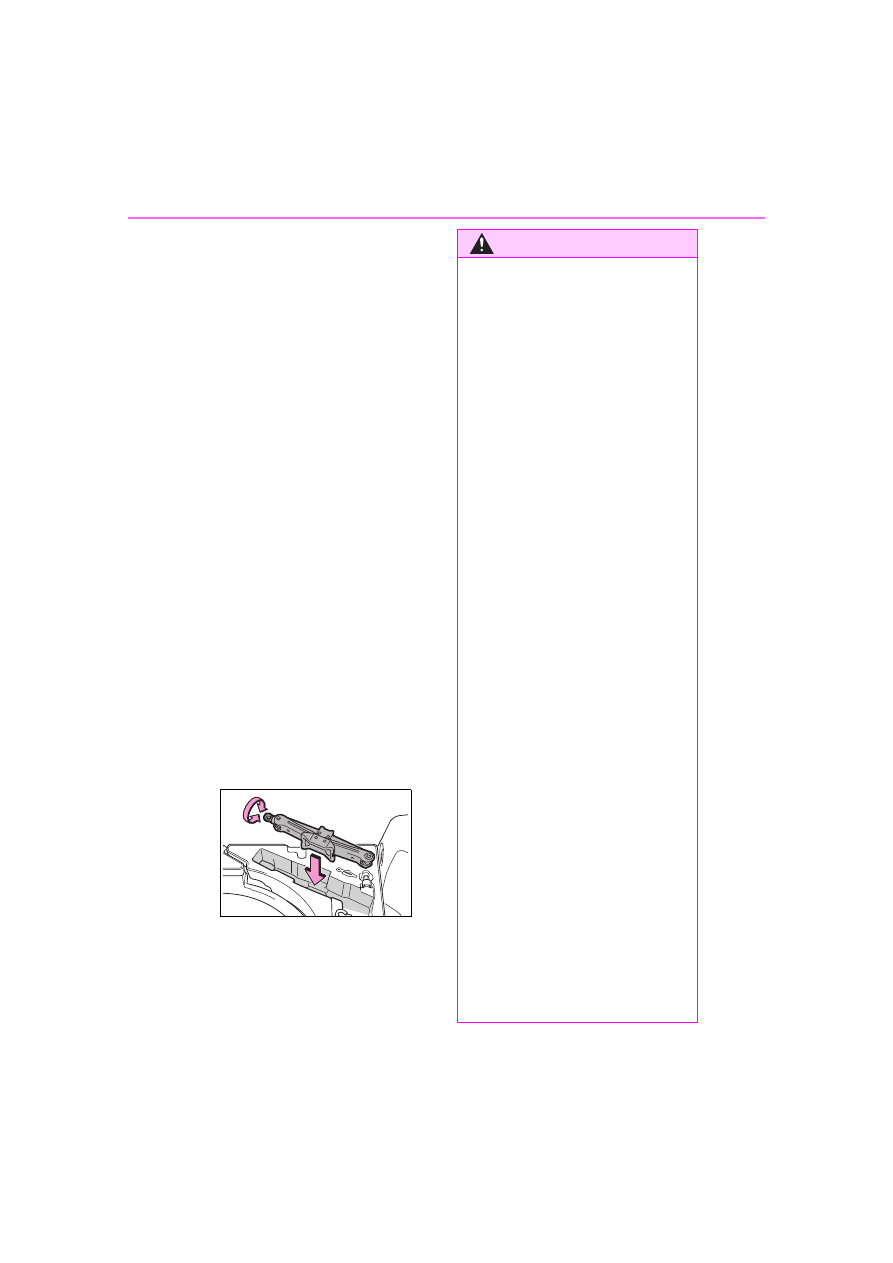

When stowing the jack

Before storing the jack, adjust the

height of the jack to match the

shape of the jack holder.

WARNING

■

When using the compact

spare tire

●

Remember that the compact

spare tire provided is specifi-

cally designed for use with your

vehicle. Do not use your com-

pact spare tire on another vehi-

cle.

●

Do not use more than one com-

pact spare tire simultaneously.

●

Replace the compact spare tire

with a standard tire as soon as

possible.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

■

When the compact spare tire

is attached

The vehicle speed may not be

correctly detected, and the follow-

ing systems may not operate cor-

rectly:
• ABS & Brake assist
• VSC
• Enhanced VSC (Enhanced

Vehicle Stability Control)

• TRAC
• Dynamic radar cruise control
• Cruise control
• PCS (Pre-Collision System)
• EPS
• LTA (Lane Tracing Assist)
• LDA (Lane Departure Alert)
• RCTA (Rear Cross Traffic Alert)

function (if equipped)

• AHB (Automatic High Beam)

503

7-2. Steps to take in an emergency

tro

le a

ris

WARNING

• BSM (Blind Spot Monitor)
• Safe Exit Assist (if equipped)
• Panoramic view monitor (if

equipped)

• Rear view monitor system (if

equipped)

• Intuitive parking assist (if

equipped)

• Parking Support Brake function

(static objects to the front and

rear/static objects around the

vehicle)

• Toyota Teammate Advanced

Park (if equipped)

• Navigation system (if equipped)
Also, not only can the following

systems not be utilized fully, but

they may actually negatively

affect the drive-train components:
• E-Four (Electronic On-Demand

AWD system)

■

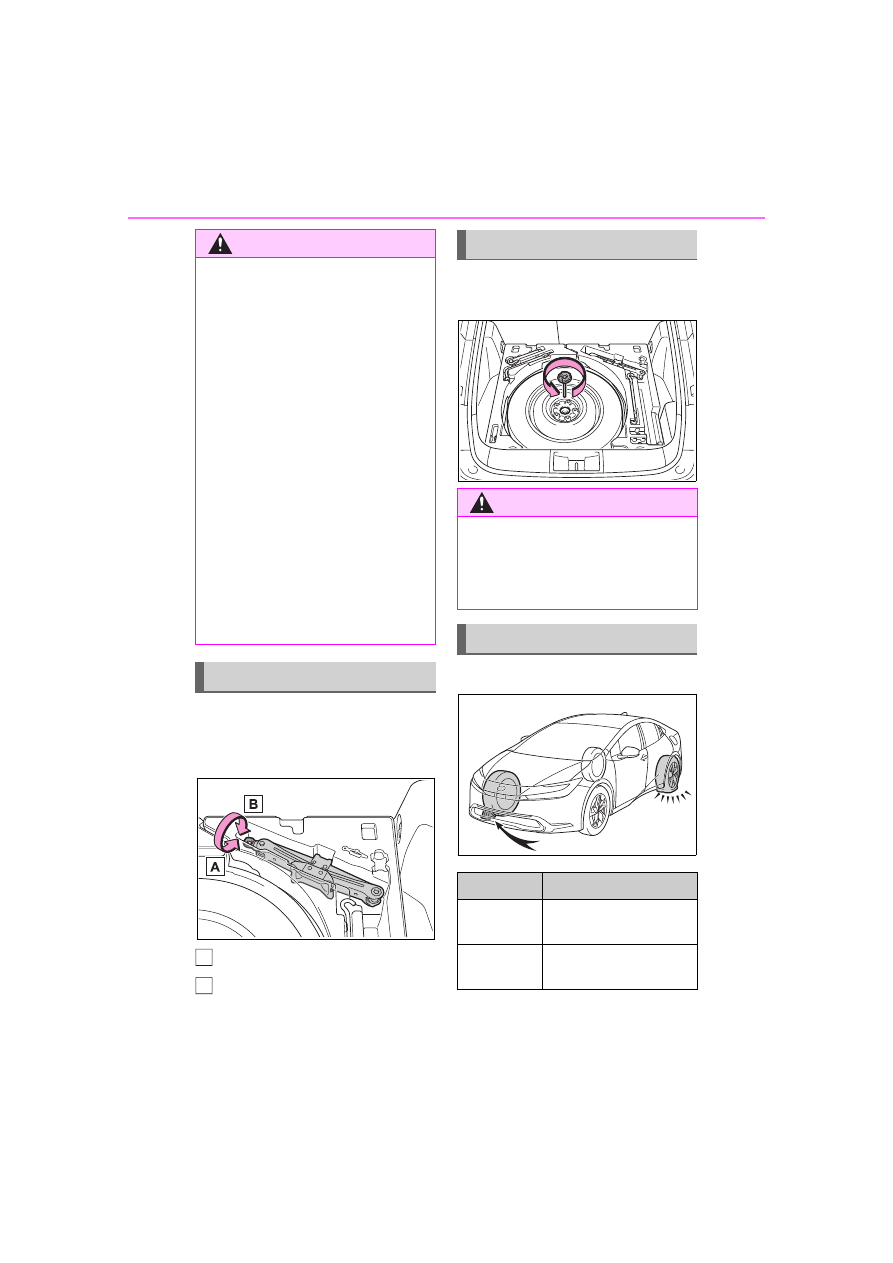

Speed limit when using the

compact spare tire

Do not drive at speeds in excess

of 50 mph (80 km/h) when a com-

pact spare tire is installed on the

vehicle.
The compact spare tire is not

designed for driving at high

speeds. Failure to observe this

precaution may lead to an acci-

dent causing death or serious

injury.

■

After using the tools and jack

Before driving, make sure all the

tools and jack are securely in

place in their storage location to

reduce the possibility of personal

injury during a collision or sudden

braking.

NOTICE

■

Be careful when driving over

bumps with the compact

spare tire installed on the

vehicle

The vehicle height may become

lower when driving with the com-

pact spare tire compared to when

driving with standard tires. Be

careful when driving over uneven

road surfaces.

■

Driving with tire chains and

the compact spare tire

Do not fit tire chains to the com-

pact spare tire.
Tire chains may damage the vehi-

cle body and adversely affect driv-

ing performance.

■

When replacing the tires

When removing or fitting the

wheels, tires or the tire pressure

warning valve and transmitter,

contact your Toyota dealer as the

tire pressure warning valve and

transmitter may be damaged if not

handled correctly.

504

7-2. Steps to take in an emergency

One of the following may be the
cause of the problem:



The electronic key may not be
functioning properly.
(



P.506)



There may not be sufficient
fuel in the vehicle’s tank.
Refuel the vehicle. (



P.210)



There may be a malfunction
in the immobilizer system.
(



P.79)



There may be a malfunction

in the shift control system.

(



P.182)



The hybrid system may be
malfunctioning due to an elec-
trical problem such as elec-
tronic key battery depletion or
a blown fuse. However,
depending on the type of mal-
function, an interim measure
is available to start the hybrid

system. (



P.505)



There is a possibility that the
temperature of the hybrid bat-
tery (traction battery) is
extremely low (approximately
below -22°F [-30°C]). (



P.75,

181)

: It may not be possible to shift the

shift position from P.

One of the following may be the
cause of the problem:



The 12-volt battery may be
discharged. (



P.508)



The 12-volt battery terminal
connections may be loose or
corroded. (



P.424)

One of the following may be the
cause of the problem:



The 12-volt battery may be
discharged. (



P.508)



One or both of the 12-volt bat-
tery terminals may be discon-
nected. (



P.424)

Contact your Toyota dealer if
the problem cannot be repaired,
or if repair procedures are

If the hybrid system

will not start

Reasons for the hybrid sys-
tem not starting vary
depending on the situation.
Check the following and
perform the appropriate
procedure:

The hybrid system will not
start even though the cor-
rect starting procedure is
being followed (



P.180)

The interior lights and
headlights are dim, or the
horn does not sound or
sounds at a low volume

The interior lights and
headlights do not turn on,
or the horn does not
sound

505

7-2. Steps to take in an emergency

tro

le a

ris

unknown.

When the hybrid system does

not start, the following steps can

be used as an interim measure

to start the hybrid system if the

power switch is functioning nor-

mally.
Do not use this starting proce-

dure except in cases of emer-

gency.

Pull the parking brake switch

to check that the parking

brake is set. (



P.193)

Parking brake indicator will come

on.

Shift the shift position to P.

Turn the power switch to
ACC

Press and hold the power

switch for about 15 seconds

while depressing the brake

pedal firmly.

Even if the hybrid system can be

started using the above steps,

the system may be malfunction-

ing. Have the vehicle inspected

by your Toyota dealer.

: ACC mode can be enabled/dis-

abled on the customize menu.

Starting the hybrid sys-

tem in an emergency

If you lose your keys

New genuine keys can be

made by your Toyota dealer

using the other key and the

key number stamped on

your key number plate.

Keep the plate in a safe

place such as your wallet,

not in the vehicle.

NOTICE

■

When an electronic key is lost

If the electronic key remains lost,

the risk of vehicle theft increases

significantly. Visit your Toyota

dealer immediately with all

remaining electronic keys that

were provided with your vehicle.

506

7-2. Steps to take in an emergency

■

When the electronic key does

not work properly

●

Make sure that the smart key sys-

tem has not been deactivated in

the customization setting. If it is

off, turn the function on.

(Customizable features:



P.544)

●

Check if battery-saving mode is

set. If it is set, cancel the function.

(



P.133)

●

The electronic key function may

have stopped. (



P.133)

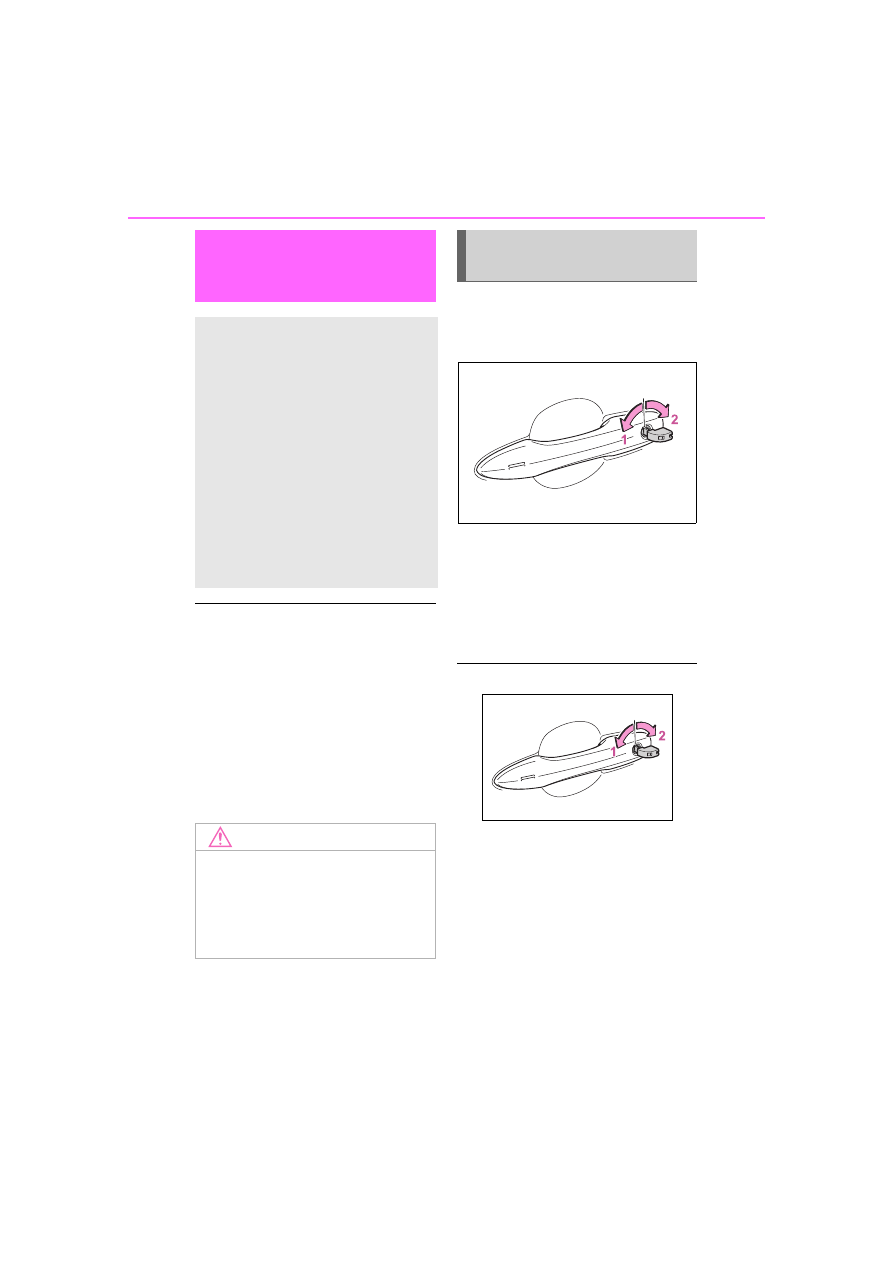

Use the mechanical key

(



P.110) in order to perform the

following operations.

Locks all the doors

Unlocks the door

Turning the key rearward unlocks

the driver’s door. Turning the key

once again within 5 seconds

unlocks the other doors.

■

Key linked functions

Closes the windows (turn and
hold)

Opens the windows (turn and
hold)

: These settings must be custom-

ized at your Toyota dealer.

If the electronic key

does not operate prop-

erly

If communication between

the electronic key and vehi-

cle is interrupted (



P.133)

or the electronic key cannot

be used because the battery

is depleted, the smart key

system and wireless remote

control cannot be used. In

such cases, the doors can

be opened and the hybrid

system can be started by

following the procedure

below.

NOTICE

■

In case of a smart key system

malfunction, or other key

related problems

Take your vehicle with all the

electronic keys provided with your

vehicle to your Toyota dealer.

Locking and unlocking

the doors

507

7-2. Steps to take in an emergency

tro

le a

ris

Ensure that the shift position

is in P and depress the brake

pedal.

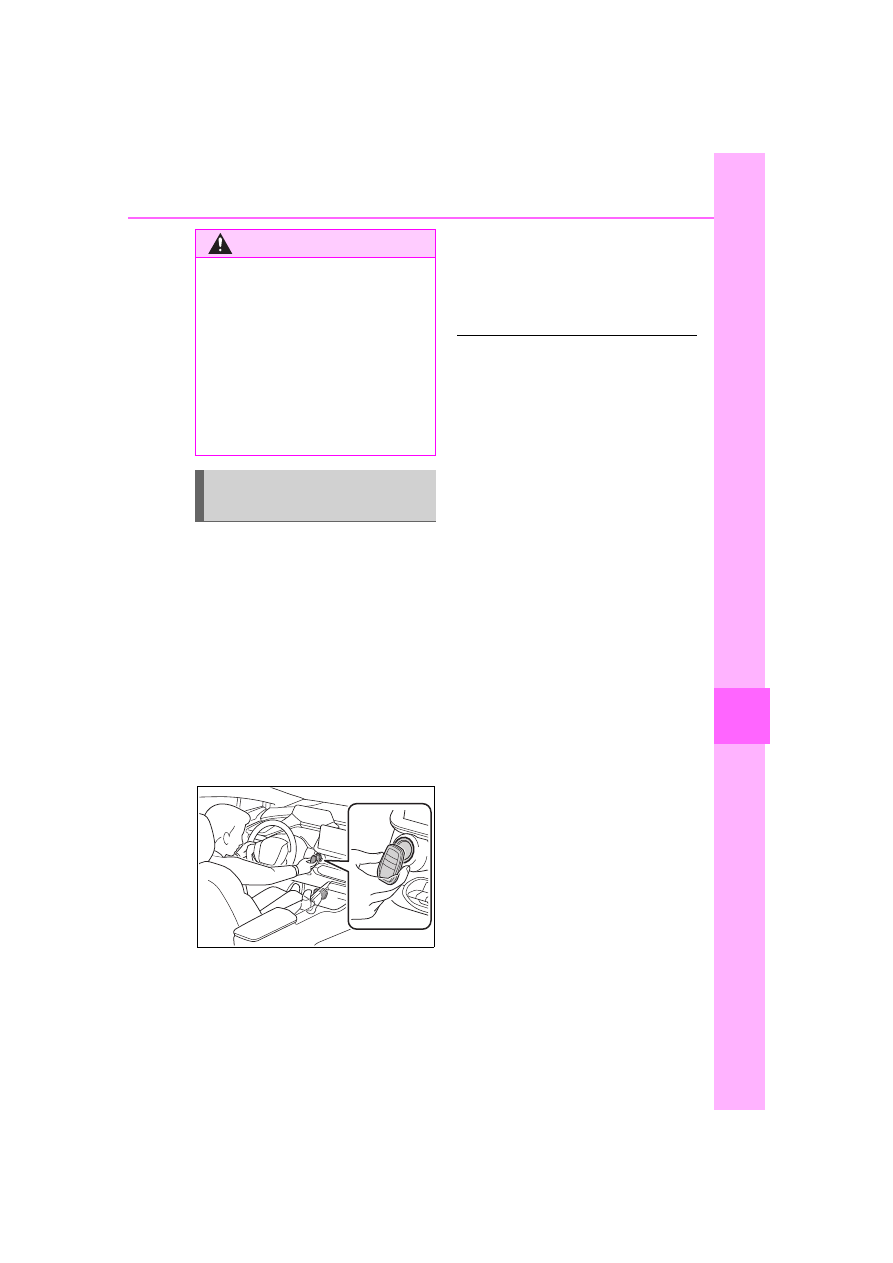

Touch the area behind the

buttons on the electronic key

to the power switch.

When the electronic key is

detected, a buzzer sounds and the

power switch will turn to ON.
When the smart key system is

deactivated in customization set-

ting, the power switch will turn to

ACC.

Firmly depress the brake

pedal and check that a mes-

sage is displayed on the

multi-information display.

Press the power switch

shortly and firmly.

In the event that the hybrid system

still cannot be started, contact your

Toyota dealer.

■

Stopping the hybrid system

Shift the shift position to P, set the

parking brake and press the power

switch as you normally do when

stopping the hybrid system.

■

Replacing the key battery

As the above procedure is a tempo-

rary measure, it is recommended

that the electronic key battery be

replaced immediately when the bat-

tery is depleted. (



P.446)

■

Changing power switch modes

Release the brake pedal and press

the power switch in step

above.

The hybrid system does not start

and modes will be changed each

time the switch is pressed.

(



P.183)

WARNING

■

When using the mechanical

key and operating the power

windows

Operate the power window after

checking to make sure that there

is no possibility of any passenger

having any of their body parts

caught in the window. Also, do not

allow children to operate the

mechanical key. It is possible for

children and other passengers to

get caught in the power window.

Starting the hybrid sys-

tem

508

7-2. Steps to take in an emergency

If you have a set of jumper (or
booster) cables and a second
vehicle with a 12-volt battery,
you can jump start your vehicle
by following the steps below.

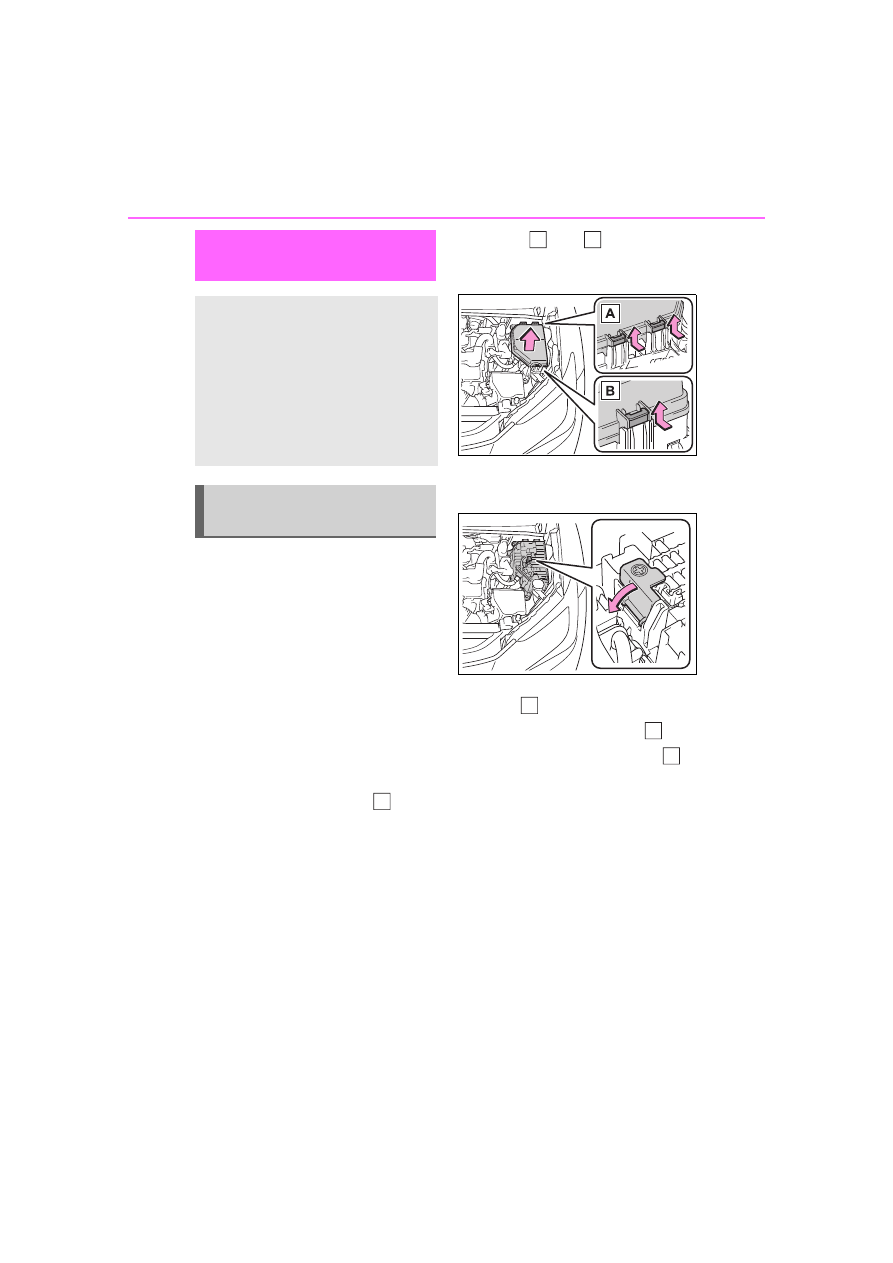

Open the hood (



P.412) and

fuse box cover.

Push claw

and

to com-

pletely release the lock, and then lift
up the cover.

Open the exclusive jump
starting terminal cover.

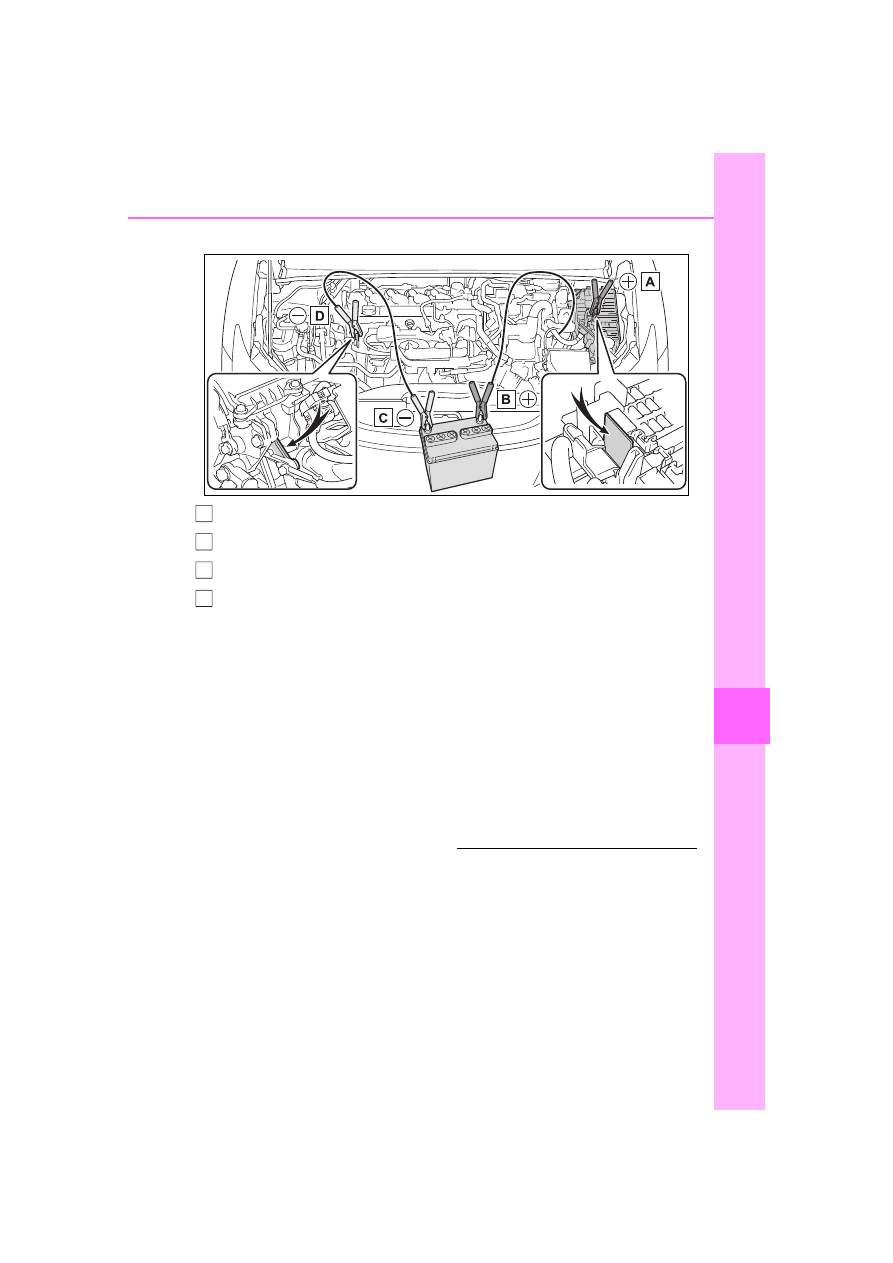

Connect a positive jumper cable clamp to

on your vehicle and

connect the clamp on the other end of the positive cable to

the second vehicle. Then, connect a negative cable clamp to

on the second vehicle and connect the clamp at the other end of

the negative cable to

Use jumper cables that can reach the specified terminals and connecting

If the 12-volt battery is

discharged

The following procedures
may be used to start the
hybrid system if the vehi-
cle’s 12-volt battery is dis-
charged.
You can also call your
Toyota dealer or a qualified
repair shop.

Restarting the hybrid sys-
tem

509

7-2. Steps to take in an emergency

Whe

ouble

rises

point.

Exclusive jump starting terminal (your vehicle)

Positive (+) battery terminal (second vehicle)

Negative (-) battery terminal (second vehicle)

Metallic point shown in the illustration

Start the engine of the sec-
ond vehicle. Increase the
engine speed slightly and
maintain at that level for
approximately 5 minutes to
recharge the 12-volt battery
of your vehicle.

Maintain the engine speed of
the second vehicle and start
the hybrid system of your
vehicle by turning the power
switch to ON.

Make sure the “READY” indi-
cator comes on. If the indica-
tor light does not come on,
contact your Toyota dealer.

Once the hybrid system has
started, remove the jumper
cables in the exact reverse

order from which they were
connected.

Close the exclusive jump
starting terminal cover, and
reinstall the fuse box cover to
its original position.

Once the hybrid system starts,
have the vehicle inspected at
your Toyota dealer as soon as
possible.

■

Starting the hybrid system
when the 12-volt battery is dis-
charged

The hybrid system cannot be
started by push-starting.

■

To prevent 12-volt battery dis-
charge

●

Turn off the headlights and the
audio system while the hybrid sys-
tem is off.

●

Turn off any unnecessary electri-

510

7-2. Steps to take in an emergency

cal components when the vehicle
is running at a low speed for an
extended period, such as in heavy
traffic.

■

When the 12-volt battery is
removed or discharged

●

Information stored in the ECU is
cleared. When the 12-volt battery
is depleted, have the vehicle
inspected at your Toyota dealer.

●

Some systems may require initial-
ization. (



P.555)

■

When removing the 12-volt bat-
tery terminals

When the 12-volt battery terminals
are removed, the information stored
in the ECU is cleared. Before
removing the 12-volt battery termi-
nals, contact your Toyota dealer.

■

Charging the 12-volt battery

The electricity stored in the 12-volt
battery will discharge gradually even
when the vehicle is not in use, due
to natural discharge and the drain-
ing effects of certain electrical appli-
ances. If the vehicle is left for a long
time, the 12-volt battery may dis-
charge, and the hybrid system may
be unable to start. (The 12-volt bat-
tery recharges automatically while
the hybrid system is operating.)

■

When recharging or replacing
the 12-volt battery

●

In some cases, it may not be pos-
sible to unlock the doors using the
smart key system when the 12-
volt battery is discharged. Use the
wireless remote control or the
mechanical key to lock or unlock
the doors.

●

The hybrid system may not start
on the first attempt after reinstall-
ing the 12-volt battery. In that
case, start the hybrid system in
the same manner as when the
electronic key does not operate
properly (



P.507). This is not a

malfunction, as the hybrid system
will start normally on the second
attempt.

●

The power switch mode is memo-
rized by the vehicle. When the 12-
volt battery is reconnected, the
system will return to the mode it
was in before the 12-volt battery
was discharged. Before discon-
necting the 12-volt battery, turn
the power switch off.
If you are unsure what mode the
power switch was in before the
12-volt battery discharged, be
especially careful when recon-
necting the 12-volt battery.

●

If the 12-volt battery discharges, it
may not be possible to shift the
shift position to other positions.
In this case, the vehicle can not be
towed without lifting both front
wheels because the front wheels
will be locked.

●

Some systems may require initial-
ization. (



P.555)

■

When replacing the 12-volt bat-
tery

●

Use a 12-volt battery that con-
forms to European regulations.

●

Use a battery that the case size is
same as the previous one (LN1),
20 hour rate capacity (20HR) is
equivalent (45Ah) or greater, and
performance rating (CCA) is
equivalent (285A) or greater.

• If the sizes differ, the 12-volt bat-

tery cannot be properly secured.

• If the 20 hour rate capacity is low,

even if the time period where the
vehicle is not used is a short time,
the 12-volt battery may discharge
and hybrid system may not be
able to start.

●

Use a ventilation type calcium bat-
tery

●

Use a 12-volt battery with a han-
dle. If a 12-volt battery without a
handle is used, removal is more
difficult.

●

When removing the 12-volt bat-
tery:



P.423

●

After replacing, firmly attach the
following items to the exhaust hole

511

7-2. Steps to take in an emergency

tro

le a

ris

of the 12-volt battery.

• Use the exhaust hose that was

attached to the 12-volt battery

before replacing and confirm that

it is firmly connected to the hole

section of the vehicle.

• Use the exhaust hole plug

included with the 12-volt battery

replaced or the one installed on

the battery prior to the replaced.

(Depending on the 12-volt battery

to be replace, the exhaust hole

may be plugged.)

For details, consult your Toyota

dealer.

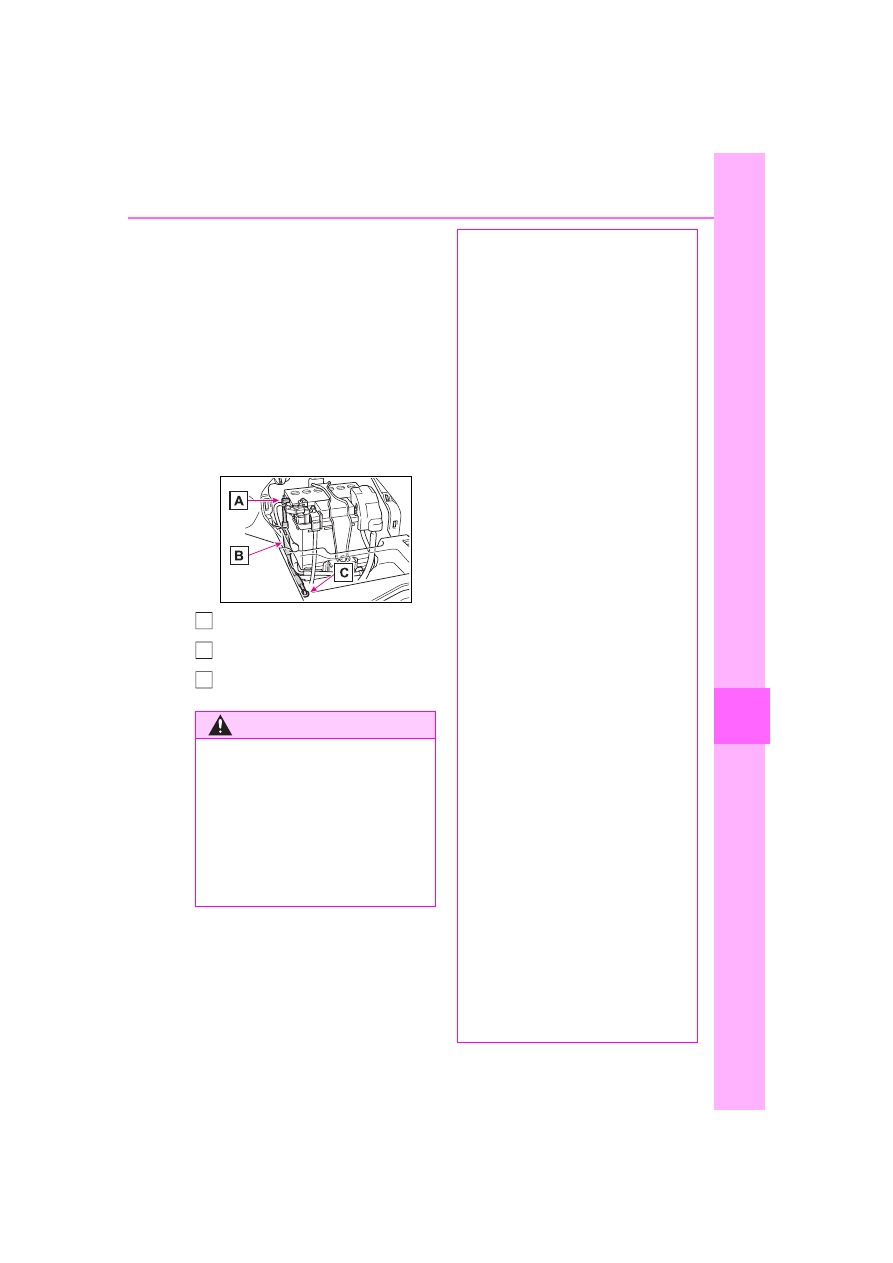

Exhaust hole
Exhaust hose
Hole section of the vehicle

WARNING

■

When removing the battery

terminals

Always remove the negative (-)

terminal first. If the positive (+) ter-

minal contacts any metal in the

surrounding area when the posi-

tive (+) terminal is removed, a

spark may occur, leading to a fire

in addition to electrical shocks

and death or serious injury.

■

Avoiding 12-volt battery fires

or explosions

Observe the following precautions

to prevent accidentally igniting the

flammable gas that may be emit-

ted from the 12-volt battery:

●

Make sure each jumper cable is

connected to the correct termi-

nal and that it is not unintention-

ally in contact with any other

than the intended terminal.

●

Do not allow the other end of

the jumper cable connected to

the “+” terminal to come into

contact with any other parts or

metal surfaces in the area, such

as brackets or unpainted metal.

●

Do not allow the + and - clamps

of the jumper cables to come

into contact with each other.

●

Do not smoke, use matches,

cigarette lighters or allow open

flame near the 12-volt battery.

■

12-volt battery precautions

The 12-volt battery contains poi-

sonous and corrosive acidic elec-

trolyte, while related parts contain

lead and lead compounds.

Observe the following precautions

when handling the 12-volt battery:

●

When working with the 12-volt

battery, always wear safety

glasses and take care not to

allow any battery fluids (acid) to

come into contact with skin,

clothing or the vehicle body.

●

Do not lean over the 12-volt bat-

tery.

●

In the event that battery fluid

comes into contact with the skin

or eyes, immediately wash the

affected area with water and

seek medical attention.

Place a wet sponge or cloth

over the affected area until

medical attention can be

received.

512

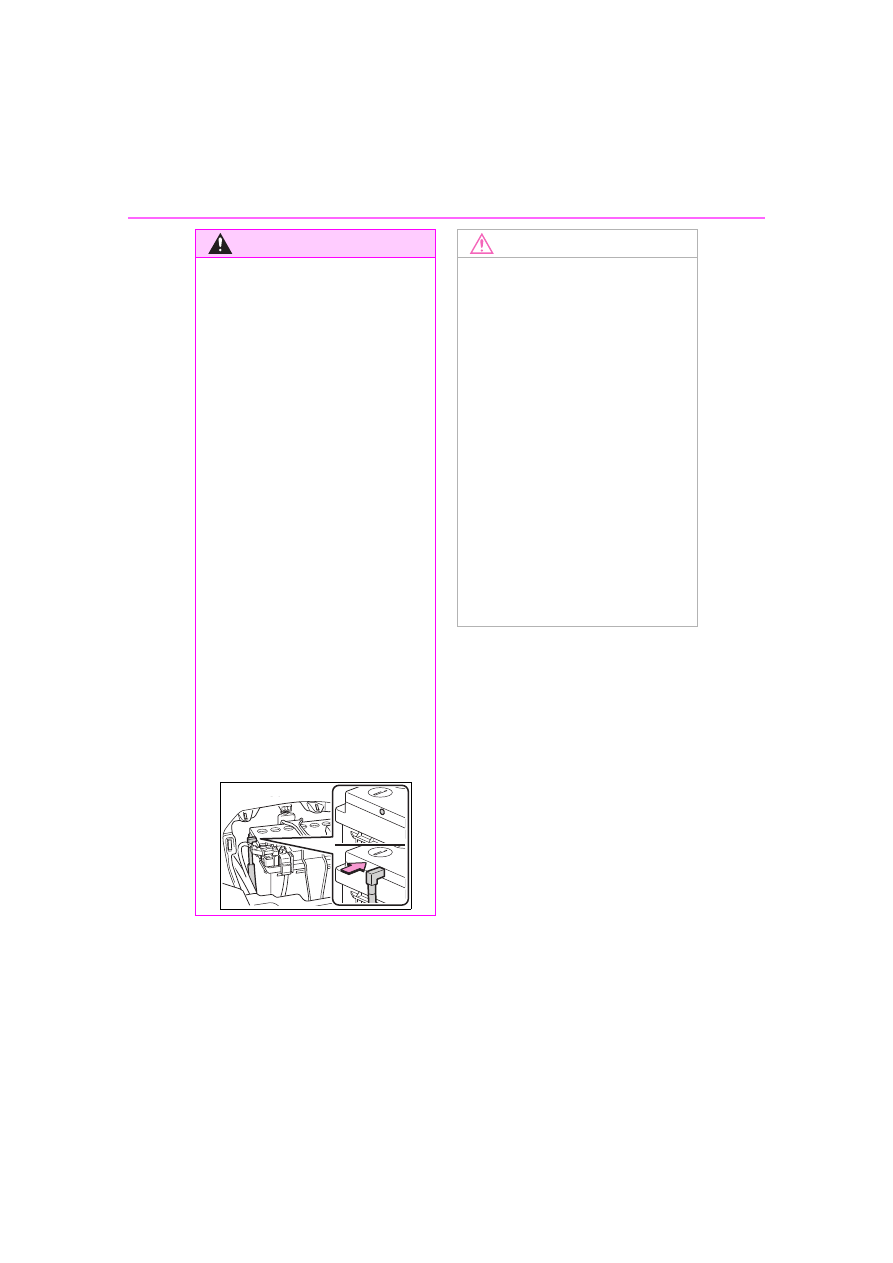

7-2. Steps to take in an emergency

WARNING

●

Always wash your hands after

handling the 12-volt battery sup-

port, terminals, and other bat-

tery-related parts.

●

Do not allow children near the

12-volt battery.

■

After recharging the 12-volt

battery

Have the 12-volt battery

inspected at your Toyota dealer

as soon as possible.

If the 12-volt battery is deteriorat-

ing, continued use may cause the

12-volt battery to emit a malodor-

ous gas, which may be detrimen-

tal to the health of passengers.

■

When replacing the 12-volt

battery

●

For information regarding 12-

volt battery replacement, con-

tact your Toyota dealer.

●

After replacing, securely attach

the exhaust hose and exhaust

hole plug to the exhaust hole of

the replaced 12-volt battery. If

not properly installed, gases

(hydrogen) may leak into the

vehicle interior, and there is the

possible danger of the gas ignit-

ing and exploding.

NOTICE

■

When handling jumper cables

When connecting the jumper

cables, ensure that they do not

become entangled in the cooling

fan, etc.

■

When connecting jumper

cables

Make sure to connect jumper

cables to the specified terminals

and connecting point. Failure to

do so may adversely affect the

electronic devices or damage to

them.

■

To prevent damaging the

vehicle

The exclusive jump starting termi-

nal is to be used when charging

the 12-volt battery from another

vehicle in an emergency. It cannot

be used to jump start another

vehicle.

Toyota Prius (2024 year). Manual in english - page 16
