6-3. Do-it-yourself maintenance

Maintena

nce

ca
re

the engine oil level exceeds the refill
upper limit mark, contact your
Toyota dealer.

■

Checking the oil type and
preparing the items needed

Make sure to check the oil type
and prepare the items needed
before adding oil.



Engine oil selection



P.523



Oil quantity (Low level mark



Refill upper limit mark)

1.6 qt. (1.5 L, 1.3 Imp. qt.)



Item

Clean funnel

■

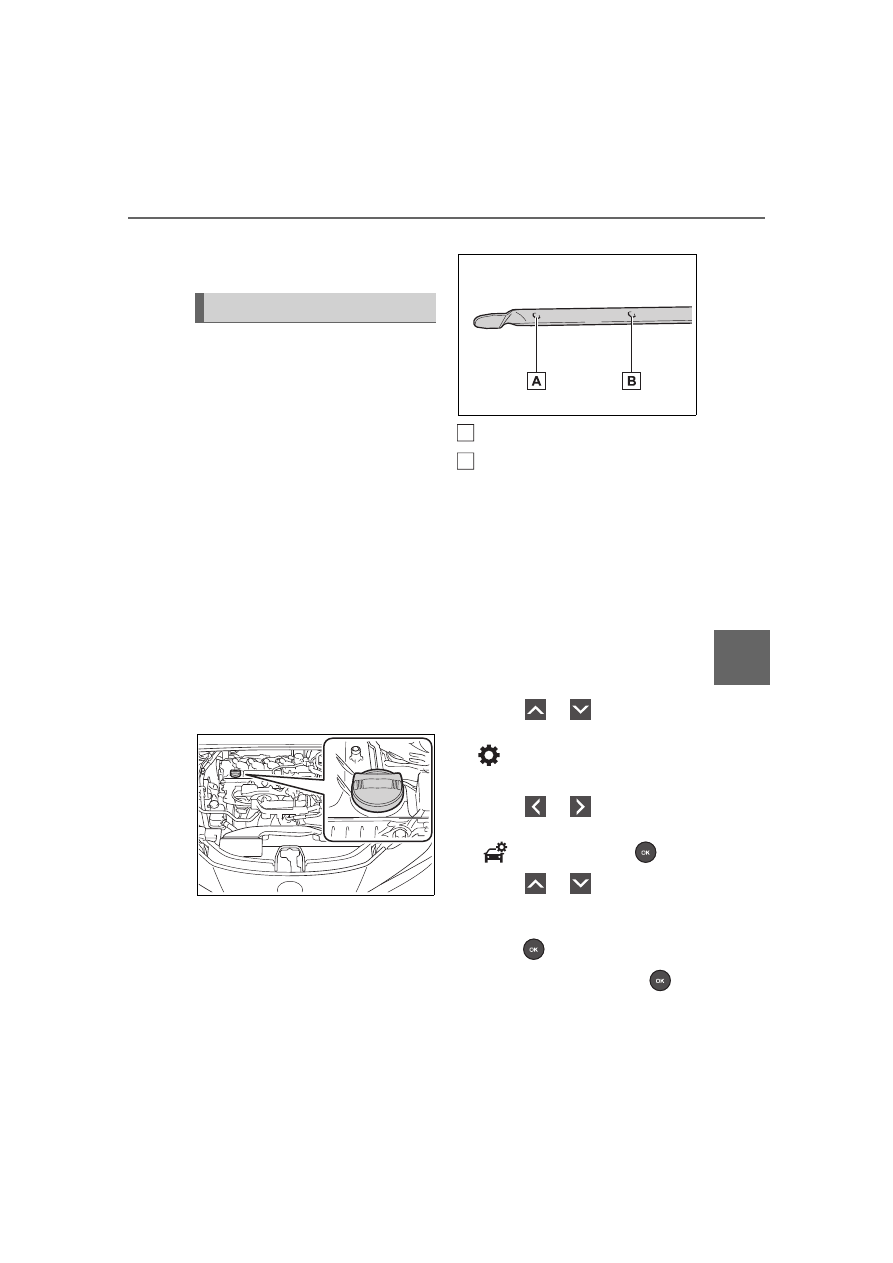

Adding engine oil

If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.

Remove the oil filler cap by
turning it counterclockwise.

Add engine oil slowly, check-
ing the dipstick.

Make sure that the oil level does
not exceed the refill upper limit
mark and is between the low level

mark and refill upper limit mark.

Low level mark

Refill upper limit mark

The shape of the dipstick may differ
depending on the type of vehicle or
engine.

Install the oil filler cap by
turning it clockwise.

■

After changing the engine
oil

The engine oil maintenance
data should be reset. Perform
the following procedures:

Press

of the meter

control switches and select

on the multi-information

display.

Press

of the meter

control switches and select

, and then press

Press

of the meter

control switches and select
“Oil Maintenance”. Then

press .

Select “Yes” and press

Adding engine oil

418

6-3. Do-it-yourself maintenance

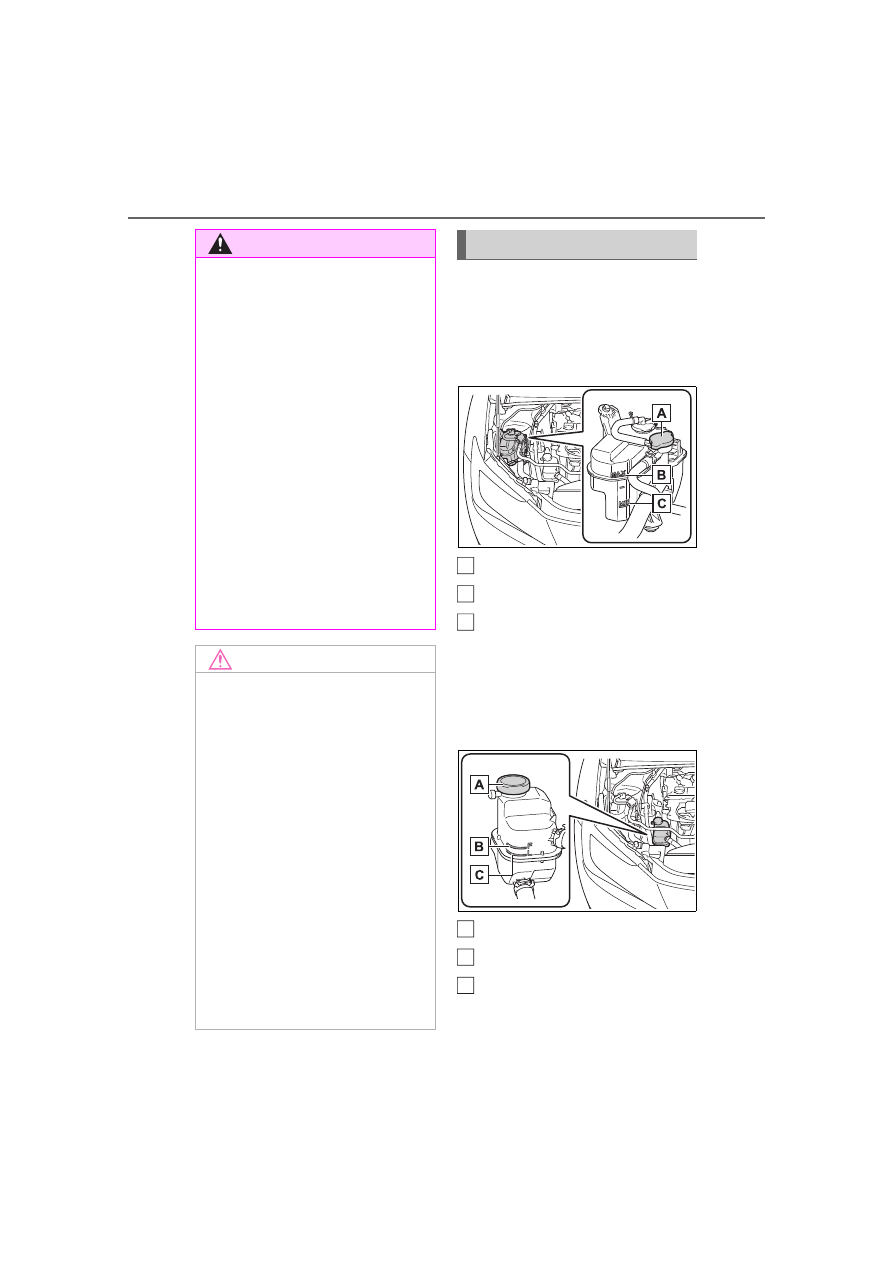

The coolant level is satisfactory

if it is between the “MAX” and

“MIN” lines on the reservoir

when the hybrid system is cold.

■

Engine coolant reservoir

Reservoir cap
“MAX” line
“MIN” line

If the level is on or below the “MIN”

line, add coolant up to the “MAX”

line. (



P.513)

■

Power control unit coolant

reservoir

Reservoir cap
“F” line
“L” line

If the level is on or below the “L”

line, add coolant up to the “F” line.

WARNING

■

Used engine oil

●

Used engine oil contains poten-

tially harmful contaminants

which may cause skin disorders

such as inflammation and skin

cancer, so care should be taken

to avoid prolonged and

repeated contact. To remove

used engine oil from your skin,

wash thoroughly with soap and

water.

●

Dispose of used oil and filters

only in a safe and acceptable

manner. Do not dispose of used

oil and filters in household trash,

in sewers or onto the ground.

Call your Toyota dealer, service

station or auto parts store for

information concerning recy-

cling or disposal.

●

Do not leave used engine oil

within the reach of children.

NOTICE

■

When replacing the engine oil

●

Be careful not to spill engine oil

on the vehicle components.

●

Avoid overfilling, or the engine

could be damaged.

●

Check the oil level on the dip-

stick every time you refill the

vehicle.

●

Be sure the engine oil filler cap

is properly tightened.

■

If oil is spilled on the engine

cover

To prevent the engine cover from

being damaged, remove any

engine oil from the engine cover

as soon as possible using a neu-

tral detergent. Do not use an

organic solvent such as brake

cleaner.

Checking the coolant

419

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd
ca

(



P.514)

■

Coolant selection

Only use “Toyota Super Long Life

Coolant” or a similar high quality

ethylene glycol based non-silicate,

non-amine, non-nitrite, and non-

borate coolant with long-life hybrid

organic acid technology.

U.S.A.:

“Toyota Super Long Life Coolant” is

a mixture of 50% coolant and 50%

deionized water. (Minimum tem-

perature: -31°F [-35°C])

Canada:

“Toyota Super Long Life Coolant” is

a mixture of 55% coolant and 45%

deionized water. (Minimum tem-

perature: -44°F [-42°C])

For more details about coolant, con-

tact your Toyota dealer.

■

If the coolant level drops within

a short time of replenishing

Visually check the radiators, hoses,

engine/power control unit coolant

reservoir caps, drain cock and water

pump.

If you cannot find a leak, have your

Toyota dealer, test the cap and

check for leaks in the cooling sys-

tem.

Check the radiator and con-

denser, and clear away any for-

eign objects.

If either of the above parts is

extremely dirty or you are not

sure of their condition, have

your vehicle inspected by your

Toyota dealer.

WARNING

■

When the hybrid system is

hot

Do not remove the engine/power

control unit coolant reservoir caps

or the radiator cap.
The cooling system may be under

pressure and may spray hot cool-

ant if the cap is removed, causing

serious injuries, such as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor

straight antifreeze. The correct

mixture of water and antifreeze

must be used to provide proper

lubrication, corrosion protection

and cooling. Be sure to read the

antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to

prevent it from damaging parts or

paint.

Checking the radiator and

condenser

WARNING

■

When the hybrid system is

hot

Do not touch the radiator or con-

denser as they may be hot and

cause serious injuries, such as

burns.

420

6-3. Do-it-yourself maintenance

■

Checking fluid level

The brake fluid level should be

between the “MAX” and “MIN”

lines on the tank.

■

Adding fluid

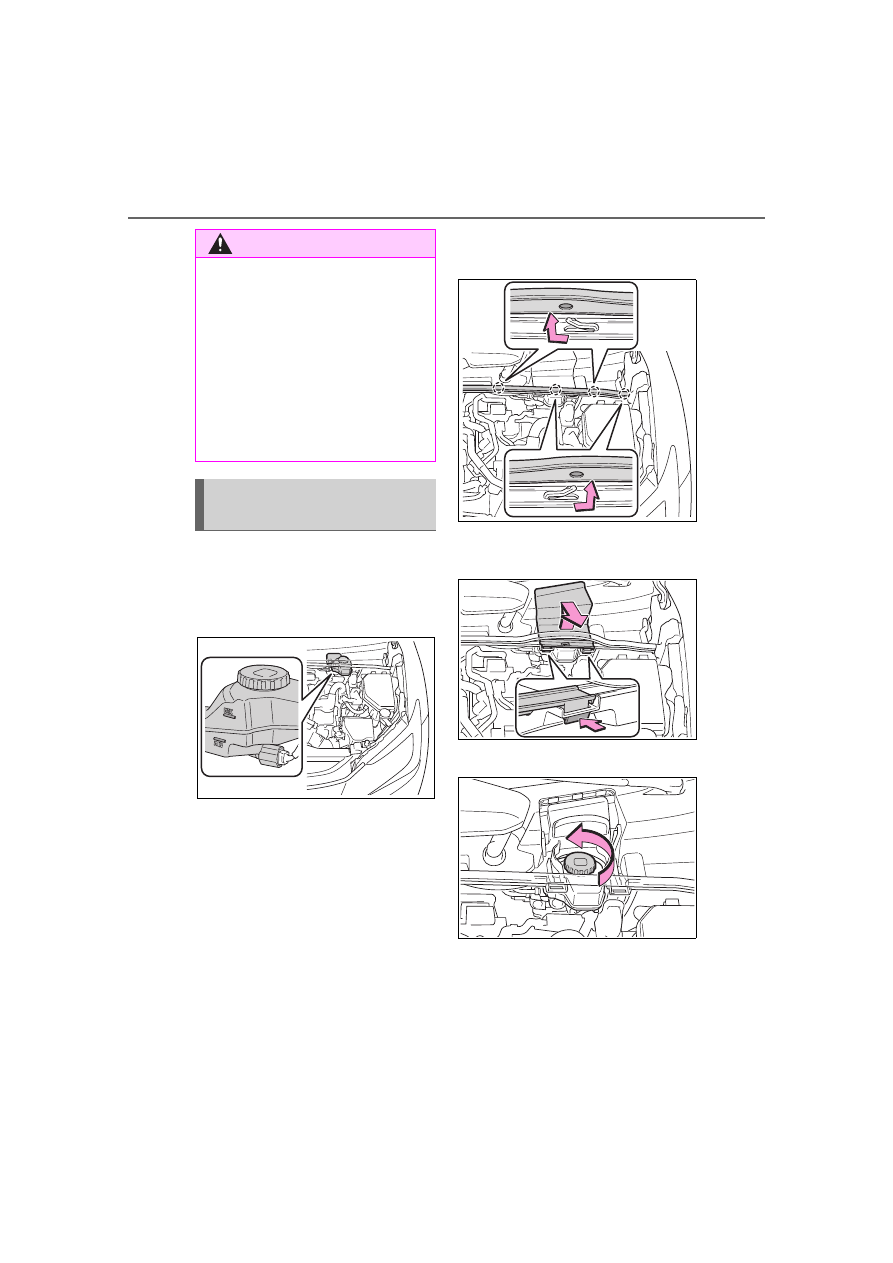

Slide and lift up the rubber

strip to partly remove it, and

then remove the clip remove

it as shown in the illustration.

Disconnect the claws and

remove the service cover.

Remove the reservoir cap.

Add brake fluid slowly while

checking the fluid level.

Make sure to check the fluid

type and prepare the necessary

WARNING

■

When the electric cooling fan

is operating

Do not touch the engine compart-

ment.
With the power switch in ON, the

electric cooling fan may automati-

cally start to run if the air condi-

tioning is on and/or the coolant

temperature is high. Be sure the

power switch is OFF when work-

ing near the electric cooling fan or

radiator grille.

Checking and adding the

brake fluid

421

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd
ca

item.

■

Brake fluid can absorb moisture

from the air

Excess moisture in the brake fluid

can cause a dangerous loss of brak-

ing efficiency. Use only newly

opened brake fluid.

If any washer does not work or

“Windshield Washer Fluid Low”

is shown on the multi-informa-

tion display, the washer tank

may be empty. Add washer

fluid.

Fluid

type

FMVSS No.116 DOT 3 or

SAE J1703 brake fluid
FMVSS No.116 DOT 4 or

SAE J1704

Item

Clean funnel

WARNING

■

When filling the reservoir

Take care as brake fluid can harm

your hands and eyes and damage

painted surfaces.
If fluid gets on your hands or in

your eyes, flush the affected area

with clean water immediately.
If you still experience discomfort,

see a doctor.

NOTICE

■

If the fluid level is low or high

It is normal for the brake fluid level

to go down slightly as the brake

pads wear out or when the fluid

level in the accumulator is high.
If the reservoir needs frequent

refilling, there may be a serious

problem.

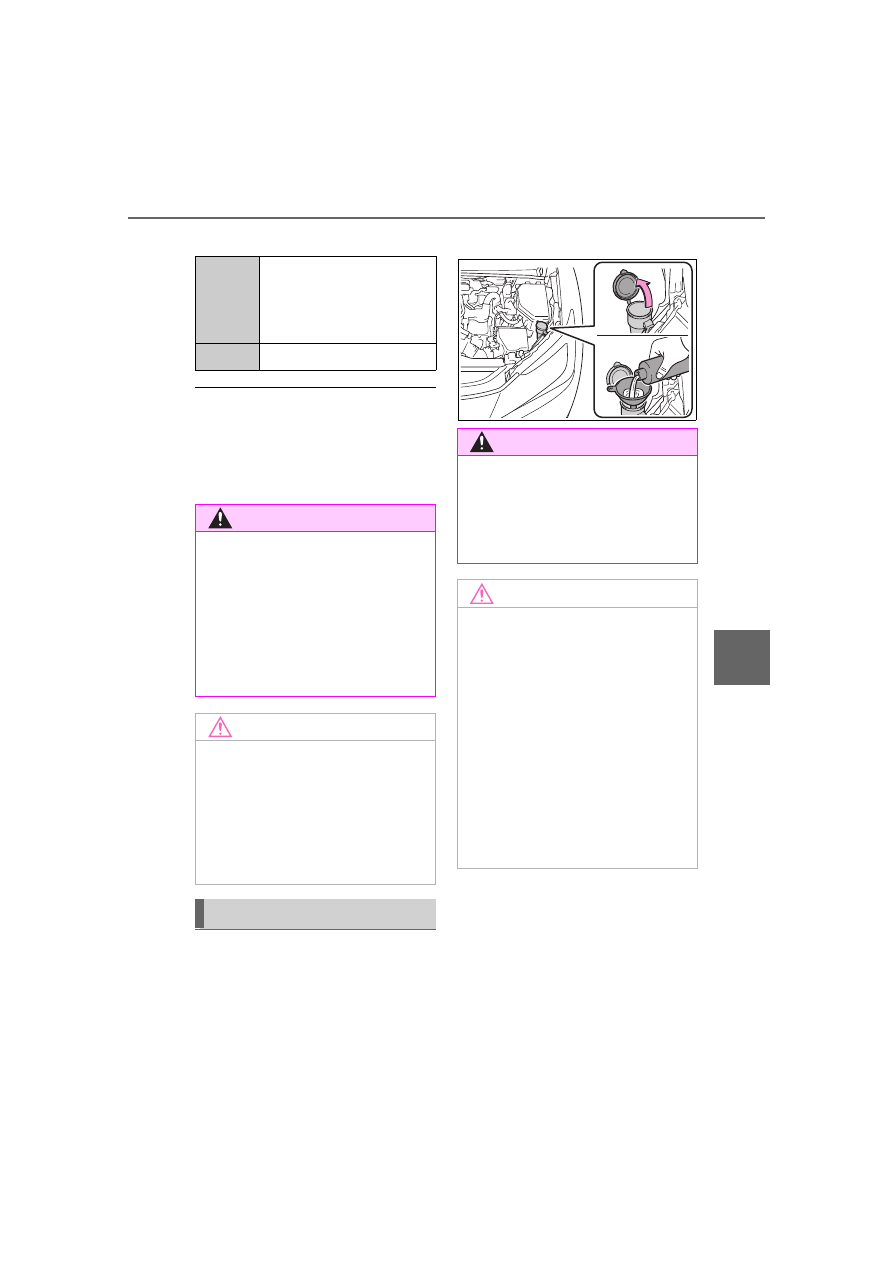

Adding the washer fluid

WARNING

■

When adding washer fluid

Do not add washer fluid when the

hybrid system is hot or operating

as washer fluid contains alcohol

and may catch fire if spilled on the

hybrid system, etc.

NOTICE

■

Do not use any fluid other

than washer fluid

Do not use soapy water or engine

antifreeze instead of washer fluid.

Doing so may cause streaking on

the vehicle’s painted surfaces, as

well as damaging the pump lead-

ing to problems of the washer

fluid not spraying.

■

Diluting washer fluid

Dilute washer fluid with water as

necessary.

Refer to the freezing tempera-

tures listed on the label of the

washer fluid bottle.

422

6-3. Do-it-yourself maintenance

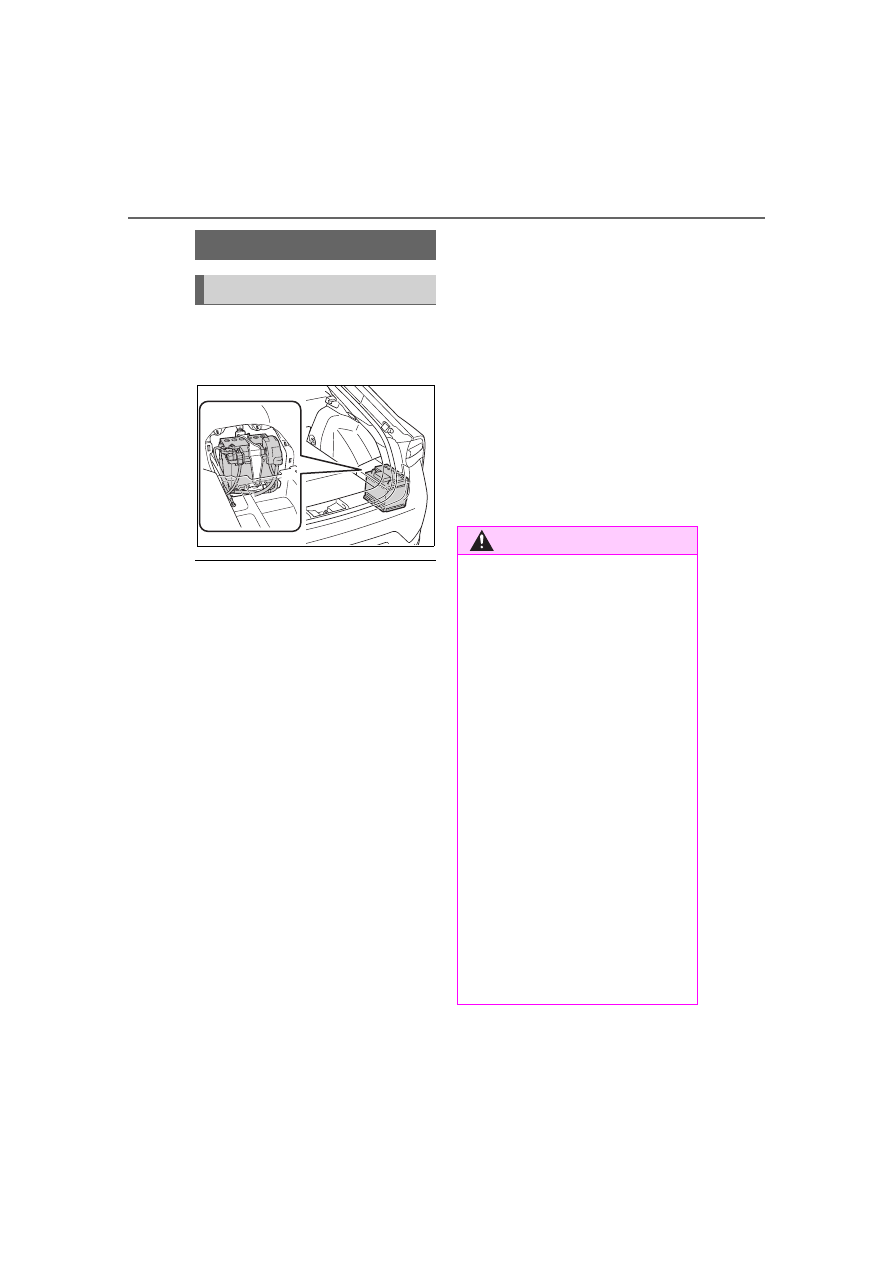

The 12-volt battery is located in

the right-hand side of luggage

compartment.

■

Before recharging

When recharging, the 12-volt bat-

tery produces hydrogen gas which

is flammable and explosive. There-

fore, observe the following precau-

tions before recharging:

●

If recharging with the 12-volt bat-

tery installed on the vehicle, be

sure to disconnect the ground

cable.

●

Make sure the power switch on

the charger is off when connecting

and disconnecting the charger

cables to the 12-volt battery.

■

After recharging/reconnecting

the 12-volt battery

●

Unlocking the doors using the

smart key system may not be pos-

sible immediately after reconnect-

ing the 12-volt battery. If this

happens, use the wireless remote

control or the mechanical key to

lock/unlock the doors.

●

Start the hybrid system with the

power switch in ACC. The hybrid

system may not start with the

power switch turned off. How-

ever, the hybrid system will oper-

ate normally from the second

attempt.

●

The power switch mode is

recorded by the vehicle. If the 12-

volt battery is reconnected, the

vehicle will return the power

switch mode to the status it was in

before the 12-volt battery was dis-

connected. Make sure to turn off

the power switch before discon-

nect the 12-volt battery. Take

extra care when connecting the

12-volt battery if the power switch

mode prior to discharge is

unknown.

If the hybrid system will not start

even after multiple attempts at all

methods above, contact your

Toyota dealer.

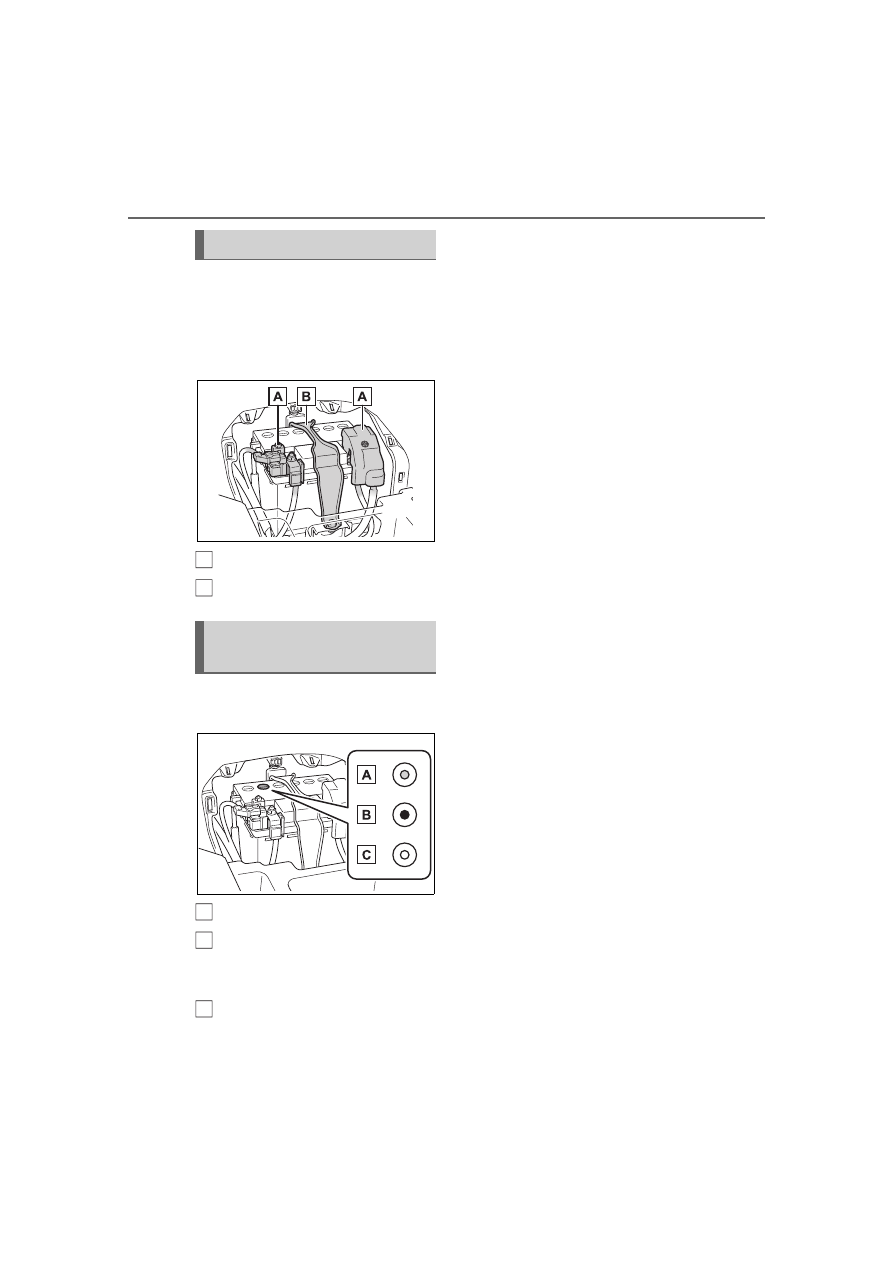

12-volt battery

Location

WARNING

■

Chemicals in the 12-volt bat-

tery

The 12-volt battery contains poi-

sonous and corrosive sulfuric acid

and may produce hydrogen gas

which is flammable and explosive.

To reduce the risk of death or

serious injury, take the following

precautions while working on or

near the 12-volt battery:

●

Do not cause sparks by touch-

ing the 12-volt battery terminals

with tools.

●

Do not smoke or light a match

near the 12-volt battery.

●

Avoid contact with eyes, skin

and clothes.

●

Never inhale or swallow electro-

lyte.

●

Wear protective safety glasses

when working near the 12-volt

battery.

●

Keep children away from the

12-volt battery.

423

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd
ca

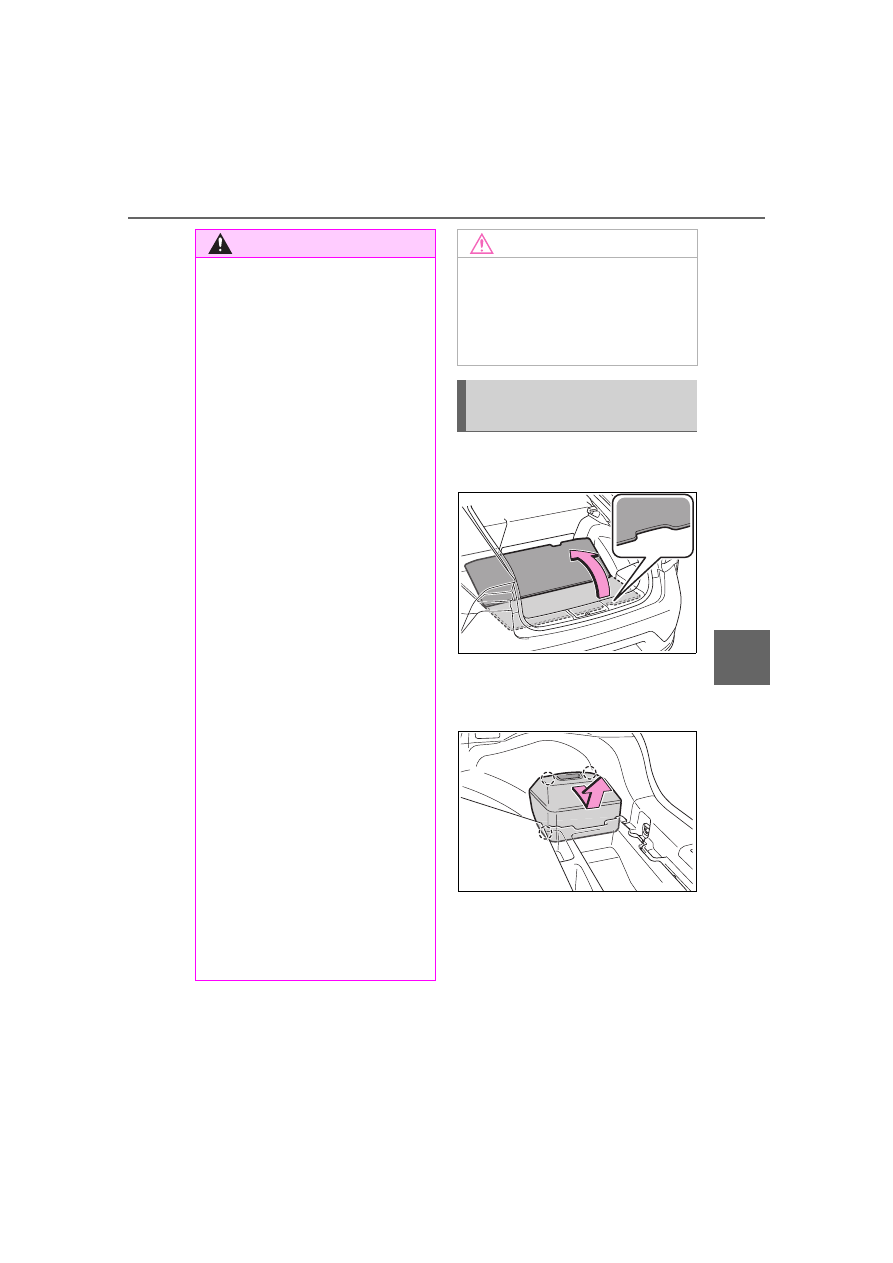

Vehicle with high deck: Open

the deck board (



P.375)

Hold the handle and pull it

toward you, and then the 3

clips will be disengaged

Taking out the 12-volt battery

cover.

When installing, reverse the steps

listed.

WARNING

■

Where to safely charge the

12-volt battery

Always charge the 12-volt battery

in an open area. Do not charge

the 12-volt battery in a garage or

closed room where there is insuf-

ficient ventilation.

■

Emergency measures regard-

ing electrolyte

●

If electrolyte gets in your eyes

Flush your eyes with clean water

for at least 15 minutes and get

immediate medical attention. If

possible, continue to apply water

with a sponge or cloth while trav-

eling to the nearest medical facil-

ity.

●

If electrolyte gets on your skin

Wash the affected area thor-

oughly. If you feel pain or burning,

get medical attention immediately.

●

If electrolyte gets on your

clothes

It can soak through clothing on to

your skin. Immediately take off the

clothing and follow the procedure

above if necessary.

●

If you accidentally swallow elec-

trolyte

Drink a large quantity of water or

milk. Get emergency medical

attention immediately.

■

When there is insufficient 12-

volt battery fluid

Do not use if there is insufficient

fluid in the 12-volt battery. There

is a possible danger that the 12-

volt battery may explode.

NOTICE

■

When recharging the 12-volt

battery

Never recharge the 12-volt bat-

tery while the hybrid system is

operating. Also, be sure all acces-

sories are turned off.

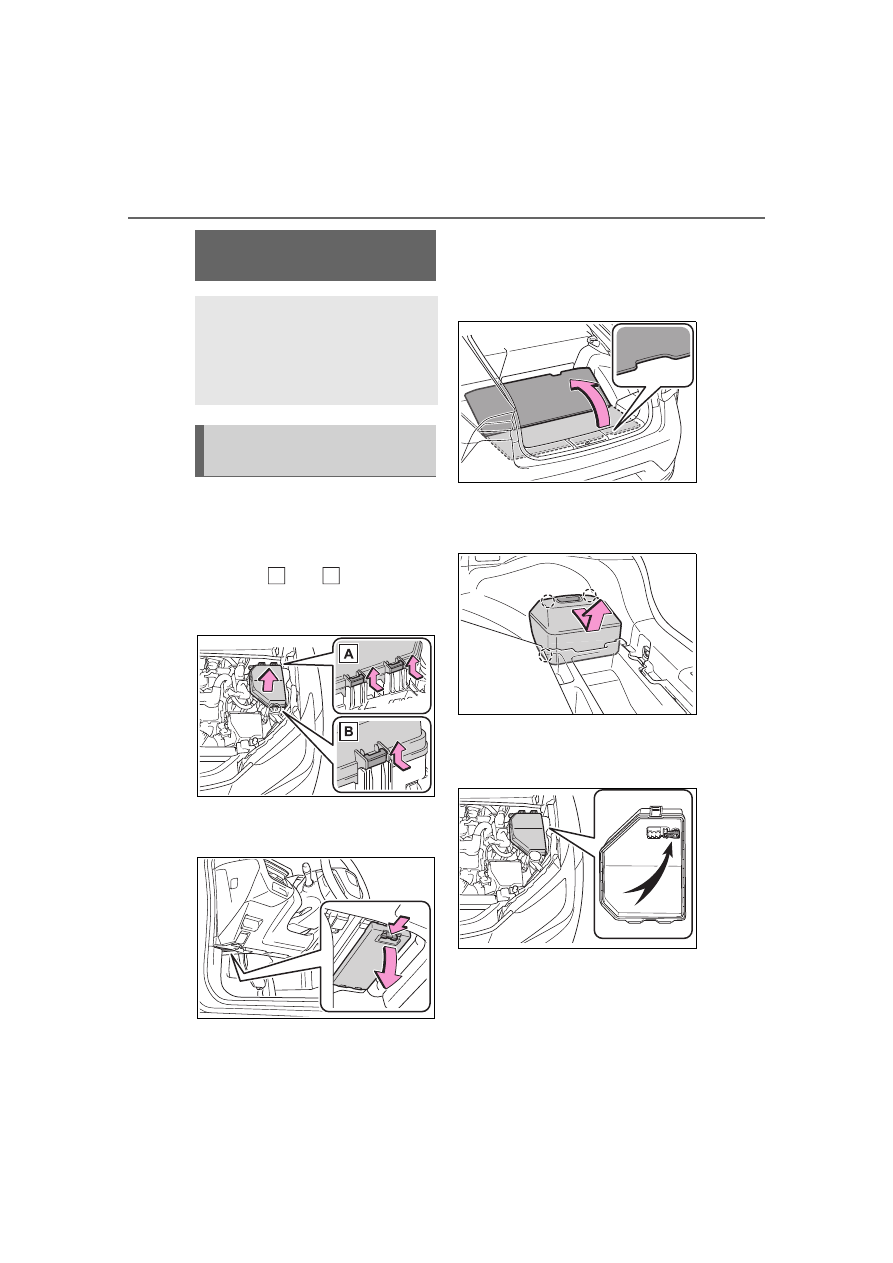

Removing the 12-volt bat-

tery cover

425

6-3. Do-it-yourself maintenance

Maintena

nce

ca
re

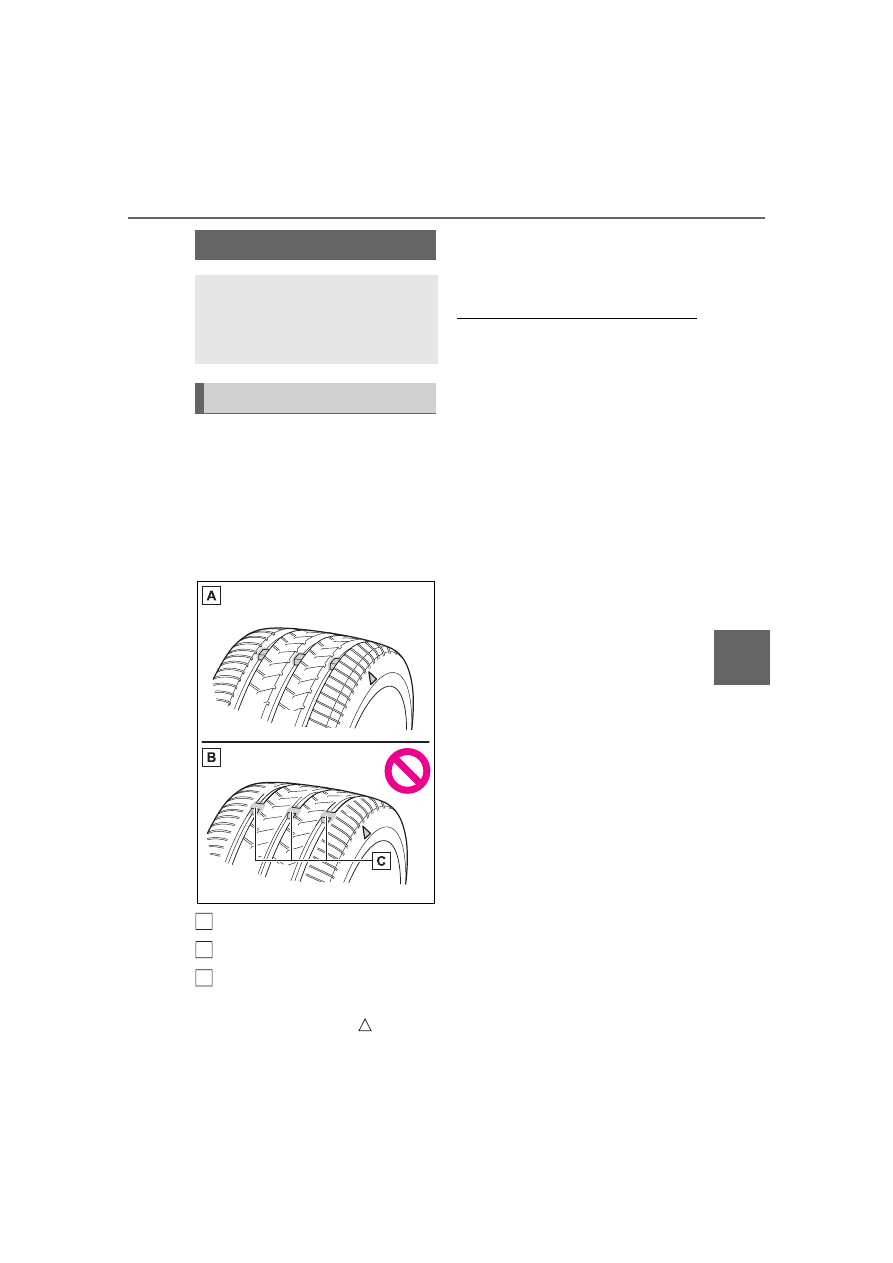

Check if the treadwear indica-
tors are showing on the tires.
Also check the tires for uneven
wear, such as excessive wear
on one side of the tread.

Check the spare tire condition
and pressure if not rotated.

New tread

Worn tread

Treadwear indicator

The location of treadwear indicators

is shown by a “TWI” or “

” mark,

etc., molded into the sidewall of
each tire.

Replace the tires if the treadwear
indicators are showing on a tire.

■

When to replace your vehicle’s
tires

Tires should be replaced if:

●

The treadwear indicators are
showing on a tire.

●

You have tire damage such as
cuts, splits, cracks deep enough
to expose the fabric, and bulges
indicating internal damage

●

A tire goes flat repeatedly or can-
not be properly repaired due to
the size or location of a cut or
other damage

If you are not sure, consult your
Toyota dealer.

■

Tire life

Any tire over 6 years old must be
checked by a qualified technician
even if it has seldom or never been
used or damage is not obvious.

■

Low profile tires (vehicles with
195/50R19 tires)

Generally, low profile tires will wear
more rapidly and tire grip perfor-
mance will be reduced on snowy
and/or icy roads when compared to
standard tires. Be sure to use snow
tires on snowy and/or icy roads and
drive carefully at a speed appropri-
ate for road and weather conditions.

■

Maximum load of tire

Check that the maximum load of the
replacement tire is greater than 1/2
of the Gross Axle Weight Ratings
(GAWR) of either the front axle or
the rear axle, whichever is greater.

For the GAWR, see the Certification
Label. For the maximum load of the
tire, see the load limit at maximum
cold tire inflation pressure men-
tioned on the sidewall of the tire.
(



P.530)

Tires

Replace or rotate tires in
accordance with mainte-
nance schedules and tread-
wear.

Checking tires

426

6-3. Do-it-yourself maintenance

■

Tire types

●

Summer tires

Summer tires are high-speed per-

formance tires best suited to high-

way driving under dry conditions.

Since summer tires do not have

the same traction performance as

snow tires, summer tires are inad-

equate for driving on snow-cov-

ered or icy roads. For driving on

snow-covered roads or icy roads,

the use of snow tires is recom-

mended. When installing snow

tires, be sure to replace all four

tires.

●

All season tires

All season tires are designed to

provide better traction in snow and

to be adequate for driving in most

winter conditions as well as for

use year-round. All season tires,

however, do not have adequate

traction performance compared

with snow tires in heavy or loose

snow. Also, all season tires fall

short in acceleration and handling

performance compared with sum-

mer tires in highway driving.

●

Snow tires

For driving on snow-covered

roads or icy roads, we recom-

mend using snow tires. If you

need snow tires, select tires of the

same size, construction and load

capacity as the originally installed

tires. Since your vehicle has radial

tires as original equipment, make

sure your snow tires also have

radial construction. Do not install

studded tires without first checking

local regulations for possible

restrictions. Snow tires should be

installed on all wheels. (



P.353)

■

If the tread on snow tires wears

down below 0.16 in. (4 mm)

The effectiveness of the tires as

snow tires is lost.

WARNING

■

When inspecting or replacing

tires

Observe the following precautions

to prevent accidents.

Failure to do so may cause dam-

age to parts of the drivetrain as

well as dangerous handling char-

acteristics, which may lead to an

accident resulting in death or seri-

ous injury.

●

Do not mix tires of different

makes, models or tread pat-

terns.

Also, do not mix tires of remark-

ably different treadwear.

●

Do not use tire sizes other than

those recommended by Toyota.

●

Do not mix differently con-

structed tires (radial, bias-belted

or bias-ply tires).

●

Do not tow if your vehicle has a

compact spare tire installed.

●

Do not mix summer, all season

and snow tires.

●

Do not use tires that have been

used on another vehicle.

Do not use tires if you do not

know how they were used previ-

ously.

427

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd
ca

Rotate the tires in the order

shown.

To equalize tire wear and extend

tire life, Toyota recommends that

tire rotation is carried out at the

same interval as tire inspection.
Do not fail to initialize the tire pres-

sure warning system after tire rota-

tion.

Front

■

When rotating the tires

Make sure that the power switch is

off. If the tires are rotated while the

power switch is in ON, the tire posi-

tion information will not be updated.
If this accidentally occurs, either

turn the power switch to off and then

to ON, or initialize the system after

checking that the tire pressure is

properly adjusted.

Your vehicle is equipped with a

tire pressure warning system

that uses tire pressure warning

valves and transmitters to detect

low tire inflation pressure before

serious problems arise.
The tire pressure warning sys-

tem of this vehicle adopts a 2-

type warning system.



When “Adjust Pressure” is

displayed (Normal Warning)

The tire pressure warning light

comes on and a buzzer sounds

when the tire inflation pressure

becomes low due to natural air

leakage or outside temperature.

NOTICE

■

Driving on rough roads

Take particular care when driving

on roads with loose surfaces or

potholes.

These conditions may cause

losses in tire inflation pressure,

reducing the cushioning ability of

the tires. In addition, driving on

rough roads may cause damage

to the tires themselves, as well as

the vehicle’s wheels and body.

■

Low profile tires (vehicles

with 195/50R19 tires)

Low profile tires may cause

greater damage than usual to the

tire wheel when sustaining impact

from the road surface. Therefore,

pay attention to the following:

●

Be sure to use proper tire infla-

tion pressure. If tires are under-

inflated, they may be damaged

more severely.

●

Avoid potholes, uneven pave-

ment, curbs and other road haz-

ards. Failure to do so may lead

to severe tire and wheel dam-

age.

■

If tire inflation pressure of

each tire becomes low while

driving

Do not continue driving, or your

tires and/or wheels may be

ruined.

Tire rotation

Tire pressure warning

system

428

6-3. Do-it-yourself maintenance

(Ways of coping:



P.470, 526)



When “Immediately Check
tire when Safe” is displayed
(Emergency Warning)

The tire pressure warning light
comes on and a buzzer sounds
when the tire inflation pressure
becomes low suddenly due to a
blowout. (Ways of coping:



P.470,

484, 496)

However, the system may not be
able to detect sudden tire ruptures
(bursting, etc.).



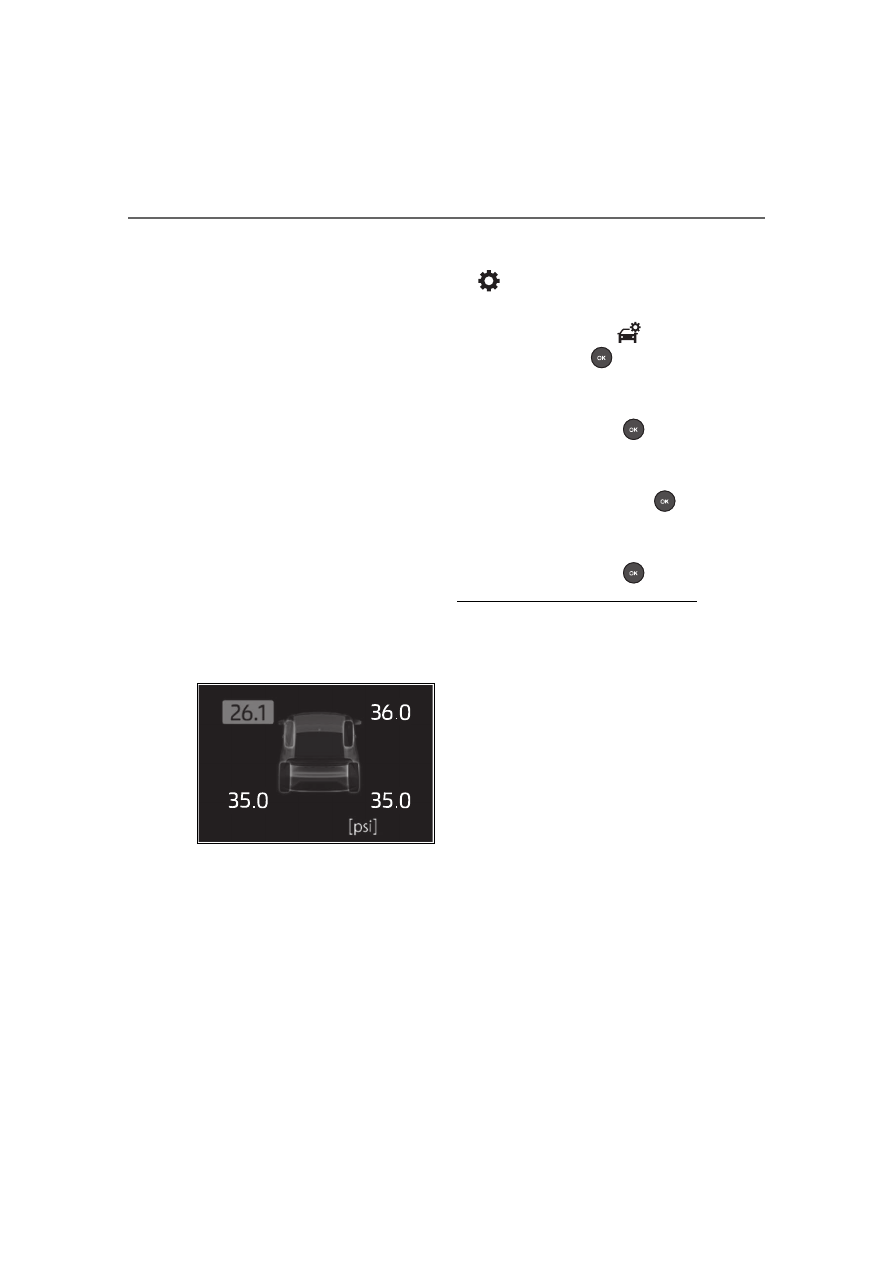

The tire pressure detected by
the tire pressure warning sys-
tem can be displayed on the
multi-information display.
(



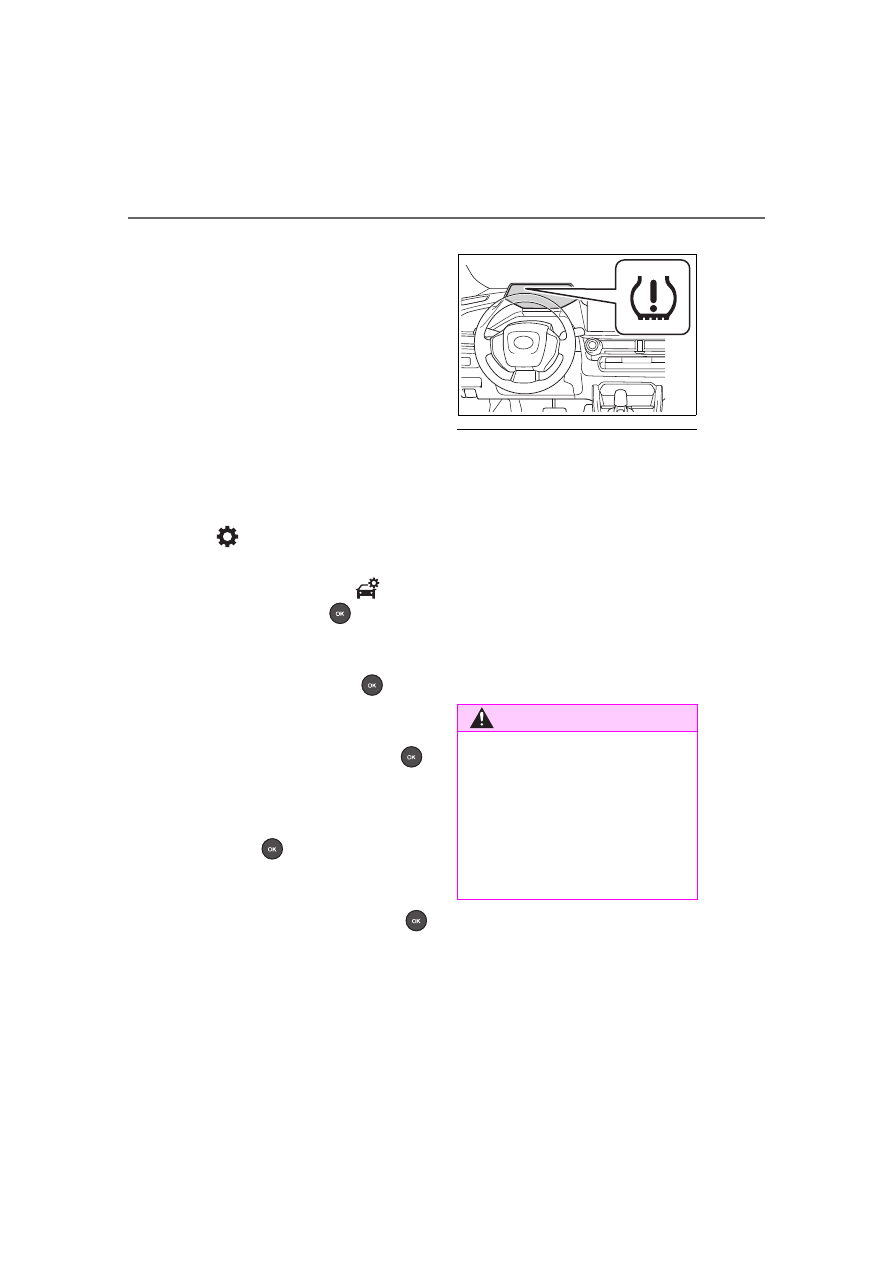

P.92)

The illustration used is intended as
an example, and may differ from
the image that is actually displayed
on the multi-information display.

■

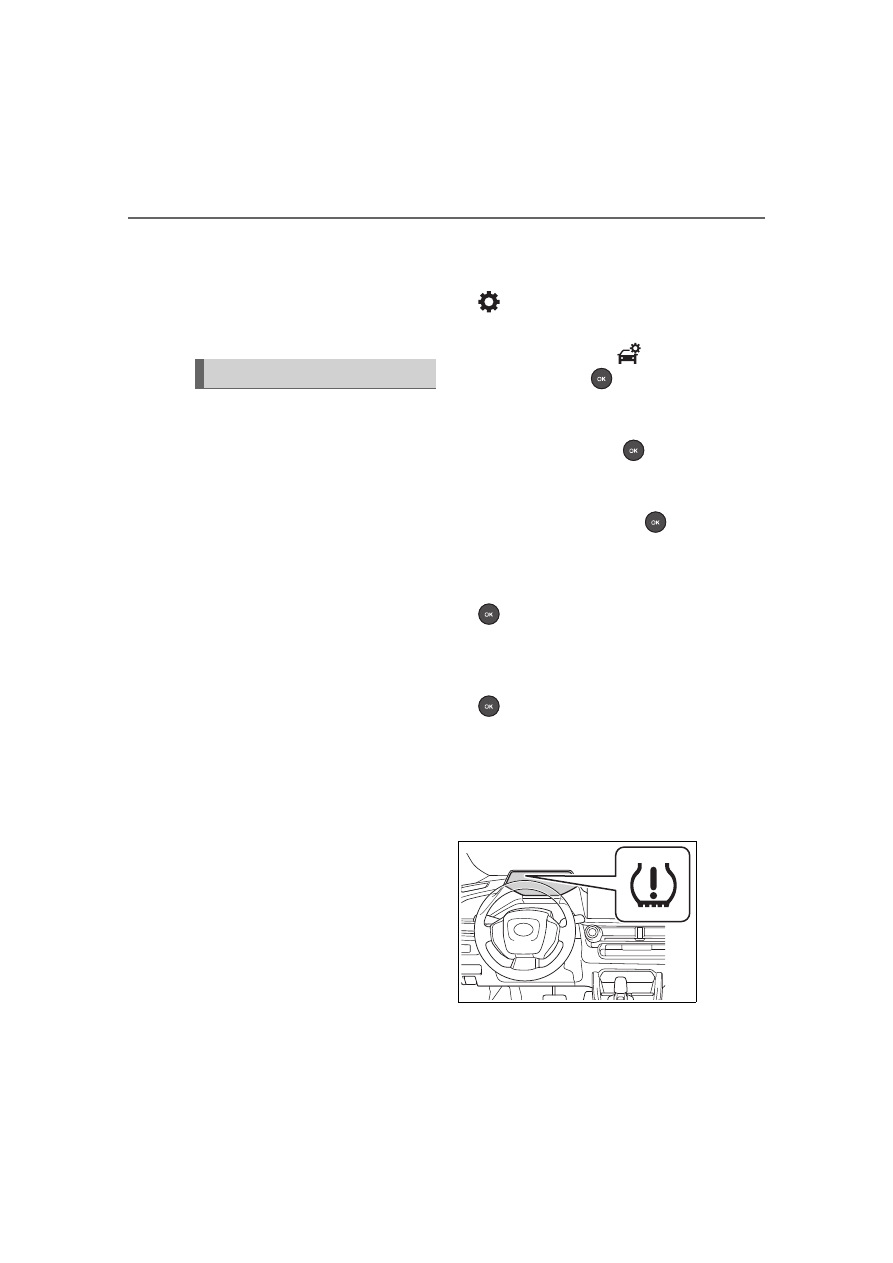

How to change the unit

Park the vehicle in a safe
place and turn the power
switch off.

Changing the unit cannot be per-
formed while the vehicle is moving.

Start the hybrid system.

Use the meter control
switches (



P.92) to select

(



P.93).

Use the meter control

switches to select

, then

press and hold

Use the meter control
switches to select “TPWS

setting”, then press

Use the meter control
switches to select “Pressure

unit setting”, then press

Use the meter control
switches to select the desired

unit and then press

■

Routine tire inflation pressure
checks

The tire pressure warning system
does not replace routine tire inflation
pressure checks. Make sure to
check tire inflation pressure as part
of your routine of daily vehicle
checks.

■

Tire inflation pressure

●

It may take a few minutes to dis-
play the tire inflation pressure
after the power switch is turned to
ON.
It may also take a few minutes to
display the tire inflation pressure
after inflation pressure has been
adjusted.

●

Tire inflation pressure changes
with temperature. The displayed
values may also be different from
the values measured using a tire
pressure gauge.

■

Situations in which the tire
pressure warning system may
not operate properly

●

In the following cases, the tire

429

6-3. Do-it-yourself maintenance

Maintena

nce

ca
re

pressure warning system may not
operate properly.

• If non-genuine Toyota wheels are

used.

• A tire has been replaced with a

tire that is not an OE (Original
Equipment) tire.

• A tire has been replaced with a

tire that is not of the specified size.

• Tire chains etc. are equipped.
• If a window tint that affects the

radio wave signals is installed.

• If there is a lot of snow or ice on

the vehicle, particularly around the
wheels or wheel housings.

• If the tire inflation pressure is

extremely higher than the speci-
fied level.

• If wheel without tire pressure

warning valves and transmitters
are used.

• If the ID code on the tire pressure

warning valves and transmitters is
not registered in the tire pressure
warning computer.

●

Performance may be affected in
the following situations.

• Near a TV tower, electric power

plant, gas station, radio station,
large display, airport or other facil-
ity that generates strong radio
waves or electrical noise

• When carrying a portable radio,

cellular phone, cordless phone or
other wireless communication
device

If tire position information is not cor-
rectly displayed due to the radio
wave conditions, the display may be
corrected by changing the location
of the vehicle as the radio wave
conditions may change.

●

When the vehicle is parked, the
time taken for the warning to start
or go off could be extended.

●

When tire inflation pressure
declines rapidly for example when
a tire has burst, the warning may
not function.

■

Warning performance of the tire
pressure warning system

The warning of the tire pressure
warning system will change in
accordance with driving conditions.
For this reason, the system may
give a warning even if the tire pres-
sure does not reach a low enough
level, or if the pressure is higher
than the pressure that was adjusted
to when the system was initialized.

When replacing tires or wheels,
tire pressure warning valves and
transmitters must also be
installed.

When new tire pressure warning
valves and transmitters are
installed, new ID codes must be
registered in the tire pressure
warning computer. (



P.434)

■

When replacing the tires and
wheels

If the ID code of the tire pressure
warning valve and transmitter is not
registered, the tire pressure warning
system will not work properly. In this
case, after driving for about 20 min-
utes, the tire pressure warning light
blinks for 1 minute and stays on to
indicate a system malfunction.

Installing tire pressure
warning valves and trans-
mitters

430

6-3. Do-it-yourself maintenance

It is necessary to register the

position of each wheel after per-

forming a tire rotation.
Wheel position registration can

be performed by oneself. Wheel

position registration is per-

formed by driving forward with

moderate left and right turns.

However, depending on the

driving conditions and driving

environment, registration may

take some time to complete.

Park the vehicle in a safe

place, turn the power switch

off and wait 15 minutes or

more.

Start the hybrid system.

The wheel position registration pro-

cedure cannot be performed while

the vehicle is moving.

Use the meter control

switches (



P.92) to select

. (



P.93)

Use the meter control
switches to select

, then

press and hold .

Use the meter control

switches to select “TPWS
setting”, then press .

Use the meter control

switches to select “Tire Rota-
tion”, then press .

Use the meter control

switches to select “Yes”, then
press .

A message indicating that wheel

position registration is being per-

formed will be displayed on the

multi-information display. “---” will

be displayed for the tire inflation

pressure of each tire and wheel

position registration will begin.

NOTICE

■

Repairing or replacing tires,

wheels, tire pressure warn-

ing valves, transmitters and

tire valve caps

●

When removing or fitting the

wheels, tires or the tire pressure

warning valves and transmit-

ters, contact your Toyota dealer

as the tire pressure warning

valves and transmitters may be

damaged if not handled cor-

rectly.

●

Make sure to install the tire

valve caps. If the tire valve caps

are not installed, water could

enter the tire pressure warning

valves, corrode the valve, and

cause sticking and air leaks.

●

When replacing tire valve caps,

do not use tire valve caps other

than those specified. The cap

may become stuck.

■

To avoid damage to the tire

pressure warning valves and

transmitters

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer or other qualified service

shop as soon as possible. Make

sure to replace the tire pressure

warning valve and transmitter

when replacing the tire. (



P.429)

Registration of the posi-

tion of each wheel after

performing a tire rotation

431

6-3. Do-it-yourself maintenance

Maintena

nce

ca
re

Drive straight (with occa-
sional left and right turns) at
approximately 25 mph (40
km/h) or more for approxi-
mately 10 to 30 minutes.

When wheel position registration is
complete, a message indicating
that registration has been com-
pleted and the inflation pressure of
each tire will be displayed on the
multi-information display.

Even if it is not possible to drive
continuously at approximately 25
mph (40 km/h) or more, registration
can be completed by driving for a
long time. However, if registration
does not complete after driving for
1 hour or more, park the vehicle in
a safe place and leave it with the
power switch in ON for approxi-
mately 15 minutes or more, and
then perform the driving procedure
again.

■

When performing wheel posi-
tion registration

●

Normally, wheel position registra-
tion can be completed within
approximately 30 minutes.

●

Wheel position registration is per-
formed while driving at a vehicle
speed of approximately 25 mph
(40 km/h) or more.

■

Wheel position registration pro-
cedure

●

If the power switch is turned off
while registering the wheel posi-
tion, the next time the power
switch is turned to ON, the wheel
position registration will resume
and it will not be necessary to
restart the procedure.

●

While the position of each wheel is
being determined and the inflation
pressures are not being dis-
played, if the inflation pressure of
a tire drops, the tire pressure
warning light will come on.

■

If the wheel position cannot be
registered easily

●

In the following situations, wheel
position registration may take lon-
ger than usual to be completed or
may not be possible.

• Vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more

• Vehicle is driven on unpaved

roads

• If wheel position registration does

not complete after driving for 1
hour or more, park the vehicle in a
safe place for approximately 15
minutes and then drive the vehicle
again.

●

If the vehicle is reversed during
wheel position registration, all
data collected until then will be
cleared. Perform driving again.

In the following situations, it will
be necessary to perform the tire
inflation pressure setting proce-
dure of the tire pressure warning
system.



When the specified tire infla-
tion pressure has changed,
such as due to carried load,
etc.



When the tire inflation pres-
sure is changed such as
when the tire size is changed.

If the tire inflation pressure has
been adjusted to the specified
level, perform the tire inflation set-
ting procedure by selecting speci-
fied inflation pressure on the multi-
information display.

When the tire inflation pressure is
to be other than specified, such as
when tires other than the specified
size are used, etc., set the tire infla-

Setting the tire pressure

432

6-3. Do-it-yourself maintenance

tion pressure using the current

pressure. Make sure to adjust the

tire inflation pressure of each tire to

the appropriate level before per-

forming tire pressure setting. The

tire pressure warning system oper-

ates based on this tire inflation

pressure.

■

Setting by selecting a spec-

ified tire inflation pressure

Start the hybrid system.

The tire inflation pressure cannot

be set while the vehicle is moving.

Use the meter control

switches (



P.92) to select

. (



P.93)

Use the meter control
switches to select

, then

press and hold .

Use the meter control

switches to select “TPWS
setting”, then press .

Use the meter control

switches to select “Tire Pres-
sure Setting”, then press .

Use the meter control

switches to select “Setting by

Specified Pressure”, then
press .

Use the meter control

switches to select the desired
tire pressures, then press .

The tire pressure warning light will

slowly blink 3 times.
After setting the tire inflation pres-

sure, a message indicating that set-

ting has been completed will be

displayed on the multi-information

display.

■

If the tire inflation pressure can-

not be set easily

●

If the tire pressure warning light

does not blink 3 times when start-

ing the tire inflation pressure set-

ting procedure, the procedure

may not have started.

Perform the procedure again from

the beginning.

●

If tire inflation pressure setting

procedure cannot be completed

after performing the above proce-

dure, contact your Toyota dealer.

■

Setting using the current

tire inflation pressure

Adjust the tire inflation pres-

sure of each tire to the appro-

priate level.

Make sure to adjust the tire inflation

pressure with the tires cold.

Start the hybrid system.

WARNING

■

Before performing tire pres-

sure setting

Make sure to adjust the tire infla-

tion pressure of each tire to the

appropriate level. Otherwise, the

tire pressure warning light may

not illuminate even if the tire infla-

tion pressure drops or may illumi-

nate even though the tire inflation

pressure is normal.

433

6-3. Do-it-yourself maintenance

Maintena

nce

ca
re

The tire inflation pressure cannot
be set while the vehicle is moving.

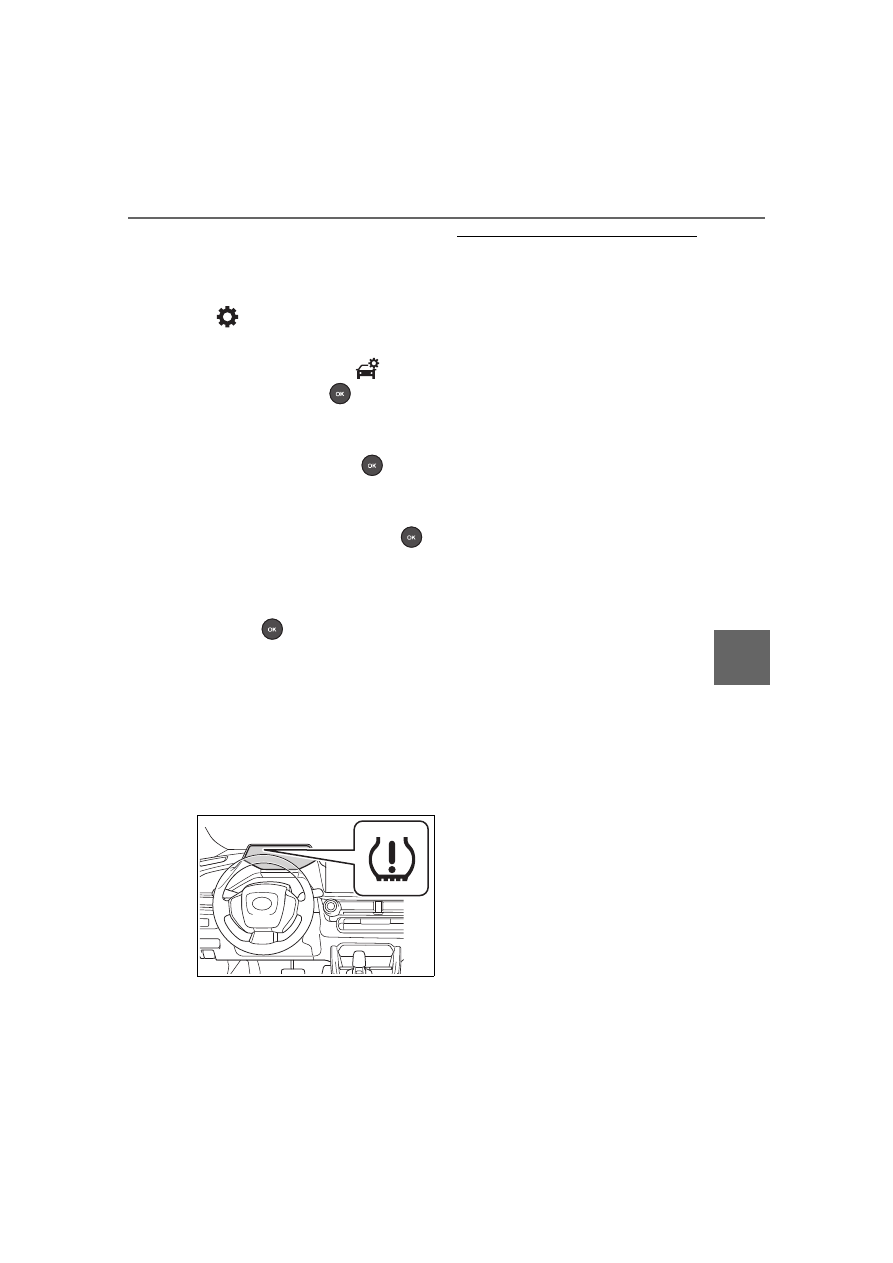

Use the meter control
switches (

(

Use the meter control

switches to select

, then

press and hold

Use the meter control
switches to select “TPWS

setting”, then press

Use the meter control
switches to select “Tire Pres-

sure Setting”, then press

Use the meter control
switches to select “Setting by
Current Pressure”, then

press .

The tire pressure warning light will
slowly blink 3 times and a message
indicating that tire inflation pressure
is being set will be displayed on the
multi-information display.

After setting the tire inflation pres-
sure, a message indicating that set-
ting has been completed will be
displayed on the multi-information
display.

■

Warning performance of the tire
pressure warning system

●

When performing the tire pressure
setting using the current tire infla-
tion pressure, the warning timing
of the tire pressure warning sys-
tem will vary according to the con-
ditions under which tire pressure
setting was performed. Therefore,
a warning may be output even if
the tire inflation pressure drops
slightly or if the tire inflation pres-
sure increases above that when
the tire inflation pressure was set.

●

Make sure to perform the tire
pressure setting procedure after
adjusting the tire inflation pres-
sure. Also, make sure the tires are
cold before performing the tire
pressure setting procedure or
adjusting the tire inflation pres-
sure.

■

Tire inflation pressure setting
procedure

●

If the power switch is turned off
while setting the tire inflation pres-
sure, the next time the power
switch is turned to ON, the setting
procedure will resume and it will
not be necessary to restart the
procedure.

●

If the tire inflation pressure setting
procedure is started unnecessar-
ily, adjust the tire inflation pres-
sure to the specified level with the
tires cold and then perform setting
by selecting a specified tire infla-
tion pressure, or perform the tire
inflation pressure setting proce-
dure with the current tire inflation
pressure.

■

If the tire inflation pressure can-
not be set easily

●

Normally, the tire inflation pres-
sure setting procedure can be
completed in 2 or 3 minutes.

●

If the tire pressure warning light
does not blink 3 times when start-
ing the tire inflation pressure set-
ting procedure, the procedure

434

6-3. Do-it-yourself maintenance

may not have started.
Perform the procedure again from
the beginning.

●

If tire inflation pressure setting
procedure cannot be completed
after performing the above proce-
dure, contact your Toyota dealer.

The tire pressure warning valve
and transmitter is equipped with
a unique ID code. When new
tire pressure warning valves and
transmitters are installed, new
ID codes must be registered in
the tire pressure warning com-
puter.
• ID codes can be registered by

yourself, but depending on
the driving conditions and
driving environment, registra-
tion may take some time to
complete.

• When using a wheel set

which all of the ID codes have
already been registered, the
wheel set can be changed in
a short amount of time.

Before performing ID code reg-
istration, make sure that no
wheels with tire pressure warn-
ing valve and transmitters
installed are near the vehicle.

Park the vehicle in a safe
place, turn the power switch
off and wait 15 minutes or
more.

Start the hybrid system.

The ID code registration procedure
cannot be performed while the

vehicle is moving.

Use the meter control
switches (



P.92) to select

(



P.93).

Use the meter control

switches to select

, then

press and hold

Use the meter control
switches to select “TPWS

setting”, then press

Use the meter control
switches to select “Tire Set

Switching”, then press

Use the meter control
switches to select “Register
New Valve / ID”, then press

Use the meter control
switches to select “Tire Set 1”
or “Tire Set 2”, then press

If ID codes have already been reg-
istered for that wheel set, the tire
pressure warning light will slowly
blink 3 times, and a message indi-
cating that change is occurring will
be displayed on the multi-informa-
tion display.

Registering ID codes

435

6-3. Do-it-yourself maintenance

Maintena

nce

ca
re

Use the meter control
switches to select Yes then

press .

The tire pressure warning light will
slowly blink 3 times and a message
indicating that ID code registration
is being performed will be displayed
on the multi-information display.
Wheel set changing will be can-
celed and registration will begin.

When registration is being per-
formed, the tire pressure warning
light will blink for approximately 1
minute then illuminate and “---” will
be displayed for the inflation pres-
sure of each tire on the multi-infor-
mation display.

Drive straight (with occa-

sional left and right turns) at
approximately 25 mph (40
km/h) or more for approxi-
mately 10 to 30 minutes.

When registration is complete, the
tire pressure warning light will turn
off and a message indicating that
registration has been completed
will be displayed on the multi-infor-
mation display.

Registration may take longer than
normal to complete if the vehicle
speed cannot be maintained at
approximately 25 mph (40 km/h) or
more. If registration cannot be com-
pleted after driving for 1 hour or
more, perform the registration pro-
cedure again from the beginning.

If the tire inflation pressure of

the wheel set installed differs
from that of the previous set,
it will be necessary to per-
form the tire inflation pres-
sure setting procedure of the
tire pressure warning system.

If the specified tire inflation pres-
sure is the same, it will not be nec-
essary to perform the tire inflation

pressure setting procedure.

■

When registering ID codes

●

Normally, ID codes registration
can be completed within approxi-
mately 30 minutes.

●

ID code registration is performed
while driving at a vehicle speed of
approximately 25 mph (40 km/h)
or more.

■

If ID codes are not registered
easily

●

In the following situations, ID code
registration may take longer than
usual to be completed or may not
be possible.

• When the vehicle has not been

parked for approximately 15 min-
utes or more before being driven

• Vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more

• Vehicle is driven on unpaved

roads

• Vehicle is driven near other vehi-

cles and system cannot recog-
nize tire pressure warning valve
and transmitters of your vehicle
over those of other vehicles

• Wheel with tire pressure warning

valve and transmitter installed is
inside or near the vehicle

●

If the vehicle is reversed during
registration, all data collected until
then will be cleared. Perform driv-
ing again.

●

If the tire pressure warning light
does not blink 3 times when start-
ing ID code registration proce-
dure to step

, the procedure may

not have started. Perform the pro-
cedure again from the beginning.

●

If registration does not complete
after driving for 1 hour or more,
perform the ID code registration
procedure again from the begin-
ning.

●

If the ID codes cannot be regis-
tered even when performing the
above procedure, contact your
Toyota dealer.

436

6-3. Do-it-yourself maintenance

■

Canceling ID code registra-
tion

To cancel ID code registration
after it has been started, select
“Register New Valve / ID” again
on the multi-information display.

If ID code registration has been
canceled, the tire pressure warning
light will turn off.

If the warning light does not turn off,
ID code registration may not have
been cancelled correctly. To cancel
registration, select “Register New
Valve / ID” on the multi-information
display.

Your vehicle is equipped with a
tire pressure warning system
with a function to register two
sets of ID codes. This allows for
registration of a second wheel
set, for example a winter set.



The wheel set can be
changed only if a second
wheel set has been registered
to the system. If a second
wheel set has not been regis-
tered, “Switching Incomplete
See Owner’s Manual” will be
displayed and it will not be
possible to change to the
selected wheel set.

ID codes can be registered by your-
self.



Only a change between both
registered wheel set is possi-
ble, mixing between these
wheel sets is not supported.



While registering ID codes, it
may not be possible to
change between wheel sets
normally. Cancel registration
before changing between
wheel sets.

Install the desired wheel set.

Use the meter control
switches (



P.92) to select

(



P.93).

Use the meter control

switches to select

, then

press and hold

Use the meter control
switches to select “TPWS

setting”, then press

Use the meter control
switches to select “Tire Set

Switching”, then press

Use the meter control
switches to select “Register

Valve / ID”, then press

Use the meter control
switches to select the wheel
set (“Tire Set 1” or “Tire Set
2”) displayed for the set
selection setting, then press

Use the meter control
switches to select “yes”, then

press .

The tire pressure warning light will
slowly blink 3 times, a message
indicating that change is occurring
will be displayed, and the wheel set
change will begin.

Wheel set change will begin and

Selecting wheel set

437

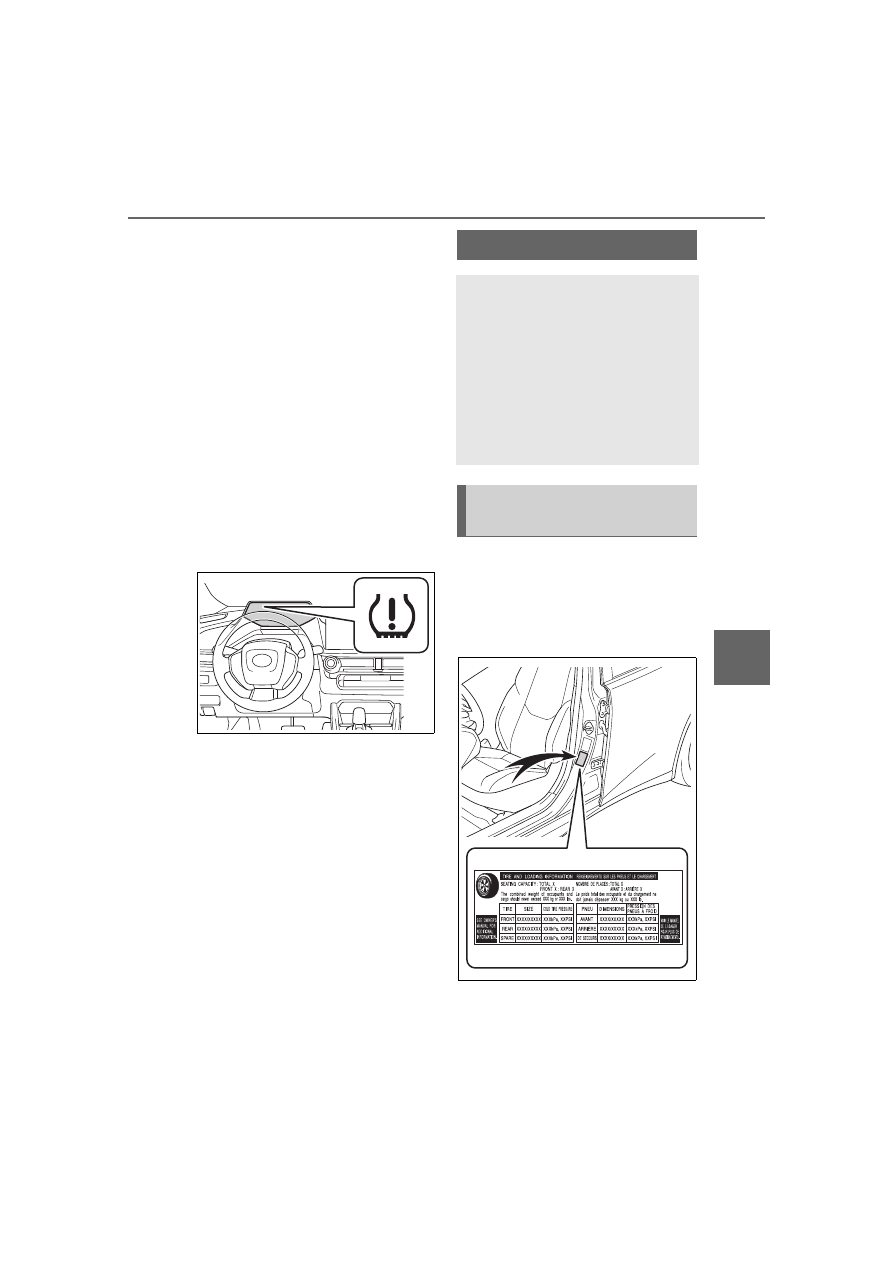

6-3. Do-it-yourself maintenance

Maintena

nce

ca
re

the tire pressure warning light will
blink for 1 minute and then illumi-
nate. Also, while the change is
being performed, “---” will be dis-
played for the tire inflation pressure
of each tire on the multi-information
display.

After approximately 2 minutes, the
wheel set change will complete, the
tire pressure warning light will turn
off, and a completion message will
be displayed on the multi-informa-
tion display.

If changing does not complete after
approximately 4 minutes, a mes-
sage indicating that the change
could not be completed will be dis-
played.

Check which wheel set is installed
and perform the change procedure
again from the beginning.

If the specified tire inflation
pressure of the wheel set
installed differs from that of
the previous set, it will be
necessary to perform the tire
inflation pressure setting pro-
cedure of the tire pressure
warning system. (



P.431)

If the specified tire inflation pres-
sure is the same, it will not be nec-
essary to perform the tire inflation
pressure setting procedure.

wheel.

The recommended cold tire
inflation pressure and tire size
are displayed on the tire and
loading information label.
(



P.526)

Tire inflation pressure

Make sure to maintain the
proper tire inflation pres-
sure. Tire inflation pressure
should be checked at least
once per month. However,
Toyota recommends that
tire inflation pressure be
checked once every two
weeks. (



P.526)

Checking the specified
tire inflation pressure

438

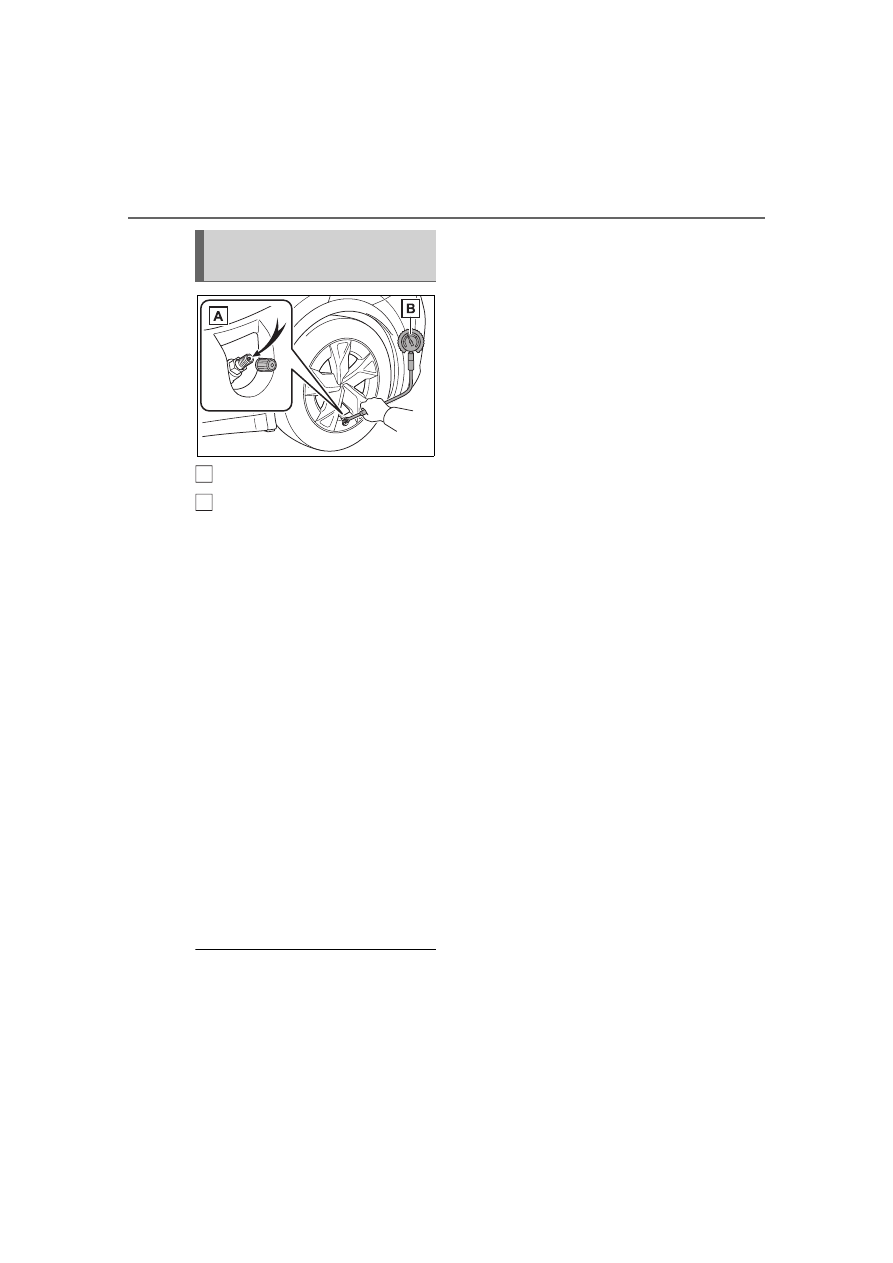

6-3. Do-it-yourself maintenance

Tire valve

Tire pressure gauge

Remove the tire valve cap.

Press the tip of the tire pres-
sure gauge onto the tire
valve.

Read the pressure using the
gauge gradations.

If the tire inflation pressure is
not at the recommended
level, adjust the pressure. If
you add too much air, press
the center of the valve to
deflate.

After completing the tire infla-
tion pressure measurement
and adjustment, apply soapy
water to the valve and check
for leakage.

Put the tire valve cap back
on.

■

Tire inflation pressure check
interval

You should check tire inflation pres-
sure every two weeks, or at least
once a month.

Do not forget to check the spare.

■

Effects of incorrect tire inflation
pressure

Driving with incorrect tire inflation
pressure may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor
handling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drive train

If a tire needs frequent inflating,
have it checked by your Toyota
dealer.

■

Instructions for checking tire
inflation pressure

When checking tire inflation pres-
sure, observe the following:

●

Check only when the tires are
cold.
If your vehicle has been parked
for at least 3 hours or has not
been driven for more than 1 mile
or 1.5 km, you will get an accurate
cold tire inflation pressure reading.

●

Always use a tire pressure gauge.
It is difficult to judge if a tire is
properly inflated based only on its
appearance.

●

It is normal for the tire inflation
pressure to be higher after driving
as heat is generated in the tire. Do
not reduce tire inflation pressure
after driving.

●

Never exceed the vehicle capacity
weight. Passengers and luggage
weight should be placed so that
the vehicle is balanced.

Inspection and adjust-
ment procedure

439

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd
ca

When replacing wheels, care

should be taken to ensure that

they are equivalent to those

removed in load capacity, diam-
eter, rim width and inset

Replacement wheels are avail-

able at your Toyota dealer.

: Conventionally referred to as off-

set.

Toyota does not recommend

using the following:



Wheels of different sizes or

types



Used wheels



Bent wheels that have been

straightened

■

When replacing wheels

The wheels of your vehicle are

equipped with tire pressure warning

valves and transmitters that allow

the tire pressure warning system to

provide advance warning in the

event of a loss in tire inflation pres-

sure. Whenever wheels are

replaced, tire pressure warning

valves and transmitters must be

installed. (



P.427, 440)

WARNING

■

Proper inflation is critical to

save tire performance

Keep your tires properly inflated.

If the tires are not properly

inflated, the following conditions

may occur which could lead to an

accident resulting in death or seri-

ous injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting

from overheated tires

●

Air leaking from between tire

and wheel

●

Wheel deformation and/or tire

damage

●

Greater possibility of tire dam-

age while driving (due to road

hazards, expansion joints,

sharp edges in the road, etc.)

NOTICE

■

When inspecting and adjust-

ing tire inflation pressure

Be sure to put the tire valve caps

back on.

If a valve cap is not installed, dirt

or moisture may get into the valve

and cause an air leak, resulting in

decreased tire inflation pressure.

Wheels

If a wheel is bent, cracked or

heavily corroded, it should

be replaced. Otherwise, the

tire may separate from the

wheel or cause a loss of

handling control.

Wheel selection

440

6-3. Do-it-yourself maintenance



Use only Toyota wheel nuts

and wrenches designed for

use with your aluminum

wheels.



When rotating, repairing or

changing your tires, check

that the wheel nuts are still

tight after driving 1000 miles

(1600 km).



Be careful not to damage the

aluminum wheels when using

tire chains.



Use only Toyota genuine bal-

ance weights or equivalent

and a plastic or rubber ham-

mer when balancing your

wheels.

WARNING

■

When replacing wheels

●

Do not use wheels that are a dif-

ferent size from those recom-

mended in the Owner’s Manual,

as this may result in a loss of

handling control.

●

Never use an inner tube in a

leaking wheel which is designed

for a tubeless tire. Doing so may

result in an accident, causing

death or serious injury.

■

When installing the wheel

nuts

●

Be sure to install the wheel nuts

with the tapered ends facing

inward. (



P.500) Installing the

nuts with the tapered ends fac-

ing outward can cause the

wheel to break and eventually

cause the wheel to come off

while driving, which could lead

to an accident resulting in death

or serious injury.

●

Never use oil or grease on the

wheel bolts or wheel nuts. Oil

and grease may cause the

wheel nuts to be excessively

tightened, leading to bolt or disc

wheel damage. In addition, the

oil or grease can cause the

wheel nuts to loosen and the

wheel may fall off, causing an

accident and resulting in death

or serious injury. Remove any

oil or grease from the wheel

bolts or wheel nuts.

■

Use of defective wheels pro-

hibited

Do not use cracked or deformed

wheels.
Doing so could cause the tire to

leak air during driving, possibly

causing an accident.

NOTICE

■

Replacing tire pressure warn-

ing valves and transmitters

●

Because tire repair or replace-

ment may affect the tire pres-

sure warning valves and

transmitters, make sure to have

tires serviced by your Toyota

dealer or other qualified service

shop. In addition, make sure to

purchase your tire pressure

warning valves and transmit-

ters at your Toyota dealer.

●

Ensure that only genuine

Toyota wheels are used on your

vehicle.

Tire pressure warning valves

and transmitters may not work

properly with non-genuine

wheels.

Aluminum wheel precau-

tions

441

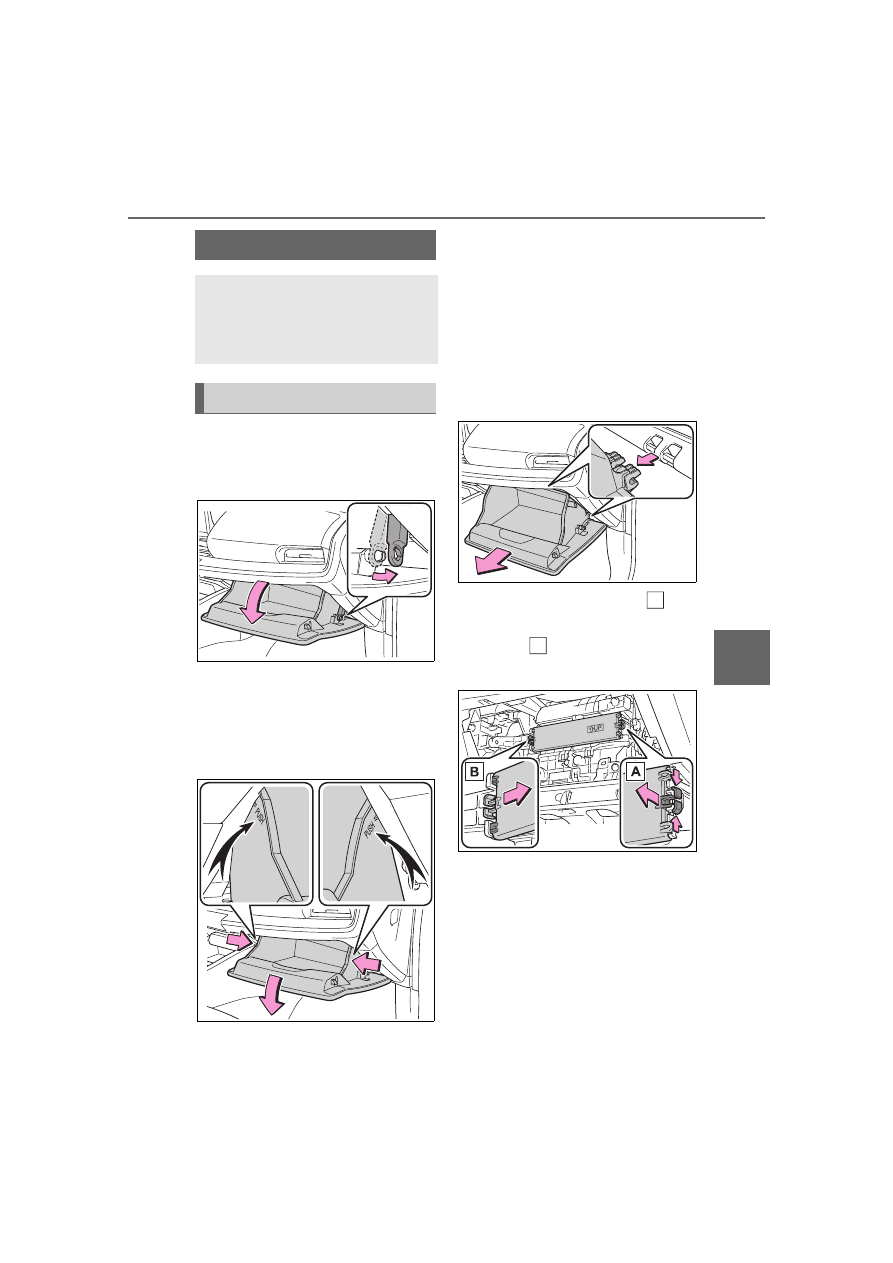

6-3. Do-it-yourself maintenance

Maintena

nce

ca
re

Turn the power switch off.

Open the glove box and slide
off the damper.

Push in each side of the
glove box to disconnect the
claws, and then slowly and
fully open the glove box while
supporting it.

With the glove box fully open,
slightly lift up the glove box
and pull toward the seat to
detach the bottom of the
glove box.

Do not use excessive force if the
glove box does not detach when
lightly pulled. Instead, pull toward
the seat while slightly adjusting the
height of the glove box.

Unlock the filter cover (

pull the filter cover out of the

claws (

), and remove the

filter cover.

Air conditioning filter

The air conditioning filter
must be changed regularly
to maintain air conditioning
efficiency.

Removal method

442

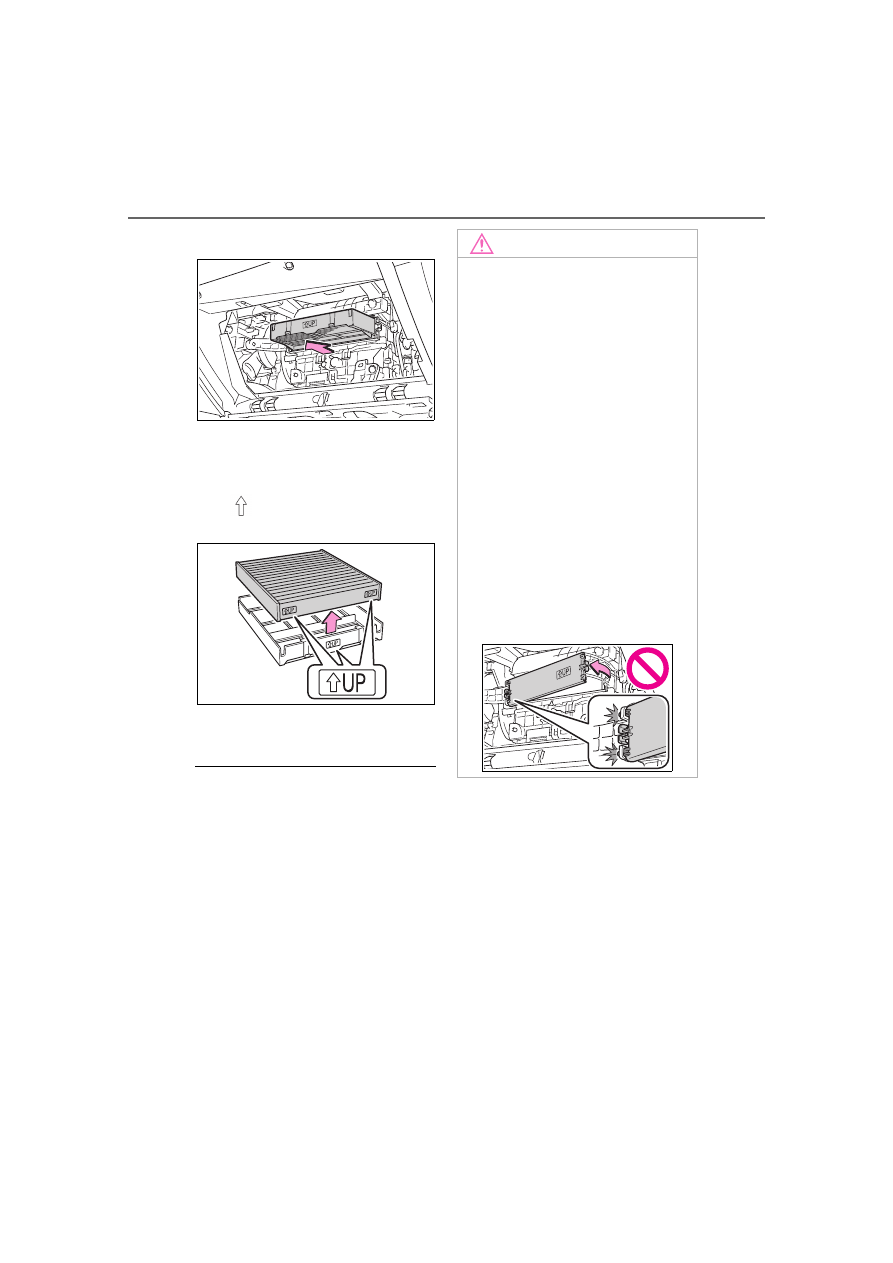

6-3. Do-it-yourself maintenance

Remove the filter case.

Remove the air conditioning

filter from the filter case and

replace it with a new one.

The “

UP” marks shown on the

filter should be pointing up.

When installing, reverse the

steps listed.

■

Checking interval

Inspect and replace the air condi-

tioning filter according to the mainte-

nance schedule. In dusty areas or

areas with heavy traffic flow, early

replacement may be required. (For

scheduled maintenance information,

please refer to the “Owner’s Manual

Supplement” or “Scheduled Mainte-

nance”.)

■

If air flow from the vents

decreases dramatically

The filter may be clogged. Check

the filter and replace if necessary.

NOTICE

■

When using the air condition-

ing system

Make sure that a filter is always

installed. Using the air condition-

ing system without a filter may

cause damage to the system.

■

When removing the glove box

Always follow the specified proce-

dure to remove the glove box

(



P.441). If the glove box is

removed without following the

specified procedure, the hinge of

the glove box may become dam-

aged.

■

To prevent damage to the fil-

ter cover

When moving the filter cover in

the direction of arrow to release

the fitting, pay attention not to

apply excessive force to the

claws. Otherwise, the claws may

be damaged.

443

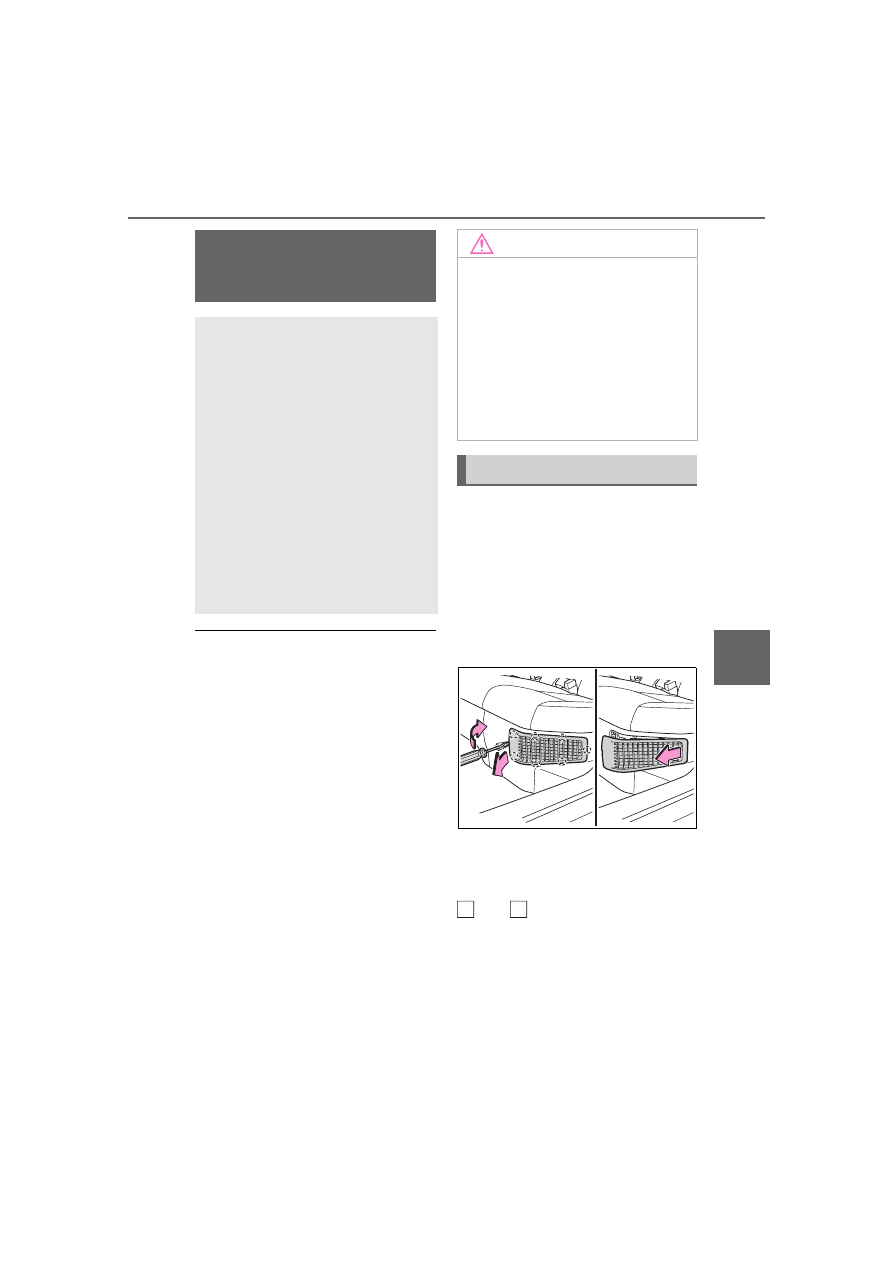

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd
ca

■

Scheduled maintenance of the

air intake vent is necessary

when

In some situations such as when the

vehicle is used frequently or in

heavy traffic or dusty areas, the air

intake vent may need to be cleaned

more regularly. For details, refer to

“Owner’s Warranty Information

Booklet” or “Owner’s Manual Sup-

plement”.

■

Cleaning the air intake vent

Improper handling of the air intake

vent cover and filter may result in

damage to them. If you have any

concerns about cleaning the filter,

contact your Toyota dealer.

Turn the power switch off.

Remove the air intake vent

cover.

Pull the cover as shown in the illus-

tration to disengage the 7 claws,

starting from the claw in the upper

right corner and pull the cover

toward the front of the vehicle to

remove it.

Remove the filter from the air

intake vent cover.

Disengage the claws in the order of

and

to remove the filter from

the cover.
If dust has accumulated on the air

intake vent cover, remove the dust

Cleaning the hybrid

battery (traction bat-

tery) air intake vent

To prevent the fuel econ-

omy from being affected,

visually inspect the hybrid

battery (traction battery) air

intake vent periodically for

clogs.
If it is dusty or clogged or if

“Maintenance Required for

Traction Battery Cooling

Parts See Owner’s Manual”

is displayed on the multi-

information display, clean

the air intake vent using the

following procedures:

NOTICE

■

If “Maintenance Required for

Traction Battery Cooling

Parts See Owner’s Manual” is

displayed on the multi-infor-

mation display

Clean the air intake vent immedi-

ately. If the vehicle is continuously

driven with the warning message

displayed, it may cause a mal-

function or output restriction of the

hybrid battery (traction battery).

Cleaning procedure

444

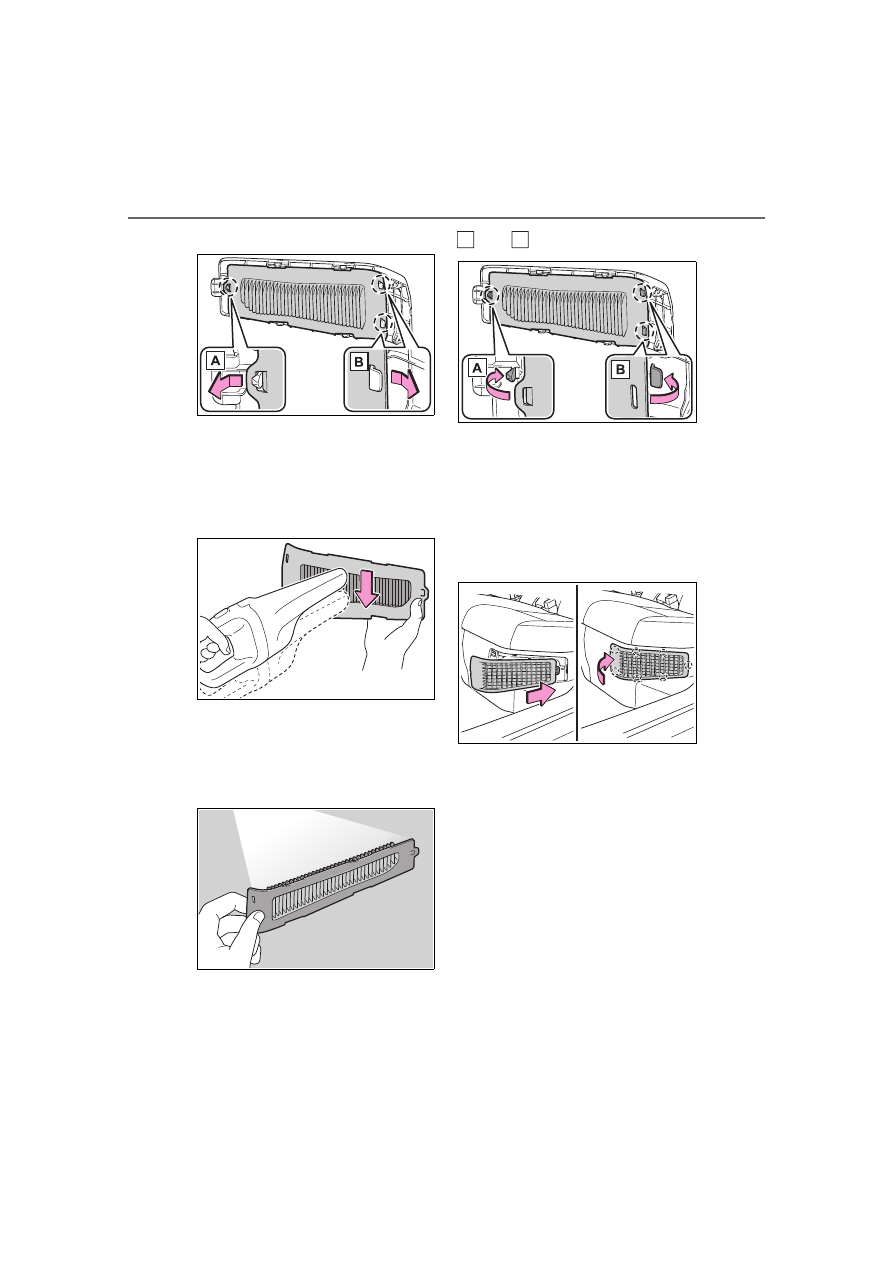

6-3. Do-it-yourself maintenance

with a vacuum cleaner, etc.

Remove the dust and sand
from the filter.

Using a vacuum cleaner, etc.,
absorb dust and sand from the filter
by profiling the nozzle lightly along
the fold.

Hold the filter to the light and
check if it is not clogged.

If the dust or sand cannot be
removed completely, contact your
Toyota dealer.

Reinstall the filter to the
cover.

Engage the claws in the order of

and

Make sure that the filter is not
crooked or deformed when install-
ing it.

Install the air intake vent
cover.

Insert the tab of the cover as shown
in the illustration and push the
cover to engage the 7 claws.



If “Maintenance Required for
Traction Battery Cooling Parts
See Owner’s Manual” was
displayed on the multi-infor-
mation display

Start the hybrid system and
check that the warning mes-
sage is no longer displayed.

It may be necessary to drive the
vehicle for approximately 20 min-
utes before the warning message is
displayed again then disappears.

If the warning message does not
disappear after some time, have
the vehicle inspected by your

445

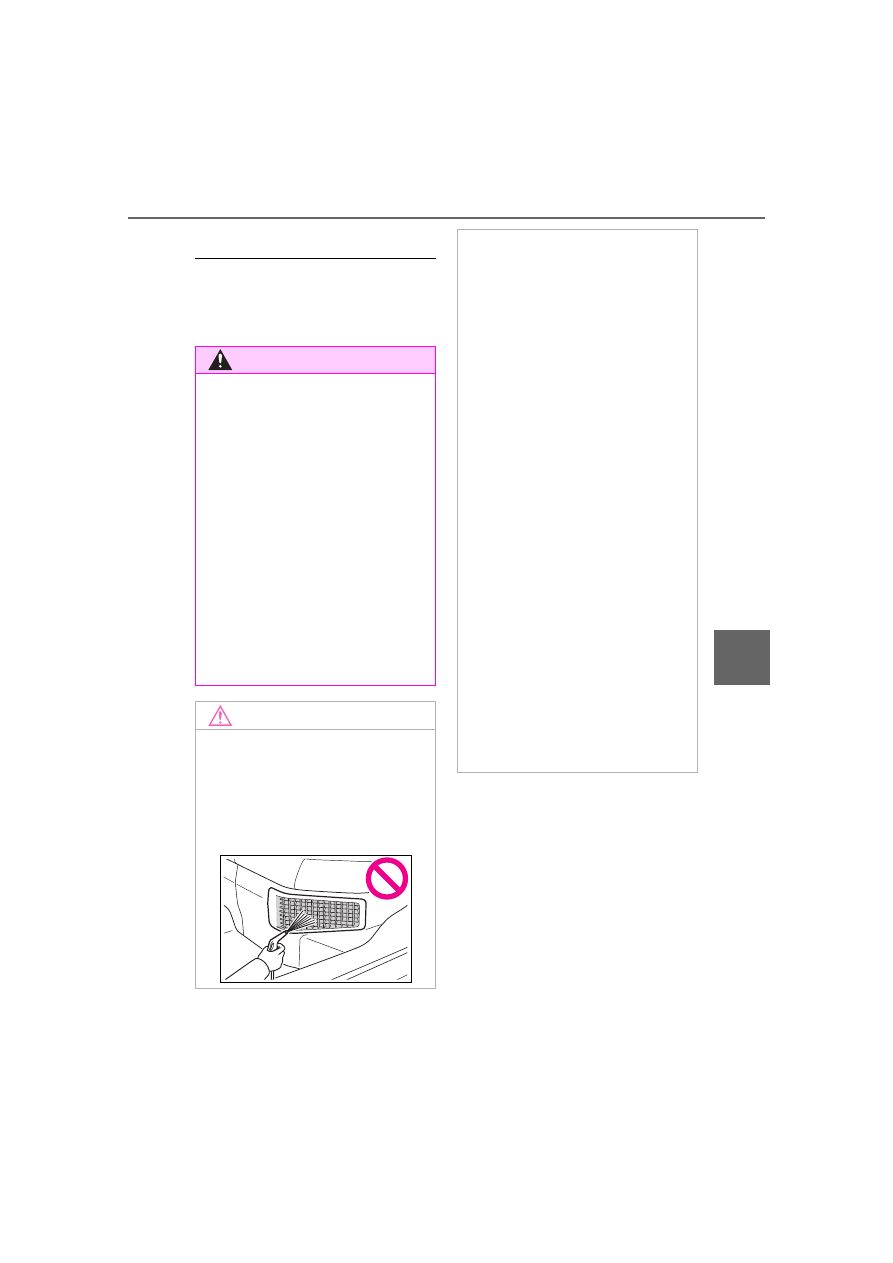

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd
ca

Toyota dealer.

■

If the dust or sand on the filter

cannot be removed

It is recommended to use a vacuum

cleaner with plastic brushes.

WARNING

■

When cleaning the air intake

vent

●

Do not use water or other liq-

uids to clean the air intake vent.

If water is applied to the hybrid

battery (traction battery) or

other components, a malfunc-

tion or fire may occur.

●

Before cleaning the air intake

vent, make sure to turn the

power switch off to stop the

hybrid system.

●

Do not put a hand or leg in the

air intake vent. If it is caught in a

cooling fan, or if it touches a

high voltage part that results in

an electric shock, death or seri-

ous injuries may result.

NOTICE

■

When cleaning the air intake

vent

Do not use an air blow gun, etc.

Dust may be blown out, possibly

causing a malfunction or output

restriction of the hybrid battery

(traction battery).

■

To prevent damage to the

vehicle

Observe the following precau-

tions:

●

Do not allow water or foreign

matter to enter the air intake

vent.

●

Make sure to reinstall the filter

and cover to their original posi-

tions after cleaning.

●

Do not install anything to the air

intake vent other than the exclu-

sive filter for this vehicle or use

the vehicle without the filter

installed.

■

To prevent damage to the fil-

ter

Observe the following precau-

tions.

If the filter is damaged, have it

replaced with a new filter by your

Toyota dealer.

●

Do not use an air blow gun, etc.

●

Do not press hard a vacuum

cleaner, etc. against the filter.

●

Do not use a hard brush, such

as a metal brush.

●

Do not break the fold of the fil-

ter.

446

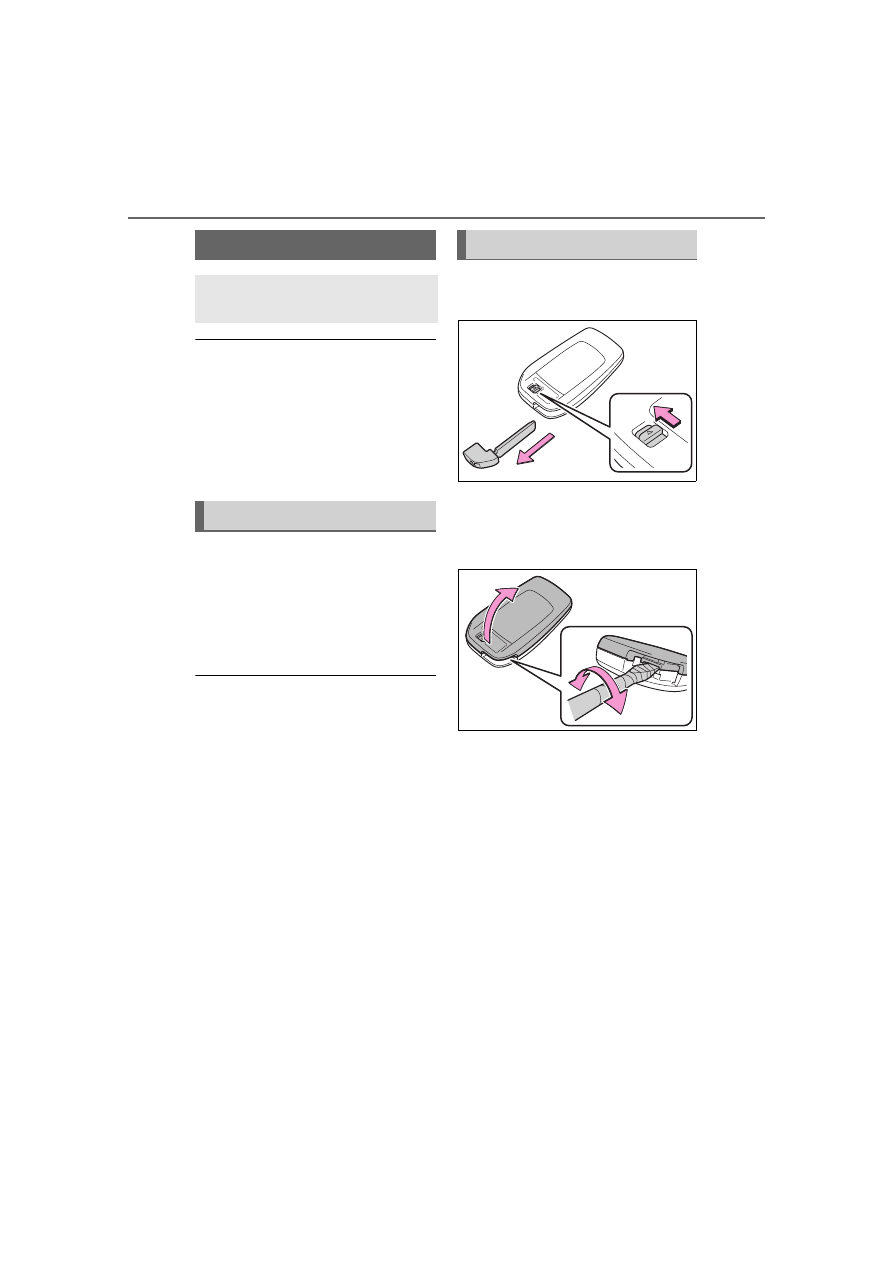

6-3. Do-it-yourself maintenance

■

If the electronic key battery is
depleted

The following symptoms may occur:

●

The smart key system and wire-
less remote control will not func-
tion properly.

●

The operational range will be
reduced.

Prepare the following before
replacing the battery:



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2450

■

Use a CR2450 lithium battery

●

Batteries can be purchased at
your Toyota dealer, local electrical
appliance shops or camera stores.

●

Replace only with the same or
equivalent type recommended by
the manufacturer.

●

Dispose of used batteries accord-
ing to the local laws.

Release the lock and remove
the mechanical key.

Remove the key cover.

To prevent damage to the key,
cover the tip of the flathead screw-
driver with a rag.

Remove the depleted battery
using a small flathead screw-
driver.

When removing the cover, the elec-
tronic key module may stick to the
cover and the battery may not be
visible. In this case, remove the
electronic key module in order to
remove the battery.

When removing the battery, use a
screwdriver of an appropriate size.

Insert a new battery with the “+” ter-

Electronic key battery

Replace the battery with a
new one if it is depleted.

Items to prepare

Replacing the battery

447

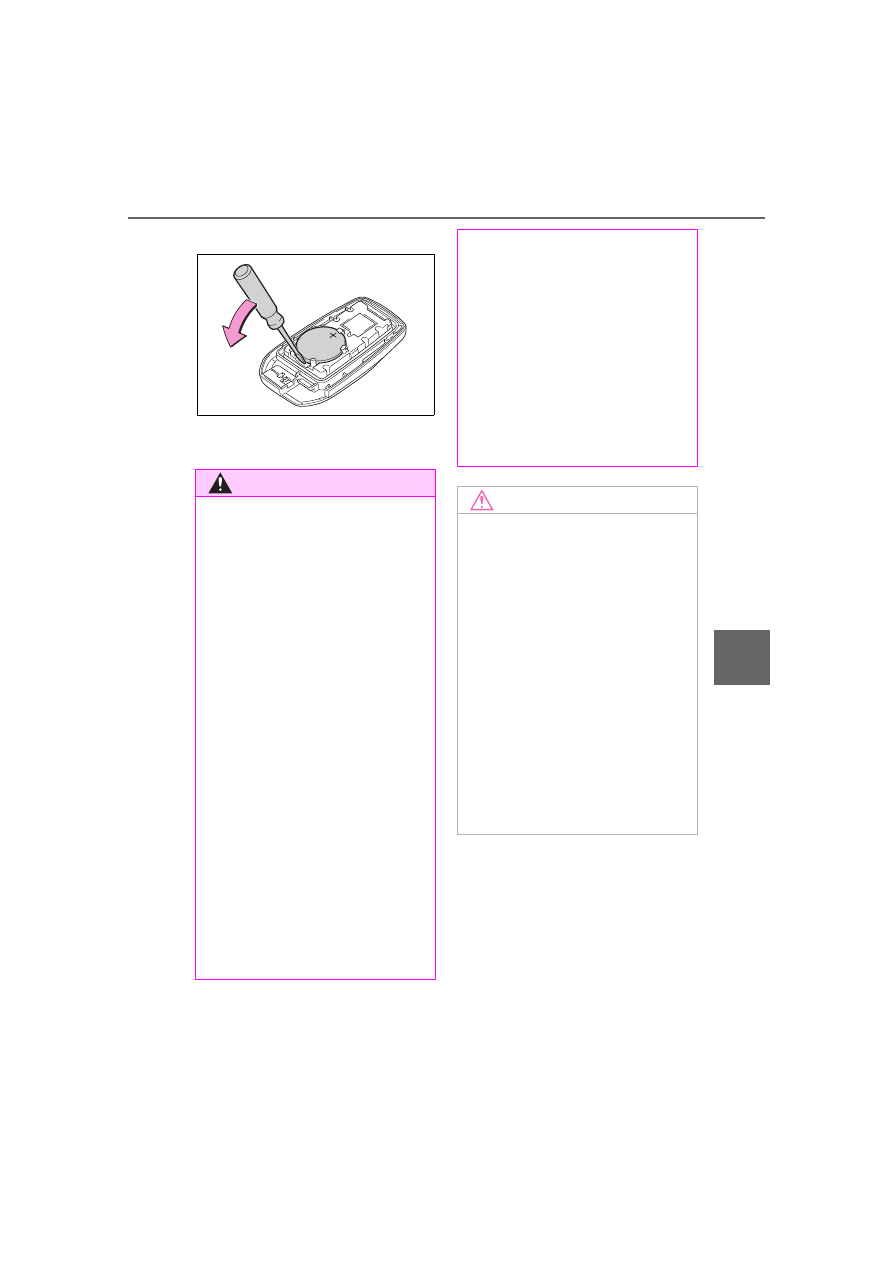

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd
ca

minal facing up.

When installing, reverse the

steps listed.

WARNING

■

Battery precautions

Observe the following precau-

tions.
Failure to do so may result in

death or serious injury.

●

Do not swallow the battery.

Doing so may cause chemical

burns.

●

A coin battery or button battery

is used in the electronic key. If a

battery is swallowed, it may

cause severe chemical burns in

as little as 2 hours and may

result in death or serious injury.

●

Keep away new and removed

batteries from children.

●

If the cover cannot be firmly

closed, stop using the electronic

key and stow the key in the

place where children cannot

reach, and then contact your

Toyota dealer.

●

If you accidentally swallow a

battery or put a battery into a

part of your body, get emer-

gency medical attention imme-

diately.

■

To prevent battery explosion

or leakage of flammable liq-

uid or gas

●

Replace the battery with a new

battery of the same type. If a

wrong type of battery is used, it

may explode.

●

Do not expose batteries to

extremely low pressure due to

high altitude or extremely high

temperatures.

●

Do not burn, break or cut a bat-

tery.

NOTICE

■

When replacing the battery

Use a flathead screwdriver of

appropriate size. Applying exces-

sive force may deform or damage

the cover.

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

448

6-3. Do-it-yourself maintenance

Turn the power switch off.

Open the fuse box cover.



Engine compartment

Push claw

and

to com-

pletely release the lock, and then lift
up the cover.



Left side instrument panel

Remove the lid.



Right side luggage compart-
ment

Vehicle with high deck: Open the
deck board. (



P.375)

Hold the handle and pull it toward
you, and then the 3 clips will be dis-
engaged

Remove the fuse.

Only type A fuse can be removed
using the pullout tool.

Check if the fuse is blown.

Replace the blown fuse with a new
fuse of an appropriate amperage
rating. The amperage rating can be
found on the fuse box lid.

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

Toyota Prius (2024 year). Manual in english - page 14
