385

5-4. Using the other interior features

5

Interior

 featur

es

●

The smartphone is fully charged

●

The smartphone is being charged

with a cable connected

●

There is foreign matter between

the charge area and smartphone

●

Charging has caused the smart-

phone to heat up

●

The temperature around the wire-

less charger is 95°F (35°C) or

higher, such as in extreme heat

●

The smartphone is placed with its

charging side away from the wire-

less charger

●

The smartphone is placed in an

area misaligned from the charge

area

●

A foldable and smartphone is

placed outside the charge area

●

The vehicle is in an area where

strong electrical waves or noise

are emitted, such as near a televi-

sion tower, power plant, gasoline

station, broadcasting station, large

display, airport, etc.

●

The electronic key is not inside the

vehicle

●

Any of the following objects that is

0.08 in. (2 mm) or thicker is stuck

or installed between the charging

side of the smartphone and the

charge area.

• Thick cases or covers

• A case or cover attached with an

uneven or tilted surface, so that

the charging side is not flat

• Thick decorations

• Accessories, such as finger rings,

straps, etc.

●

When there is a gap between the

charging side of the smartphone

and the charge area due to a pro-

trusion such as a camera on the

charging side of the smartphone.

●

When the smartphone is in con-

tact with, or is covered by any of

the following metallic objects:

• A card that has metal on it, such

as aluminum foil, etc.

• A pack of cigarettes that includes

aluminum foil

• A wallet or bag that is made of

metal

• Coins

• A heating pad

• CDs, DVDs or other media

• A metal accessory

• A case or cover made of metal

• A flip type case with a magnet on

the charging side of the smart-

phone

●

Electric wave type wireless

remote controls are being used

nearby

●

2 or more smartphones are placed

on the wireless charger at the

same time

●

When using a smartphone model

with an internal charging coil that

is not located near the center of

the smartphone

If charging is abnormal or the opera-

tion indicator light continues to flash

for any other reason, the wireless

charger may be malfunctioning.

Contact your Toyota dealer.

■

If the smartphone OS has been

updated

If the smartphone OS has been

updated to a newer version, its

charging specifications may have

changed significantly. For details,

check the information on the manu-

facturer’s website.

■

Trademark information

iPhone is a trademark of Apple Inc.,

registered in the U.S. and other

countries.

WARNING

■

Caution while driving

When charging a smartphone, for

safety reasons, the driver should

not operate the main part of the

smartphone while driving.

386

5-4. Using the other interior features

Fold down the armrest for use.

WARNING

■

Caution regarding interfer-

ence with electronic devices

People with implantable cardiac

pacemakers, cardiac resynchroni-

zation therapy-pacemakers or

implantable cardioverters, as well

as any other electrical medical

device, should consult their physi-

cian about the usage of the wire-

less charger.

■

To prevent malfunctions or

burns

Observe the following precau-

tions. Failure to do so may result

in a equipment failure and dam-

age, catch fire, burns due to over-

heat or electric shock.

●

This product is specialized for

use with smartphones and can-

not charge other devices.

●

Do not insert any metallic

objects between the charge

area and the smartphone while

charging

●

Do not attach an aluminum

sticker or other metallic object to

the charge area

●

Do not attach an aluminum

sticker or other metallic object to

the side of the smartphone (or

to its case or cover) that

touches the charge area

●

Do not subject to a strong force

or impact

●

Do not disassemble, modify or

remove

●

Do not charge devices other

than specified smartphones

●

Keep away from magnetic items

●

Do not cover with a cloth or sim-

ilar material

NOTICE

■

To prevent malfunctions and

data corruptions

●

Do not spill drinking water or

other liquid into the smartphone

storage area. When something

is spilled or liquid adheres to the

storage area, dry with a dry

cloth or equivalent before use.

●

When charging, bringing a

credit, or other magnetic card,

or magnetic storage media

close to the charge area may

clear any stored data due to

magnetic influence. Also, do not

bring a wristwatch or other pre-

cision instrument close to the

charge area since doing so may

cause it to malfunction.

●

Do not charge with a non-con-

tact IC card such as a transpor-

tation system IC card inserted

between the charging side of a

smartphone and the charge

area. The IC chip may become

extremely hot and damage the

smartphone or IC card. Be

especially careful not to charge

a smartphone inside a case or

cover with a non-contact IC card

attached.

●

Do not leave smartphones

inside the vehicle. The inside of

the vehicle can become hot in

extreme heat, which could

cause a malfunction.

■

To prevent 12-volt battery dis-

charge

Do not use the wireless charger

for a long period of time when the

hybrid system is stopped.

Armrest (if equipped)

387

5-4. Using the other interior features

5

Interior

 featur

es

An assist grip installed on the

ceiling can be used to support

your body while sitting on the

seat.

■

Front

1

Open

2

Close

■

Rear

1

Open

2

Close

NOTICE

■

To prevent damage to the

armrest

Do not apply too much load on the

armrest.

Assist grips

WARNING

■

Assist grips

Do not use the assist grip when

getting in or out of the vehicle or

rising from your seat.

NOTICE

■

To prevent damage to the

assist grip

Do not hang any heavy object or

put a heavy load on the assist

grip.

Sunshades (if equipped)

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

388

5-4. Using the other interior features

WARNING

■

Opening and closing the sun-

shade

Check to make sure that all pas-

sengers do not have any part of

their body in a position where it

could be caught when the sun-

shade is being operated.

●

Do not let a child operate the

sunshade.

Closing the sunshade on some-

one can cause death or serious

injury.

■

To prevent burns or injuries

Do not touch the area between

the underside of the glass roof

and the sunshade. Your hand

may get caught and you could

injure yourself. Also, if the vehicle

is left in direct sunlight for a long

time, the underside of the glass

roof could become very hot and

could cause burns.

NOTICE

■

To ensure normal operation

of the sunshade

Observe the following precau-

tions.

●

Do not place anything where it

may hinder the opening/closing

of the sunshade.

●

Do not place anything on the

sunshade.

■

To prevent damage to the

sunshade

Do not hang any heavy object or

put a heavy load on the sun-

shade.

389

5-4. Using the other interior features

5

Interior

 featur

es

*

: If equipped

■

HomeLink

®

 programming pro-

cedure

The programming procedures can
also be found at the following URL.

Website: www.homelink.com/toyota

For support, contact customer sup-
port at the following.

Help Line: 1-800-355-3515

The HomeLink

®

 wireless control

system in your vehicle has 3
buttons which can be pro-
grammed to operate 3 different
devices. Refer to the program-
ming methods on the following
pages to determine the method
which is appropriate for the

device.



Vehicles with auto anti-glare
inside rear view mirror

HomeLink

®

 indicator light

Garage door operation indi-
cators

HomeLink

®

 icon

Illuminates while HomeLink

®

 is

operating.

Buttons



Vehicles with Digital Rear-
view Mirror

HomeLink

®

 logo

Appears while HomeLink

®

 is oper-

ating.

When the HomeLink

®

 button is

pressed, the logo disappears even
while the HomeLink

®

 is operating.

Garage door operation indi-
cators

Garage door opener

*

The garage door opener can
be programmed using the

HomeLink

®

 to operate

garage doors, gates, entry
doors, door locks, home
lighting systems, security
systems, and other devices.

System components

A

B

C

D

A

B

390

5-4. Using the other interior features

HomeLink

®

 indicator light

Illuminates above each button

selected.

Buttons

■

Codes stored in the HomeLink

®

memory

●

The registered codes are not

erased even if the 12-volt battery

cable is disconnected.

●

If learning failed when registering

a different code to a HomeLink

®



button that already has a code

registered to it, the already regis-

tered code will not be erased.

■

Before programming
HomeLink

®



During programming, it is pos-

sible that garage doors,

gates, or other devices may

operate. For this reason,

make sure that people and

objects are clear of the

garage door or other devices

to prevent injury or other

potential harm.



It is recommended that a new

battery be placed in the

remote control transmitter for

more accurate programming.



Garage door opener motors

manufactured after 1995 may

be equipped with rolling code

protection. If this is the case,

you may need a stepladder or

other sturdy, safe device to

reach the “Learn” or “Smart”

button on the garage door

opener motor.

■

Programming HomeLink

®

Steps

2

 through

4

 must be per-

formed within 60 seconds, oth-

erwise the HomeLink

®

 indicator

light will stop flashing and pro-

gramming will not be success-

fully completed.

1

Vehicles with Digital Rear-

view Mirror: Press the
HomeLink

®

 button or menu

button

WARNING

■

When programming a garage

door or other remote control

device

The garage door or other device

may operate, so ensure people

and objects are out of danger to

prevent potential harm.

■

Conforming to federal safety

standards

Do not use the HomeLink

®

 com-

patible transceiver with any

garage door opener or device that

lacks safety stop and reverse fea-

tures as required by federal safety

standards.
This includes any garage door

that cannot detect an interfering

object. A door or device without

these features increases the risk

of death or serious injury.

■

When operating or program-

ming HomeLink

®

Never allow a child to operate or

play with the HomeLink

®

 buttons.

C

D

Programming HomeLink

®

391

5-4. Using the other interior features

5

Interior

 featur

es

When the HomeLink

®

 button is

pressed: Homelink

®

 Training Tuto-

rial will be displayed to assist you
programming the HomeLink

®

.

When Homelink

®

 Training Tutorial

is displayed, follow the instructions
displayed.

When the menu button is pressed:
Press the menu button

 and

select the “Set Up >”. Homelink

®



Training Tutorial will be displayed
to assist you programming the
HomeLink

®

.

When Homelink

®

 Training Tutorial

is displayed, follow the instructions
displayed.

2

Press and release the

HomeLink

®

 button you want

to program and check that

the HomeLink

®

 indicator light

flashes (orange).

3

Point the remote control
transmitter for the device at
the rear view mirror, 1 to 3 in.
(25 to 75 mm) from the

HomeLink

®

 buttons.

Keep the HomeLink

®

 indicator light

in view while programming.



Vehicles with auto anti-glare
inside rear view mirror



Vehicles with Digital Rear-
view Mirror

4

Program a device.



Vehicles with auto anti-glare
inside rear view mirror



Vehicles with Digital Rear-
view Mirror



Programming a device other
than an entry gate (for U.S.A.
owners)

Press and hold the remote con-
trol transmitter button until the

HomeLink

®

 indicator light

392

5-4. Using the other interior features

changes from slowly flashing
orange to rapidly flashing green
(rolling code) or continuously lit
green (fixed code), then release
the button.



Programming an entry gate
(for U.S.A. owners)/Program-
ming a device in the Cana-
dian market

Press and release the remote
control transmitter button at 2
second intervals, repeatedly,

until the HomeLink

®

 indicator

light changes from slowly flash-
ing (orange) to rapidly flashing
(green) (rolling code) or continu-
ously lit (green) (fixed code).

5

Test the HomeLink

®

 opera-

tion by pressing the newly
programmed button and

observing the HomeLink

®



indicator light:



HomeLink

®

 indicator light illu-

minates: Programming of a
fixed code device has com-
pleted. The garage door or
other device should operate
when a HomeLink

®

 button is

pressed and released.



HomeLink

®

 indicator light

flashes rapidly: The garage
door opener motor or other
device is equipped with a roll-
ing code. To complete pro-
gramming, firmly press and
hold the HomeLink

®

 button

for 2 seconds then release it.



If the garage door or other

device does not operate, pro-
ceed to “Programming a roll-
ing code system”.

6

Repeat the steps above to
program another device for
any of the remaining

HomeLink

®

 buttons.

■

Programming a rolling code
system

Two or more people may be
needed to complete rolling code
programming.

1

Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.

This button can usually be found
where the hanging antenna wire is
attached to the unit. The name and
color of the button may vary by
manufacturer. Refer to the owner’s
manual supplied with the garage
door opener motor for details.

2

Press and release the
“Learn” or “Smart” button.

Perform step

3

 within 30 seconds

393

5-4. Using the other interior features

5

Interior

 featur

es

after performing step

2

.

3

Press and hold the desired

HomeLink

®

 button (inside the

vehicle) for 2 seconds and
release it. Repeat this
sequence
(press/hold/release) up to 3
times to complete program-
ming.
If the garage door opener
motor operates when the

HomeLink

®

 button is

pressed, the garage door
opener motor recognizes the

HomeLink

®

 signal.



Vehicles with auto anti-glare
inside rear view mirror



Vehicles with Digital Rear-
view Mirror

■

Enabling 2-way communi-
cation with a garage door
(only available for compati-
ble devices)

When enabled, 2-way communi-
cation allows you to check the
status of the opening and clos-
ing of a garage door through
indicators in your vehicle.

2-way communication is only
available if the garage door
opener motor used is a compati-
ble device. (To check device
compatibility, refer to
www.homelink.com.)

1

Within 5 seconds after pro-
gramming the garage door
opener has been completed,
if the garage door opener
motor is trained to

HomeLink

®

, both garage

door operation indicators will
flash rapidly (green) and the
light on the garage door
opener motor will blink twice,
indicating that 2-way commu-
nication is enabled.

If the indicators do not flash, per-

394

5-4. Using the other interior features

form steps

2

 and

3

 within the first

10 presses of the HomeLink

®

 but-

ton after programming has been
completed.

2

Press a programmed

HomeLink

®

 button to oper-

ate a garage door.

3

Within 1 minute of pressing

the HomeLink

®

 button, after

the garage door operation
has stopped, press the
“Learn” or “Smart” button on
the garage door opener
motor. Within 5 seconds of
the establishment of 2-way
communication with the
garage door opener, both
garage door operation indica-
tors in the vehicle will flash
rapidly (green) and the light
on the garage door opener
motor will blink twice, indicat-
ing that 2-way communica-
tion is enabled.

■

Reprogramming a single

HomeLink

®

 button

When the following procedure is
performed, buttons which
already have devices registered
to them can be overwritten:

1

Press and hold the desired

HomeLink

®

 button.

2

When the HomeLink

®

 indica-

tor starts flashing (orange),

release the HomeLink

®

 but-

ton and perform “Program-

ming HomeLink

®

” step

 1

 (it

takes 20 seconds for the

HomeLink

®

 indicator to start

flashing).

■

Before programming

●

Install a new battery in the trans-
mitter.

●

The battery side of the transmitter
must be pointed away from the
HomeLink

®

 buttons.

Press the appropriate
HomeLink

®

 button. The

HomeLink

®

 indicator light will

turn on.

The status of the opening and
closing of a garage door is
shown by the garage door oper-
ation indicators.



Vehicles with auto anti-glare
inside rear view mirror

Opening

Closing

Operating HomeLink

®

A

B

395

5-4. Using the other interior features

5

Interior

 featur

es



Vehicles with Digital Rear-
view Mirror

Opening

Closing

This function is only available if the
garage door opener motor used is a
compatible device. (To check
device compatibility, refer to
www.homelink.com.)

The indicators can operate
within approximately 820 ft. (250
m) of the garage door. However,
if there are obstructions
between the garage door and
the vehicle, such as houses and
trees, feedback signals from the
garage door may not be
received.

To recall the previous door oper-
ation status, press and release

either HomeLink

®

 buttons



and

 or

 and

 (vehicles

with auto anti-glare inside rear

view mirror),

 and



or

and

(vehicles

with Digital Rear-view Mirror)
simultaneously. The last
recorded status will be dis-
played for 3 seconds.

Press and hold the 2 outside
buttons for 10 seconds until the

HomeLink

®

 indicator light

changes from continuously lit
(orange) to rapidly flashing
(green).

If you sell your vehicle, be sure to
erase the programs stored in the

HomeLink

®

 memory.



Vehicles with auto anti-glare
inside rear view mirror

Color

Status

Orange (flash-

ing)

Currently open-
ing/closing

Green

Opening/closing
has completed

Red (flashing)

Feedback sig-
nals cannot be
received

A

B

Erasing the entire

HomeLink

®

 memory (all

three codes)

396

5-4. Using the other interior features



Vehicles with Digital Rear-
view Mirror

397

6

6

Maintena

nce

 a

nd

ca
re

Maintenance and care

6-1. Maintenance and care

Cleaning and protecting the

vehicle exterior ..........

398

Cleaning and protecting the

vehicle interior ...........

402

6-2. Maintenance

Maintenance requirements

..................................

405

General maintenance..

406

Emission inspection and

maintenance (I/M) pro-
grams ........................

409

6-3. Do-it-yourself mainte-

nance

Do-it-yourself service pre-

cautions.....................

410

Hood ...........................

412

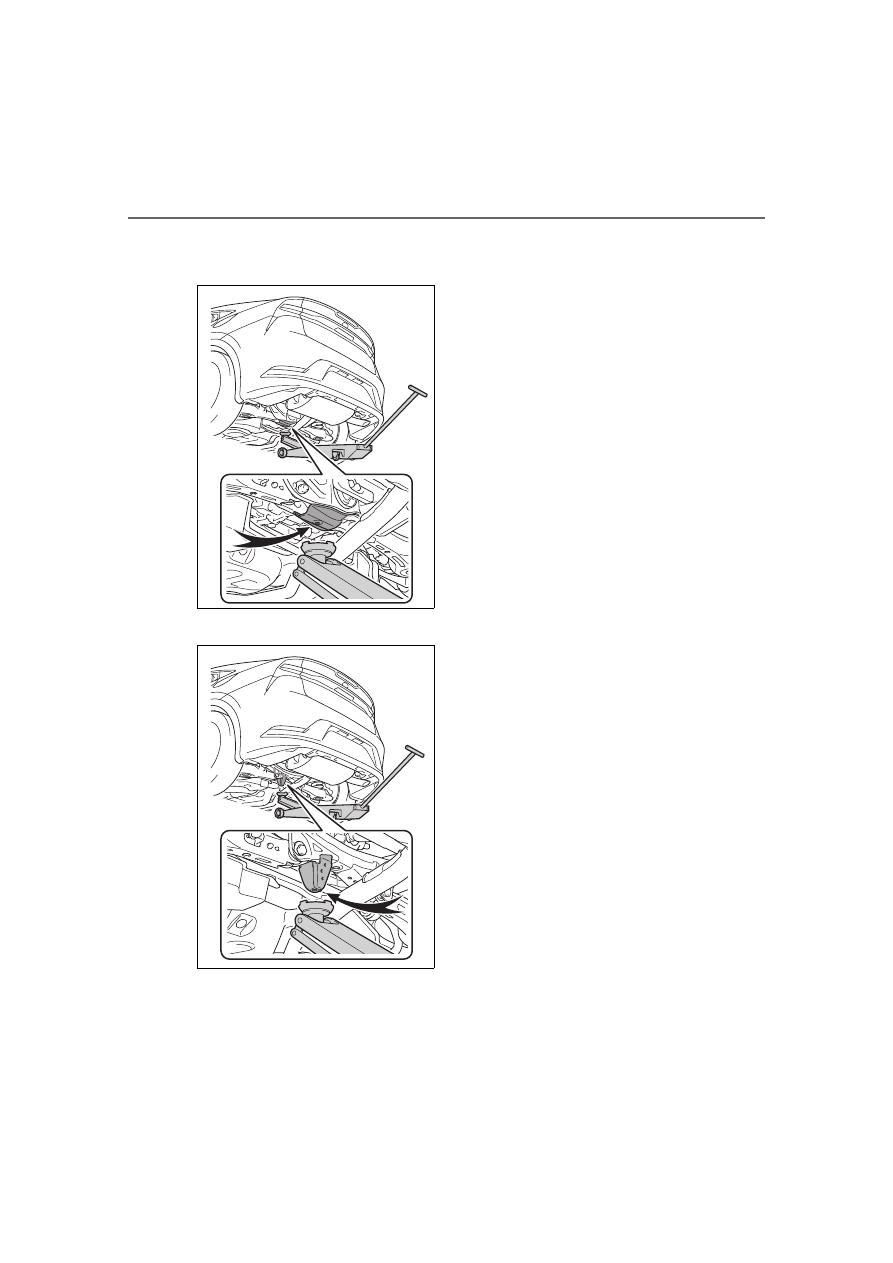

Positioning a floor jack

413

Engine compartment ...

415

12-volt battery .............

422

Tires ............................

425

Tire inflation pressure .

437

Wheels ........................

439

Air conditioning filter....

441

Cleaning the hybrid battery

(traction battery) air intake
vent ...........................

443

Electronic key battery..

446

Checking and replacing

fuses..........................

448

Headlight aim ..............

450

Exterior lights ..............

451

398

6-1. Maintenance and care

6-1.Maintenance and care



Working from top to bottom,
liberally apply water to the
vehicle body, wheel wells and
underside of the vehicle to
remove any dirt and dust.



Wash the vehicle body using
a sponge or soft cloth, such
as a chamois.



For hard-to-remove marks,
use car wash soap and rinse
thoroughly with water.



Wipe away any water.



Wax the vehicle when the
waterproof coating deterio-
rates.

If water does not bead on a clean
surface, apply wax when the vehi-
cle body is cool.

■

Automatic car washes

●

Before washing the vehicle:

• Fold the mirrors
• Turn off the power back door

Start washing from the front of the
vehicle. Make sure to extend the
mirrors before driving.

●

Brushes used in automatic car
washes may scratch the vehicle

surface, parts (wheel, etc.) and
harm your vehicle’s paint.

●

Rear spoiler may not be washable
in some automatic car washes.
There may also be an increased
risk of damage to vehicle.

●

When the shift position needs to
be held in N, refer to P.190.

●

If you need to release the parking
brake, turn off the brake hold sys-
tem, release the parking brake,
and set the power switch to ACC
while holding the N position.
(



P.193)

■

High pressure car washes

As water may enter the cabin, do
not bring the nozzle tip near the
gaps around the doors or perimeter
of the windows, or spray these
areas continuously.

■

Note for a smart key system

If the door handle becomes wet
while the electronic key is within the
effective range, the door may lock
and unlock repeatedly. In that case,
follow the following correction pro-
cedures to wash the vehicle:

●

Place the key in a position 6 ft. (2
m) or more separate from the
vehicle while the vehicle is being
washed. (Take care to ensure that
the key is not stolen.)

●

Set the electronic key to battery-
saving mode to disable the smart
key system. (



P.132)

■

Wheels and wheel ornaments

●

Remove any dirt immediately by
using a neutral detergent.

●

Wash detergent off with water
immediately after use.

●

To protect the paint from damage,
make sure to observe the follow-
ing precautions.

• Do not use acidic, alkaline or

abrasive detergent

• Do not use hard brushes
• Do not use detergent on the

wheels when they are hot, such

Cleaning and protect-

ing the vehicle exte-

rior

Perform the following to
protect the vehicle and
maintain it in prime condi-
tion:

Cleaning instructions

399

6-1. Maintenance and care

6

Maintena

nce
 a

nd
ca

re

as after driving or parking in hot

weather

■

Brake pads and calipers

Rust may form if the vehicle is

parked with wet brake pads or disc

rotors, causing them to stick. Before

parking the vehicle after it is

washed, drive slowly and apply the

brakes several times to dry the

parts.

■

Bumpers

Do not scrub with abrasive cleaners.

■

Front side windows water-

repellent coating (if equipped)

●

The following precautions can

extend the effectiveness of the

water-repellent coating.

• Remove any dirt, etc., from the

front side windows regularly.

• Do not allow dirt and dust to accu-

mulate on the windows for a long

period. Clean the windows with a

soft, damp cloth as soon as possi-

ble.

• Do not use wax or glass cleaners

that contain abrasives when

cleaning the windows.

• Do not use any metallic objects to

remove condensation build up.

■

Plated portions

If dirt cannot be removed, clean the

parts as follows:

●

Use a soft cloth dampened with

an approximately 5% solution of

neutral detergent and water to

clean the dirt off.

●

Wipe the surface with a dry, soft

cloth to remove any remaining

moisture.

●

To remove oily deposits, use alco-

hol wet wipes or a similar product.

WARNING

■

When washing the vehicle

Do not apply water to the inside of

the engine compartment. Doing

so may cause the electrical com-

ponents, etc. to catch fire.

■

When cleaning the windshield

(vehicles with rain-sensing

windshield wipers)

Set the wiper switch to off.

If the wiper switch is in “AUTO”,

the wipers may operate unexpect-

edly in the following situations,

and may result in hands being

caught or other serious injuries

and cause damage to the wiper

blades.

Off
AUTO

●

When the upper part of the

windshield where the raindrop

sensor is located is touched by

hand

●

When a wet rag or similar is

held close to the raindrop sen-

sor

●

If something bumps against the

windshield

●

If you directly touch the raindrop

sensor body or if something

bumps into the raindrop sensor

A

B

400

6-1. Maintenance and care

WARNING

■

Precautions regarding the

exhaust pipes

Exhaust gasses cause the

exhaust pipes to become quite

hot.
When washing the vehicle, be

careful not to touch the pipes until

they have cooled sufficiently, as

touching hot exhaust pipes can

cause burns.

■

Precaution regarding the

front and rear bumpers

If the paint of the front or rear

bumper is chipped or scratched,

the following systems may not

function correctly. If this occurs,

consult your Toyota dealer.
• BSM
• RCTA
• SEA
• PKSB (if equipped)
• Intuitive parking assist

NOTICE

■

To prevent paint deterioration

and corrosion on the body

and components (aluminum

wheels, etc.)

●

Wash the vehicle immediately in

the following cases:

• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present

on the paint surface

• If dead insects, insect droppings

or bird droppings are present on

the paint surface

• After driving in an area contami-

nated with soot, oily smoke,

mine dust, iron powder or chem-

ical substances

• If the vehicle becomes heavily

soiled with dust or mud

• If liquids such as benzene and

gasoline are spilled on the paint

surface

●

If the paint is chipped or

scratched, have it repaired

immediately.

●

To prevent the wheels from cor-

roding, remove any dirt and

store in a place with low humid-

ity when storing the wheels.

■

To prevent damage to the

windshield wiper arms

When lifting the wiper arms away

from the windshield pull the driver

side wiper arm upward first, and

repeat for the passenger’s side.

When returning the wipers to their

original position, do so from the

passenger’s side first.

■

Cleaning the exterior lights

●

Wash carefully. Do not use

organic substances or scrub

with a hard brush.

This may damage the surfaces

of the lights.

401

6-1. Maintenance and care

6

Maintena

nce
 a

nd
ca

re

NOTICE

●

Do not apply wax to the sur-

faces of the lights.

Wax may cause damage to the

lenses.

■

Cleaning the radiator grille

Observe the following precautions

to avoid damage to the radiator

grille surface.

●

Do not use a hard brush. Use a

soft cloth or sponge to wipe.

●

Remove any dirt by using a

neutral detergent. Do not use

waxes or alcohols (e.g. glass

cleaner).

●

Wash detergent off with water

after washing the vehicle.

■

When using an automatic car

wash (vehicles with rain-

sensing windshield wipers)

Set the wiper switch to off posi-

tion.

If the wiper switch is in “AUTO”,

the wipers may operate and the

wiper blades may be damaged.

■

When using a high pressure

car wash

●

When washing the vehicle, do

not spray the camera or its sur-

rounding area directly with a

high pressure washer. Shock

applied from high pressure

water may cause the device to

not operate normally.

●

Do not spray water directly on

the radar which is equipped

behind the emblem. Otherwise

it may cause the device to be

damaged.

●

Do not bring the nozzle tip close

to boots (rubber or resin manu-

factured cover), connectors or

the following parts. The parts

may be damaged if they come

into contact with high-pressure

water.

• Traction related parts
• Steering parts
• Suspension parts
• Brake parts

●

Keep the cleaning nozzle at

least 11.9 in. (30 cm) away from

the vehicle body. Otherwise

resin section, such as moldings

and bumpers, may be deformed

and damaged. Also, do not con-

tinuously hold the nozzle in the

same place.

●

Do not spray the lower part of

the windshield continuously. If

water enters the air conditioning

system intake located near the

lower part of the windshield, the

air conditioning system may not

operate correctly.

●

Do not wash the underside of

the vehicle using a high pres-

sure car washer.

402

6-1. Maintenance and care



Remove dirt and dust using a

vacuum cleaner. Wipe dirty

surfaces with a cloth damp-

ened with lukewarm water.



If dirt cannot be removed,

wipe it off with a soft cloth

dampened with neutral deter-

gent diluted to approximately

1%.

Wring out any excess water

from the cloth and thoroughly

wipe off remaining traces of

detergent and water.

■

Shampooing the carpets

There are several commercial foam-

ing-type cleaners available. Use a

sponge or brush to apply the foam.

Rub in overlapping circles. Do not

use water. Wipe dirty surfaces and

let them dry. Excellent results are

obtained by keeping the carpet as

dry as possible.

■

Handling the seat belts

Clean with mild soap and lukewarm

water using a cloth or sponge. Also

check the belts periodically for

excessive wear, fraying or cuts.

■

Front side windows with UV

protective coating (if equipped)

The front side windows have UV

protective coating. To prevent any

damage to the UV protective coat-

ing, observe the following:

●

If the windows are dirty, gently

wipe them with a cloth soaked in

water or lukewarm water as soon

as possible.

●

If the windows are very dirty, do

not open and close them repeat-

edly.

Cleaning and protect-

ing the vehicle interior

Perform cleaning in a man-

ner appropriate to each

component and its material.

Protecting the vehicle

interior

WARNING

■

Water in the vehicle

●

Do not splash or spill liquid in

the vehicle, such as on the floor,

on the rear seats, in the hybrid

battery (traction battery) air

intake vent or in the luggage

compartment. (



P.77)

Doing so may cause the hybrid

battery, electrical components,

etc. to malfunction or catch fire.

●

Do not get any of the SRS com-

ponents or wiring in the vehicle

interior wet.

(



P.36)

An electrical malfunction may

cause the airbags to deploy or

not function properly, resulting

in death or serious injury.

●

Do not let the wireless charger

(



P.380) get wet. Failure to do

so may cause the charger to

become hot and cause burns or

could cause electric shock

resulting in death or serious

injury.

■

Cleaning the interior (espe-

cially instrument panel)

Do not use polish wax or polish

cleaner. The instrument panel

may reflect off the windshield,

obstructing the driver’s view and

leading to an accident, resulting in

death or serious injury.

403

6-1. Maintenance and care

6

Maintena

nce
 a

nd
ca

re



Remove dirt using a water-

dampened soft cloth or syn-

thetic chamois.



Wipe the surface with a dry,

soft cloth to remove any

remaining moisture.

■

Cleaning the areas with satin-

finish metal accents

The metal areas use a layer of real

metal for the surface. It is necessary

to clean them regularly. If dirty areas

NOTICE

■

Cleaning detergents

●

Do not use the following types

of detergent, as they may dis-

color the vehicle interior or

cause streaks or damage to

painted surfaces:

• Non-seat portions: Organic sub-

stances such as benzene or

gasoline, alkaline or acidic solu-

tions, dye, and bleach

• Seats: Alkaline or acidic solu-

tions, such as thinner, benzene,

and alcohol

●

Do not use polish wax or polish

cleaner. The instrument panel’s

or other interior part’s painted

surface may be damaged.

■

Preventing damage to leather

surfaces

Observe the following precautions

to avoid damage to and deteriora-

tion of leather surfaces:

●

Remove any dust or dirt from

leather surfaces immediately.

●

Do not expose the vehicle to

direct sunlight for extended peri-

ods of time. Park the vehicle in

the shade, especially during

summer.

●

Do not place items made of

vinyl, plastic, or containing wax

on the upholstery, as they may

stick to the leather surface if the

vehicle interior heats up signifi-

cantly.

■

Water on the floor

Do not wash the vehicle floor with

water.

Vehicle systems such as the

audio system may be damaged if

water comes into contact with

electrical components such as the

audio system above or under the

floor of the vehicle. Water may

also cause the body to rust.

■

When cleaning the inside of

the windshield

Do not allow glass cleaner to con-

tact the lens. Also, do not touch

the lens. (



P.215)

■

Cleaning the inside of the rear

window

●

Do not use a glass cleaner to

clean the rear window, as this

may cause damage to the rear

window defogger heater wires

or antenna. Use a cloth damp-

ened with lukewarm water to

gently wipe the window clean.

Wipe the window in strokes run-

ning parallel to the heater wires

or antenna.

●

Be careful not to scratch or

damage the heater wires or

antenna.

■

Cleaning the front side win-

dow

Do not use any compound or

abrasive product (e.g., glass

cleaner, detergent, wax) to clean

the windows. It may damage the

coating.

Cleaning the areas with

satin-finish metal accents

(if equipped)

404

6-1. Maintenance and care

are left uncleaned for long periods
of time, they may be difficult to
clean.



Remove dirt and dust using a
vacuum cleaner.



Wipe off any excess dirt and
dust with a soft cloth damp-
ened with diluted detergent.

Use a diluted water solution of
approximately 5% neutral wool
detergent.



Wring out any excess water
from the cloth and thoroughly
wipe off all remaining traces
of detergent.



Wipe the surface with a dry,
soft cloth to remove any
remaining moisture. Allow the
leather to dry in a shaded and
ventilated area.

■

Caring for leather areas

Toyota recommends cleaning the
interior of the vehicle at least twice a
year to maintain the quality of the
vehicle’s interior.



Remove dirt and dust using a
vacuum cleaner.



Wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.



Wring out any excess water

from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

Cleaning the leather areas

Cleaning the synthetic
leather areas

405

6-2. Maintenance

6

Maintena

nce
 a

nd
ca

re

6-2.Maintenance

■

Repair and replacement

It is recommended that genuine

Toyota parts be used for repairs to

ensure performance of each sys-

tem. If non-Toyota parts are used in

replacement or if a repair shop other

than a Toyota dealer performs

repairs, confirm the warranty cover-

age.

■

Allow inspection and repairs to

be performed by a Toyota

dealer

●

Toyota technicians are well-

trained specialists and are kept up

to date with the latest service

information. They are well

informed about the operations of

all systems on your vehicle.

●

Keep a copy of the repair order. It

proves that the maintenance that

has been performed is under war-

ranty coverage. If any problem

should arise while your vehicle is

under warranty, your Toyota

dealer will promptly take care of it.

General maintenance should be

performed on a daily basis. This

can be done by yourself or by a

Toyota dealer.

Scheduled maintenance should

be performed at specified inter-

vals according to the mainte-

nance schedule.

For details about maintenance

items and schedules, refer to the

“Scheduled Maintenance Guide” or

“Owner’s Manual Supplement”.

Maintenance require-

ments

To ensure safe and econom-

ical driving, day-to-day care

and regular maintenance

are essential. It is the

owner’s responsibility to

perform regular checks.

Toyota recommends the fol-

lowing maintenance:

WARNING

■

If your vehicle is not properly

maintained

Improper maintenance could

result in serious damage to the

vehicle and possible death or seri-

ous injury.

■

Handling of the 12-volt bat-

tery

●

Engine exhaust, some of its

constituents, and a wide variety

of automobile components con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects and

other reproductive harm. Work

in a well ventilated area.

●

Oils, fuels and fluids contained

in vehicles as well as waste pro-

duced by component wear con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects or

other reproductive harm. Avoid

exposure and wash any

affected area immediately.

●

12-volt battery posts, terminals

and related accessories con-

tain lead and lead compounds

which are known to cause brain

damage. Wash your hands after

handling. (



P.422)

General maintenance

Scheduled maintenance

406

6-2. Maintenance

■

Resetting the message indicat-

ing maintenance is required

After the required maintenance is

performed according to the mainte-

nance schedule, please reset the

reminder light or message.

To reset the reminder light or mes-

sage, follow the procedure

described below:

1

Press

 or

 of the meter

control switches on the steering
wheel and select

.

2

Press

 or

 of the meter

control switches and select
“

 Vehicle Settings”.

Then press and hold

.

3

Press

 or

 of the meter

control switches and select

“Scheduled Maintenance”, and
then press

.

4

Select “Yes” and press

.

You can perform some mainte-

nance procedures by yourself.

Please be aware that do-it-your-

self maintenance may affect

warranty coverage.

The use of Toyota Repair Manuals

is recommended.
For details about warranty cover-

age, refer to the separate “Owner’s

Warranty Information Booklet” or

“Owner’s Manual Supplement”.

Do-it-yourself mainte-

nance

General maintenance

Listed below are the general

maintenance items that

should be performed at the

intervals specified in the

“Owner’s Warranty Informa-

tion Booklet” or “Owner’s

Manual Supplement/Sched-

uled Maintenance Guide”. It

is recommended that any

problem you notice should

be brought to the attention

of your Toyota dealer or

qualified service shop for

advice.

WARNING

■

If the hybrid system is run-

ning

Turn the hybrid system off and

ensure that there is adequate

ventilation before performing

maintenance checks.

Engine compartment

Items

Check points

Brake fluid

Is the brake fluid at

the correct level?

(



P.420)

Engine/power

control unit

coolant

Is the

engine/power con-

trol unit coolant at

the correct level?

(



P.418)

Engine oil

Is the engine oil at

the correct level?

(



P.415)

407

6-2. Maintenance

6

Maintena

nce

 a

nd

ca
re

Exhaust sys-
tem

There should not
be any fumes or
strange sounds.

Radiator/con-
denser

The radiator and
condenser should
be free from for-
eign objects.
(



P.419)

Washer fluid

Is there sufficient
washer fluid?
(



P.421)

Luggage compartment

Items

Check points

12-volt battery

Check the connec-
tions. (



P.422)

Vehicle interior

Items

Check points

Accelerator
pedal

• The accelerator

pedal should
move smoothly
(without uneven
pedal effort or
catching).

Hybrid trans-
mission “Park”
mechanism

• When parked on

a slope and the
shift position is in
P, is the vehicle
securely
stopped?

Items

Check points

Brake pedal

• Does the brake

pedal move
smoothly?

• Does the brake

pedal have
appropriate
clearance from
the floor?

• Does the brake

pedal have the
correct amount
of free play?

Brakes

• The vehicle

should not pull to
one side when
the brakes are
applied.

• The brakes

should work
effectively.

• The brake pedal

should not feel
spongy.

• The brake pedal

should not get
too close to the
floor when the
brakes are
applied.

Head
restraints

• Do the head

restraints move
smoothly and
lock securely?

Indica-
tors/buzzers

• Do the indica-

tors and buzzers
function prop-
erly?

Items

Check points

408

6-2. Maintenance

Lights

• Do all the lights

come on?

• Are the head-

lights aimed cor-
rectly?(



P.450)

Parking brake

• Does the park-

ing brake oper-
ate normally?

• When parked on

a slope and the
parking brake is
on, is the vehicle
securely
stopped?

Seat belts

• Do the seat belts

operate
smoothly?

• The seat belts

should not be
damaged.

Seats

• Do the seat con-

trols operate
properly?

Steering wheel

• Does the steer-

ing wheel rotate
smoothly?

• Does the steer-

ing wheel have
the correct
amount of free
play?

• There should not

be any strange
sounds coming
from the steer-
ing wheel.

Items

Check points

Vehicle exterior

Items

Check points

Doors

• Do the doors

operate
smoothly?

Engine hood

• Does the engine

hood lock system
work properly?

Fluid leaks

• There should not

be any signs of
fluid leakage
after the vehicle
has been parked.

Tires

• Is the tire infla-

tion pressure
correct?

• The tires should

not be damaged
or excessively
worn.

• Have the tires

been rotated
according to the
maintenance
schedule?

• The wheel nuts

should not be
loose.

Windshield
wipers/rear
window wiper

• The wiper blades

should not show
any signs of
cracking, split-
ting, wear, con-
tamination or
deformation.

• The wiper blades

should clear the
windshield/rear
window without
streaking or skip-
ping.

409

6-2. Maintenance

6

Maintena

nce

 a

nd

ca
re

The OBD system determines
that a problem exists some-
where in the emission control
system. Your vehicle may not
pass the I/M test and may need
to be repaired. Contact your
Toyota dealer to service the
vehicle.



When the 12-volt battery is
disconnected or discharged
Readiness codes that are set
during ordinary driving are
erased.
Also, depending on your driv-
ing habits, the readiness
codes may not be completely
set.



When the fuel tank cap is

loose
The malfunction indicator
lamp comes on indicating a
temporary malfunction and
your vehicle may not pass the
I/M test.

The error code in the OBD sys-
tem will not be cleared unless
the vehicle is driven 40 or more
times.

Contact your Toyota dealer to
prepare the vehicle for re-test-
ing.

Emission inspection

and maintenance (I/M)

programs

Some states have vehicle
emission inspection pro-
grams which include OBD
(On Board Diagnostics)
checks. The OBD system
monitors the operation of
the emission control sys-
tem.

If the malfunction indica-
tor lamp comes on

Your vehicle may not
pass the I/M test in the fol-
lowing situations:

When the malfunction
indicator lamp still
remains on after several
driving trips

If your vehicle does not
pass the I/M test

410

6-3. Do-it-yourself maintenance

6-3.Do-it-yourself maintenance

Do-it-yourself service

precautions

If you perform maintenance
by yourself, be sure to fol-
low the correct procedure
as given in these sections.

Maintenance

Items

Parts and tools

12-volt bat-
tery condi-
tion
(



P.422)

• Grease
• Conventional

wrench (for termi-
nal clamp bolts)

Brake fluid
level
(



P.420)

• FMVSS No.116

DOT 3 or SAE
J1703 brake fluid

• FMVSS No.116

DOT 4 or SAE
J1704 brake fluid

• Rag or paper

towel

• Funnel (used only

for adding brake
fluid)

Engine/power
control unit
coolant level
(



P.418)

• “Toyota Super

Long Life Cool-
ant” or a similar
high quality eth-
ylene glycol-based
non-silicate, non-
amine, non-nitrite
and non-borate
coolant with long-
life hybrid organic
acid technology
For the U.S.A.:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 50% coolant
and 50% deion-
ized water.
For Canada:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 55% coolant
and 45% deion-
ized water.

• Funnel (used only

for adding coolant)

Engine oil
level
(



P.415)

• “Toyota Genuine

Motor Oil” or
equivalent

• Rag or paper

towel

• Funnel (used only

for adding engine
oil)

Fuses
(



P.448)

• Fuse with same

amperage rating
as original

Headlight aim
(



P.450)

• Phillips-head

screwdriver

Items

Parts and tools

411

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd
ca

re

Hybrid bat-

tery (traction

battery) air

intake vent

(



P.443)

• Vacuum cleaner,

etc,

• Phillips screw-

driver

Radiator and

condenser

(



P.419)



Tire inflation

pressure

(



P.437)

• Tire pressure

gauge

• Compressed air

source

Washer fluid

(



P.421)

• Water or washer

fluid containing

antifreeze (for win-

ter use)

• Funnel (used only

for adding water or

washer fluid)

WARNING

The engine compartment contains

many mechanisms and fluids that

may move suddenly, become hot,

or become electrically energized.

To avoid death or serious injury,

observe the following precautions.

■

When working on the engine

compartment

●

Make sure that “POWER ON”

on the meter and the “READY”

indicator are both off.

●

Keep hands, clothing and tools

away from the moving fan.

●

Be careful not to touch the

engine, power control unit, radi-

ator, exhaust manifold, etc. right

after driving as they may be hot.

Oil and other fluids may also be

hot.

Items

Parts and tools

●

Do not leave anything that may

burn easily, such as paper and

rags, in the engine compart-

ment.

●

Do not smoke, cause sparks or

expose an open flame to fuel or

the battery. Fuel and battery

fumes are flammable.

■

When working near the elec-

tric cooling fan or radiator

grille

Be sure the power switch is OFF.
With the power switch in ON, the

electric cooling fan may automati-

cally start to run if the air condi-

tioning is on and/or the coolant

temperature is high. (



P.419)

■

Safety glasses

Wear safety glasses to prevent

flying or falling material, fluid

spray, etc., from getting in your

eyes.

NOTICE

■

If you remove the air cleaner

filter

Driving with the air cleaner filter

removed may cause excessive

engine wear due to dirt in the air.

412

6-3. Do-it-yourself maintenance

1

Pull the hood lock release

lever.

The hood will pop up slightly.

2

Push the auxiliary catch lever

to the left and lift the hood.

3

Hold the hood open by insert-

ing the supporting rod into

the slot.

Hood

Release the lock from the

inside of the vehicle to open

the hood.

Opening the hood

WARNING

■

Pre-driving check

Check that the hood is fully closed

and locked.

If the hood is not locked properly,

it may open while the vehicle is in

motion and cause an accident,

which may result in death or seri-

ous injury.

■

To prevent injuries

The support rod may be hot after

driving the vehicle. Touching the

hot support rod may lead to burns

or other serious injuries.

■

After installing the support

rod into the slot

Make sure the rod supports the

hood securely from falling down

on to your head or body.

■

When closing the hood

When closing the hood, take extra

care to prevent your fingers etc.

from being caught.

413

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd
ca

re

■

Front

NOTICE

■

When closing the hood

Be sure to return the support rod

to its clip before closing the hood.

Closing the hood without return-

ing the support rod properly could

cause the hood to bend.

Positioning a floor

jack

When using a floor jack, fol-

low the instructions in the

manual provided with the

jack and perform the opera-

tion safely.

When raising your vehicle

with a floor jack, position

the jack correctly.

Improper placement may

damage your vehicle or

cause injury.

Location of the jack point

414

6-3. Do-it-yourself maintenance

■

Rear



AWD models



2WD models

415

6-3. Do-it-yourself maintenance

6

Maintena

nce

 a

nd

ca
re

Fuse boxes (



P.448)

Engine oil filler cap (



P.417)

Engine oil level dipstick (



P.415)

Brake fluid reservoir (



P.420)

Washer fluid tank (



P.421)

Radiator (



P.419)

Electric cooling fans

Condenser (



P.419)

Power control unit coolant reservoir (



P.418)

Engine coolant reservoir (



P.418)

■

12-volt battery



P.422

With the engine at operating
temperature and turned off,
check the oil level on the dip-

Engine compartment

Components

A

B

C

D

E

F

G

H

I

J

Checking the engine oil

416

6-3. Do-it-yourself maintenance

stick.

1

Park the vehicle on level

ground. After warming up the

engine and turning off the

hybrid system, wait about 5

minutes for the oil to drain

back into the bottom of the

engine.

2

Holding a rag under the end,

pull the dipstick out.

3

Wipe the dipstick clean.

4

Reinsert the dipstick fully.

5

Holding a rag under the end,

pull the dipstick out and

check whether the oil level is

above low level mark.

Low level mark

The shape of the dipstick may differ

depending on the type of vehicle or

engine.

6

Wipe the dipstick and reinsert

it fully.

■

Engine oil consumption

A certain amount of engine oil will

be consumed while driving. In the

following situations, oil consump-

tion may increase, and engine oil

may need to be refilled in between

oil maintenance intervals.

●

When the engine is new, for

example directly after purchasing

the vehicle or after replacing the

engine

●

If low quality oil or oil of an inap-

propriate viscosity is used

●

When driving at high engine

speeds or with a heavy load, or

when driving while accelerating or

decelerating frequently

●

When leaving the engine idling for

a long time, or when driving fre-

quently through heavy traffic

■

Engine oil level rise

If the vehicle is repeatedly driven

without the engine warmed up,

moisture caused by dew condensa-

tion inside the engine or fuel which

did not burn mixes into the engine

oil, resulting in a rise in engine oil

level.
For example, the engine become

difficult to be warmed up in the fol-

lowing situations.

●

When driving a short distance

●

When driving at a low speed

●

When the outside temperature is

low

When checking the engine oil, make

sure that the engine is warmed up. If

A

NOTICE

■

To prevent serious engine

damage

Check the oil level on a regular

basis.
