Toyota Prius (2024 year). Manual in english

513

7-2. Steps to take in an emergency

Whe

ouble

rises

■

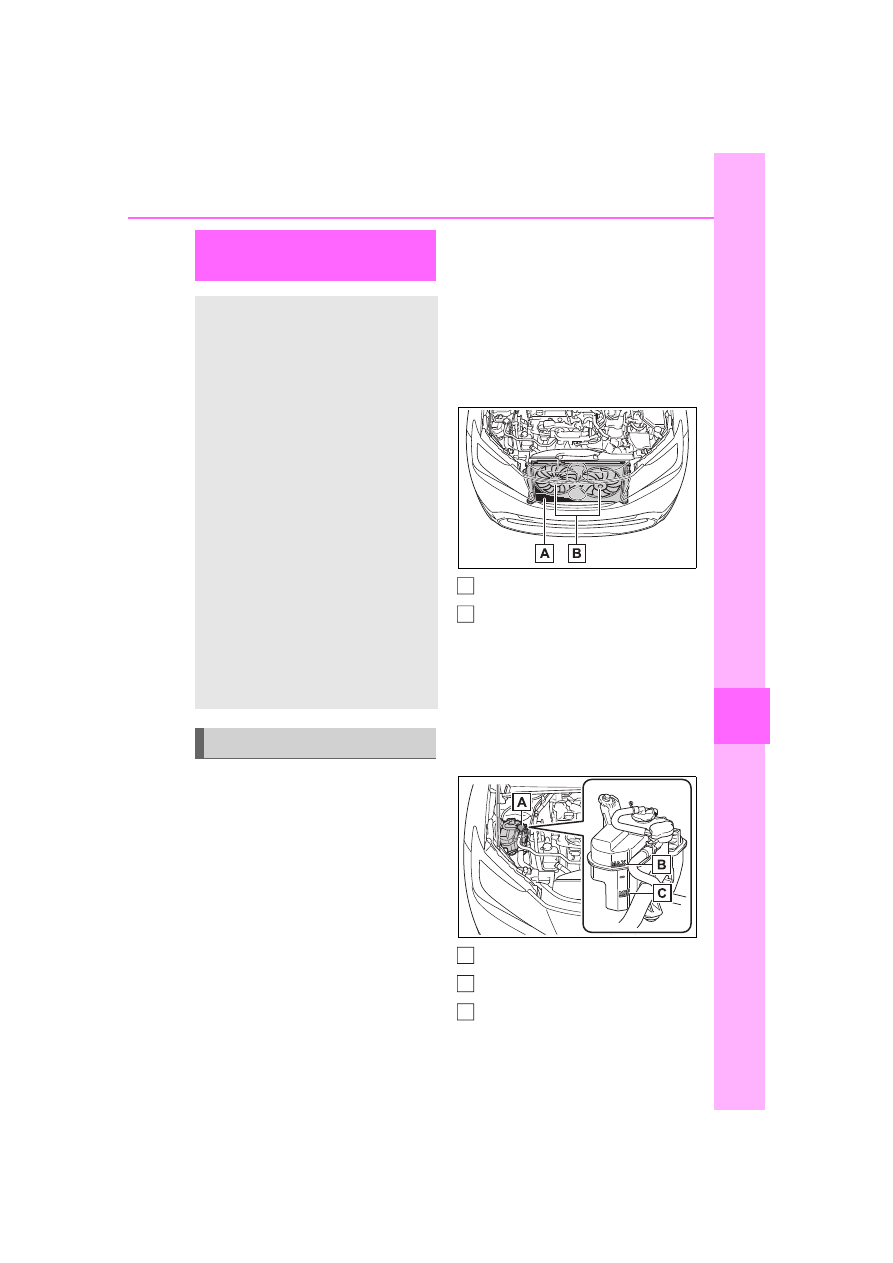

If the high coolant tempera-
ture warning light comes on
or flashes or “Engine Cool-
ant Temp High Stop in a
Safe Place See Owner’s
Manual” is shown on the
multi-information display

Stop the vehicle in a safe
place and turn off the air con-
ditioning system, and then
stop the hybrid system.

If you see steam:
Carefully lift the hood after

the steam subsides.
If you do not see steam:
Carefully lift the hood.

After the hybrid system has
cooled down sufficiently,
inspect the hoses and radia-
tor core (radiator) for any
leaks.

Radiator

Cooling fans

If a large amount of coolant leaks,
immediately contact your Toyota
dealer.

The coolant level is satisfac-
tory if it is between the “MAX”
and “MIN” lines on the reser-
voir.

Reservoir

“MAX” line

“MIN” line

If your vehicle over-

heats

The following may indicate
that your vehicle is over-
heating.



The high coolant tempera-
ture warning light (



P.82,

464) comes on or flashes,
or a loss of hybrid system
power is experienced. (For
example, the vehicle speed
does not increase.)



“Engine Coolant Temp High
Stop in a Safe Place See
Owner’s Manual” or “Hybrid
System Overheated Output
Power Reduced” is shown
on the multi-information dis-
play.



Steam comes out from
under the hood.

Correction procedures

514

7-2. Steps to take in an emergency

Add coolant if necessary.

Water can be used in an emer-
gency if engine coolant is unavail-
able.

If water was added in an emer-
gency, have the vehicle inspected
at your Toyota dealer as soon as
possible.

Start the hybrid system and
turn the air conditioning sys-
tem on to check that the radi-
ator cooling fan operates and
to check for coolant leaks
from the radiator or hoses.

The fan operates when the air con-
ditioning system is turned on imme-
diately after a cold start. Confirm
that the fan is operating by check-
ing the fan sound and air flow. If it is
difficult to check these, turn the air
conditioning system on and off
repeatedly. (The fan may not oper-
ate in freezing temperatures.)

If the fan is not operating:
Stop the hybrid system
immediately and contact your
Toyota dealer.
If the fan is operating:
Have the vehicle inspected at
the nearest Toyota dealer.

Check if “Engine Coolant
Temp High Stop in a Safe
Place See Owner’s Manual”

is shown on the multi-infor-
mation display.

If the message does not disappear:
Stop the hybrid system and contact
your Toyota dealer.

If the message is not displayed:
Have the vehicle inspected at the
nearest Toyota dealer.

■

If “Hybrid System Over-
heated Output Power
Reduced” is shown on the
multi-information display

Stop the vehicle in a safe
place.

Stop the hybrid system and
carefully lift the hood.

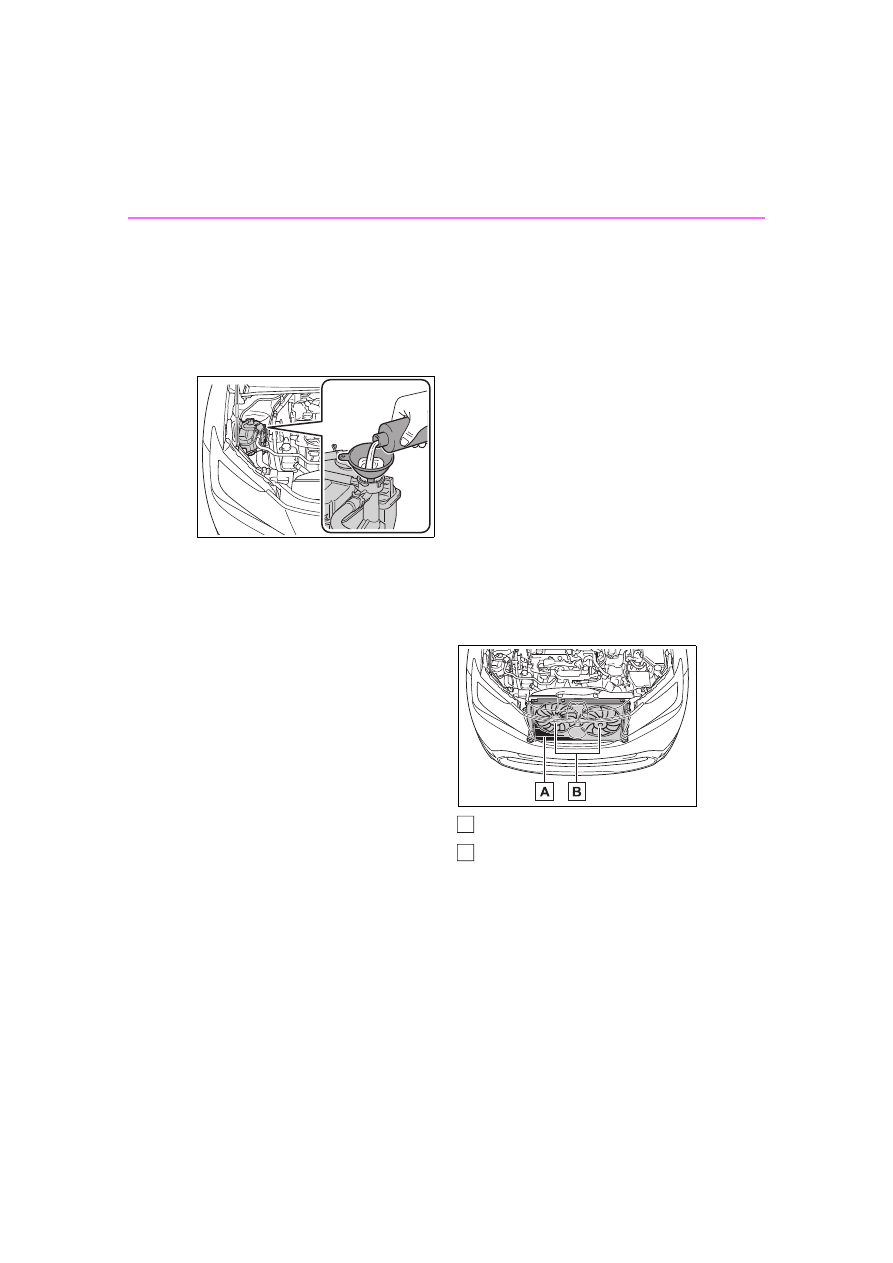

After the hybrid system has
cooled down, inspect the
hoses and radiator core (radi-
ator) for any leaks.

Radiator

Cooling fans

If a large amount of coolant leaks,
immediately contact your Toyota
dealer.

515

7-2. Steps to take in an emergency

tro

le a

ris

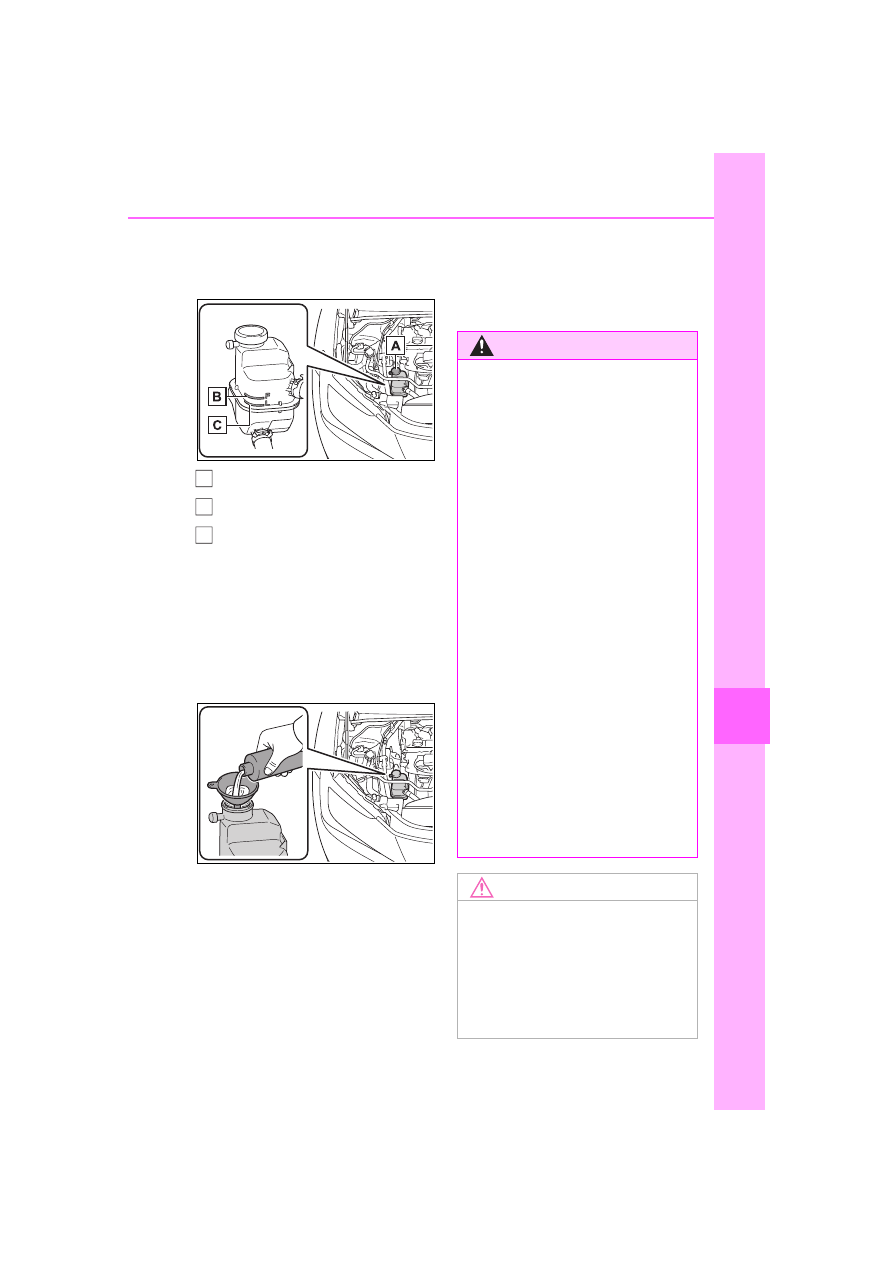

The coolant level is satisfac-

tory if it is between the “F”

and “L” lines on the reservoir.

Reservoir
“F” line
“L” line

Add coolant if necessary.

Water can be used in an emer-

gency if power control unit coolant

is unavailable.
If water was added in an emer-

gency, have the vehicle inspected

at your Toyota dealer as soon as

possible.

After stopping the hybrid sys-

tem and waiting for 5 minutes

or more, start the hybrid sys-

tem again and check for the

multi-information display.

If the message does not disappear:

Stop the hybrid system and contact

your Toyota dealer.
If the message is not displayed:

The hybrid system temperature has

dropped and the vehicle may be

driven normally.
However, if the message appears

again frequently, contact your

Toyota dealer.

WARNING

■

When inspecting under the

hood of your vehicle

Observe the following precau-

tions.

Failure to do so may result in seri-

ous injury such as burns.

●

If steam is seen coming from

under the hood, do not open the

hood until the steam has sub-

sided. The engine compart-

ment may be very hot.

●

After the hybrid system has

been turned off, check that the

“READY” indicator is off.

When the hybrid system is oper-

ating, the gasoline engine may

automatically start, or the cool-

ing fan may suddenly operate

even if the gasoline engine

stops. Do not touch or approach

rotating parts such as the fan,

which may lead to fingers or

clothing (especially a tie, a scarf

or a muffler) getting caught,

resulting in serious injury.

●

Do not loosen the coolant reser-

voir cap while the hybrid system

and radiator are hot.

High temperature steam or

coolant could spray out.

NOTICE

■

When adding engine/power

control unit coolant

Add coolant slowly after the

hybrid system has cooled down

sufficiently. Adding cool coolant to

a hot hybrid system too quickly

can cause damage to the hybrid

system.

516

7-2. Steps to take in an emergency

Stop the hybrid system. Set

the parking brake and shift

the shift position to P.

Remove the mud, snow or

sand from around the front

wheels.

Place wood, stones or some

other material under the front

wheels to help provide trac-

tion.

Restart the hybrid system

Shift the shift position to D or

R and release the parking

brake. Then, while exercising

caution, depress the acceler-

ator pedal.

■

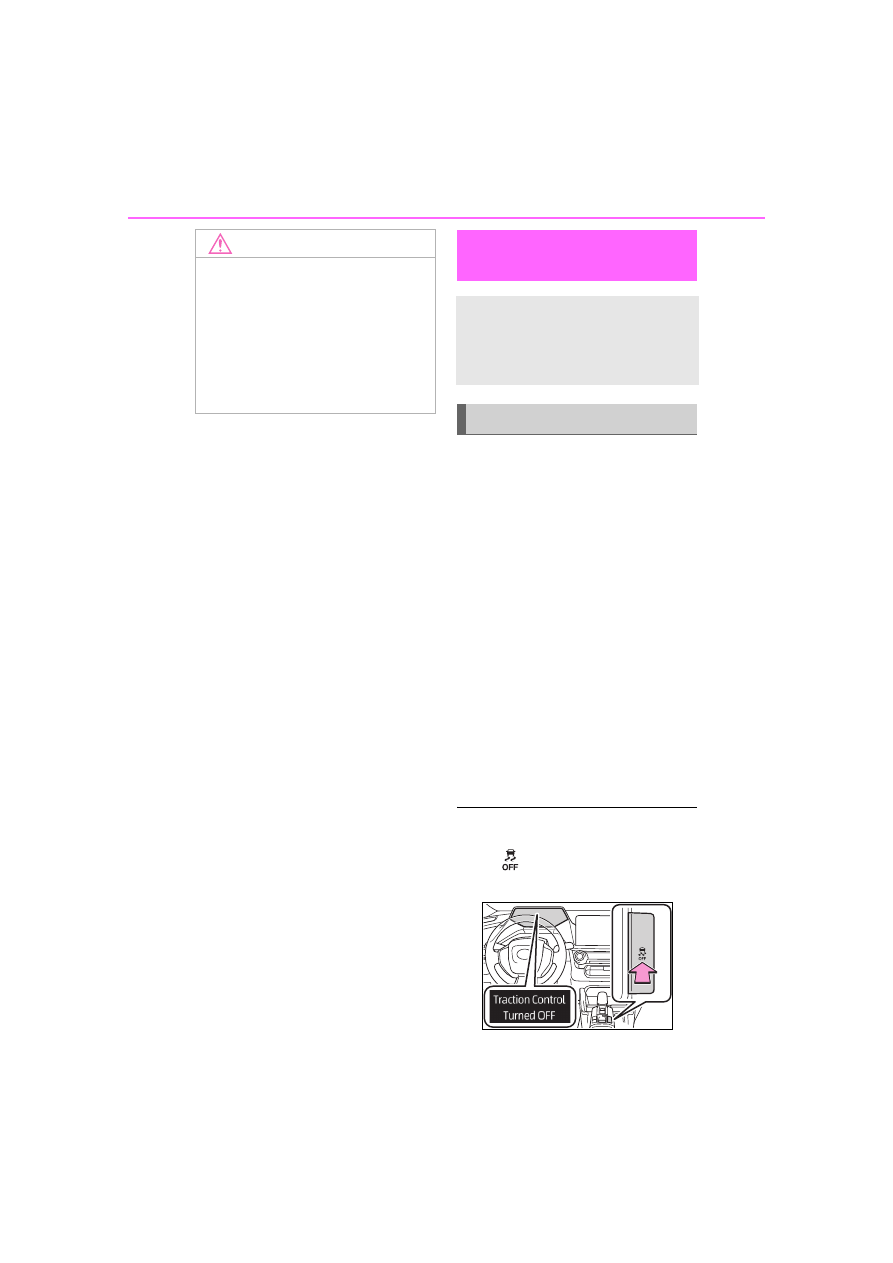

When it is difficult to free the

vehicle

Press

to turn off TRAC.

(



P.346)

NOTICE

■

To prevent damage to the

cooling system

Observe the following precau-

tions:

●

Avoid contaminating the coolant

with foreign matter (such as

sand or dust, etc.).

●

Do not use any coolant additive.

If the vehicle becomes

stuck

Carry out the following pro-

cedures if the tires spin or

the vehicle becomes stuck

in mud, dirt or snow:

Recovering procedure

517

7-2. Steps to take in an emergency

tro

le a

ris

WARNING

■

When attempting to free a

stuck vehicle

If you choose to push the vehicle

back and forth to free it, make

sure the surrounding area is clear

to avoid striking other vehicles,

objects or people. The vehicle

may also lunge forward or lunge

back suddenly as it becomes free.

Use extreme caution.

■

When shifting the shift posi-

tion

Be careful not to shift the shift

position with the accelerator pedal

depressed.
This may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident

resulting in death or serious

injury.

NOTICE

■

To avoid damaging the trans-

mission and other compo-

nents

●

Avoid spinning the wheels and

depressing the accelerator

pedal more than necessary.

●

If the vehicle remains stuck

even after these procedures are

performed, the vehicle may

require towing to be freed.

520

8-1. Specifications

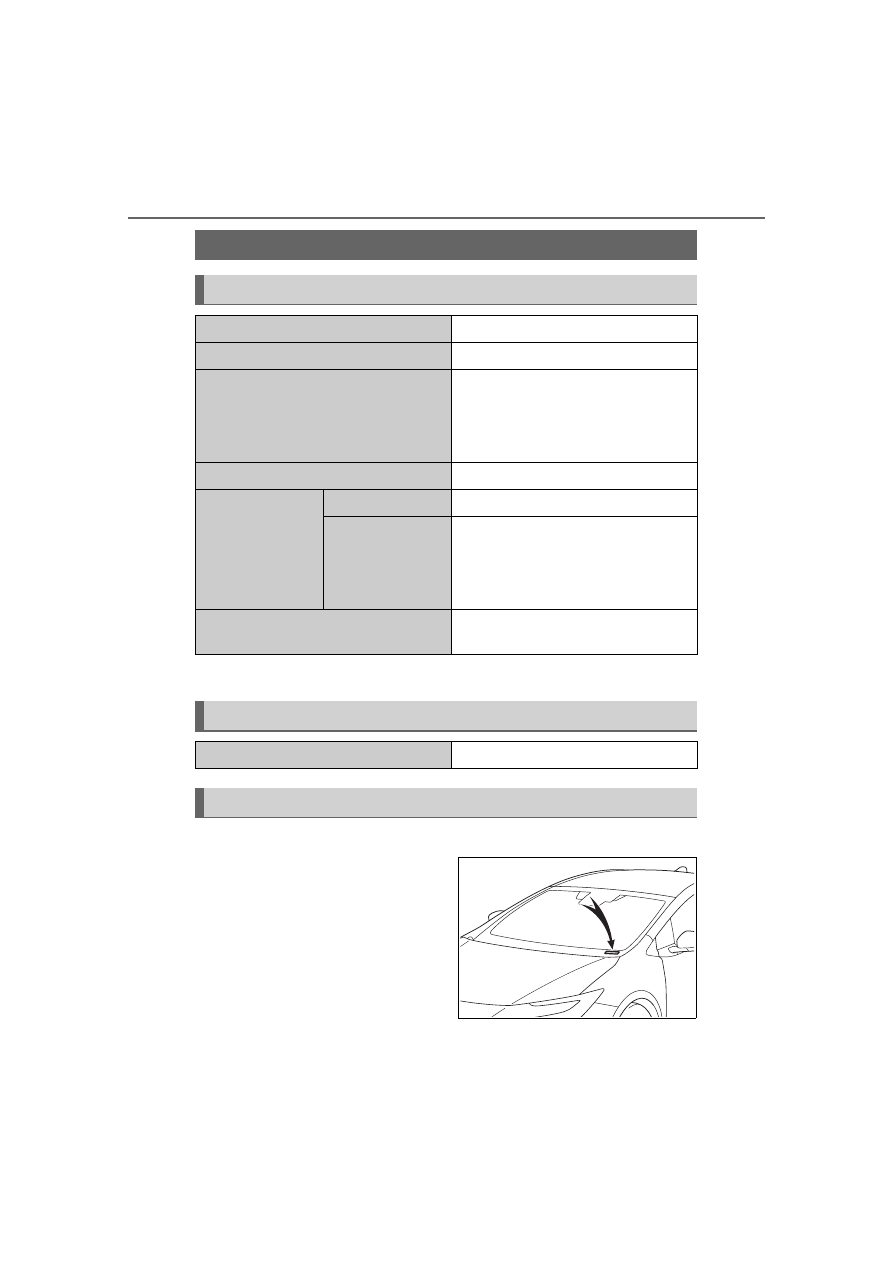

8-1.Specifications

: Unladen vehicle

■

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.

This number is on the top left of

the instrument panel.

This number is also stamped

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

181.1 in. (4599 mm)

Overall width

70.2 in. (1782 mm)

Overall height



Vehicles with 17-inch tires

55.9 in. (1420 mm)



Vehicles with 19-inch tires

56.3 in. (1430 mm)

Wheelbase

108.3 in. (2750 mm)

Tread

Front

61.5 in. (1563 mm)

Rear



Vehicles with 17-inch tires

62.17 in. (1579 mm)



Vehicles with 19-inch tires

62.20 in. (1580 mm)

Vehicle capacity weight (Occupants +
luggage)

860 lb. (390 kg)

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

Vehicle identification

521

8-1. Specifications

Vehicle

specifications

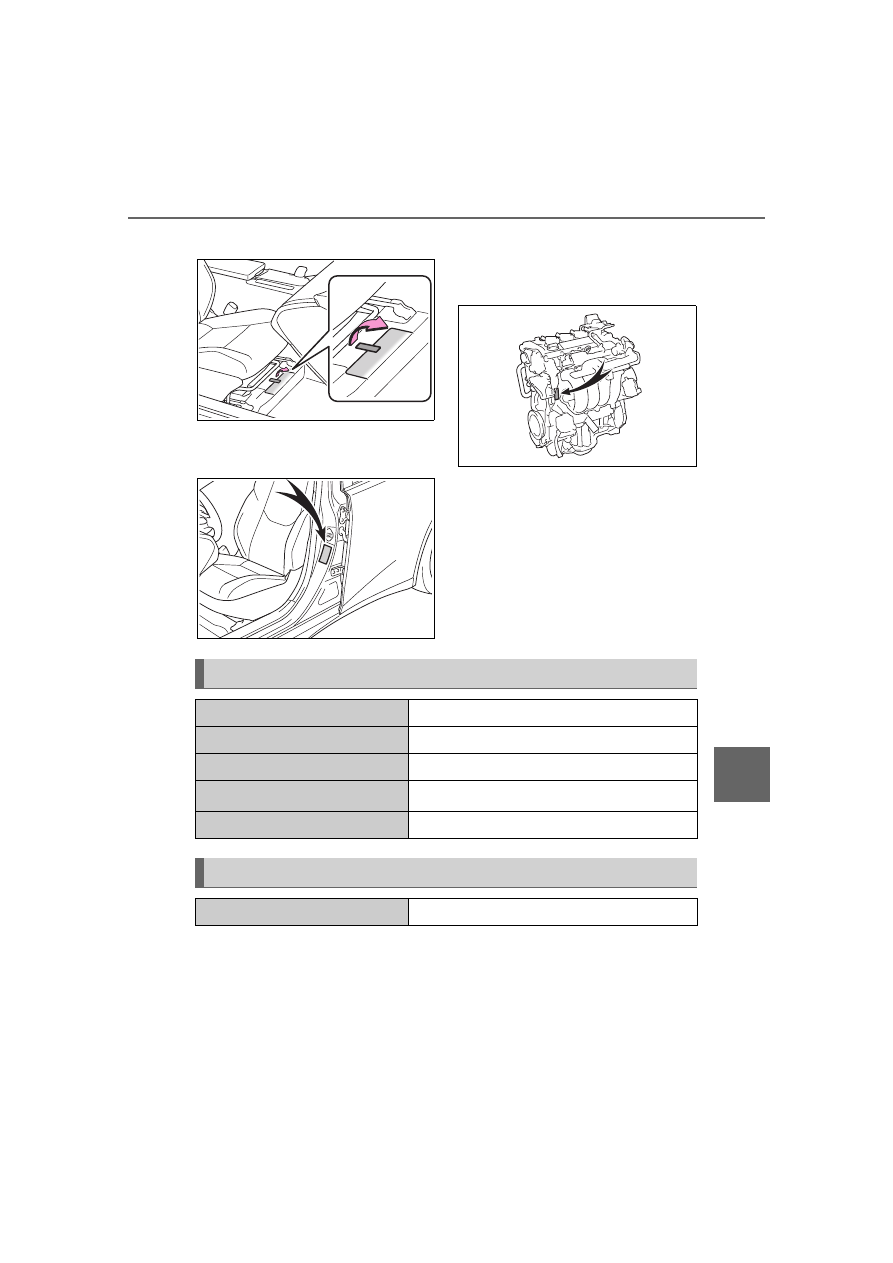

under the right-hand front seat.

This number is also on the Certi-
fication Regulation Label.

■

Engine number

The engine number is stamped
on the engine block as shown.

Engine

Model

2.0 L 4-cylinder (M20A-FXS)

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.17



3.84 in. (80.5



97.6 mm)

Displacement

121.3 cu.in. (1987 cm

)

Valve clearance

Automatic adjustment

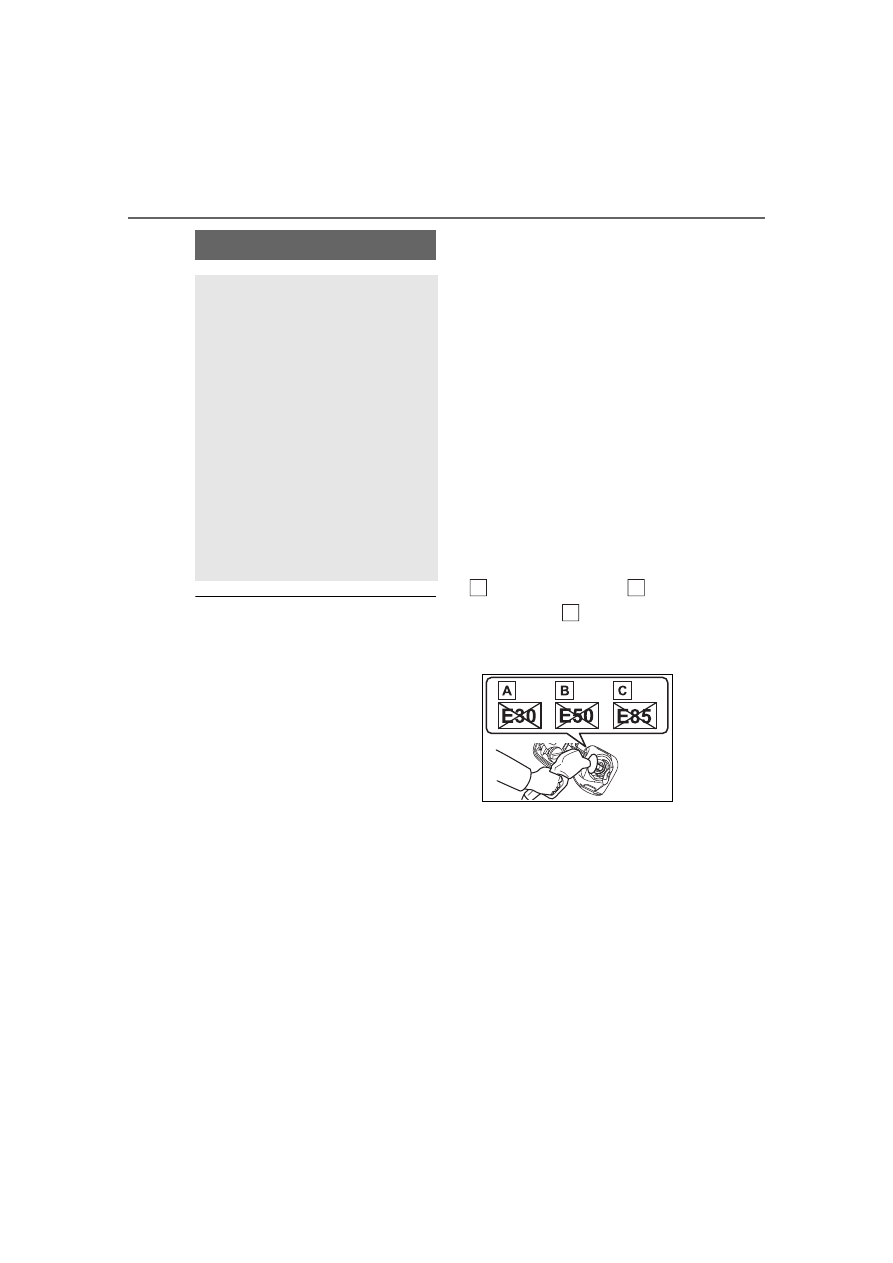

Fuel

Fuel type

Unleaded gasoline only

522

8-1. Specifications



Front



Rear (AWD models)

■

Oil capacity (Drain and refill



reference

)

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. When actually adding the engine oil, make sure that the oil

Octane Rating

87 (Research Octane Number 91) or
higher

Fuel tank capacity (Reference)



AWD models

10.6 gal. (40 L, 8.8 Imp.gal.)



2WD models

11.4 gal. (43 L, 9.5 Imp.gal.)

Electric motor (traction motor)

Type

Permanent magnet synchronous motor

Maximum output

83 kW

Maximum torque

151.9 ft•lbf (206 N•m, 21.0 kgf•m)

Type

Permanent magnet synchronous motor

Maximum output

30 kW

Maximum torque

62.0 ft•lbf (84 N•m, 8.6 kgf•m)

Hybrid battery (traction battery)

Type

Lithium-ion battery

Voltage

3.7 V/cell

Capacity

4.08 Ah

Quantity

60 cells

Nominal voltage

222.0 V

Lubrication system

With filter

4.4 qt. (4.2 L, 3.7 Imp. qt.)

Without filter

4.1 qt. (3.9 L, 3.4 Imp. qt.)

523

8-1. Specifications

Vehicle

specifications

level is between the low level mark and refill upper limit mark (



P.417).

Warm up and turn off the hybrid system, wait about 5 minutes, and check
the oil level on the dipstick.

■

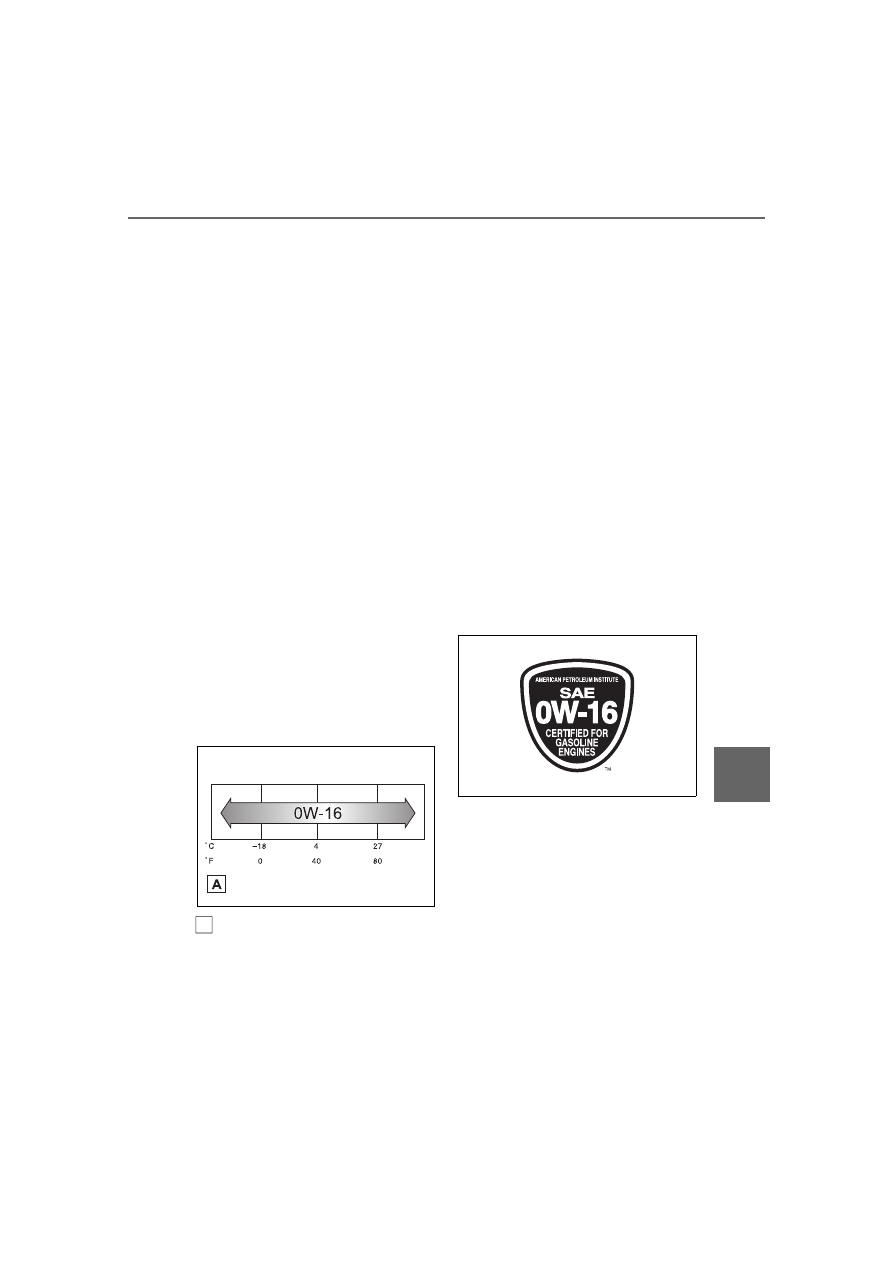

Engine oil selection

“Toyota Genuine Motor Oil” is
used in your Toyota vehicle.
Use Toyota approved “Toyota
Genuine Motor Oil” or equiva-
lent to satisfy the following
grade and viscosity.

Oil grade:

ILSAC GF-6B multigrade engine
oil

Recommended viscosity:

SAE 0W-16

SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.

If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
with SAE 0W-16 at the next oil
change.

Outside temperature

Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates

the characteristic of the oil
which allows cold startability.

Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 16 in 0W-16 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.

How to read oil container label:

API registered mark is added to
some oil containers to help you
select the oil you should use.

524

8-1. Specifications

: The coolant capacity is the quantity of reference.

If replacement is necessary, contact your Toyota dealer.

Cooling system

Capacity

Gasoline engine 6.4 qt. (6.1 L, 5.4 Imp. qt.)
Power control unit 1.7 qt. (1.6 L, 1.4 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene gly-

col-based non-silicate, non-amine,

non-nitrite, and non-borate cool-

ant with long-life hybrid organic

acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make

DENSO FC16HR-Q8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (12-volt Battery)

Open voltage at 68°F (20°C):

12.0 V or higher
(Turn the power switch to OFF and turn on

the high beam headlights for 30 seconds.)
If the voltage is lower than the standard

value, charge the battery.

Charging rates (Slow charge) 5 A max.

Hybrid transmission

Fluid capacity

3.9 qt. (3.7 L, 3.2 Imp. qt.)

Fluid type

Toyota Genuine e-Transaxle fluid TE

525

8-1. Specifications

Vehicle

specifications

: The fluid capacity is the quantity of reference.

If replacement is necessary, contact your Toyota dealer.

: The fluid capacity is the quantity of reference.

If replacement is necessary, contact your Toyota dealer.

:Minimum pedal clearance when depressed with a force of 67.4 lbf (300

N, 30.6 kgf) while the hybrid system is operating.

When performing the brake pedal inspection, also be sure to check that the

NOTICE

■

Hybrid transmission fluid type

Using transmission fluid other than the above type may cause abnormal

noise or vibration, or ultimately damage the transmission of your vehicle.

Rear differential (rear electric motor) (AWD models)

Fluid capacity

1.47 qt. (1.39 L, 1.22 Imp. qt.)

Fluid type

Toyota Genuine e-Transaxle fluid TE

NOTICE

■

Rear differential fluid type

Using differential fluid other than the above type may cause abnormal

noise or vibration, or ultimately damage the differential of your vehicle.

Brakes

Pedal clearance

5.2 in. (132 mm) Min.

Pedal free play

0.04



0.24 in. (1.0



6.0 mm)

Brake pad wear limit



Front

0.06 in. (1.5 mm)



Rear

0.08 in. (2.0 mm)

Parking brake indicator

When pushing the parking brake switch for

1 to 2 seconds: turns off
When pulling the parking brake switch for

1 to 2 seconds: comes on

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

526

8-1. Specifications

brake system warning light is not illuminated when the hybrid system is
operating. (If the brake system warning light is illuminated, refer to P.464.)

: Make sure to confirm that the brake system warning light (yellow) does

not illuminate. (If the brake system warning light illuminates, refer to
P.464.)



Vehicles with 17-inch tires

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

195/60R17 90H, T145/90D16 106M
(spare) (if equipped)

Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)

Front:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size



6 1/2J, 16



4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

527

8-1. Specifications

Vehicle

specifications



Vehicles with 19-inch tires

Tire size

195/50R19 88H, T145/90D16 106M
(spare) (if equipped)

Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)

Front:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear:

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph
[160 km/h]) (in countries where such
speeds are permitted by law):

Add 3 psi (20 kPa, 0.2 kgf/cm

or bar) to

the front tires and rear tires.

Never exceed the maximum cold tire infla-
tion pressure indicated on the tire sidewall.

Wheel size



6 1/2J, 16



4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

528

8-1. Specifications

■

Gasoline quality

In very few cases, driveability prob-
lems may be caused by the brand of
gasoline you are using. If driveability
problems persist, try changing the
brand of gasoline. If this does not
correct the problem, consult your
Toyota dealer.

■

Recommendation of the use of
gasoline containing detergent
additives

●

Toyota recommends the use of
gasoline that contains detergent
additives to avoid the build-up of
engine deposits.

●

All gasoline sold in the U.S.A. con-
tains minimum detergent additives
to clean and/or keep clean intake
systems, per EPA’s lowest addi-
tives concentration program.

●

Toyota strongly recommends the
use of Top Tier Detergent Gaso-
line. For more information on Top
Tier Detergent Gasoline and a list
of marketers, please go to the offi-
cial website www.toptiergas.com.

■

Recommendation of the use of
low emissions gasoline

Gasolines containing oxygenates
such as ethers and ethanol, as well
as reformulated gasolines, are avail-
able in some cities. These fuels are
typically acceptable for use, provid-
ing they meet other fuel require-
ments.

Toyota recommends these fuels,
since the formulations allow for
reduced vehicle emissions.

■

Non-recommendation of the
use of blended gasoline

●

Use only gasoline containing up to
15% ethanol.
DO NOT use any flex-fuel or gas-
oline that could contain more than
15% ethanol, including from any
pump labeled E30 (30% ethanol

), E50 (50% ethanol

), E85

(85% ethanol

) (which are only

some examples of fuel containing
more than 15% ethanol).

●

If you use gasohol in your vehicle,
be sure that it has an octane rat-
ing no lower than 87.

●

Toyota does not recommend the
use of gasoline containing metha-
nol.

■

Non-recommendation of the
use of gasoline containing MMT

Some gasoline contains an octane
enhancing additive called MMT
(Methylcyclopentadienyl Manga-
nese Tricarbonyl).

Toyota does not recommend the
use of gasoline that contains MMT.

Fuel information

You must only use unleaded
gasoline in your vehicle.

Select octane rating 87
(Research Octane Number
91) or higher. Use of
unleaded gasoline with an
octane rating lower than 87
may result in engine knock-
ing. Persistent knocking
can lead to engine damage.

At minimum, the gasoline you
use should meet the specifica-
tions of ASTM D4814 in the
U.S.A..

529

8-1. Specifications

Vehicle

specifications

If fuel containing MMT is used, your

emission control system may be

adversely affected.
The malfunction indicator lamp on

the instrument cluster may come on.

If this happens, contact your Toyota

dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light

knocking for a short time while

accelerating or driving uphill. This

is normal and there is no need for

concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If

improper fuels are used, the

engine will be damaged.

●

Do not use leaded gasoline.

Leaded gasoline can cause

damage to your vehicle’s three-

way catalytic converters caus-

ing the emission control system

to malfunction.

●

Do not use gasohol other than

the type previously stated.

Other gasohol may cause fuel

system damage or vehicle per-

formance problems.

●

Using unleaded gasoline with

an octane number or rating

lower than the level previously

stated will cause persistent

heavy knocking.

At worst, this will lead to engine

damage.

■

Fuel-related poor driveability

If poor driveability (poor hot start-

ing, vaporization, engine knock-

ing, etc.) is encountered after

using a different type of fuel, dis-

continue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It

can damage your vehicle’s paint.

530

8-1. Specifications



Full-size tire



Compact spare tire

Tire size (



P.532)

DOT and Tire Identification Number (TIN) (



P.531)

Location of treadwear indicators (



P.425)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

Tire information

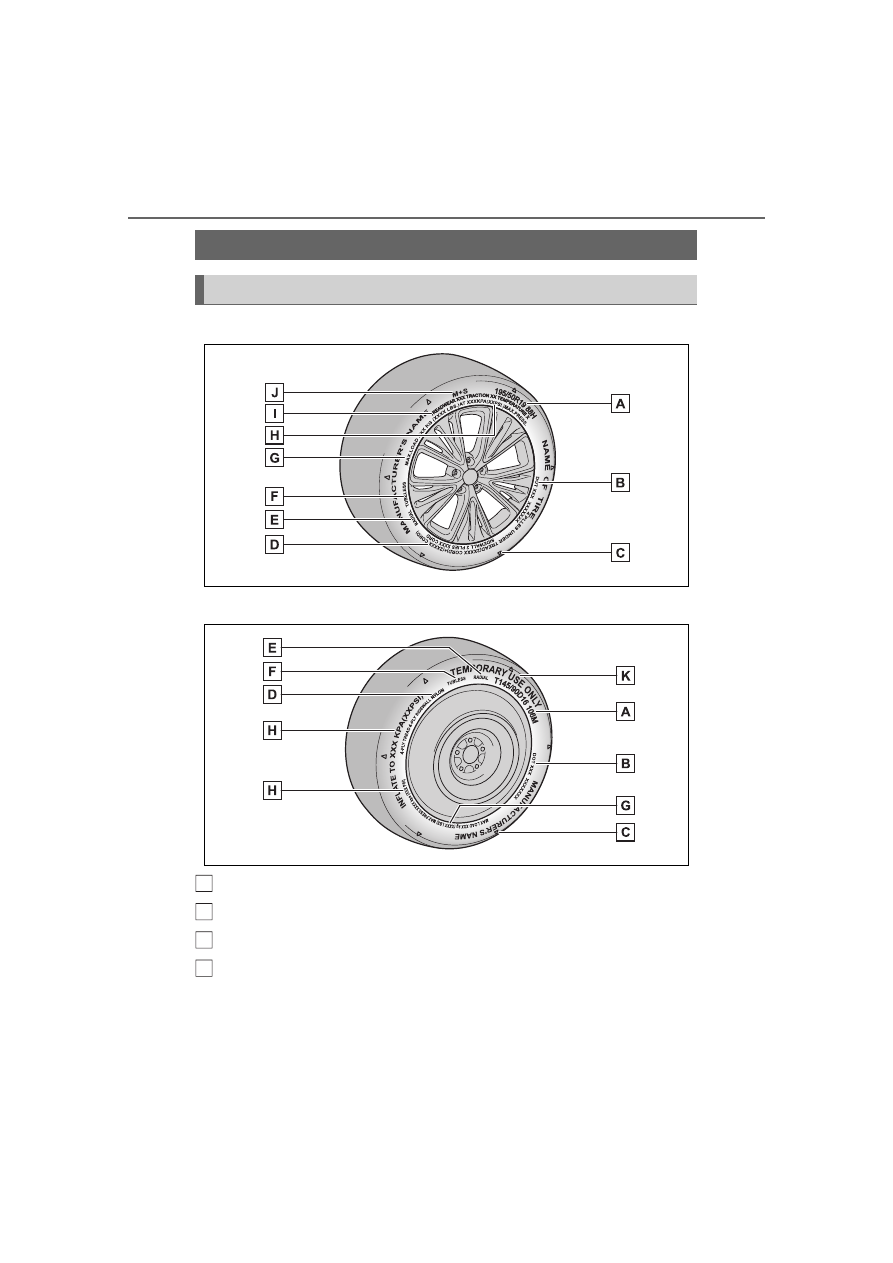

Typical tire symbols

531

8-1. Specifications

Vehicle

specifications

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a
bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.

Load limit at maximum cold tire inflation pressure (



P.534)

Maximum cold tire inflation pressure (



P.534)

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Summer tires or all season tires (



P.426)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a
summer tire.

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE ONLY”
molded on its sidewall. This tire is designed for temporary emergency use
only.



Type A

DOT symbol

Tire Identification Number
(TIN)

Tire manufacturer’s identifi-
cation mark

Tire size code

Manufacturer’s optional tire
type code (3 or 4 letters)

Manufacturing week

Manufacturing year

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

Typical DOT and Tire
Identification Number
(TIN)

532

8-1. Specifications



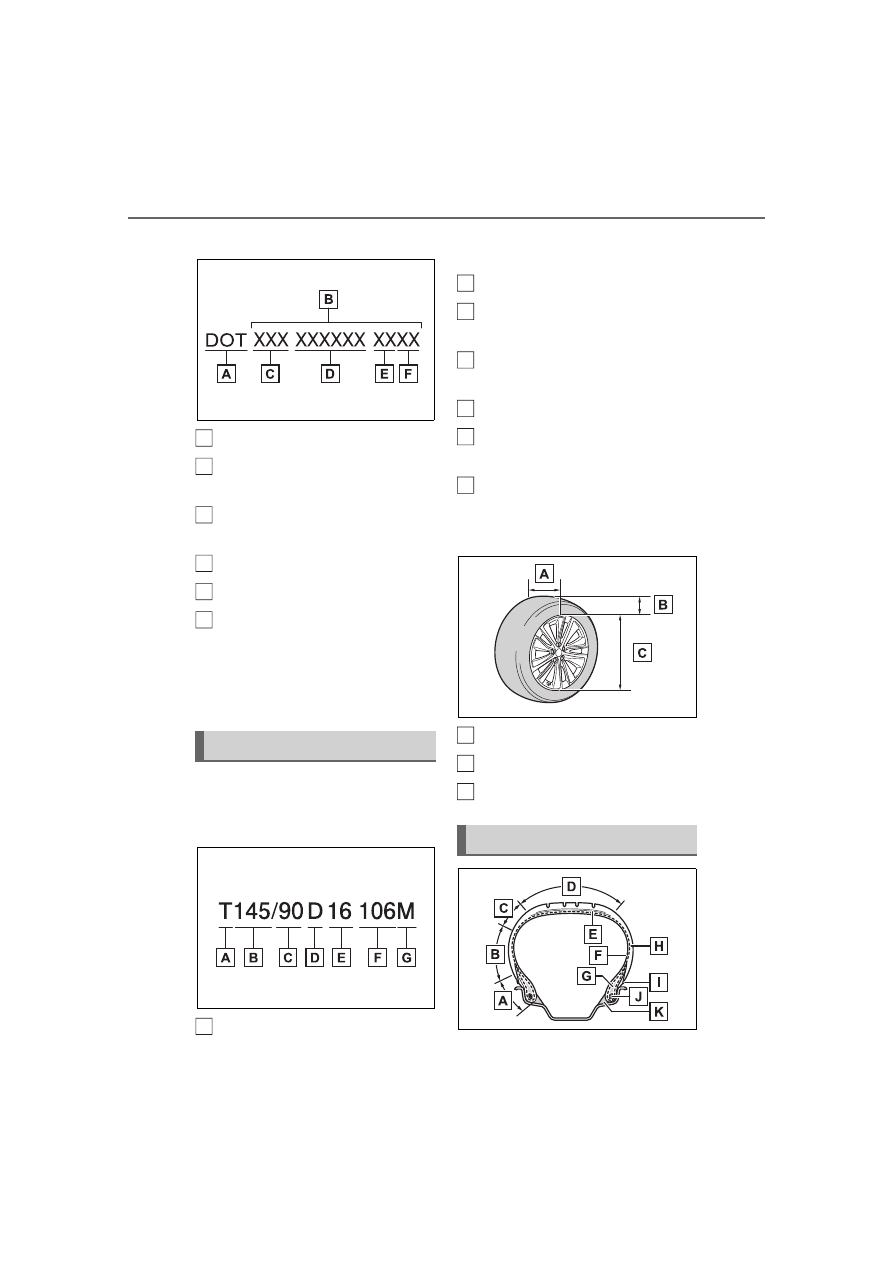

Type B

DOT symbol

Tire Identification Number
(TIN)

Tire manufacturer’s identifi-
cation mark

Manufacturer’s code

Manufacturing week

Manufacturing year

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

■

Typical tire size information

The illustration indicates typical
tire size.

Tire use

(P = Passenger car,
T = Temporary use)

Section width (millimeters)

Aspect ratio
(tire height to section width)

Tire construction code
(R = Radial, D = Diagonal)

Wheel diameter (inches)

Load index (2 digits or 3 dig-
its)

Speed symbol (alphabet with
one letter)

■

Tire dimensions

Section width

Tire height

Wheel diameter

Tire size

Tire section names

533

8-1. Specifications

Vehicle

specifications

Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

This information has been pre-
pared in accordance with regu-
lations issued by the National
Highway Traffic Safety Adminis-
tration of the U.S. Department of
Transportation.

It provides the purchasers
and/or prospective purchasers
of Toyota vehicles with informa-
tion on uniform tire quality grad-
ing.

Your Toyota dealer will help answer
any questions you may have as you
read this information.

■

DOT quality grades

All passenger vehicle tires must
conform to Federal Safety
Requirements in addition to
these grades. Quality grades
can be found where applicable

on the tire sidewall between
tread shoulder and maximum
section width.

For example: Treadwear 200 Trac-
tion AA Temperature A

■

Treadwear

The treadwear grade is a com-
parative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test
course.

For example, a tire graded 150
would wear one and a half (1 - 1/2)
times as well on the government
course as a tire graded 100.

The relative performance of tires
depends upon the actual conditions
of their use. Performance may dif-
fer significantly from the norm due
to variations in driving habits, ser-
vice practices and differences in
road characteristics and climate.

■

Traction AA, A, B, C

The traction grades, from high-
est to lowest, are AA, A, B and
C, and they represent the tire’s
ability to stop on wet pavement
as measured under controlled
conditions on specified govern-
ment test surfaces of asphalt
and concrete.

A tire marked C may have poor
traction performance.

Warning: The traction grade
assigned to this tire is based on
braking (straight ahead) traction
tests and does not include corner-
ing (turning) traction.

Uniform Tire Quality
Grading

534

8-1. Specifications

■

Temperature A, B, C

The temperature grades are A
(the highest), B, and C, repre-
senting the tire’s resistance to
the generation of heat and its
ability to dissipate heat when
tested under controlled condi-
tions on a specified indoor labo-
ratory test wheel.

Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure.

Grade C corresponds to a level of

performance which all passenger
car tires must meet under the Fed-
eral Motor Vehicle Safety Standard
No. 109.

Grades B and A represent higher
levels of performance on the labo-
ratory test wheel than the minimum
required by law.

Warning: The temperature grades
of a tire assume that it is properly
inflated and not overloaded.

Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can cause
heat buildup and possible tire fail-
ure.

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation pres-
sure

Tire pressure when the vehicle has been parked
for three hours or more, or has not been driven
more than 1 mile or 1.5 km under that condition

Maximum inflation pres-
sure

The maximum cold inflated pressure to which a
tire may be inflated, shown on the sidewall of
the tire

Recommended inflation
pressure

Cold tire inflation pressure recommended by a
manufacturer

Accessory weight

The combined weight (in excess of those stan-
dard items which may be replaced) of hybrid
transmission, power steering, power brakes,
power windows, power seats, radio and heater,
to the extent that these items are available as
factory-installed equipment (whether installed or
not)

Curb weight

The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air con-
ditioning and additional weight optional engine

535

8-1. Specifications

Vehicle

specifications

Maximum loaded vehicle
weight

The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

Normal occupant weight

150 lb. (68 kg) times the number of occupants

specified in the second column of Table 1

that

follows

Occupant distribution

Distribution of occupants in a vehicle as speci-

fied in the third column of Table 1

below

Production options weight

The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim

Rim

A metal support for a tire or a tire and tube
assembly upon which the tire beads are seated

Rim diameter
(Wheel diameter)

Nominal diameter of the bead seat

Rim size designation

Rim diameter and width

Rim type designation

The industry manufacturer’s designation for a
rim by style or code

Rim width

Nominal distance between rim flanges

Vehicle capacity weight
(Total load capacity)

The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity

Vehicle maximum load on
the tire

The load on an individual tire that is determined
by distributing to each axle its share of the max-
imum loaded vehicle weight, and dividing by two

Vehicle normal load on
the tire

The load on an individual tire that is determined
by distributing to each axle its share of curb
weight, accessory weight, and normal occupant

weight (distributed in accordance with Table 1

below), and dividing by two

Tire related term

Meaning

536

8-1. Specifications

Weather side

The surface area of the rim not covered by the
inflated tire

Bead

The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim

Bead separation

A breakdown of the bond between components
in the bead

Bias ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at alternate angles
substantially less than 90 degrees to the center-
line of the tread

Carcass

The tire structure, except tread and sidewall
rubber which, when inflated, bears the load

Chunking

The breaking away of pieces of the tread or
sidewall

Cord

The strands forming the plies in the tire

Cord separation

The parting of cords from adjacent rubber com-
pounds

Cracking

Any parting within the tread, sidewall, or inner-
liner of the tire extending to cord material

A pneumatic tire with an inverted flange tire and
rim system in which the rim is designed with rim
flanges pointed radially inward and the tire is
designed to fit on the underside of the rim in a
manner that encloses the rim flanges inside the
air cavity of the tire

Extra load tire

A tire designed to operate at higher loads and at
higher inflation pressures than the correspond-
ing standard tire

Groove

The space between two adjacent tread ribs

Innerliner

The layer(s) forming the inside surface of a
tubeless tire that contains the inflating medium
within the tire

Innerliner separation

The parting of the innerliner from cord material
in the carcass

Tire related term

Meaning

537

8-1. Specifications

Vehicle

specifications

Intended outboard side-
wall

(a)The sidewall that contains a whitewall, bears
white lettering, or bears manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other
sidewall of the tire, or

(b)The outward facing sidewall of an asymmetri-
cal tire that has a particular side that must
always face outward when mounted on a vehi-
cle

Light truck (LT) tire

A tire designated by its manufacturer as primar-
ily intended for use on lightweight trucks or mul-
tipurpose passenger vehicles

Load rating

The maximum load that a tire is rated to carry
for a given inflation pressure

Maximum load rating

The load rating for a tire at the maximum per-
missible inflation pressure for that tire

Maximum permissible
inflation pressure

The maximum cold inflation pressure to which a
tire may be inflated

Measuring rim

The rim on which a tire is fitted for physical
dimension requirements

Open splice

Any parting at any junction of tread, sidewall, or
innerliner that extends to cord material

Outer diameter

The overall diameter of an inflated new tire

Overall width

The linear distance between the exteriors of the
sidewalls of an inflated tire, including elevations
due to labeling, decorations, or protective bands
or ribs

Passenger car tire

A tire intended for use on passenger cars, multi-
purpose passenger vehicles, and trucks, that
have a gross vehicle weight rating (GVWR) of
10,000 lb. or less.

Ply

A layer of rubber-coated parallel cords

Ply separation

A parting of rubber compound between adjacent
plies

Tire related term

Meaning

538

8-1. Specifications

Pneumatic tire

A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load

Radial ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread

Reinforced tire

A tire designed to operate at higher loads and at
higher inflation pressures than the correspond-
ing standard tire

Section width

The linear distance between the exteriors of the
sidewalls of an inflated tire, excluding elevations
due to labeling, decoration, or protective bands

Sidewall

That portion of a tire between the tread and
bead

Sidewall separation

The parting of the rubber compound from the
cord material in the sidewall

Snow tire

A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when using
the snow traction test as described in ASTM F-
1805-00, Standard Test Method for Single
Wheel Driving Traction in a Straight Line on
Snow-and Ice-Covered Surfaces, and which is

marked with an Alpine Symbol (

) on at least

one sidewall

Test rim

The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire

Tread

That portion of a tire that comes into contact
with the road

Tread rib

A tread section running circumferentially around
a tire

Tread separation

Pulling away of the tread from the tire carcass

Tire related term

Meaning

539

8-1. Specifications

Vehicle

specifications

: Table 1



Occupant loading and distribution for vehicle normal load for

various designated seating capacities

Treadwear indicators
(TWI)

The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread

Wheel-holding fixture

The fixture used to hold the wheel and tire
assembly securely during testing

Designated seating

capacity, Number of

occupants

Vehicle normal load,

Number of occupants

Occupant distribution in

a normally loaded vehi-

cle

2 through 4

2 in front

5 through 10

2 in front, 1 in second

seat

11 through 15

2 in front, 1 in second

seat, 1 in third seat, 1 in

fourth seat

16 through 20

2 in front, 2 in second

seat, 2 in third seat, 1 in

fourth seat

Tire related term

Meaning

540

8-2. Customization

8-2.Customization

■

Changing by using the Mul-

timedia Display



Except for Advanced Park

Select on the main menu.

Select “Vehicle customize”

on the sub menu.

Select the item to change the

settings of from the list.

Various setting can be changed.

Refer to the list of settings that can

be changed for details.
For functions that can be turned
on/off, select

(ON)/

(OFF).



For Advanced Park (if

equipped)

Press the Advanced Park

main switch.

Select on the Multimedia

Display, and then select

“Advanced Park”.

■

Changing by using the

multi-information display

Use the meter control switches

to change settings. (



P.92)

Operate the meter control
switch to select . (



P.96)

Operate the meter control

switches to select the desired

item to be customized.

According to the display,

select the desired setting.

To go back to the previous screen

or exit the customize mode, press

■

During customization

Stop the vehicle in a safe place,

apply the parking brake, and shift

the shift position to P. Also, to pre-

vent 12-volt battery discharge, leave

the hybrid system operating while

customizing the features.

Customizable features

Your vehicle includes a vari-

ety of electronic features

that can be personalized to

your preferences. The set-

tings of these features can

be changed by using the

multi-information display,

the Multimedia Display or at

your Toyota dealer.
Some of the customizable

features are changed in

conjunction with the set-

tings of My Settings.

(



P.163)

Customizing vehicle fea-

tures

WARNING

■

During customization

As the hybrid system needs to be

operating during customization,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

541

8-2. Customization

Vehicle

specifications

Some function settings are changed simultaneously with other func-

tions being customized. Contact your Toyota dealer for further

details.

Settings that can be changed using the Multimedia Display
Settings that can be changed using the multi-information display
Settings that can be changed by your Toyota dealer

Definition of symbols: O = Available,



= Not available

■

Gauges, meters and multi-information display (



P.87, 92)

NOTICE

■

During customization

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while custom-

izing features.

Customizable features

Function

Default setting

Customized

setting

Language

English

Canadian

French



Mexican Span-

ish

Units

miles (MPG

US)

km (km/L)



km (L/100 km)

Hybrid System Indicator

Off



EV indicator

Off



Eco Guidance (ECO
Accelerator Guidance)

Off



Fuel Economy

Total Average

Trip Average



Tank Average

Audio system linked dis-
play

Off



AWD system display

*2, 5

Off



A
B
C

542

8-2. Customization

: For details about each function:



P.96

: The default setting is changed in conjunction with the settings of My Set-

tings.

: The setting can be changed on “General” of

: The default setting varies according to country.

: AWD models

: The setting can be changed on “Notifications” of

■

Door lock (



P.113, 506)

Drive information type

Trip

Total



Drive information items

(first item)

Distance

Average Speed



Total Time

Drive information items

(second item)

Total Time

Average Speed



Distance

Pop-up display

Off



Default settings



Convenience Services

(Suggestion function)

On (when the

vehicle is

stopped)



Off

Function

Default setting

Customized

setting

Unlocking using a
mechanical key

Driver’s door

unlocked in one

step, all doors

unlocked in two

step

All doors

unlocked in one

step

 

Automatic door locking

function

Shift position

linked door

locking opera-

tion

Off



Speed linked

door locking

operation

Function

Default setting

Customized

setting

543

8-2. Customization

Vehicle

specifications

: The default setting is changed in conjunction with the settings of My Set-

tings.

■

Rear seat reminder (



P.116)

: The default setting is changed in conjunction with the settings of My Set-

tings.

■

Smart key system and wireless remote control (



P.113, 119,

131)

: The default setting is changed in conjunction with the settings of My Set-

tings.

Automatic door unlocking

function

Shift position

linked door

unlocking oper-

ation

Off



Driver’s door

linked door

unlocking oper-

ation

Function

Default setting

Customized

setting

Rear seat reminder func-

tion

Off



Function

Default setting

Customized

setting

Operating signal (Buzz-

ers)

Standard

Desired volume



Operation signal (Emer-

gency flashers)

Off



Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being

unlocked

60 seconds

Off



30 seconds

120 seconds

Open door warning
buzzer (When locking the
vehicle)

Off

 

Function

Default setting

Customized

setting

544

8-2. Customization

■

Smart key system (



P.113, 119, 131)

: The default setting is changed in conjunction with the settings of My Set-

tings.

: This setting can be changed when the smart door unlocking setting is set

to Driver’s door.

■

Wireless remote control (



P.108, 113, 119)

: The default setting is changed in conjunction with the settings of My Set-

tings.

Function

Default setting

Customized

setting

Smart door unlocking

Driver’s door

All the doors



Smart key system

Off

 

Time elapsed before
unlocking all the door
when gripping and holding

the driver’s door handle

2 seconds

Off

 

1.5 seconds

2.5 seconds

Number of consecutive
door lock operations

2 times

As many as

desired

 

Power switch illumination

Off

 

Function

Default setting

Customized

setting

Unlocking operation

Driver’s door

unlocked in one

step, all doors

unlocked in two

step

All doors

unlocked in one

step



Locking operation when

door opened

Off



The function that activates

the

switch of the

wireless remote control
when locking the door
(



P.122)

On (Unlocking

all the door)

Off

 

On (Unlocking

back door only)

Theft deterrent panic
mode

Off

 

Toyota Prius (2024 year). Manual in english - page 17
